Free Play and High Score Save Kits
Free Play and High Score Save Kits for Classic Arcade Games
Since 2015, HighScoreSaves has developed and supported 121 HighScoreSaves Free Play and High Score Save Kits for original arcade PCB hardware, along with installation resources and support for additional Braze Technologies High Score Save Kits. Our kits are engineered to preserve authentic gameplay, timing, sound, and original arcade PCB behavior while adding modern functionality designed for long-term reliability and permanent high score retention.
Each kit adds modern arcade features such as permanent high score retention, free play operation, attract mode enhancements, menu-driven settings, and optional Wi-Fi leaderboard support—without gameplay changes, permanent cabinet modification, or replacement hardware.
Select kits also support optional Wi-Fi online leaderboards through the hss.arcadehighscores.com global arcade score network.
This category serves as the central hub for supported arcade hardware families including Nintendo Donkey Kong, Donkey Kong Jr, Donkey Kong 3, enhanced multigame systems, and compatible arcade PCB platforms.
Donkey Kong Arcade Hardware Coverage
Browse compatible Free Play and High Score Save Kits for the complete Nintendo Donkey Kong arcade hardware platform, including official releases, enhanced editions, and multigame arcade PCB conversions.
Donkey Kong | Donkey Kong Jr | Donkey Kong 3 | Donkey Kong Rearranged (3DK) | Donkey Kong Rearranged (3DKJr) | Donkey Kong D2K | Donkey Kong Remix | Donkey Kong Jr Remix | Crazy Kong | Crazy Kong Remix
Whether you are restoring a dedicated arcade cabinet, upgrading a tournament setup, or preserving high scores on original hardware, these kits provide reliable, plug-in arcade PCB upgrade solutions trusted by collectors, arcade operators, competitive players, and restoration enthusiasts worldwide.
12K VRAM Upgrade for Star Wars | Empire Strikes Back
Star Wars / Empire Strikes Back 12K VRAM Upgrade The Star Wars / Empire Strikes Back 12K VRAM Upgrade is a reliable, plug-and-play solution that replaces the six 2K × 8 VRAM SRAM chips on your Atari Star Wars vector PCB. This modern upgrade reduces failure points, improves long-term reliability, and keeps your classic game running smoothly for years to come. Features · Compatibility · Installation Notes · FAQ Key Features Drop-in module replaces six 2K×8 VRAM SRAMs (12K total). Plug-and-play on socketed boards—no ROM or wiring changes. Modern components improve stability and longevity. Reduces heat and common failure points in the VRAM section. Compatibility Atari Star Wars (1983) and The Empire Strikes Back (1985) vector arcade PCBs/cabinets using the standard 12K VRAM section. Installation Notes Power off and discharge the cabinet before service; observe ESD precautions. Align the module with the VRAM positions and press firmly into the sockets. No soldering required if your original VRAM chips are socketed; if not, sockets must be installed by a qualified technician. FAQ Do I need to modify the board? No. On socketed boards the module drops in—no wiring or ROM changes. Will this change gameplay or graphics? No. It’s a reliability upgrade only; gameplay and timing remain original. What issues does this address? Replaces six aging VRAM chips that commonly cause intermittent video faults, instability, or no-boot conditions.
1942 Arcade Free Play and High Score Save Kit PCB Upgrade
1942 Free Play and High Score Save Kit for Capcom Arcade PCB Upgrade your original Capcom 1942 arcade PCB with reliable free play, high score saving, and optional Wi-Fi leaderboard support while preserving authentic gameplay and original arcade hardware. Designed specifically for original Capcom hardware, this plug and play upgrade improves long-term reliability without changing gameplay, timing, sound, or the classic arcade experience collectors expect. Original Arcade Hardware • No Emulation • No Gameplay Changes • Designed for Authentic Arcade PCBs View Install Guide Free Play Play without coins while retaining optional coin operation. High Score Saving Battery-free EEPROM storage retains scores after power off. Optional Wi-Fi Upload scores online to global arcade leaderboards. Original Hardware Designed for authentic Capcom arcade PCB gameplay. Upgrade Your 1942 Arcade Experience Restore and enhance your original 1942 arcade machine with a professionally designed Free Play and High Score Save Kit built specifically for authentic Capcom arcade hardware. Original boards often lose high scores, rely on aging components, or require repeated maintenance. This upgrade modernizes your PCB while preserving the original gameplay, sound, timing, and arcade feel that made 1942 a classic vertical shooter. Unlike multigame systems or replacement hardware, this kit keeps your original arcade PCB intact while improving long-term reliability for collectors, operators, and restoration projects. Included Features Free Play Mode: No coins required with optional coin operation support High Score Saving: EEPROM score retention with no batteries required Top Score Tracking: Displays Top 5 and saves Top 25 scores Menu Settings: Configure game options without opening the cabinet Attract Mode Protection: Helps reduce screen burn during attract mode Backup and Restore: Save and reload score data Multiple Score Tables: Different score tables based on lives selection God Mode: Practice mode with unlimited lives (scores not saved) ROM Saver: Reduce power usage by removing original ROMs Cabinet Compatibility: Supports Upright and Cocktail cabinets Installation Information Installation Difficulty: Easy Average Install Time: Approximately 10–20 minutes Soldering Required: No Z80 CPU Must Be Socketed: Install a 40-pin socket if needed Cabinet Compatibility: Upright and Cocktail Installation Guide: Download PDF Installation Guide Optional Wi-Fi Features and Online Leaderboards Learn About Wi-Fi Enabled Kits Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network. Standard kits save scores locally to the PCB, while Wi-Fi kits add automatic online score syncing through the HighScoreSaves global leaderboard platform. All Global Arcade High Scores 1942 Free Play and High Score Save Kit FAQ Is the 1942 Free Play and High Score Save Kit plug and play? Yes. No soldering is required. The Z80 CPU must be socketed. How many high scores are saved? The kit displays the Top 5 scores and stores up to 25 scores. What is the difference between Wi-Fi and Standard kits? Wi-Fi kits upload scores online to global leaderboards. Standard kits save scores locally only. What is God Mode? God Mode is a practice mode with unlimited lives. Scores are not saved while active. Where can I download the installation guide? Download the 1942 Installation Guide PDF Designed and supported by HighScoreSaves for arcade collectors, restorers, and original hardware enthusiasts. Resources 1. 1942 Installation Guide PDF 2. Setup Tips and Configuration Guide 3. HighScoreSaves YouTube Channel 4. HighScoreSaves Facebook Page 5. HighScoreSaves eBay Store
1943 Arcade Free Play and High Score Save Kit PCB Upgrade
1943 Free Play and High Score Save Kit for Capcom Arcade PCB Upgrade your original Capcom 1943 arcade PCB with reliable free play, high score saving, and optional Wi-Fi leaderboard support while preserving authentic gameplay and original arcade hardware. Designed specifically for original Capcom hardware, this plug and play upgrade improves long-term reliability without changing gameplay, timing, sound, or the classic arcade experience collectors expect. Original Arcade Hardware • No Emulation • No Gameplay Changes • Designed for Authentic Arcade PCBs View Install Guide Free Play Play without coins while retaining optional coin operation. High Score Saving Battery-free EEPROM storage retains scores after power off. Optional Wi-Fi Upload scores online to global arcade leaderboards. Original Hardware Designed for authentic Capcom arcade PCB gameplay. Upgrade Your 1943 Arcade Experience Restore and enhance your original 1943 arcade machine with a professionally designed Free Play and High Score Save Kit built specifically for authentic Capcom arcade hardware. Original boards often lose high scores, suffer from unstable resets, or rely on aging components. This upgrade modernizes your PCB while preserving the original gameplay, sound, timing, and arcade feel that made 1943 one of Capcom’s most iconic vertical shooters. Unlike multigame systems or replacement hardware, this kit keeps your original arcade PCB intact while improving long-term reliability for collectors, operators, and restoration projects. Included Features Free Play Mode: No coins required with optional coin operation support High Score Saving: EEPROM storage with no batteries required Top Score Tracking: Displays Top 5 scores and saves up to Top 25 Wi-Fi Support: Upload scores to online global leaderboards (optional) Menu Settings: Configure game options without opening the cabinet Attract Mode Protection: Helps reduce screen burn during attract mode Backup and Restore: Save and reload high score data Multiple Score Tables: Based on difficulty selected God Mode: Practice mode with unlimited lives (scores not saved) ROM Saver: Reduce power usage by removing original ROMs Cabinet Compatibility: Supports Upright and Cocktail cabinets Installation Information Installation Difficulty: Easy Soldering Required: No Socketed Z80 Required: Install a 40-pin socket if needed Cabinet Compatibility: Upright and Cocktail Installation Guide: Download PDF Installation Guide Optional Wi-Fi Features and Online Leaderboards Learn About Wi-Fi Enabled Kits Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network. Standard kits save scores locally to the PCB, while Wi-Fi kits add automatic online score syncing through the HighScoreSaves global leaderboard platform. All Global Arcade High Scores 1943 Free Play and High Score Save Kit FAQ Is the 1943 Free Play and High Score Save Kit plug and play? Yes. No soldering or board modifications are required. Your Z80 must be socketed. How many high scores does the 1943 save kit store? The kit displays the Top 5 scores on screen and stores up to 25 total high scores. What is the difference between Wi-Fi and Standard kits? Wi-Fi kits upload scores to online leaderboards and allow global tracking. Standard kits store scores locally only. What is God Mode in the 1943 save kit? God Mode allows unlimited play for practice sessions. Scores are not saved while using this mode. Where can I download the 1943 installation guide? Download the 1943 Free Play and High Score Save Kit Installation Guide Designed and supported by HighScoreSaves for arcade collectors, restorers, and original hardware enthusiasts. Resources 1. 1943 Free Play and High Score Save Kit Installation Guide PDF 2. Setup Tips and Configuration Guide 3. HighScoreSaves YouTube Channel 4. HighScoreSaves Facebook Page 5. HighScoreSaves eBay Store
6100 Monitor Low Voltage Section Regulator Upgrade
6100 Deflection Board LV Section Replacement Module The 6100 Deflection Board LV Section Replacement Module is designed to replace the unreliable low-voltage (LV) section found on the Atari 6100 vector monitor deflection board. This upgrade eliminates several common failure points that can cause instability, monitor shutdown, or inconsistent operation. Over time, the original low-voltage circuitry on the 6100 deflection board can become unreliable due to aging components, heat stress, and repeated power cycling. This replacement module modernizes that section of the circuit and provides improved reliability while maintaining proper monitor operation. Once installed, the module restores stable low-voltage regulation for the deflection board, helping ensure your vector monitor operates correctly in classic arcade machines such as Tempest, Star Wars, Major Havoc, Quantum, and other Atari vector cabinets that use the 6100 monitor. Key Features Replaces the original low-voltage section of the Atari 6100 deflection board Eliminates common LV circuit failure points Improves long-term reliability of the vector monitor Helps stabilize monitor operation and voltage regulation Designed for arcade restoration and repair work Compatibility Designed for use with the Atari 6100 vector monitor commonly found in classic arcade machines such as Tempest, Star Wars, Major Havoc, Quantum, and other Atari vector titles. Installation Notes Soldering and de-soldering are required for installation. The module installs directly onto the 6100 deflection board as shown in the gallery images. Installation should be performed by someone experienced with arcade PCB repair. This upgrade is an excellent solution for arcade collectors and technicians restoring original Atari vector monitors who want improved reliability without replacing the entire deflection board.
Amidar Arcade Free Play and High Score Save Kit PCB Upgrade
Amidar Free Play and High Score Save Kit for Konami Arcade PCB Upgrade your original Konami Amidar arcade PCB with reliable free play, high score saving, attract mode enhancements, and optional Wi-Fi leaderboard support while preserving authentic gameplay and original arcade hardware. Designed specifically for original Konami hardware, this plug and play upgrade improves long-term reliability without changing gameplay, timing, sound, or the classic arcade experience collectors expect. Original Arcade Hardware • No Emulation • No Gameplay Changes • Designed for Authentic Arcade PCBs View Install Guide Free Play Play without coins while retaining optional coin operation. High Score Saving Reliable serial EPROM storage with no batteries required. Optional Wi-Fi Upload scores online to global arcade leaderboards. Original Hardware Designed for authentic Konami arcade PCB gameplay. Upgrade Your Amidar Arcade Experience Restore and enhance your original Amidar arcade machine with a professionally designed Free Play and High Score Save Kit built specifically for authentic Konami arcade hardware. Original boards often lose high scores, rely on aging components, or suffer from unstable resets. This upgrade modernizes your PCB while preserving the original gameplay, sound, timing, and arcade feel that made Amidar a classic maze-action arcade game. Unlike multigame systems or reproduction boards, this kit keeps your original arcade PCB intact while improving long-term reliability for collectors, operators, and restoration projects. Included Features Easy Installation: No soldering, board modifications, or complex wiring required Permanent Score Saving: Reliable serial EPROM storage with no batteries required High Score Tracking: Saves Top 10 scores with multiple score tables based on lives selected Attract Sounds: Adjustable attract audio frequency options Free Play Mode: Coin-free operation with optional coin support Attract Mode Protection: Helps reduce screen burn from static screens Menu-Driven DIP Settings: Configure game settings without opening the cabinet ROM Saver: Optionally remove original program ROMs to reduce power usage Cabinet Compatibility: Supports Upright and Cocktail cabinets Backup and Restore: Save and reload high scores before or after events God Mode: Practice endlessly with unlimited lives (scores not saved) Installation Information Installation Difficulty: Easy Soldering Required: No Socketed Z80 Required: Install a 40-pin socket if needed Cabinet Compatibility: Upright and Cocktail Installation Guide: Download PDF Installation Guide Optional Wi-Fi Features and Online Leaderboards Learn About Wi-Fi Enabled Kits Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network. Standard kits save scores locally to the PCB, while Wi-Fi kits add automatic online score syncing through the HighScoreSaves global leaderboard platform. All Global Arcade High Scores Amidar Free Play and High Score Save Kit FAQ How many scores are saved? The kit saves the Top 10 scores with multiple score tables depending on lives selected. What is the difference between Wi-Fi and Standard kits? Wi-Fi kits upload scores online and sync to your personal page. Standard kits save scores locally only. Is installation truly plug and play? Yes. No soldering or board modifications are required. Ensure your Z80 is socketed or add a 40-pin socket. What is God Mode? God Mode allows endless practice without losing lives. Scores are not saved in this mode. Where can I download the Installation Guide? Download the Amidar Installation Guide PDF Designed and supported by HighScoreSaves for arcade collectors, restorers, and original hardware enthusiasts. Resources 1. Amidar Installation Guide PDF 2. Setup Tips and Configuration Guide 3. HighScoreSaves YouTube Channel 4. HighScoreSaves Facebook Page 5. HighScoreSaves eBay Store
Amplifone Color XY 19-Inch Arcade Monitor Mounting Bracket Set
19-Inch Amplifone Arcade Monitor Bracket Set – Reproduction The 19-Inch Amplifone Monitor Bracket Set is a precision reproduction designed for arcade cabinet restorations. These brackets provide strong support and accurate alignment for Amplifone vector monitor assemblies, helping ensure reliable performance in your classic arcade machine. Ideal for collectors, restorers, and arcade enthusiasts seeking authentic fit and function. Key Features Reproduction of the original 19-inch Amplifone monitor brackets Precision-cut construction for proper fit and long-term stability Durable materials for dependable, long-lasting use Compatible with titles such as Star Wars, Major Havoc, and other vector cabinets using Amplifone monitors Includes complete left and right bracket set for straightforward installation Why This Bracket Set? Using the correct bracket system secures your Amplifone monitor safely while protecting cabinet integrity and delivering authentic arcade performance. Whether restoring a classic machine or replacing worn hardware, this bracket set provides the strength and accuracy required for reliable installation. Compatibility Designed specifically for 19-inch Amplifone vector monitor assemblies commonly found in arcade machines such as Star Wars (Atari), Major Havoc, and other cabinets originally shipped with Amplifone vector monitors. Included in the Set One pair of monitor brackets (left and right) Factory-spec mounting holes for accurate installation
Arabian Arcade Free Play and High Score Save Kit PCB Upgrade
Arabian Free Play and High Score Save Kit for Original Arcade PCB Upgrade your original Arabian arcade PCB with reliable free play, high score saving, attract mode enhancements, and optional Wi-Fi leaderboard support while preserving authentic gameplay and original arcade hardware. Designed specifically for original Arabian arcade hardware, this plug and play upgrade improves long-term reliability without changing gameplay, timing, sound, or the classic arcade experience collectors expect. Original Arcade Hardware • No Emulation • No Gameplay Changes • Designed for Authentic Arcade PCBs View Install Guide Free Play Play without coins while retaining optional coin operation. High Score Saving Reliable serial EPROM storage with no batteries required. Optional Wi-Fi Upload scores online to global arcade leaderboards. Original Hardware Designed for authentic Arabian arcade PCB gameplay. Upgrade Your Arabian Arcade Experience Restore and enhance your original Arabian arcade machine with a professionally designed Free Play and High Score Save Kit built specifically for authentic arcade hardware. Original boards often lose high scores, rely on aging components, or suffer from unstable resets. This upgrade modernizes your PCB while preserving the original gameplay, sound, timing, and arcade feel that made Arabian a memorable classic arcade game. Unlike multigame systems or reproduction boards, this kit keeps your original arcade PCB intact while improving long-term reliability for collectors, operators, and restoration projects. Included Features Easy Installation: No soldering, board modifications, or special wiring required Permanent Score Saving: Reliable serial EPROM storage with no batteries required High Score Tracking: Saves the Top 10 scores using 1 dedicated score table Attract Sounds: Adjustable attract audio frequency options Free Play Mode: Coin-free operation with optional coin support Attract Mode Protection: Helps reduce screen burn from static screens Menu-Driven DIP Settings: Configure game settings without opening the cabinet ROM Saver: Optionally remove original program ROMs to reduce power usage Cabinet Compatibility: Supports Upright and Cocktail cabinets Backup and Restore: Save and reload high scores before and after events Flip Screen: Instantly corrects screen orientation Installation Information Installation Difficulty: Easy Soldering Required: No Socketed Z80 Required: Install a 40-pin socket if needed Cabinet Compatibility: Upright and Cocktail Installation Guide: Download PDF Installation Guide Optional Wi-Fi Features and Online Leaderboards Learn About Wi-Fi Enabled Kits Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network. Standard kits save scores locally to the PCB, while Wi-Fi kits add automatic online score syncing through the HighScoreSaves global leaderboard platform. View Global Arcade High Scores Arabian Free Play and High Score Save Kit FAQ How many scores are saved? This kit saves the Top 10 scores using one dedicated score table. Does it support screen flipping? Yes. The Flip Screen feature lets you instantly correct screen orientation. What is the difference between Wi-Fi and Standard kits? Wi-Fi kits upload scores online and sync to your personal page. Standard kits save locally only. Is installation truly plug-and-play? Yes. No soldering or board modifications are required. Ensure your Z80 is socketed or add a 40-pin socket. Where can I download the Installation Guide? Download the Arabian Installation Guide PDF Designed and supported by HighScoreSaves for arcade collectors, restorers, and original hardware enthusiasts. Resources 1. Arabian Installation Guide PDF 2. Setup Tips and Configuration Guide 3. HighScoreSaves YouTube Channel 4. HighScoreSaves Facebook Page 5. HighScoreSaves eBay Store
Arkanoid Multigame Free Play and High Score Save Kit
Arkanoid Multigame Free Play and High Score Save Kit for Taito Arcade PCBs Upgrade your original Arkanoid arcade PCB with reliable free play, permanent high score saving, attract sounds, optional Wi-Fi leaderboard support, and multigame functionality while preserving authentic gameplay and original arcade hardware. Designed specifically for original Taito hardware, this plug and play multigame upgrade improves long-term reliability without changing gameplay timing, controls, sound, or the classic paddle gameplay collectors expect. Games Included: Arkanoid • Arkanoid Tournament Original Arcade Hardware • No Emulation • No Gameplay Changes • Designed for Authentic Arcade PCBs View Installation Guide Multigame Support Switch between Arkanoid and Arkanoid Tournament on original hardware. Top 5 High Scores Saves separate Top 5 score tables for each game. Attract Sounds Selectable attract music and sound effects during attract mode. Optional Wi-Fi Upload scores online to global arcade leaderboards. Upgrade Your Arkanoid Arcade Experience Restore and enhance your original Arkanoid arcade machine with a professionally designed multigame Free Play and High Score Save Kit built specifically for authentic Taito arcade hardware. Original boards often lose scores, rely on aging components, or suffer from unstable resets. This upgrade modernizes your PCB while preserving the original gameplay, controls, timing, and iconic paddle-and-ball gameplay that made Arkanoid one of the most recognizable arcade classics. Unlike emulation or multicade systems, this kit preserves authentic arcade hardware behavior while adding modern conveniences like score saving, free play, attract sounds, and optional online leaderboard support. Hardware Compatibility Original Hardware: Designed for original Taito Arkanoid arcade PCBs Processor Requirement: Requires a socketed Z80 processor Cabinet Compatibility: Works in Upright and Cocktail cabinets Display Support: Supports Flip Screen functionality for alternate cabinet orientations Customize Your Arkanoid Multigame Kit Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit. Optional processor and socket upgrades are also available to simplify installation on original hardware. Main Features Easy Install: No soldering or board modifications required Permanent High Score Saving: Reliable serial EEPROM storage with no batteries or failure-prone NVRAM High Score Tracking: Saves Top 5 scores per game with separate score tables based on lives selected Attract Sounds: Selectable music and sound effects during attract screen rotations Free Play: Play without coins while still supporting traditional coin operation Continue Mode: Continue gameplay in coin mode (not available in Free Play) Coin Up Support: Full support for traditional coin operation Screen Burn Protection: Helps minimize CRT burn-in Menu-Driven DIP Settings: Adjust settings without opening the cabinet ROM Saver: Optionally remove original ROMs to reduce power usage Cabinet Compatibility: Upright and Cocktail cabinet support High Scores Button: Quickly view saved score tables for the selected game All Global High Scores Button: Ideal for Wi-Fi enabled leaderboard support Backup and Restore: Save and reload scores for tournaments or parties Separate Score Tables: Independent tables for 2, 3, or 4 lives Reset Button: Restart gameplay without cycling cabinet power Self-Test Access: Run diagnostics directly from the menu Default Game Selection: Boot directly to Arkanoid, Tournament, or last played game God Mode: Practice endlessly without score saving Flip Screen: Rotate display 180° for alternate cabinet orientations Games Included Arkanoid The original Taito arcade brick-breaking classic featuring paddle-based gameplay, power-ups, enemy attacks, and precise arcade control timing on authentic hardware. Arkanoid Tournament Tournament edition gameplay with modified difficulty and gameplay balancing designed for competitive arcade play and score chasing. Optional Wi-Fi Features and Online Leaderboards Learn About Wi-Fi Enabled Kits Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network. Standard kits save scores locally to the PCB, while Wi-Fi kits add automatic online score syncing through the HighScoreSaves global leaderboard platform. View All Global Arcade High Scores Arkanoid Multigame Free Play and High Score Save Kit FAQ Which games are included? This multigame kit includes Arkanoid and Arkanoid Tournament. How many scores are saved? Top 5 scores are saved per game with separate score tables based on life settings. Does the kit support Continue Mode? Yes. Continue Mode is available only in Coin Mode and is disabled during Free Play. Can I set a default game? Yes. Configure the cabinet to boot directly into Arkanoid, Arkanoid Tournament, or the last played game. What is God Mode? God Mode allows unlimited gameplay for practice sessions. Scores are not saved while enabled. Does the kit support Flip Screen? Yes. Rotate the display 180° for alternate cabinet orientations. Where can I download the Installation Guide? Download the Arkanoid Multigame Installation Guide PDF Designed and supported by HighScoreSaves for arcade collectors, restorers, and original hardware enthusiasts. Resources 1. Arkanoid Multigame Installation Guide PDF 2. Setup Tips and Configuration Guide 3. HighScoreSaves YouTube Channel — Installation Tips 4. HighScoreSaves Facebook Page 5. HighScoreSaves eBay Store
Asteroids Free Play and High Score Save Kit
Asteroids Free Play and High Score Save Kit for Atari Arcade PCB Upgrade your original Atari Asteroids arcade PCB with reliable free play, high score saving, attract mode protection, and optional Wi-Fi leaderboard support while preserving authentic gameplay and original vector arcade hardware. Designed specifically for original Atari hardware, this plug and play upgrade improves long-term reliability without changing gameplay, timing, sound, or the classic vector arcade experience collectors expect. Original Arcade Hardware • No Emulation • No Gameplay Changes • Designed for Authentic Arcade PCBs View Install Guide Free Play Play without coins while retaining optional coin operation. High Score Saving Stores the Top 10 scores using reliable serial EEPROM. Optional Wi-Fi Upload scores online to global arcade leaderboards. Original Hardware Designed for authentic Atari vector arcade PCB gameplay. Upgrade Your Asteroids Arcade Experience Restore and enhance your original Asteroids arcade machine with a professionally designed Free Play and High Score Save Kit built specifically for authentic Atari vector arcade hardware. Original boards often lose high scores, rely on aging components, or suffer from unstable resets. This upgrade modernizes your PCB while preserving the original gameplay, vector graphics, sound effects, and arcade feel that made Asteroids one of Atari’s most iconic classics. Unlike multigame systems or replacement hardware, this kit keeps your original arcade PCB intact while improving long-term reliability for collectors, operators, and restoration projects. Included Features Easy Installation: Plug-and-play with no soldering required High Score Save: Stores the Top 10 scores Permanent Score Preservation: Reliable serial EEPROM storage Free Play Mode: Works with or without coin operation Coin Up Support: Retains authentic coin functionality Attract Mode Protection: Helps prevent vector monitor burn-in Customizable Screen Copyright: Manufacturer or HighScoreSaves branding Menu-Driven DIP Settings: Configure settings without opening the cabinet ROM Saver: Optionally remove original ROMs to reduce power usage Cabinet Compatibility: Works in Upright and Cocktail cabinets Selectable Wiring: Supports Asteroids OR Asteroids Deluxe Backup and Restore Scores: Perfect for tournaments and score events Reset Button: Restart the game without powering off the cabinet Separate Score Tables: Different score tables based on lives selected Installation Information Installation Difficulty: Easy Soldering Required: Only if your 6502 CPU is not socketed Socketed 6502 Required: Install a 40-pin socket if soldered directly to the PCB Cabinet Compatibility: Upright and Cocktail cabinets supported ROM Compatibility: Requires Version 2 Vector ROM Installation Guide: Download PDF Installation Guide Optional Wi-Fi Features and Online Leaderboards Learn About Wi-Fi Enabled Kits Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network. Standard kits save scores locally to the PCB, while Wi-Fi kits add automatic online score syncing through the HighScoreSaves global leaderboard platform. View Global Arcade High Scores Asteroids Free Play and High Score Save Kit FAQ Does this kit require soldering? Only if your 6502 CPU is not socketed. What’s the difference between Wi-Fi and Standard kits? Wi-Fi kits upload scores online while Standard kits save scores locally only. How many scores are saved? The kit stores the Top 10 high scores. Does Free Play disable coin operation? No. Free Play and Coin Up functionality work together. Is my cabinet compatible? Yes. This kit supports Upright and Cocktail cabinets. What is ROM Saver? ROM Saver allows you to remove original ROMs to help reduce PCB power usage. Where can I download the installation guide? Download the Asteroids Installation Guide PDF Designed and supported by HighScoreSaves for arcade collectors, restorers, and original hardware enthusiasts. Resources 1. Asteroids Installation Guide PDF 2. Setup Tips and Configuration Guide 3. HighScoreSaves YouTube Channel 4. HighScoreSaves Facebook Page 5. HighScoreSaves eBay Store

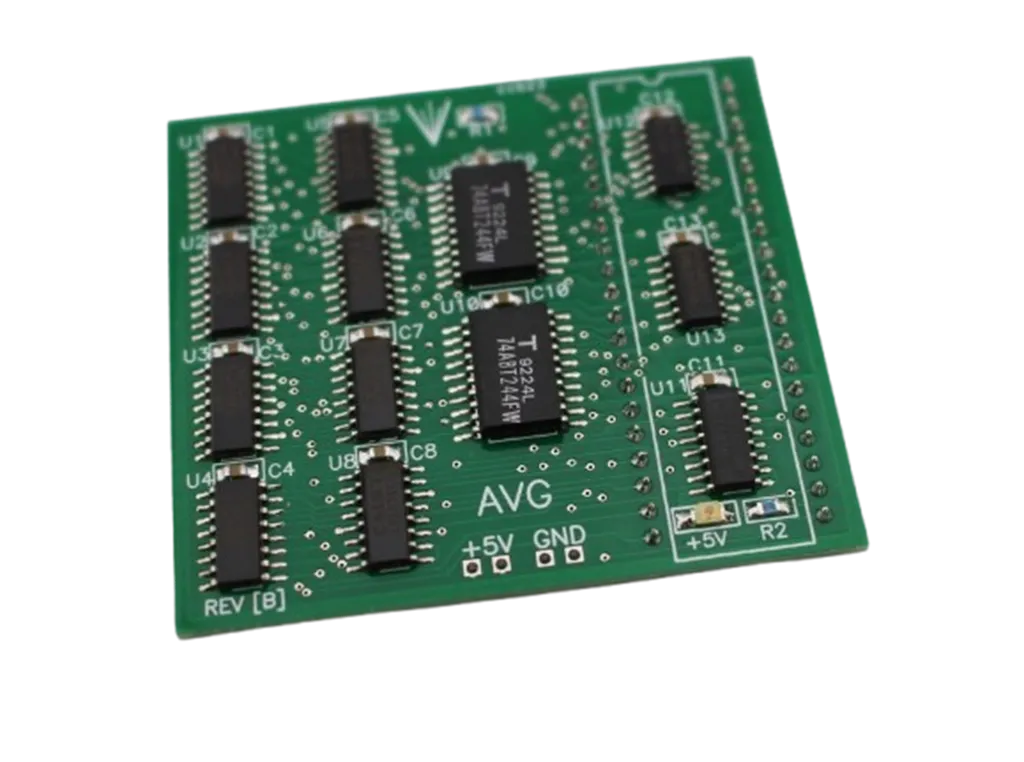

AVG - Atari Analog Vector Generator
Atari AVG Custom Chip Replacement The Atari AVG Custom Chip Replacement is designed as a direct substitute for the original Atari AVG chip (Part Number: 137179-001). This custom component functions as the Gate Array / Address Controller used in Atari vector arcade hardware, handling critical addressing and control tasks required for proper system operation. Because the original Atari AVG chip is long discontinued and increasingly difficult to source, this replacement solution provides a reliable option for repairing and restoring classic Atari arcade boards. It is engineered to replicate the functionality of the original DIP package chip while allowing collectors and technicians to keep their vector-based arcade systems running. This chip is commonly used in Atari vector arcade machines where the AVG (Analog Vector Generator) system manages the generation and control of vector graphics displayed on the monitor. Proper operation of this chip is essential for stable gameplay and correct vector drawing. Key Features Replacement for Atari AVG custom chip Compatible with original part number 137179-001 Implements the Gate Array / Address Controller function Designed for repair and restoration of Atari vector arcade boards Helps maintain long-term operation of classic Atari vector systems
Bagman Arcade Free Play and High Score Save Kit PCB Upgrade
Bagman Free Play and High Score Save Kit for Original Arcade PCB Upgrade your original Bagman arcade PCB with reliable free play, high score saving, attract mode protection, and optional Wi-Fi leaderboard support while preserving authentic gameplay and original arcade hardware. Designed specifically for original Bagman arcade hardware, this plug and play upgrade improves long-term reliability without changing gameplay, timing, sound, or the classic arcade experience collectors expect. Original Arcade Hardware • No Emulation • No Gameplay Changes • Designed for Authentic Arcade PCBs View Install Guide Free Play Play without coins while retaining optional coin operation. High Score Saving Stores the Top 10 scores using reliable EEPROM storage. Optional Wi-Fi Upload scores online to global arcade leaderboards. Original Hardware Designed for authentic Bagman arcade PCB gameplay. Upgrade Your Bagman Arcade Experience Restore and enhance your original Bagman arcade machine with a professionally designed Free Play and High Score Save Kit built specifically for authentic arcade hardware. Original boards often lose high scores, rely on aging components, or suffer from unstable resets. This upgrade modernizes your PCB while preserving the original gameplay, sound, timing, and arcade feel that made Bagman a memorable classic arcade game. Unlike multigame systems or reproduction boards, this kit keeps your original arcade PCB intact while improving long-term reliability for collectors, operators, and restoration projects. Included Features Easy Installation: No soldering, board modifications, or special wiring required Permanent Score Saving: Reliable EEPROM storage with no batteries required High Score Tracking: Saves the Top 10 scores Attract Mode Protection: Helps reduce screen burn from static screens Free Play Mode: Coin-free operation with optional coin support Menu-Driven DIP Settings: Configure settings without opening the cabinet ROM Saver: Reduce heat and power draw Cabinet Compatibility: Supports Upright and Cocktail cabinets Backup and Restore: Perfect before and after parties or tournaments Separate Score Tables: Different tables for 2/3/4/5 lives Reset Button: Soft restart without powering off the cabinet Fast Boot: Minimal load time during startup Flip Screen: Correct reversed or upside-down monitors Installation Information Installation Difficulty: Easy Soldering Required: No Socketed Z80 Required: Install a 40-pin socket if needed Cabinet Compatibility: Upright and Cocktail supported Installation Guide: Download PDF Installation Guide Optional Wi-Fi Features and Online Leaderboards Learn About Wi-Fi Enabled Kits Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network. Standard kits save scores locally to the PCB, while Wi-Fi kits add automatic online score syncing through the HighScoreSaves global leaderboard platform. View Global Arcade High Scores Bagman Free Play and High Score Save Kit FAQ How many scores are saved? The kit saves the Top 10 high scores. Does Free Play still support coins? Yes. The kit supports both Free Play and normal coin operation. Can I adjust settings without opening the cabinet? Yes. Menu-driven settings allow DIP adjustments directly through the game menu. What does the Reset Button do? The Reset Button performs a soft restart without powering the cabinet off. Does the kit support separate score tables? Yes. Separate score tables are available for 2, 3, 4, and 5 lives. Does Flip Screen support upside-down monitors? Yes. Flip Screen instantly corrects reversed monitor orientation. What is ROM Saver? ROM Saver reduces PCB heat and power draw by allowing original ROM removal. Does Attract Mode help reduce screen burn? Yes. Attract Mode Protection helps minimize screen burn during idle operation. Is a socketed Z80 required? Yes. Install a 40-pin socket if your Z80 CPU is soldered directly to the PCB. Where can I download the installation guide? Download the Bagman Installation Guide PDF Designed and supported by HighScoreSaves for arcade collectors, restorers, and original hardware enthusiasts. Resources 1. Bagman Installation Guide PDF 2. Setup Tips and Configuration Guide 3. HighScoreSaves YouTube Channel 4. HighScoreSaves Facebook Page 5. HighScoreSaves eBay Store
Bagman Multigame Free Play and High Score Save Kit
Bagman Multigame Free Play and High Score Save Kit Upgrade your original Bagman arcade PCB with reliable free play, permanent high score saving, optional Wi-Fi leaderboard support, and multigame functionality while preserving authentic gameplay and original arcade hardware. Designed specifically for original Bagman hardware, this plug and play multigame upgrade improves long-term reliability without changing gameplay timing, controls, sound, or classic arcade behavior collectors expect. Games Included: Bagman • Super Bagman Original Arcade Hardware • No Emulation • No Gameplay Changes • Designed for Authentic Arcade PCBs View Installation Guide 2 Games Included Instantly switch between Bagman and Super Bagman on original hardware. Permanent High Scores Saves Top 10 scores for each game with initials. Menu-Driven Settings Adjust gameplay and DIP settings directly from the on-screen menu. Optional Wi-Fi Upload scores online to global arcade leaderboards. Upgrade Your Bagman Arcade Experience Restore and enhance your original Bagman arcade machine with a professionally designed multigame Free Play and High Score Save Kit built specifically for authentic arcade hardware. Original boards often lose scores, rely on aging components, or suffer from unstable resets. This upgrade modernizes your PCB while preserving the original gameplay, controls, timing, and arcade gameplay experience collectors and enthusiasts expect. Unlike emulation or multicade systems, this kit preserves authentic arcade hardware behavior while adding modern conveniences like score saving, free play, attract mode improvements, and optional online leaderboard support. Hardware Compatibility Original Hardware: Designed for original Bagman arcade PCBs Processor Requirement: Requires a socketed Z80 processor Cabinet Compatibility: Works in Upright and Cocktail cabinets ROM Saver Support: Original program ROMs may optionally be removed Customize Your Bagman Multigame Kit Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit. You can also add a processor and/or a 40-pin socket—optional but recommended for easier installation. Main Features Easy Install: No soldering, board modifications, or special wiring required Permanent High Score Saving: Uses reliable serial EEPROM instead of failure-prone NVRAM or batteries High Score Save: Saves the Top 10 scores for each game Attract Mode: Helps reduce screen burn by avoiding static screens Free Play and Coin-Up: Supports both free play and traditional coin operation Menu-Driven Settings: Change DIP settings directly on-screen ROM Saver: Optionally remove original program ROMs to reduce power usage Cabinet Compatibility: Supports Upright and Cocktail cabinets High Scores Button: Quickly view saved score tables for the selected game All Global High Scores Button: Ideal for Wi-Fi enabled leaderboard support Backup and Restore: Save and restore scores before or after parties and tournaments Separate Score Tables: Different high score tables for 2, 3, 4, or 5 lives Reset Button: Restart gameplay without powering off the cabinet Fast Boot: No long initialization or boot delay Lives-Specific HSS: Each lives setting maintains its own high score table Important Installation Notes Socketed Z80 Required: Install a 40-pin socket if your Z80 processor is not socketed PCB Clearance: Some cabinets may require removing the PCB cage for proper clearance Read the Super Bagman Multigame Installation Guide before setup Games Included Bagman The classic arcade platform maze game featuring ladder climbing, gold bag collection, mine carts, and strategic enemy avoidance gameplay. Super Bagman Enhanced Bagman gameplay featuring expanded level layouts, faster action, and additional arcade challenge gameplay mechanics. Optional Wi-Fi Features and Online Leaderboards Learn About Wi-Fi Enabled Kits Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network. Standard kits save scores locally to the PCB, while Wi-Fi kits add automatic online score syncing through the HighScoreSaves global leaderboard platform. View All Global Arcade High Scores Bagman Multigame Free Play and High Score Save Kit FAQ Which games are included? Includes Bagman and Super Bagman. How many scores are saved? Saves the Top 10 scores for each game. Does the kit support Free Play and Coin-Up? Yes. Both modes are fully supported. Are DIP settings menu-driven? Yes. Settings are adjusted directly from the on-screen menu. What is ROM Saver? ROM Saver allows original program ROMs to be removed to reduce power and heat. What does the Reset Button do? Performs a soft restart without power cycling the cabinet. Do I need to remove the PCB cage? Some cabinets may require removing the PCB cage for proper fitment. Where can I download the Installation Guide? Download the Installation Guide PDF Designed and supported by HighScoreSaves for arcade collectors, restorers, and original hardware enthusiasts. Resources 1. Bagman Multigame Installation Guide PDF 2. What’s a Wi-Fi Enabled Kit or Standard Kit? 3. High Score Save Kit Tips and Tricks PDF 4. HighScoreSaves YouTube Channel 5. HighScoreSaves Facebook Page 6. Official HighScoreSaves eBay Store
Battlezone Free Play and High Score Save Kit
Battlezone Free Play and High Score Save Kit for Atari Vector Arcade PCB Upgrade your original Atari Battlezone arcade PCB with reliable free play, high score saving, attract mode protection, and optional Wi-Fi leaderboard support while preserving authentic vector gameplay and original arcade hardware. Designed specifically for original Atari vector hardware, this plug and play upgrade improves long-term reliability without changing gameplay, timing, sound, or the classic vector arcade experience collectors expect. Original Arcade Hardware • No Emulation • No Gameplay Changes • Designed for Authentic Arcade PCBs View Install Guide Free Play Play without coins while retaining optional coin operation. High Score Saving Stores the Top 10 scores using reliable serial EEPROM. Optional Wi-Fi Upload scores online to global arcade leaderboards. Original Hardware Designed for authentic Atari vector arcade PCB gameplay. Upgrade Your Battlezone Arcade Experience Restore and enhance your original Battlezone arcade machine with a professionally designed Free Play and High Score Save Kit built specifically for authentic Atari vector arcade hardware. Original boards often lose high scores, rely on aging components, or suffer from unstable resets. This upgrade modernizes your PCB while preserving the original vector graphics, sound effects, gameplay timing, and arcade feel that made Battlezone one of Atari’s most iconic vector arcade experiences. Unlike multigame systems or replacement hardware, this kit keeps your original arcade PCB intact while improving long-term reliability for collectors, operators, and restoration projects. Included Features Easy Installation: No soldering, board modifications, or special wiring required Permanent Score Saving: Reliable serial EEPROM storage with no batteries required High Score Tracking: Stores the Top 10 scores Attract Sounds: Adjustable attract sound frequency options Free Play Mode: Coin-free operation with optional coin support Attract Mode Protection: Helps reduce vector monitor screen burn Copyright Selection: Choose original manufacturer or HighScoreSaves branding Menu-Driven DIP Settings: Configure settings without opening the cabinet ROM Saver: Original program ROMs can be removed to reduce power usage Cabinet Compatibility: Supports Upright and Cocktail cabinets Backup and Restore: Save and restore scores before or after parties and tournaments Reset Button: Soft restart without powering off the cabinet Separate Score Tables: Different score tables for 2, 3, 4, and 5 lives Fast Boot: Minimal startup initialization time Installation Information Installation Difficulty: Easy Soldering Required: Only if your 6502 CPU is not socketed Socketed 6502 Required: Install a 40-pin socket if needed Cabinet Compatibility: Upright and Cocktail supported Installation Guide: Download PDF Installation Guide Optional Wi-Fi Features and Online Leaderboards Learn About Wi-Fi Enabled Kits Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network. Standard kits save scores locally to the PCB, while Wi-Fi kits add automatic online score syncing through the HighScoreSaves global leaderboard platform. View Global Arcade High Scores Battlezone Free Play and High Score Save Kit FAQ How many scores are saved? The kit stores the Top 10 scores. Does it support Free Play and coin operation? Yes. The kit supports both Free Play and normal coin operation. Can I change DIP settings without opening the cabinet? Yes. All settings are adjusted through the on-screen menu system. What does the Reset Button do? The Reset Button allows a soft restart without turning the cabinet off. Does the kit support separate score tables? Yes. Separate score tables are available for 2, 3, 4, and 5 lives. Does Attract Mode help reduce screen burn? Yes. Attract Mode Protection helps minimize vector monitor burn-in during idle operation. Is a socketed 6502 required? Yes. Install a 40-pin socket if your 6502 CPU is soldered directly to the PCB. Where can I download the installation guide? Download the Battlezone Installation Guide PDF Designed and supported by HighScoreSaves for arcade collectors, restorers, and original hardware enthusiasts. Resources 1. Battlezone Installation Guide PDF 2. Setup Tips and Configuration Guide 3. HighScoreSaves YouTube Channel 4. HighScoreSaves Facebook Page 5. HighScoreSaves eBay Store
Berzerk | Frenzy Multigame Free Play and High Score Save Kit
Berzerk Multigame Free Play and High Score Save Kit Upgrade your original Berzerk arcade PCB with reliable free play, permanent high score saving, optional Wi-Fi leaderboard support, and multigame functionality while preserving authentic gameplay and original arcade hardware. Designed specifically for original Stern hardware, this plug and play multigame upgrade improves long-term reliability without changing gameplay timing, controls, sound, or classic arcade behavior collectors expect. Games Included: Berzerk • Frenzy Original Arcade Hardware • No Emulation • No Gameplay Changes • Designed for Authentic Arcade PCBs View Installation Guide 2 Games Included Instantly switch between Berzerk and Frenzy on original hardware. Permanent High Scores Stores Top 5 scores using reliable EEPROM memory. Menu-Driven Settings Configure settings directly from the on-screen menu system. Optional Wi-Fi Upload scores online to global arcade leaderboards. Upgrade Your Stern Arcade Experience Restore and enhance your original Berzerk arcade machine with a professionally designed multigame Free Play and High Score Save Kit built specifically for authentic Stern arcade hardware. Original boards often lose scores, rely on aging components, or suffer from unstable resets. This upgrade modernizes your PCB while preserving the original gameplay, controls, timing, and arcade gameplay experience collectors and enthusiasts expect. Unlike emulation or multicade systems, this kit preserves authentic arcade hardware behavior while adding modern conveniences like score saving, free play, attract sounds, and optional online leaderboard support. Hardware Compatibility Original Hardware: Designed for Berzerk and compatible Frenzy arcade PCBs Processor Requirement: Requires a socketed Z80 processor Cabinet Compatibility: Supports Upright and Cocktail cabinets ROM Saver Support: Original ROMs may optionally be removed and stored safely Customize Your Berzerk Multigame Kit Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit. You can also add a processor and/or a 40-pin socket—optional but recommended for easier installation. Main Features Easy Install: No soldering or PCB modifications required Permanent High Score Saving: Uses reliable serial EEPROM instead of batteries or NVRAM High Score Save: Stores Top 5 scores Attract Mode: Helps reduce monitor burn and static screens Attract Sounds: Adjustable to 25%, 50%, or 100% Free Play and Coin-Up: Supports both gameplay styles Menu-Driven Settings: Adjust all settings directly on-screen ROM Saver: Optional ROM removal support Cabinet Compatibility: Works in Upright and Cocktail cabinets Copyright Toggle: Choose Stern or HighScoreSaves branding High Scores Button: Quickly access saved score tables All Global High Scores Button: Ideal for Wi-Fi enabled kits Separate Score Tables: Multiple score tables based on lives and bonus settings Backup and Restore: Save and restore scores anytime Reset Button: Soft restart without turning off cabinet power Fast Boot: Quick startup and game loading God Mode: Practice mode with score saving disabled Important Installation Notes Socketed Z80 Required: Install a 40-pin socket if your PCB is not already socketed Read the Berzerk Multigame Installation Guide before setup Games Included Berzerk Stern’s legendary maze shooter featuring robotic enemies, speech synthesis, fast-paced gameplay, and the infamous Evil Otto. Frenzy The official sequel to Berzerk featuring expanded enemy behavior, enhanced speech synthesis, and more intense arcade action gameplay. Optional Wi-Fi Features and Online Leaderboards Learn About Wi-Fi Enabled Kits Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network. Standard kits save scores locally to the PCB, while Wi-Fi kits add automatic online score syncing through the HighScoreSaves global leaderboard platform. View All Global Arcade High Scores Berzerk Multigame Free Play and High Score Save Kit FAQ How many scores are saved? The kit stores the Top 5 high scores. Does it support Free Play and Coin-Up? Yes. Both Free Play and traditional coin operation are fully supported. Are the settings menu-driven? Yes. All gameplay settings are adjusted directly from the on-screen menu. What is God Mode? God Mode is a practice mode that disables score saving while allowing unlimited gameplay. Are there separate score tables? Yes. The kit supports multiple score tables based on lives and bonus settings. What does the Reset Button do? It performs a soft restart without requiring the cabinet to be powered off. Do I need a socketed CPU? Yes. A socketed Z80 processor is required for installation. Where can I download the Installation Guide? Download the Berzerk Multigame Installation Guide PDF Designed and supported by HighScoreSaves for arcade collectors, restorers, and original hardware enthusiasts. Resources 1. Berzerk Multigame Installation Guide PDF 2. What’s a Wi-Fi Enabled Kit or Standard Kit? 3. High Score Save Kit Tips and Tricks PDF 4. HighScoreSaves YouTube Channel 5. HighScoreSaves Facebook Page 6. HighScoreSaves eBay Store

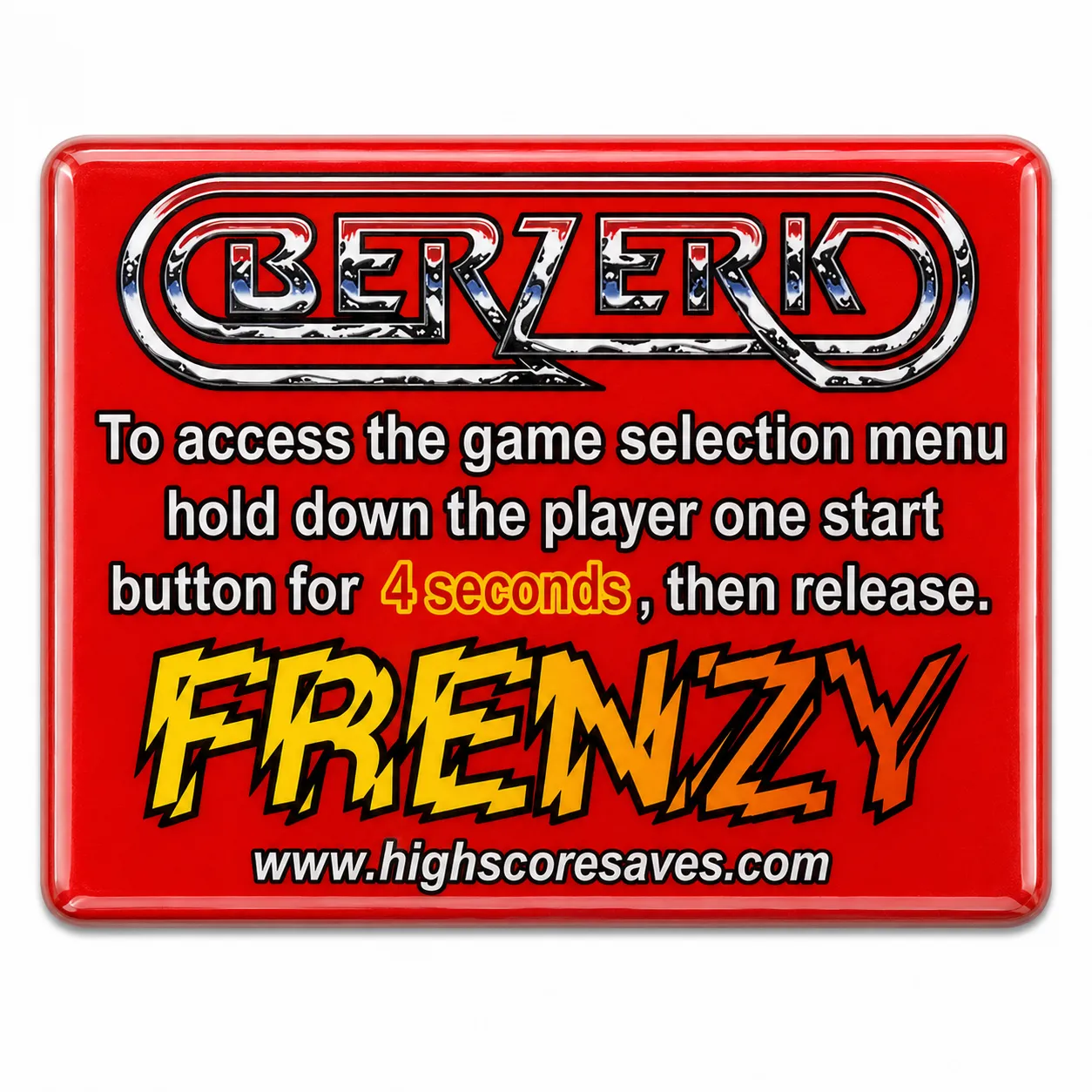

Berzerk | Frenzy Multigame Instruction Magnet
Berzerk | Frenzy Multigame Instruction Magnet This magnet applies and removes easily. It adheres to any ferrous metal (steel control panels, coin doors, etc.). For non-metal surfaces, use double-sided mounting tape (not included). Specifications Size: 3″ (L) × 2″ (W) Finish: Soft-laminated top Back: Strong magnetic backing
Black Widow Free Play and High Score Save Kit
Black Widow Free Play and High Score Save Kit for Atari Vector Arcade PCB Upgrade your original Black Widow arcade PCB with reliable free play, high score saving, attract mode protection, and optional Wi-Fi leaderboard support while preserving authentic vector gameplay and original arcade hardware. Designed specifically for original Atari vector hardware, this plug and play upgrade improves long-term reliability without changing gameplay, timing, sound, or the classic vector arcade experience collectors expect. Original Arcade Hardware • No Emulation • No Gameplay Changes • Designed for Authentic Arcade PCBs View Install Guide Free Play Play without coins while retaining optional coin operation. High Score Saving Stores the Top 5 scores using reliable serial EEPROM. Optional Wi-Fi Upload scores online to global arcade leaderboards. Original Hardware Designed for authentic Atari vector arcade PCB gameplay. Upgrade Your Black Widow Arcade Experience Restore and enhance your original Black Widow arcade machine with a professionally designed Free Play and High Score Save Kit built specifically for authentic Atari vector arcade hardware. Original boards often lose high scores, rely on aging components, or suffer from unstable resets. This upgrade modernizes your PCB while preserving the original vector graphics, sound effects, gameplay timing, and arcade feel that made Black Widow one of Atari’s most unique vector arcade shooters. Unlike multigame systems or replacement hardware, this kit keeps your original arcade PCB intact while improving long-term reliability for collectors, operators, and restoration projects. Included Features Easy Installation: No soldering, board modifications, or special wiring required Permanent Score Saving: Reliable serial EEPROM storage with no batteries required High Score Tracking: Stores the Top 5 scores Attract Sounds: Adjustable attract sound frequency options Free Play and Coin-Up: Supports Free Play or standard coin operation Attract Mode Protection: Helps reduce vector monitor screen burn Menu-Driven Settings: Configure settings directly from the on-screen menu ROM Saver: Optionally remove original program ROMs to reduce power usage Cabinet Compatibility: Supports Upright and Cocktail cabinets Copyright Selection: Choose original manufacturer or HighScoreSaves branding Separate Score Tables: Supports up to 4 different score tables Backup and Restore: Save and restore scores before or after parties and tournaments Reset Button: Soft restart without turning off the cabinet Fast Boot: Minimal startup initialization time Stealth Mode: Boots directly into gameplay Installation Information Installation Difficulty: Easy Soldering Required: Only if your 6502 CPU is not socketed Socketed 6502 Required: Install a 40-pin socket if needed Cabinet Compatibility: Upright and Cocktail supported Installation Guide: Download PDF Installation Guide Optional Wi-Fi Features and Online Leaderboards Learn About Wi-Fi Enabled Kits Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network. Standard kits save scores locally to the PCB, while Wi-Fi kits add automatic online score syncing through the HighScoreSaves global leaderboard platform. View Global Arcade High Scores Black Widow Free Play and High Score Save Kit FAQ How many scores are saved? This kit stores the Top 5 scores. Does it support both Free Play and coin-up? Yes. You can use Free Play or standard coin operation. Can I change settings without opening the cabinet? Yes. All settings are adjusted through the menu-driven on-screen interface. Does it support separate score tables? Yes. Separate score tables are supported based on lives and bonus awards. What is Stealth Mode? Stealth Mode boots directly into the game without showing startup menus. What does the Reset Button do? The Reset Button allows a soft restart without turning the cabinet off. Is a socketed CPU required? Yes. A socketed 6502 CPU is required. Install a 40-pin socket if needed. Where can I download the installation guide? Download the Black Widow Installation Guide PDF Designed and supported by HighScoreSaves for arcade collectors, restorers, and original hardware enthusiasts. Resources 1. Black Widow Installation Guide PDF 2. Setup Tips and Configuration Guide 3. HighScoreSaves YouTube Channel 4. HighScoreSaves Facebook Page 5. HighScoreSaves eBay Store
Blank Qbert Reproduction Control Panel
Blank Q*bert Arcade Reproduction Control Panel Direct replacement blank control panel for the Q*bert arcade cabinet. This Blank Q*bert Arcade Reproduction Control Panel is designed as a direct replacement for the original panel used in dedicated Q*bert upright arcade machines. The panel closely matches the original size, shape, and mounting layout so it installs properly in the cabinet while providing a clean foundation for restoration projects. This is a blank control panel and does not have any control holes pre-drilled. Customers will need to drill the holes required for their specific control layout such as joystick and button placement. After decades of arcade play, original control panels can become rusted, bent, or heavily worn. This reproduction panel allows collectors and technicians to rebuild the control area while maintaining the authentic look and structure of the original arcade cabinet. Important Information This listing includes the blank metal control panel only. No joystick, buttons, wiring, harnesses, or wood components are included. No control panel overlay (CPO) is included with this panel. This is a blank panel intended for restoration or custom builds. Control holes must be drilled by the customer for their chosen control layout. Please review the product image gallery to see the exact item included. Features Accurate reproduction control panel for Q*bert arcade cabinets Blank panel design suitable for restoration or custom layouts Correct mounting points for dedicated upright cabinets Durable metal construction for long-term arcade use Ideal base for installing joystick, buttons, and control panel overlay Compatibility Q*bert (Gottlieb) Dedicated upright Q*bert arcade cabinets Installation Notes Transfer original controls and wiring from your existing control panel Drill control holes for your desired joystick and button layout Install reproduction or original control panel overlay (CPO) after mounting hardware Verify alignment before tightening mounting hardware Product Specifications Product Type: Arcade Control Panel Game Compatibility: Q*bert (Arcade) Cabinet Type: Upright Arcade Cabinet Material: Metal Panel Type: Blank reproduction panel Overlay Included: No Buttons Included: No Joystick Included: No Installation: Transfer original controls and wiring Whether you are restoring a worn cabinet or creating a custom control panel layout, this Blank Q*bert arcade reproduction control panel provides a durable and accurate replacement for classic arcade restoration projects.
Bomb Jack Free Play and High Score Save Kit
Bomb Jack Free Play and High Score Save Kit for Tehkan Arcade PCB Upgrade your original Bomb Jack arcade PCB with reliable free play, high score saving, attract sound enhancements, and optional Wi-Fi leaderboard support while preserving authentic gameplay and original arcade hardware. Designed specifically for original Tehkan hardware, this plug and play upgrade improves long-term reliability without changing gameplay, timing, sound, or the classic arcade experience collectors expect. Original Arcade Hardware • No Emulation • No Gameplay Changes • Designed for Authentic Arcade PCBs View Install Guide Free Play Play without coins while retaining optional coin operation. High Score Saving Stores the Top 10 scores directly on screen. Optional Wi-Fi Upload scores online to global arcade leaderboards. Original Hardware Designed for authentic Tehkan arcade PCB gameplay. Upgrade Your Bomb Jack Arcade Experience Restore and enhance your original Bomb Jack arcade machine with a professionally designed Free Play and High Score Save Kit built specifically for authentic Tehkan arcade hardware. Original boards often lose high scores, rely on aging components, or suffer from unstable resets. This upgrade modernizes your PCB while preserving the original gameplay, sound effects, timing, and arcade feel that made Bomb Jack a beloved arcade classic. Unlike multigame systems or reproduction boards, this kit keeps your original arcade PCB intact while improving long-term reliability for collectors, operators, and restoration projects. Included Features Easy Installation: No soldering, board modifications, or special wiring required High Score Save: Saves the Top 10 scores directly on screen Real Attract Sounds: Includes authentic gameplay sound effects Attract Sound Options: Adjustable attract sound frequency settings Free Play and Coin-Up: Supports both gameplay styles Menu-Driven Settings: Configure options directly from the cabinet ROM Saver: Optionally remove original ROMs to reduce power usage Cabinet Compatibility: Supports Upright and Cocktail cabinets No Emulation: Designed for authentic original arcade hardware Backup and Restore: Save and restore high scores anytime Fast Boot and Self-Test: Quickly verify hardware operation Attract Mode Protection: Improved attract mode behavior helps reduce screen burn Installation Information Installation Difficulty: Easy Soldering Required: No Socketed Z80 Required: Install a 40-pin socket if needed Cabinet Compatibility: Upright and Cocktail supported Installation Guide: Download PDF Installation Guide Optional Wi-Fi Features and Online Leaderboards Learn About Wi-Fi Enabled Kits Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network. Standard kits save scores locally to the PCB, while Wi-Fi kits add automatic online score syncing through the HighScoreSaves global leaderboard platform. View Global Arcade High Scores Bomb Jack Free Play and High Score Save Kit FAQ How many scores are saved? The kit saves the Top 10 scores directly on screen. Does it support Free Play and coin operation? Yes. You can use either Free Play or traditional coin-up operation. What are real attract sounds? Attract mode can include authentic gameplay sound effects for a more arcade-accurate experience. Can I change settings without opening the cabinet? Yes. Most options are configured through the on-screen menu system. Do I need a socketed CPU? Yes. A socketed Z80 CPU is required for installation. Where can I download the installation guide? Download the Bomb Jack Installation Guide PDF Designed and supported by HighScoreSaves for arcade collectors, restorers, and original hardware enthusiasts. Resources 1. Bomb Jack Installation Guide PDF 2. Setup Tips and Configuration Guide 3. HighScoreSaves YouTube Channel 4. HighScoreSaves Facebook Page 5. HighScoreSaves eBay Store
Braze | Highscoresaves| Remix Kit Repair
High Score Save Kit Repair Service Broken header pins on your High Score Save Kit? We offer fast, professional repair services to restore your kit and get you back to playing on original arcade hardware. Installation mistakes can happen—even with care. If pins were bent or broken during installation, we can repair the header pins and return your kit quickly so it’s ready for reliable use again. How to Send Your Kit for Repair Please include the following information inside your package: Full name Return mailing address Order number Description of the issue High Score Saves Attn: Joe / [Your Order Number] 1720 N 3rd St Clinton, Iowa 52732 (602) 888-6715 Important Shipping Instructions Do NOT send processors or EPROMs with your kit. Do send all components originally shipped with your kit. This may include a single daughterboard or, for multigame kits, all daughterboards and cables. If you are unsure what to include, please contact us before shipping. Turnaround is fast, and your repaired High Score Save Kit will be returned ready for installation and long-term reliability.
Braze Asteroids Free Play High Score Save Kit
Braze Asteroids Free Play and High Score Save Kit — Features & Install 📄 Installation Guide (PDF) Key Features Installs in minutes — no special wiring or soldering required. Top 10 high scores and initials are saved permanently (no batteries ever). Extended scoring: maximum score increased from 99,990 to 9,999,990. Fix for the Atari REV2 bug that erased the last initial on the 10th score. Compatibility & Included Parts This kit targets the REV2 version of Asteroids. For proper compatibility, a REV2 vector EPROM is required. Refer to the install guide’s “Revisions” section to confirm whether your board is REV1 or REV2. Installation Overview Power down and open your cabinet to access the PCB. Carefully remove the 6502 CPU from the Asteroids board. Insert the 6502 CPU into the included daughter card. Plug the daughter card into the vacated 6502 CPU socket on the board. Power on and follow the install guide to verify operation. How to Clear High Scores Put the game into Self Test using the cabinet’s self-test switch. While in Self Test, press and hold all four buttons: Left, Right, Fire, and Thrust. The screen will display “ERASED” confirming the clear. (Same procedure as Asteroids Deluxe.) FAQ Where can I download the install guide? Download Install Guide (PDF) Do I need to solder anything? No. The kit installs without soldering or special wiring. How long does installation take? Typically just a few minutes with basic PCB handling. Will my scores survive power-off? Yes. The top 10 scores and initials are stored permanently with no batteries required. What is “extended scoring”? The kit raises the maximum score from 99,990 to 9,999,990 to prevent rollover at 100K. Which board revisions are supported? The kit is based on REV2. A REV2 vector EPROM is required and included. Use the install guide to check your current revision. Does it fix the missing last initial? Yes. It fixes the REV2 bug that erased the final initial on the 10th entry.
Braze Battlezone Free Play and High Score Save Kit
Braze Battlezone High Score Save Kit — Features & Install 📄 Installation Guide (PDF) Overview A high score save kit for Battlezone that permanently remembers the top 10 scores and initials—even after power-off—without any batteries. It also serves as a ROM saver, reducing failures caused by aging ROM sockets. Note: This version does not include attract sounds; the Highscoresaves.com version does. No soldering or special wiring required. Installation Summary Power down the cabinet and access the CPU board. Remove the 6502 CPU from the Battlezone board. Insert the 6502 into the included daughter card. Plug the daughter card into the original 6502 socket. Power on and verify operation using the install guide. To clear saved scores, enter Self Test, then hold Start + Fire until the screen displays “ERASED.” Key Features Installs in minutes — no wiring or soldering. Top 10 High Score Save — scores + initials saved permanently. ROM Saver — reduces issues from aged or loose ROM sockets. Premium hardware — gold-plated machined header pins for a strong, reliable connection. Easy reset — clear via Self Test (Start + Fire) with on-screen confirmation. Attract sounds — not included in this Braze version (available on Highscoresaves.com version). FAQ Where can I download the install guide? Battlezone Install Guide (PDF) Do I need to solder anything? No. Installation is fully plug-and-play. How do I clear the high scores? Enter Self Test, then hold Start + Fire until “ERASED” appears. Does this kit include attract sounds? No. This Braze version has no attract sounds. Highscoresaves.com version includes them. Which CPU does this kit use? The kit uses the 6502 CPU. Remove your 6502, place it in the daughter card, then install the card. What ensures a reliable connection? Gold-plated machined header pins provide a tight, long-lasting connection in the original socket.
Braze Congo Bongo Free Play and High Score Save Kit
Braze Congo Bongo Free Play & High Score Save Kit — Features & Install 📄 Installation Guide (PDF) Overview A simple-to-install high score save kit for Congo Bongo that permanently remembers the top 6 scores and initials. Adds Free Play with attract screens, an improved power-on self-test (POST), and a flip-screen option for any monitor orientation. Installs in minutes with no board modifications. Installation Summary Power down the cabinet and access the CPU board. Carefully remove the Z80 CPU from the Congo Bongo board. Insert the Z80 into the included daughter card. Plug the daughter card into the original Z80 socket. Power on and follow the install guide to complete verification. No special wiring or soldering is required. Key Features Easy installation — no wiring or soldering. High Score Save — permanently stores the top 6 scores + initials. Free Play — full attract mode; enable/disable via DIP switches. Reset High Scores — use Congo Bongo test mode and on-screen prompts. Improved Test Mode — DIP verification + mini POST. Flip Screen — supports both monitor orientations. FAQ Where can I download the install guide? Congo Bongo Install Guide (PDF) Do I need to solder anything? No. The kit is fully plug-and-play. How do I reset the high scores? Enter Congo Bongo test mode and follow the on-screen prompts to restore defaults. How do I enable Free Play? Use the DIP switch settings shown in the installation guide.
Braze Donkey Kong 3 Free Play and High Score Save Kit
Braze Donkey Kong 3 High Score Save Kit — Features & Install 📄 Installation Guide (PDF) Overview A simple-to-install high score save kit for Donkey Kong 3 that permanently remembers the top 5 scores and initials, and also saves your current Free Play setting. No batteries are required. Installs in minutes—no special wiring or soldering. Installation Summary Power down the cabinet and access the CPU board. Carefully remove the Z80 CPU from the Donkey Kong 3 CPU board. Insert the Z80 into the included daughter card. Plug the daughter card into the vacated Z80 socket on the CPU board. Power on and follow the install guide to verify operation. Key Features Installs in minutes: no board modifications or special wiring. Top 5 High Score Save: remembers scores and initials permanently (no batteries). Free Play saved: preserves your Free Play setting; toggle via standard DK3 test mode. Easy reset: clear the table in test mode by resetting the bookkeeping distributions. FAQ Where can I download the install guide? Donkey Kong 3 Install Guide (PDF) Do I need to solder anything? No. Installation requires no soldering or special wiring. How do I reset the high scores? Enter Donkey Kong 3 test mode and clear the “bookkeeping distributions” to restore the default table. Is Free Play saved? Yes. The kit saves your current Free Play setting; toggle it in standard DK3 test mode. Which CPU does this kit use? The kit interfaces with the Z80 CPU—remove the existing Z80, place it in the daughter card, then plug the card into the Z80 socket.
Braze Donkey Kong Free Play and High Score Save Kit
Braze Donkey Kong High Score Save Kit — Features & Install 📄 Installation Guide (PDF) Overview A simple-to-install high score save kit for Donkey Kong that permanently remembers the top 5 scores and initials. Includes deluxe Free Play with full attract mode, selectable attract-mode sound, a power-on self-test, and an on-screen settings menu for easy configuration. Installs in minutes with no special wiring or soldering required. Installation Summary Power down the cabinet and access the CPU board. Carefully remove the Z80 CPU from the DK CPU board. Insert the Z80 CPU into the included daughter card. Plug the daughter card into the original Z80 CPU socket. Power on and follow the install guide to complete verification. Key Features Installs in minutes — no board modifications or special wiring. Top 5 High Score Save — permanently remembers scores + initials (no batteries). True Free Play — full attract mode while in Free Play. Selectable attract-mode sound — enable/disable in settings. Power-on diagnostics — automatic self-test during boot-up. On-screen settings menu — adjust options and erase scores without opening the cabinet. FAQ Where can I download the install guide? Donkey Kong D2K Install Guide (PDF) Do I need to solder anything? Typically no. Most installations require no soldering or special wiring. How do I reset the high scores? Use the on-screen settings menu to erase the high score table and restore defaults. Which CPU does this kit use? The kit interfaces with the Z80 CPU—remove the Z80, place it in the daughter card, then insert the card into the Z80 socket.
Free Play and High Score Save Kits for Classic Arcade Games
Free Play and High Score Save Kits are designed to enhance original arcade game hardware while preserving the authentic gameplay experience. These kits allow classic arcade machines to operate in free play mode and retain high scores and operator settings even after power is removed, eliminating the limitations of aging battery-backed memory and coin-only operation.
These kits are commonly used by arcade collectors and operators to preserve original gameplay while eliminating common reliability issues found in aging arcade hardware.
Each kit is engineered for specific arcade games and original printed circuit boards, ensuring compatibility without modifying or emulating the game itself. The focus is preservation—maintaining original logic, timing, and behavior while adding modern reliability and convenience. Whether restoring a dedicated cabinet or maintaining a long-owned machine, these kits provide a safe and fully reversible upgrade path.
HighScoreSaves specializes exclusively in arcade Free Play and High Score Save solutions. Every kit is designed with long-term reliability in mind and supported with clear documentation to help collectors, operators, and hobbyists keep their machines playable and historically accurate.
What a Free Play and High Score Save Kit Does
A Free Play and High Score Save Kit adds modern reliability to classic arcade hardware without altering how the game plays. These kits enable free play operation while preserving high scores, settings, and game data after power is turned off—something original arcade boards were never designed to support reliably over time.
By replacing or supplementing battery-backed memory, the kit prevents score loss caused by dead batteries, leaking cells, or unstable power conditions. The game continues to run exactly as intended on original hardware, with no emulation, timing changes, or gameplay differences introduced.
These kits are commonly installed in home arcades, restored cabinets, and long-term collection machines.
- Enables free play operation without coin mechanisms or wiring changes
- Retains high scores and operator settings after power is removed
- Eliminates reliance on aging batteries and volatile memory
- Preserves original gameplay behavior and board functionality
These kits are designed as preservation-focused upgrades, allowing arcade machines to remain reliable, playable, and historically accurate while removing common failure points found in original hardware.
Choosing the Correct Kit for Your Arcade Game
Free Play and High Score Save Kits are designed for specific arcade games and original printed circuit boards. While many kits may appear similar at a glance, compatibility depends on the exact game hardware, processor type, and board revision.
Original dedicated arcade PCBs are required for these kits to function as intended. Converted boards, emulated hardware, or non-original reproductions may not support score retention or free play features correctly.
To choose the correct kit, identify your game title, confirm the original board type, and review any compatibility notes provided with the kit listing. Reviewing documentation or installation guides before purchasing helps ensure proper fit and operation.
Installation Overview and Skill Level
Installing a Free Play and High Score Save Kit typically involves working directly with the original arcade circuit board and its main processor. Installation methods vary by game, but most installs are straightforward for anyone comfortable handling arcade hardware and following detailed instructions.
Some installations require removing and reinstalling a processor, while others may involve adding a socket or making a small number of solder connections. Socketed installations are often recommended because they simplify future servicing and reduce stress on original components. All modifications are fully reversible.
Basic tools and careful handling are usually all that is required. Detailed installation guides are provided to walk through each step clearly, making the process approachable for experienced hobbyists and first-time installers alike.
Installation Guides and Support Resources
Every Free Play and High Score Save Kit is supported with clear, game-specific installation documentation designed to guide you through the process step by step. These guides cover compatibility notes, installation methods, and best practices to help ensure a successful upgrade.
Installation guides are available to view online or download as PDFs, making them easy to reference at your workbench or on a mobile device. Additional resources explain kit options and answer common questions before and after installation.
