Berzerk & Frenzy Multigame Compatibility for Original Stern Hardware
Confirm whether your original Stern Berzerk or Frenzy arcade hardware is compatible with the HighScoreSaves Berzerk and Frenzy Multigame Free Play and High Score Save Kit. The daughterboard installs on documented compatible Stern ZPU or ZZPU hardware and retains the original arcade PCB stack, Z80 processor, controls, video hardware, sound hardware, and game timing.
Choosing the Correct Berzerk & Frenzy Stern PCB Upgrade
The HighScoreSaves Berzerk and Frenzy Multigame Free Play and High Score Save Kit is designed for documented compatible original Stern arcade hardware. It installs as a Z80 daughterboard on the original processor board rather than replacing the arcade hardware with an emulator, reproduction PCB, or generic multicade system.
The current installation documentation identifies two supported processor-board types: the original Stern ZPU and the later ZZPU. Confirm which processor PCB is in the cabinet and verify the Z80 socket before ordering.
Stern ZPU and ZZPU PCB Compatibility
How the Berzerk & Frenzy Z80 Installation Works

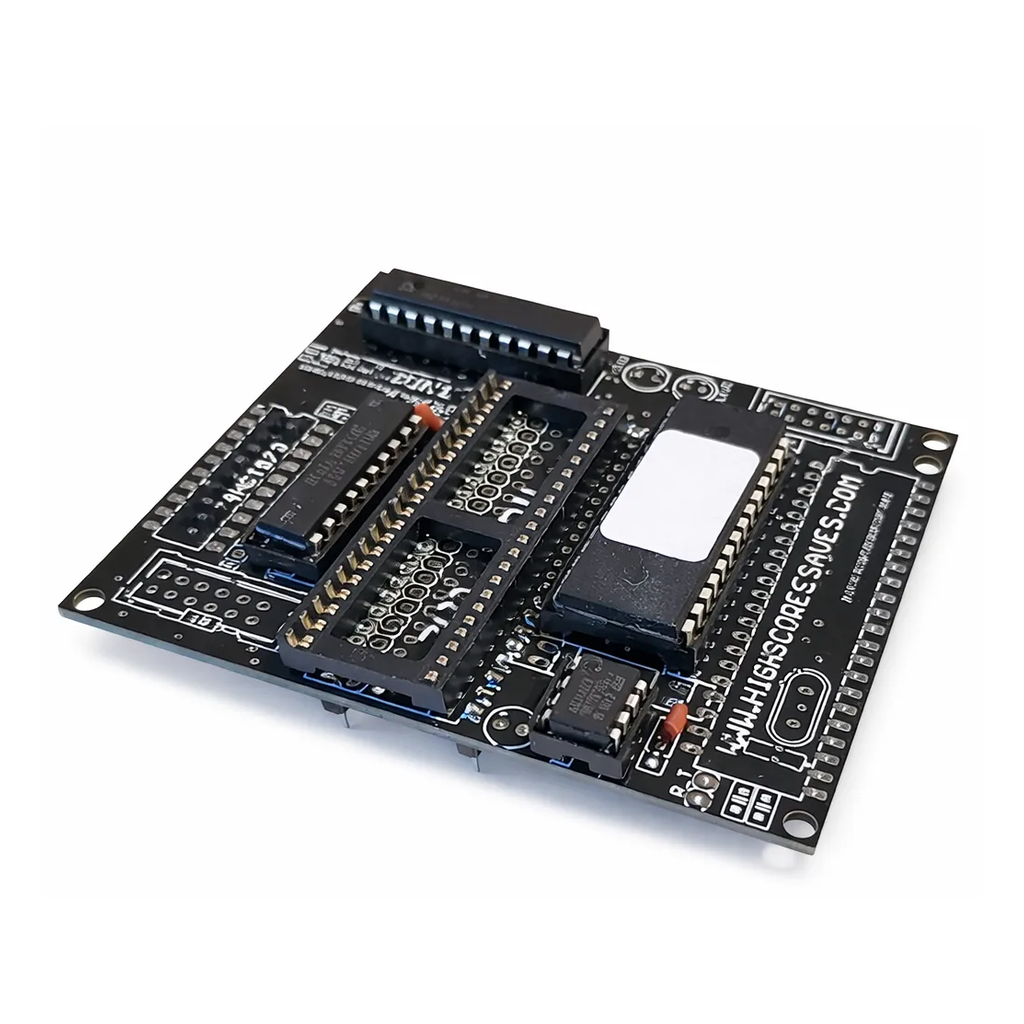

The Berzerk / Frenzy multigame kit uses a single Z80 daughter card. A compatible Z80 processor is required.
The existing Z80 is removed from the ZPU or ZZPU processor board and installed into the corresponding 40-pin socket on the HighScoreSaves daughterboard. Pin 1 orientation must be matched carefully during the transfer.
The completed daughterboard assembly is then installed into the original Z80 socket on the ZPU or ZZPU. Check every header pin, processor pin, socket position, and Pin 1 orientation before cabinet power is restored.
Berzerk & Frenzy Pre-Order Compatibility Checklist
ZPU vs. ZZPU Installation Considerations
After Confirming Berzerk & Frenzy PCB Compatibility
Once the Stern ZPU or ZZPU processor board, Z80 processor, 40-pin socket, and optional ROM Saver requirements have been confirmed, use the individual product page for the complete Berzerk and Frenzy features, Standard and Wi-Fi choices, processor and socket options, included components, current pricing, and ordering information.
This category is intended primarily to determine whether original Stern hardware is suitable for the HighScoreSaves Berzerk and Frenzy Multigame Free Play and High Score Save Kit before an order is placed.
Berzerk & Frenzy PCB Compatibility FAQ
Which Stern processor boards support the kit?
The current installation guide documents compatible Berzerk and Frenzy ZPU and ZZPU processor PCBs.
Which processor does the kit use?
A compatible Z80 processor is required. The existing socketed Z80 can be transferred from the original ZPU or ZZPU to the HighScoreSaves daughterboard, or a compatible replacement can be selected when ordering.
Does installation require soldering?
No soldering is required when the Z80 is already installed in a compatible 40-pin socket. A soldered Z80 must be properly removed and the appropriate socket installed before the daughterboard can be fitted.
Do the original program ROMs have to be removed?
No. The current installation guide labels program-ROM removal as optional. Remove them only when using the supported ROM Saver configuration.
Does the kit replace the original Stern arcade hardware?
No. The daughterboard installs on documented compatible original Stern hardware and keeps the original PCB stack, controls, video hardware, sound hardware, processor platform, and game timing in service.
