Braze Congo Bongo Free Play and High Score Save Kit
$70.00
Product information "Braze Congo Bongo Free Play and High Score Save Kit"
Braze Congo Bongo Free Play & High Score Save Kit — Features & Install
Overview
A simple-to-install high score save kit for Congo Bongo that permanently remembers the top 6 scores and initials. Adds Free Play with attract screens, an improved power-on self-test (POST), and a flip-screen option for any monitor orientation. Installs in minutes with no board modifications.
Installation Summary
- Power down the cabinet and access the CPU board.
- Carefully remove the Z80 CPU from the Congo Bongo board.
- Insert the Z80 into the included daughter card.
- Plug the daughter card into the original Z80 socket.
- Power on and follow the install guide to complete verification.
No special wiring or soldering is required.
Key Features
- Easy installation — no wiring or soldering.

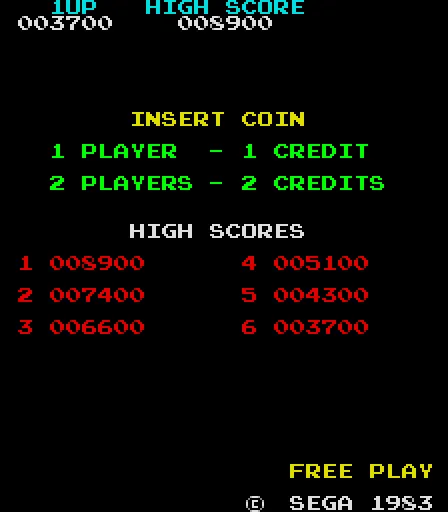

- High Score Save — permanently stores the top 6 scores + initials.

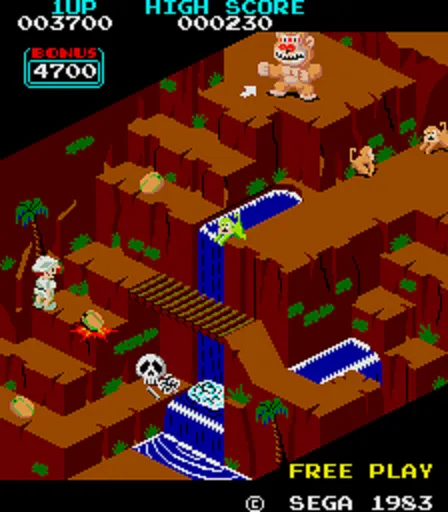

- Free Play — full attract mode; enable/disable via DIP switches.

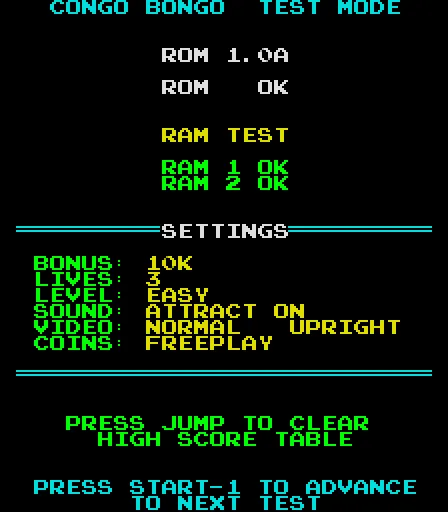

- Reset High Scores — use Congo Bongo test mode and on-screen prompts.
- Improved Test Mode — DIP verification + mini POST.
- Flip Screen — supports both monitor orientations.
FAQ
Where can I download the install guide?
Do I need to solder anything?
No. The kit is fully plug-and-play.
How do I reset the high scores?
Enter Congo Bongo test mode and follow the on-screen prompts to restore defaults.
How do I enable Free Play?
Use the DIP switch settings shown in the installation guide.
