Black Widow Free Play and High Score Save Kit

$66.00

1 Review

Choose Your Kit Version

Add a New 6502 CPU?

Add a 40-Pin CPU Socket?

Each

Product number: SW10064.1

Product information "Black Widow Free Play and High Score Save Kit"

Black Widow Free Play and High Score Save Kit for original Atari vector arcade PCB

The HighScoreSaves Black Widow Free Play and High Score Save Kit upgrades a documented compatible original Atari Black Widow vector arcade PCB with Free Play, permanent Top 5 high score saving, adjustable attract sounds, configurable settings, multiple score tables, and optional Wi-Fi leaderboard support while retaining the original Atari vector hardware and gameplay.

Black Widow Compatibility & Requirements

Compatible PCB: Documented compatible original Atari Black Widow vector arcade PCB

CPU: 6502

CPU Requirement: Original 6502 must be socketed

Socket: Compatible 40-pin CPU socket

Soldering: Not required when the original 6502 is already socketed

Installation Location: Documented 6502 CPU position

Cabinet Support: Documented upright and cocktail configurations

Installation: Plug-in installation when the original 6502 is already socketed. If the 6502 is soldered directly to the PCB, a qualified arcade technician must install a compatible 40-pin socket before the kit can be used.

Black Widow PCB Compatibility & Kit Details

View Black Widow Installation Guide PDF

What This Kit Adds

Free Play & Coin Operation Play Black Widow without coins while retaining traditional coin operation when desired.

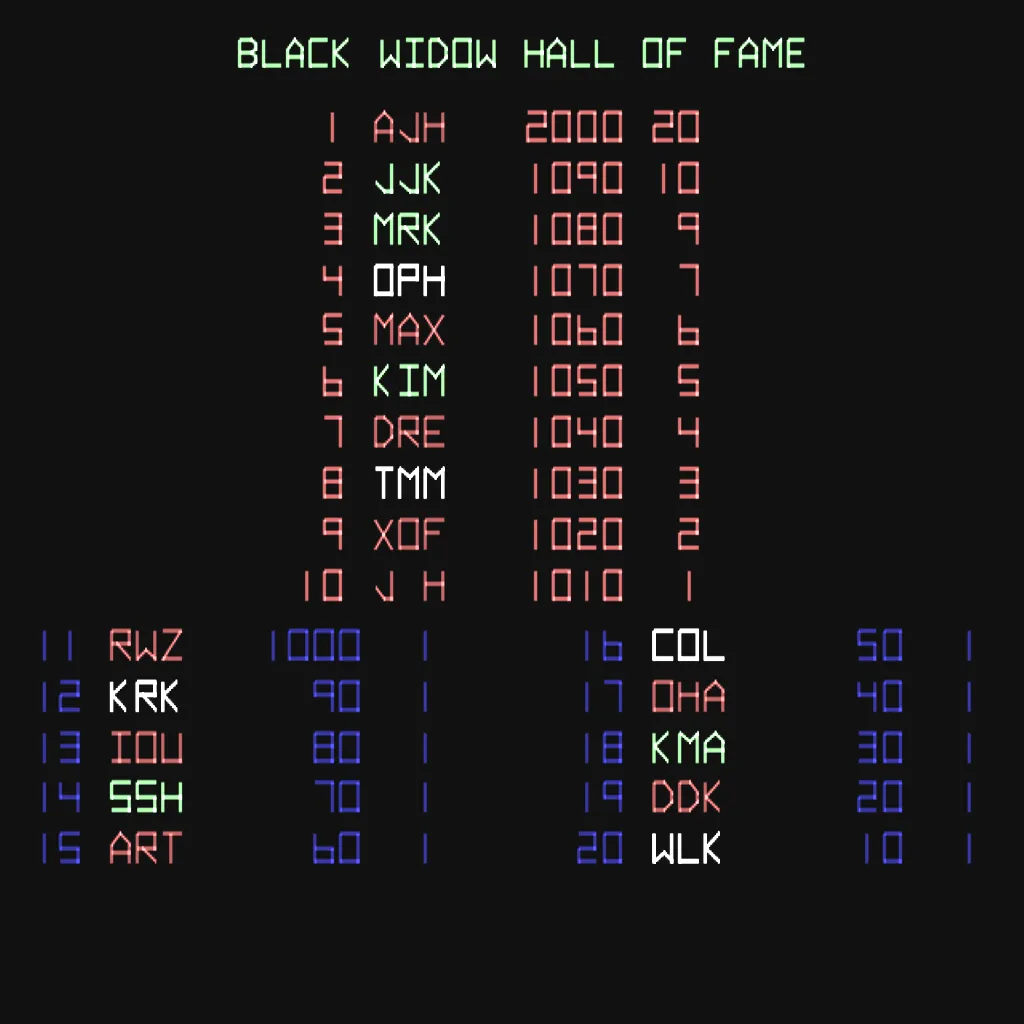

Top 5 High Score Saving Permanently stores the Top 5 supported high scores using battery-free serial EEPROM.

Multiple Score Tables Supports up to four separate high score tables based on supported lives and bonus-award settings.

Adjustable Attract Sounds Select supported 25%, 50%, or 100% attract-sound frequency settings.

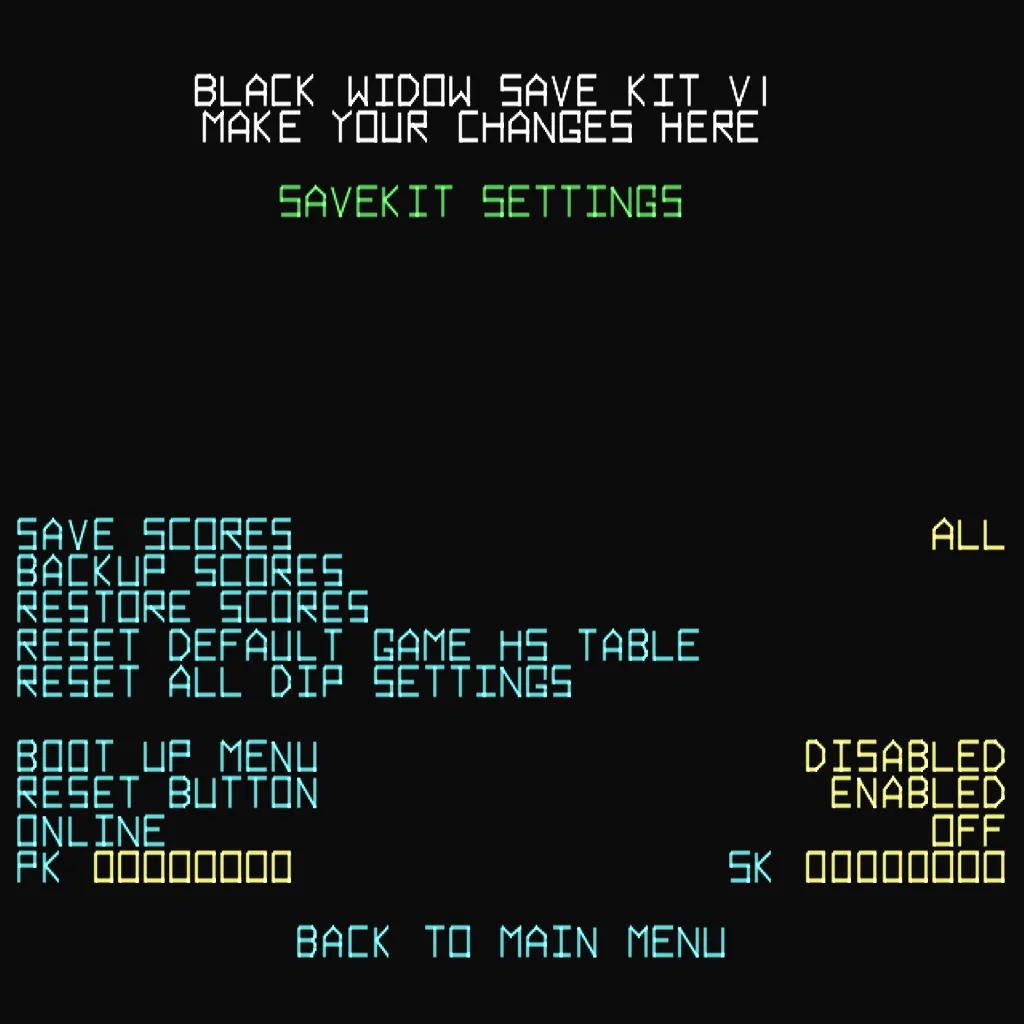

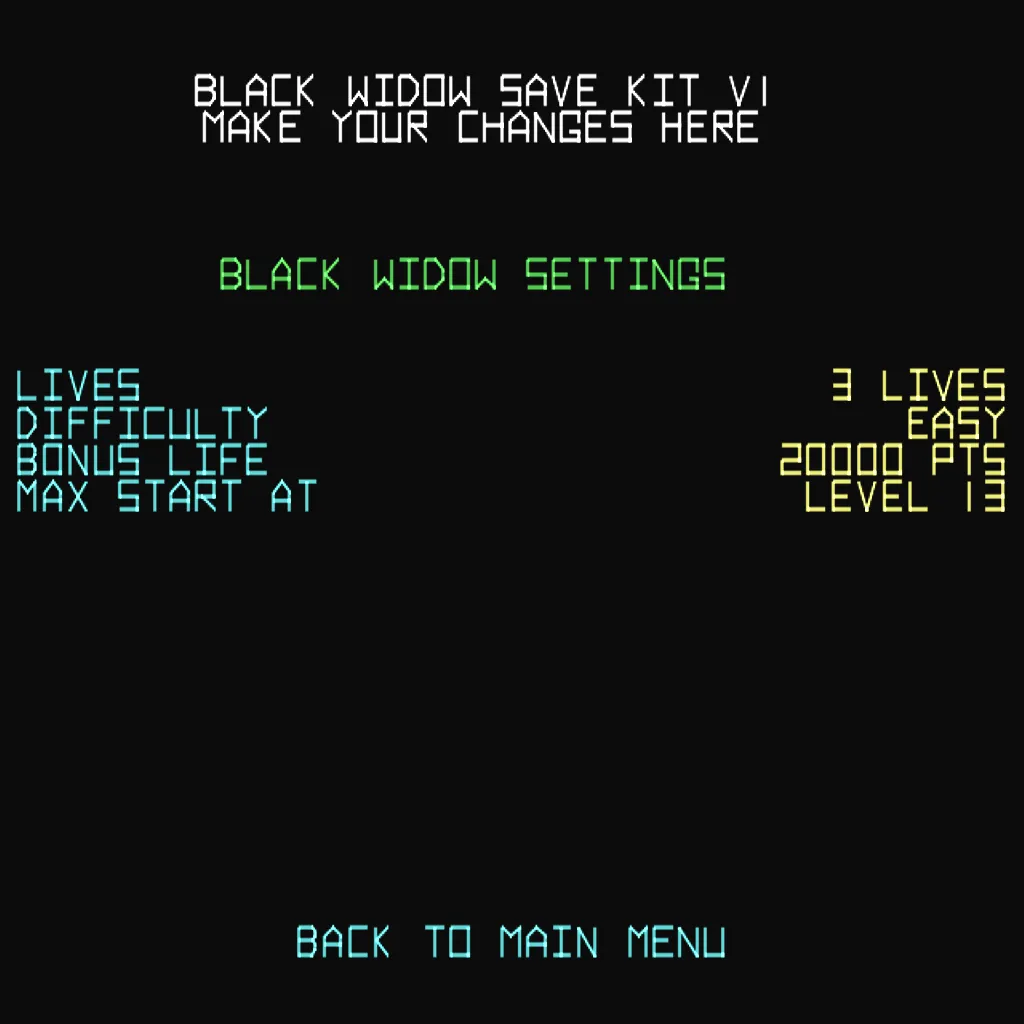

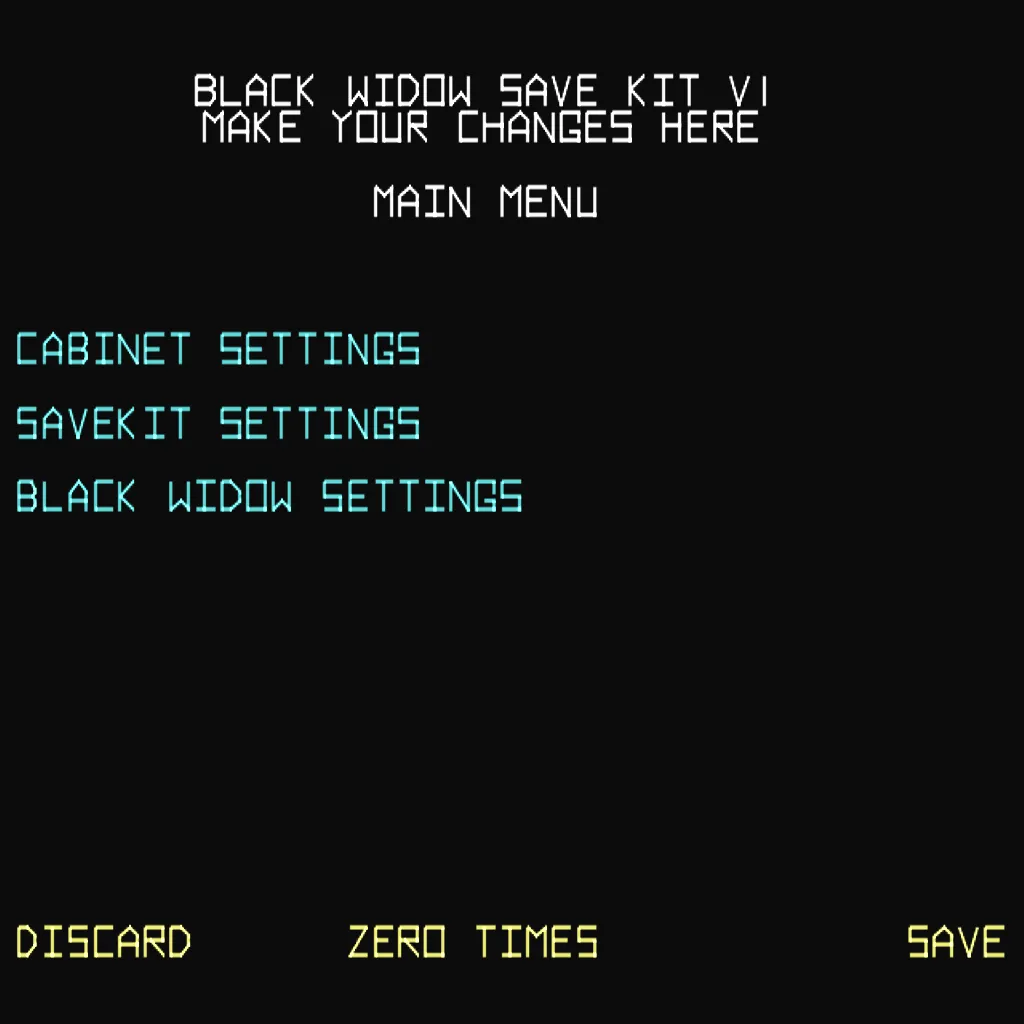

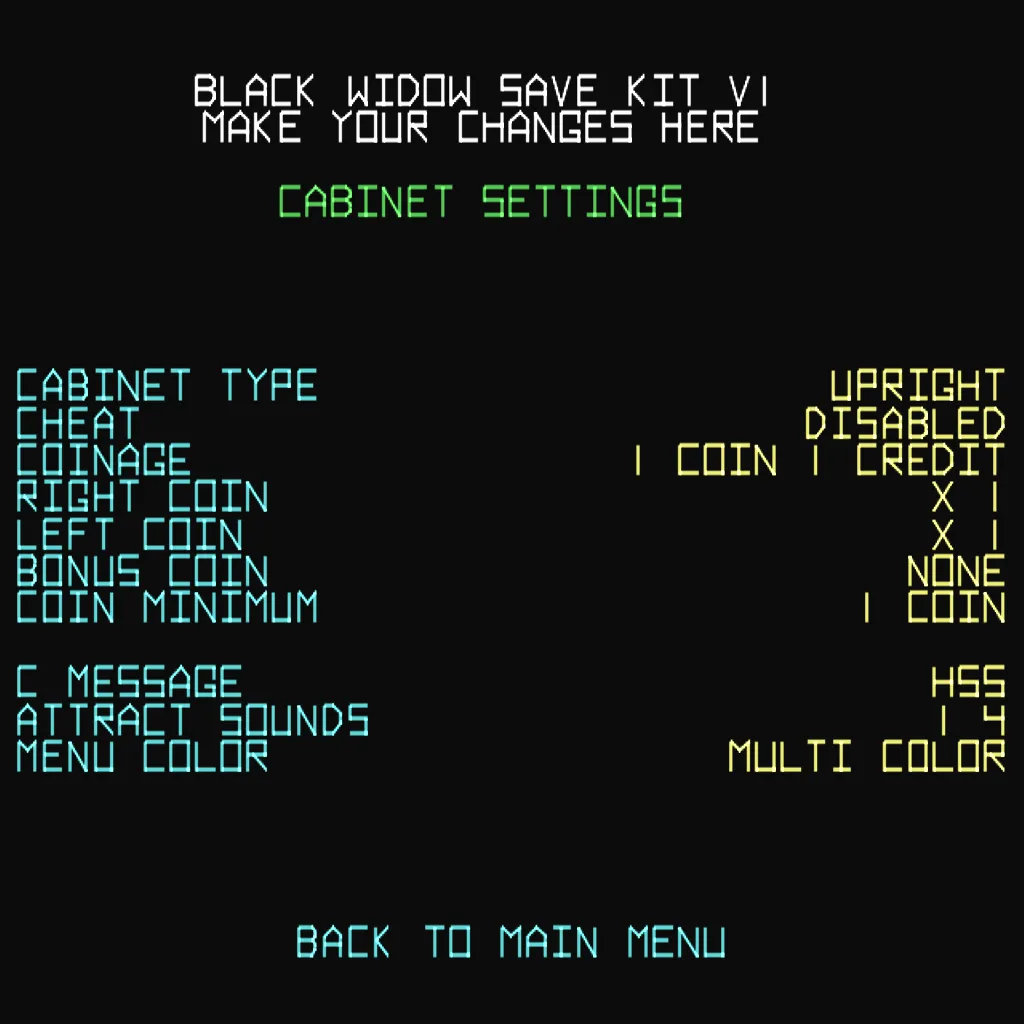

On-Screen Settings Configure supported game and kit options through the menu-driven settings interface.

Backup & Restore Back up stored high score data and restore it later when needed.

Attract-Mode Protection Supported attract-mode options help reduce prolonged static vector display time.

Reset, Fast Boot & Stealth Mode Soft-restart the game, reduce startup initialization time, or boot directly into gameplay.

ROM Saver Supports removal of designated original program ROMs as described in the installation guide.

Copyright Display Selection Select supported original-manufacturer or HighScoreSaves identification.

What's Included

Base Black Widow Kit: 1 × HighScoreSaves 6502 daughter PCB

Standard vs. Wi-Fi Kit

Standard Kit

Saves supported scores, settings, and configuration data locally on the installed Black Widow arcade PCB. No internet connection is required.

Wi-Fi Enabled Kit

Includes the same local features and can also submit qualifying completed scores to the HighScoreSaves online leaderboard.

Wi-Fi can be disabled without affecting local score saving, Free Play, settings, or normal gameplay. Wi-Fi-enabled kits use compatible 2.4 GHz Wi-Fi networks.

Black Widow Kit FAQ

How do I enter the Black Widow kit settings menu?

Hold Player 1 Start for approximately 4 seconds while turning on the cabinet.

How are Black Widow high scores organized?

The kit permanently saves the Top 5 supported high scores and supports up to four separate score tables based on supported lives and bonus-award settings.

What is Stealth Mode?

Stealth Mode allows the kit to boot directly into Black Widow gameplay without displaying the normal startup menus.

Will the Wi-Fi kit still save scores if Wi-Fi is disabled?

Yes. Local score saving, settings, Free Play, and normal gameplay continue to work when Wi-Fi is disabled or unavailable.
