1943 Arcade Free Play and High Score Save Kit PCB Upgrade
Product information "1943 Arcade Free Play and High Score Save Kit PCB Upgrade"

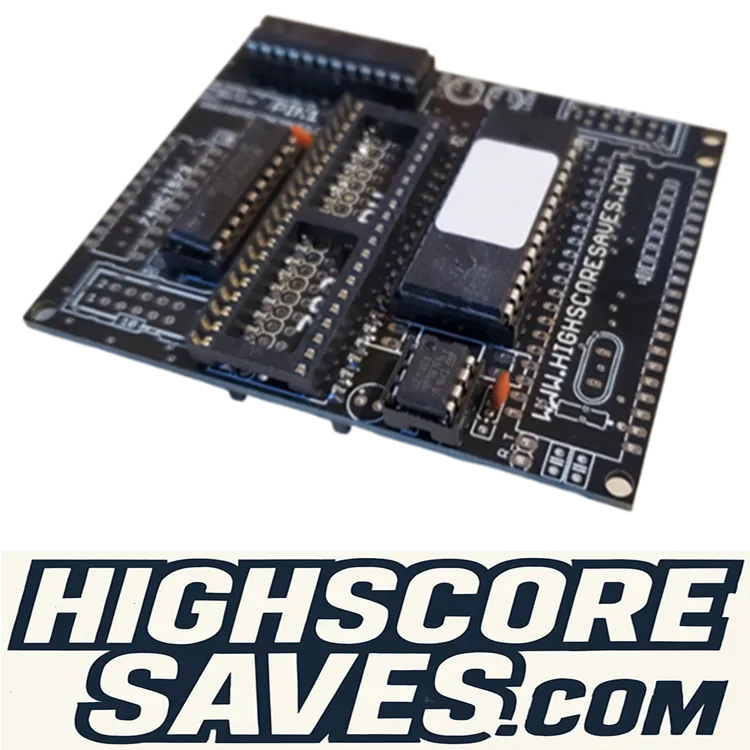

1943 Free Play and High Score Save Kit for Capcom Arcade PCB
Upgrade your original Capcom 1943 arcade PCB with reliable free play, high score saving, and optional Wi-Fi leaderboard support while preserving authentic gameplay and original arcade hardware.
Designed specifically for original Capcom hardware, this plug and play upgrade improves long-term reliability without changing gameplay, timing, sound, or the classic arcade experience collectors expect.
Play without coins while retaining optional coin operation.
Battery-free EEPROM storage retains scores after power off.
Upload scores online to global arcade leaderboards.
Designed for authentic Capcom arcade PCB gameplay.
Upgrade Your 1943 Arcade Experience
Restore and enhance your original 1943 arcade machine with a professionally designed Free Play and High Score Save Kit built specifically for authentic Capcom arcade hardware.
Original boards often lose high scores, suffer from unstable resets, or rely on aging components. This upgrade modernizes your PCB while preserving the original gameplay, sound, timing, and arcade feel that made 1943 one of Capcom’s most iconic vertical shooters.
Unlike multigame systems or replacement hardware, this kit keeps your original arcade PCB intact while improving long-term reliability for collectors, operators, and restoration projects.
Included Features
- Free Play Mode: No coins required with optional coin operation support
- High Score Saving: EEPROM storage with no batteries required

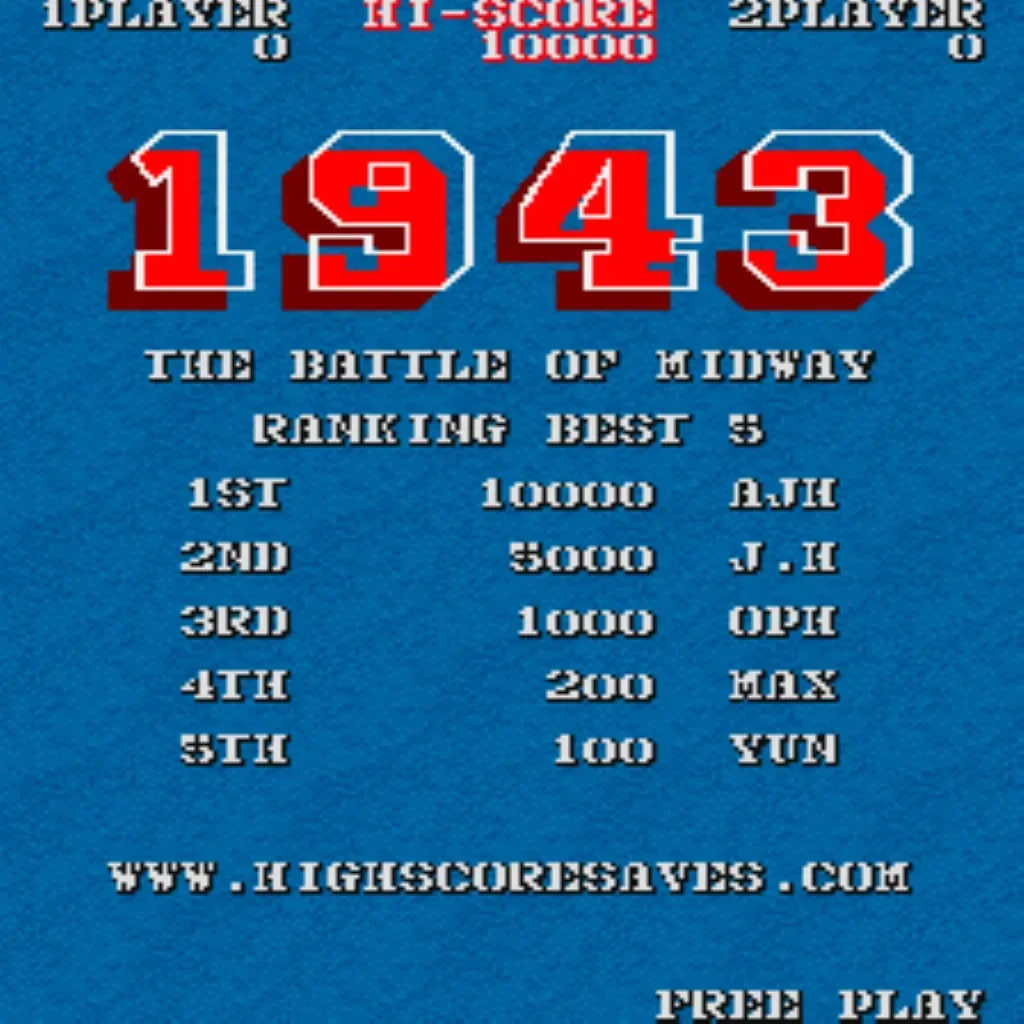

- Top Score Tracking: Displays Top 5 scores and saves up to Top 25
- Wi-Fi Support: Upload scores to online global leaderboards (optional)

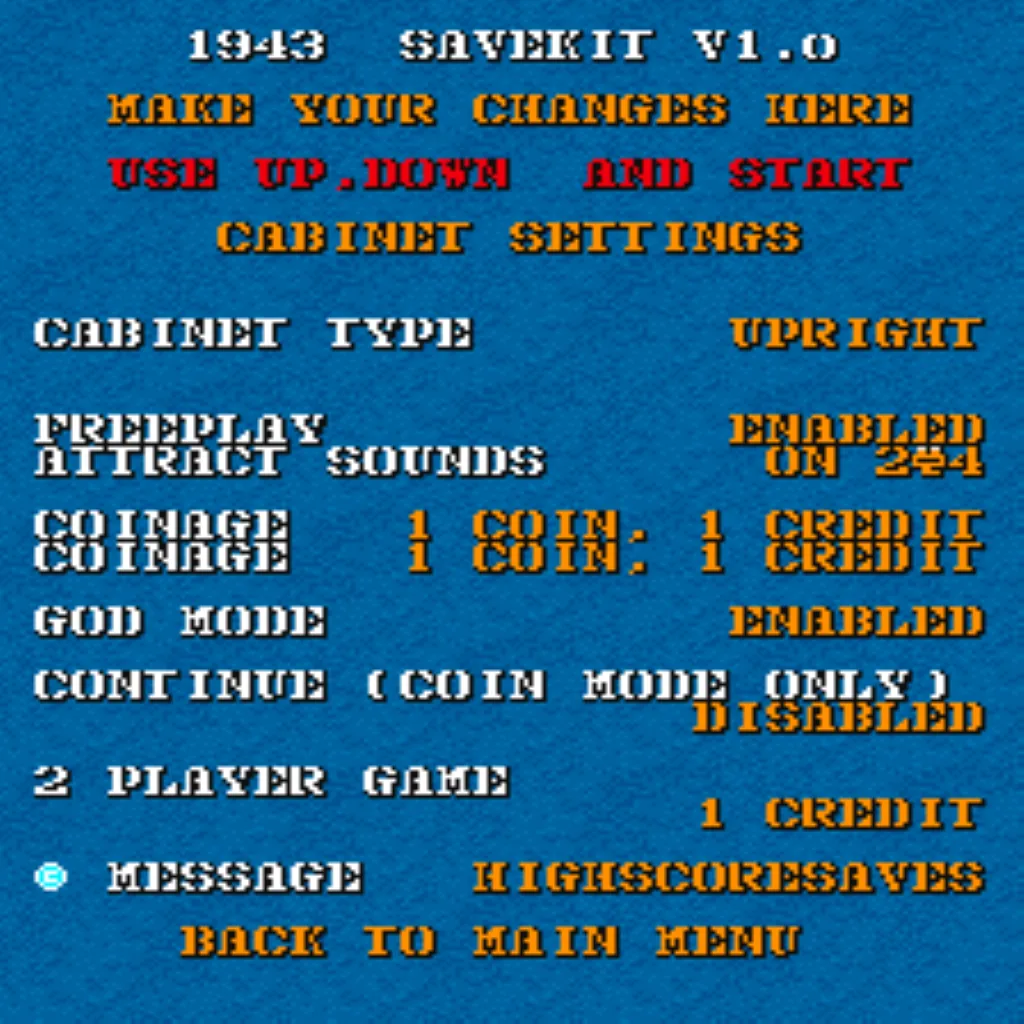

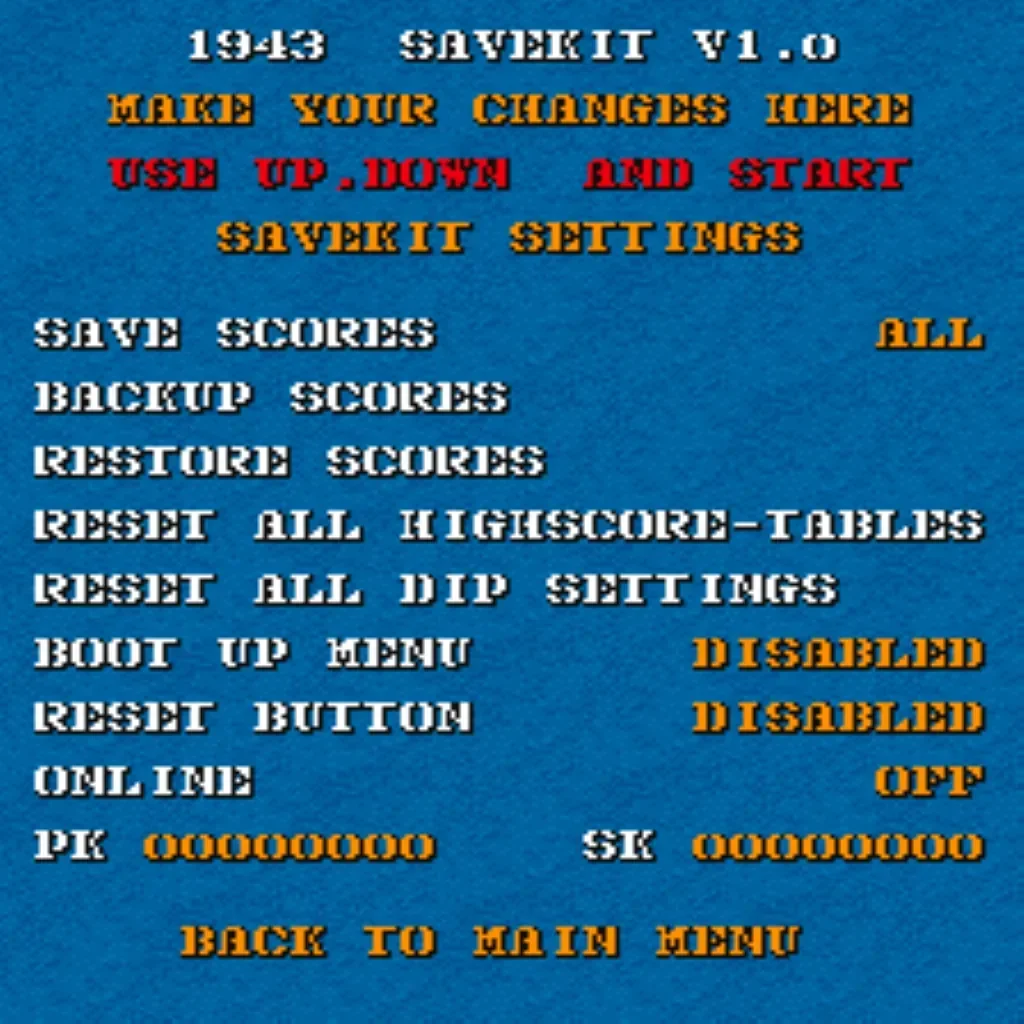

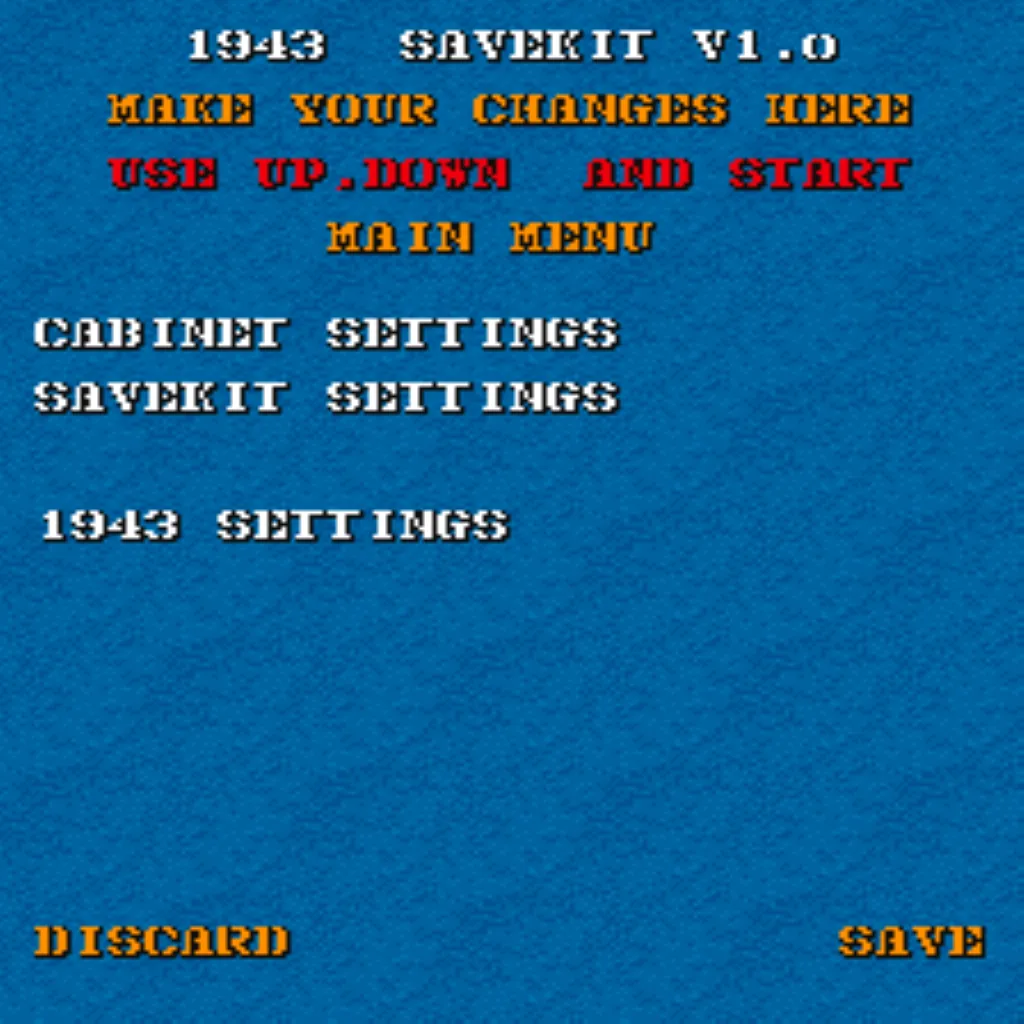

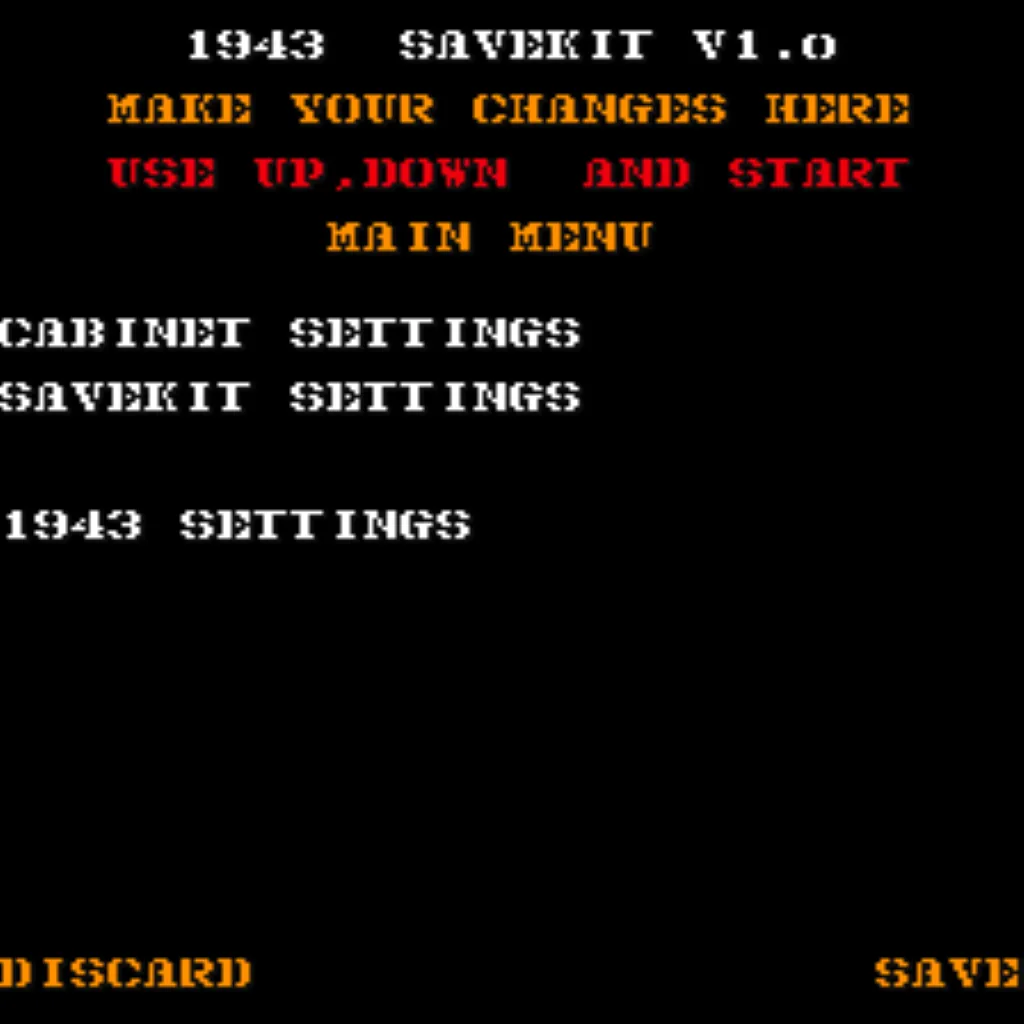

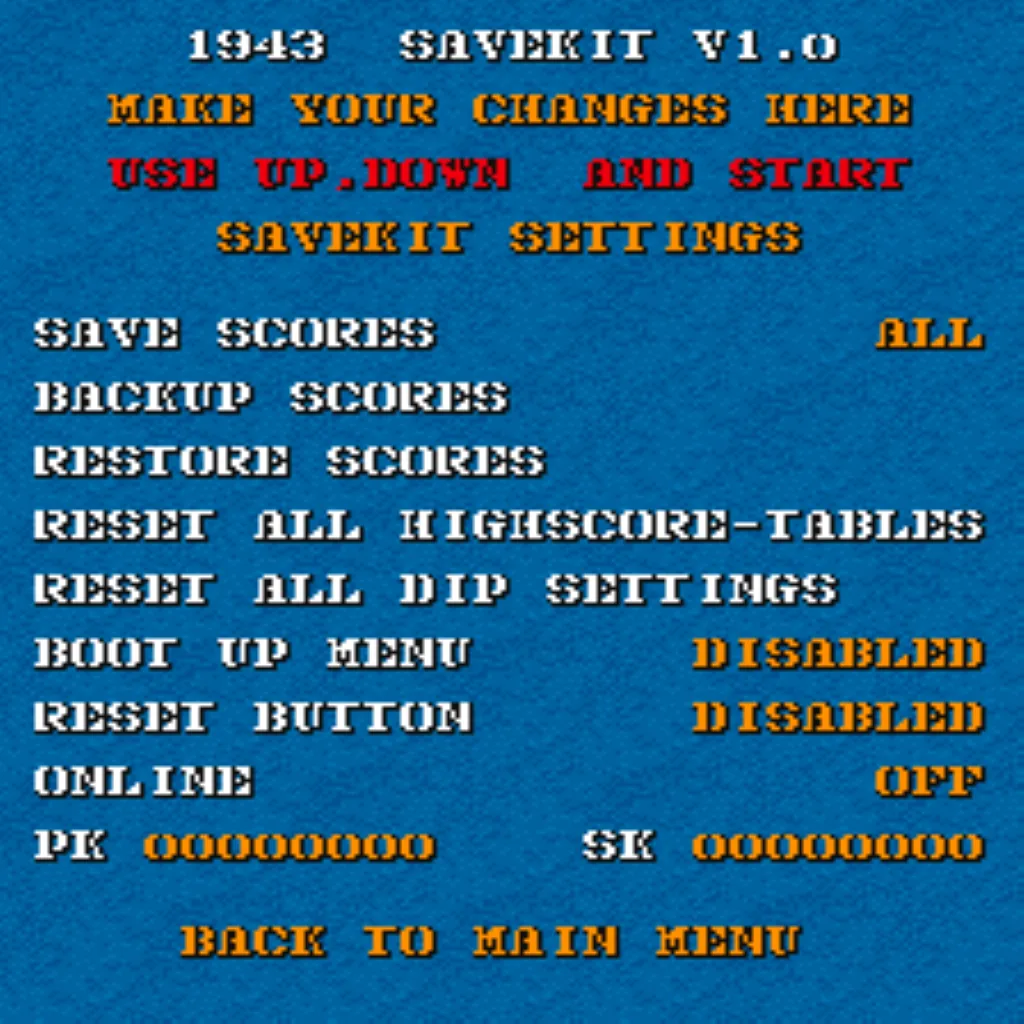

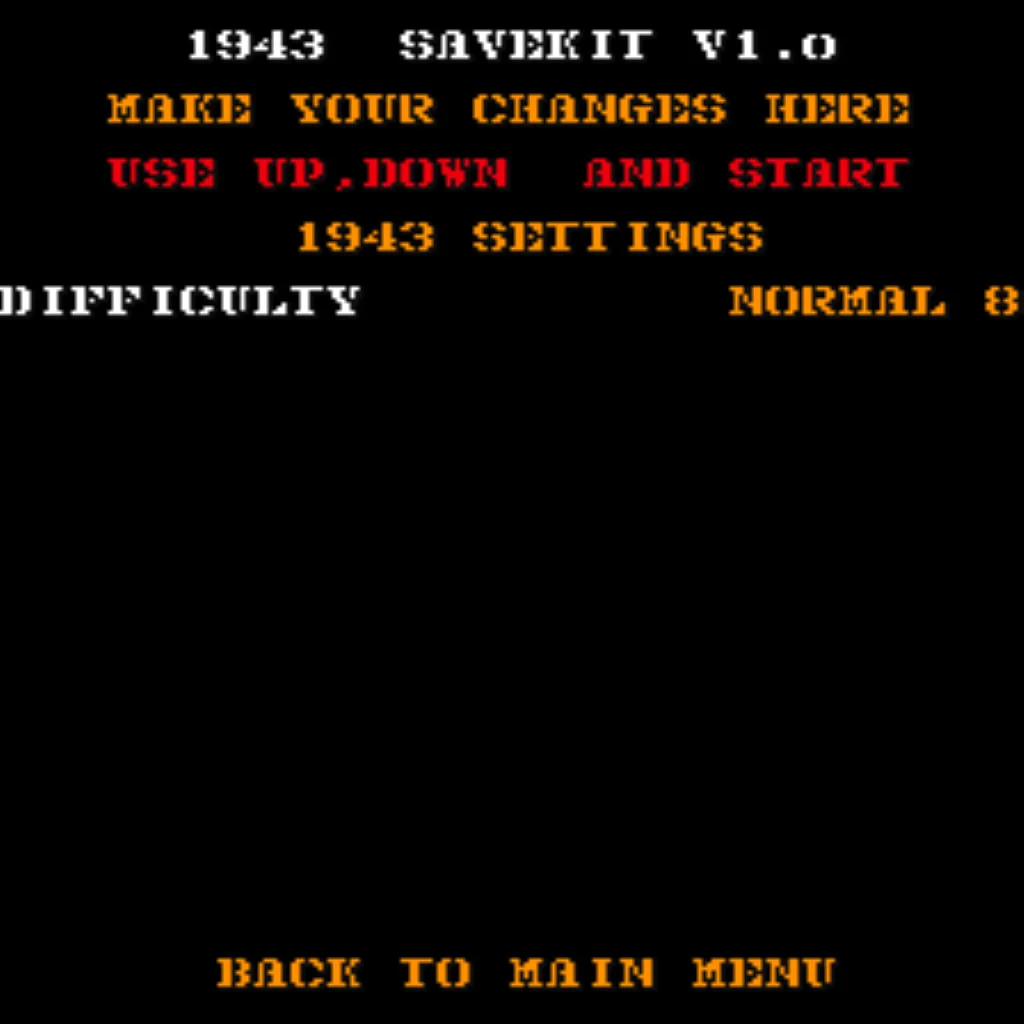

- Menu Settings: Configure game options without opening the cabinet

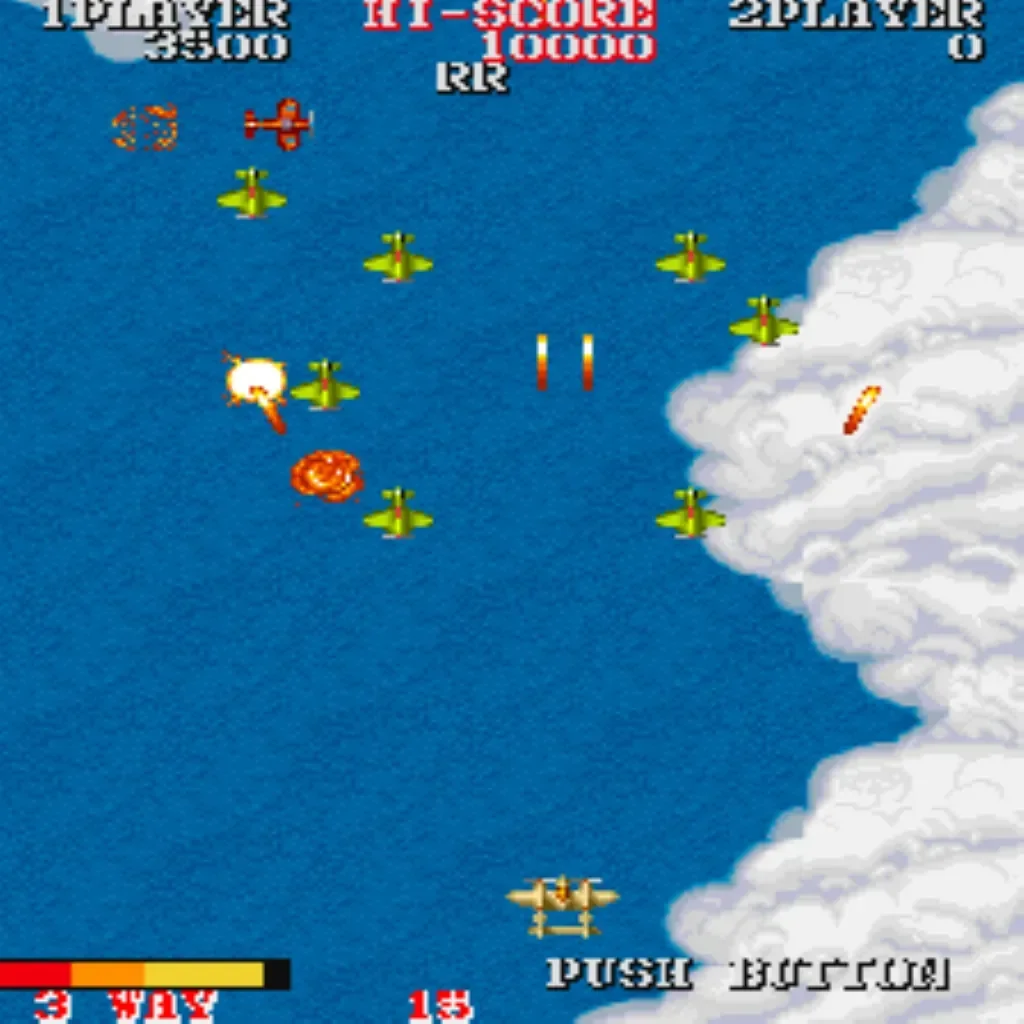

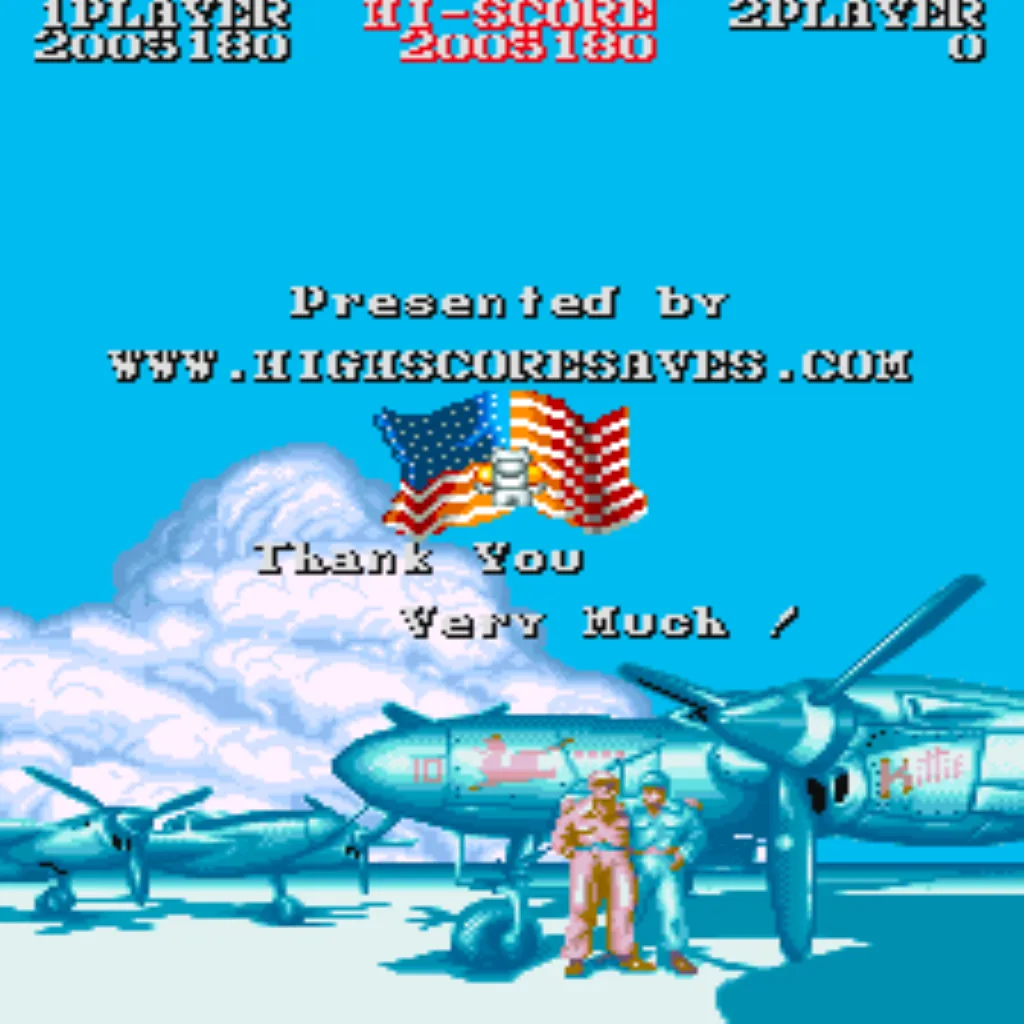

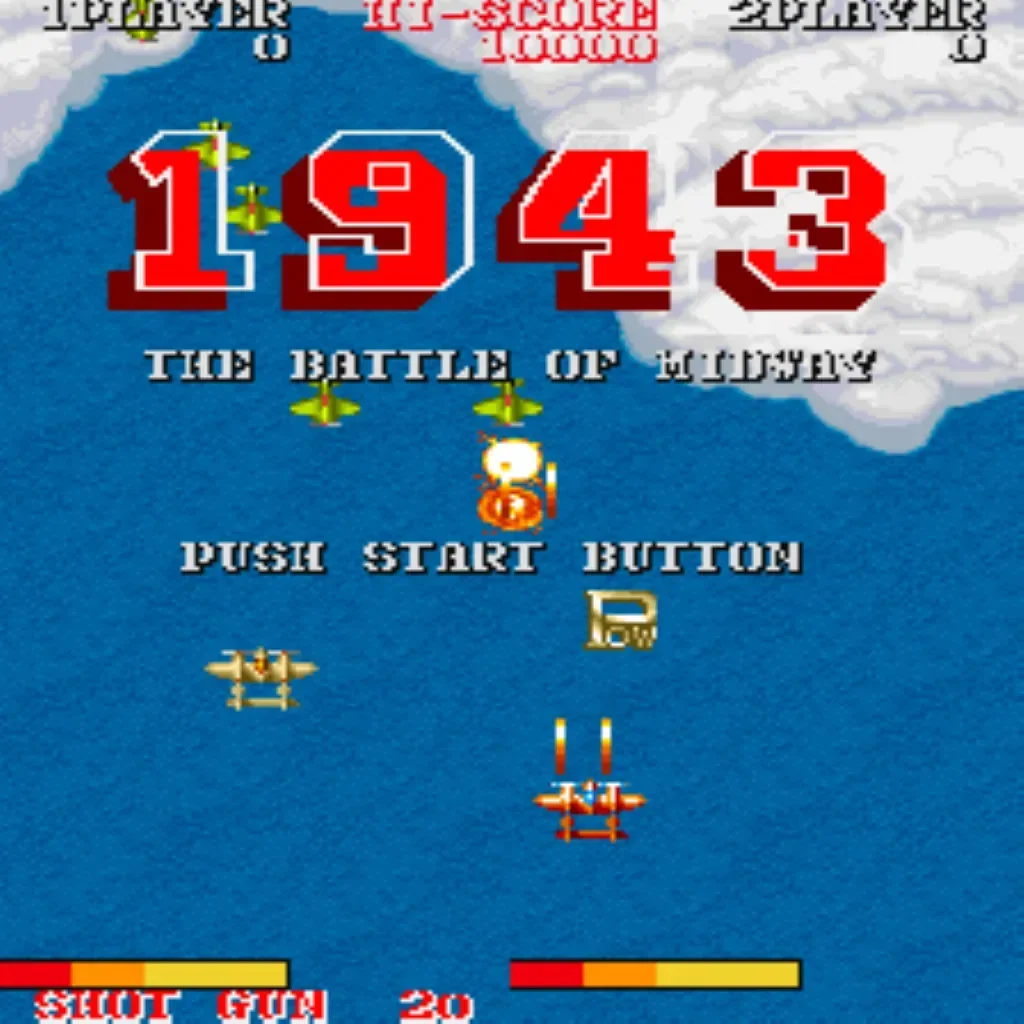

- Attract Mode Protection: Helps reduce screen burn during attract mode

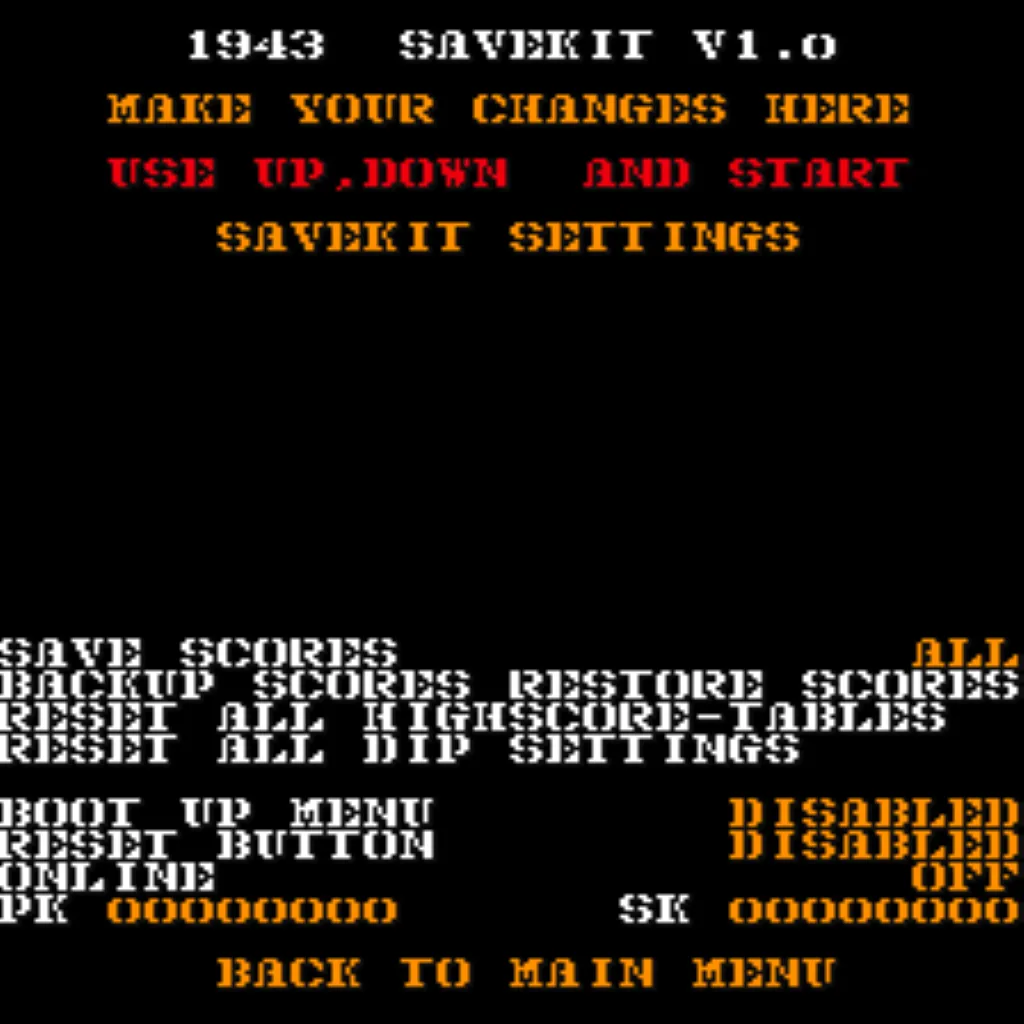

- Backup and Restore: Save and reload high score data

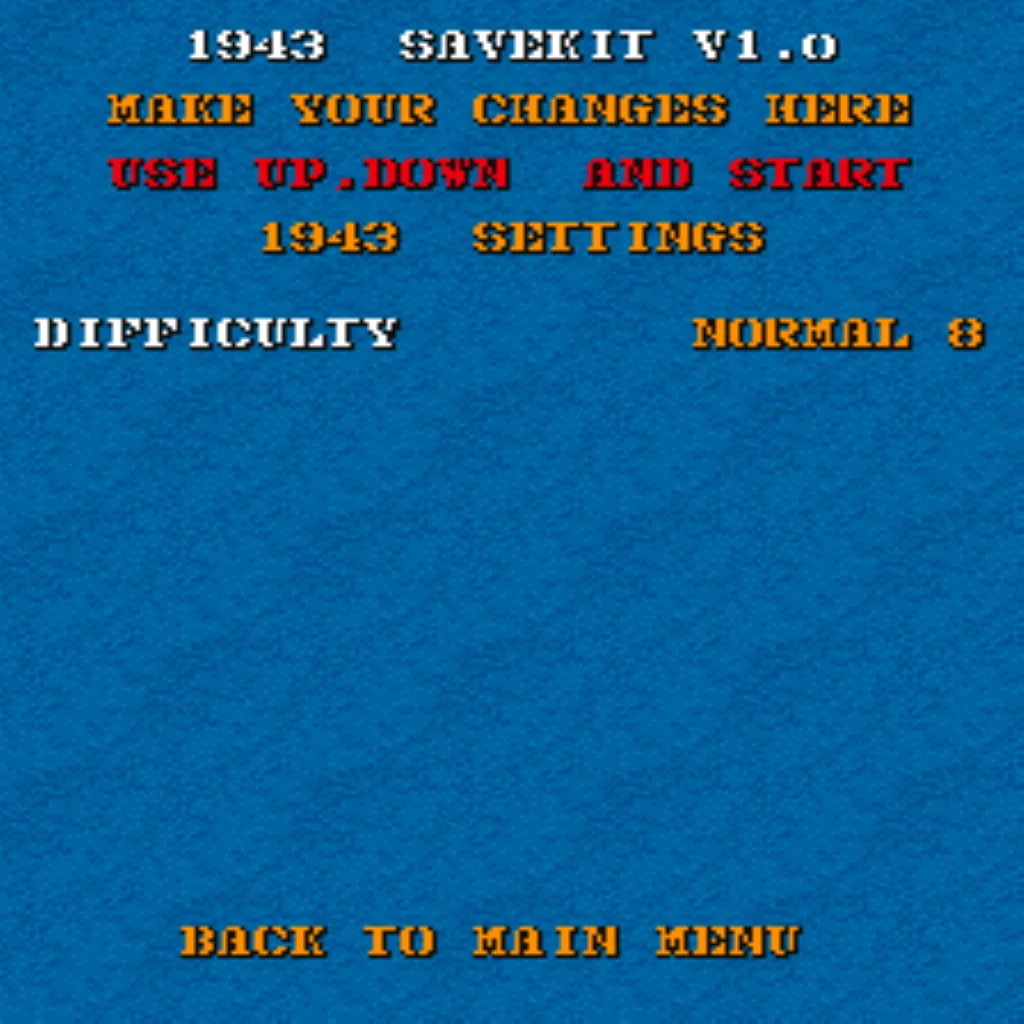

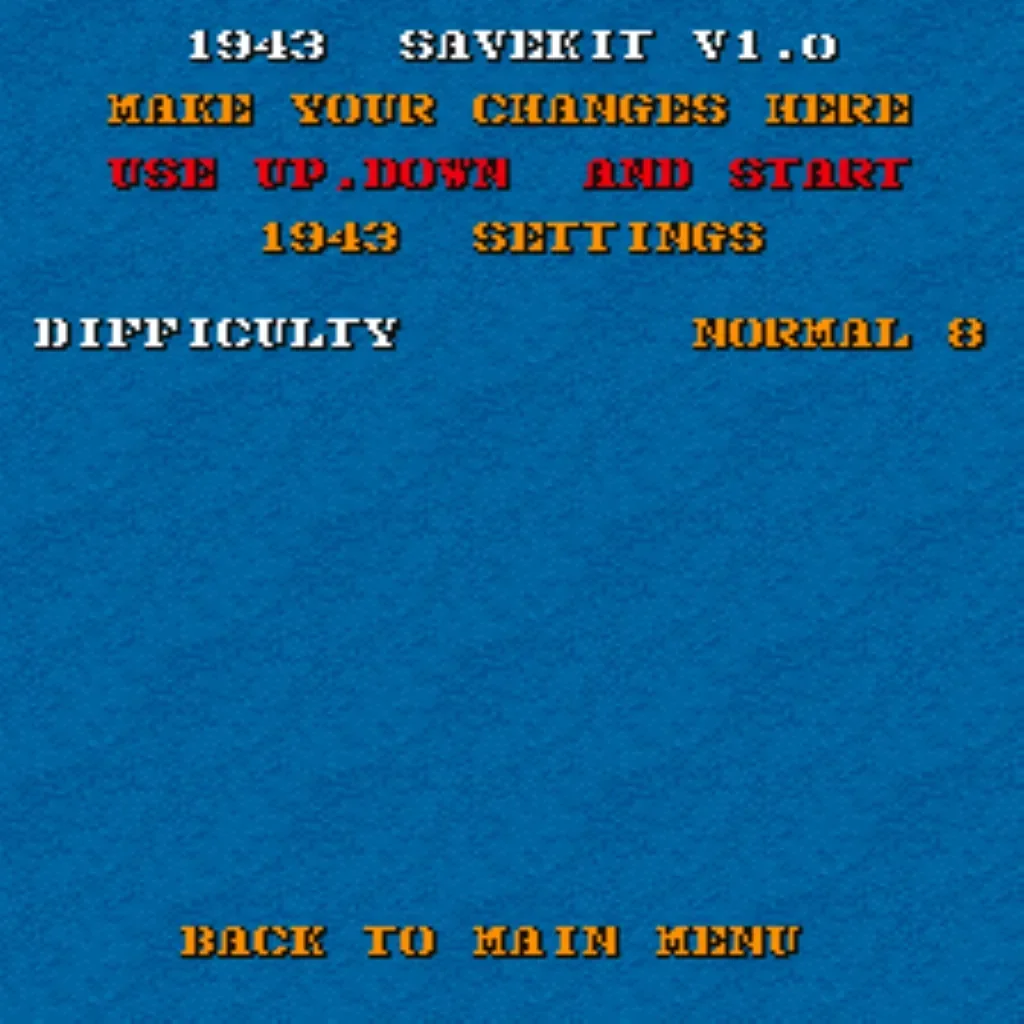

- Multiple Score Tables: Based on difficulty selected
- God Mode: Practice mode with unlimited lives (scores not saved)
- ROM Saver: Reduce power usage by removing original ROMs

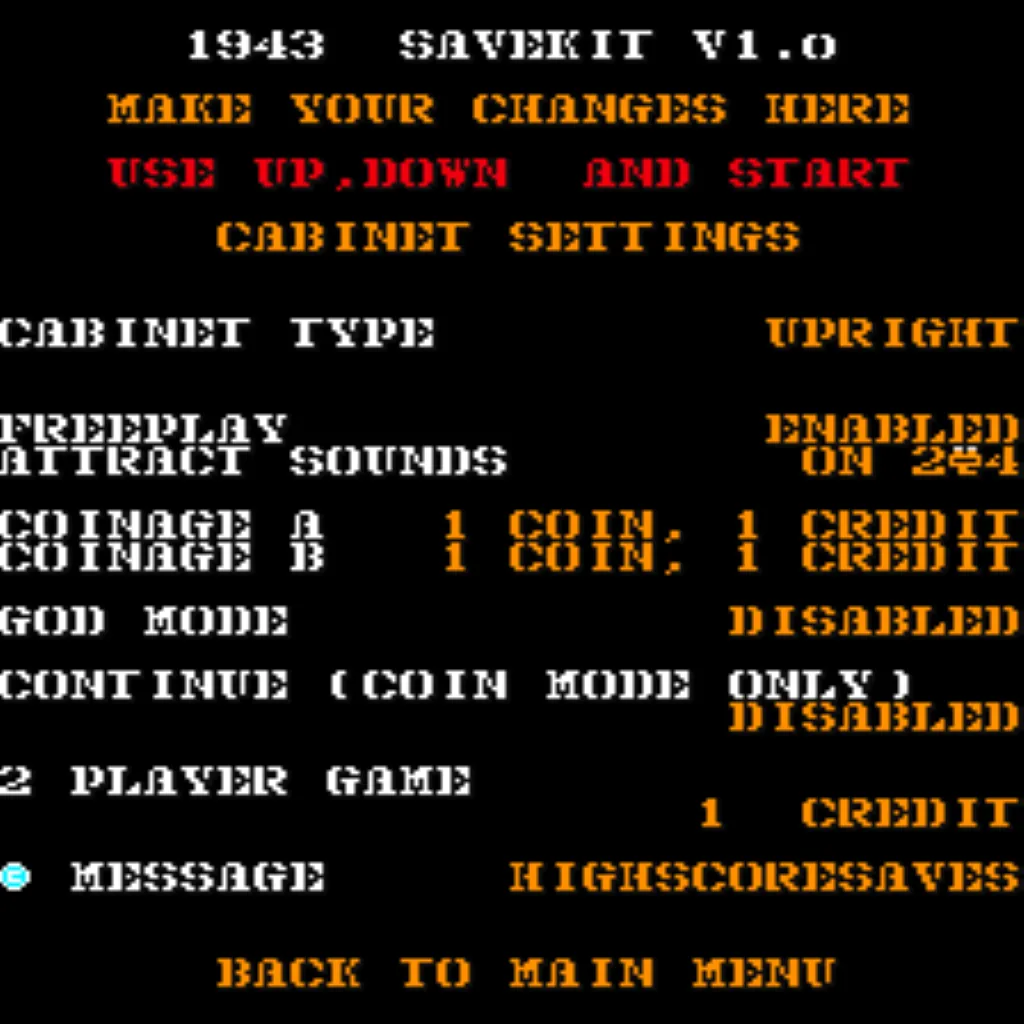

- Cabinet Compatibility: Supports Upright and Cocktail cabinets
Installation Information
- Installation Difficulty: Easy
- Soldering Required: No
- Socketed Z80 Required: Install a 40-pin socket if needed
- Cabinet Compatibility: Upright and Cocktail
- Installation Guide: Download PDF Installation Guide
Optional Wi-Fi Features and Online Leaderboards
Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network.
Standard kits save scores locally to the PCB, while Wi-Fi kits add automatic online score syncing through the HighScoreSaves global leaderboard platform.
1943 Free Play and High Score Save Kit FAQ
Is the 1943 Free Play and High Score Save Kit plug and play?
Yes. No soldering or board modifications are required. Your Z80 must be socketed.
How many high scores does the 1943 save kit store?
The kit displays the Top 5 scores on screen and stores up to 25 total high scores.
What is the difference between Wi-Fi and Standard kits?
Wi-Fi kits upload scores to online leaderboards and allow global tracking. Standard kits store scores locally only.
What is God Mode in the 1943 save kit?
God Mode allows unlimited play for practice sessions. Scores are not saved while using this mode.
Where can I download the 1943 installation guide?
Download the 1943 Free Play and High Score Save Kit Installation Guide
Login
1 review
November 16, 2025 10:06 PM
Must have kit
Very happy that Highscoresaves makes kits for these classic arcade games. Ordered and received within a few days. Install guide is straight forward for an easy installation. The save kit works perfectly. Highly recommended!
