Braze Mario Bros Free Play and High Score Save Kit
$70.00
Product information "Braze Mario Bros Free Play and High Score Save Kit"
Braze Mario Bros. High Score Save Kit — Features & Install
Overview
A simple-to-install high score save kit for Mario Bros. that permanently remembers the top 5 scores and initials and also saves your current Free Play setting. No batteries required. Installs in minutes—no special wiring or soldering is typically needed.
Installation Summary
- Power down the cabinet and access the CPU board.
- Carefully remove the Z80 CPU from the Mario Bros. CPU board.
- Insert the Z80 into the included daughter card.
- Plug the daughter card into the vacated Z80 socket on the CPU board.
- Power on and follow the install guide to verify operation.
Key Features
- Installs in minutes: no board modifications or special wiring.
- Top 5 High Score Save: remembers scores and initials permanently (no batteries).

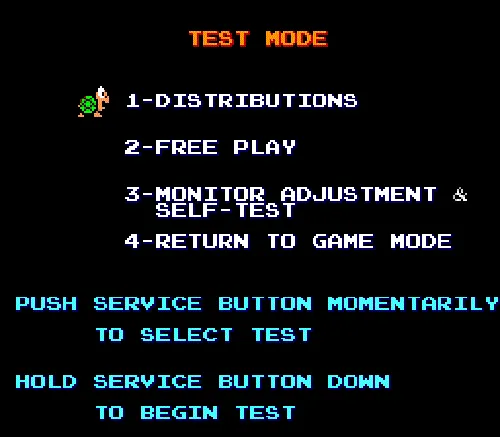

- Free Play saved: preserves your Free Play setting; toggle via standard Mario Bros. test mode.
- Easy reset: clear the table in test mode by resetting the bookkeeping distributions.
FAQ
Where can I download the install guide?
Do I need to solder anything?
Typically no. Most installations require no soldering or special wiring.
How do I reset the high scores?
Enter Mario Bros. test mode and clear the “bookkeeping distributions” to restore the default table.
Is Free Play saved?
Yes. The kit saves your current Free Play setting; enable or disable it in the standard test mode.
Which CPU does this kit use?
The kit interfaces with the Z80 CPU—remove the Z80, place it in the daughter card, then insert the card into the Z80 socket.
