Swimmer Free Play and High Score Save Kit
$66.00
Available, delivery time: 2-5 days
Product information "Swimmer Free Play and High Score Save Kit"
Customize Your Swimmer Free Play and High Score Save Kit
Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit. You can also add a processor and/or a 40-pin socket—optional but recommended for easy installation.
Learn More About This Kit
Click a button to view details, tips, or the installation guide.
Features
- Easy install – No soldering, board modifications, or special wiring. Plug in and go!
- Save your scores forever – Uses a serial EPROM (not failure-prone NVRAM or batteries).

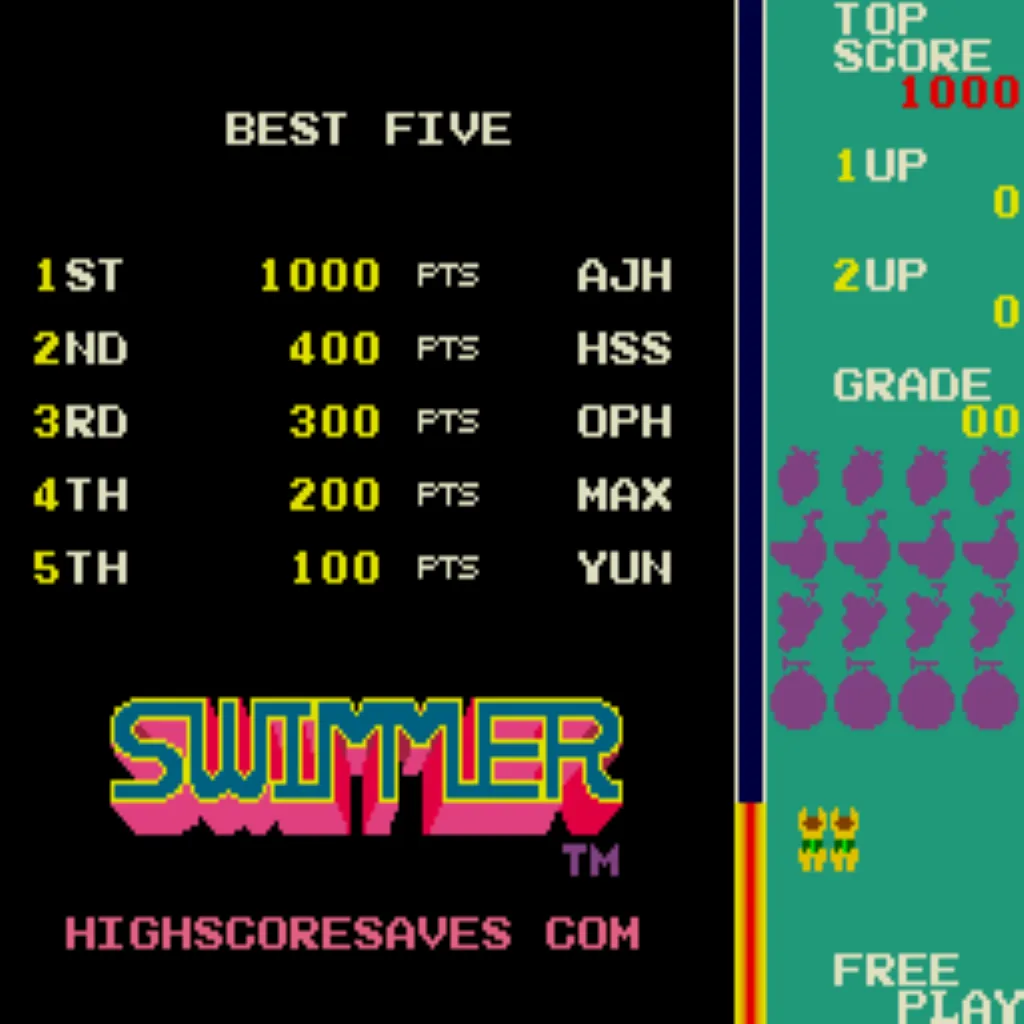

- High Score Save – Saves the Top 5 scores with initials.
- Attract Music – Hear what you’ve been missing; set to 25%, 50%, or 100% of the attract rotation.
- Freeplay – No more coins or opening the coin door.
- Coin Up – Still supports coins if desired.
- Attract Mode – Minimize screen burn; no more static screens.

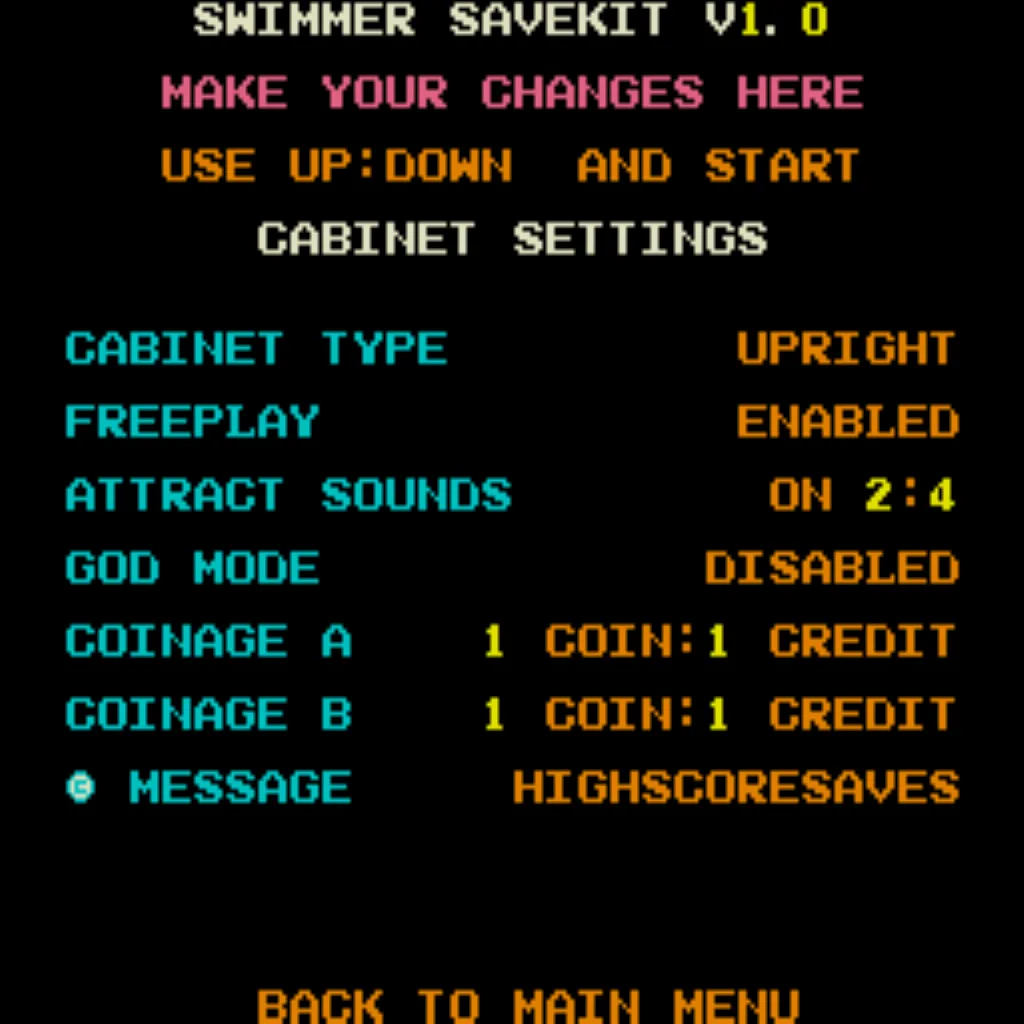

- Menu-driven DIP – Change DIP settings on-screen; no cabinet opening required.
- ROM Saver – Optionally remove original program ROMs to save power.
- Cabinet support – Works in Upright or Cocktail cabinets.
Additional Features
- Backup and Restore – Back up high scores and restore later (great before/after game-room parties).
Important
- Ensure your Z80 is socketed. If not, install a 40-pin socket for the kit to work.
- Read the Installation Guide (PDF) before installing.
Just the FAQ's
Do I need to solder anything?
No, this kit is plug-and-play. No soldering or modifications required.
Does it save scores permanently?
Yes, scores are saved to serial EPROM and don’t require batteries.
How many scores are saved?
The kit saves the Top 5 scores with initials.
Does it support attract music?
Yes, you can set attract music to 25%, 50%, or 100% of the attract rotation.
Can I still use coins?
Yes, the kit supports both Freeplay and Coin Up modes.
Will it work in my cabinet?
Yes, it supports both Upright and Cocktail cabinets.
Does it support backup and restore?
Yes, you can back up and restore high scores—perfect before and after parties.
What is the ROM Saver feature?
It lets you remove the original program ROMs to save power, since the code runs from the kit.
Does it require any special processor?
No special processor required, just ensure your Z80 is socketed.
Where can I download the installation guide?
You can download it here: Swimmer Installation Guide (PDF)
