Dig Dug Free Play and High Score Save Kit
Product information "Dig Dug Free Play and High Score Save Kit"
Customize Your Dig Dug Free Play and High Score Save Kit
Choose between a Wi-Fi Enabled Kit or a Standard Save Kit. You may also add a processor and/or a 40-pin socket—optional but recommended for easy installation.
Learn More About This Kit
Click a button below to view product details, setup tips, or the installation guide.
Features
- Easy install: No soldering or board mods. Plug in and play.
- Permanent score saving: Uses serial EEPROM (not batteries or NVRAM).

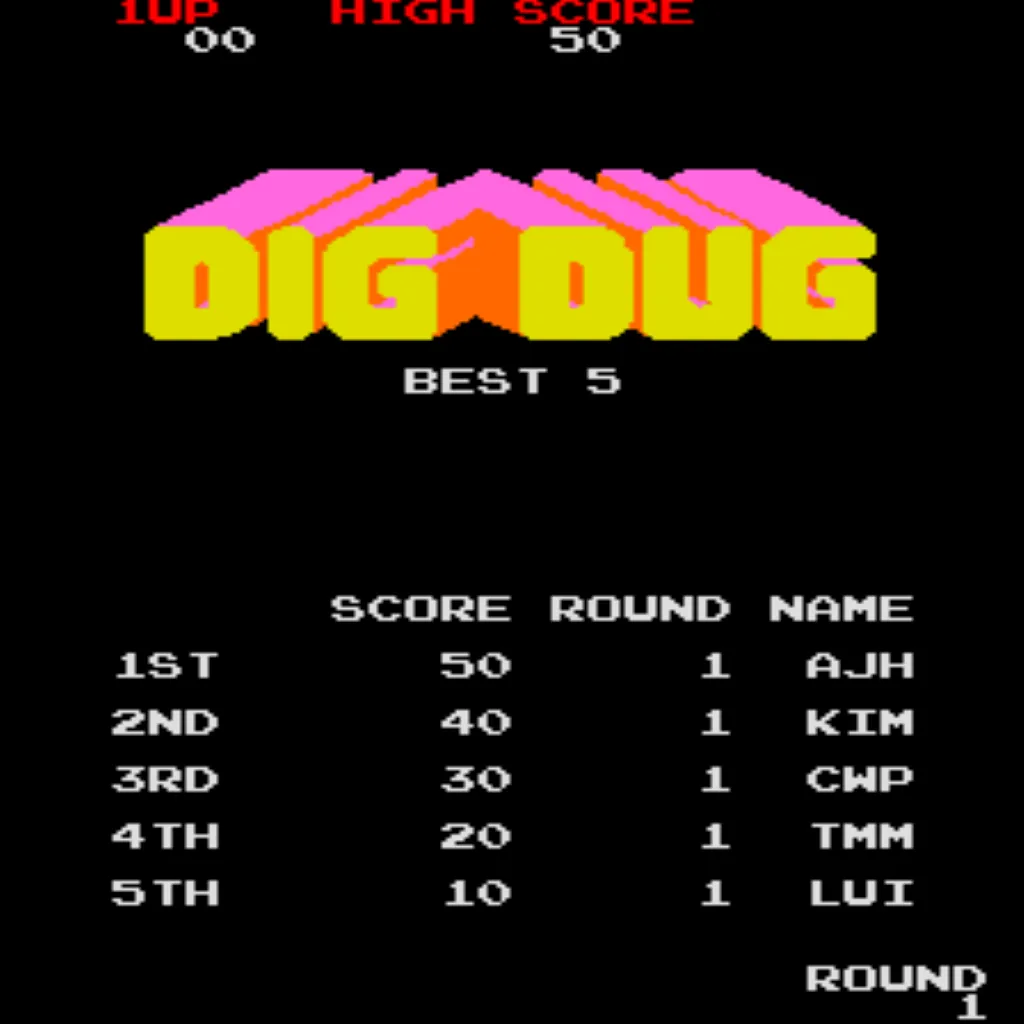

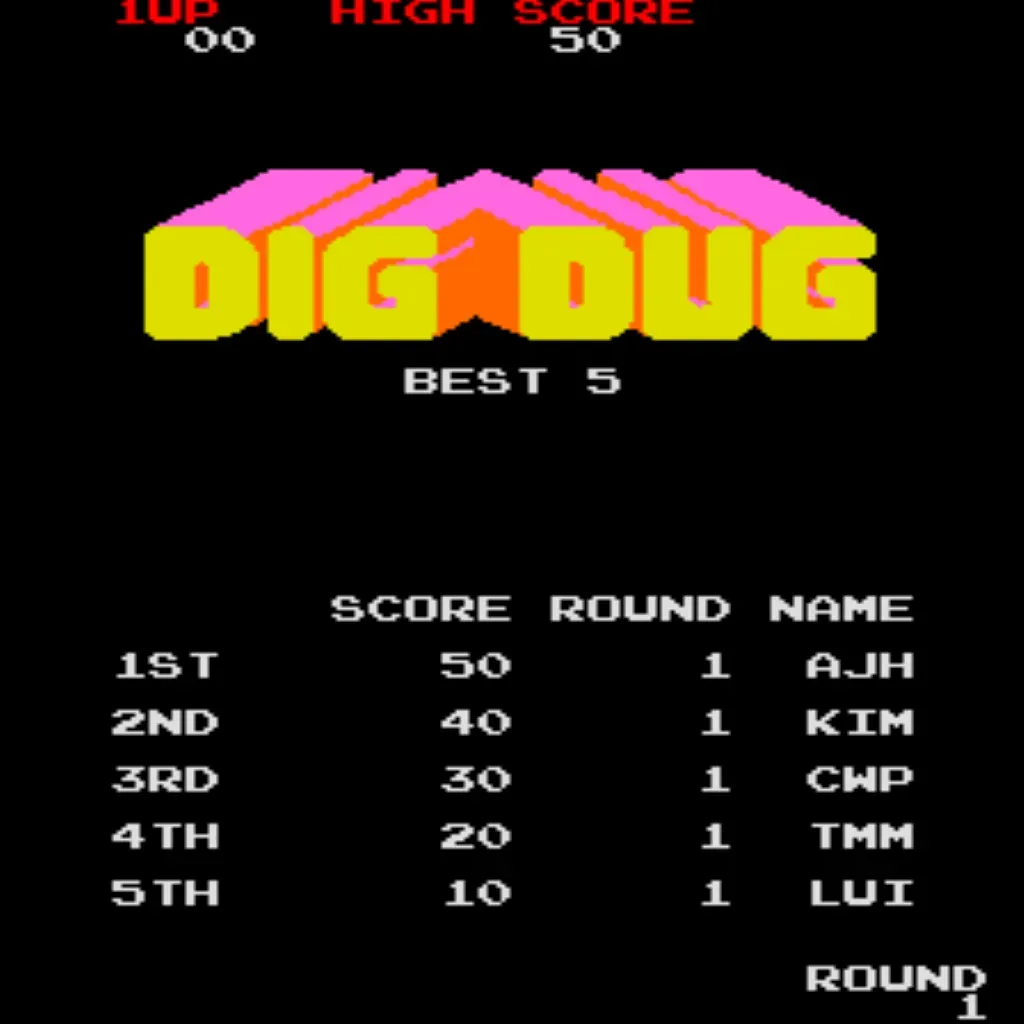

- High Score Save: Stores the Top 5 scores.
- Freeplay mode: No coins needed, but Coin Up is still supported.

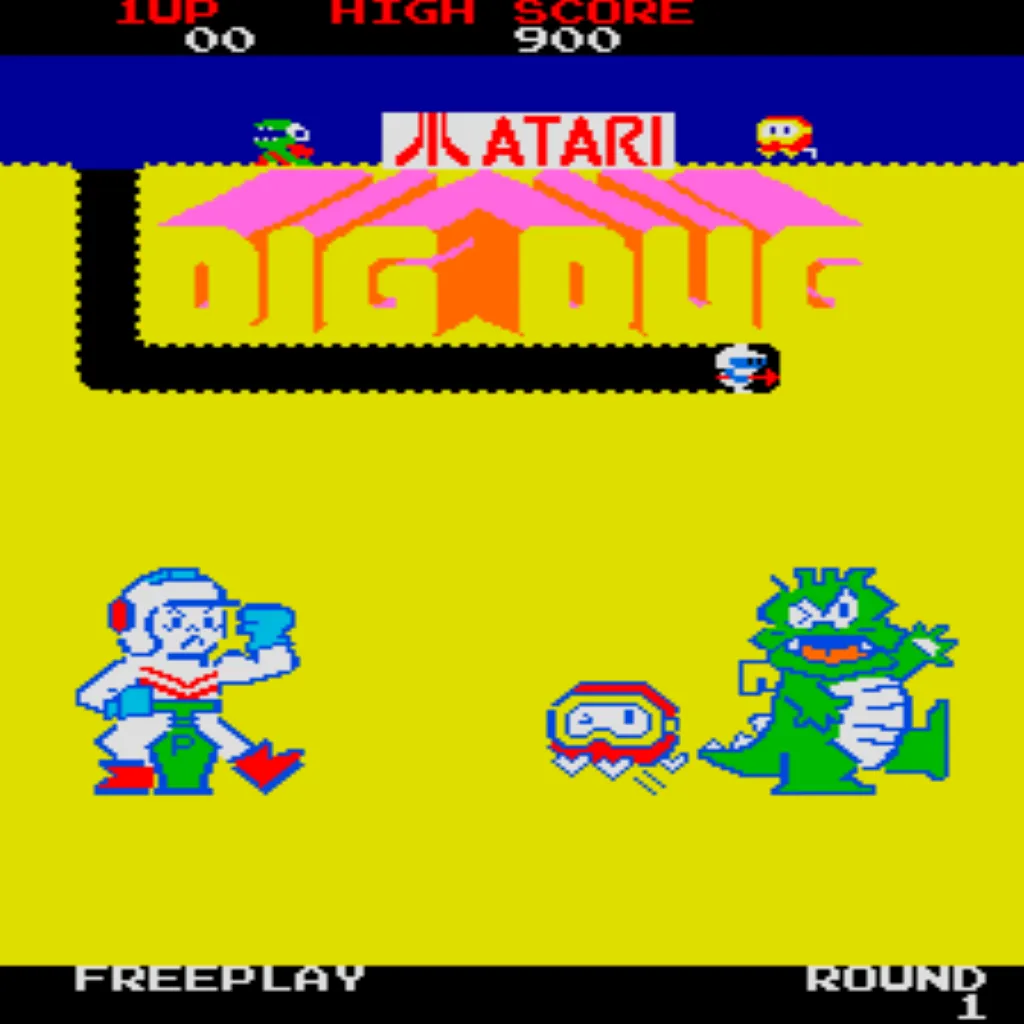

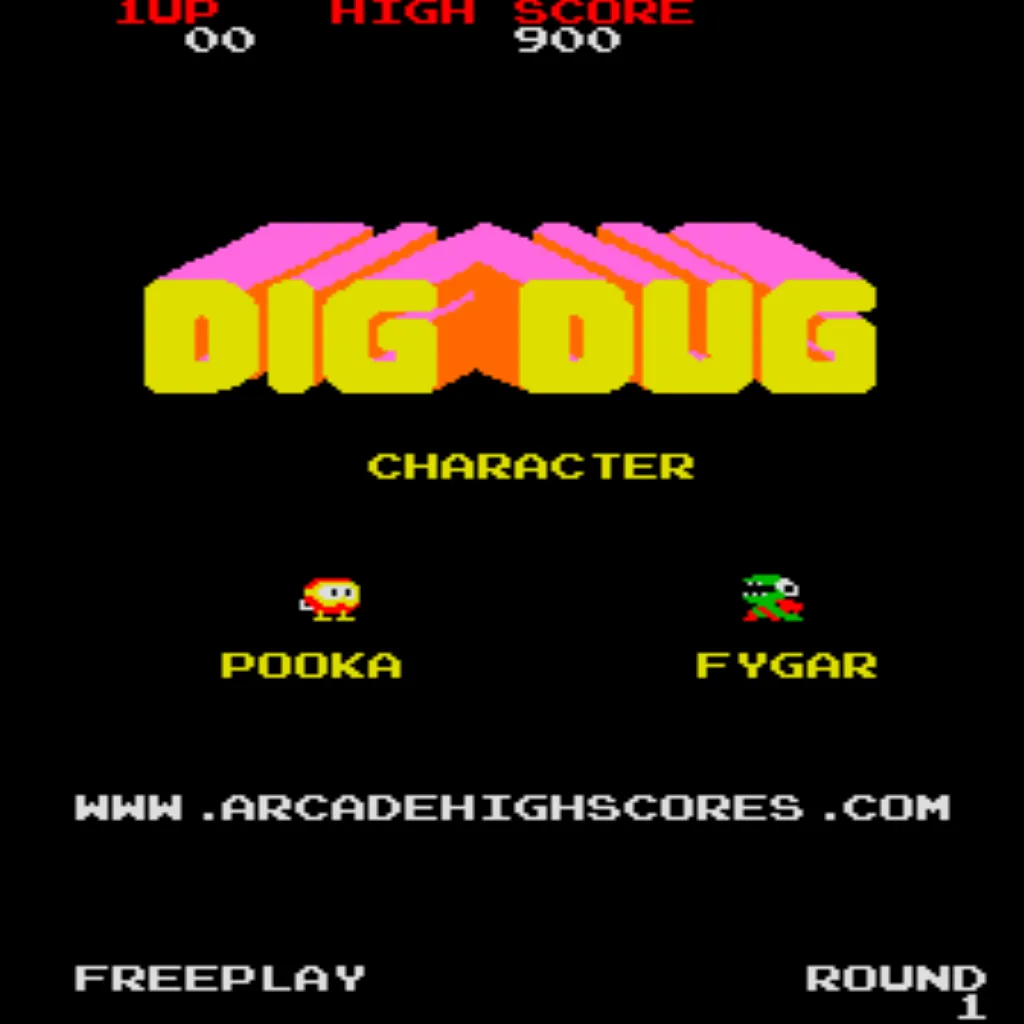

- Attract Mode: Prevent screen burn with attract mode rotation.

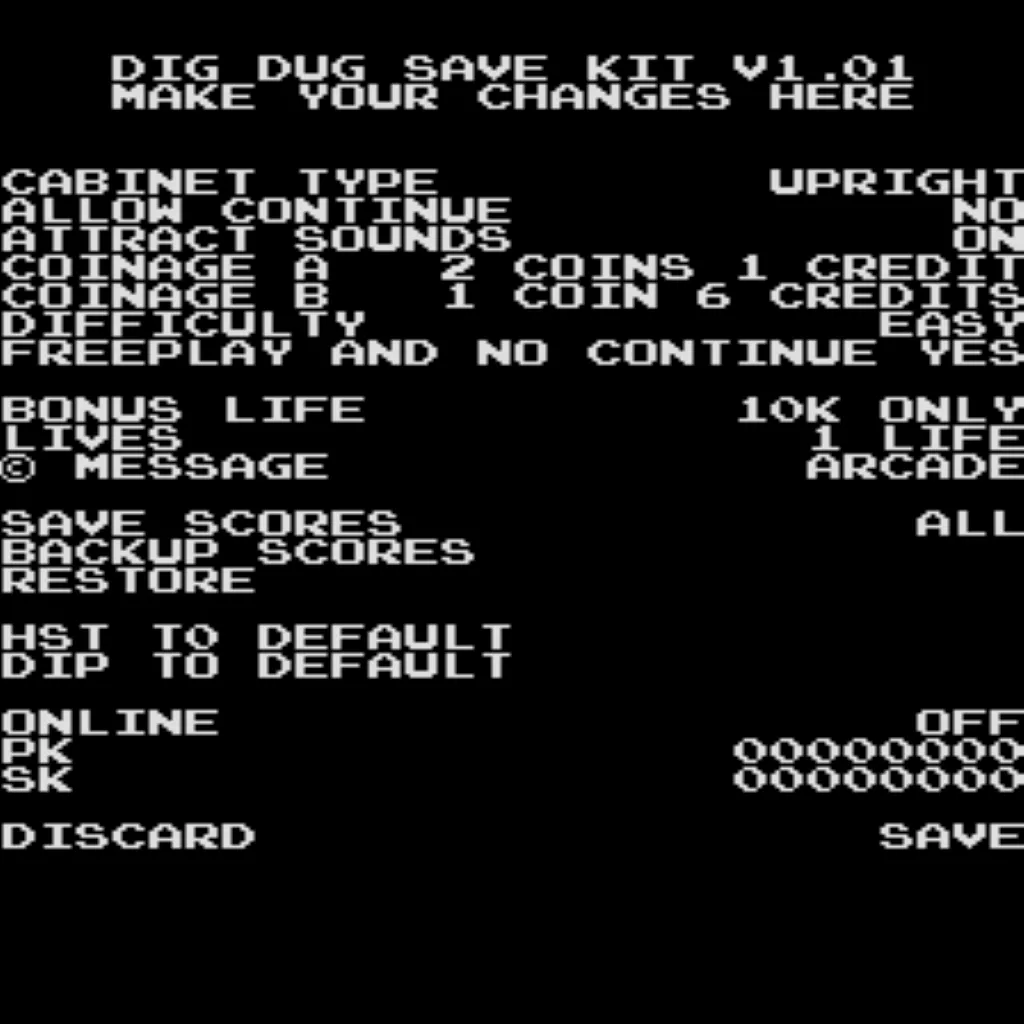

- On-screen DIP settings: Adjust options without opening the cabinet.
- ROM Saver: Remove original program ROMs to save power.
- Cabinet support: Works in Upright and Cocktail machines.
Additional Features
- Backup & Restore: Save and reload high scores—ideal for parties or tournaments.
- Separate score tables: Maintains different high-score tables for 2, 3, 4, or 5 lives.
Important
- Ensure your Z80 is socketed. If not, install a 40-pin socket for the kit to work.
- Read the Dig Dug Free Play and High Score Save Kit Installation Guide / Manual (PDF) before setup.
Note: In Freeplay mode, P1 and P2 will not flash when starting a game.
Just the FAQ's
How many scores are saved?
This kit saves the Top 5 scores.
Does it support Freeplay and coin operation?
Yes. You can enable Freeplay or keep Coin Up enabled for quarters/tokens.
Are there separate score tables for lives?
Yes. It maintains separate tables for 2, 3, 4, and 5 lives.
What does ROM Saver do?
It allows you to remove the original program ROMs and run the program from the kit, reducing power and wear.
Which processor does this kit require?
A Z80 is required. Ensure it is socketed or install a 40-pin socket before setup.
Are there any limitations in Freeplay mode?
Yes. In Freeplay, P1 and P2 will not flash when starting a game.
Where can I download the Installation Guide?
Dig Dug Free Play and High Score Save Kit — Installation Guide / Manual (PDF)
HighScoreSaves YouTube Channel — Installation Tips
HighScoreSaves Facebook Page
HighScoreSaves Reddit Community
Login
2 reviews
September 23, 2025 2:01 AM
Easy peasy to install, don't have to manually add credits anymore.
Kit has the usual bells & whistles, and yes you can reach the Player 1 button and the rear power switch using both hands. Apparently there are several Dig Dug board configurations and this kit worked just fine with mine (the middle picture in the instruction guide).
September 23, 2025 12:24 AM
Works great dealing with my Namco dig dug board
Not only does it save scores, and have free play which, is great it works with my Namco board. Most people have an Atari board but with either one it's easy to install. So this is good news for those outside of the United States who are more likely to have a Namco boardset. This is totally worth every penny!
Accessories
Z80 8-Bit Microprocessor (40-Pin CPU) The Z80 is an 8-bit microprocessor widely used in classic arcade PCBs. This 40-pin CPU handles core game logic and timing and is essential to reliable board operation. Used In Arcade Games Such As Donkey Kong Galaga Donkey Kong Jr. Frogger Galaxian Dig Dug Xevious …and more! *Brands may vary.
6502 8-Bit Microprocessor (40-Pin CPU) The 6502 is an 8-bit microprocessor widely used in classic arcade PCBs. This 40-pin CPU handles core game logic and timing and is essential for reliable board operation. Used In Arcade Games Such As Asteroids Battlezone Centipede Tempest Warlords …and more! *Brands may vary.
Any Coin Mech Designed as a direct drop-in replacement for coin mechanisms from Happ, Coinco, Imonex, and others. Features Drop-in replacement for existing arcade coin mechs. Accepts quarters, 0.984″ tokens, and dimes (no adjustments required). Engineered to reduce coin jams. Includes four plastic mounting pegs; will not rust. Made in the USA. For home arcade use. Compatibility Tested on arcade games from Atari, Bally/Midway, Gottlieb, Stern, Taito, Williams, Sega, and more.
4 White PCB Feet 4 ScrewsWe recommend using these feet to make sure the PCB is secure.
Easy CoinUp (E.C.U.) — Quarter-Style Coin-Up Switch It Just Makes Sense! We’ve all seen it: a loose switch dangling from the coin door, or a hole drilled in the cabinet just to add credits. Many games offer a Free Play mode, but some disable attract sounds or visuals—so passers-by never see or hear the game in action. Easy CoinUp fixes that. It’s a pushbutton that looks like a quarter, so everyone knows exactly what it does: add a credit. Installation is simple and causes no permanent damage beyond applying adhesive to the metal coin door. Installation Instructions (Quick & Easy) Peel the backing liner and apply the E.C.U. where you want it mounted. Wrap the “tail” around the coin door, pressing firmly so the adhesive bonds (industrial 3M 300LSE—once it sticks, it sticks). Peel the second liner and apply the “Quarter” overlay to the front of the switch. Solder two wires from the tail’s solder pads to the machine’s coin switch. The E.C.U. is a membrane SPST switch; your machine must expect a single circuit closure (typical for most arcade and pinball machines). Insulate the E.C.U. pins with electrical tape after soldering so they can’t touch grounded metal or other circuits. Note: Installation requires basic soldering. Tips & Tricks Thoroughly clean the mounting area; finish with rubbing alcohol and let it evaporate. Mount near the “Insert Coin” slots so players find it quickly. Avoid high-friction spots on the coin door; look for rubbed paint or scratches and choose a smoother area. If the conductive circuit in the tail is worn through, the switch will stop working—route and secure it thoughtfully. Keep out of reach of children—they may peel or try to swallow the parts.
DK / DK Jr. Pin-Harness to Card-Edge Adapter This adapter converts the original pin-style cabinet wiring harness found in classic Donkey Kong and Donkey Kong Jr. cabinets to the newer card-edge connector used on later Nintendo board sets—making swaps and upgrades fast and reversible. Key Features Direct, plug-in conversion from pin-header harness to card-edge connector. No cutting or permanent changes to the original cabinet wiring. Clean signal routing for power, video, audio, and controls. Keyed/marked orientation to help prevent mis-connection. Compatibility Cabinets: Nintendo DK and DK Jr. with pin-style harness. Boards: Later Nintendo board sets using a card-edge connector (verify your specific PCB before installation). Installation Notes Power off the cabinet before connecting or removing the adapter. Match orientation/keys and seat connectors fully; avoid forcing the edge. No soldering required for standard harnesses. Tip: Check your cabinet’s wiring diagram and the target PCB pinout to confirm signal order before first power-on.
8035 8-Bit Microcontroller (Sound CPU, 40-Pin DIP) The 8035 is an 8-bit microcontroller (MCS-48 family) widely used as the sound CPU on classic arcade PCBs. This 40-pin DIP handles audio control, timing, and I/O tasks that support the main game processor. Used In Arcade Games Such As Donkey Kong Donkey Kong Jr. Donkey Kong 3 …and more! *Brand/marking may vary (e.g., NEC 8035).
Able to be used with - The ArpicadeOther uses too! These are approximately 4 foot long to give you the length needed Each wire has a .187 female quick disconnect on all for attaching to the terminal on the microswitch (Not a cheap connector) 6 pin header connects to your pcb or Arpicade 1 and 2 player for buttons 4, 5 and 6
Check out PDF for all Konami 4 player game kick harness pinouts - Pinout PDF DownloadThese are approximately 3 foot long to give you the length needed Each wire has a .187 female quick disconnect on all player controls for attaching to the terminal on the microswitch AND enough ground connectors for your controls15 pin header connects to your pcbHeader is numbered for you to match what wire goes where on your control panel Wires will vary in color but numbers stay the same!This kick harness allows you to connect player 3 or player 4 buttons and joystickPLEASE NOTE - You will need 2 harnesses if you want to connect both P3 and P4 to your control panel
6809E 8-Bit Microprocessor (40-Pin CPU) The 6809E is an 8-bit microprocessor widely used in classic arcade PCBs. This 40-pin CPU handles core game logic and timing and is essential for reliable board operation. Used In Games Such As Circus Charlie Juno First Track & Field Hyper Sports Star Wars Qix …and more! *Can be used with a 42-pin Konami 1 adapter (included with some HighScoreSaves kits). *Brands may vary.
8080 8-Bit Microprocessor (40-Pin CPU) The 8080 is an 8-bit microprocessor widely used in classic arcade PCBs. This 40-pin CPU handles core game logic and timing and is essential for reliable board operation. Used In Arcade Games Such As Space Invaders Space Invaders Deluxe …and more! *Brands may vary.
40 pin Socket Specifications Pitch: 2.54 mm (0.100″) Pins: 40 (2×20) Mounting: Through-hole (THT)
