Super Breakout Arcade Back Door Sheet PDF Download ST-118 1st Printing
$0.00
Available, processing time: Instant download
Product information "Super Breakout Arcade Back Door Sheet PDF Download ST-118 1st Printing"

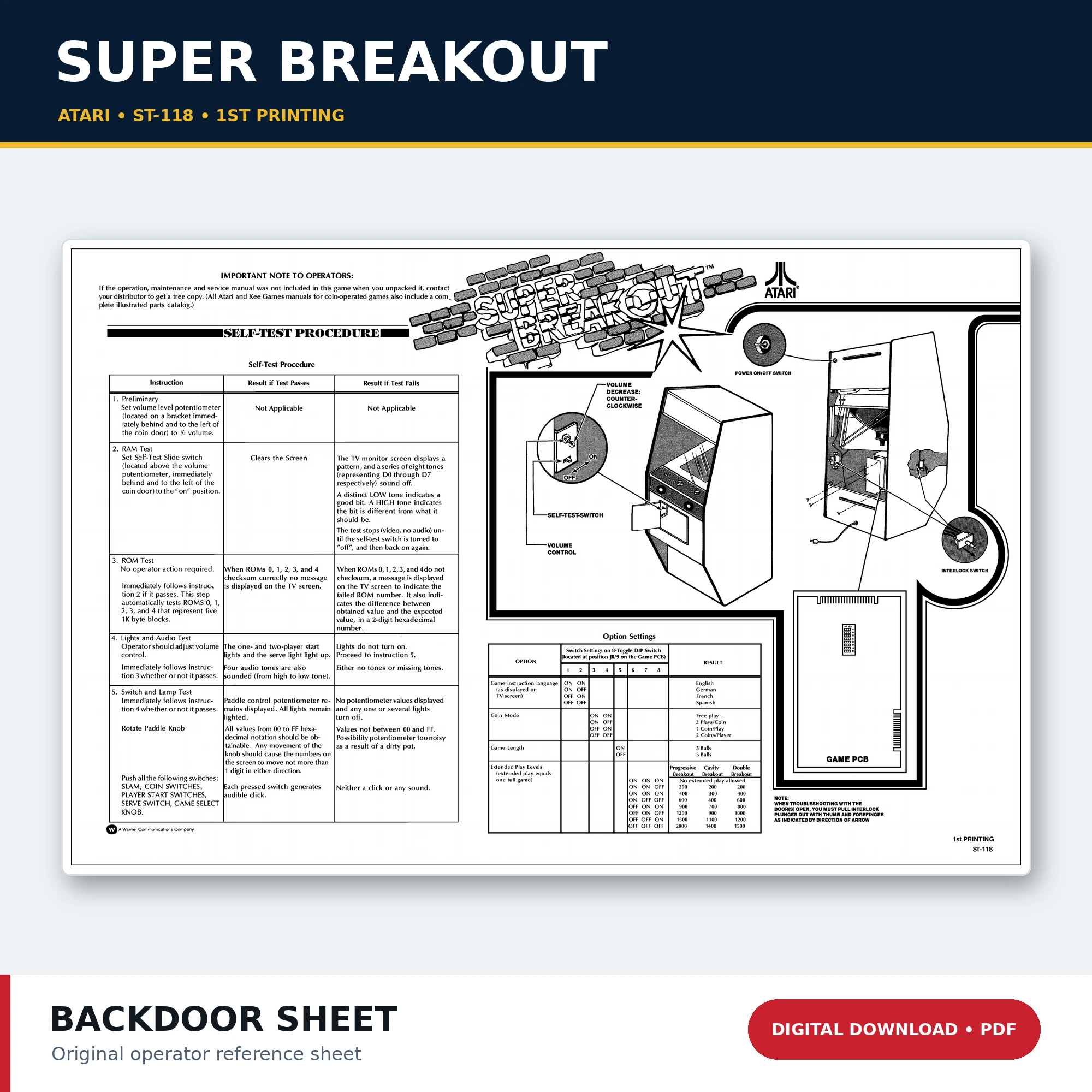

Super Breakout Arcade Back Door Sheet PDF Download – ST-118 1st Printing
Download the Atari Super Breakout ST-118 1st Printing Back Door Sheet. This original arcade operator reference provides the Self-Test procedure, RAM and ROM test information, cabinet-component locations, control tests, and DIP-switch option settings for compatible Atari Super Breakout arcade hardware.
The complete landscape sheet is supplied as a one-page digital PDF download. No printed back door sheet or other physical product is shipped.
Document Details
Arcade game: Super Breakout
Manufacturer: Atari
Document number: ST-118
Printing: 1st Printing
Document type: Back Door Sheet
Pages: 1
File format: Digital PDF
Five-Stage Self-Test Procedure
The Self-Test table explains the expected result when each test passes and the symptoms that may appear when a test fails.
- Preliminary adjustment: Set the cabinet volume control to approximately one-half volume.
- RAM Test: Check the video pattern and eight audio tones associated with RAM bits D0 through D7.
- ROM Test: Check ROMs 0 through 4 and identify checksum errors displayed on the monitor.
- Lights and Audio Test: Check the player-start lights, serve light, and four audio tones.
- Switch and Lamp Test: Check paddle values, control switches, and indicator lights.
Paddle, Switch, and Lamp Testing
The Switch and Lamp Test section explains how to evaluate the paddle-control potentiometer and verify the cabinet controls. Paddle values are displayed in hexadecimal notation from 00 through FF.
The control test covers:
- Paddle-control movement and values
- Slam switch
- Coin switches
- Player-start switches
- Serve switch
- Game-select knob
Cabinet and Component Locations
The illustrated cabinet section identifies the power on/off switch, volume control, Self-Test switch, cabinet interlock switch, and game PCB location.
The sheet also includes an operator note explaining that the interlock plunger must be pulled out when troubleshooting with the cabinet door open.
Super Breakout Option Settings
The option-settings table documents the 8-toggle DIP switch located at position 8/9 on the Super Breakout game PCB.
- English, German, French, and Spanish instruction languages
- Free Play and coin-operated pricing configurations
- Three-ball or five-ball game length
- Progressive Breakout extended-play levels
- Cavity Breakout extended-play levels
- Double Breakout extended-play levels
Confirm the Correct Super Breakout Hardware
This document is identified as Atari ST-118, 1st Printing. Switch settings, control locations, and test procedures may differ by game, PCB revision, cabinet configuration, or document printing. Confirm the document number and compare the illustrated hardware with your arcade machine before changing settings.
Electrical safety: Arcade cabinets and CRT monitor assemblies may contain hazardous voltages. CRT monitors can retain a dangerous electrical charge after the cabinet has been unplugged. Use a qualified arcade technician when you are not trained to service this equipment safely.
Original Arcade Reference Document
This is an original arcade operator reference sheet and not a complete Atari Super Breakout operation, maintenance, and service manual, complete schematic package, or HighScoreSaves kit installation guide.
How Digital Delivery Works
- Add the digital product to your shopping cart.
- Complete checkout, including when the listed price is $0.00.
- Use a valid email address that you can access.
- Check your email for the digital-delivery message.
- Download and save the PDF for future reference.
Browse additional documents in the Arcade Back Door Sheets category.
Digital product: No printed back door sheet, physical manual, disc, USB drive, or other physical item will be shipped.
