vs Nintendo Red Tent | vs Nintendo Dual Upright Multigame Kit
Product information "vs Nintendo Red Tent | vs Nintendo Dual Upright Multigame Kit"

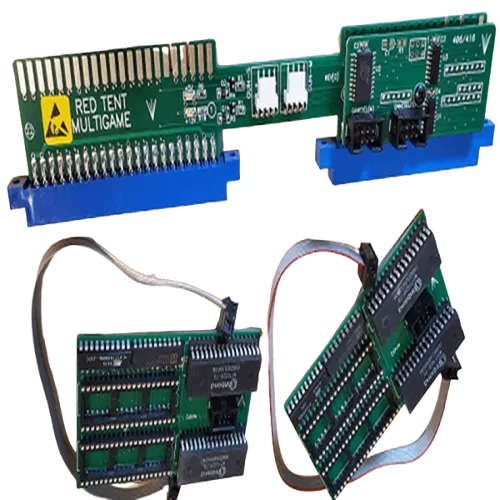

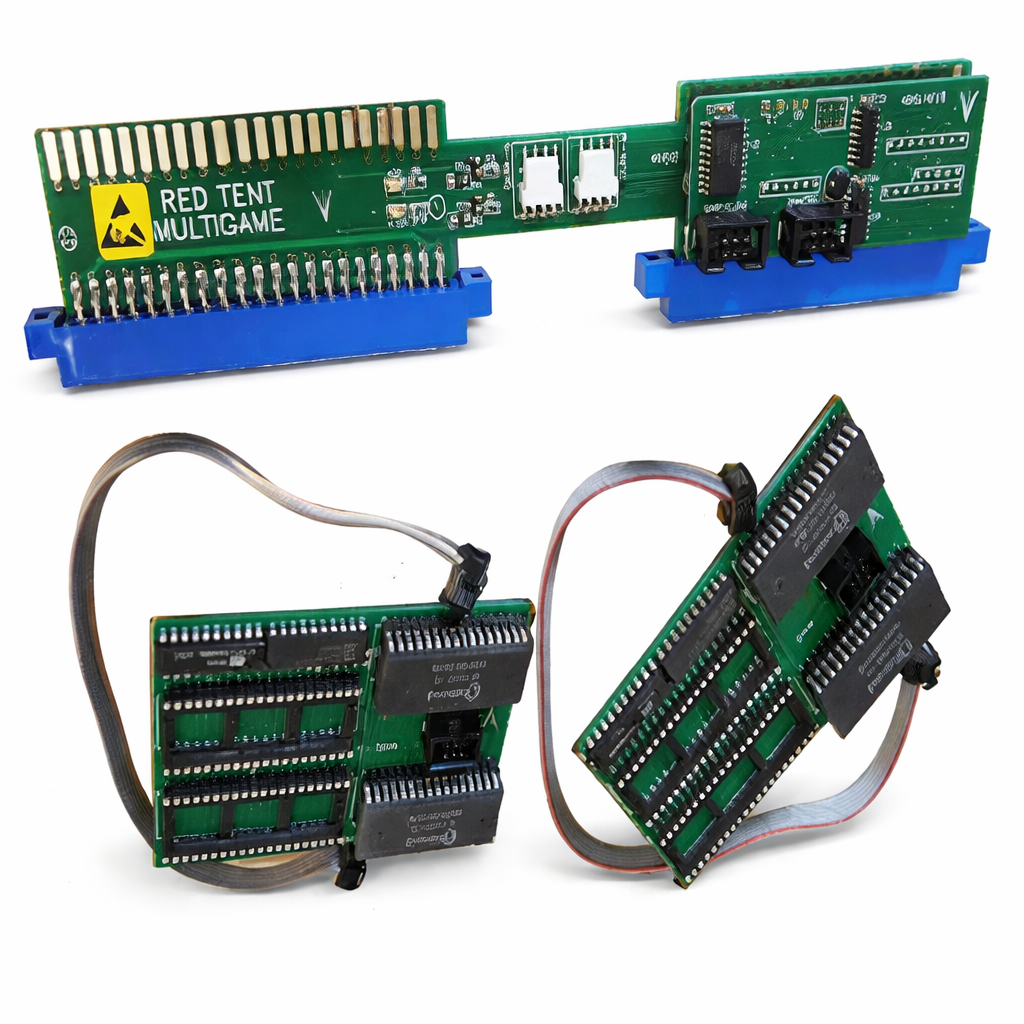

VS Nintendo Red Tent Dual Upright Multigame Kit
Upgrade your original Nintendo VS Red Tent or Dual Upright arcade PCB with an advanced multigame upgrade featuring dozens of classic Nintendo VS titles, on-panel game switching, head-to-head play, 4-player support on compatible games, and authentic gameplay running on original arcade hardware.
Designed specifically for original Nintendo VS System hardware, this plug and play multigame kit preserves original gameplay timing, controls, sound, and video while adding convenient game selection, expanded compatibility, and modern menu features with no emulation.
Multigame Support • Head-to-Head Play • 4-Player Support (Compatible Games) • On-Panel Game Switching • Original Nintendo VS Hardware • No Emulation
Instantly switch between a large library of classic Nintendo VS arcade games from the built-in menu.
Supports competitive head-to-head gameplay and 4-player operation on compatible Nintendo VS titles.
Change games directly from the control panel without opening the cabinet.
Runs entirely on original Nintendo VS hardware with authentic gameplay, timing, sound, and video.
- On-panel game switching — On the right side of the control panel, hold P4 and move the joystick Left/Right to swap games on that side.
- Coin Up shortcut — Hold P4 for ~5 seconds to coin up.
- Head-to-Head play — Play VS titles facing off across both sides.
- 4-player support (title-dependent) — Play games like Wrecking Crew, Balloon Fight, and Tennis head-to-head on Red Tent or Dual Upright.
- NES Zapper support — Use a Zapper gun with the optional Zapper Adapter.
- Independent resets — Reset either side without interrupting the other.
- EPROM-socket compatible — Designed for VS PCBs that use EPROM sockets.
- Up to 16 total games — 8 games per side (PPU/Game Pak dependent).
Additional Information
- Your kit ships with a Game Pak for your specific PPU; see lists below.
- You can remove program EPROMs and play directly from the kit’s Game Pak titles.
- Tetris and Battle City require correct DIP palette settings on the original PCB.
Important
- Compatible cabinets: VS Red Tent or VS Dual Screen Upright.
- Game list depends on your PPU — 0001, 0002, 0003, 0004, or 2C03B.

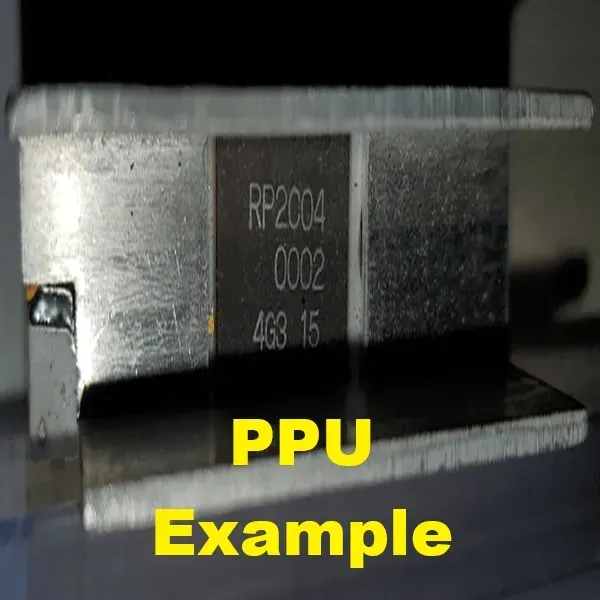

- Identify your PPU: look for a heatsink and a number printed on the chip (e.g., 0002).
- Read the installation guide: VS Red Tent / Dual Upright Multigame Installation Guide (PDF)
Game Paks by PPU
PPU 0001
- Standard: Mighty Bomb Jack, Pinball, Battle City, Excitebike, SMB, Skate Kid, Mach Rider, Tetris
- With Gun: Mighty Bomb Jack, Battle City, Excitebike, SMB, Mach Rider, Tetris, Hogan’s Alley, Duck Hunt
- With Gun | Special “Head-to-Head”: SMB, Excitebike, Tetris, Wrecking Crew, Balloon Fight, Tennis, Hogan’s Alley, Duck Hunt
- Special “Head-to-Head”: SMB, Excitebike, Tetris, Mighty Bomb Jack, Battle City, Wrecking Crew, Balloon Fight, Tennis
PPU 0002
- Standard: Mighty Bomb Jack, Excitebike, SMB, Slalom, Tetris, Battle City, Mach Rider, Golf
- With Gun: Mighty Bomb Jack, Battle City, Excitebike, SMB, Slalom, Tetris, Hogan’s Alley, Duck Hunt
- With Gun | Special “Head-to-Head”: SMB, Excitebike, Tetris, Wrecking Crew, Balloon Fight, Tennis, Hogan’s Alley, Duck Hunt
- Special “Head-to-Head”: SMB, Excitebike, Tetris, Mighty Bomb Jack, Slalom, Wrecking Crew, Balloon Fight, Tennis
PPU 0003
- Standard: Mighty Bomb Jack, Excitebike, SMB, Pinball, Tetris, Battle City, Skate Kid, Soccer
- With Gun: Mighty Bomb Jack, Battle City, Excitebike, SMB, Soccer, Tetris, Hogan’s Alley, Duck Hunt
- With Gun | Special “Head-to-Head”: SMB, Excitebike, Tetris, Wrecking Crew, Balloon Fight, Tennis, Hogan’s Alley, Duck Hunt
- Special “Head-to-Head”: SMB, Excitebike, Tetris, Mighty Bomb Jack, Battle City, Wrecking Crew, Balloon Fight, Tennis
PPU 0004
- Standard: Excitebike, SMB, Clu Clu Land, Tetris, Battle City, Skate Kid, Ice Climber, Pinball
- With Gun: Clu Clu Land, Ice Climber, Excitebike, SMB, Tetris, Mighty Bomb Jack, Hogan’s Alley, Duck Hunt
- With Gun | Special “Head-to-Head”: Clu Clu Land, Ice Climber, Tetris, Wrecking Crew, Balloon Fight, Tennis, Hogan’s Alley, Duck Hunt
- Special “Head-to-Head”: SMB, Excitebike, Tetris, Clu Clu Land, Ice Climber, Wrecking Crew, Balloon Fight, Tennis
PPU 2C03B
- Standard: Ninja Jajamaru Kun, Excitebike, SMB, Star Luster, Tetris, Battle City, Skate Kid, Mighty Bomb Jack
- With Gun: Ninja Jajamaru Kun, Excitebike, SMB, Star Luster, Tetris, Mighty Bomb Jack, Hogan’s Alley, Duck Hunt
- With Gun | Special “Head-to-Head”: Ninja Jajamaru Kun, Excitebike, SMB, Wrecking Crew, Balloon Fight, Tennis, Hogan’s Alley, Duck Hunt
- Special “Head-to-Head”: Ninja Jajamaru Kun, Excitebike, SMB, Tetris, Mighty Bomb Jack, Wrecking Crew, Balloon Fight, Tennis
FAQ
Which cabinets does this kit support?
VS Red Tent and VS Dual Screen Upright only.
What if I want to play Tennis, Balloon Fight or Wrecking Crew?
You must select the “Head-to-Head” Game Paks for your PPUs. These enable 4-player and dual-screen support.
How do I switch games?
Hold P4 and move the joystick Left/Right to swap games on that side.
How do I coin up quickly?
Hold P4 for about 5 seconds.
Does it support head-to-head and 4-player games?
Yes—titles such as Wrecking Crew, Balloon Fight, and Tennis support head-to-head and some allow 4-player depending on configuration.
Can I use a NES Zapper?
Yes—using the optional Zapper Adapter. Check “With Gun” Game Paks for supported games.
Do the two sides reset independently?
Yes. You can reset one side without affecting the other.
Why do some games require DIP color palette changes?
Titles like Tetris and Battle City rely on original PCB palette DIP settings. This matches the real hardware behavior.
How do I know which PPU I have?
The PPU usually has a heatsink. Look for the number printed on the chip (0001–0004 or 2C03B).
How many games can I install?
Up to 16 total: 8 games per side depending on your Game Pak and PPU.
Where can I download the installation guide?
Download it here: VS Red Tent / Dual Upright Multigame Installation Guide (PDF)
