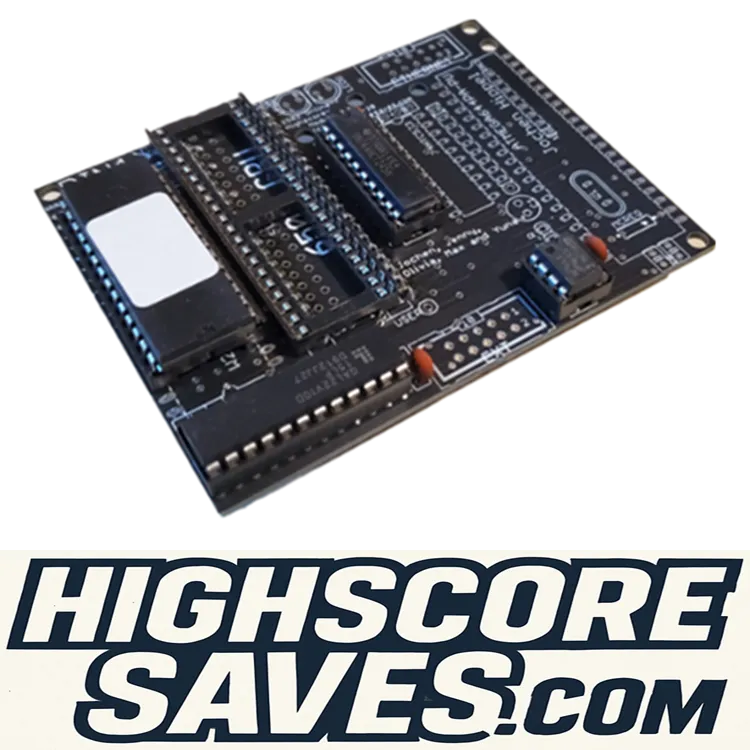

Tempest Multigame Free Play and High Score Save Kit
Upgrade your original Tempest arcade PCB with reliable free play, permanent high score saving, attract sounds, optional Wi-Fi leaderboard support, and multigame functionality while preserving authentic gameplay and original arcade hardware.
Designed specifically for original Atari hardware, this plug and play multigame upgrade improves long-term reliability without changing gameplay timing, controls, vector display behavior, or classic arcade gameplay collectors expect.
Tempest • Tempest Tubes

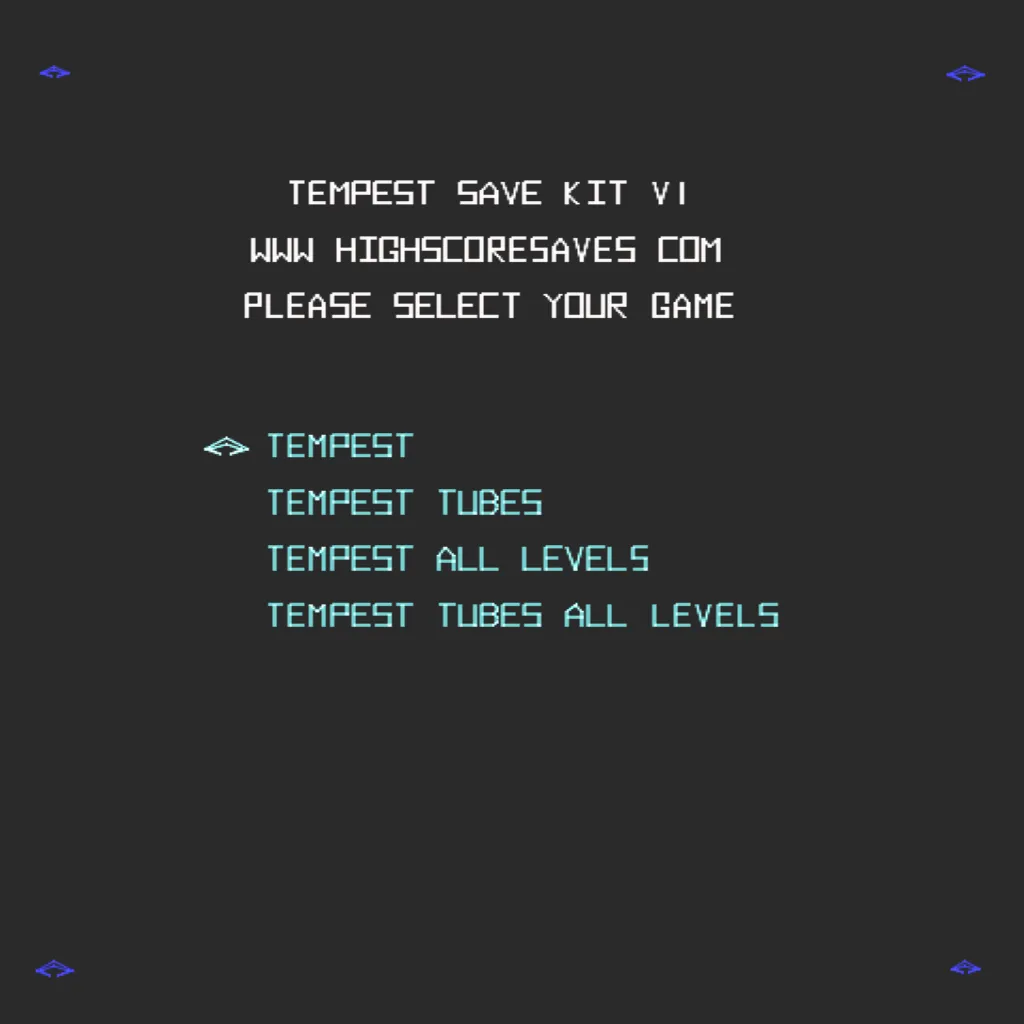

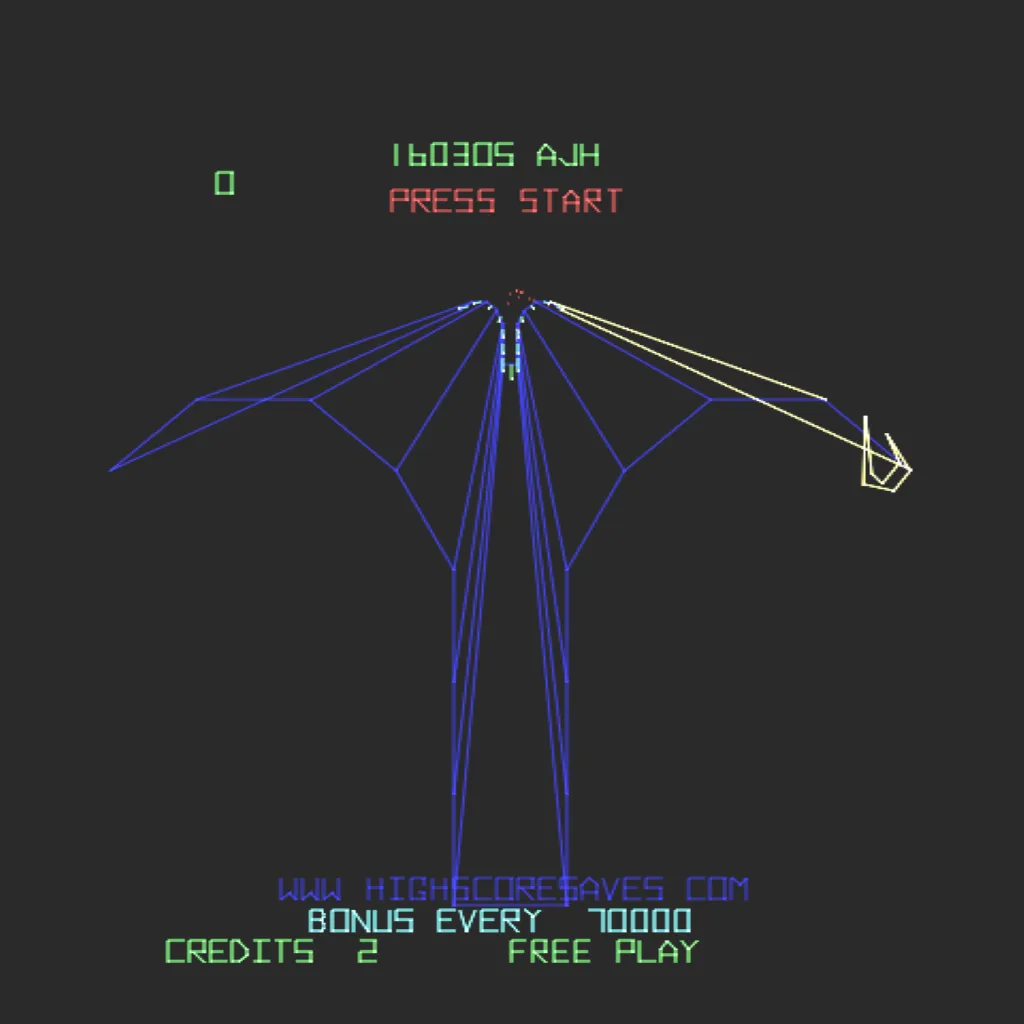

Instantly switch between Tempest and Tempest Tubes on original hardware.
Stores Top 8 high scores with initials.
Adjustable attract sounds at 25%, 50%, or 100%.
Upload scores online to global arcade leaderboards.
Upgrade Your Atari Vector Arcade Experience
Restore and enhance your original Tempest arcade machine with a professionally designed multigame Free Play and High Score Save Kit built specifically for authentic Atari vector hardware.
Original boards often lose scores, rely on aging components, or suffer from unstable resets. This upgrade modernizes your PCB while preserving the original gameplay, controls, timing, and iconic vector arcade gameplay experience collectors expect.
Unlike emulation or multicade systems, this kit preserves authentic arcade hardware behavior while adding modern conveniences like score saving, free play, attract sounds, and optional online leaderboard support.
Hardware Compatibility
- Original Hardware: Designed for Atari Tempest arcade PCBs
- Processor Requirement: Requires a socketed 6502 processor
- Cabinet Compatibility: Works in Upright and Cocktail cabinets
- Vector Display Support: Preserves authentic Atari vector monitor gameplay
Customize Your Tempest Multigame Kit
Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit.
You can also add a processor and/or a 40-pin socket—optional but recommended for easier installation.
Main Features
- Easy Install: No soldering, board modifications, or special wiring required
- Permanent High Score Saving: Uses reliable serial EEPROM instead of failure-prone NVRAM or batteries
- High Score Save: Stores the Top 8 high scores with initials
- Separate Score Tables: Separate score tables for 2, 3, 4, or 5 lives
- Attract Sounds: Adjustable at 25%, 50%, or 100% attract rotation frequency

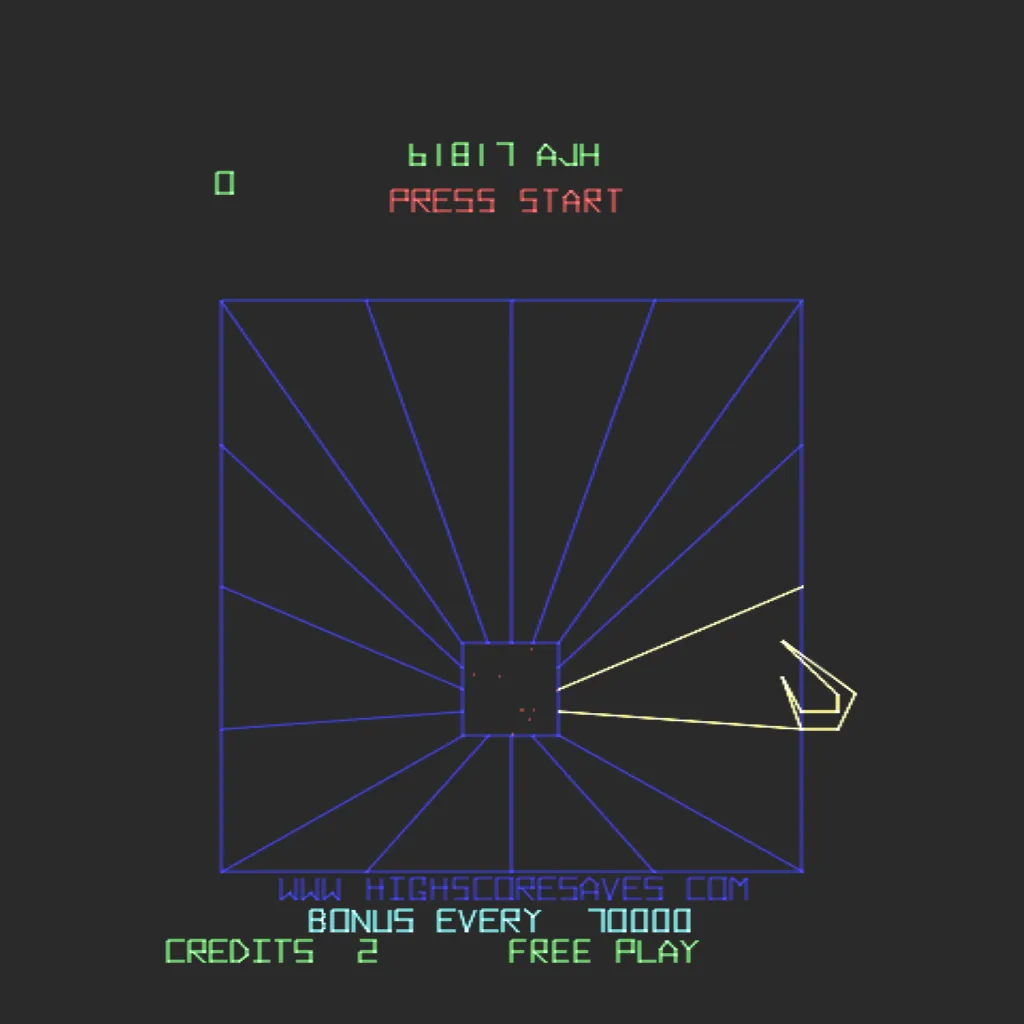

- Free Play: Play without coins while still supporting traditional coin operation
- Coin Up Support: Continue using quarters or tokens if desired
- Attract Mode: Helps reduce vector monitor screen burn and static screens
- Copyright Message: Choose original Atari or HighScoreSaves branding

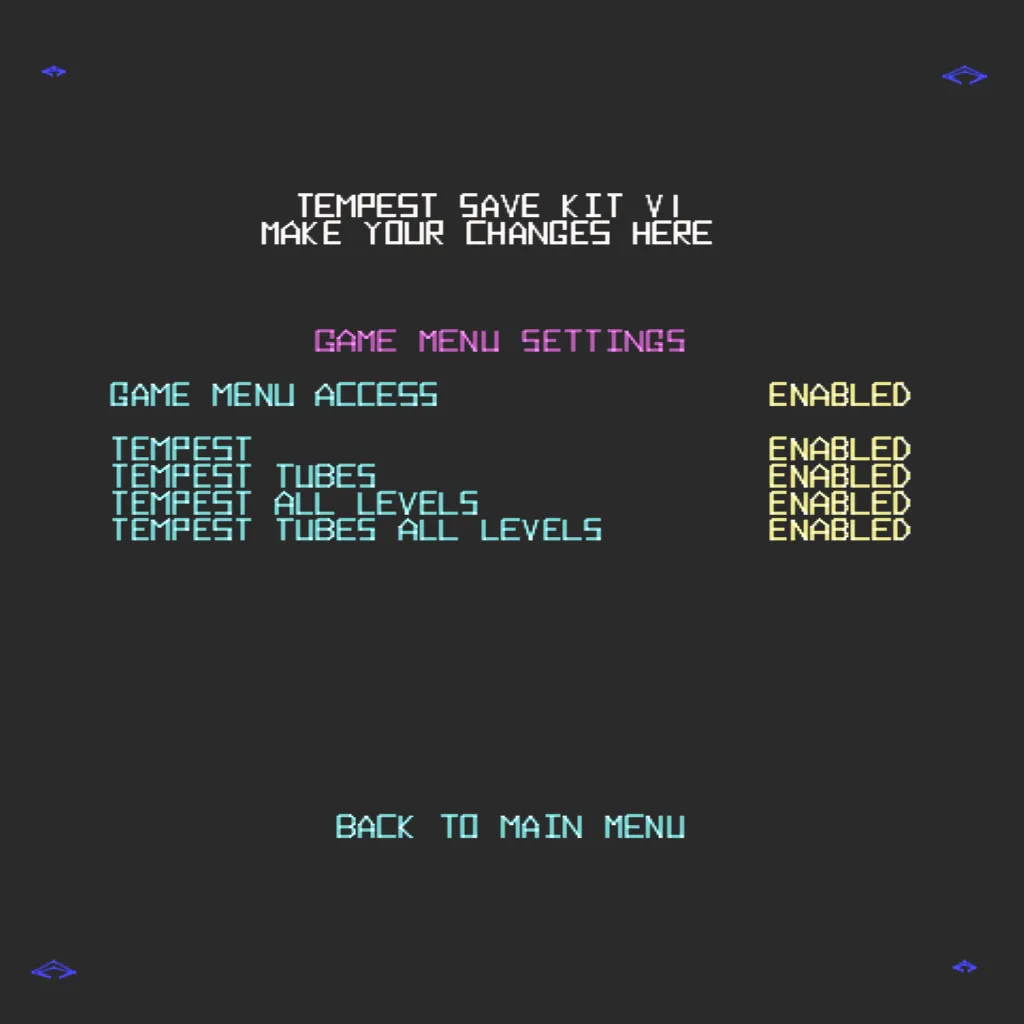

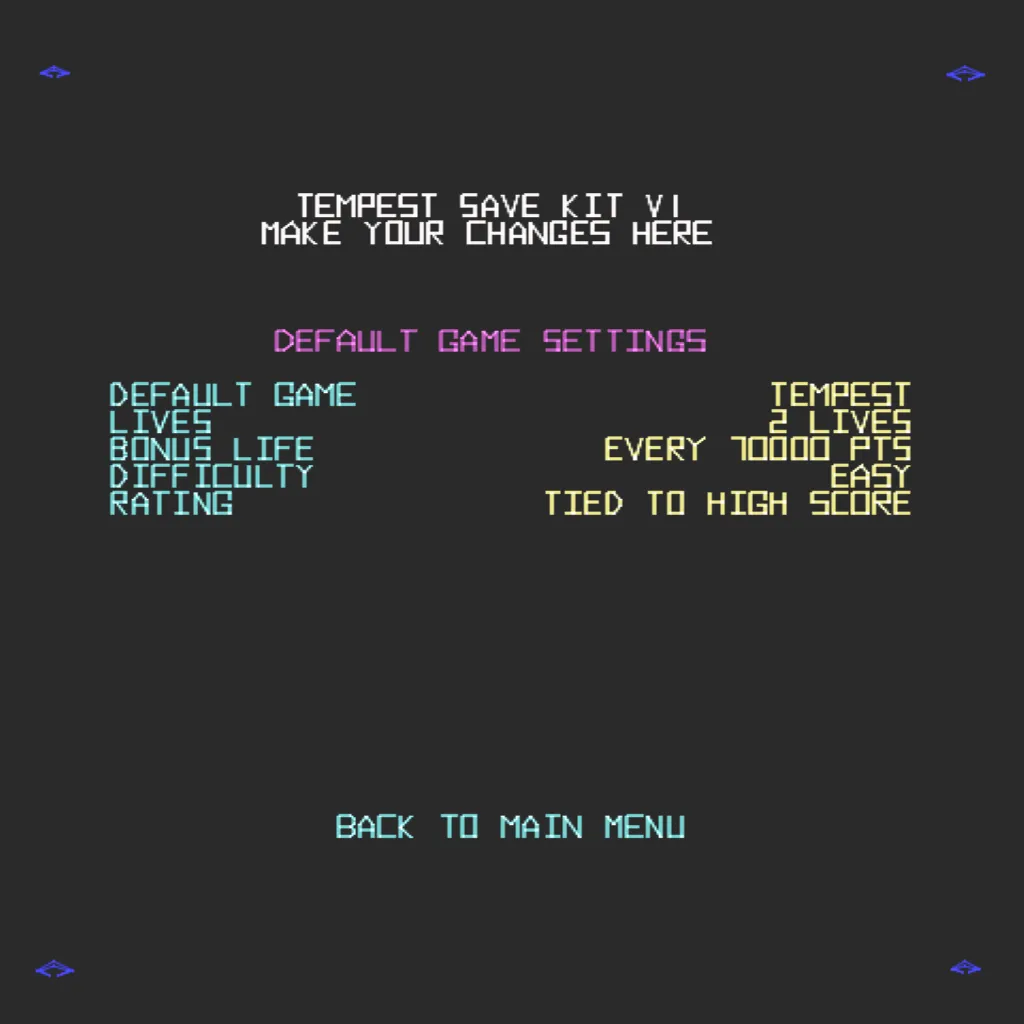

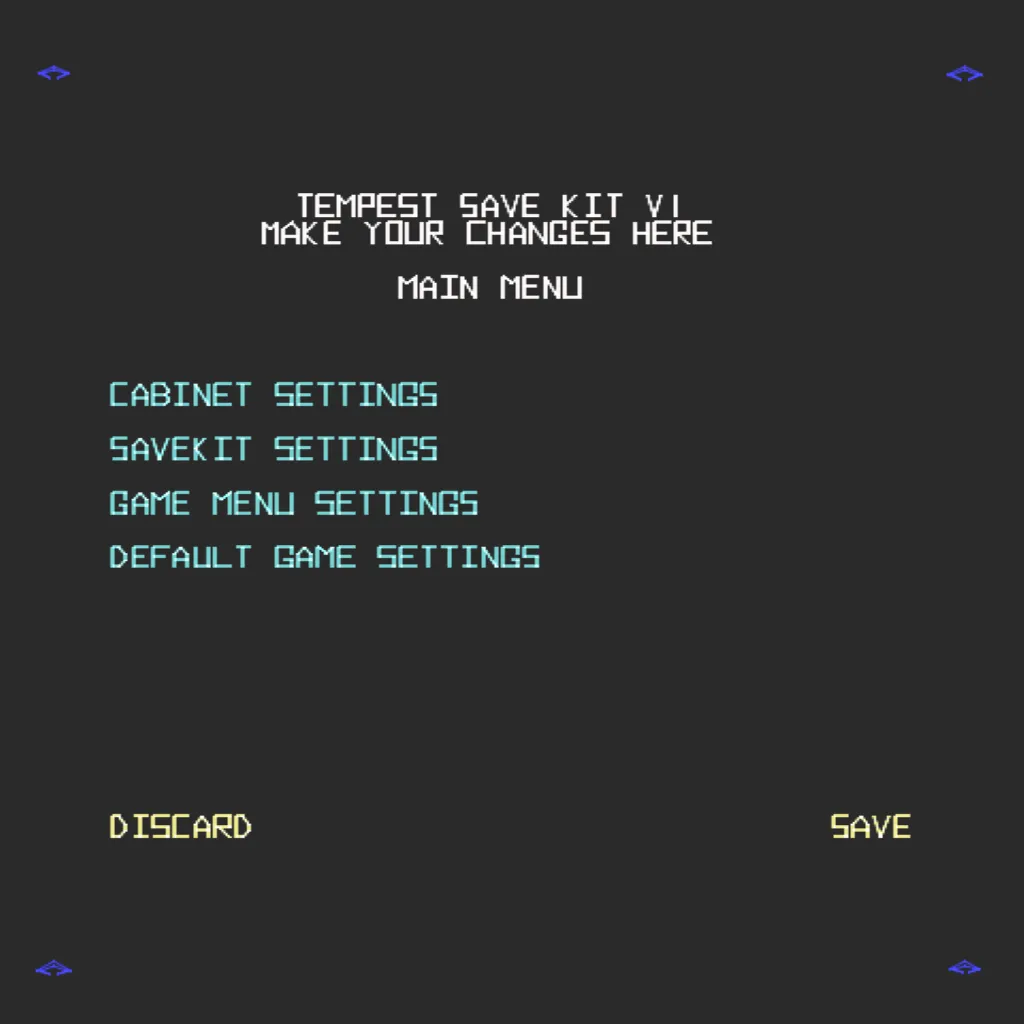

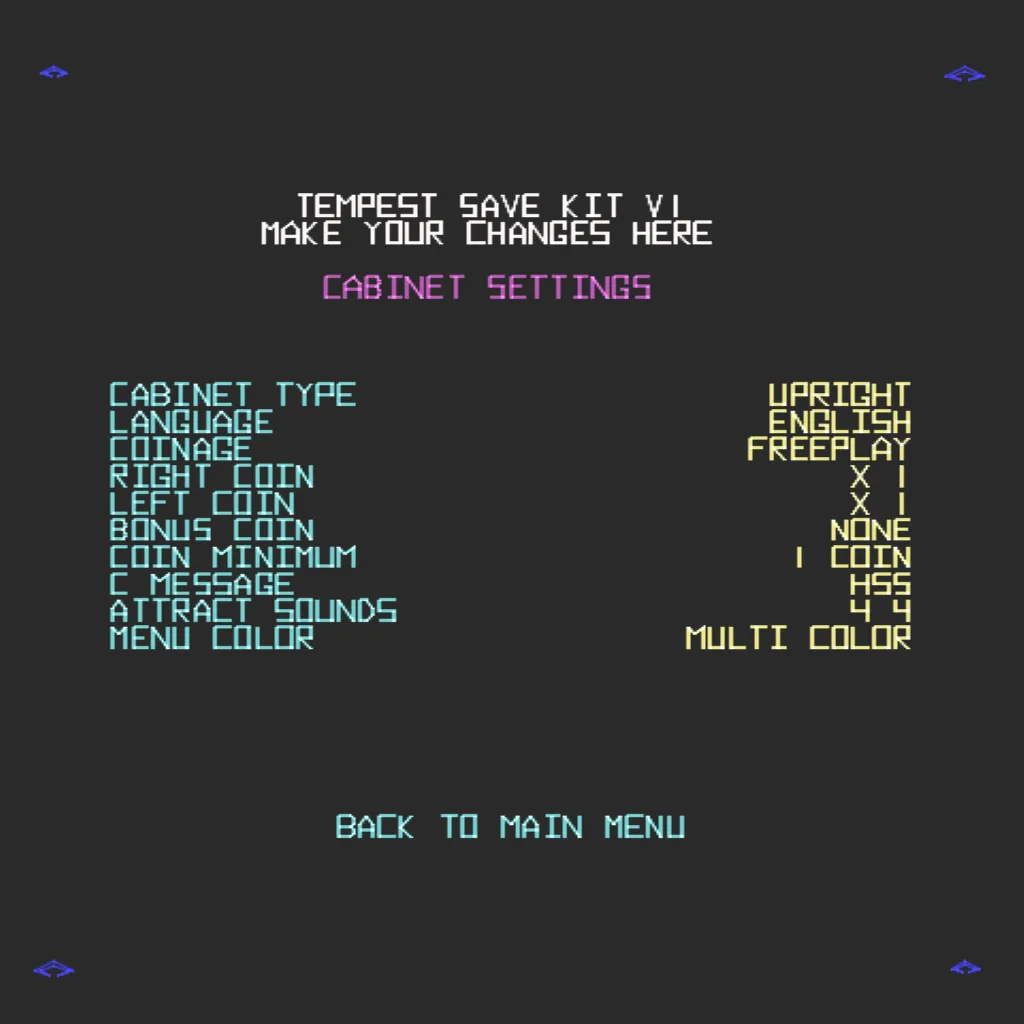

- On-Screen DIP Settings: Change settings without pulling out the cabinet
- ROM Saver: Original program ROMs may be removed
- Cabinet Compatibility: Supports Upright and Cocktail cabinets

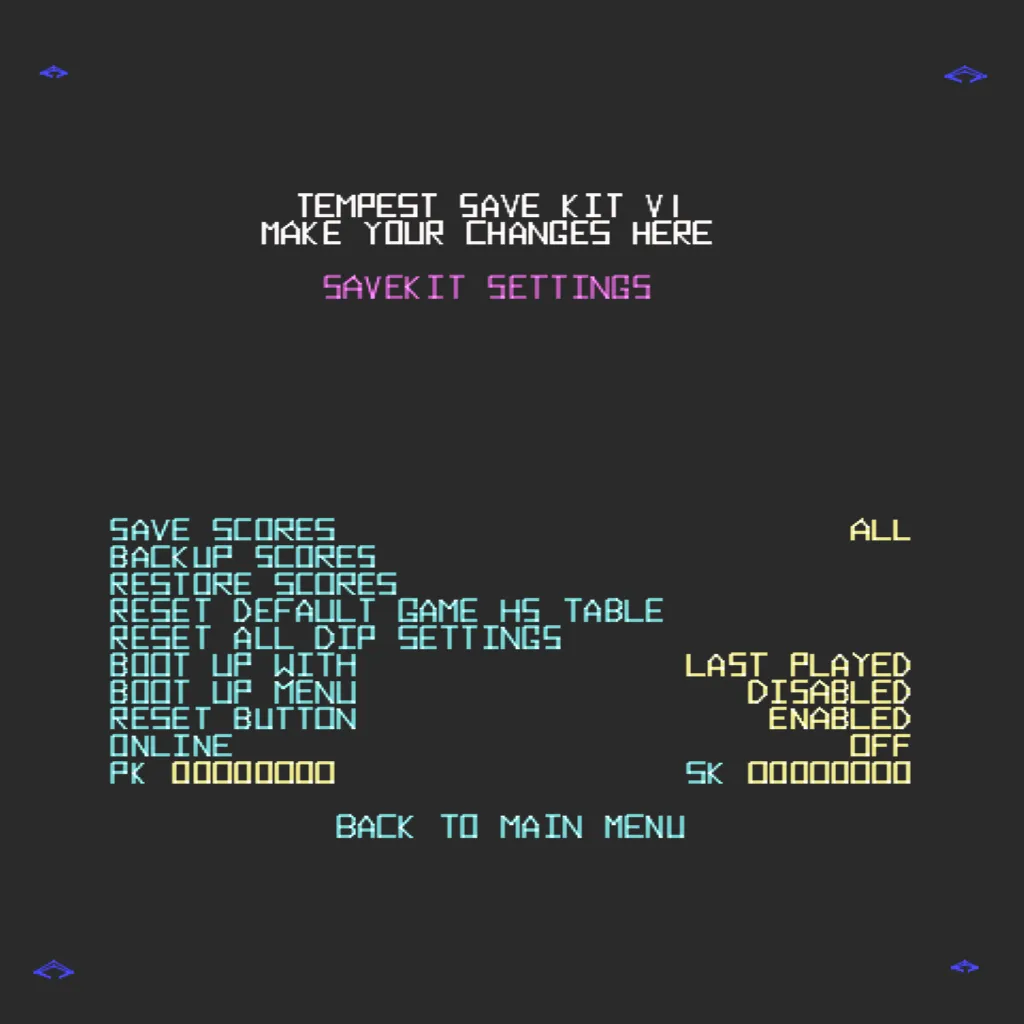

- Backup and Restore: Save and restore high scores before or after parties and tournaments
- Reset Button: Restart gameplay without powering off the cabinet
- Fast Boot: No long initialization or boot delay
- Stealth Mode: Boots directly into gameplay

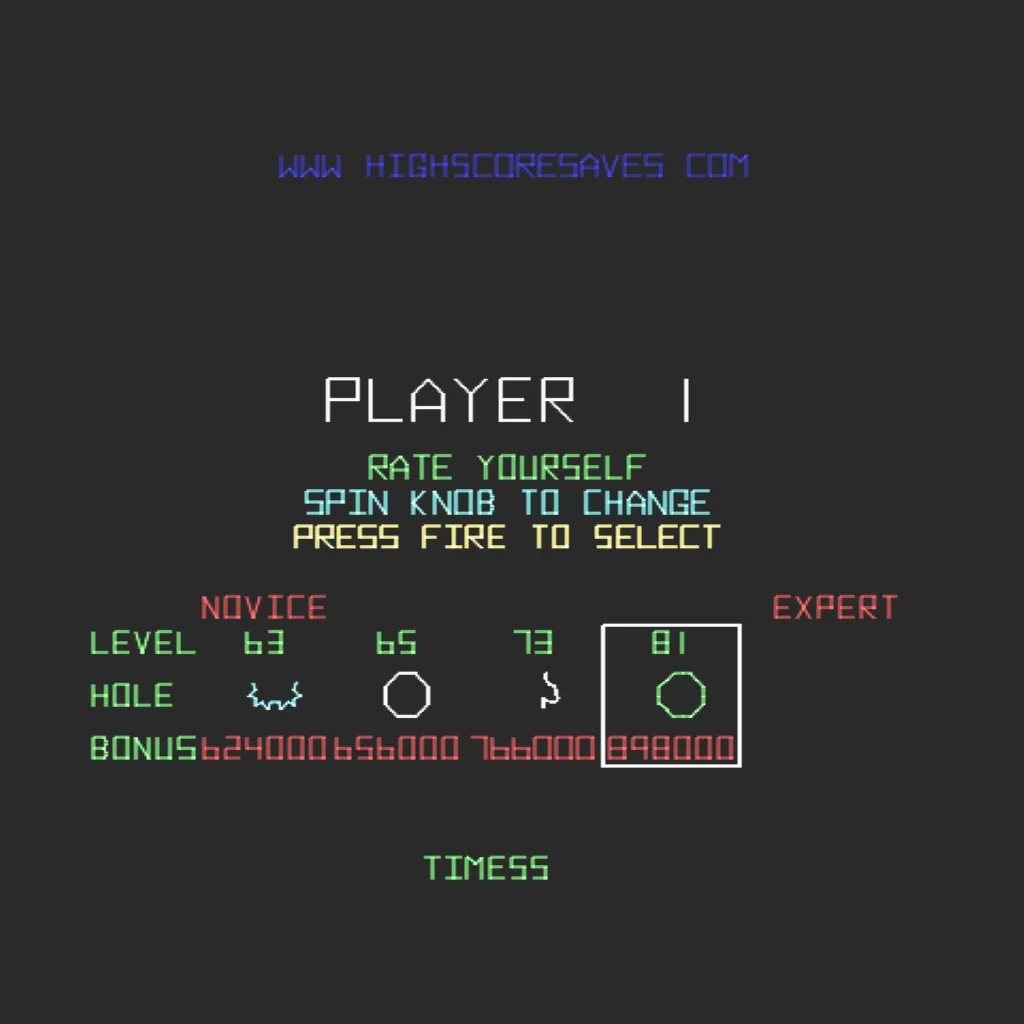

- Choose Your Level: Start gameplay up to level 81
- Extended Level Select Time: 60-second selection timer instead of 10 seconds
- Latest ROM Revision: Includes latest supported ROM revisions
Important Installation Notes
- Socketed 6502 Required: Install a 40-pin socket if your 6502 processor is soldered directly to the PCB
- Read the Tempest Multigame Installation Guide before setup
Games Included
Tempest
Atari’s legendary vector arcade shooter featuring rotary controller gameplay, geometric enemy attacks, and fast-paced arcade scoring action.
Tempest Tubes
Enhanced Tempest gameplay variation featuring alternate tube layouts, modified gameplay flow, and advanced vector arcade challenge gameplay.
Optional Wi-Fi Features and Online Leaderboards
Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network.
Standard kits save scores locally to the PCB, while Wi-Fi kits add automatic online score syncing through the HighScoreSaves global leaderboard platform.
Tempest Multigame Free Play and High Score Save Kit FAQ
Do I need to solder anything?
No. The kit is plug-and-play if your 6502 processor is socketed.
What is the difference between Wi-Fi and Standard kits?
Wi-Fi kits upload and sync scores online while Standard kits save scores locally only.
Can I upgrade to Wi-Fi later?
No. Wi-Fi hardware must be selected during purchase.
Will the kit work in my cabinet?
Yes. Supports both Upright and Cocktail Tempest cabinets.
How many scores are saved?
The kit stores the Top 8 scores with initials.
Can I back up and restore scores?
Yes. Backup and Restore functionality is built directly into the kit.
Does the kit support Free Play and Coin Up?
Yes. Use Free Play or continue using quarters and tokens.
What is Stealth Mode?
Stealth Mode boots directly into gameplay without setup screens.
Can I select starting levels?
Yes. Start gameplay up to level 81 with extended selection time.
Where can I download the Installation Guide?
Login
2 reviews
October 19, 2025 3:28 PM
Tempest Kit
As with all of my games, this was one of the first things I do when I add a game to my collection. High score saves, free play and attract mode/sounds, plus the addition of Tempest Tubes! A must have for any Tempest owner!
October 17, 2025 6:02 PM
Get this!
Great kit adding new Tempest levels with the Tubes addition. Very easy to install and use.
Level up with these!
6502 8-Bit Microprocessor (40-Pin CPU) The 6502 is a classic 8-bit microprocessor widely used in early arcade hardware and computer systems. This 40-pin DIP CPU served as the primary processor for many classic arcade PCBs and is responsible for executing the game program, processing player inputs, and controlling overall system timing. Many Atari arcade boards rely on the 6502 processor to manage gameplay logic and communicate with other hardware components such as ROM chips, RAM, and video circuitry. A working CPU is essential for proper board operation, making the 6502 a common replacement component during arcade PCB repair and restoration. Key Features 6502 8-bit microprocessor Standard 40-pin DIP (Dual In-line Package) Commonly used in classic arcade PCBs Handles game logic, timing, and hardware control Ideal for arcade board troubleshooting and repair Used In Arcade Games Such As Asteroids Battlezone Centipede Tempest Warlords Missile Command Gravitar Red Baron Because the 6502 processor was widely adopted by Atari and other arcade manufacturers, it appears on many classic arcade boards from the late 1970s and early 1980s. Installation Notes Installs in a standard 40-pin DIP socket Carefully align the notch orientation when installing Recommended for technicians performing arcade PCB repair or restoration *Manufacturer brands may vary.
40-Pin Socket Specifications This 40-pin DIP socket is designed for reliable installation of integrated circuits and arcade daughter boards that use a standard 40-pin layout. Using a socket allows the chip or module to be easily removed or replaced without soldering directly to the PCB, helping protect the board during upgrades, repairs, or troubleshooting. Pin Pitch: 2.54 mm (0.100″) standard DIP spacing Total Pins: 40 pins arranged in two rows (2×20) Mounting Type: Through-hole (THT) for secure soldered installation Compatibility: Designed for standard 40-pin DIP integrated circuits and modules Installation Benefit: Allows ICs to be inserted or removed without repeated soldering Use Case: Ideal for arcade PCB upgrades, ROM installations, and repair work The standard 2.54 mm (0.100″) pin spacing matches the layout used on most classic arcade PCBs and DIP integrated circuits. Once soldered to the board, the socket provides a stable connection while allowing the chip to be safely inserted and removed when needed.
6100 Deflection Board LV Section Replacement Module The 6100 Deflection Board LV Section Replacement Module is designed to replace the unreliable low-voltage (LV) section found on the Atari 6100 vector monitor deflection board. This upgrade eliminates several common failure points that can cause instability, monitor shutdown, or inconsistent operation. Over time, the original low-voltage circuitry on the 6100 deflection board can become unreliable due to aging components, heat stress, and repeated power cycling. This replacement module modernizes that section of the circuit and provides improved reliability while maintaining proper monitor operation. Once installed, the module restores stable low-voltage regulation for the deflection board, helping ensure your vector monitor operates correctly in classic arcade machines such as Tempest, Star Wars, Major Havoc, Quantum, and other Atari vector cabinets that use the 6100 monitor. Key Features Replaces the original low-voltage section of the Atari 6100 deflection board Eliminates common LV circuit failure points Improves long-term reliability of the vector monitor Helps stabilize monitor operation and voltage regulation Designed for arcade restoration and repair work Compatibility Designed for use with the Atari 6100 vector monitor commonly found in classic arcade machines such as Tempest, Star Wars, Major Havoc, Quantum, and other Atari vector titles. Installation Notes Soldering and de-soldering are required for installation. The module installs directly onto the 6100 deflection board as shown in the gallery images. Installation should be performed by someone experienced with arcade PCB repair. This upgrade is an excellent solution for arcade collectors and technicians restoring original Atari vector monitors who want improved reliability without replacing the entire deflection board.
Atari AVG Custom Chip Replacement The Atari AVG Custom Chip Replacement is designed as a direct substitute for the original Atari AVG chip (Part Number: 137179-001). This custom component functions as the Gate Array / Address Controller used in Atari vector arcade hardware, handling critical addressing and control tasks required for proper system operation. Because the original Atari AVG chip is long discontinued and increasingly difficult to source, this replacement solution provides a reliable option for repairing and restoring classic Atari arcade boards. It is engineered to replicate the functionality of the original DIP package chip while allowing collectors and technicians to keep their vector-based arcade systems running. This chip is commonly used in Atari vector arcade machines where the AVG (Analog Vector Generator) system manages the generation and control of vector graphics displayed on the monitor. Proper operation of this chip is essential for stable gameplay and correct vector drawing. Key Features Replacement for Atari AVG custom chip Compatible with original part number 137179-001 Implements the Gate Array / Address Controller function Designed for repair and restoration of Atari vector arcade boards Helps maintain long-term operation of classic Atari vector systems
MB14241 Reproduction Data Shifter (Space Invaders / Deluxe Replacement) Bring your classic Midway Taito hardware back to life with this MB14241 Reproduction Data Shifter. This new-manufacture IC is a drop-in, pin-compatible replacement for the original MB14241 custom chip found on Space Invaders and Space Invaders Deluxe arcade PCBs. If your game is showing scrambled, misaligned, or missing graphics, the data shifter is often the culprit—this reproduction restores proper video output. Key Features Direct replacement for the MB14241 data shifter IC used in Taito/Midway Space Invaders boards. 28-pin DIP footprint for easy socketed installation. 100% new components — no recycled pulls. Batch tested for reliable timing and stable video performance. Packaged in anti-static protective wrap for safe handling. Typical Compatibility Space Invaders (Midway/Taito original) Space Invaders Deluxe Other hardware revisions and licensed boards that call out MB14241 in the parts list Always confirm your PCB revision before ordering — some bootlegs and conversions may use alternate ICs. Installation Notes Verify if you need to install a socket for this product.Power down and discharge your cabinet before handling the PCB. Use proper ESD precautions; install into a quality 28-pin socket. Align the orientation notch with the board silkscreen to avoid damage. If video issues persist, check related RAMs/ROMs and edge connector signals. Why Replace the MB14241? After decades of operation, the original MB14241 chips frequently fail, causing garbled aliens, misplaced rows, or blank areas on screen. This reproduction restores clean and correct shifting of video data, ensuring your Space Invaders plays and looks the way it did in 1978. What’s Included 1× MB14241 Reproduction Data Shifter Protective anti-static packaging Space Invaders is a trademark of Midway | Taito Corporation. This is a third-party reproduction component intended for use as a service replacement on original arcade hardware.

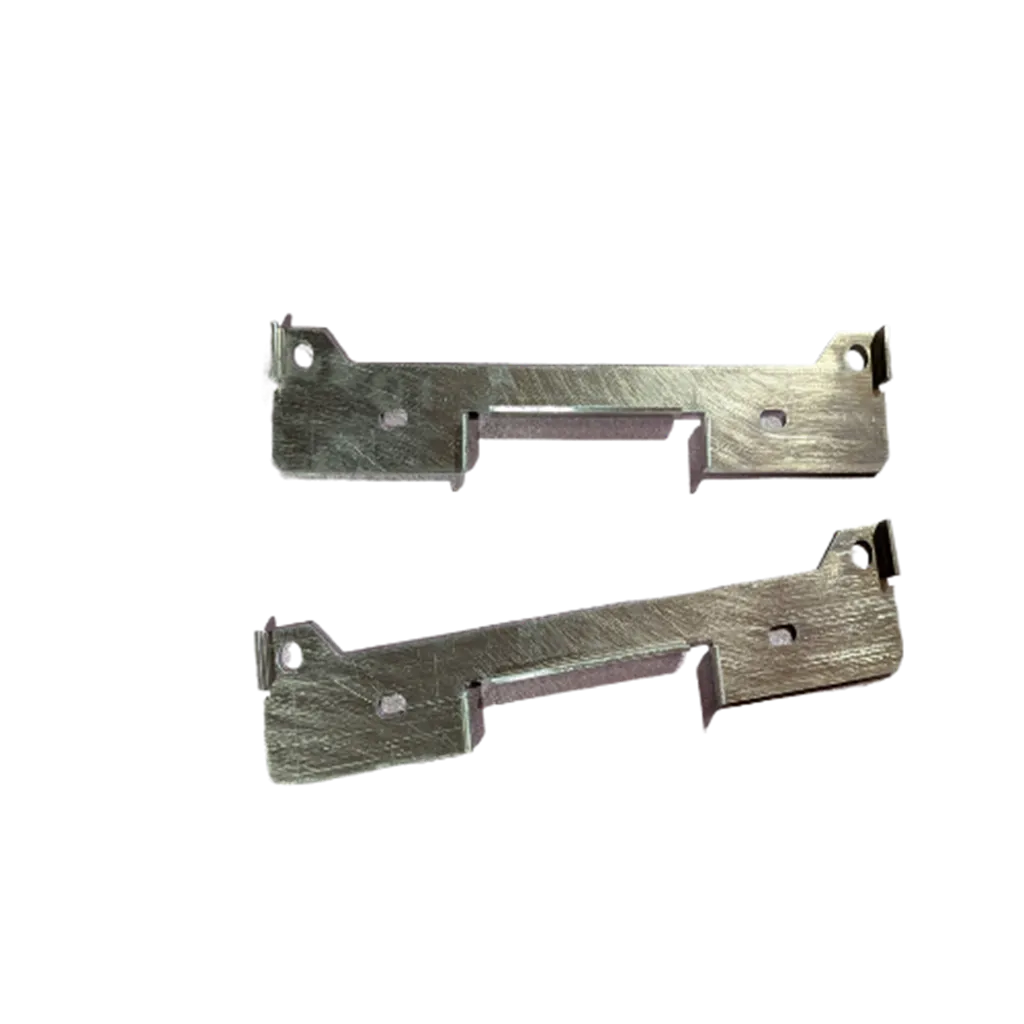

19-Inch Amplifone Arcade Monitor Bracket Set – Reproduction The 19-Inch Amplifone Monitor Bracket Set is a precision reproduction designed for arcade cabinet restorations. These brackets provide strong support and accurate alignment for Amplifone vector monitor assemblies, helping ensure reliable performance in your classic arcade machine. Ideal for collectors, restorers, and arcade enthusiasts seeking authentic fit and function. Key Features Reproduction of the original 19-inch Amplifone monitor brackets Precision-cut construction for proper fit and long-term stability Durable materials for dependable, long-lasting use Compatible with titles such as Star Wars, Major Havoc, and other vector cabinets using Amplifone monitors Includes complete left and right bracket set for straightforward installation Why This Bracket Set? Using the correct bracket system secures your Amplifone monitor safely while protecting cabinet integrity and delivering authentic arcade performance. Whether restoring a classic machine or replacing worn hardware, this bracket set provides the strength and accuracy required for reliable installation. Compatibility Designed specifically for 19-inch Amplifone vector monitor assemblies commonly found in arcade machines such as Star Wars (Atari), Major Havoc, and other cabinets originally shipped with Amplifone vector monitors. Included in the Set One pair of monitor brackets (left and right) Factory-spec mounting holes for accurate installation
