Targ | Spectar | Side Trak Multigame Free Play and High Score Save Kit
$86.00
Available, processing time: 1-3 days
Product information "Targ | Spectar | Side Trak Multigame Free Play and High Score Save Kit"
Targ | Spectar | Side Trak Multigame Free Play and High Score Save Kit
Upgrade your original Exidy Targ arcade PCB with three classic games, permanent high score saving, Free Play, menu-driven settings, attract sounds, and optional Wi-Fi leaderboard support.
This HighScoreSaves multigame kit is designed for original Targ hardware and lets you play Targ, Spectar, and Side Trak from the same arcade PCB while preserving the original controls, timing, sound, and classic hardware experience.
Targ • Spectar • Side Trak
Switch between Targ, Spectar, and Side Trak while continuing to use the original arcade PCB.
Saves the Top 5 scores with initials using reliable serial EEPROM memory.
Choose local score saving or add compatible Wi-Fi leaderboard support.
Access game selection and configurable settings without changing physical DIP switches.
What the Targ Multigame Kit Adds
The Targ Multigame Free Play and High Score Save Kit adds useful modern features to an original Exidy arcade PCB without replacing the board with a multicade or emulation system.
You retain the original arcade hardware while adding three selectable games, permanent score storage, Free Play, configurable attract sounds, menu-driven settings, score backup and restore, and other convenience features designed for collectors and regularly played arcade machines.
Compatibility and What to Check Before Ordering
- PCB: Designed for original Targ arcade hardware.
- Processor: Uses the original 6502 processor or an optional replacement processor.
- Processor Socket: The 6502 location must have the proper 40-pin socket for the kit to plug in.
- Cabinets: Supports upright and cocktail configurations.
- Original Program ROMs: May optionally be removed and stored when using the kit's ROM Saver functionality.
Check your PCB before ordering. If the original 6502 processor is soldered directly to the board, a proper socket must be installed before the kit can be fitted.
Choose Your Targ Multigame Kit Configuration
Select either a Standard Save Kit or a Wi-Fi Enabled Kit when ordering.

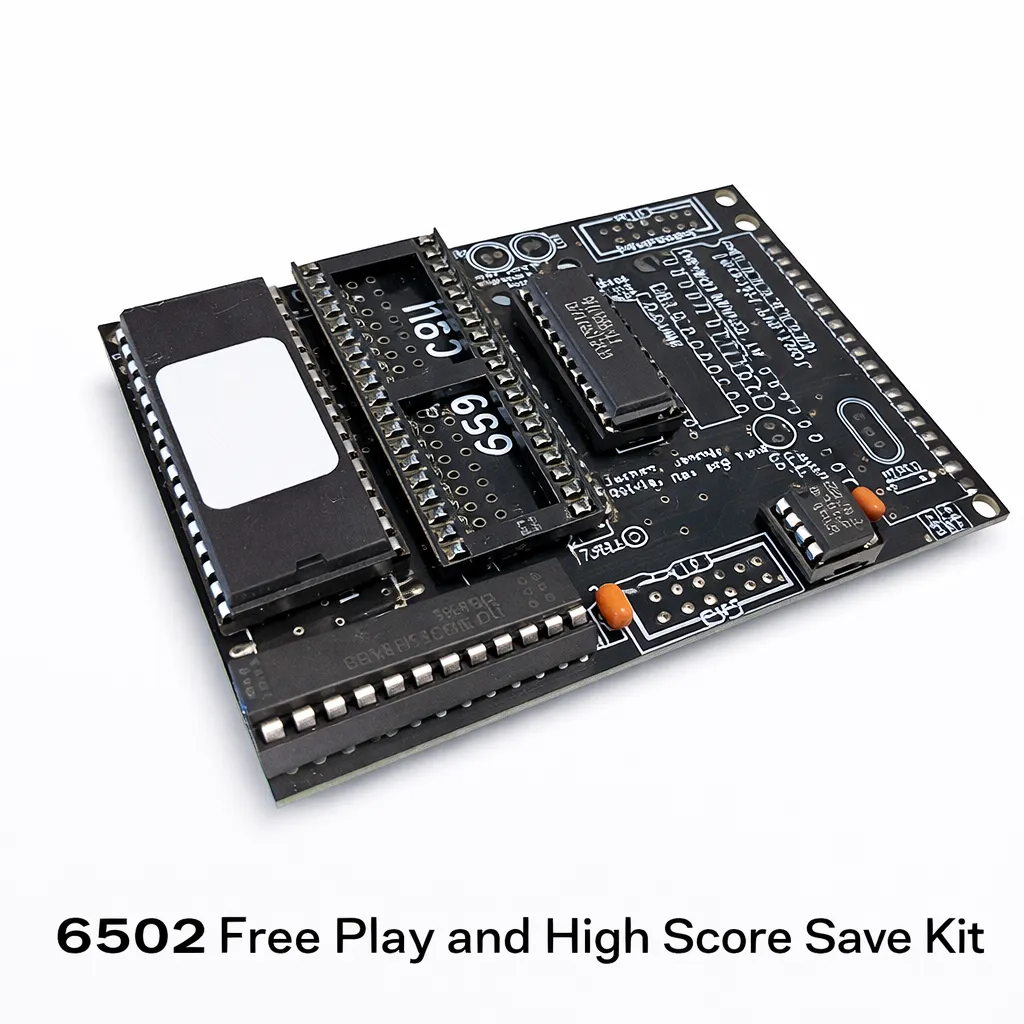

Standard Save Kit
Saves scores permanently on the arcade PCB and includes the core Free Play, multigame, menu, and high score features without online connectivity.

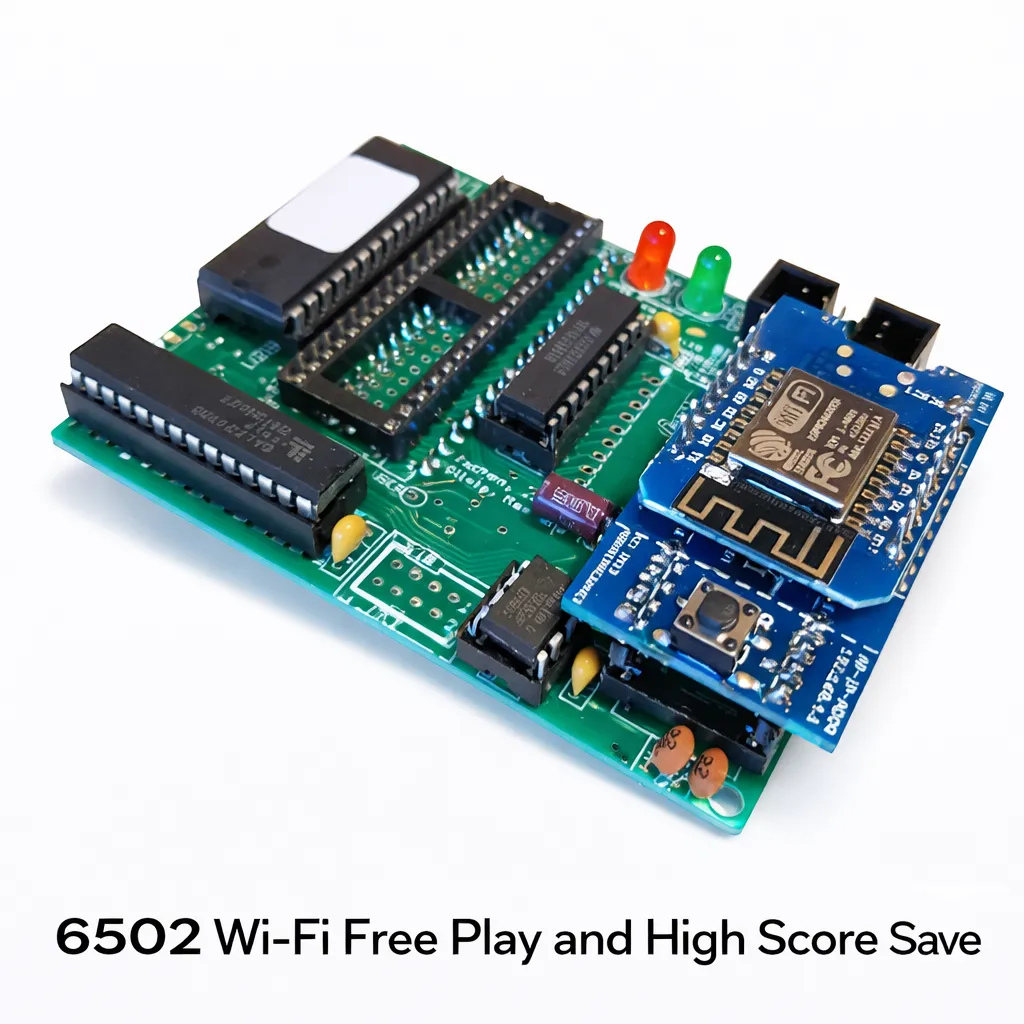

Wi-Fi Enabled Kit
Includes the same local score-saving features and adds support for uploading scores to the HighScoreSaves online leaderboard using a compatible 2.4 GHz Wi-Fi network.
An optional processor and/or 40-pin socket may also be selected when needed for your PCB.

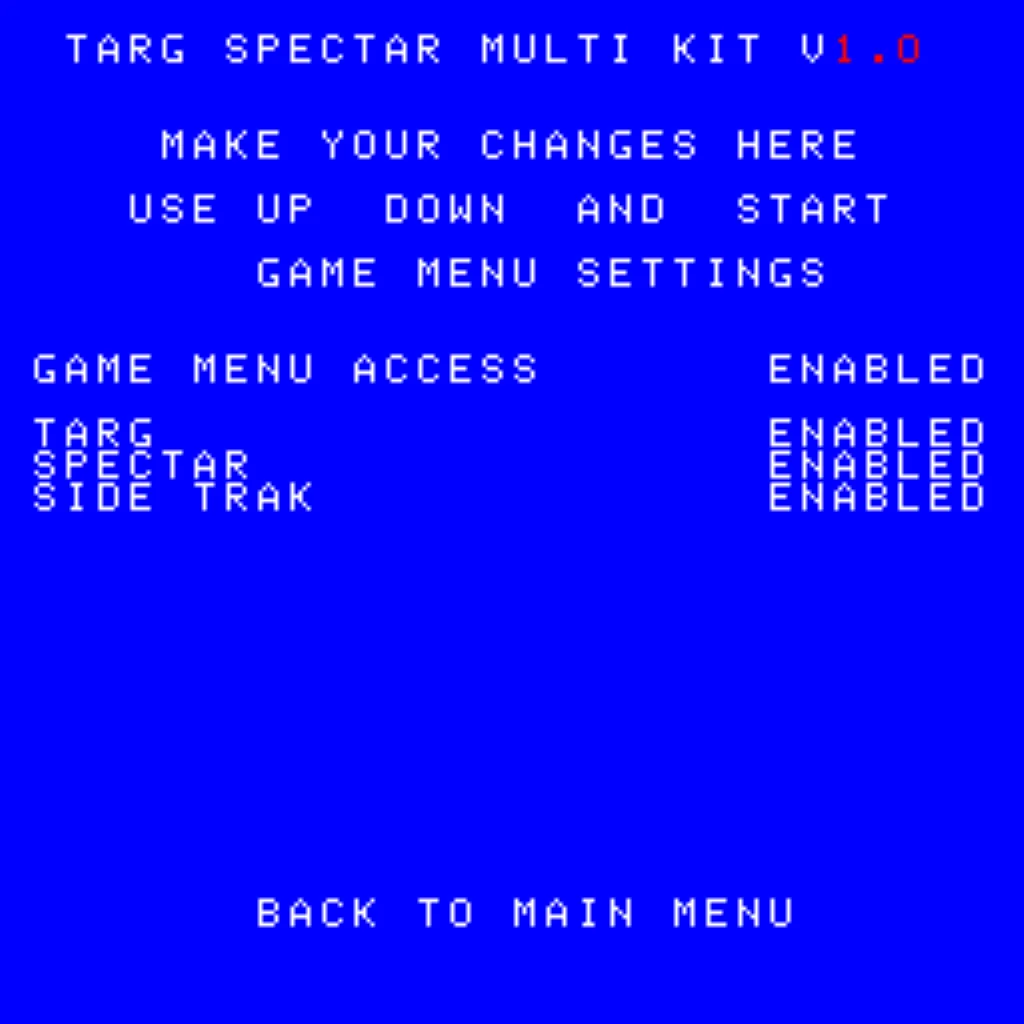

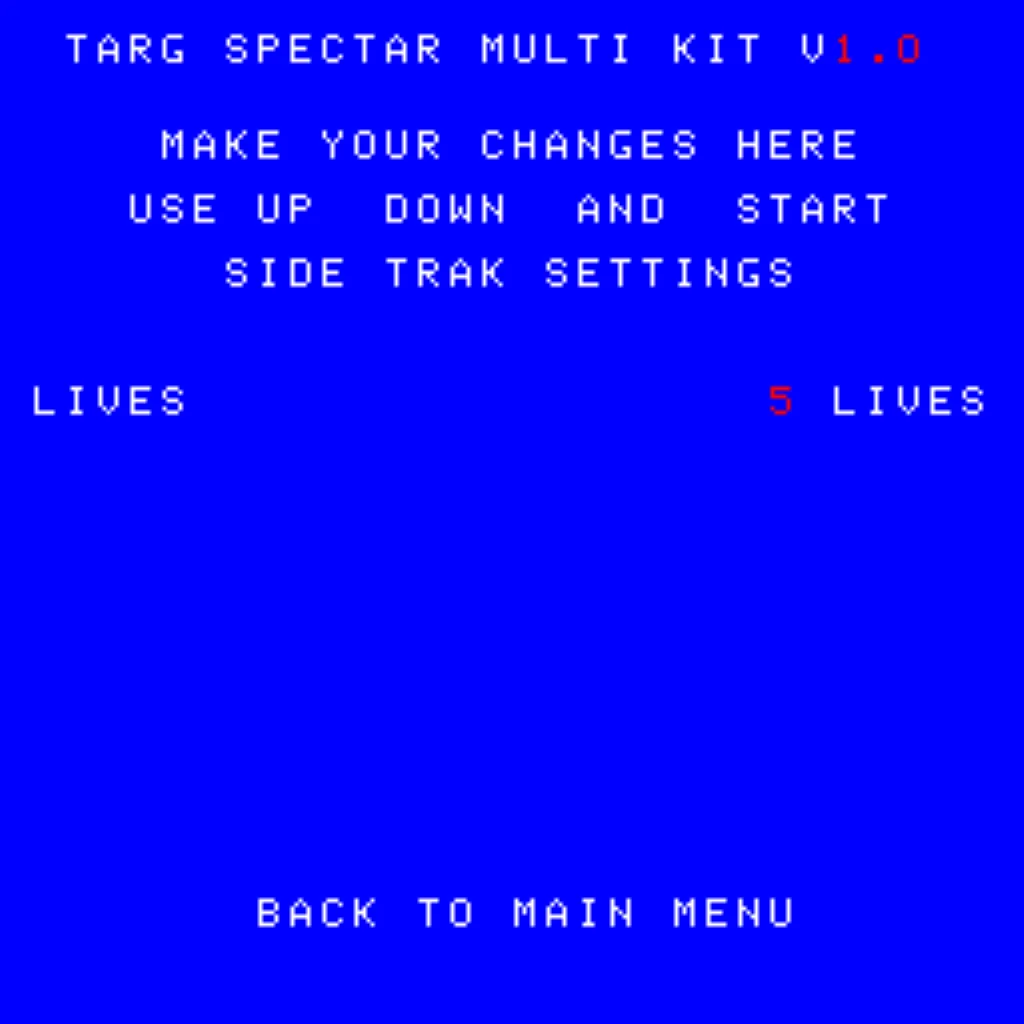

Game Selection and Settings Menu
The kit provides menu access through the cabinet's Player 1 Start button, so normal game selection and configuration can be performed without adding extra controls.

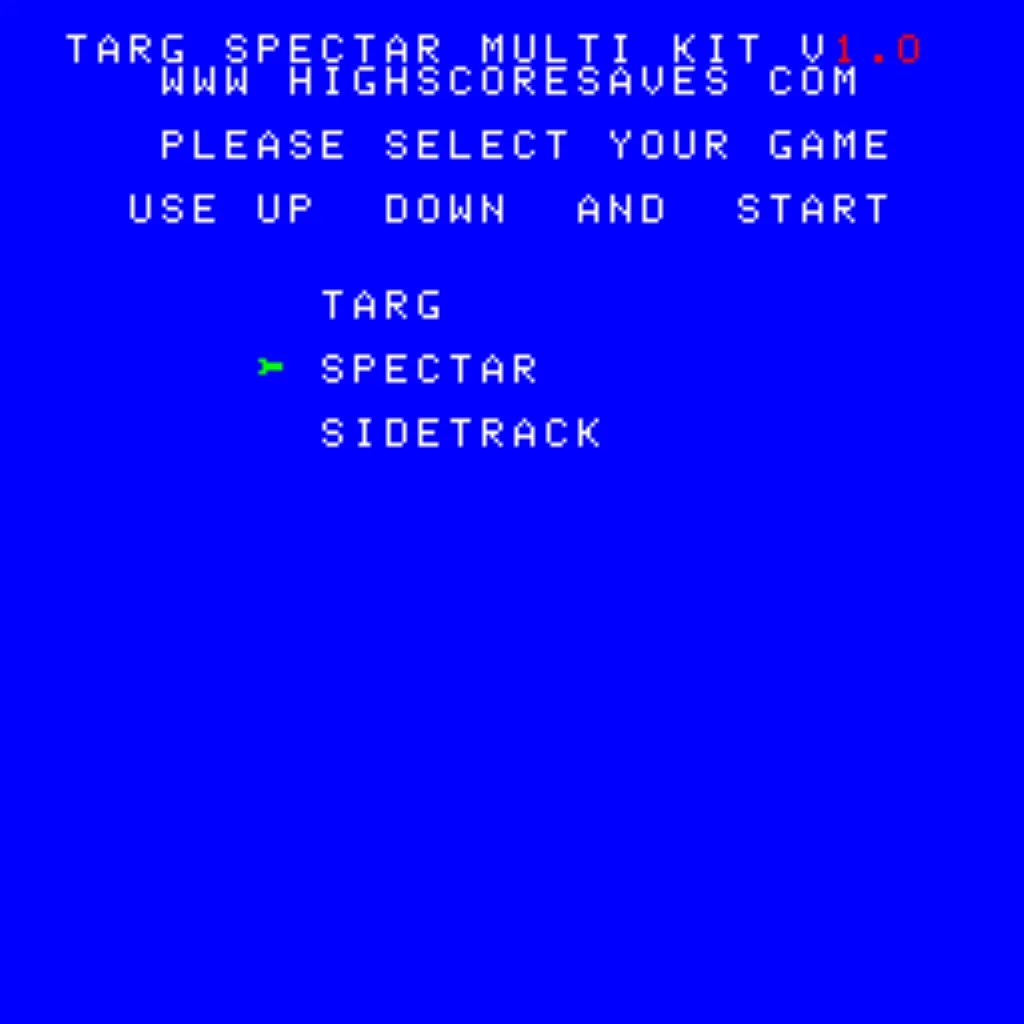

- Select a Game: During attract mode, hold the Player 1 Start button for approximately four seconds to enter the game-selection menu.

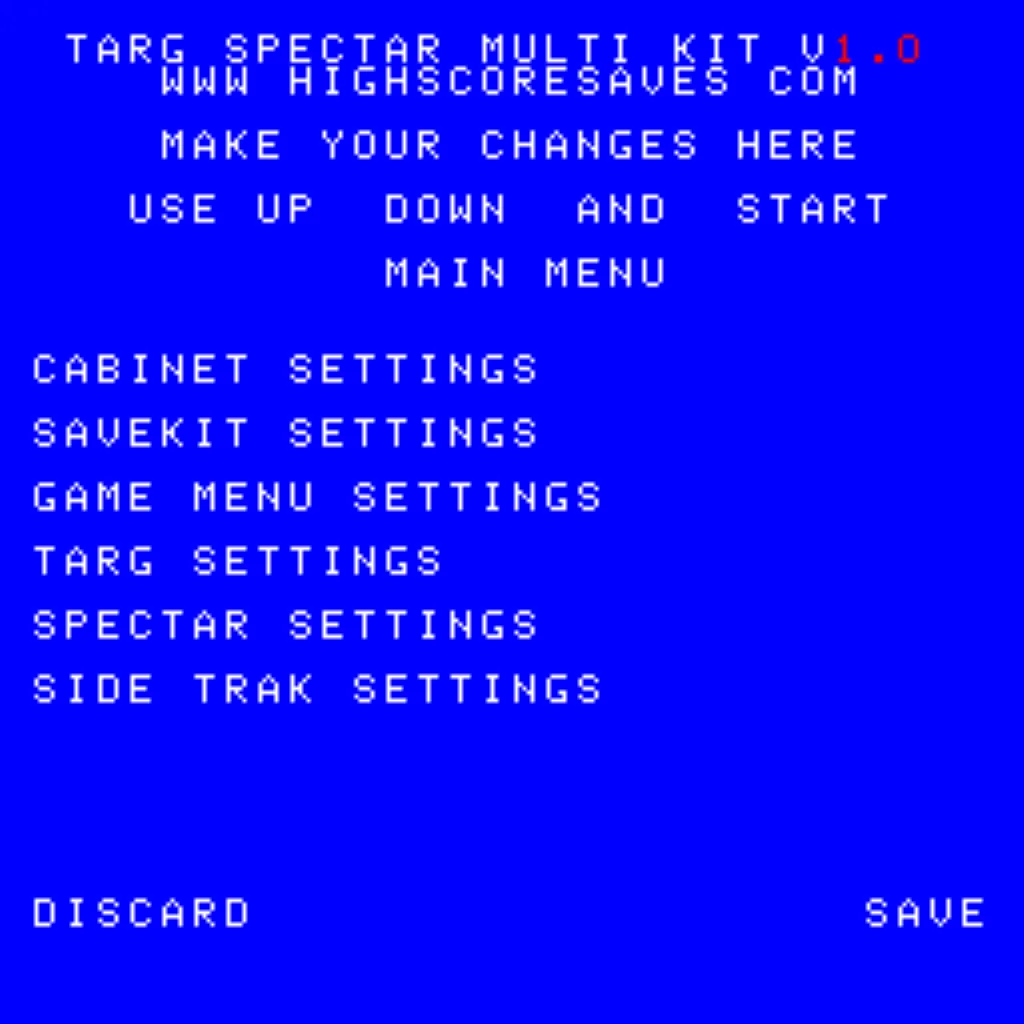

- Open the Settings Menu: Power the cabinet off, hold the Player 1 Start button, power the cabinet back on, and release the button when prompted.
Targ Multigame Kit Features
- Three Games: Targ, Spectar, and Side Trak

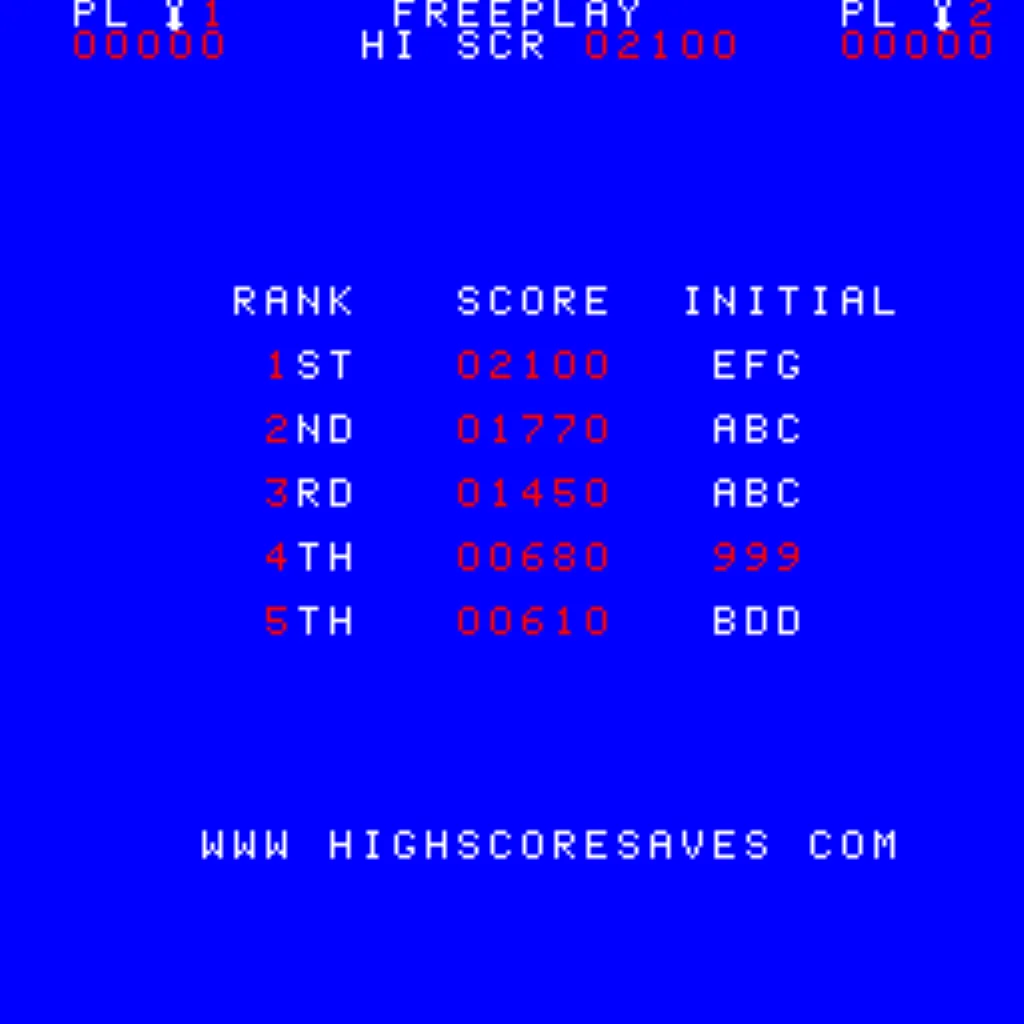

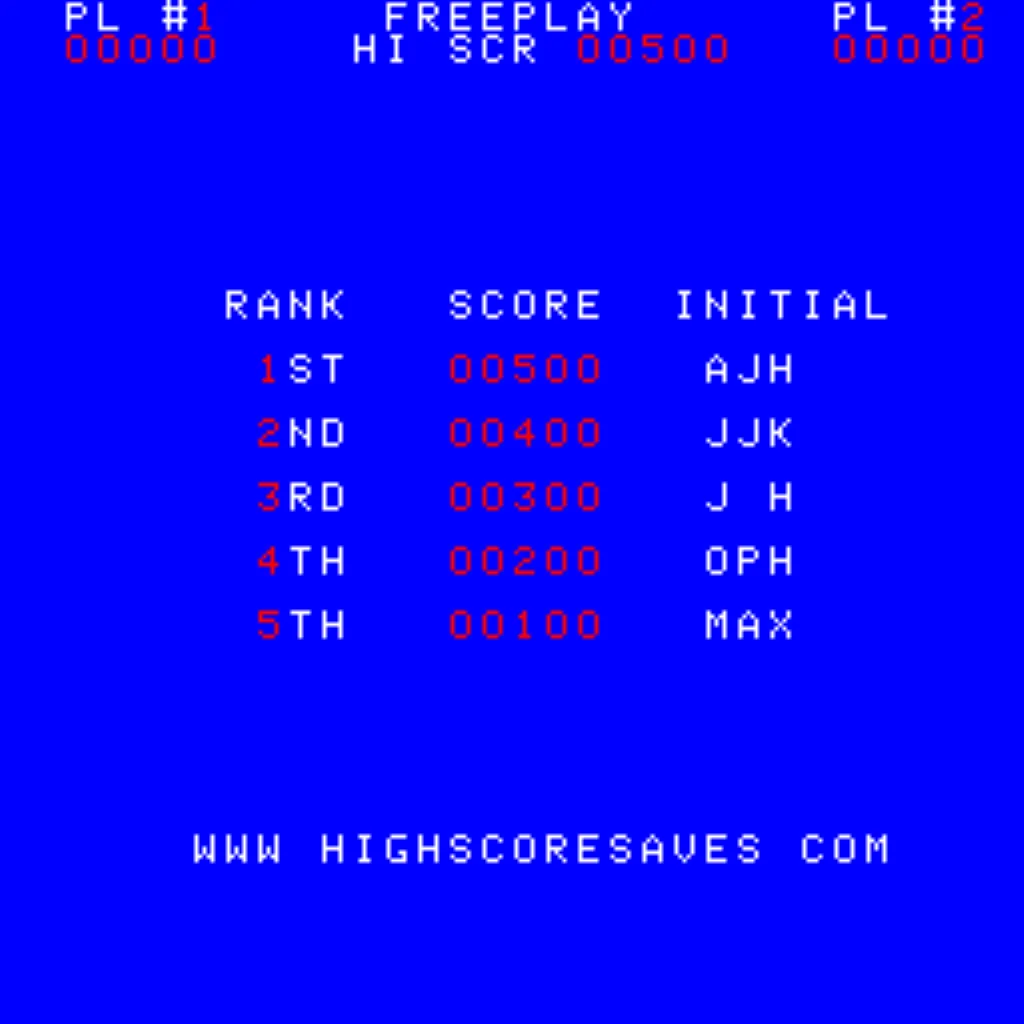

- Permanent High Score Saving: Stores the Top 5 scores with initials
- Serial EEPROM: Reliable nonvolatile score storage without a battery

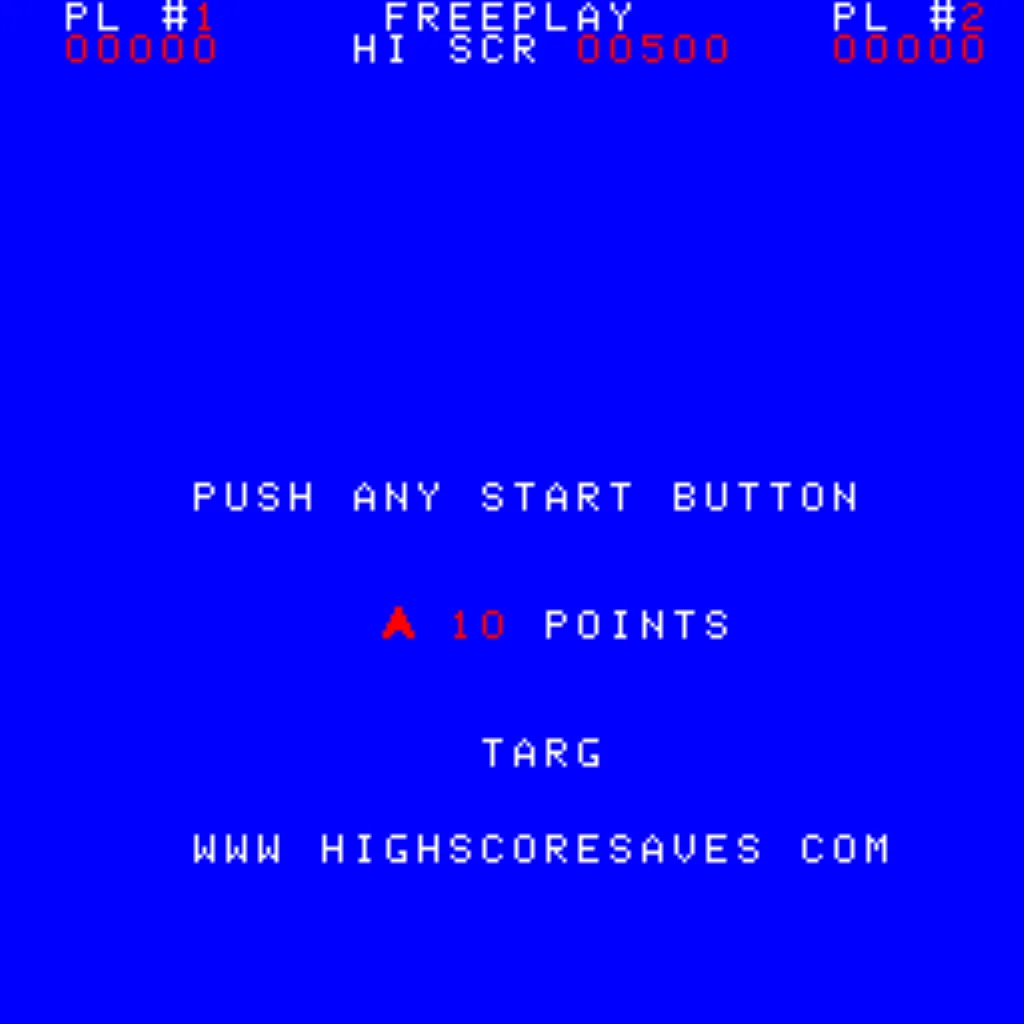

- Free Play: Play without coins while retaining normal coin-up operation when desired
- Attract Sounds: Adjustable 25%, 50%, or 100% settings
- Menu-Driven DIP Settings: Configure supported settings through the on-screen menu
- ROM Saver: Allows original program ROMs to be removed and stored
- Backup and Restore: Back up saved scores and restore them later
- Separate Score Tables: Maintains different score tables for 2, 3, 4, or 5 lives
- Reset Function: Restart gameplay without cycling cabinet power
- Fast Boot: Starts without long initialization delays
- Stealth Mode: Boot directly into gameplay for a more stock arcade presentation

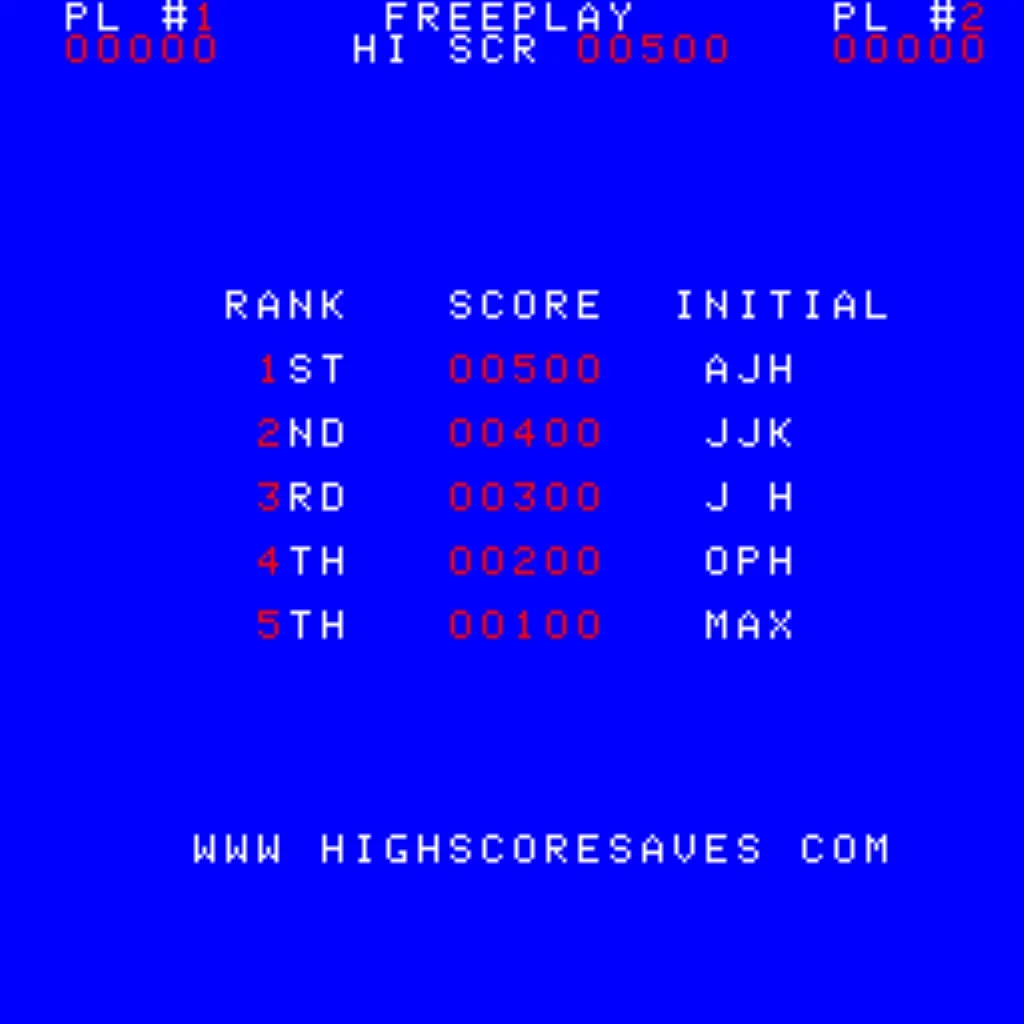

- High Scores Access: Quickly view stored score tables for the selected game
- Copyright Display: Select the original manufacturer or HighScoreSaves message
- Optional Wi-Fi: Compatible kits can upload scores to the online leaderboard
Games Included

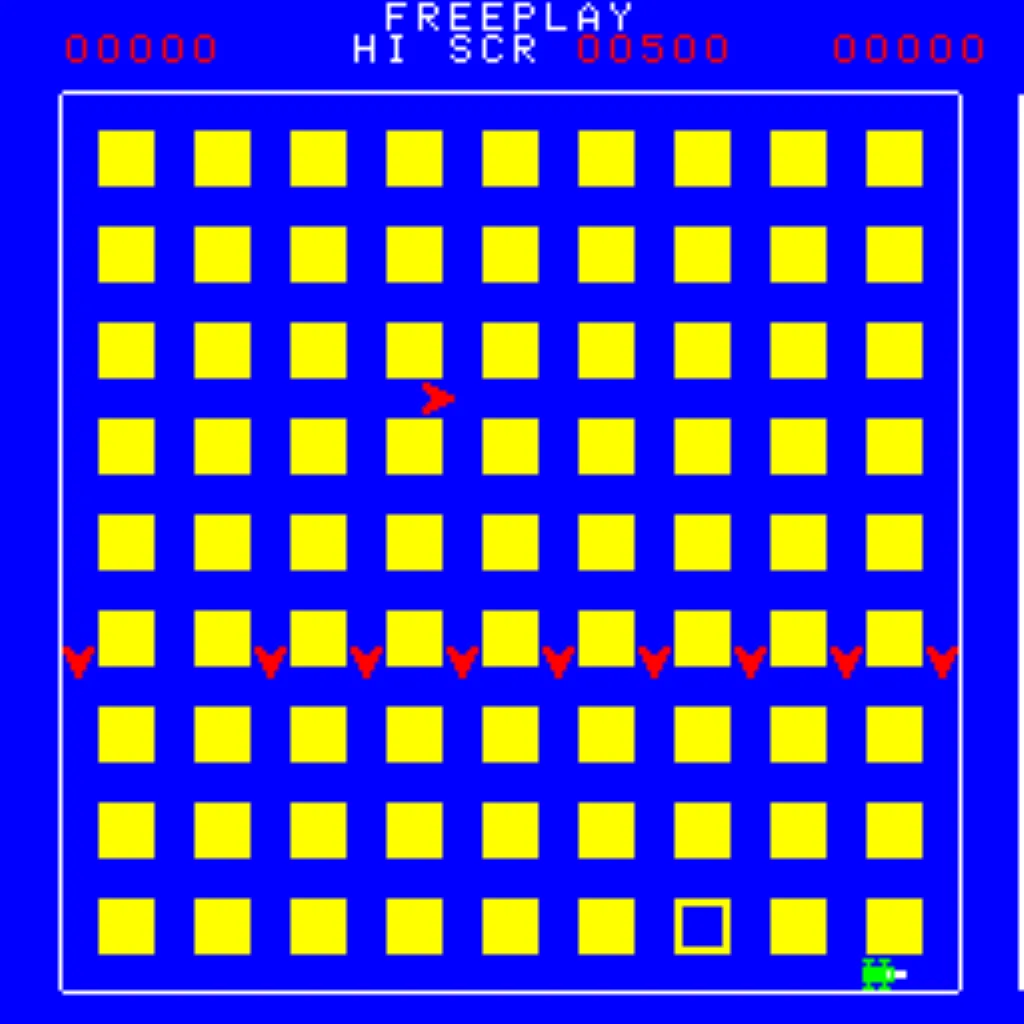

Targ
Play the original Targ game from the original Exidy arcade hardware while adding permanent score saving, Free Play, and configurable kit features.

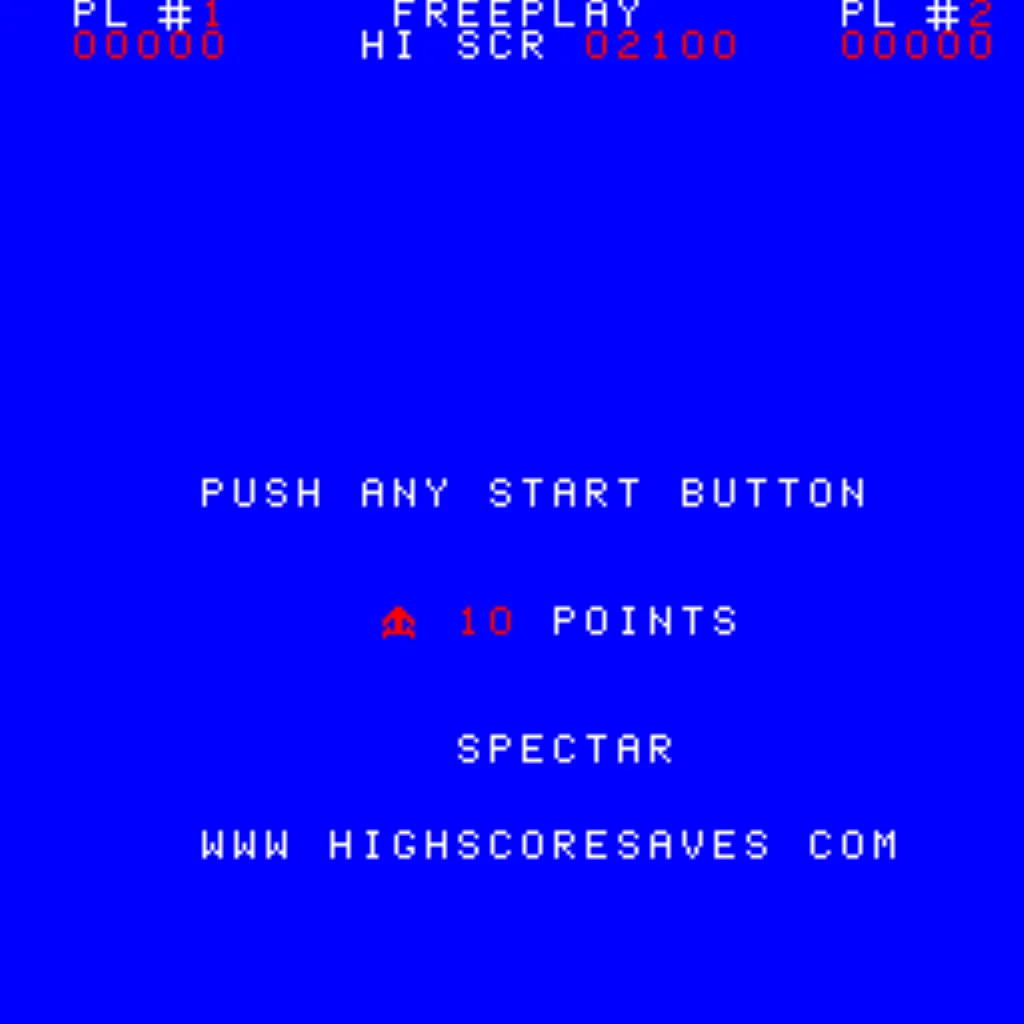

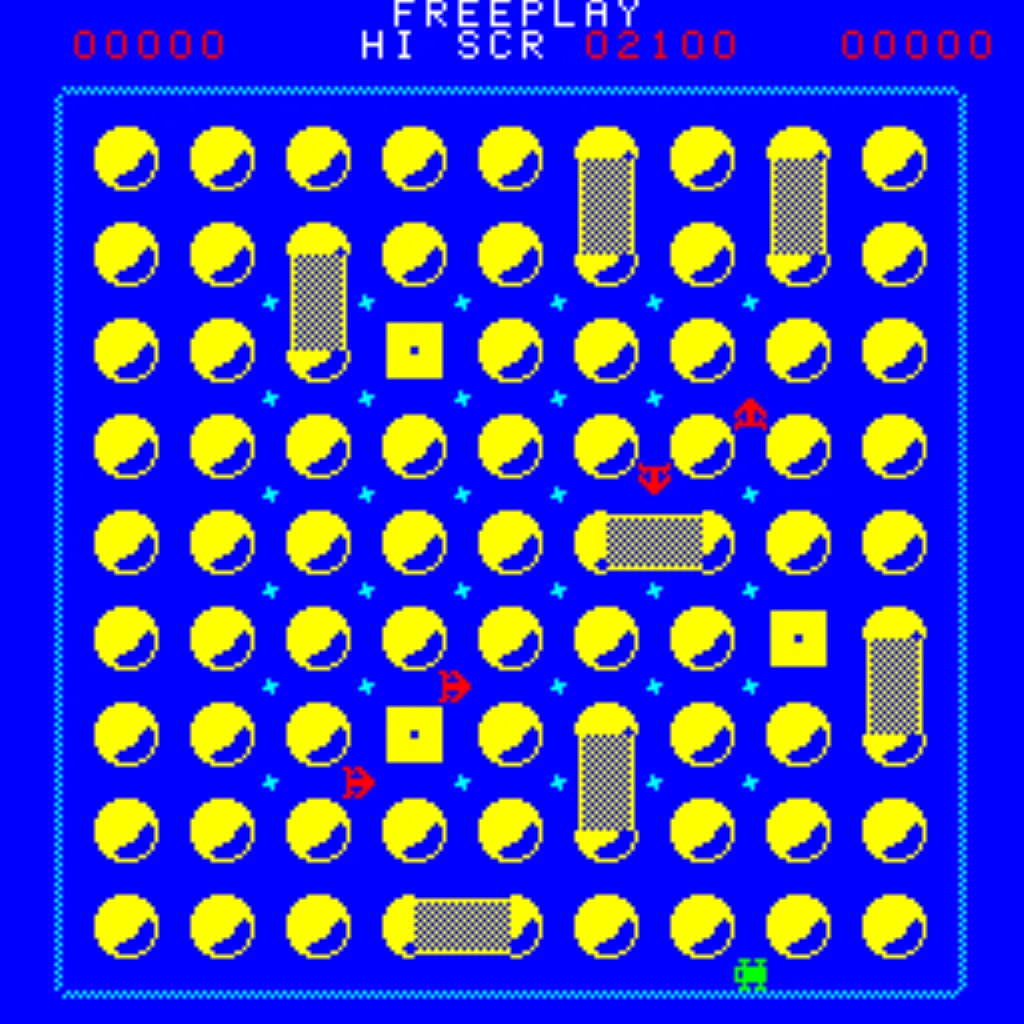

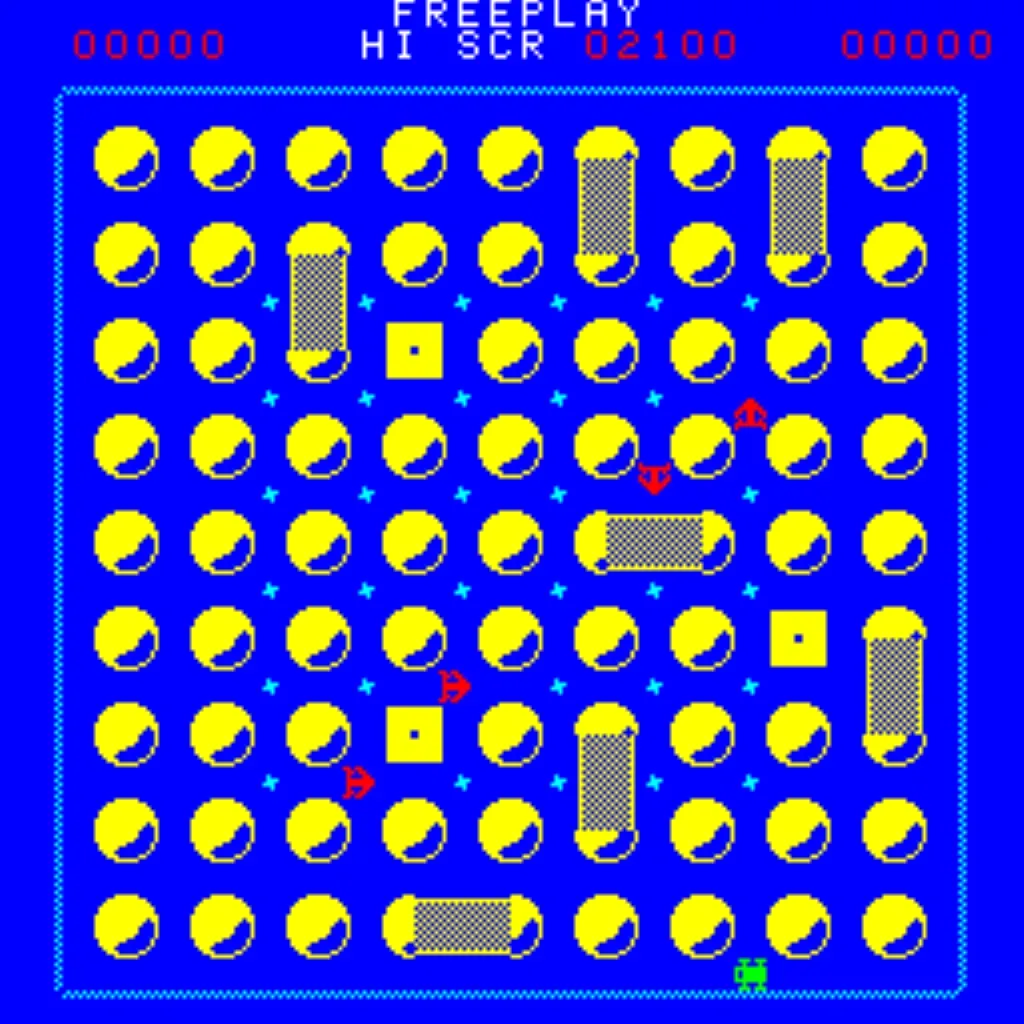

Spectar
Switch to Spectar directly from the multigame menu while continuing to use the original Targ-compatible arcade hardware platform.
Side Trak
Add Side Trak to the same cabinet and move between all three supported games from the kit's game-selection menu.
Installation Notes
- Socketed 6502 Required: The kit installs at the 6502 processor location on the original PCB.
- No Soldering on a Properly Socketed PCB: If the processor is already installed in the correct socket, no soldering is required for normal kit installation.
- Unsocketed PCB: If the 6502 is soldered directly to the board, a socket must be installed before fitting the kit.
- Orientation Matters: Follow the installation guide and verify processor and kit orientation before powering the cabinet.
Optional Wi-Fi and Online High Scores
Choose the Wi-Fi Enabled version if you want your compatible cabinet to upload qualifying scores to the HighScoreSaves online leaderboard in addition to saving scores locally on the PCB.
Wi-Fi kits use a compatible 2.4 GHz Wi-Fi network. The Standard kit does not require a network connection and keeps scores locally.
Targ Multigame Free Play and High Score Save Kit FAQ
Which games are included?
The kit includes Targ, Spectar, and Side Trak.
Does the kit save high scores?
Yes. The kit permanently stores the Top 5 scores with initials using serial EEPROM memory.
Does installation require soldering?
No soldering is required when the PCB already has the proper socket at the 6502 processor location. If the processor is soldered directly to the PCB, a socket must be installed before the kit can be fitted.
What processor does the kit use?
The kit uses a 6502 processor. You can use the compatible processor from the original PCB or select an optional processor when ordering.
How do I select Targ, Spectar, or Side Trak?
During attract mode, hold the Player 1 Start button for approximately four seconds to enter the game-selection menu.
How do I enter the settings menu?
Power the cabinet off, hold the Player 1 Start button, power the cabinet on, and release the button when prompted.
Can I still use coins?
Yes. The kit supports both Free Play and normal coin-up operation.
Does the kit work in upright and cocktail cabinets?
Yes. The kit supports both upright and cocktail cabinet configurations.
What is the difference between Standard and Wi-Fi Enabled versions?
Both versions save scores locally and include the core kit features. The Wi-Fi Enabled version also supports uploading scores to the online leaderboard through a compatible 2.4 GHz Wi-Fi network.
