Space Zap Free Play and High Score Save Kit
$72.00
Available, processing time: 1-3 days
Product information "Space Zap Free Play and High Score Save Kit"

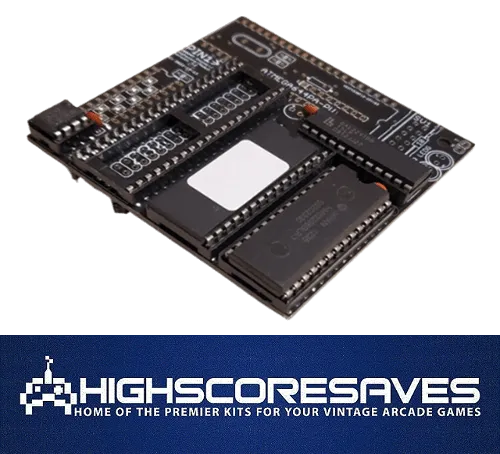

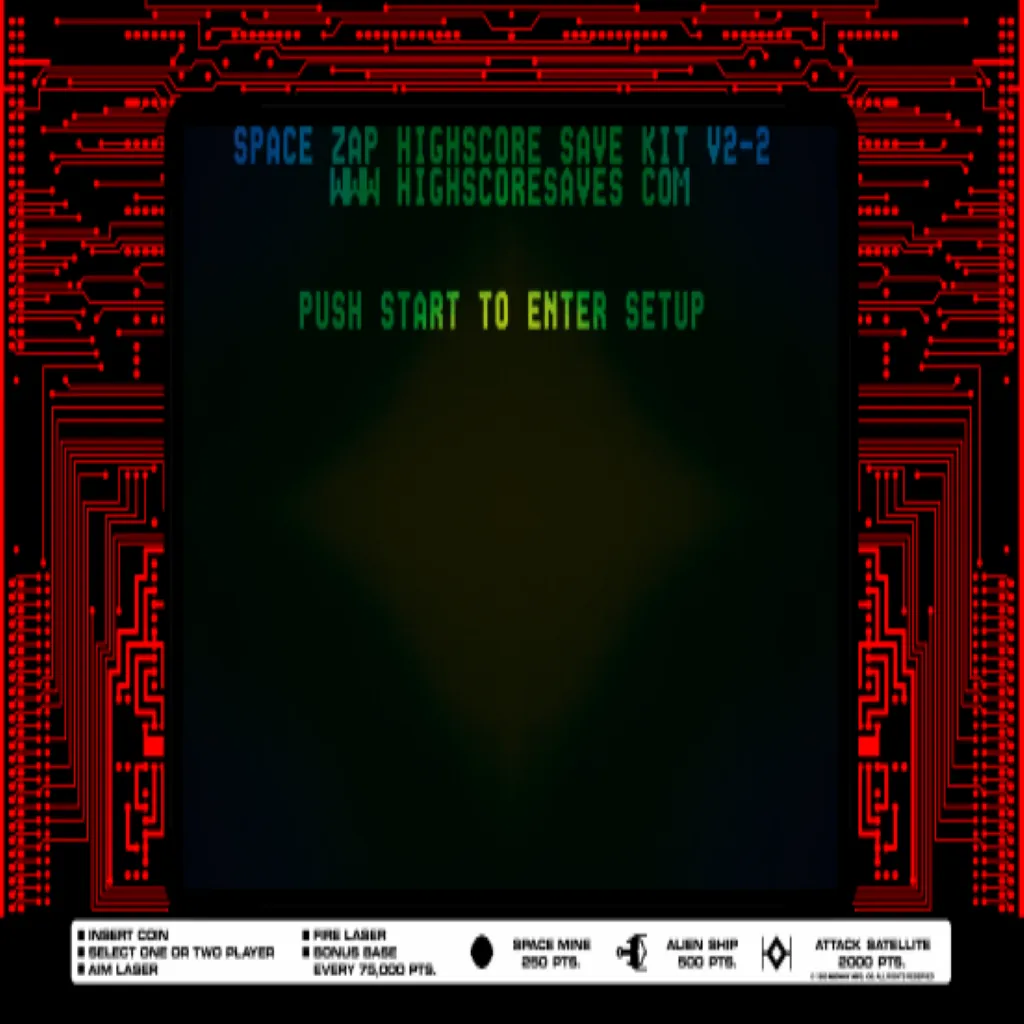

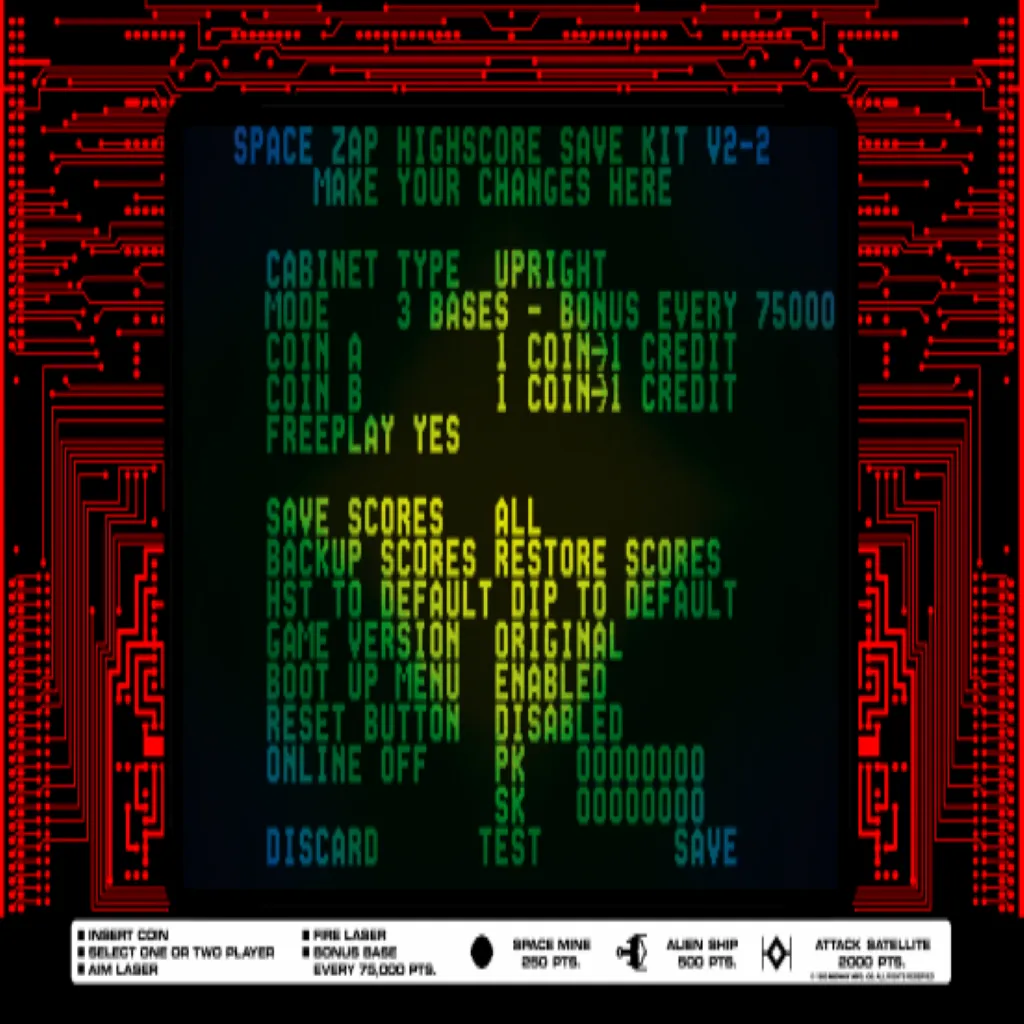

The HighScoreSaves Space Zap Free Play and High Score Save Kit upgrades documented compatible original Bally Midway Space Zap arcade hardware with permanent Top 5 high score saving with initials, Free Play, adjustable attract sounds, menu-driven settings, ROM Saver functionality, Backup and Restore, separate lives-based score tables, Reset Button operation, Stealth Mode, and optional Wi-Fi leaderboard support while retaining the original arcade platform.
Space Zap Compatibility & Requirements

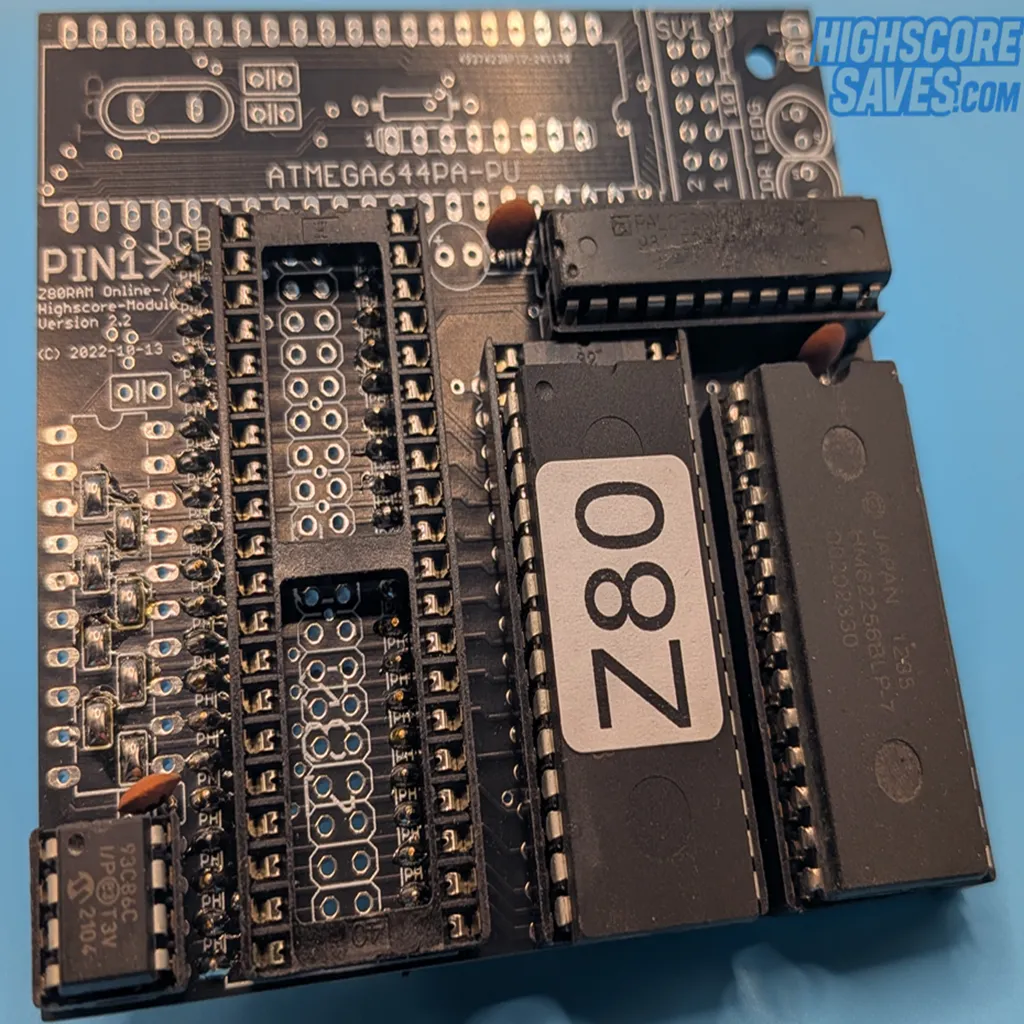

Installation: Plug-in installation when the documented Z80 processor location is already properly socketed. No soldering, trace cutting, special wiring, or permanent PCB modification is required in that configuration. If the Z80 is soldered directly to the board, a compatible 40-pin socket must be installed before fitting the kit.
Space Zap ROM Saver Configuration
Space Zap uses a game-specific ROM Saver arrangement. With the HighScoreSaves kit installed, the original Program/ROM/RAM board is not required.
The required graphics RAM remains installed for normal operation. Follow the Space Zap installation guide carefully when changing the original board configuration.
What This Kit Adds
Separate Space Zap High Score Tables
Space Zap keeps supported scores separated by lives configuration. Independent high-score tables are available for 2, 3, 4, and 5 lives, allowing scores earned under different lives settings to remain separate.
Installation Checks Before Power-Up
Confirm Pin 1 orientation, daughterboard seating, processor-pin alignment, Z80 socket condition, and the documented Space Zap board configuration before applying cabinet power.
Standard vs. Wi-Fi Kit
Standard Kit
Stores supported Space Zap scores and settings locally and provides normal gameplay, Free Play, Coin-Up operation, attract sounds, ROM Saver, Backup and Restore, separate score tables, Reset Button operation, Stealth Mode, and menu-driven settings without requiring an internet connection.
Wi-Fi Enabled Kit
Includes the same local functionality and adds qualifying online score submission to the HighScoreSaves global leaderboard.
Wi-Fi can be disabled without affecting local score saving or normal gameplay. Wi-Fi-enabled kits use compatible 2.4 GHz Wi-Fi networks.
Space Zap Kit FAQ
Does this kit require original Bally Midway Space Zap hardware?
Yes. The kit is designed for documented compatible original Bally Midway Space Zap arcade hardware.
Does the Z80 processor need to be socketed?
Yes. The documented Z80 location must use a compatible 40-pin socket before the daughterboard can be installed.
Does installation require soldering?
No soldering is required when the documented Z80 location is already properly socketed. If the processor is soldered directly to the board, a compatible 40-pin socket must be installed first.
Do I need the original Program/ROM/RAM board?
No. The original Program/ROM/RAM board is removed when the kit is installed according to the Space Zap installation guide.
Is the original graphics RAM still required?
Yes. The required graphics RAM remains installed for normal Space Zap operation.
How many Space Zap high scores are saved?

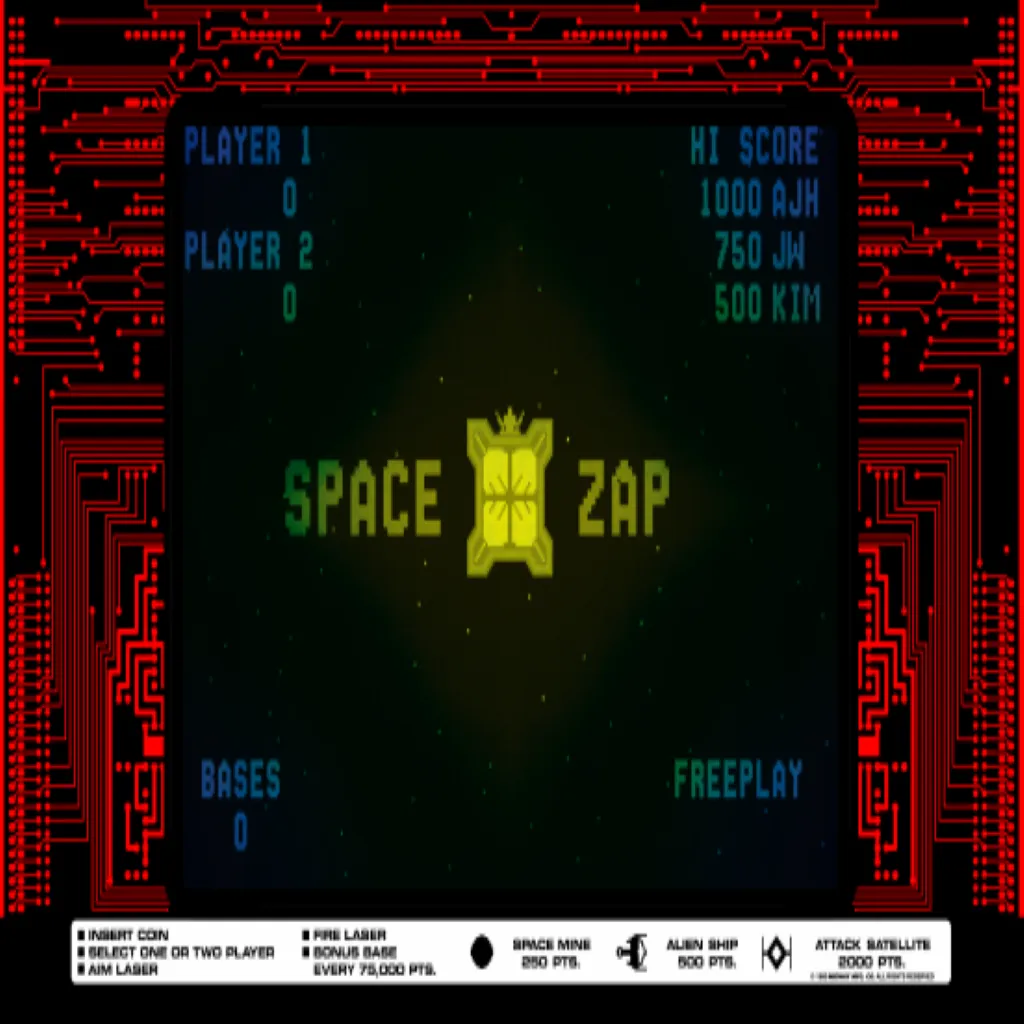

The kit permanently stores the Top 5 supported Space Zap scores with player initials.
How do the separate score tables work?
Independent supported high-score tables are maintained for 2-, 3-, 4-, and 5-life settings.
What is Stealth Mode?
Stealth Mode boots directly into normal Space Zap gameplay without displaying the kit menu.
What does the Wi-Fi version add?
Both versions save supported scores locally. The Wi-Fi Enabled version also adds qualifying online leaderboard submission.
