Silk Worm Free Play and High Score Save Kit
$66.00
Available, processing time: 2-5 days
Product information "Silk Worm Free Play and High Score Save Kit"
Silk Worm Free Play and High Score Save Kit for Tecmo Arcade PCB
Upgrade your original Silk Worm arcade PCB with reliable free play, high score saving, attract sounds, and optional Wi-Fi leaderboard functionality while preserving authentic gameplay and original arcade hardware.
Designed specifically for original Tecmo hardware, this plug and play upgrade improves long-term reliability without changing gameplay timing, controls, sound, or the classic arcade experience collectors expect.
Play without coins while retaining optional coin operation.
Saves the Top 10 scores and initials permanently.
Adjustable at 25%, 50%, or 100% of attract rotation.
Upload scores online to global arcade leaderboards.
Upgrade Your Silk Worm Arcade Experience
Restore and enhance your original Silk Worm arcade machine with a professionally designed Free Play and High Score Save Kit built specifically for authentic Tecmo arcade hardware.
Original boards often lose high scores, rely on aging components, or suffer from unstable resets. This upgrade modernizes your PCB while preserving the original gameplay, controls, timing, and arcade feel that made Silk Worm one of the most unique cooperative helicopter and jeep shooters of the arcade era.
Unlike multigame systems or reproduction boards, this kit keeps your original arcade PCB intact while improving long-term reliability for collectors, operators, and restoration projects.
Available Kit Options
Build your kit exactly how you want it. Choose between a Wi-Fi Enabled Kit or a Standard Save Kit.
Optional processor and socket upgrades are also available to simplify installation on original hardware.
Important Installation Notes
- Socketed Z80 required: Install a 40-pin socket if your processor is soldered directly to the PCB
- Read the Rush’n Attack | Green Beret Installation Guide before installation
Included Features
- Easy Installation: No soldering, board modifications, or special wiring required
- Permanent Score Saving: Uses reliable serial EEPROM instead of batteries or NVRAM
- High Score Save: Saves the Top 10 scores and initials
- Copyright Selection: Switch the attract-screen logo between original manufacturer and HighScoreSaves branding
- Freeplay Mode: No more coins or opening the coin door
- Coin-Up Support: Continue using coins if desired
- Attract Sounds: Adjustable at 25%, 50%, or 100% of attract rotation
- Attract Mode Protection: Helps reduce screen burn by avoiding static screens
- On-Screen DIP Settings: Menu-driven configuration without pulling the cabinet
- ROM Saver: Remove original program ROMs while the game runs directly from the save kit
- Cabinet Compatibility: Works in Upright and Cocktail cabinets
- Backup and Restore: Save and restore high scores anytime
- Separate Score Tables: Different high-score tables for 2–4 life settings
- God Mode: Unlimited lives for practice mode (scores will not save)
- Flip Screen: Rotate the display 180 degrees
- Stealth Mode: Access menus by holding Player 1 during power-on
Installation Information
- Installation Difficulty: Easy
- Soldering Required: No, if CPU is socketed
- Processor Requirement: Requires a Z80 processor
- Socketed CPU Required: Install a 40-pin socket if needed
- Cabinet Compatibility: Upright and Cocktail supported
- Installation Guide: Download PDF Installation Guide
Optional Wi-Fi Features and Online Leaderboards
Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network.
Standard kits save scores locally to the PCB, while Wi-Fi kits add automatic online score syncing through the HighScoreSaves global leaderboard platform.
Silk Worm Free Play and High Score Save Kit FAQ
Does this kit require soldering?
No. This kit is completely plug-and-play with no board modifications required.
How many high scores does it save?
The kit permanently saves the Top 10 scores with initials.
Can I still use coins if Freeplay is enabled?
Yes. Coin-Up support still functions normally if desired.
Does this kit support 2 player mode?
Yes, but only on coin play and not in Freeplay mode.
What is God Mode?
God Mode gives unlimited lives for practice and fun. Scores do not save while enabled.
Does it support attract sounds?
Yes. Attract sounds are adjustable at 25%, 50%, or 100%.
Does it work in Cocktail cabinets?
Yes. The kit supports both Upright and Cocktail cabinets.
What processor is required?
A socketed Z80 processor is required.
Where can I download the installation guide?
Login
Level up with these!

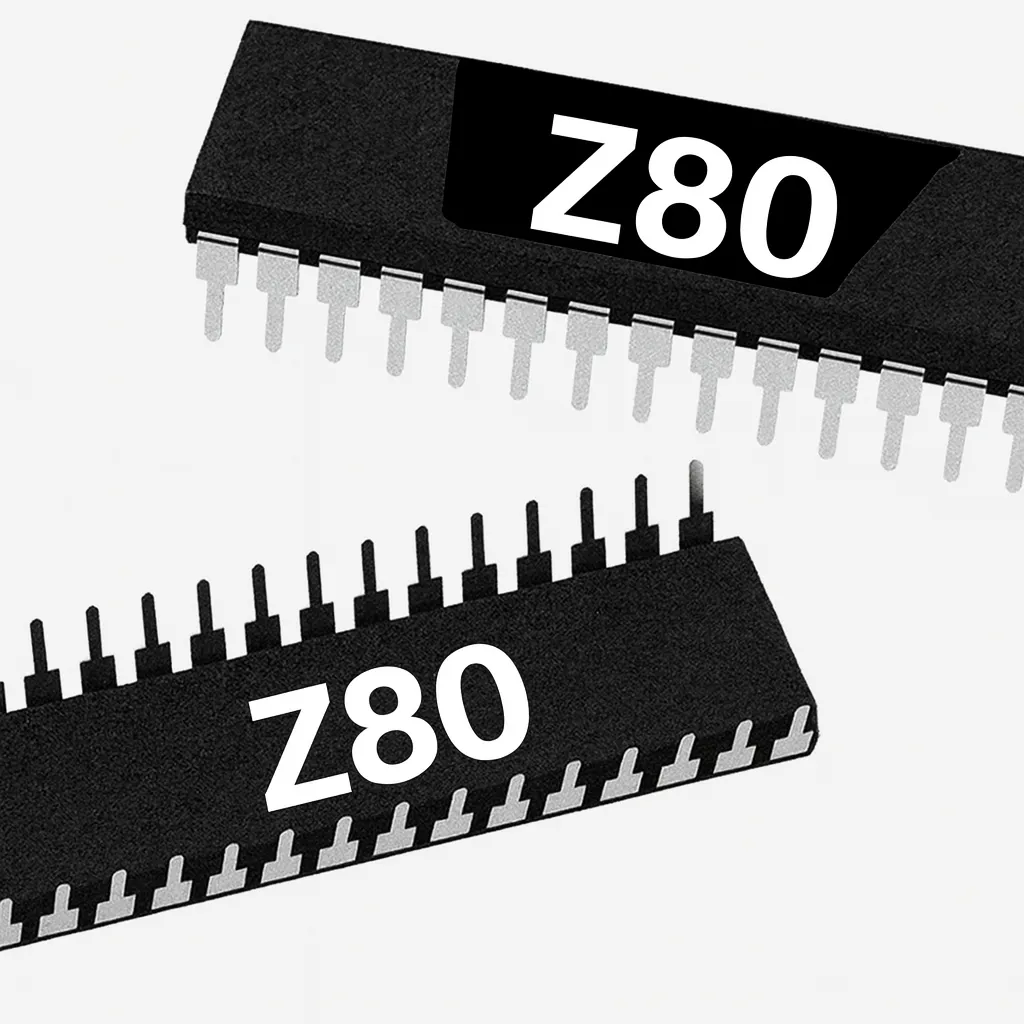

Z80 8-Bit Microprocessor (40-Pin CPU) The Z80 is a classic 8-bit microprocessor widely used in arcade machines from the late 1970s through the 1980s. This processor served as the main CPU in many arcade PCBs, executing game code, processing player inputs, and coordinating communication with memory, sound hardware, and video circuitry. The Z80 became one of the most popular processors in arcade hardware due to its reliability and expanded instruction set compared to earlier CPUs. Because of its widespread use, the Z80 is commonly found in a variety of classic arcade games and remains an essential component when repairing or restoring vintage arcade boards. This processor uses a standard 40-pin DIP (Dual In-line Package) and installs directly into a compatible socket on the arcade PCB. Replacing a faulty CPU can often resolve boot failures, lockups, or other operational issues in aging arcade hardware. Key Features Z80 8-bit microprocessor Standard 40-pin DIP package Common CPU used in many classic arcade PCBs Handles core game logic, timing, and system control Ideal for arcade PCB troubleshooting, repair, and restoration Used In Arcade Games Such As Donkey Kong Galaga Donkey Kong Jr. Frogger Galaxian Dig Dug Xevious …and many other classic arcade titles Installation Notes Installs into a standard 40-pin DIP socket on compatible arcade PCBs Ensure correct notch orientation when installing the CPU Recommended for technicians performing arcade board repair or restoration *Manufacturer brands or markings may vary.
