Scramble Free Play and High Score Save Kit
$66.00
Available, delivery time: 2-5 days
Product information "Scramble Free Play and High Score Save Kit"
Scramble Free Play and High Score Save Kit for Konami Arcade PCB
Upgrade your original Scramble arcade PCB with reliable free play, high score saving, attract sounds, and optional Wi-Fi leaderboard functionality while preserving authentic gameplay and original arcade hardware.
Designed specifically for original Konami hardware, this plug and play upgrade improves long-term reliability without changing gameplay timing, controls, sound, or the classic arcade experience collectors expect.
Start games without coins while retaining optional coin operation.

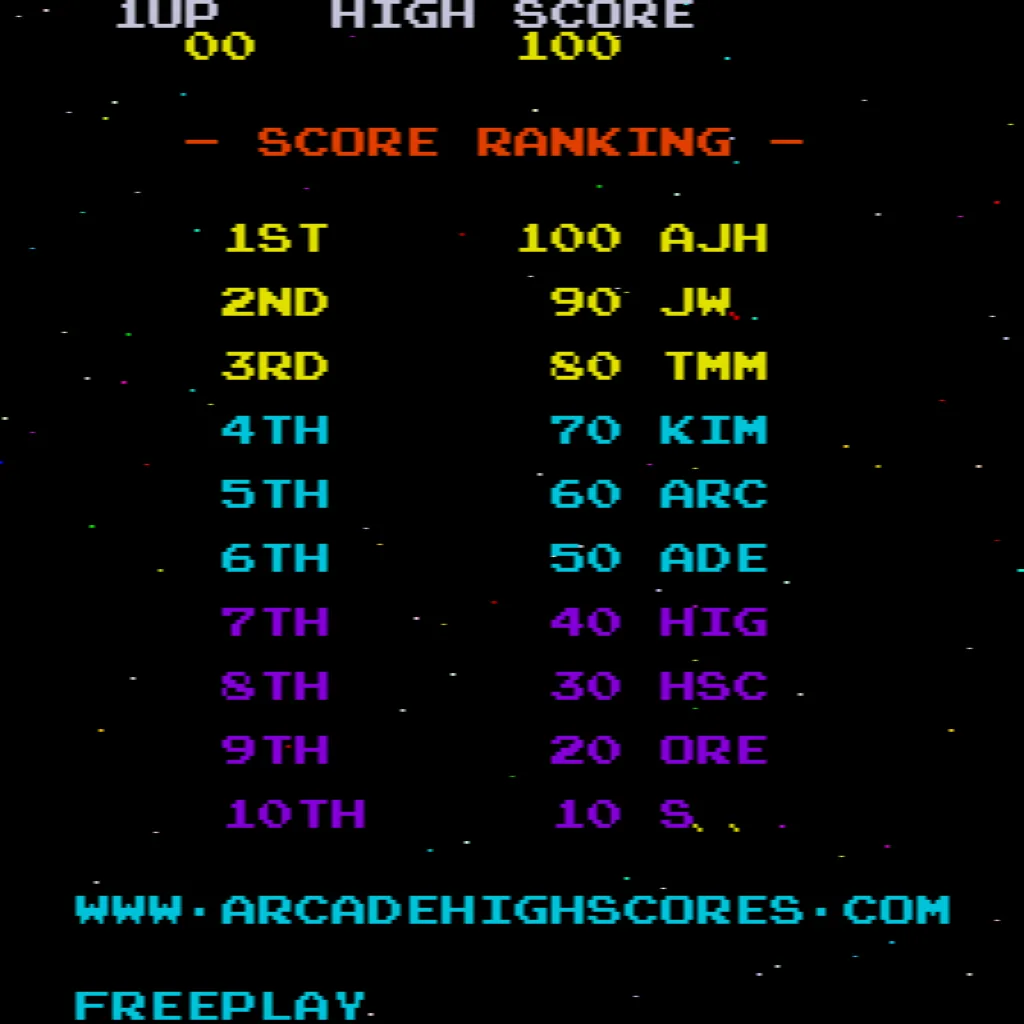

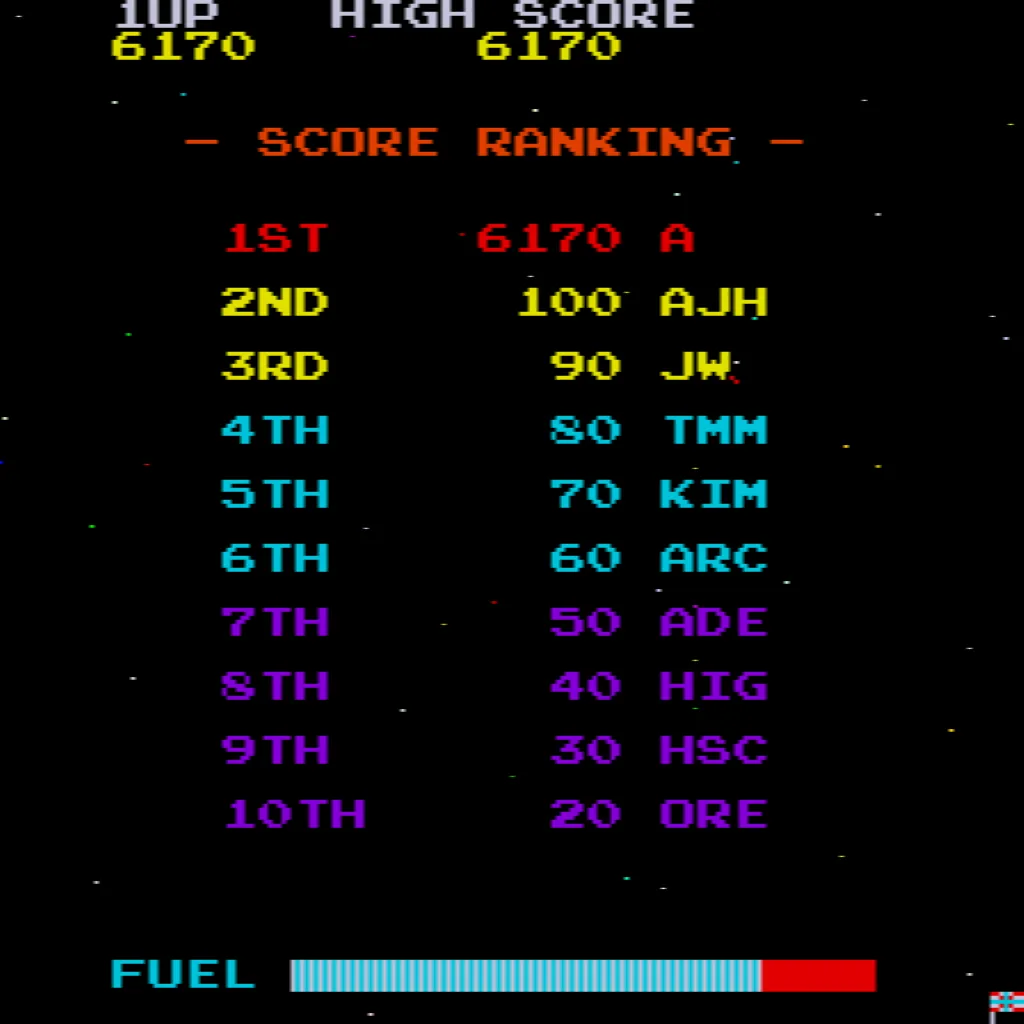

Saves the Top 10 scores permanently using EEPROM memory.
Access self-test quickly through the menu or PCB DIP switch settings.
Upload scores online to global arcade leaderboards.
Upgrade Your Scramble Arcade Experience
Restore and enhance your original Scramble arcade machine with a professionally designed Free Play and High Score Save Kit built specifically for authentic Konami arcade hardware.
Original boards often lose high scores, rely on aging components, or suffer from unstable resets. This upgrade modernizes your PCB while preserving the original gameplay, controls, timing, and arcade feel that made Scramble one of the most influential side-scrolling shooters of the early arcade era.
Unlike multigame systems or reproduction boards, this kit keeps your original arcade PCB intact while improving long-term reliability for collectors, operators, and restoration projects.

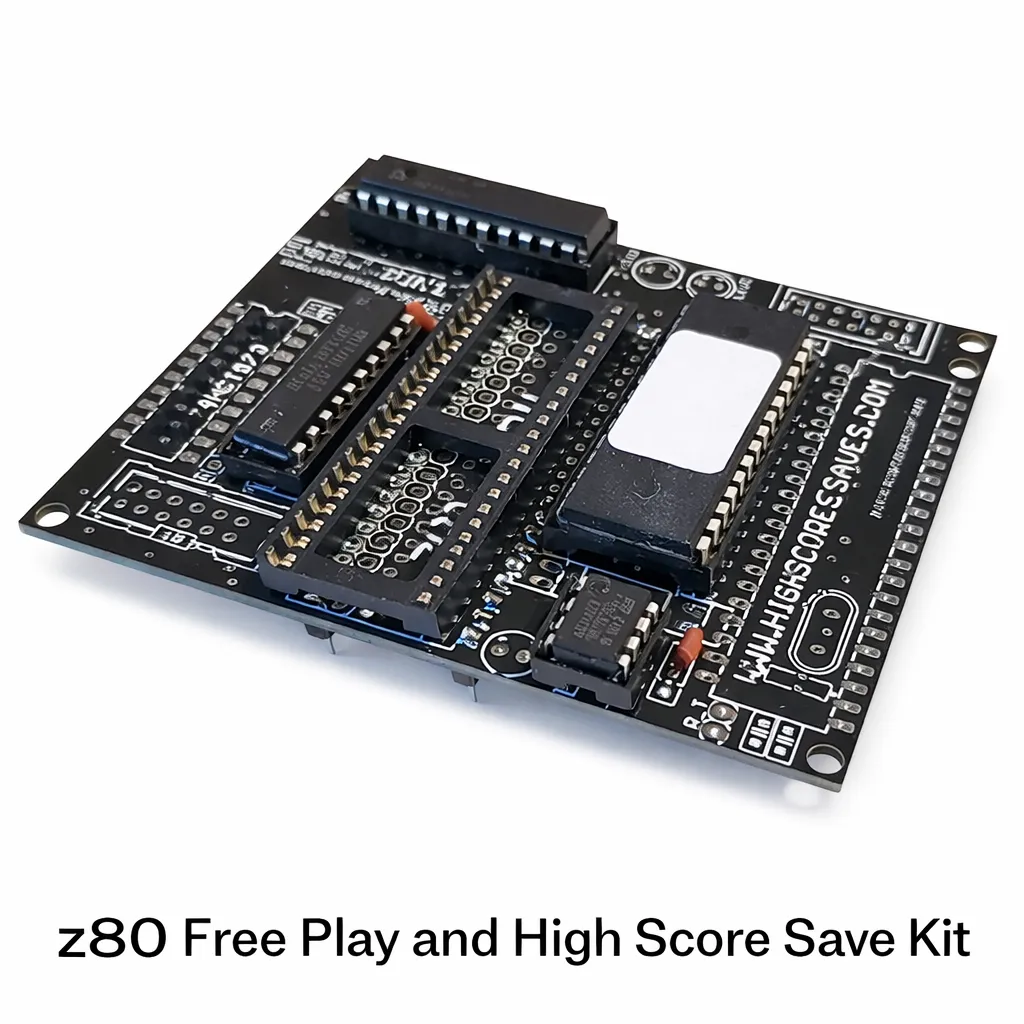

Available Kit Options
Build your kit exactly how you want it. Choose between a Wi-Fi Enabled Kit or a Standard Save Kit.
Optional processor and socket upgrades are also available to simplify installation on original hardware.
Important Installation Notes
- Socketed Z80 required: Install a 40-pin socket if your Z80 processor is soldered directly to the PCB
- Read the Scramble Installation Guide before installing
Included Features
- Easy Installation: No soldering, board modifications, or special wiring required
- Permanent Score Saving: Uses reliable serial EEPROM instead of battery-dependent NVRAM
- High Score Save: Saves the Top 10 scores permanently
- Copyright Selection: Toggle between original manufacturer logo and HighScoreSaves branding
- Freeplay Mode: Start games without coins required
- Coin-Up Support: Continue using coins if preferred
- Attract Mode Protection: Helps reduce screen burn by minimizing static images

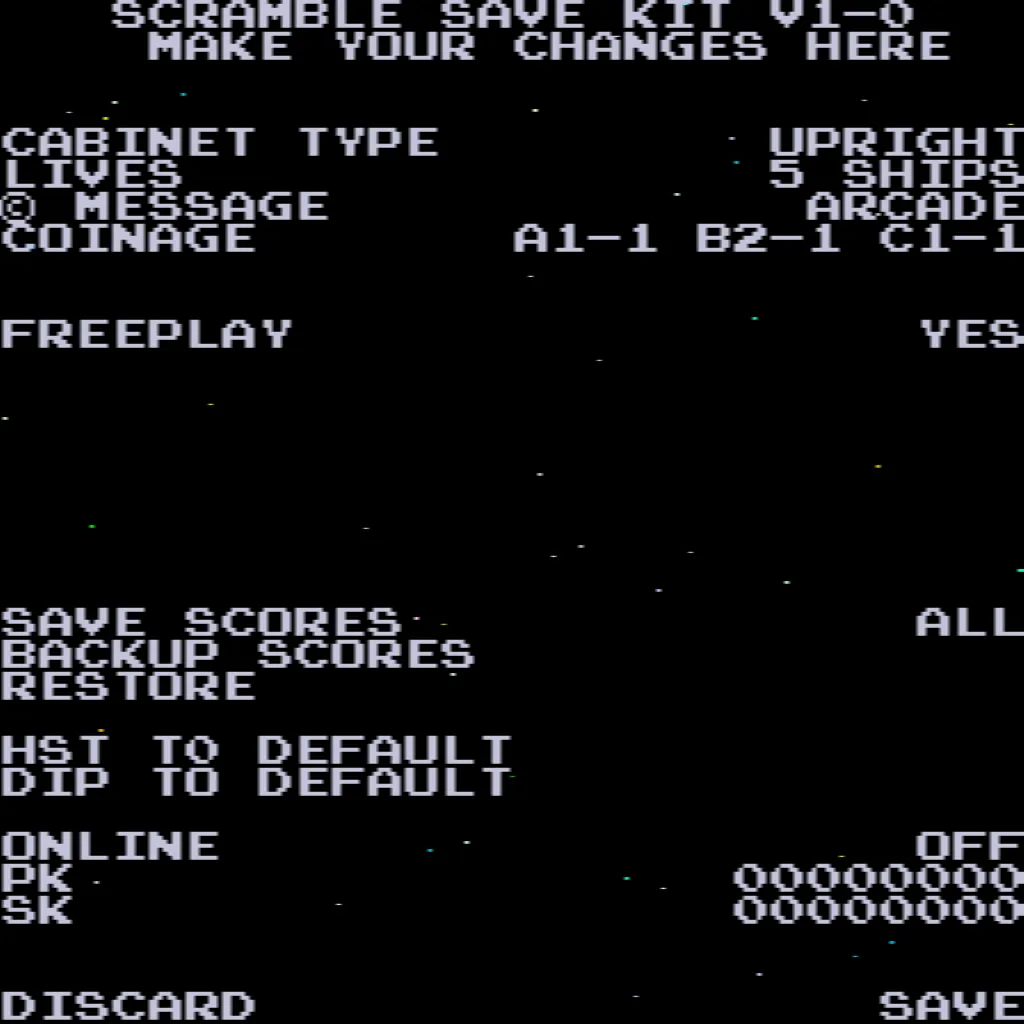

- Menu-Driven DIP Settings: No cabinet pulling or physical DIP-switch flipping required
- ROM Saver: Remove original program ROMs while the game runs directly from the save kit
- Cabinet Compatibility: Works in Upright and Cocktail cabinets
- Backup and Restore: Back up scores before parties and restore them later
- Separate Score Tables: Unique high-score tables for 2, 3, or 4 lives settings
- Fast Boot: Access self-test through the menu or by setting all PCB DIP switches OFF
Installation Information
- Installation Difficulty: Easy
- Soldering Required: No, if CPU is socketed
- Processor Requirement: Requires a Z80 processor
- Socketed CPU Required: Install a 40-pin socket if needed
- Cabinet Compatibility: Upright and Cocktail supported
- Installation Guide: Download PDF Installation Guide

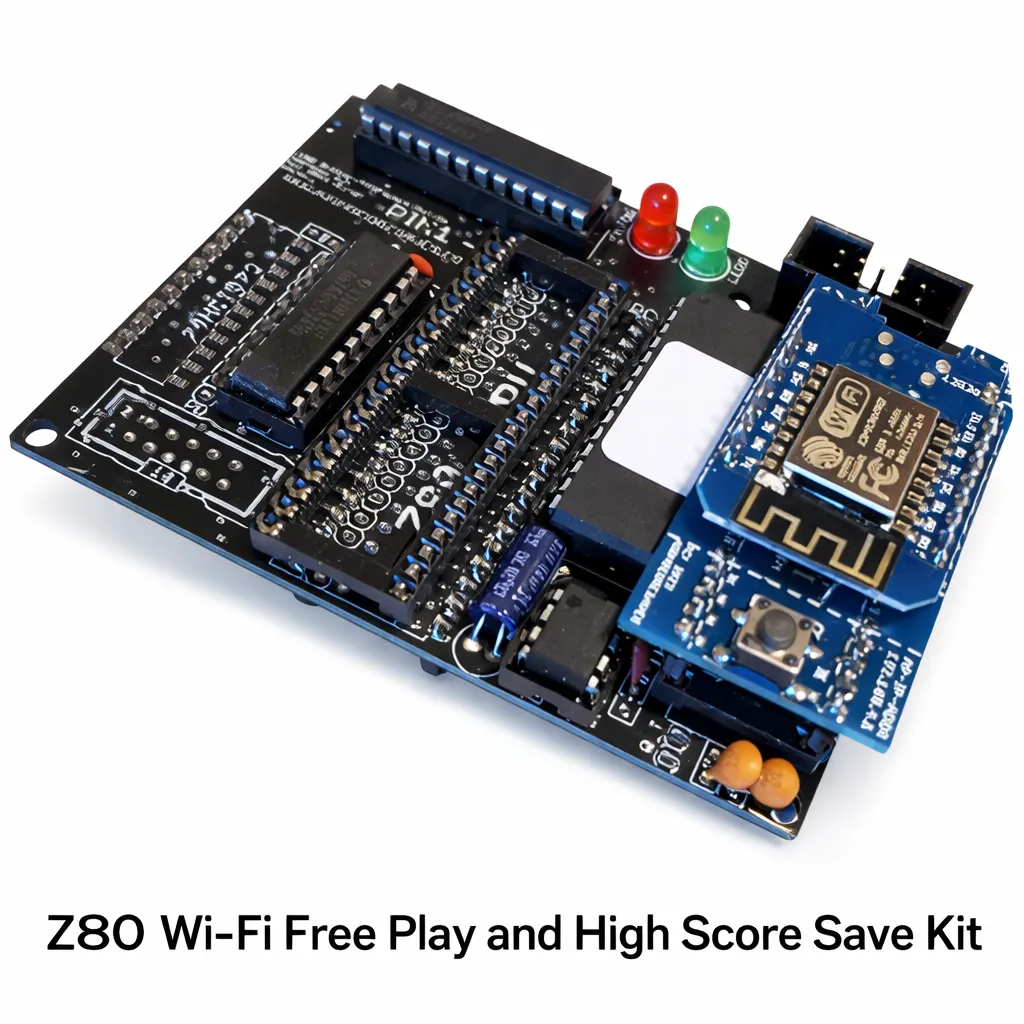

Optional Wi-Fi Features and Online Leaderboards
Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network.
Standard kits save scores locally to the PCB, while Wi-Fi kits add automatic online score syncing through the HighScoreSaves global leaderboard platform.
Scramble Free Play and High Score Save Kit FAQ
Do I need to solder anything?
No. This kit is fully plug-and-play with no board modifications required.
Does it save scores permanently?
Yes. Scores are stored in serial EEPROM and retained even when powered off.
How many scores does it save?
This kit saves the Top 10 high scores permanently.
Can I use Freeplay?
Yes. Freeplay mode is fully supported.
Does Coin-Up still work?
Yes. Coin play remains fully supported.
Does it help prevent screen burn?
Yes. Attract mode helps minimize static images to reduce burn-in risk.
Can I switch logos?
Yes. Toggle between the original manufacturer logo and HighScoreSaves branding.
Does it support Backup and Restore?
Yes. Back up and restore high scores anytime.
Will it work in Cocktail cabinets?
Yes. Supports both Upright and Cocktail cabinets.
Where can I download the installation guide?
