Pin to Card Edge Adapter for Donkey Kong
$45.00
Available, delivery time: 2-5 days
Product information "Pin to Card Edge Adapter for Donkey Kong"

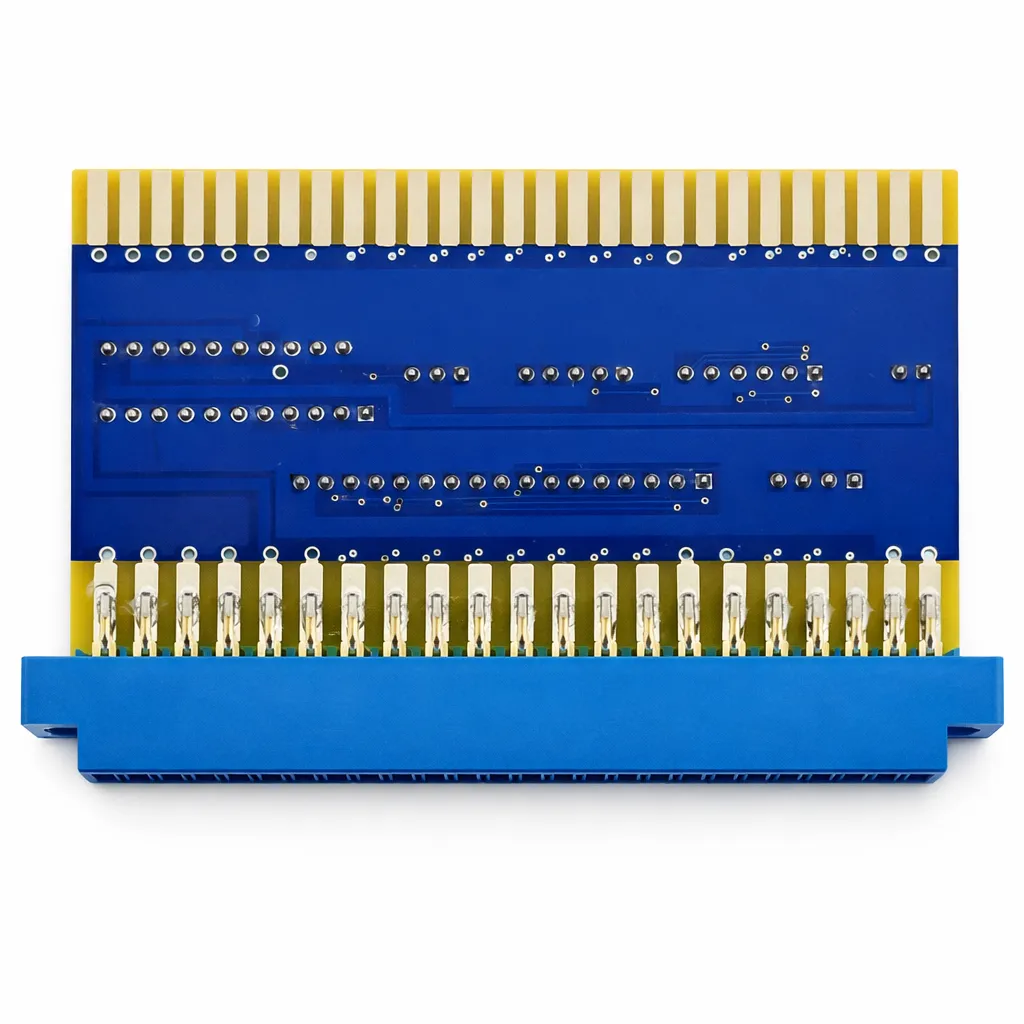

DK / DK Jr. Pin-Harness to Card-Edge Adapter
This adapter converts the original pin-style cabinet wiring harness found in classic Donkey Kong and Donkey Kong Jr. cabinets to the newer card-edge connector used on later Nintendo board sets—making swaps and upgrades fast and reversible.
Key Features
- Direct, plug-in conversion from pin-header harness to card-edge connector.
- No cutting or permanent changes to the original cabinet wiring.
- Clean signal routing for power, video, audio, and controls.
- Keyed/marked orientation to help prevent mis-connection.
Compatibility
- Cabinets: Nintendo DK and DK Jr. with pin-style harness.
- Boards: Later Nintendo board sets using a card-edge connector (verify your specific PCB before installation).
Installation Notes
- Power off the cabinet before connecting or removing the adapter.
- Match orientation/keys and seat connectors fully; avoid forcing the edge.
- No soldering required for standard harnesses.
Tip: Check your cabinet’s wiring diagram and the target PCB pinout to confirm signal order before first power-on.
