Mappy Free Play and High Score Save Kit
Product information "Mappy Free Play and High Score Save Kit"
Customize Your Mappy Free Play and High Score Save Kit
Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit. You can also add a processor and/or a 40-pin socket—optional but recommended for easy installation.
Learn More About This Kit
Click a button to view details, tips, or the installation guide.
Main Features
- Easy install: No soldering, board modifications, or special wiring—just plug in and play.
- Save your scores forever: Uses reliable serial EPROM, not failure-prone NVRAM or batteries.

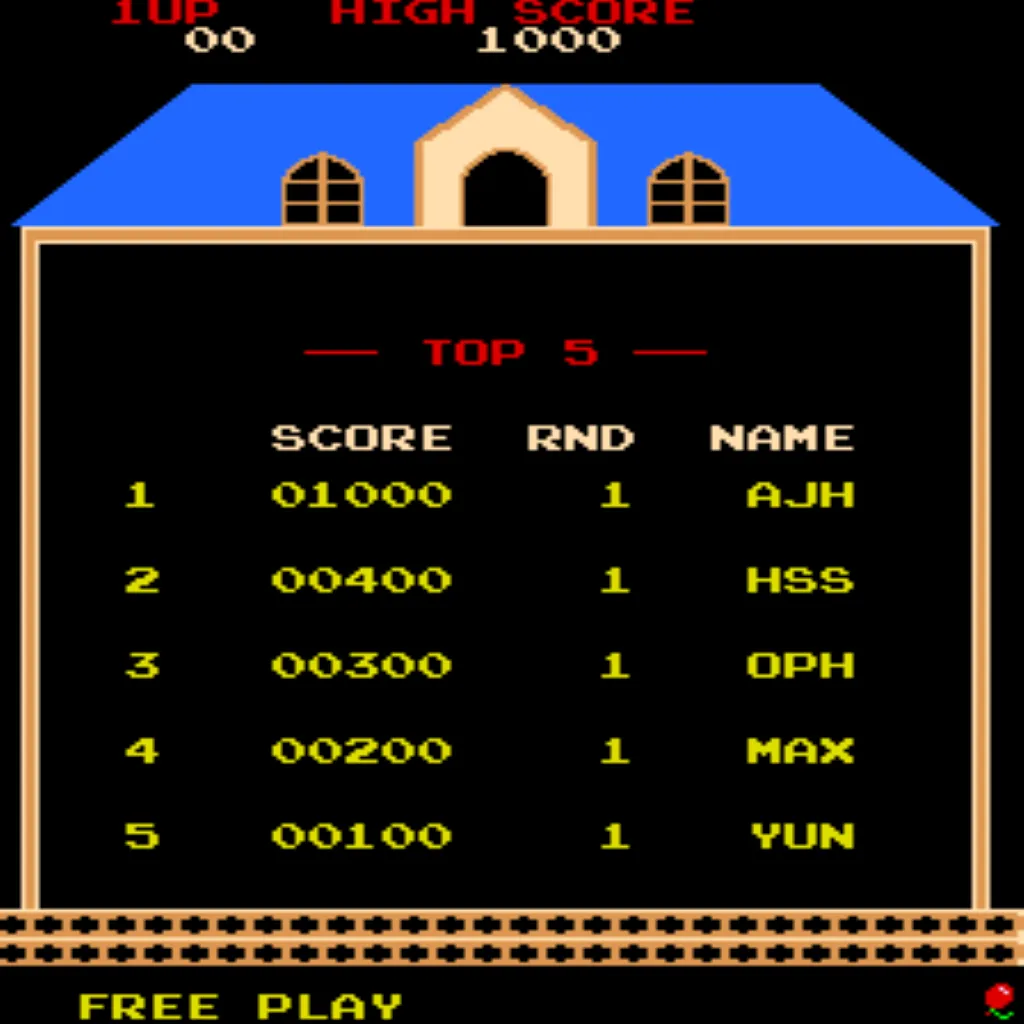

- High Score Save: Stores the Top 5 scores.
- Attract sounds: Plays on every attract cycle.
- Full attract sounds: Includes the dot munching sound from the attract gameplay screen.

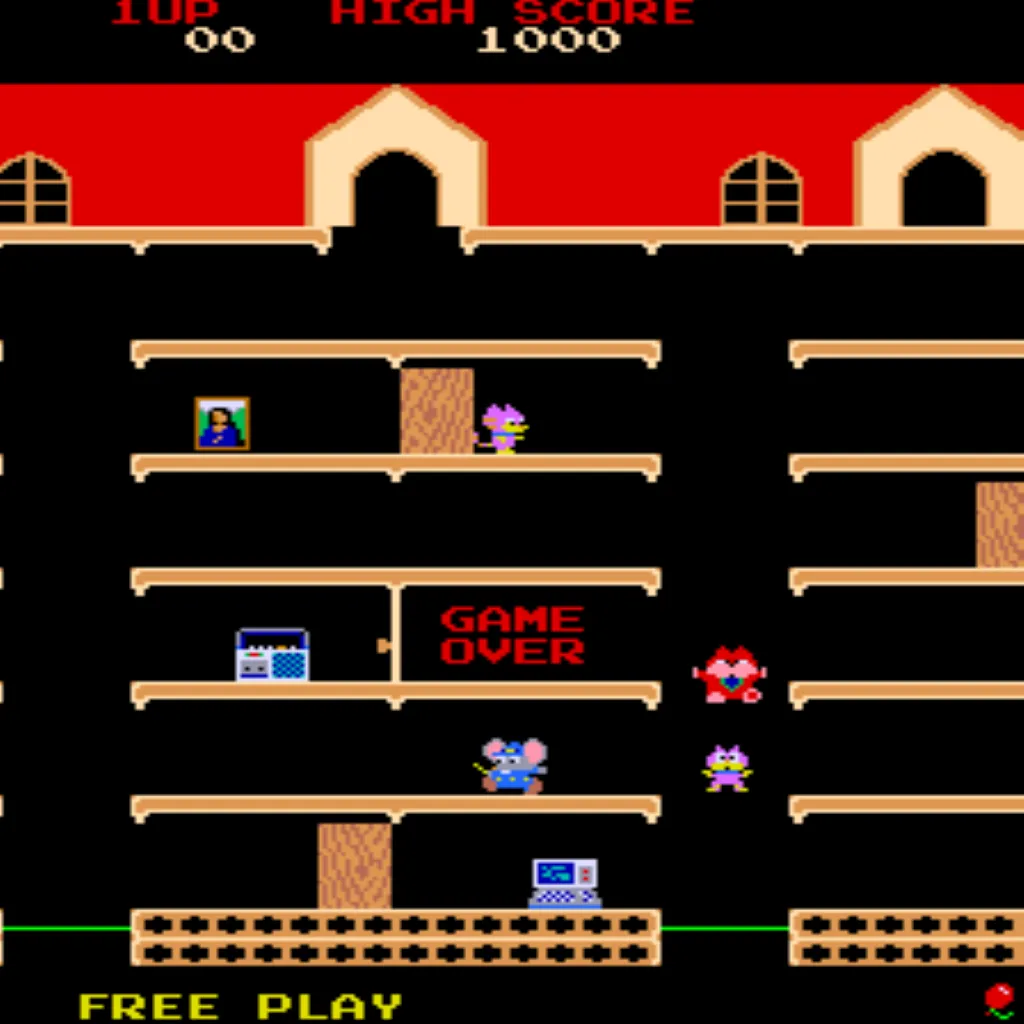

- Freeplay: No more coins needed.
- Coin up: Keep coin operation enabled if desired.
- Attract mode: Minimizes static screens to reduce burn-in.

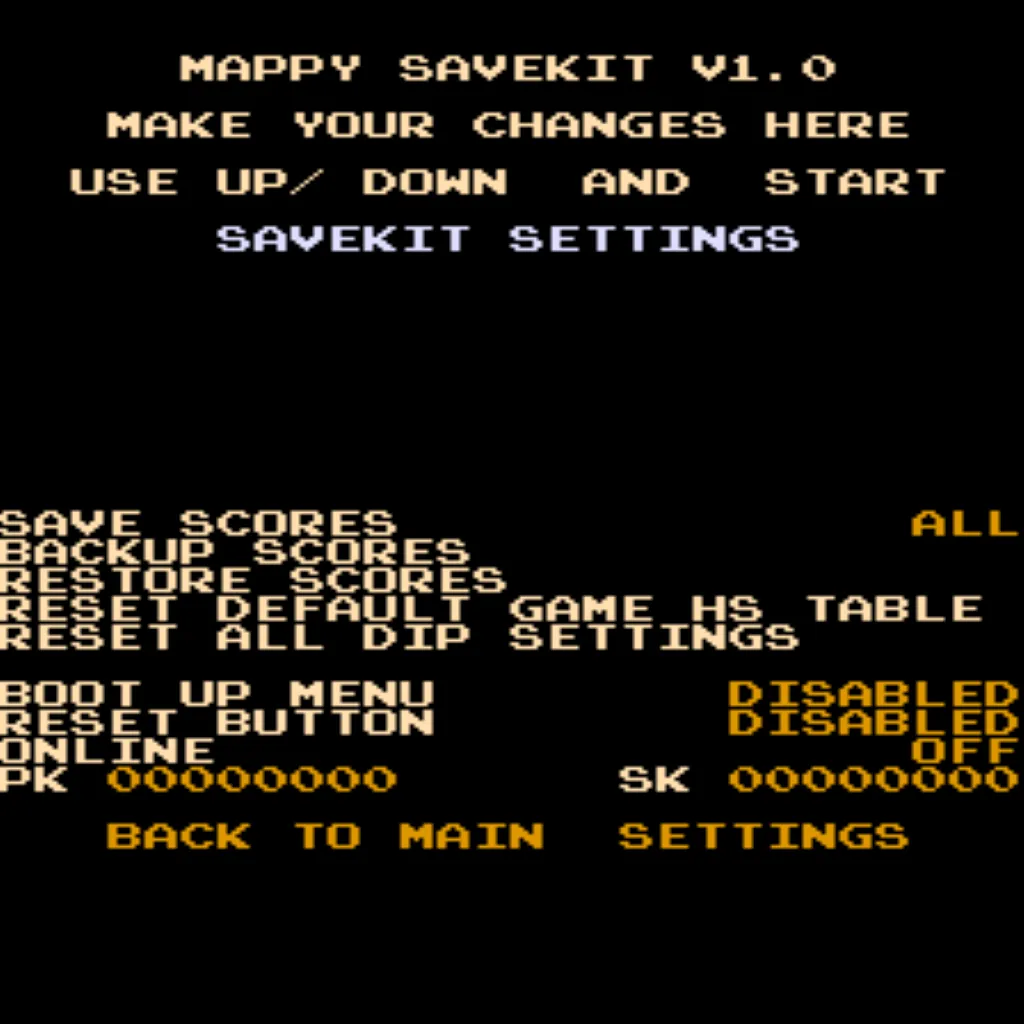

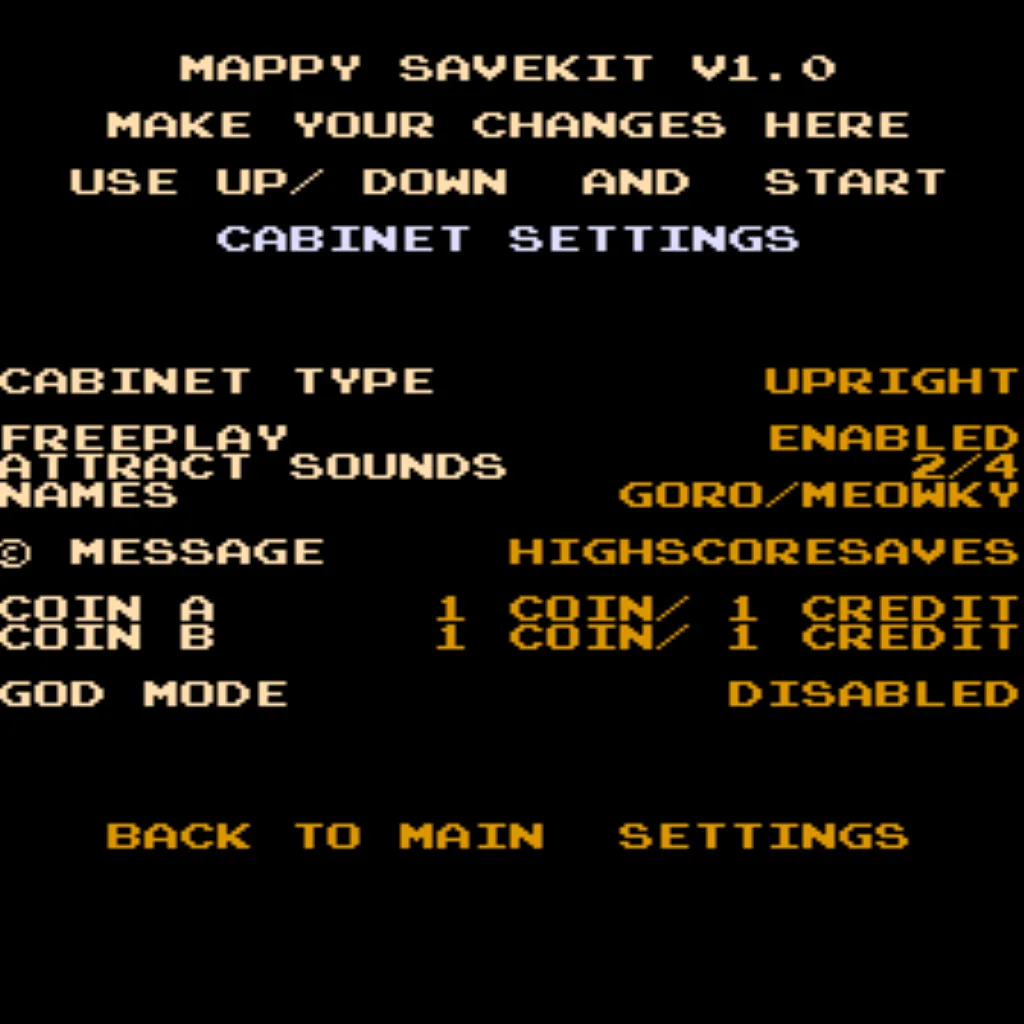

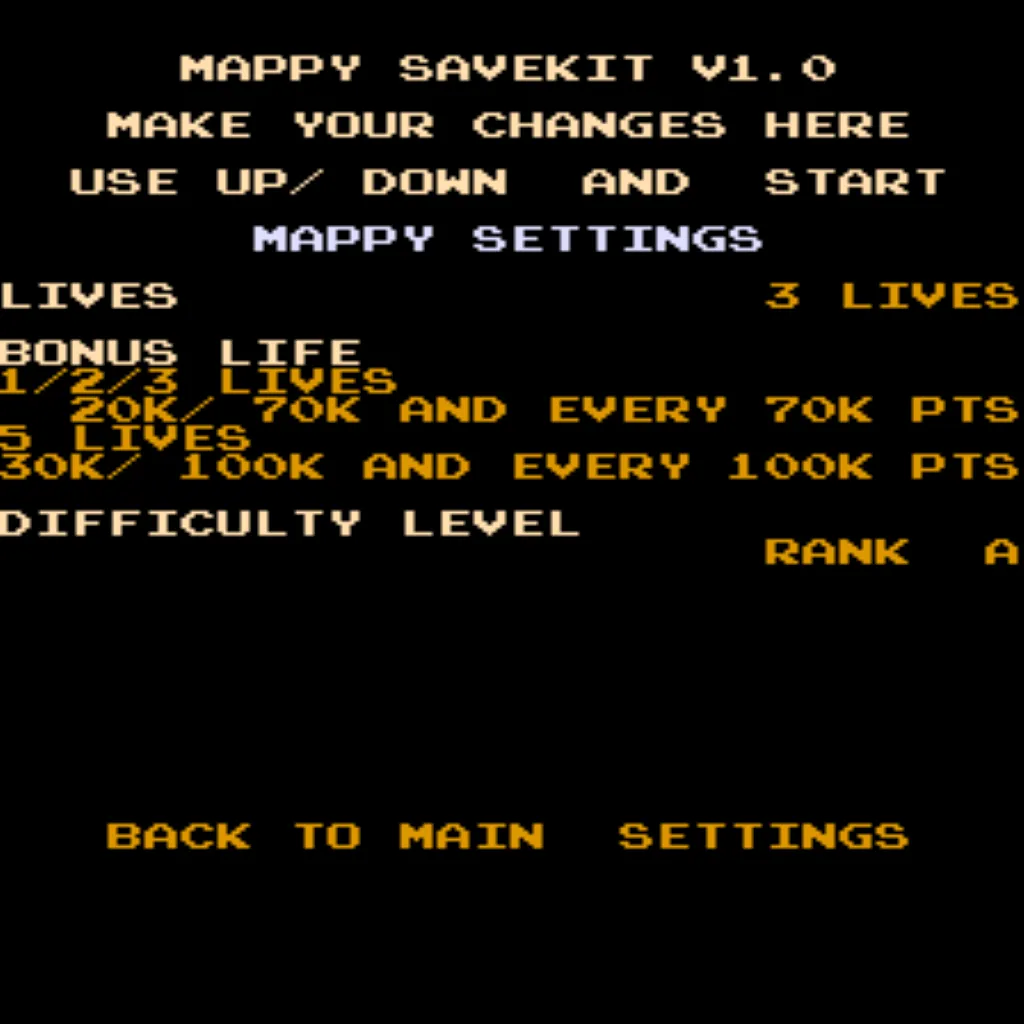

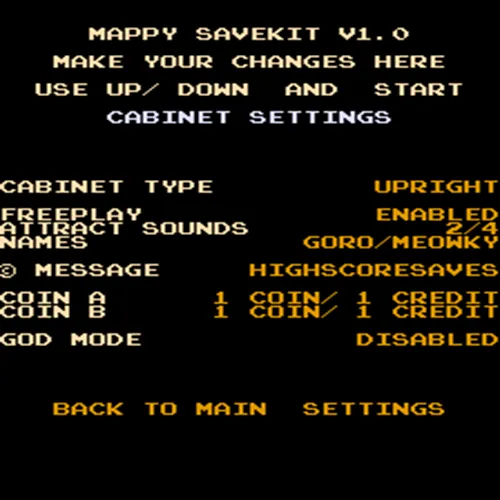

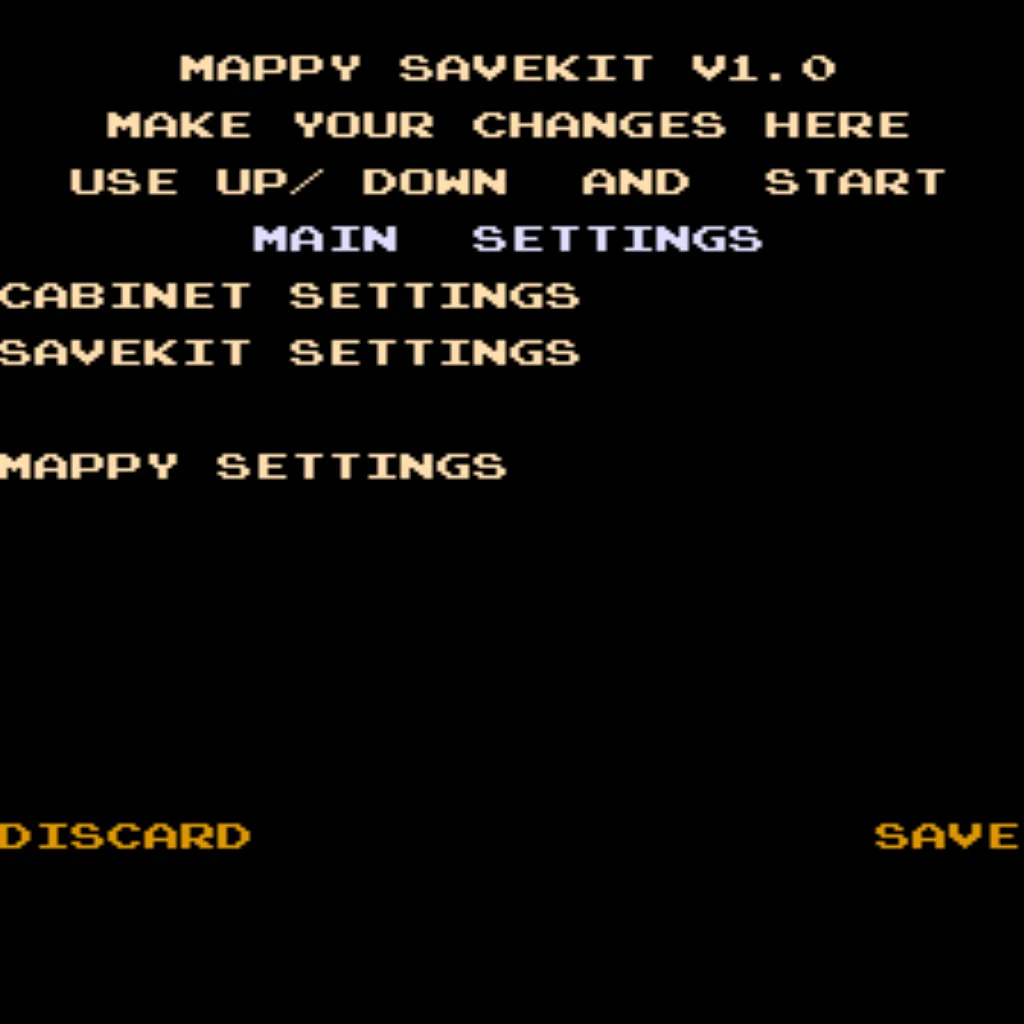

- Menu-driven DIP settings: Full on-screen DIP adjustment menu.
- ROM Saver: Optionally remove original program ROMs to reduce power usage.
- Cabinet compatibility: Works in Upright or Cocktail cabinets.
Additional Features
- Separate score tables: Distinct tables for 2, 3, 4, or 5 lives.
- Backup & Restore: Save and reload high scores anytime.
- Selectable character names: Choose between Goro or Meowky.
Important Installation Notes
- Processor required: Must have a 6809E installed.
- Socketed CPU required: If your CPU is not socketed, install a 40-pin socket.
- Read the Mappy Free Play and High Score Save Kit Installation Guide / Manual (PDF) before setup.
FAQ
Does this kit permanently save scores?
Yes—your Top 5 scores are permanently saved using serial EPROM.
Freeplay and coin operation?
Yes, choose between Freeplay or Coin-Up.
Attract sounds?
Includes the full attract sound set including dot munching.
Soldering required?
No—just plug into a socketed 6809E processor.
Backup & Restore?
Yes—save and load scores anytime.
Download the Installation Guide
Socketed CPU required?
Yes—a socketed 6809E.
Login
1 review
January 10, 2026 2:36 AM
Much needed save kit
Wanted to save scores, so bought the kit. Works great
Level up with these!
6809E 8-Bit Microprocessor (40-Pin CPU) The 6809E is a powerful 8-bit microprocessor commonly used in classic arcade PCBs during the early and mid-1980s. This processor served as the main CPU for many arcade boards, executing game code, handling player inputs, and coordinating communication between memory, sound hardware, and video circuitry. Known for its advanced architecture compared to earlier processors, the 6809E provided improved instruction sets and efficient memory addressing, making it a popular choice for more complex arcade games. A properly functioning CPU is essential for reliable board operation, making the 6809E a common replacement component during arcade PCB repair and restoration. Key Features Motorola 6809E 8-bit microprocessor Standard 40-pin DIP (Dual In-line Package) Used as the main CPU in many classic arcade boards Handles game logic, timing, and hardware communication Ideal for arcade PCB repair and restoration work Used In Arcade Games Such As Circus Charlie Juno First Track & Field Hyper Sports Star Wars Qix …and many other classic arcade titles Some arcade boards use the 6809E processor in conjunction with other supporting chips or adapters. In certain Konami systems, the 6809E can be used with a 42-pin Konami-1 adapter, which is included with some HighScoreSaves kits. Installation Notes Installs into a standard 40-pin DIP socket on compatible arcade PCBs Ensure proper notch orientation when installing the CPU Recommended for technicians performing arcade board troubleshooting or restoration *Can be used with a 42-pin Konami-1 adapter (included with some HighScoreSaves kits). *Manufacturer brands may vary.
40-Pin Socket Specifications This 40-pin DIP socket is designed for reliable installation of integrated circuits and arcade daughter boards that use a standard 40-pin layout. Using a socket allows the chip or module to be easily removed or replaced without soldering directly to the PCB, helping protect the board during upgrades, repairs, or troubleshooting. Pin Pitch: 2.54 mm (0.100″) standard DIP spacing Total Pins: 40 pins arranged in two rows (2×20) Mounting Type: Through-hole (THT) for secure soldered installation Compatibility: Designed for standard 40-pin DIP integrated circuits and modules Installation Benefit: Allows ICs to be inserted or removed without repeated soldering Use Case: Ideal for arcade PCB upgrades, ROM installations, and repair work The standard 2.54 mm (0.100″) pin spacing matches the layout used on most classic arcade PCBs and DIP integrated circuits. Once soldered to the board, the socket provides a stable connection while allowing the chip to be safely inserted and removed when needed.
