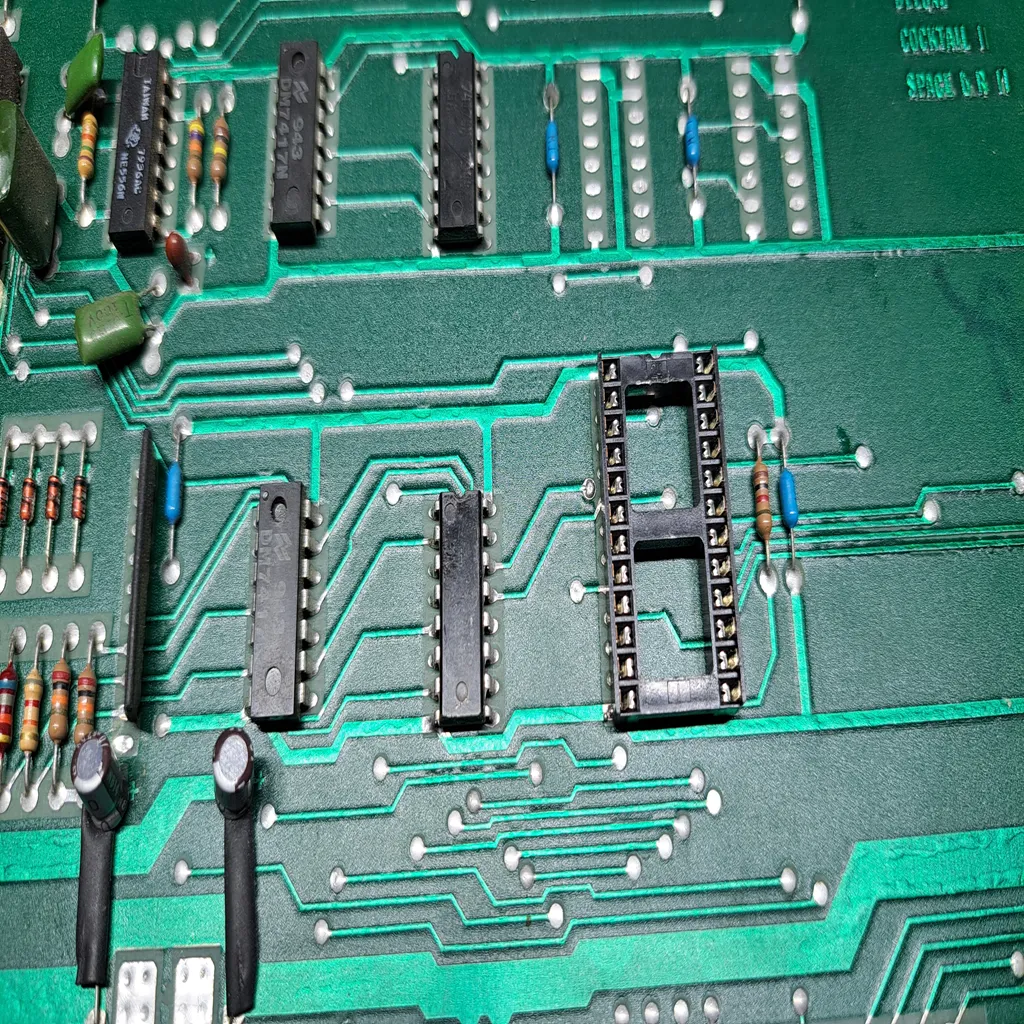

MB14241 Reproduction Data Shifter

Braze Space Invaders 8-in-1 Multigame Free Play and High Score Save Kit Expand a compatible original Midway black-and-white Space Invaders or Space Invaders Deluxe arcade boardset with eight games, permanent high score saving, an on-screen game menu, power-on diagnostics, interactive test functions, and Free Play on seven supported titles. This Braze Technologies kit installs through the original Intel 8080 processor socket on the Midway two-board L-shaped PCB set. No special cabinet wiring, external switches, or board modifications are required when the processor is already socketed. Eight Games Included: Space Invaders • Space Invaders Deluxe • Jatre Specter • Lunar Rescue • Space Laser • Balloon Bomber • Galaxy Wars • Super Earth Invasion Braze Technologies • Midway Black-and-White Hardware • Eight Games • Diagnostics and Test Mode View Braze Space Invaders Install Guide Compare All Space Invaders Kit Options Eight Included Games Select eight compatible games through the on-screen menu. High Score Saving Permanently retains supported high scores for all eight games. Diagnostics and Test Mode Includes automatic power-on checks and interactive board and input tests. On-Screen Configuration Adjust supported lives, bonus, scoring, and game options from the cabinet. Eight Games on Original Midway Space Invaders Hardware The Braze 8-in-1 kit adds seven additional games to a compatible Midway black-and-white Space Invaders or Space Invaders Deluxe two-board L-shaped PCB set. Press Player 1 Start and Player 2 Start together to open the on-screen game-selection menu. No external selector switch or additional cabinet wiring is required. Supported configuration options include laser-base counts, bonus settings, extended scoring on selected games, cabinet orientation, diagnostics, and interactive board and input testing. Braze Space Invaders 8-in-1 Features Eight-Game Multigame: Adds Space Invaders, Space Invaders Deluxe, Jatre Specter, Lunar Rescue, Space Laser, Balloon Bomber, Galaxy Wars, and Super Earth Invasion. On-Screen Game Selection: Press Player 1 Start and Player 2 Start simultaneously to open the game-selection menu. Permanent High Score Saving: Retains supported high scores for all eight included games after cabinet power is turned off. Free Play: Available for seven included games. Galaxy Wars does not support Free Play. On-Screen Settings: Configure supported game options without changing physical switches on the original boardset. Power-On Diagnostics: Runs automatic checks each time the cabinet is powered on. Interactive Test Mode: Provides additional board, control, and input/output testing. Extended Scoring: Adds expanded scoring support to documented games. Upright and Cocktail Support: Supports compatible Midway black-and-white upright and cocktail cabinets. No External Switches: Game selection and configuration are handled through the on-screen menus. No Special Wiring: No additional cabinet wiring is required for normal installation. Included Games Space Invaders Original Space Invaders gameplay with permanent high score saving, Free Play, supported game settings, and extended configuration options. Space Invaders Deluxe Space Invaders Deluxe with permanent high score saving, Free Play, and supported on-screen settings. Jatre Specter Jatre Specter with permanent high score saving, Free Play, and supported gameplay settings. Lunar Rescue Lunar Rescue with permanent high score saving, Free Play, and supported lives and bonus settings. Space Laser Space Laser with permanent high score saving, Free Play, and support for documented cabinet configurations. Balloon Bomber Balloon Bomber with permanent high score saving, Free Play, and supported gameplay settings. Galaxy Wars Galaxy Wars includes permanent high score saving and supported configuration options. Free Play is not supported in Galaxy Wars. Super Earth Invasion Super Earth Invasion with permanent high score saving, Free Play, and supported gameplay settings. Hardware Compatibility Supported Boardset: Compatible original Midway black-and-white Space Invaders or Space Invaders Deluxe two-board L-shaped PCB set Processor Requirement: Original Intel 8080 processor from the Midway boardset CPU Socket Requirement: The 8080 processor must be installed in a compatible socket Cabinet Compatibility: Compatible Midway black-and-white upright and cocktail cabinets Cabinet Orientation: Upright or cocktail behavior depends on the original boardset strapping and cabinet configuration Cocktail Screen Flipping: Original cocktail cabinets use monitor relays and yoke-wire switching to change player orientation Not Compatible: This product is not designed for the Taito color Space Invaders variant Cabinet Access: Access to the original two-board PCB set is required during installation Verify the Boardset and 8080 Socket Before Ordering This Braze kit is specifically for the Midway black-and-white two-board L-shaped Space Invaders and Space Invaders Deluxe boardset. It is not interchangeable with the Braze Taito color version. Inspect the Intel 8080 processor before installation. If it is soldered directly to the PCB, a qualified arcade technician must remove the processor and install a compatible socket before the kit can be used. Installation Requirements Installation Difficulty: Easy when the original Intel 8080 processor is already socketed Soldering Required: No, when the original 8080 is already installed in a compatible socket If the 8080 Is Soldered: A qualified arcade technician must remove it and install a compatible socket before the kit can be used Installation Process: The original 8080 processor is transferred to the Braze daughterboard, and the assembled daughterboard is installed in the vacated CPU socket Special Wiring: No special cabinet wiring or external game-selection switch is required Installation Guide: Download the Braze Space Invaders Installation Guide PDF Installation Overview Turn off and unplug the cabinet before accessing the Midway Space Invaders two-board PCB set. Locate the Intel 8080 processor and confirm that it is installed in a compatible socket. Carefully remove the original 8080 processor from the arcade PCB. Install the original 8080 into the socket on the Braze daughterboard, observing the correct Pin 1 orientation. Install the assembled daughterboard into the vacated 8080 socket on the original board. Confirm processor and daughterboard orientation before restoring power. Power on the cabinet and verify operation using the installation guide. Press Player 1 Start and Player 2 Start together to open the game menu. Product Scope This product is the Braze Space Invaders 8-in-1 Multigame Kit for the Midway black-and-white boardset. It is separate from the HighScoreSaves 10-game Space Invaders kit, the Braze Space Invaders Deluxe product, and the Braze Taito color Space Invaders kit. Verify the original PCB type before selecting between these products. Braze Space Invaders 8-in-1 FAQ Which Space Invaders boardsets are supported? The kit supports compatible original Midway black-and-white Space Invaders and Space Invaders Deluxe two-board L-shaped PCB sets. Does it work on the Taito color Space Invaders board? No. The Taito color version requires the separate Braze Taito Space Invaders product. Which games are included? Space Invaders, Space Invaders Deluxe, Jatre Specter, Lunar Rescue, Space Laser, Balloon Bomber, Galaxy Wars, and Super Earth Invasion. How is the game-selection menu opened? Press Player 1 Start and Player 2 Start simultaneously. Does every game support Free Play? No. Seven games support Free Play. Galaxy Wars requires coin operation. Are high scores saved for every included game? Yes. The kit permanently saves supported high scores for all eight games. Does the kit include diagnostics? Yes. It includes automatic power-on diagnostics and an interactive test mode for additional board and input testing. Will it work in a cocktail cabinet? Yes, when installed in a compatible Midway black-and-white cocktail cabinet. Upright or cocktail behavior depends on the original cabinet strapping and monitor-relay configuration. Does installation require soldering? No soldering is required when the original Intel 8080 processor is already socketed. If it is soldered directly to the PCB, a qualified arcade technician must install a compatible socket first. Where can I download the installation guide? Download the Braze Space Invaders Installation Guide PDF Manufactured by Braze Technologies and sold and supported by HighScoreSaves for collectors, operators, restorers, and original Midway Space Invaders hardware enthusiasts. Braze Space Invaders Resources 1. Braze Space Invaders Installation Guide PDF 2. Compare All Space Invaders Kit Options 3. HighScoreSaves YouTube Channel

Braze Space Invaders Deluxe 8-in-1 Multigame Free Play and High Score Save Kit Expand a compatible original Midway Space Invaders Deluxe arcade PCB with eight games, permanent high score saving, an on-screen game-selection menu, power-on diagnostics, interactive test functions, and Free Play on seven supported titles. This Braze Technologies kit is designed for the Midway black-and-white SI/SID two-board L-shaped PCB configuration. It installs through the original Intel 8080 processor socket and requires no special cabinet wiring or external game-selection switch. Eight Games Included: Space Invaders • Space Invaders Deluxe • Jatre Specter • Lunar Rescue • Space Laser • Balloon Bomber • Galaxy Wars • Super Earth Invasion Braze Technologies • Midway Space Invaders Deluxe Hardware • Eight Games • Diagnostics and Test Mode View Braze Space Invaders Deluxe Install Guide Compare All Space Invaders Kit Options Eight Included Games Select eight compatible black-and-white arcade games through the on-screen menu. High Score Saving Permanently retains supported high scores for all eight games. Diagnostics and Test Mode Includes automatic power-on checks and interactive board and input testing. On-Screen Configuration Adjust supported lives, bonus, scoring, and game settings from the cabinet. Eight Games on Original Space Invaders Deluxe Hardware The Braze Space Invaders Deluxe kit expands a compatible original Midway Space Invaders Deluxe boardset with seven additional games. The original arcade PCB, Intel 8080 processor, controls, video hardware, and sound hardware remain in use. Press Player 1 Start and Player 2 Start together to open the on-screen game-selection menu. No external selector switch or additional cabinet wiring is required. Supported settings include laser-base counts, bonus levels, extended scoring on selected games, cabinet configuration, diagnostics, and interactive board and input tests. Braze Space Invaders Deluxe 8-in-1 Features Eight-Game Multigame: Includes Space Invaders, Space Invaders Deluxe, Jatre Specter, Lunar Rescue, Space Laser, Balloon Bomber, Galaxy Wars, and Super Earth Invasion. On-Screen Game Selection: Press Player 1 Start and Player 2 Start simultaneously to open the game-selection menu. Permanent High Score Saving: Retains supported high scores for all eight included games after cabinet power is turned off. Free Play: Available for seven included games. Galaxy Wars does not support Free Play. On-Screen Settings: Configure supported gameplay options without changing the original boardset’s physical switches. Power-On Diagnostics: Runs automatic checks whenever the cabinet is powered on. Interactive Test Mode: Provides additional board, control, and input/output testing. Extended Scoring: Adds expanded scoring support to documented games. Upright and Cocktail Support: Supports compatible Midway black-and-white upright and cocktail cabinets. No External Selector: Game selection and configuration are handled through the on-screen menus. No Special Wiring: No additional cabinet wiring is required for normal installation. Included Games Space Invaders Original Space Invaders gameplay with permanent high score saving, Free Play, supported settings, and extended configuration options. Space Invaders Deluxe Original Space Invaders Deluxe gameplay with permanent high score saving, Free Play, and supported on-screen settings. Jatre Specter Jatre Specter with permanent high score saving, Free Play, and supported gameplay settings. Lunar Rescue Lunar Rescue with permanent high score saving, Free Play, and supported lives and bonus settings. Space Laser Space Laser with permanent high score saving, Free Play, and support for documented cabinet configurations. Balloon Bomber Balloon Bomber with permanent high score saving, Free Play, and supported gameplay settings. Galaxy Wars Galaxy Wars includes permanent high score saving and supported configuration options. Free Play is not supported in Galaxy Wars. Super Earth Invasion Super Earth Invasion with permanent high score saving, Free Play, and supported gameplay settings. Hardware Compatibility Supported Boardset: Compatible original Midway Space Invaders Deluxe black-and-white two-board L-shaped PCB set SI/SID Hardware Family: Designed for the documented Midway black-and-white SI/SID board architecture Processor Requirement: Original Intel 8080 processor from the Midway boardset CPU Socket Requirement: The Intel 8080 processor must be installed in a compatible socket Cabinet Compatibility: Compatible Midway black-and-white upright and cocktail cabinets Cabinet Configuration: Upright or cocktail behavior depends on the original sound/input PCB strapping and cabinet hardware Cocktail Screen Flipping: Original cocktail cabinets use monitor relays and yoke-wire switching to change player orientation Not Compatible: This kit is not designed for the Taito color Space Invaders PCB Cabinet Access: Access to the original two-board PCB set is required during installation Verify the Deluxe Boardset and 8080 Socket This product is specifically listed for a compatible original Midway Space Invaders Deluxe black-and-white boardset. Confirm that the two-board L-shaped PCB configuration matches the installation guide. Inspect the Intel 8080 processor before installation. If it is soldered directly to the PCB, a qualified arcade technician must remove the processor and install a compatible socket before the kit can be used. Installation Requirements Installation Difficulty: Easy when the original Intel 8080 processor is already socketed Soldering Required: No, when the original 8080 is installed in a compatible socket If the 8080 Is Soldered: A qualified arcade technician must remove it and install a compatible socket before the kit can be used Installation Process: The original Intel 8080 is transferred to the Braze daughterboard, and the assembled daughterboard is installed in the vacated CPU socket Special Wiring: No special cabinet wiring or external game-selection switch is required Installation Guide: Download the Braze Space Invaders Deluxe Installation Guide PDF Installation Overview Turn off and unplug the cabinet before accessing the Midway Space Invaders Deluxe two-board PCB set. Locate the Intel 8080 processor and confirm that it is installed in a compatible socket. Carefully remove the original Intel 8080 from the arcade PCB. Install the original processor into the Braze daughterboard, observing the documented Pin 1 orientation. Install the assembled daughterboard into the vacated Intel 8080 socket on the original board. Confirm processor and daughterboard orientation before restoring power. Power on the cabinet and verify operation using the installation guide. Press Player 1 Start and Player 2 Start together to open the game menu. Product Scope This product is the Braze Space Invaders Deluxe 8-in-1 Multigame Kit for the Midway black-and-white SID boardset. It is separate from the Braze Space Invaders product listing, the HighScoreSaves 10-game multigame, and the Braze Taito color-version kit. Select the product that matches the original arcade PCB in the cabinet. Braze Space Invaders Deluxe 8-in-1 FAQ Which Space Invaders Deluxe boardset is supported? The kit supports a compatible original Midway black-and-white Space Invaders Deluxe two-board L-shaped PCB set. Does it work on the Taito color Space Invaders PCB? No. The Taito color board requires the separate Braze Taito-version kit. Which games are included? Space Invaders, Space Invaders Deluxe, Jatre Specter, Lunar Rescue, Space Laser, Balloon Bomber, Galaxy Wars, and Super Earth Invasion. How is the game-selection menu opened? Press Player 1 Start and Player 2 Start simultaneously. Does every game support Free Play? No. Seven games support Free Play. Galaxy Wars requires coin operation. Are high scores saved for all eight games? Yes. The kit permanently saves supported high scores for every included game. Does the kit include diagnostics? Yes. It includes automatic power-on diagnostics and an interactive test mode for additional board and input checks. Will it work in a cocktail cabinet? Yes, when installed in a compatible Midway black-and-white cocktail cabinet. Cabinet behavior depends on the original strapping and monitor-relay configuration. Does installation require soldering? No soldering is required when the original Intel 8080 is already socketed. If it is soldered to the PCB, a qualified arcade technician must install a compatible socket first. Where can I download the installation guide? Download the Braze Space Invaders Deluxe Installation Guide PDF Manufactured by Braze Technologies and sold and supported by HighScoreSaves for collectors, operators, restorers, and original Midway Space Invaders Deluxe hardware enthusiasts. Braze Space Invaders Deluxe Resources 1. Braze Space Invaders Deluxe Installation Guide PDF 2. Compare All Space Invaders Kit Options 3. HighScoreSaves YouTube Channel

Braze Space Invaders Taito 8-in-1 Multigame Free Play and High Score Save Kit Expand a compatible original Taito black-and-white Space Invaders arcade PCB with eight games, permanent high score saving, an on-screen game-selection menu, power-on diagnostics, interactive test functions, and Free Play on seven supported titles. This Braze Technologies kit supports documented Taito black-and-white two-board and three-board Space Invaders configurations. It installs through the original Intel 8080 processor socket and requires no external game-selection switch or special cabinet wiring. Eight Games Included: Space Invaders • Space Invaders Deluxe • Jatre Specter • Lunar Rescue • Space Laser • Balloon Bomber • Galaxy Wars • Super Earth Invasion Braze Technologies • Taito Black-and-White Hardware • Eight Games • Diagnostics and Test Mode View Braze Taito Space Invaders Install Guide Compare All Space Invaders Kit Options Eight Included Games Select eight compatible black-and-white arcade games through the on-screen menu. High Score Saving Permanently retains supported high scores for all eight games. Diagnostics and Test Mode Includes automatic power-on checks and interactive PCB and input testing. Two- and Three-Board Support Supports documented Taito black-and-white two-board and three-board configurations. Eight Games on Original Taito Space Invaders Hardware The Braze Taito Space Invaders kit expands a compatible original Taito black-and-white boardset with seven additional games while continuing to use the original arcade PCB, Intel 8080 processor, controls, video hardware, and sound hardware. Press Player 1 Start and Player 2 Start together to open the on-screen game-selection menu. No external selector switch is required. Supported configuration options include laser-base counts, bonus award levels, extended scoring on selected games, cabinet settings, power-on diagnostics, and interactive hardware tests. Braze Taito Space Invaders 8-in-1 Features Eight-Game Multigame: Includes Space Invaders, Space Invaders Deluxe, Jatre Specter, Lunar Rescue, Space Laser, Balloon Bomber, Galaxy Wars, and Super Earth Invasion. On-Screen Game Selection: Press Player 1 Start and Player 2 Start simultaneously to open the game-selection menu. Permanent High Score Saving: Retains supported high scores for all eight included games after cabinet power is turned off. Free Play: Available for seven included games. Galaxy Wars does not support Free Play. On-Screen Settings: Configure supported game options through the cabinet without changing the original PCB switches. Power-On Diagnostics: Runs automatic checks whenever the cabinet is powered on. Interactive Test Mode: Provides additional PCB, control, and input/output testing. Extended Configuration: Adjust supported laser-base counts, bonus awards, scoring, and gameplay options. Extended Scoring: Adds expanded scoring support to documented games. Upright and Cocktail Support: Supports compatible Taito black-and-white upright and cocktail cabinets. No External Selector: Game selection and configuration are handled through the on-screen menus. No Special Wiring: No additional cabinet wiring is required for normal installation. Included Games Space Invaders Original Space Invaders gameplay with permanent high score saving, Free Play, supported game settings, and extended configuration options. Space Invaders Deluxe Space Invaders Deluxe with permanent high score saving, Free Play, and supported on-screen settings. Jatre Specter Jatre Specter with permanent high score saving, Free Play, and supported gameplay settings. Lunar Rescue Lunar Rescue with permanent high score saving, Free Play, and supported lives and bonus settings. Space Laser Space Laser with permanent high score saving, Free Play, and support for documented cabinet configurations. Balloon Bomber Balloon Bomber with permanent high score saving, Free Play, and supported gameplay settings. Galaxy Wars Galaxy Wars includes permanent high score saving and supported configuration options. Free Play is not supported in Galaxy Wars. Super Earth Invasion Super Earth Invasion with permanent high score saving, Free Play, and supported gameplay settings. Hardware Compatibility Supported Manufacturer: Compatible original Taito black-and-white Space Invaders hardware Supported PCB Configurations: Documented Taito two-board L-shaped and three-board PCB sets Processor Requirement: Original Intel 8080 processor from the Taito boardset CPU Socket Requirement: The Intel 8080 processor must be installed in a compatible socket Cabinet Compatibility: Compatible Taito black-and-white upright and cocktail cabinets Cabinet Configuration: Upright or cocktail behavior depends on the original input-board strapping and cabinet hardware Cocktail Screen Flipping: Compatible cocktail cabinets use monitor relays to change screen orientation between players Not Compatible: This product is not intended for Midway Space Invaders PCB sets or incompatible Taito color hardware Cabinet Access: Access to the original arcade PCB set is required during installation Verify the Taito Boardset and 8080 Socket This product is specifically for documented Taito black-and-white Space Invaders boardsets. Confirm whether your cabinet uses the supported two-board or three-board configuration before ordering. Inspect the Intel 8080 processor before installation. If it is soldered directly to the PCB, a qualified arcade technician must remove it and install a compatible socket before the kit can be used. Installation Requirements Installation Difficulty: Easy when the original Intel 8080 processor is already socketed Soldering Required: No, when the original 8080 is installed in a compatible socket If the 8080 Is Soldered: A qualified arcade technician must remove it and install a compatible socket before the kit can be used Installation Process: The original Intel 8080 is transferred to the Braze daughterboard, and the assembled daughterboard is installed in the vacated CPU socket Special Wiring: No special cabinet wiring or external game-selection switch is required Installation Guide: Download the Braze Taito Space Invaders Installation Guide PDF Installation Overview Turn off and unplug the cabinet before accessing the Taito Space Invaders PCB set. Identify whether the cabinet uses the supported two-board or three-board configuration. Locate the Intel 8080 processor and confirm that it is installed in a compatible socket. Carefully remove the original Intel 8080 from the arcade PCB. Install the original processor into the Braze daughterboard, observing the documented Pin 1 orientation. Install the assembled daughterboard into the vacated Intel 8080 socket on the original board. Confirm processor and daughterboard orientation before restoring power. Power on the cabinet and verify operation using the installation guide. Press Player 1 Start and Player 2 Start together to open the game menu. Product Scope This product is the Braze Space Invaders Taito 8-in-1 Multigame Kit for compatible black-and-white Taito hardware. It is separate from the Braze Midway Space Invaders kit, the Braze Midway Space Invaders Deluxe kit, and the HighScoreSaves 10-game multigame product. Select the product that matches the manufacturer and PCB configuration in the cabinet. Braze Taito Space Invaders 8-in-1 FAQ Which Taito Space Invaders boardsets are supported? The kit supports documented Taito black-and-white two-board and three-board Space Invaders PCB configurations. Does this kit work on a Midway Space Invaders PCB? No. Midway Space Invaders and Space Invaders Deluxe boardsets use separate Braze product listings. Which games are included? Space Invaders, Space Invaders Deluxe, Jatre Specter, Lunar Rescue, Space Laser, Balloon Bomber, Galaxy Wars, and Super Earth Invasion. How is the game-selection menu opened? Press Player 1 Start and Player 2 Start simultaneously. Does every game support Free Play? No. Seven games support Free Play. Galaxy Wars requires coin operation. Are high scores saved for all eight games? Yes. The kit permanently saves supported high scores for all eight included games. Does the kit include diagnostics? Yes. It includes automatic power-on diagnostics and an interactive test mode for additional PCB and input checks. Will it work in a cocktail cabinet? Yes, when installed in a compatible Taito black-and-white cocktail cabinet. Cabinet behavior depends on the original input-board strapping and monitor-relay configuration. Does installation require soldering? No soldering is required when the original Intel 8080 processor is already socketed. If it is soldered to the PCB, a qualified arcade technician must install a compatible socket first. Where can I download the installation guide? Download the Braze Taito Space Invaders Installation Guide PDF Manufactured by Braze Technologies and sold and supported by HighScoreSaves for collectors, operators, restorers, and original Taito Space Invaders hardware enthusiasts. Braze Taito Space Invaders Resources 1. Braze Taito Space Invaders Installation Guide PDF 2. Compare All Space Invaders Kit Options 3. HighScoreSaves YouTube Channel
