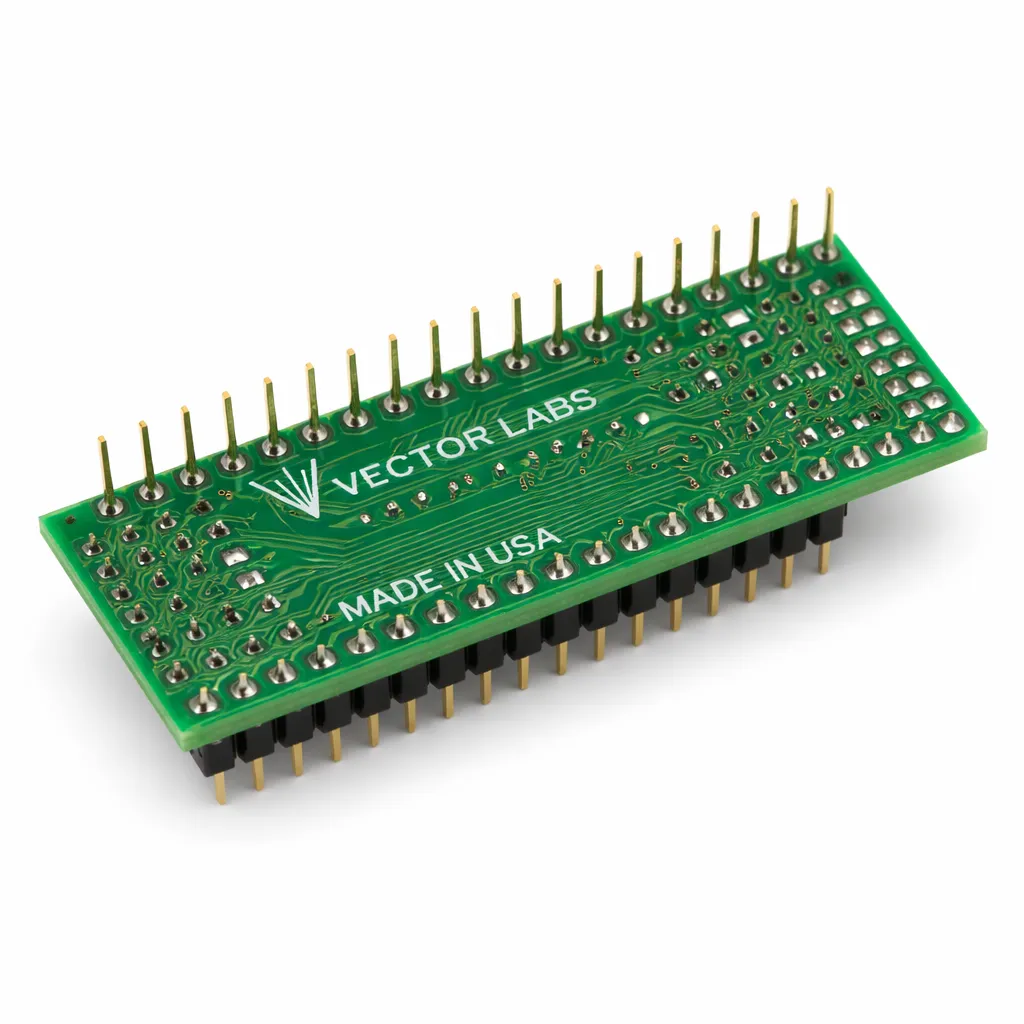

Leta Replacement Upgrade

Atari AVG Custom Chip Replacement The Atari AVG Custom Chip Replacement is designed as a direct substitute for the original Atari AVG chip (Part Number: 137179-001). This custom component functions as the Gate Array / Address Controller used in Atari vector arcade hardware, handling critical addressing and control tasks required for proper system operation. Because the original Atari AVG chip is long discontinued and increasingly difficult to source, this replacement solution provides a reliable option for repairing and restoring classic Atari arcade boards. It is engineered to replicate the functionality of the original DIP package chip while allowing collectors and technicians to keep their vector-based arcade systems running. This chip is commonly used in Atari vector arcade machines where the AVG (Analog Vector Generator) system manages the generation and control of vector graphics displayed on the monitor. Proper operation of this chip is essential for stable gameplay and correct vector drawing. Key Features Replacement for Atari AVG custom chip Compatible with original part number 137179-001 Implements the Gate Array / Address Controller function Designed for repair and restoration of Atari vector arcade boards Helps maintain long-term operation of classic Atari vector systems

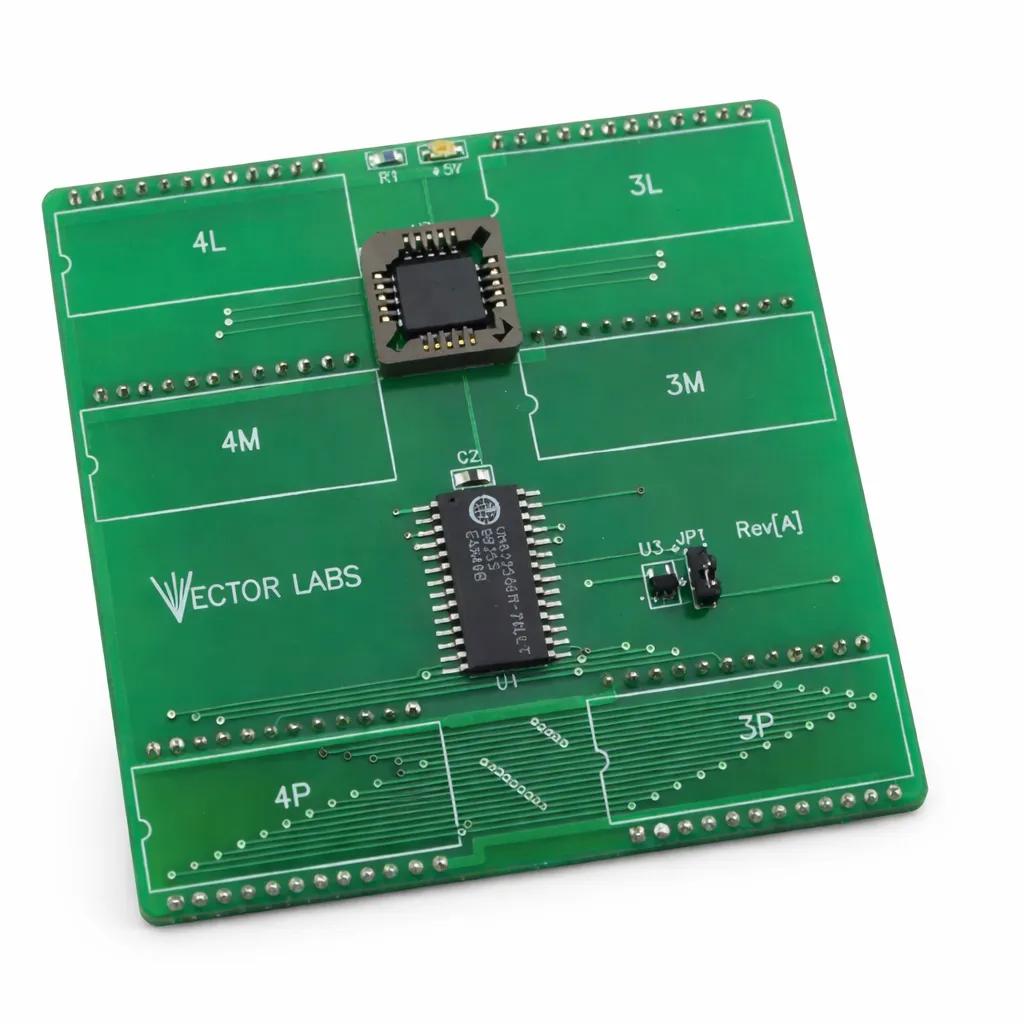

Star Wars / Empire Strikes Back 12K VRAM Upgrade The Star Wars / Empire Strikes Back 12K VRAM Upgrade is a reliable, plug-and-play solution that replaces the six 2K × 8 VRAM SRAM chips on your Atari Star Wars vector PCB. This modern upgrade reduces failure points, improves long-term reliability, and keeps your classic game running smoothly for years to come. Features · Compatibility · Installation Notes · FAQ Key Features Drop-in module replaces six 2K×8 VRAM SRAMs (12K total). Plug-and-play on socketed boards—no ROM or wiring changes. Modern components improve stability and longevity. Reduces heat and common failure points in the VRAM section. Compatibility Atari Star Wars (1983) and The Empire Strikes Back (1985) vector arcade PCBs/cabinets using the standard 12K VRAM section. Installation Notes Power off and discharge the cabinet before service; observe ESD precautions. Align the module with the VRAM positions and press firmly into the sockets. No soldering required if your original VRAM chips are socketed; if not, sockets must be installed by a qualified technician. FAQ Do I need to modify the board? No. On socketed boards the module drops in—no wiring or ROM changes. Will this change gameplay or graphics? No. It’s a reliability upgrade only; gameplay and timing remain original. What issues does this address? Replaces six aging VRAM chips that commonly cause intermittent video faults, instability, or no-boot conditions.

6100 Deflection Board LV Section Replacement Module The 6100 Deflection Board LV Section Replacement Module is designed to replace the unreliable low-voltage (LV) section found on the Atari 6100 vector monitor deflection board. This upgrade eliminates several common failure points that can cause instability, monitor shutdown, or inconsistent operation. Over time, the original low-voltage circuitry on the 6100 deflection board can become unreliable due to aging components, heat stress, and repeated power cycling. This replacement module modernizes that section of the circuit and provides improved reliability while maintaining proper monitor operation. Once installed, the module restores stable low-voltage regulation for the deflection board, helping ensure your vector monitor operates correctly in classic arcade machines such as Tempest, Star Wars, Major Havoc, Quantum, and other Atari vector cabinets that use the 6100 monitor. Key Features Replaces the original low-voltage section of the Atari 6100 deflection board Eliminates common LV circuit failure points Improves long-term reliability of the vector monitor Helps stabilize monitor operation and voltage regulation Designed for arcade restoration and repair work Compatibility Designed for use with the Atari 6100 vector monitor commonly found in classic arcade machines such as Tempest, Star Wars, Major Havoc, Quantum, and other Atari vector titles. Installation Notes Soldering and de-soldering are required for installation. The module installs directly onto the 6100 deflection board as shown in the gallery images. Installation should be performed by someone experienced with arcade PCB repair. This upgrade is an excellent solution for arcade collectors and technicians restoring original Atari vector monitors who want improved reliability without replacing the entire deflection board.

Tempest | Tempest Tubes Multigame Free Play and High Score Save Kit Upgrade your original Atari Tempest arcade PCB with Tempest and Tempest Tubes, permanent Top 8 high score saving, Free Play, attract sounds, level selection, menu-driven settings, and optional Wi-Fi leaderboard support. This HighScoreSaves multigame kit is designed specifically for original Atari Tempest hardware, allowing you to add useful modern features while continuing to use the original PCB, controls, and vector arcade system. Games Included: Tempest • Tempest Tubes Original Atari Vector Hardware • No Emulation • Free Play • Top 8 High Score Save • Optional Wi-Fi View Tempest Multigame Installation Guide 2 Games on Original Hardware Switch between Tempest and Tempest Tubes while continuing to use the original Atari Tempest PCB. Top 8 High Scores Permanently stores the Top 8 scores with initials using reliable serial EEPROM memory. Expanded Level Selection Start gameplay at supported levels up to level 81 with an extended 60-second selection period. Standard or Wi-Fi Enabled Choose local high score saving or add compatible online leaderboard support. What the Tempest Multigame Kit Adds The Tempest Multigame Free Play and High Score Save Kit adds modern convenience features to an original Atari Tempest PCB without replacing the cabinet's dedicated vector game hardware with an emulation or multicade system. In addition to permanent high score storage and Free Play, the kit adds Tempest Tubes, adjustable attract sounds, menu-driven settings, expanded level selection, score backup and restore, and other features designed for a regularly played original Tempest machine. Compatibility and What to Check Before Ordering PCB: Designed for original Atari Tempest arcade PCBs. Processor: Uses the original 6502 processor or an optional compatible replacement processor. Processor Socket: The 6502 location must have the proper 40-pin socket for kit installation. Cabinets: Supports upright and cocktail Tempest cabinets. Vector Hardware: Designed to operate with the original Atari Tempest vector arcade hardware. Inspect your PCB before ordering. If the original 6502 processor is soldered directly to the board instead of installed in a socket, a proper socket must be installed before the kit can be fitted. Choose Your Tempest Multigame Kit Configuration Select either a Standard Save Kit or a Wi-Fi Enabled Kit when ordering. Standard Save Kit Saves scores permanently on the arcade PCB and includes the core Tempest multigame, Free Play, level-select, attract-sound, and configuration features without online connectivity. Wi-Fi Enabled Kit Includes the same local score-saving features and adds support for uploading qualifying scores to the HighScoreSaves online leaderboard through a compatible 2.4 GHz Wi-Fi network. An optional processor and/or 40-pin socket may also be selected when required for your PCB. Game Selection and Settings Menu Kit functions are accessed using the cabinet's Player 1 Start button, so normal game selection and configuration do not require additional external controls. Select a Game: During attract mode, hold the Player 1 Start button for approximately four seconds to enter the game-selection menu. Open the Settings Menu: Power the cabinet off, hold the Player 1 Start button, power the cabinet back on, and release the button when prompted. Tempest Multigame Kit Features Two Games: Tempest and Tempest Tubes Permanent High Score Saving: Stores the Top 8 scores with initials Serial EEPROM: Reliable nonvolatile high score storage without a battery Separate Score Tables: Supports separate score tables for 2, 3, 4, or 5 lives Free Play: Play without coins while retaining traditional coin-up operation when desired Attract Sounds: Adjustable at 25%, 50%, or 100% On-Screen Settings: Configure supported game settings through the kit menu Level Select: Start gameplay at supported levels up to level 81 Extended Level Select: Provides a 60-second level-selection period instead of the original shorter selection time ROM Saver: Original program ROMs may be removed and stored Backup and Restore: Back up saved high scores and restore them later Reset Function: Restart gameplay without cycling cabinet power Fast Boot: Starts without a long initialization delay Stealth Mode: Boot directly into gameplay for a more stock arcade presentation Copyright Display: Select original Atari or HighScoreSaves branding Latest Supported ROM Revision: Includes the latest supported Tempest ROM revision Optional Wi-Fi: Compatible kits can upload qualifying scores to the online leaderboard Games Included Tempest Play the original Atari Tempest game on the original arcade hardware while adding permanent score saving, Free Play, expanded level selection, and configurable kit features. Tempest Tubes Switch to Tempest Tubes for alternate tube layouts and an additional Tempest gameplay variation while continuing to use the original Atari hardware platform. Installation Notes Socketed 6502 Required: The kit installs at the 6502 processor location on the original Tempest PCB. No Soldering on a Properly Socketed PCB: If the processor is already installed in the correct socket, no soldering is required for normal kit installation. Unsocketed PCB: If the 6502 is soldered directly to the board, a 40-pin socket must be installed before fitting the kit. Orientation Matters: Follow the installation guide and verify processor and kit orientation before powering the cabinet. Read the Tempest Multigame Installation Guide Optional Wi-Fi and Online High Scores Choose the Wi-Fi Enabled version if you want your compatible Tempest cabinet to upload qualifying scores to the HighScoreSaves online leaderboard in addition to saving scores locally. Wi-Fi kits use a compatible 2.4 GHz Wi-Fi network. The Standard kit does not require a network connection and keeps scores locally on the kit. Standard Kit vs Wi-Fi Enabled Kit View Global Arcade High Scores Tempest Multigame Free Play and High Score Save Kit FAQ Which games are included? The kit includes Tempest and Tempest Tubes. How many high scores does the kit save? The kit permanently stores the Top 8 high scores with initials. Does installation require soldering? No soldering is required when the Tempest PCB already has the proper socket at the 6502 processor location. If the processor is soldered directly to the PCB, a socket must be installed before the kit can be fitted. What processor does the kit use? The kit uses a 6502 processor. You can use the compatible processor from the original PCB or select an optional processor when ordering. How do I select Tempest or Tempest Tubes? During attract mode, hold the Player 1 Start button for approximately four seconds to enter the game-selection menu. How do I enter the settings menu? Power the cabinet off, hold the Player 1 Start button, power the cabinet on, and release the button when prompted. Can I select a starting level? Yes. The kit supports starting-level selection up to level 81 and provides an extended 60-second selection period. Can I still use coins? Yes. The kit supports both Free Play and traditional coin-up operation. Does it work in upright and cocktail Tempest cabinets? Yes. Both upright and cocktail cabinet configurations are supported. What is the difference between Standard and Wi-Fi Enabled versions? Both versions save scores locally and include the core kit features. The Wi-Fi Enabled version also supports uploading qualifying scores to the online leaderboard through a compatible 2.4 GHz Wi-Fi network. Where can I find the installation guide? View the Tempest Multigame Installation Guide PDF . Designed and supported by HighScoreSaves for original Atari Tempest arcade hardware. Tempest Multigame Kit Resources 1. Tempest Multigame Installation Guide PDF 2. Standard Kit vs Wi-Fi Enabled Kit 3. High Score Save Kit Tips and Tricks 4. HighScoreSaves YouTube Channel 5. HighScoreSaves Facebook Page
