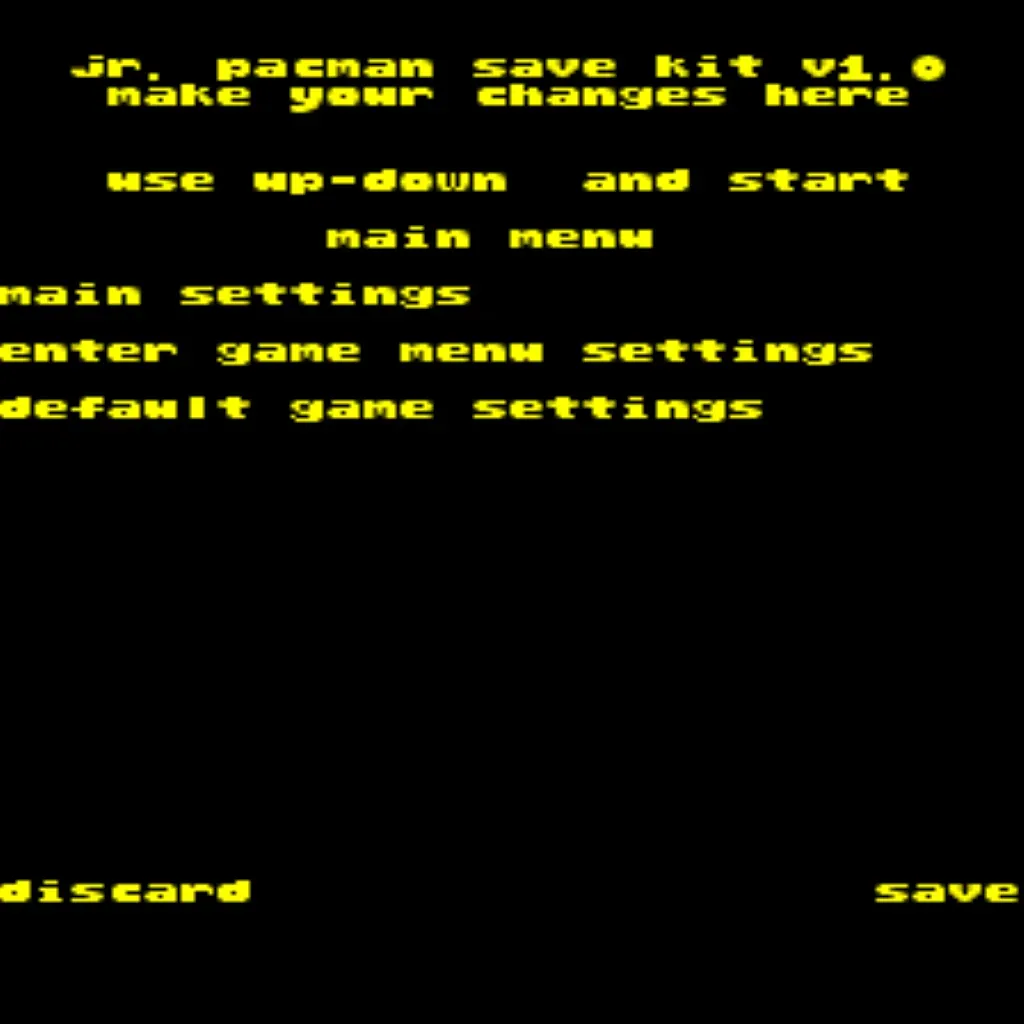

Jr Pacman Free Play and High Score Save Kit

HighScoreSaves Pac-Man | Ms. Pac-Man Multigame Kit Upgrade a documented compatible original Pac-Man, Ms. Pac-Man, or Pac-Man Plus arcade PCB with five selectable games, Free Play, permanent Top 10 score and initials saving, fast and original-speed modes, extended scoring, menu-driven settings, and optional Wi-Fi leaderboard support. This HighScoreSaves daughterboard operates on the original Pac-Man-family arcade hardware without replacing the PCB with an emulation platform or multicade system. Five Games Included: Pac-Man • Ms. Pac-Man • Pac-Man Plus • Ms. Pac-Man Plus • Pengo Original Arcade Hardware • Five Selectable Games • Top 10 Scores and Initials • Optional Wi-Fi View Pac-Man Multigame Installation Guide Five Included Games Select Pac-Man, Ms. Pac-Man, both Plus versions, or Pengo. Top 10 Scores and Initials Permanently stores qualifying high scores and player initials. Fast and Original Modes Choose supported original-speed or accelerated gameplay modes. Optional Wi-Fi Submit supported completed scores to HighScoreSaves leaderboards. A Five-Game Pac-Man Multigame Upgrade This kit is the classic multigame option in the HighScoreSaves Pac-Man product lineup. It combines the primary Pac-Man and Ms. Pac-Man games, their Plus versions, and Pengo on one original-hardware daughterboard. Choose the standard Pac-Man kit when only original-speed and fast Pac-Man are wanted. Choose Pac-Man Rearranged for the larger expanded collection and Rearranged game content. Each supported game retains its documented graphics, sounds, controls, and gameplay behavior. Fast modes, ghost-behavior options, alternate level starts, and other gameplay changes are selectable menu options. Open the HighScoreSaves Game Menu During attract mode, hold Player 1 Start for approximately four seconds to open the supported game-selection and settings menu. Included Games Pac-Man Play the classic Pac-Man maze game with supported original-speed and fast gameplay options. Ms. Pac-Man Includes the changing mazes, moving fruit, and gameplay patterns associated with Ms. Pac-Man. Pac-Man Plus Play the Plus version with its documented alternate graphics, challenge elements, and gameplay behavior. Ms. Pac-Man Plus A Plus variation of Ms. Pac-Man with its supported alternate graphics and gameplay settings. Pengo Includes Pengo maze-action gameplay using the cabinet joystick and Player 1 button without requiring control-panel modifications. Free Play and Permanent High Score Saving Permanent Top 10 scores: Retains the ten highest supported scores after cabinet power is removed. Player initials: Stores qualifying initials with supported high scores. Separate score tables: Maintains independent supported score tables, including separate tables for fast and original-speed modes. Free Play: Start games without inserting coins. Coin operation: Continue accepting quarters or tokens when Free Play is disabled. High-score backup and restore: Manage supported saved score data through the kit menu. High-score display: Access supported saved-score tables through the menu controls. Battery-free storage: Scores, initials, and settings use serial EEPROM storage. Gameplay, Scoring, and Operator Options Fast and original-speed modes: Choose between supported original and accelerated gameplay speeds. Extended scoring: Supports displayed and saved scores as high as 9,999,990. Separate speed-mode tables: Fast and original-speed play maintain independent supported score tables. Ghost-behavior options: Select documented original bug behavior or corrected AI patterns where supported. Ghost-name options: Choose between supported original and alternate ghost names. Level-start options: Begin at Level 1, the Apple level, the Key level, or Level 255 where supported. Level 255 option: Practice the kill-screen level or use the supported option to continue beyond the original Level 255 behavior. Stealth/default game: Choose which supported game or mode appears when the cabinet starts. Menu lock: Restrict access to supported configuration submenus on public or guest-operated cabinets. Game-selection menu: Choose among the five installed games through an on-screen menu. Attract Sounds, Logos, and Settings Adjustable attract sounds: Select sound for 25%, 50%, or every supported attract-screen rotation, or disable attract audio. Rotating attract displays: Changes supported attract screens rather than continuously displaying one static screen. Copyright and logo options: Display supported original Midway identification or HighScoreSaves branding. On-screen DIP settings: Adjust supported game settings through the menu instead of changing physical DIP switches. Saved configuration: Supported settings are retained locally after they are changed. ROM Saver operation: The kit supplies the supported program code, so the designated original program ROMs must be removed during installation. Version 1.09e features: Includes the menu, scoring, game-selection, diagnostics, and gameplay options documented for this version. Important PCB and Installation Requirements Supported hardware: Designed for documented compatible original Pac-Man, Ms. Pac-Man, and Pac-Man Plus arcade PCBs. PCB access required: The original game board must be accessed during installation. 40-pin Z80 location: The kit installs at the documented Z80 processor socket. Original processor: The Z80 is removed from the PCB and installed on the HighScoreSaves daughterboard unless a compatible processor option is selected. No soldering when socketed: Installation does not require soldering when the Z80 location already has a compatible socket. Soldered processor: If the Z80 is soldered directly to the PCB, a qualified arcade technician must install a compatible 40-pin socket. Program ROM removal: Remove the designated original program ROMs as directed by the installation guide. RAM Test version 1.09 and later: Setting DIP switches 1 and 2 to OFF enables the documented automatic RAM diagnostics during startup. Cabinet compatibility: Supports documented upright, cabaret, and cocktail cabinet configurations. Pin orientation: Verify Pin 1 alignment and inspect every processor pin before restoring cabinet power. Installation Information Installation type: Multigame daughterboard for compatible original Pac-Man-family hardware Included games: Pac-Man, Ms. Pac-Man, Pac-Man Plus, Ms. Pac-Man Plus, and Pengo Processor: Compatible Z80 processor Processor location: Documented 40-pin Z80 socket Soldering required: No, when the required Z80 location is already socketed Program ROM requirement: Remove the designated original program ROMs PCB compatibility: Documented compatible Pac-Man, Ms. Pac-Man, and Pac-Man Plus PCBs Cabinet compatibility: Documented upright, cabaret, and cocktail configurations Installation guide: Download the Pac-Man Multigame installation guide Standard and Optional Wi-Fi Versions The Standard Kit permanently saves supported scores, initials, game settings, and configuration data locally. It does not require an internet connection. The optional 2.4 GHz Wi-Fi Kit includes the same local features and can also submit supported completed scores after qualifying initials are entered. Wi-Fi can be disabled without affecting game selection, gameplay, Free Play, local score saving, or menu operation. Standard vs. Wi-Fi Kits View Global Arcade High Scores Pac-Man Multigame Kit FAQ Which games are included? The kit includes Pac-Man, Ms. Pac-Man, Pac-Man Plus, Ms. Pac-Man Plus, and Pengo. How is the game-selection menu opened? Hold Player 1 Start for approximately four seconds during attract mode. Which original PCBs are compatible? The kit supports documented compatible original Pac-Man, Ms. Pac-Man, and Pac-Man Plus arcade PCBs. How many scores are saved? The kit stores the Top 10 supported scores with qualifying player initials and separate supported score tables. Are fast and original-speed scores separated? Yes. Supported fast and original-speed modes maintain independent high-score tables. Can the kit continue beyond Level 255? Yes. The kit includes documented Level 255 starting and continuation options where supported. How is Pengo controlled? Pengo uses the cabinet joystick and Player 1 button without requiring control-panel modifications. Must the original program ROMs be removed? Yes. Remove the designated original program ROMs as directed by the installation guide while the kit is installed. Does installation require soldering? Not when the required Z80 location already has a compatible 40-pin socket. A qualified arcade technician must install a socket when the processor is soldered directly to the PCB. Is Wi-Fi required? No. The standard kit saves supported scores, initials, and settings locally. Wi-Fi is optional for online score submission. Designed and supported by HighScoreSaves for documented compatible Pac-Man-family arcade hardware. Resources 1. Pac-Man Multigame Installation Guide 2. HighScoreSaves Tips and Tricks 3. Pac-Man Standard Kit 4. Pac-Man Rearranged Multigame Kit 5. Compare All Pac-Man Kits

HighScoreSaves Pac-Man Rearranged Multigame Kit Upgrade a documented compatible original Pac-Man, Ms. Pac-Man, or Pac-Man Plus arcade PCB with seven selectable games, including Pac-Man Rearranged, both Pengo versions, Free Play, permanent Top 10 score and initials saving, expanded scoring, menu-driven settings, and optional Wi-Fi leaderboard support. This HighScoreSaves daughterboard operates on the original Pac-Man-family arcade PCB without replacing it with an emulation platform or multicade system. Standard game versions remain available alongside selectable fast modes, Pac-Man Rearranged, and additional gameplay options. Seven Games Included: Pac-Man • Ms. Pac-Man • Pac-Man Plus • Ms. Pac-Man Plus • Pac-Man Rearranged • Pengo V2 • Pengo V3 Original Arcade Hardware • Seven Selectable Games • Top 10 Scores and Initials • Optional Wi-Fi View Pac-Man Rearranged Installation Guide Seven Included Games Includes the classic Pac-Man games, Pac-Man Rearranged, and two Pengo versions. Top 10 Scores and Initials Permanently stores qualifying scores and player initials. Expanded Gameplay Adds Rearranged content, speed choices, ghost options, and level-start settings. Optional Wi-Fi Submit supported completed scores to HighScoreSaves leaderboards. The Expanded Pac-Man Multigame Option This is the largest multigame option in the HighScoreSaves Pac-Man product lineup. It includes everything from the five-game Pac-Man and Ms. Pac-Man multigame kit, then adds Pac-Man Rearranged and a second Pengo version. Choose the standard Pac-Man kit when only original-speed and fast Pac-Man are wanted. Choose the five-game Pac-Man and Ms. Pac-Man kit for the classic games and one Pengo version without Rearranged content. Pac-Man Rearranged combines supported maze and gameplay elements from Pac-Man, Ms. Pac-Man, Pac-Man Plus, and Ms. Pac-Man Plus into a changing gameplay experience. Open the HighScoreSaves Game Menu During attract mode, hold Player 1 Start for approximately four seconds to open the supported game-selection and settings menu. Included Games Pac-Man Rearranged Combines supported maze, graphics, and gameplay elements from Pac-Man, Ms. Pac-Man, Pac-Man Plus, and Ms. Pac-Man Plus into one changing game experience. Pac-Man Includes the classic Pac-Man maze game with supported original-speed and fast gameplay choices. Ms. Pac-Man Includes the changing mazes, moving fruit, and gameplay patterns associated with Ms. Pac-Man. Pac-Man Plus Includes the documented Plus-version graphics, challenge elements, and alternate gameplay behavior. Ms. Pac-Man Plus A Plus variation of Ms. Pac-Man with its supported alternate graphics and gameplay settings. Pengo V2 One supported Pengo version using the cabinet joystick and Player 1 button. Pengo V3 A second supported Pengo version, also playable without control-panel modifications. Free Play and Permanent High Score Saving Permanent Top 10 scores: Retains the ten highest supported scores after cabinet power is removed. Player initials: Stores qualifying initials with supported high scores. Separate score tables: Maintains independent supported score tables, including separate tables for fast and original-speed modes. Free Play: Start games without inserting coins. Coin operation: Continue accepting quarters or tokens when Free Play is disabled. High-score backup and restore: Manage supported saved score data through the kit menu. Extended scoring: Supports displayed and saved scores as high as 9,999,990. Battery-free storage: Scores, initials, and settings use serial EEPROM storage. Gameplay and Operator Options Fast and original-speed modes: Choose between supported original and accelerated gameplay speeds. Pac-Man Rearranged: Select the combined Rearranged game from the main game menu. Ghost-behavior options: Select documented original bug behavior or corrected AI patterns where supported. Ghost-name customization: Change supported ghost names through the settings menu. Level-start options: Begin at Level 1, the Apple level, the Key level, or Level 255 where supported. Level 255 option: Start at the kill-screen level or use the supported continuation option beyond the original Level 255 behavior. Stealth/default game: Choose which supported game or mode appears when the cabinet starts. Menu lock: Restrict access to supported configuration submenus on public or guest-operated cabinets. Game-selection menu: Choose among all seven installed games through an on-screen menu. Pengo controls: Both Pengo versions use the cabinet joystick and Player 1 button without requiring control-panel modifications. Attract Sounds, Logos, and Settings Adjustable attract sounds: Select sound for 25%, 50%, or every supported attract-screen rotation, or disable attract audio. Rotating attract displays: Changes supported attract screens rather than continuously displaying one static screen. Copyright and logo options: Display supported original Midway identification or HighScoreSaves branding. On-screen DIP settings: Adjust supported game settings through the menu rather than changing physical DIP switches. Saved configuration: Supported settings are retained locally after they are changed. ROM Saver operation: The kit supplies the supported program code, so the designated original program ROMs must be removed during installation. Version 2.00B features: Includes the game-selection, scoring, diagnostics, ghost-name, gameplay, and operator options documented for this version. Important PCB and Installation Requirements Supported hardware: Designed for documented compatible original Pac-Man, Ms. Pac-Man, and Pac-Man Plus arcade PCBs. PCB access required: The original game board must be accessed during installation. 40-pin Z80 location: The kit installs at the documented Z80 processor socket. Original processor: The Z80 is removed from the PCB and installed on the HighScoreSaves daughterboard unless a compatible processor option is selected. No soldering when socketed: Installation does not require soldering when the Z80 location already has a compatible socket. Soldered processor: If the Z80 is soldered directly to the PCB, a qualified arcade technician must install a compatible 40-pin socket. Program ROM removal: Remove the designated original program ROMs as directed by the installation guide. RAM Test version 2.00B and later: Setting DIP switches 1 and 2 to OFF enables the documented automatic RAM diagnostics during startup. Cabinet compatibility: Supports documented upright, cabaret, and cocktail cabinet configurations. Pin orientation: Verify Pin 1 alignment and inspect every processor pin before restoring cabinet power. Installation Information Installation type: Expanded multigame daughterboard for compatible original Pac-Man-family hardware Included games: Pac-Man, Ms. Pac-Man, Pac-Man Plus, Ms. Pac-Man Plus, Pac-Man Rearranged, Pengo V2, and Pengo V3 Processor: Compatible Z80 processor Processor location: Documented 40-pin Z80 socket Soldering required: No, when the required Z80 location is already socketed Program ROM requirement: Remove the designated original program ROMs PCB compatibility: Documented compatible Pac-Man, Ms. Pac-Man, and Pac-Man Plus PCBs Cabinet compatibility: Documented upright, cabaret, and cocktail configurations Installation guide: Download the Pac-Man Rearranged installation guide Standard and Optional Wi-Fi Versions The Standard Kit permanently saves supported scores, initials, game settings, and configuration data locally. It does not require an internet connection. The optional 2.4 GHz Wi-Fi Kit includes the same local features and can also submit supported completed scores after qualifying initials are entered. Wi-Fi can be disabled without affecting game selection, gameplay, Free Play, local score saving, or menu operation. Standard vs. Wi-Fi Kits View Global Arcade High Scores Pac-Man Rearranged Kit FAQ Which games are included? The kit includes Pac-Man, Ms. Pac-Man, Pac-Man Plus, Ms. Pac-Man Plus, Pac-Man Rearranged, Pengo V2, and Pengo V3. What is Pac-Man Rearranged? Pac-Man Rearranged combines supported gameplay and maze elements from Pac-Man, Ms. Pac-Man, Pac-Man Plus, and Ms. Pac-Man Plus into one changing game experience. How is the game-selection menu opened? Hold Player 1 Start for approximately four seconds during attract mode. Which original PCBs are compatible? The kit supports documented compatible original Pac-Man, Ms. Pac-Man, and Pac-Man Plus arcade PCBs. How many high scores are saved? The kit stores the Top 10 supported scores with qualifying player initials and separate supported score tables. Can ghost names be changed? Yes. Supported ghost names can be customized through the settings menu. Can the kit continue beyond Level 255? Yes. The kit includes documented Level 255 starting and continuation options where supported. How are Pengo V2 and V3 controlled? Both versions use the cabinet joystick and Player 1 button without requiring control-panel modifications. Must the original program ROMs be removed? Yes. Remove the designated original program ROMs as directed by the installation guide while the kit is installed. Does installation require soldering? Not when the required Z80 location already has a compatible 40-pin socket. A qualified arcade technician must install a socket when the processor is soldered directly to the PCB. Is Wi-Fi required? No. The standard kit saves supported scores, initials, and settings locally. Wi-Fi is optional for online score submission. Designed and supported by HighScoreSaves for documented compatible Pac-Man-family arcade hardware. Resources 1. Pac-Man Rearranged Installation Guide 2. HighScoreSaves Tips and Tricks 3. Pac-Man Standard Kit 4. Pac-Man and Ms. Pac-Man Multigame Kit 5. Compare All Pac-Man Kits

HighScoreSaves Pac-Man Plus Free Play and High Score Save Kit Upgrade a documented compatible original Pac-Man or Ms. Pac-Man arcade PCB with original-speed and fast Pac-Man Plus, Free Play, permanent Top 10 score and initials saving, extended scoring, attract sounds, menu-driven settings, and optional Wi-Fi leaderboard support. This HighScoreSaves daughterboard operates on the original arcade PCB without replacing it with an emulation platform or multicade system. Original-speed Pac-Man Plus remains available, while the fast version can be selected when accelerated gameplay is desired. Included Pac-Man Plus Versions: Pac-Man Plus Original/Slow • Pac-Man Plus Fast Original Arcade Hardware • No Emulation • Top 10 Scores and Initials • Optional Wi-Fi View Pac-Man Plus Installation Guide Fast and Original Pac-Man Plus Select original-speed or accelerated Pac-Man Plus gameplay. Top 10 Scores and Initials Permanently stores qualifying high scores and player initials. Extended Scoring Supports scores as high as 9,999,990 without the standard rollover. Optional Wi-Fi Submit supported completed scores to HighScoreSaves leaderboards. A Pac-Man Plus-Only Upgrade for Original Arcade Hardware This is the focused HighScoreSaves Pac-Man Plus kit. It provides original-speed and fast Pac-Man Plus without adding Pac-Man, Ms. Pac-Man, Ms. Pac-Man Plus, Pengo, or Pac-Man Rearranged as separate selectable games. Choose the Pac-Man and Ms. Pac-Man multigame kit when the five-game collection is wanted. Choose Pac-Man Rearranged for the larger seven-game collection with Rearranged content and two Pengo versions. The kit can be installed on documented compatible original Pac-Man or Ms. Pac-Man PCBs while retaining the original game board, joystick, display, sound hardware, and cabinet controls. Open the HighScoreSaves Pac-Man Plus Menu During attract mode, hold Player 1 Start for approximately four seconds to open the supported game and settings menu. Free Play and Permanent Score Saving Permanent Top 10 scores: Retains the ten highest supported scores after cabinet power is removed. Player initials: Saves qualifying initials with each supported high score. Separate score tables: Original-speed and fast Pac-Man Plus maintain independent supported high-score tables. Free Play: Start games without inserting coins. Coin operation: Continue accepting quarters or tokens when Free Play is disabled. High-score backup and restore: Manage supported saved-score data through the kit menu. High-score reset: Clear supported saved scores through the settings menu. Battery-free storage: Saved scores, initials, and settings use serial EEPROM storage. Pac-Man Plus Gameplay and Scoring Features Original/Slow Pac-Man Plus: Play Pac-Man Plus at its standard arcade speed. Fast Pac-Man Plus: Select accelerated Pac-Man Plus gameplay through the kit menu. Separate speed-mode tables: Fast and original-speed gameplay retain independent supported scores. Extended scoring: Saves and displays supported scores as high as 9,999,990. No standard score rollover: Extended scoring prevents the normal lower-value rollover display. Stealth/default mode: Choose which supported speed version appears when the cabinet starts. Upright and cocktail support: Compatible with documented upright and cocktail cabinet configurations. Attract Sounds and Menu-Driven Settings Adjustable attract sounds: Select sound for 25%, 50%, or every supported attract-screen rotation, or disable attract audio. Rotating attract displays: Changes supported attract screens instead of continuously showing one static display. On-screen DIP settings: Adjust supported game options through the menu instead of changing physical DIP switches. Saved configuration: Supported settings are retained locally after they are changed. ROM Saver operation: The kit supplies the supported program code. The designated original program ROMs in row 6 must be removed as directed by the installation guide. Important PCB and ROM Requirements Compatible original hardware: Designed for documented compatible Pac-Man and Ms. Pac-Man arcade PCBs. PCB access required: The original game board must be accessed during installation. 40-pin Z80 location: The kit installs at the documented Z80 processor location. Original processor: The Z80 is removed from the PCB and installed on the HighScoreSaves daughterboard unless a compatible processor option is selected. No soldering when socketed: Installation does not require soldering when the Z80 location already has a compatible 40-pin socket. Soldered processor: If the Z80 is soldered directly to the PCB, a qualified arcade technician must install a compatible 40-pin socket. Row 6 program ROMs: Remove the designated original program ROMs in row 6 while the kit is installed. Orientation: Verify Pin 1 alignment and inspect all processor pins before restoring cabinet power. Installation Information Installation type: Daughterboard upgrade for compatible original Pac-Man-family hardware Included versions: Pac-Man Plus Original/Slow and Pac-Man Plus Fast Processor: Compatible Z80 processor Processor location: Documented 40-pin Z80 socket Soldering required: No, when the required Z80 location is already socketed Program ROM requirement: Remove the designated row 6 program ROMs PCB compatibility: Documented compatible Pac-Man and Ms. Pac-Man PCBs Cabinet compatibility: Documented upright and cocktail configurations Installation guide: Download the Pac-Man Plus installation guide Standard and Optional Wi-Fi Versions The Standard Kit permanently saves supported scores, initials, settings, and configuration data locally. It does not require an internet connection. The optional 2.4 GHz Wi-Fi Kit includes the same local features and can also submit supported completed scores after qualifying initials are entered. Wi-Fi can be disabled without affecting Pac-Man Plus gameplay, speed selection, Free Play, local score saving, or menu operation. Standard vs. Wi-Fi Kits View Global Arcade High Scores Pac-Man Plus Kit FAQ Which Pac-Man Plus versions are included? The kit includes original-speed Pac-Man Plus and fast Pac-Man Plus. Does this kit include regular Pac-Man or Ms. Pac-Man? No. The kit can install on documented compatible Pac-Man or Ms. Pac-Man hardware, but its selectable game content is Pac-Man Plus. Choose one of the multigame kits when additional games are wanted. How is the HighScoreSaves menu opened? Hold Player 1 Start for approximately four seconds during attract mode. How many high scores are saved? The kit permanently stores the Top 10 supported scores and qualifying player initials. Are fast and original-speed scores separated? Yes. The two speed versions maintain independent supported high-score tables. Does the kit support extended scoring? Yes. Supported scores can be saved and displayed as high as 9,999,990. Must the original program ROMs be removed? Yes. Remove the designated row 6 program ROMs as directed by the installation guide while the kit is installed. Does installation require soldering? Not when the required Z80 location already has a compatible 40-pin socket. A qualified arcade technician must install a socket when the processor is soldered directly to the PCB. Is Wi-Fi required? No. The standard kit saves supported scores, initials, and settings locally. Wi-Fi is optional for online score submission. Designed and supported by HighScoreSaves for documented compatible Pac-Man-family arcade hardware. Resources 1. Pac-Man Plus Installation Guide 2. HighScoreSaves Tips and Tricks 3. Pac-Man and Ms. Pac-Man Multigame Kit 4. Pac-Man Rearranged Multigame Kit 5. Compare All Pac-Man Plus Kits

HighScoreSaves Ms. Pac-Man Free Play and High Score Save Kit Upgrade a documented compatible original Ms. Pac-Man or Pac-Man arcade PCB with original-speed and fast Ms. Pac-Man, Free Play, permanent Top 10 score and initials saving, extended scoring, attract sounds, menu-driven settings, Level 255 practice, and optional Wi-Fi leaderboard support. This HighScoreSaves daughterboard operates on the original arcade PCB without replacing it with an emulation platform or multicade system. Original-speed Ms. Pac-Man remains available, while the fast version can be selected when accelerated gameplay is desired. Included Ms. Pac-Man Versions: Ms. Pac-Man Original/Slow • Ms. Pac-Man Fast Original Arcade Hardware • No Emulation • Top 10 Scores and Initials • Optional Wi-Fi View Ms. Pac-Man Installation Guide Fast and Original Ms. Pac-Man Select original-speed or accelerated Ms. Pac-Man gameplay. Top 10 Scores and Initials Permanently stores qualifying high scores and player initials. Extended Scoring Supports scores as high as 9,999,990 without the standard rollover. Optional Wi-Fi Submit supported completed scores to HighScoreSaves leaderboards. A Ms. Pac-Man-Only Upgrade for Original Arcade Hardware This is the focused HighScoreSaves Ms. Pac-Man kit. It provides original-speed and fast Ms. Pac-Man without adding Pac-Man, Pac-Man Plus, Pengo, or Pac-Man Rearranged as selectable games. Choose the separate Pac-Man and Ms. Pac-Man multigame kit when both main games, both Plus versions, and Pengo are wanted. Choose Pac-Man Rearranged for the larger seven-game collection. The kit can be installed on documented compatible original Pac-Man or Ms. Pac-Man PCBs while retaining the original game board, joystick, display, sound hardware, and cabinet controls. Open the HighScoreSaves Ms. Pac-Man Menu During attract mode, hold Player 1 Start for approximately four seconds to open the supported game and settings menu. Free Play and Permanent Score Saving Permanent Top 10 scores: Retains the ten highest supported scores after cabinet power is removed. Player initials: Saves qualifying initials with each supported high score. Separate score tables: Original-speed and fast Ms. Pac-Man maintain independent supported high-score tables. Free Play: Start games without inserting coins. Coin operation: Continue accepting quarters or tokens when Free Play is disabled. High-score backup and restore: Manage supported saved score data through the kit menu. High-score reset: Clear supported saved scores through the settings menu. Battery-free storage: Saved scores, initials, and settings use serial EEPROM storage. Ms. Pac-Man Gameplay and Scoring Features Original/Slow Ms. Pac-Man: Play Ms. Pac-Man at its standard arcade speed. Fast Ms. Pac-Man: Select accelerated Ms. Pac-Man gameplay through the kit menu. Separate speed-mode tables: Fast and original-speed gameplay retain independent supported scores. Extended scoring: Saves and displays supported scores as high as 9,999,990. No standard score rollover: Extended scoring prevents the normal lower-value rollover display. Level 255 practice: Start directly at Level 255 through the supported menu option. Stealth/default mode: Choose which supported speed version appears when the cabinet starts. Upright and cocktail support: Compatible with documented upright and cocktail cabinet configurations. Attract Sounds and Menu-Driven Settings Adjustable attract sounds: Select sound for 25%, 50%, or every supported attract-screen rotation, or disable attract audio. Rotating attract displays: Changes supported attract screens instead of continuously showing one static display. On-screen DIP settings: Adjust supported game options through the menu instead of changing physical DIP switches. Saved configuration: Supported settings are retained locally after they are changed. ROM Saver operation: The kit supplies the supported program code. The original program ROMs in row 6 must be removed as directed by the installation guide. Important PCB and ROM Requirements Compatible original hardware: Designed for documented compatible Pac-Man and Ms. Pac-Man arcade PCBs. PCB access required: The original game board must be accessed during installation. 40-pin Z80 location: The kit installs at the documented Z80 processor location. Original processor: The Z80 is removed from the PCB and installed on the HighScoreSaves daughterboard unless a compatible processor option is selected. No soldering when socketed: Installation does not require soldering when the Z80 location already has a compatible 40-pin socket. Soldered processor: If the Z80 is soldered directly to the PCB, a qualified arcade technician must install a compatible 40-pin socket. Row 6 program ROMs: The designated original program ROMs in row 6 must be removed while the kit is installed. Required graphics ROMs: ROMs 5E and 5F must remain installed. RAM Test version 1.09 and later: Setting DIP switches 1 and 2 to OFF enables the documented automatic RAM diagnostics during startup. Orientation: Verify Pin 1 alignment and inspect all processor pins before restoring cabinet power. Installation Information Installation type: Daughterboard upgrade for compatible original Pac-Man-family hardware Included versions: Ms. Pac-Man Original/Slow and Ms. Pac-Man Fast Processor: Compatible Z80 processor Processor location: Documented 40-pin Z80 socket Soldering required: No, when the required Z80 location is already socketed Program ROM requirement: Remove the designated row 6 program ROMs Required ROMs: Graphics ROMs 5E and 5F must remain installed PCB compatibility: Documented compatible Pac-Man and Ms. Pac-Man PCBs Cabinet compatibility: Documented upright and cocktail configurations Installation guide: Download the Ms. Pac-Man installation guide Standard and Optional Wi-Fi Versions The Standard Kit permanently saves supported scores, initials, settings, and configuration data locally. It does not require an internet connection. The optional 2.4 GHz Wi-Fi Kit includes the same local features and can also submit supported completed scores after qualifying initials are entered. Wi-Fi can be disabled without affecting Ms. Pac-Man gameplay, speed selection, Free Play, local score saving, or menu operation. Standard vs. Wi-Fi Kits View Global Arcade High Scores Ms. Pac-Man Kit FAQ Which Ms. Pac-Man versions are included? The kit includes original-speed Ms. Pac-Man and fast Ms. Pac-Man. Does this kit include Pac-Man? No. The kit can install on a documented compatible Pac-Man PCB, but its selectable game content is Ms. Pac-Man. Choose the separate multigame kit when both Pac-Man and Ms. Pac-Man are wanted. How is the HighScoreSaves menu opened? Hold Player 1 Start for approximately four seconds during attract mode. How many high scores are saved? The kit permanently stores the Top 10 supported scores and qualifying player initials. Are fast and original-speed scores separated? Yes. The two speed versions maintain independent supported high-score tables. Can I practice Level 255? Yes. The menu provides a supported option to begin directly at Level 255. Which original ROMs are removed? The designated program ROMs in row 6 must be removed. Graphics ROMs 5E and 5F must remain installed. Does installation require soldering? Not when the required Z80 location already has a compatible 40-pin socket. A qualified arcade technician must install a socket when the processor is soldered directly to the PCB. Is Wi-Fi required? No. The standard kit saves supported scores, initials, and settings locally. Wi-Fi is optional for online score submission. Designed and supported by HighScoreSaves for documented compatible Pac-Man-family arcade hardware. Resources 1. Ms. Pac-Man Installation Guide 2. HighScoreSaves Tips and Tricks 3. Pac-Man and Ms. Pac-Man Multigame Kit 4. Pac-Man Rearranged Multigame Kit 5. Compare All Ms. Pac-Man Kits

HighScoreSaves Pac-Man Free Play and High Score Save Kit Upgrade a compatible original Pac-Man or Ms. Pac-Man arcade PCB with selectable original-speed and fast Pac-Man, Free Play, permanent Top 10 score and initials saving, extended scoring, attract sounds, menu-driven settings, kill-screen practice, and optional Wi-Fi leaderboard support. This HighScoreSaves daughterboard operates on the original arcade PCB without emulation. Original-speed Pac-Man remains available with its standard gameplay behavior, while the fast version can be selected when accelerated play is desired. Included Pac-Man Versions: Pac-Man Original/Slow • Pac-Man Fast Original Arcade Hardware • No Emulation • Top 10 Scores and Initials • Optional Wi-Fi View Pac-Man Installation Guide Fast and Original Pac-Man Select original-speed Pac-Man or the faster gameplay version. Top 10 Scores and Initials Permanently stores qualifying scores and player initials. Extended Scoring Supports scores as high as 9,999,990 without the standard rollover. Optional Wi-Fi Submit supported completed scores to HighScoreSaves online leaderboards. A Pac-Man-Only Upgrade for Original Arcade Hardware This is the standard HighScoreSaves Pac-Man kit. It provides original-speed and fast Pac-Man but does not add Ms. Pac-Man as a selectable game. Choose the separate Pac-Man/Ms. Pac-Man multigame kit when both games are wanted. Choose Pac-Man Rearranged for the larger expanded game collection and Rearranged content. The kit can be installed on documented compatible Pac-Man or Ms. Pac-Man PCBs. When installed on a Ms. Pac-Man board, the original Ms. Pac-Man daughterboard and ribbon cable are not used. Open the HighScoreSaves Pac-Man Menu During attract mode, hold Player 1 Start for approximately four seconds to open the supported game-selection and settings menu. Free Play and Permanent Score Saving Permanent Top 10 scores: Retains the ten highest qualifying scores after cabinet power is removed. Player initials: Saves initials with each qualifying high score. Free Play: Start games without inserting coins. Coin operation: Continue accepting quarters or tokens when Free Play is disabled. Separate score tables: Original-speed and fast Pac-Man maintain independent high-score tables. High-score backup and restore: Manage supported saved score data through the kit menu. High-score reset: Clear supported score tables through the settings menu. Battery-free storage: Saved scores and settings use serial EEPROM storage. Pac-Man Gameplay and Scoring Features Original/Slow Pac-Man: Play Pac-Man at its standard arcade speed. Fast Pac-Man: Select accelerated Pac-Man gameplay through the kit menu. Separate high-score tables: Fast and original-speed gameplay retain their own supported scores. Extended scoring: Saves and displays scores as high as 9,999,990. No standard score rollover: Extended scoring prevents the normal lower-value rollover display. Level 255 practice: Start directly at Level 255 for kill-screen practice. Stealth/default mode: Choose which supported Pac-Man speed version appears when the cabinet starts. Upright and cocktail support: Compatible with documented upright and cocktail cabinet configurations. Attract Sounds and Menu-Driven Settings Adjustable attract sounds: Select sound for 25%, 50%, or every supported attract-screen rotation, or disable attract audio. Rotating attract displays: Changes supported attract screens rather than continuously displaying one static image. On-screen DIP settings: Adjust supported game settings through the menu rather than changing physical DIP switches. Saved configuration: Supported settings are retained locally after they are changed. ROM Saver operation: The kit supplies the supported program code. The original program ROMs in row 6 must be removed as directed by the installation guide. Important PCB and ROM Requirements Compatible original hardware: Designed for documented compatible Pac-Man and Ms. Pac-Man arcade PCBs. PCB access required: The original game board must be accessed during installation. 40-pin Z80 location: The kit installs at the documented Z80 processor socket. Original processor: The Z80 is removed from the PCB and installed on the HighScoreSaves daughterboard unless a compatible processor option is selected. No soldering when socketed: Installation does not require soldering when the Z80 location already has a compatible socket. Soldered processor: If the Z80 is soldered directly to the PCB, a qualified arcade technician must install a compatible 40-pin socket. Row 6 program ROMs: The original program ROMs in row 6 must be removed when the kit is installed. Required graphics ROMs: ROMs 5E and 5F must remain installed. Ms. Pac-Man PCB installation: Do not use the original Ms. Pac-Man daughterboard and ribbon cable with this kit. RAM Test version 1.09 and later: Setting DIP switches 1 and 2 to OFF enables the documented automatic RAM diagnostics during startup. Orientation: Verify Pin 1 alignment and inspect all processor pins before restoring power. Installation Information Installation type: Daughterboard upgrade for compatible original Pac-Man-family hardware Processor: Compatible Z80 processor Processor location: Documented 40-pin Z80 socket Soldering required: No, when the required Z80 location is already socketed Program ROM requirement: Remove the designated row 6 program ROMs Required ROMs: Graphics ROMs 5E and 5F must remain installed PCB compatibility: Documented compatible Pac-Man and Ms. Pac-Man PCBs Cabinet compatibility: Documented upright and cocktail configurations Installation guide: Download the Pac-Man installation guide Standard and Optional Wi-Fi Versions The Standard Kit permanently saves supported scores, initials, settings, and configuration data locally. It does not require an internet connection. The optional 2.4 GHz Wi-Fi Kit includes the same local features and can also submit supported completed scores after qualifying initials are entered. Wi-Fi can be disabled without affecting Pac-Man gameplay, game selection, Free Play, local score saving, or menu operation. Standard vs. Wi-Fi Kits View Global Arcade High Scores Pac-Man Kit FAQ Which Pac-Man versions are included? The kit includes original-speed Pac-Man and fast Pac-Man. Does this kit include Ms. Pac-Man? No. It can install on a documented compatible Ms. Pac-Man PCB, but its selectable game content is Pac-Man. Choose the separate Pac-Man/Ms. Pac-Man multigame kit when both games are wanted. How is the HighScoreSaves menu opened? Hold Player 1 Start for approximately four seconds during attract mode. How many high scores are saved? The kit permanently stores the Top 10 qualifying scores and player initials. Are fast and original Pac-Man scores separated? Yes. The two speed versions maintain independent supported high-score tables. Can I practice the kill screen? Yes. The menu provides a supported option to begin directly at Level 255. Which original ROMs are removed? The designated program ROMs in row 6 must be removed. Graphics ROMs 5E and 5F must remain installed. What changes when installing on a Ms. Pac-Man PCB? The original Ms. Pac-Man daughterboard and ribbon cable are not used with this HighScoreSaves kit. Does installation require soldering? Not when the required Z80 location already has a compatible 40-pin socket. A qualified arcade technician must install a socket when the processor is soldered directly to the PCB. Is Wi-Fi required? No. The standard kit saves supported scores, initials, and settings locally. Wi-Fi is optional for online score submission. Designed and supported by HighScoreSaves for documented compatible Pac-Man and Ms. Pac-Man arcade hardware. Resources 1. Pac-Man Installation Guide 2. HighScoreSaves Tips and Tricks 3. Pac-Man and Ms. Pac-Man Multigame Kit 4. Pac-Man Rearranged Multigame Kit 5. Compare All Pac-Man Kits
