Jail Break Free Play and High Score Save Kit
$75.00
Product information "Jail Break Free Play and High Score Save Kit"

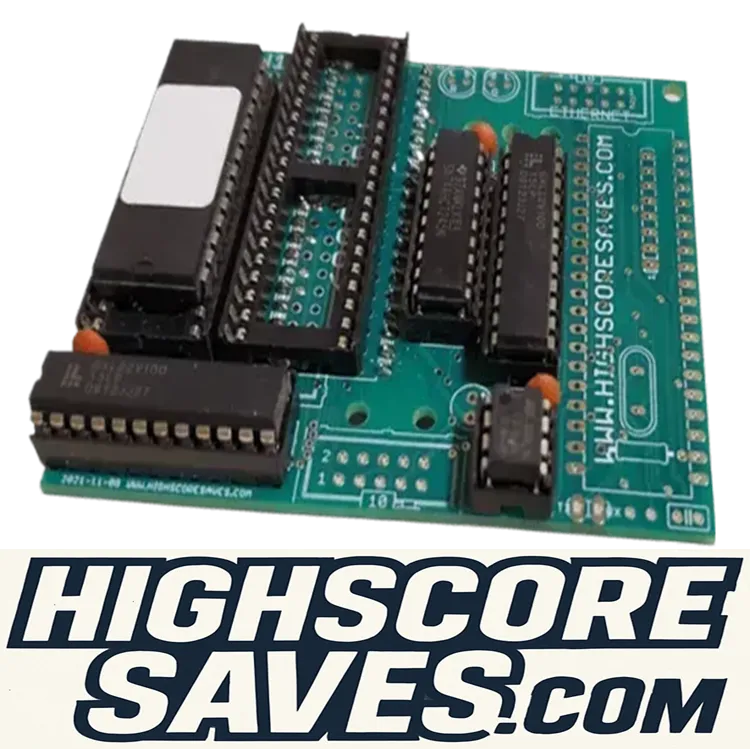

Jail Break Free Play and High Score Save Kit for Konami Arcade PCB
Upgrade your original Konami Jail Break arcade PCB with Free Play, Top 5 high score saving with initials, attract sounds, menu-driven settings, and optional Wi-Fi leaderboard support while preserving the original gameplay, timing, controls, and sound.

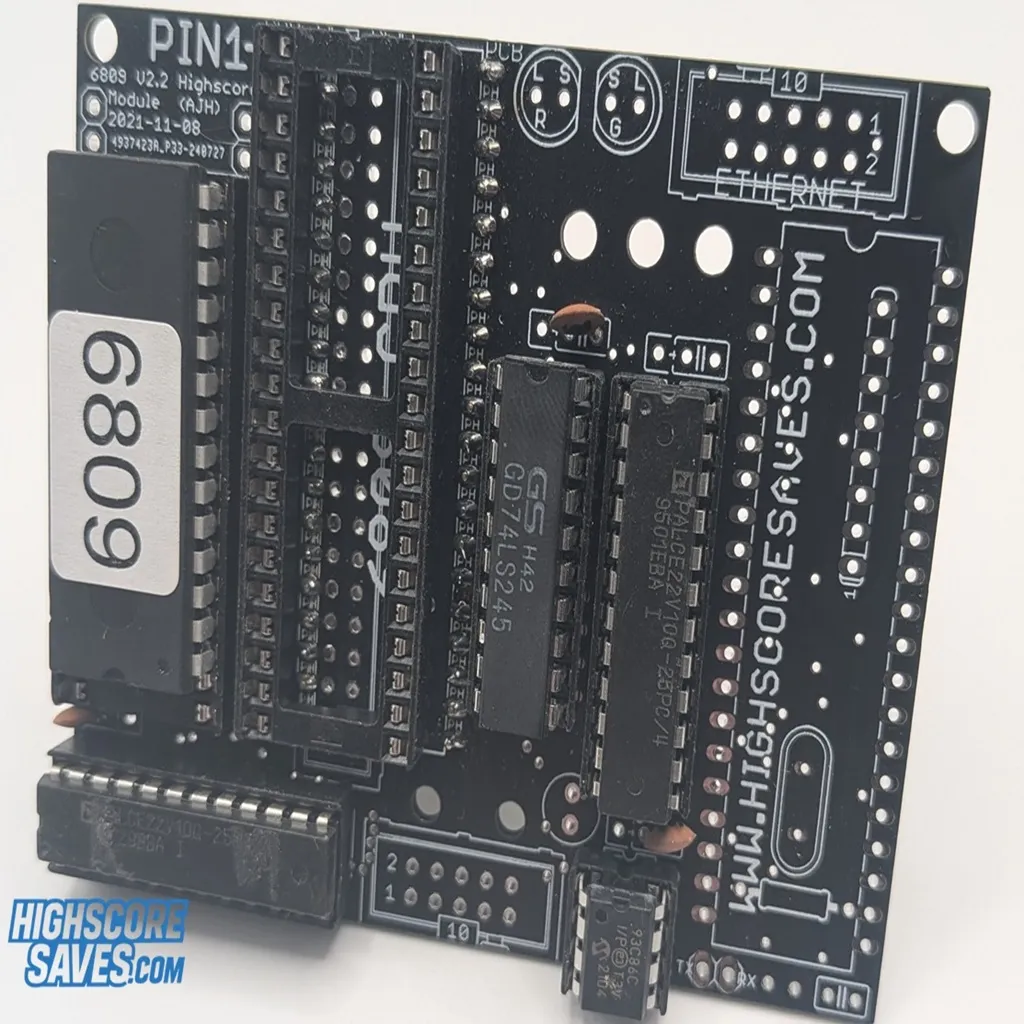

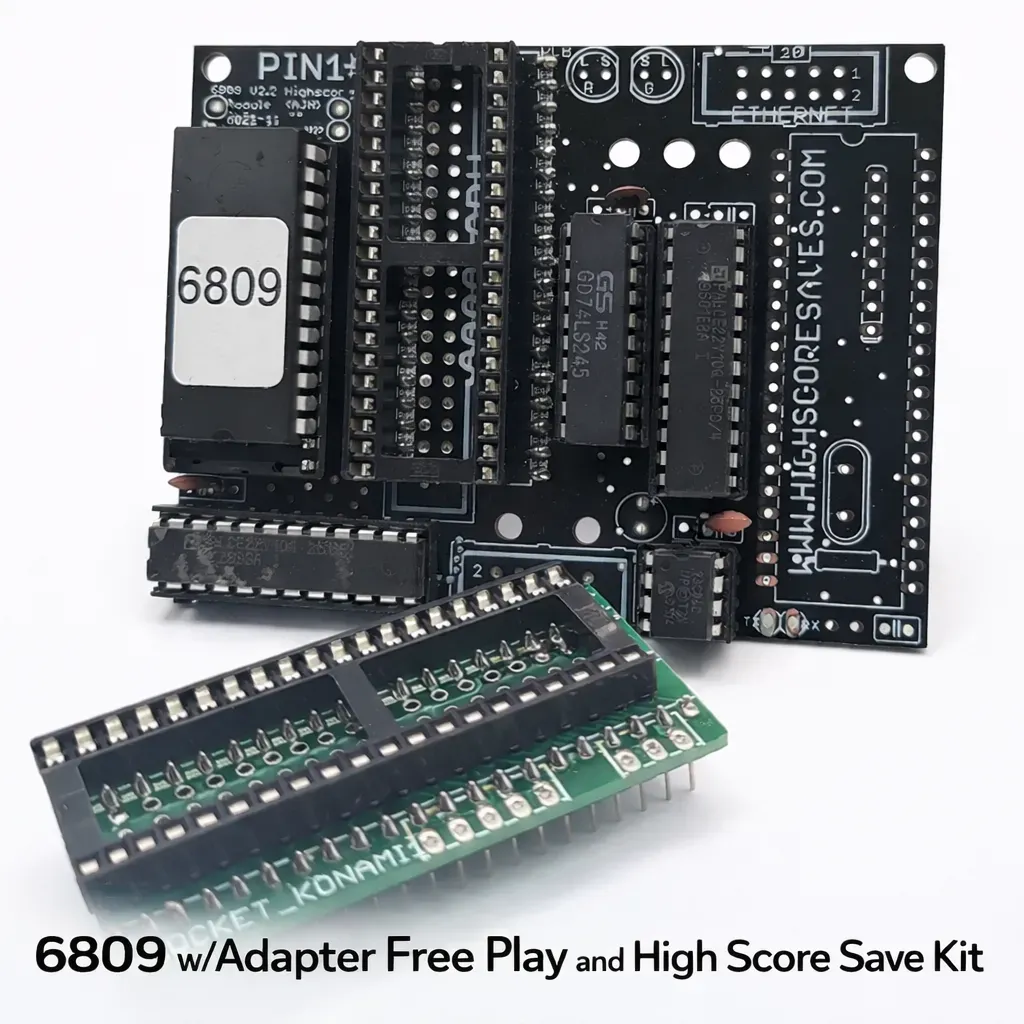

This plug-and-play arcade PCB upgrade uses the original 6809E processor and authentic Konami hardware. Installation requires a socketed 6809E CPU. No soldering is required when the original processor is already installed in a socket.
Free Play
Start games without coins while retaining normal coin operation when desired.
High Score Saving
Battery-free serial EEPROM storage retains scores and settings after power is turned off.
Optional Wi-Fi
Submit qualifying scores to the HighScoreSaves online leaderboard.
Original Hardware
Designed specifically for an original Konami Jail Break arcade PCB.
Add Permanent Score Saving to Your Original Jail Break Arcade PCB
Original Jail Break arcade hardware does not retain high scores after the machine is powered off. This kit adds battery-free serial EEPROM score storage while continuing to use the original Konami PCB, 6809E processor, controls, sound hardware, and game program.

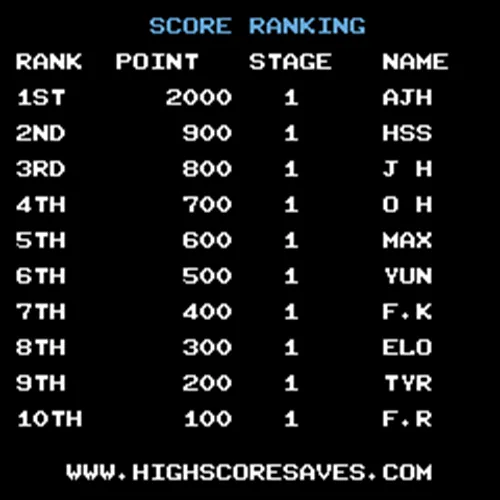

The kit permanently stores the Top 5 scores with player initials. It also adds Free Play, Coin-Up support, attract sounds, menu-driven DIP settings, separate score tables for 2, 3, 4, or 5 lives, attract-mode protection, ROM Saver support, and score backup and restore.
This is not an emulator, replacement game board, or multigame system. The original Jail Break gameplay remains unchanged.
Included Jail Break Kit Features
Play without coins while retaining optional coin operation.
Battery-free serial EEPROM storage retains scores after power is turned off.

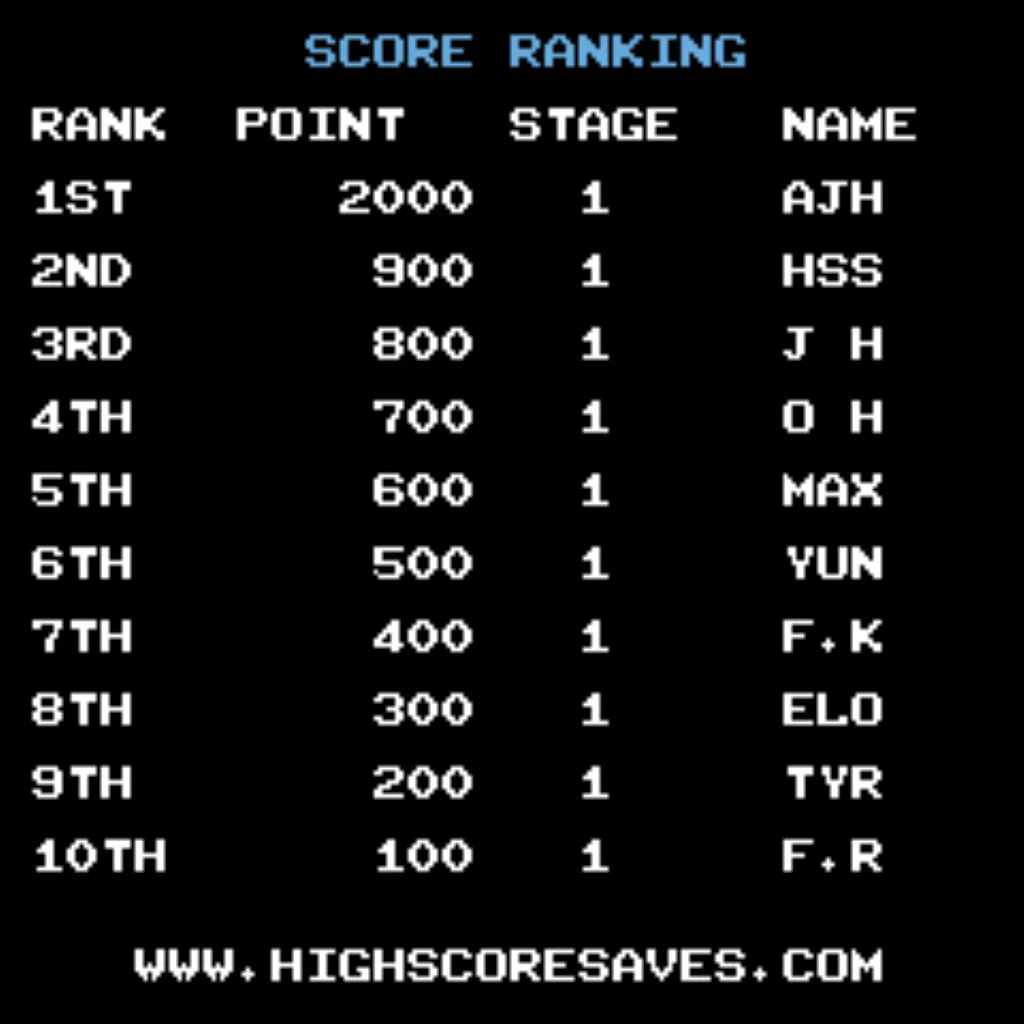

Permanently stores the Top 5 scores with player initials.
Adjust supported game options from the control panel after installation.
Additional settings help reduce prolonged static-image display time.
Back up stored score data and restore it when needed.
Maintains separate score tables for supported lives settings.
Provides full attract-mode audio support.
Supports removal of designated original program ROMs as explained in the installation guide.
Supports upright and cocktail Jail Break arcade cabinets using compatible original Konami hardware.
Jail Break Kit Installation Requirements
Original Konami Jail Break arcade PCB.
Easy when the original 6809E CPU is already socketed.
Requires the original 6809E processor.
No, when the 6809E CPU is already socketed.
The original 6809E processor must be installed in a compatible 40-pin socket.
A qualified arcade technician must remove the processor and install a 40-pin socket before the kit can be used.
Access to the arcade PCB is required during installation.
Upright and cocktail cabinets using compatible original hardware.
Standard and Optional Wi-Fi Jail Break Kits
Standard Kit
The Standard Kit permanently saves scores locally on the installed arcade PCB. It does not require an internet connection.

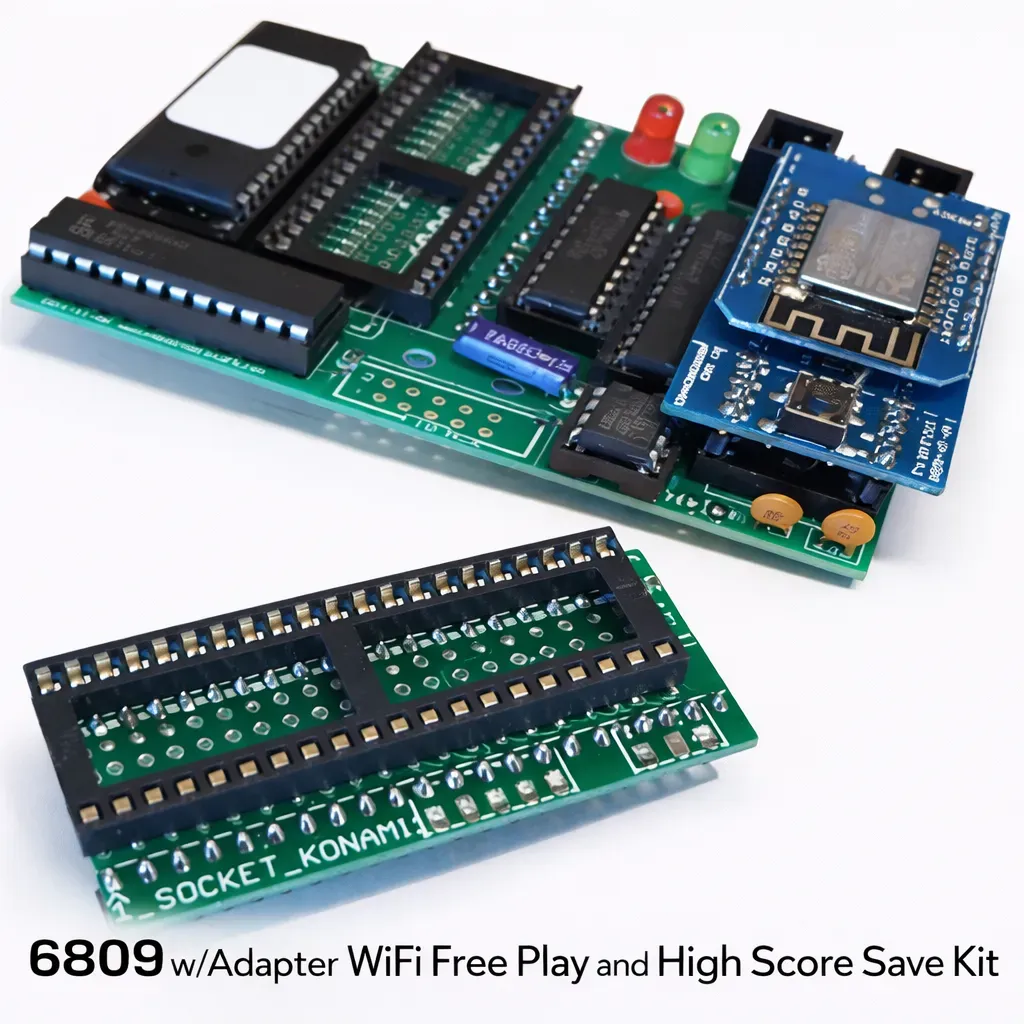

Wi-Fi Enabled Kit
The optional Wi-Fi Enabled Kit includes the same local score-saving features and can also submit qualifying scores to the HighScoreSaves online leaderboard after a player enters their initials.
Wi-Fi can be disabled without affecting local score saving or normal gameplay.
Jail Break Free Play and High Score Save Kit FAQ
Is the Jail Break Free Play and High Score Save Kit plug and play?
Yes, when the original 6809E CPU is already installed in a socket. The original processor is removed from the PCB, installed on the kit, and the assembled kit is placed into the original CPU socket.
Does Jail Break kit installation require soldering?
No soldering is required when the original 6809E CPU is already socketed. If the processor is soldered directly to the PCB, a qualified technician must install a 40-pin socket first.
How many high scores does the Jail Break kit save?
The kit permanently stores the Top 5 high scores with player initials.
Does the Jail Break kit change the original gameplay?
No. The kit continues to use the original Konami arcade PCB, processor, controls, sound hardware, and game program. It does not emulate or replace the original gameplay.
How is the HighScoreSaves Jail Break settings menu opened?

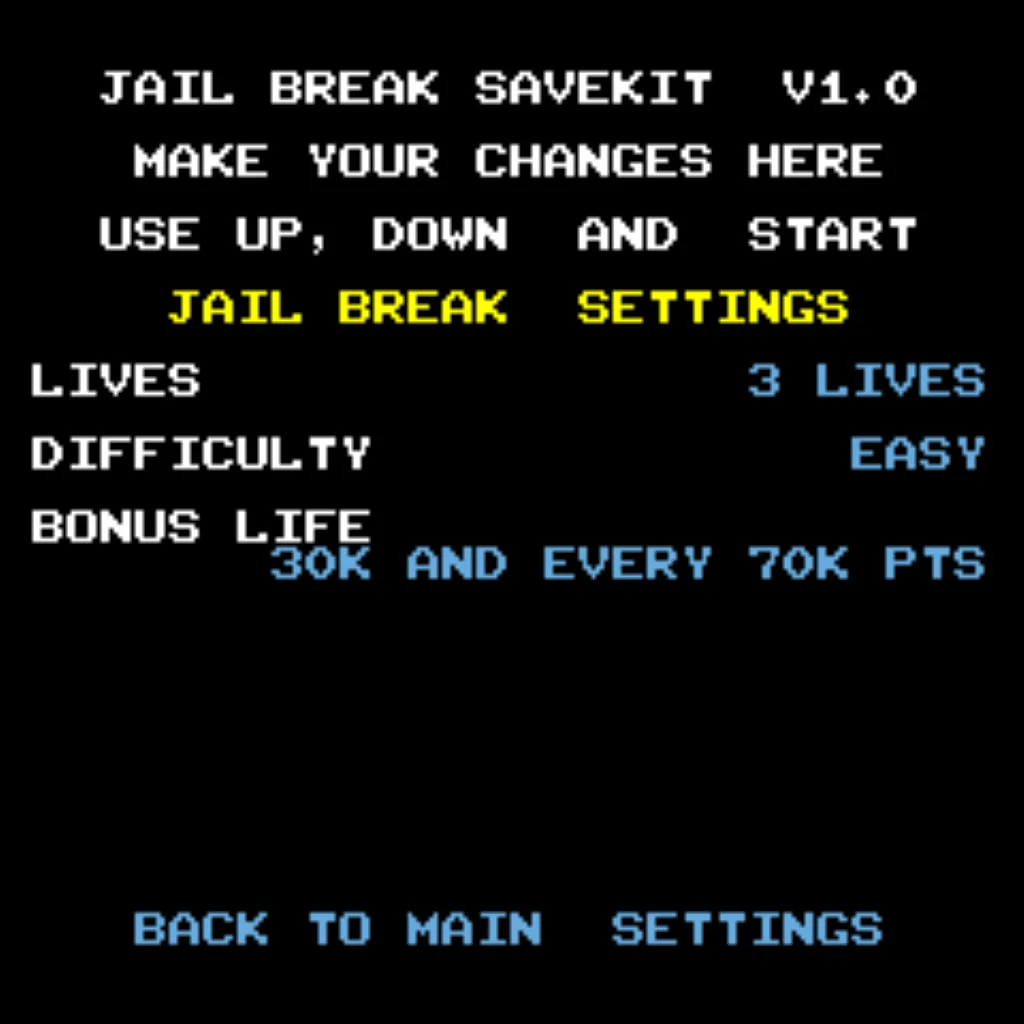

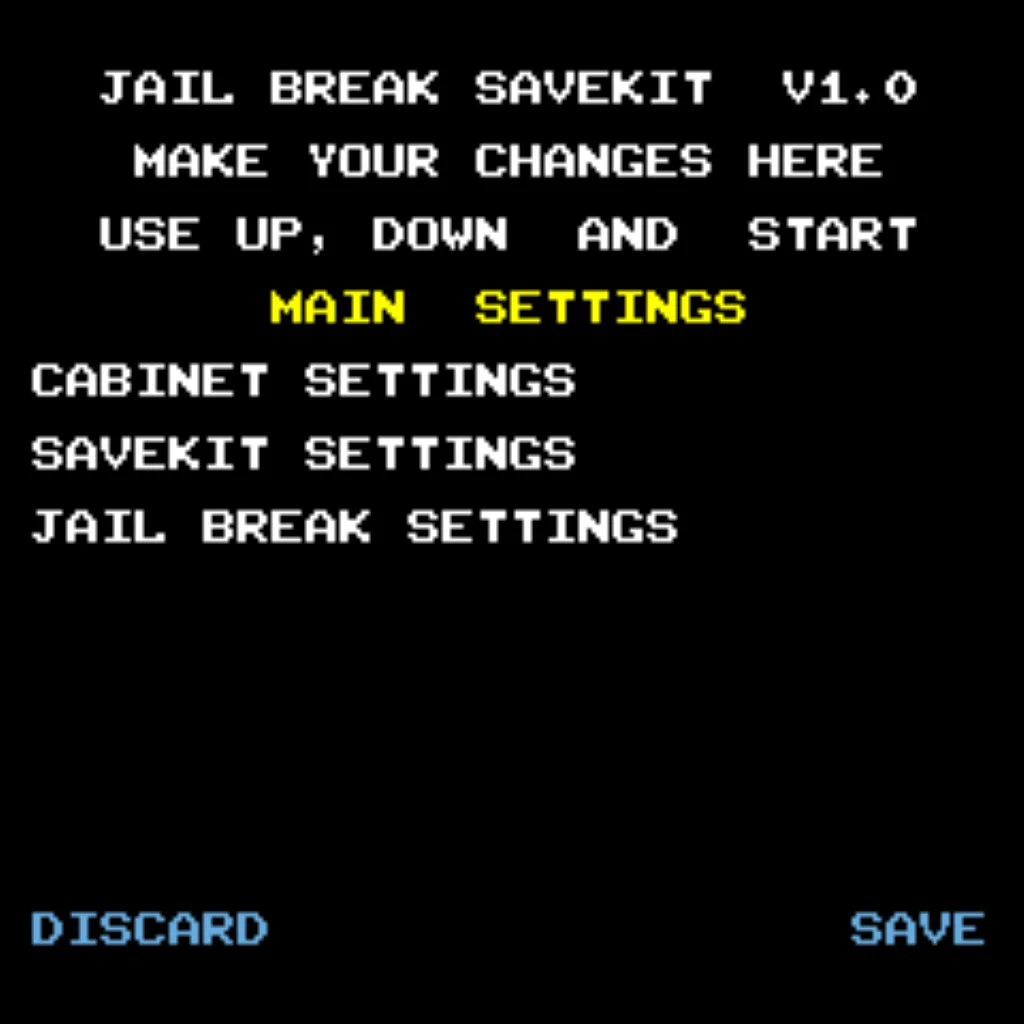

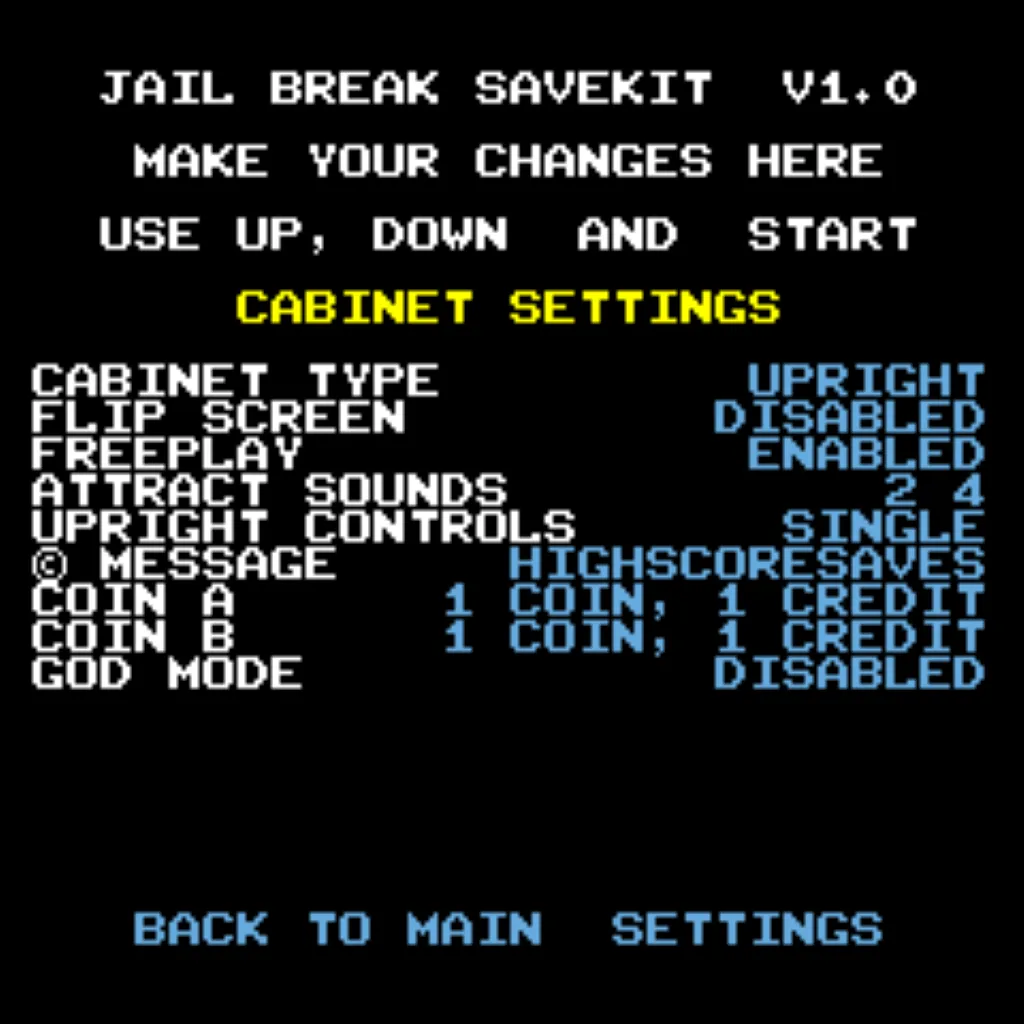

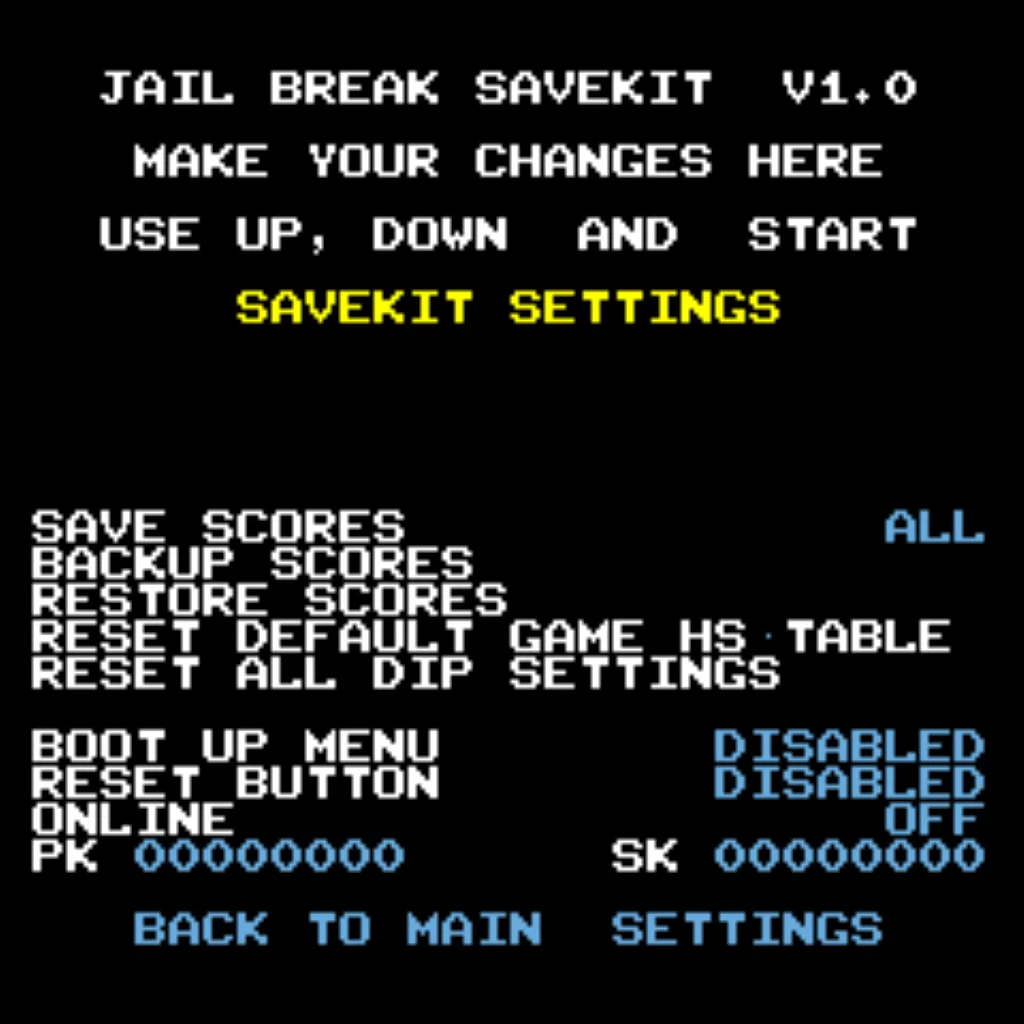

With the cabinet powered off, press and hold Player 1 Start. Continue holding Player 1 Start while turning the cabinet on for approximately four seconds, then follow the on-screen settings menu. Watch the Jail Break Kit Settings Menu Video for a complete walkthrough of the available menu options.
What is the difference between Standard and Wi-Fi kits?
Both versions save scores locally. The Wi-Fi version can also upload scores to the HighScoreSaves online leaderboard.
Does the Jail Break kit save player initials?
Yes. Players can enter and permanently save initials alongside their Top 5 scores.
Where can I download the Jail Break installation guide?
Jail Break Arcade Kit Resources
2. Jail Break Kit Settings Menu Video
Watch how to enter and use the settings menu for the Jail Break Free Play and High Score Save Kit, including the available menu options and controls.
