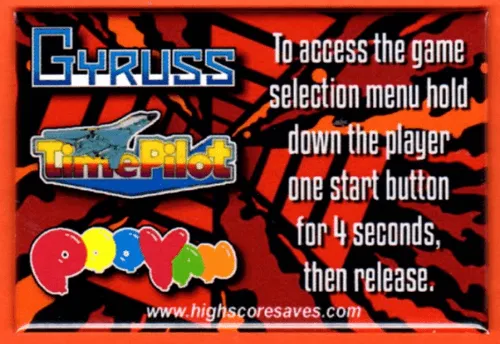

Gyruss | Time Pilot Multigame Instruction Magnet

Gyruss Multigame Free Play and High Score Save Kit for Original Konami and Centuri Hardware Upgrade a compatible original Gyruss arcade PCB with Gyruss, Time Pilot, and Pooyan, plus Free Play, Top 5 high score saving with initials, serial EEPROM storage, attract sounds, extended scoring, menu-driven settings, and optional Wi-Fi leaderboard support. Designed for original Konami and Centuri arcade hardware, this multigame upgrade preserves authentic arcade PCB operation while adding modern playability, score-saving, and setup features. Games Included: Gyruss • Time Pilot • Pooyan Original Arcade Hardware • No Emulation • No Gameplay Changes • Designed for Authentic Arcade PCBs View/Download Gyruss Multigame Install Guide (PDF) 3 Games Included Switch between Gyruss, Time Pilot, and Pooyan on compatible original Gyruss hardware. Permanent High Scores Saves the Top 5 scores with initials for each supported game. Extended Scoring Supports score display up to 9,999,990 points. Optional Wi-Fi Upload scores online to the HighScoreSaves global leaderboard platform. Upgrade Your Gyruss Arcade PCB with Three Supported Games The Gyruss Multigame Free Play and High Score Save Kit modernizes a compatible original Gyruss arcade PCB while keeping the original hardware platform in service. It adds multigame selection, Free Play, permanent score saving, menu-driven settings, attract sound options, and optional online leaderboard support. This is not an emulation board, reproduction PCB, or multicade conversion. It is designed for original Gyruss arcade hardware and keeps the cabinet running on authentic arcade electronics. Included Games Gyruss Konami's classic circular space shooter with fast enemy waves, distinctive movement, and iconic arcade sound. Time Pilot Multidirectional aerial shooting with era-based stages and classic arcade action. Pooyan Konami arcade action with balloon combat, precision shooting, and classic cartoon-style gameplay. Available Kit Options Choose between a Wi-Fi Enabled Kit or a Standard Save Kit. Optional processor and socket upgrades are also available to simplify installation on original hardware. Standard kits save scores locally to the PCB. Wi-Fi enabled kits add automatic online score syncing through the HighScoreSaves global leaderboard platform. Main Features Three supported games: Gyruss, Time Pilot, and Pooyan. Free Play: Play without coins while retaining traditional Coin-Up operation. Permanent high score saving: Saves the Top 5 scores with initials for each game. Serial EEPROM storage: Saves score data without batteries or NVRAM. Attract sounds: Adjustable at 25%, 50%, or 100% sound cycles. Attract mode protection: Helps reduce burn-in during idle periods. On-screen DIP settings: Menu-driven gameplay and configuration settings. ROM Saver: Original program ROMs may be removed when installed as directed. Copyright selection: Choose Centuri or HighScoreSaves branding. Extended scoring: Supports score display up to 9,999,990 points. High Scores button: Quickly view saved score tables for the selected game. All Global High Scores button: Useful with Wi-Fi enabled leaderboard support. Backup and restore: Save and restore high scores when needed. Separate score tables: Individual tables for 3, 5, or 6 lives settings. Reset button: Restart gameplay without powering down the cabinet after enabling the reset option. Self-test: Accessible through the menu or by turning all DIP switches OFF. God Mode: Unlimited lives practice mode with score saving disabled. Stealth Mode Multigame: Choose Gyruss, Time Pilot, or Pooyan during boot. Cabinet compatibility: Supports documented upright and cocktail cabinets. Important Installation Notes Original hardware required: Designed for compatible original Gyruss arcade PCBs. Socketed Z80 required: Install a compatible 40-pin socket if the Z80 CPU is not already socketed. Additional socketing required on many boards: Most Gyruss PCBs require sockets for 3× 16-pin PROMs and 1–2× 16-pin LS377s. No cutting or special wiring: No board trace cutting or special wiring is required beyond socket installation. Verify Pin 1 orientation, processor alignment, socket condition, board seating, and all pins before restoring cabinet power. Read the Gyruss Multigame Installation Guide PDF before setup. Optional Wi-Fi Features and Online Leaderboards Standard kits save scores locally to the PCB and do not require an internet connection for gameplay, Free Play, local score saving, multigame selection, or menu operation. Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network. Learn About Wi-Fi Enabled Kits View Global Arcade High Scores Gyruss Multigame FAQ Which games are included with the Gyruss Multigame kit? The kit includes Gyruss, Time Pilot, and Pooyan for compatible original Gyruss arcade hardware. Does the Gyruss Multigame kit require soldering? Many original Gyruss PCBs require sockets for the Z80 CPU, 3× 16-pin PROMs, and 1–2× 16-pin LS377s before installation. How many high scores does the Gyruss Multigame kit save? The kit saves the Top 5 scores with initials for each supported game using serial EEPROM storage. Does Free Play disable Coin-Up operation? No. Traditional Coin-Up operation is still supported when Free Play is disabled. How do I switch between Gyruss, Time Pilot, and Pooyan? The kit uses Stealth Mode Multigame selection during boot to choose between Gyruss, Time Pilot, and Pooyan. What is Extended Scoring on the Gyruss Multigame kit? Extended Scoring supports score display up to 9,999,990 points. Does the Gyruss Multigame kit support upright and cocktail cabinets? Yes. The kit supports documented upright and cocktail cabinet configurations. Does the Gyruss Multigame kit support Backup and Restore? Yes. Supported high scores can be backed up and restored when needed. Is Wi-Fi required for the Gyruss Multigame kit? No. Standard kits save scores locally. Wi-Fi is optional for online leaderboard support. Designed and supported by HighScoreSaves for arcade collectors, restorers, and original hardware enthusiasts. Resources and Guides 1. Gyruss Multigame Free Play and High Score Save Kit — Installation Guide PDF 2. What’s a Wi-Fi Enabled Kit or Standard Kit? 3. HighScoreSaves Tips and Tricks 4. HighScoreSaves YouTube Channel 5. HighScoreSaves Facebook Page
