Galaxian Multigame Free Play and High Score Save Kit
Product information "Galaxian Multigame Free Play and High Score Save Kit"
Vector Labs Galaxian 19-in-1 Multigame Free Play and High Score Save Kit
Upgrade documented compatible original Galaxian-hardware arcade PCBs with a selectable 19-game menu, Free Play, Top 5 high-score saving per game, menu-driven settings, ROM Saver capability, and upright or cocktail cabinet support.
This Vector Labs multigame system continues to use the original Galaxian arcade PCB rather than replacing it with an emulation computer, reproduction PCB, or generic multicade platform.
Galaxian 19-in-1 Multigame Kit Highlights

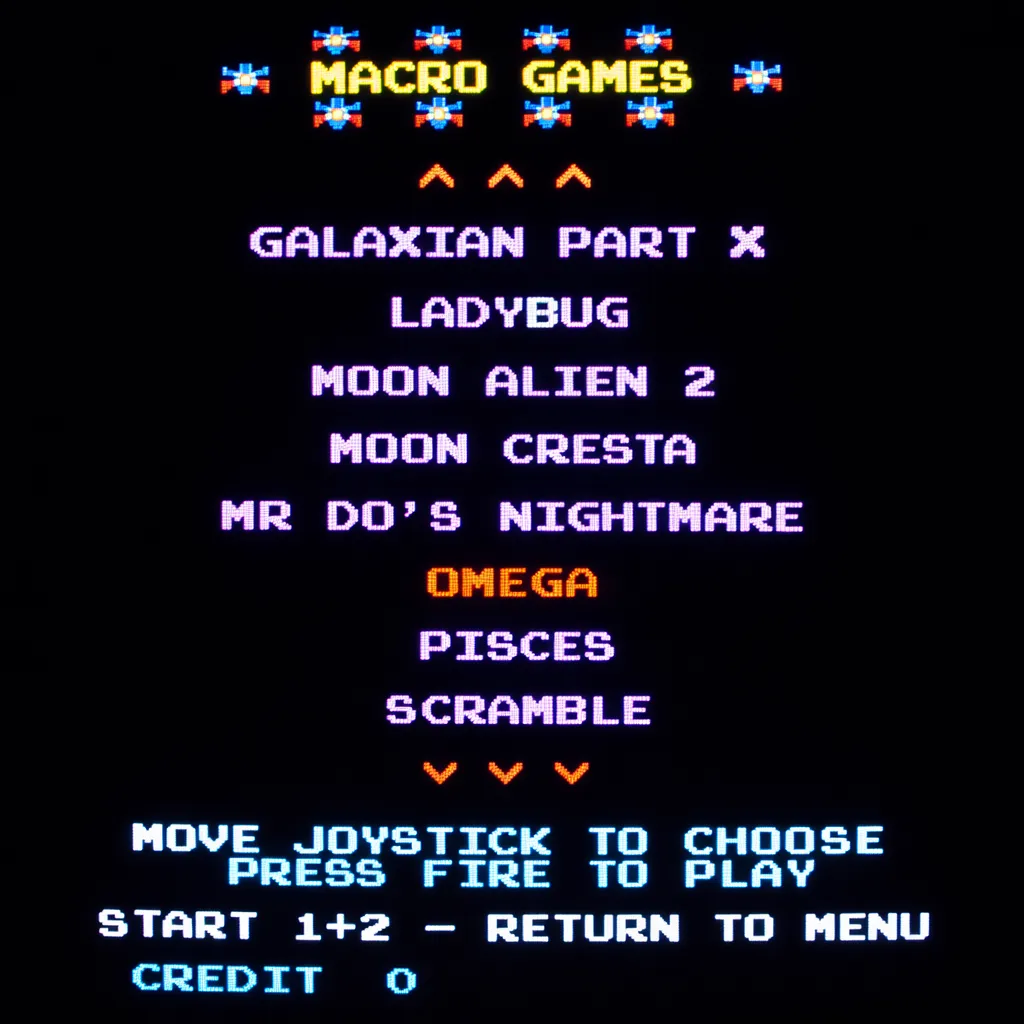

Choose supported Galaxian-hardware titles from an on-screen multigame menu.
Stores the five highest supported scores independently for each game.
Enable Free Play or continue using traditional coin operation.
Configure the kit to bypass the selection menu and start directly in a supported favorite title.
Compatibility & Requirements

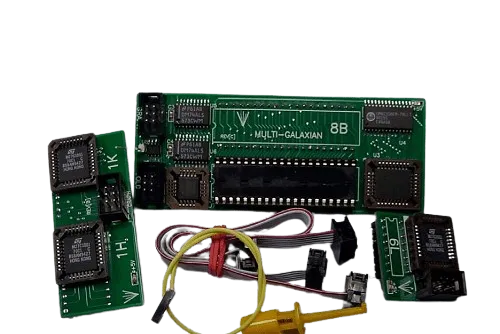

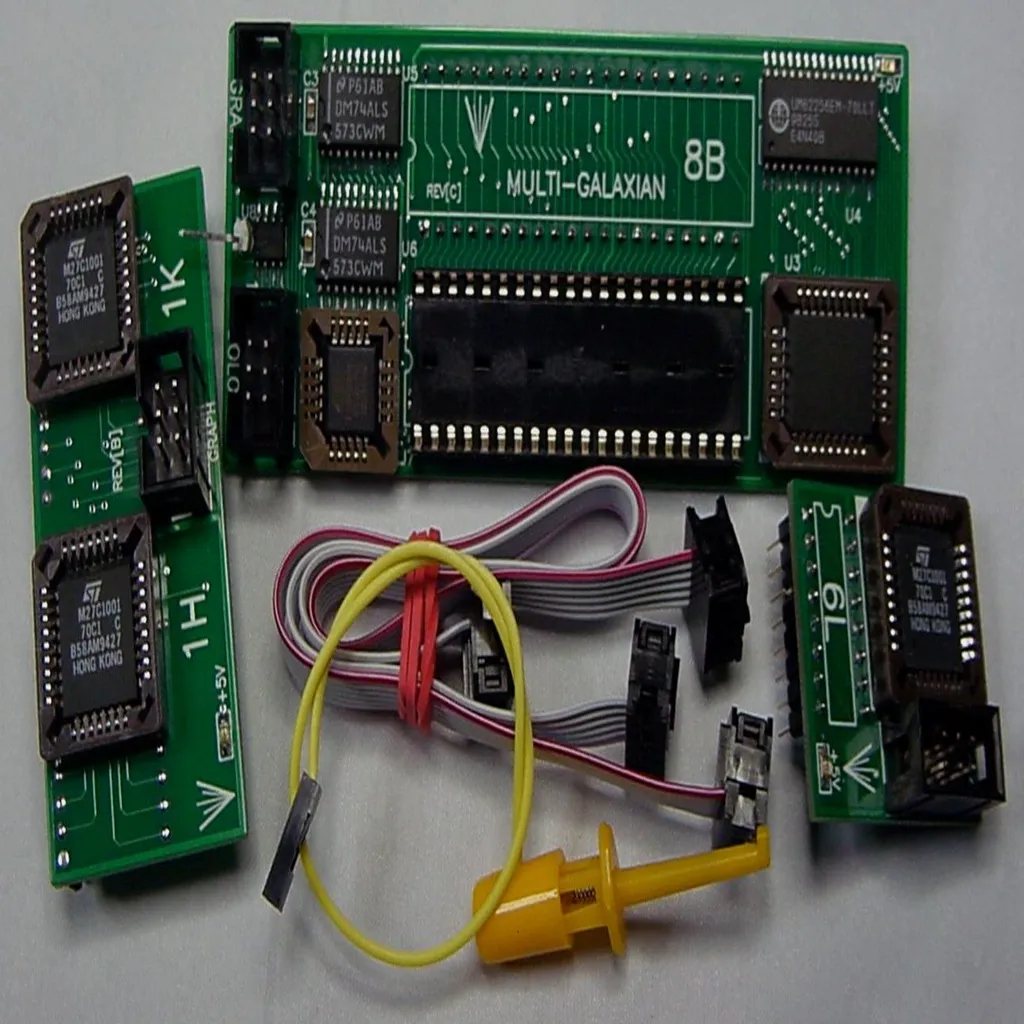

Vector Labs 19-in-1 Hardware Included
The current Vector Labs installation guide documents the following components as part of the Galaxian 19-in-1 system:

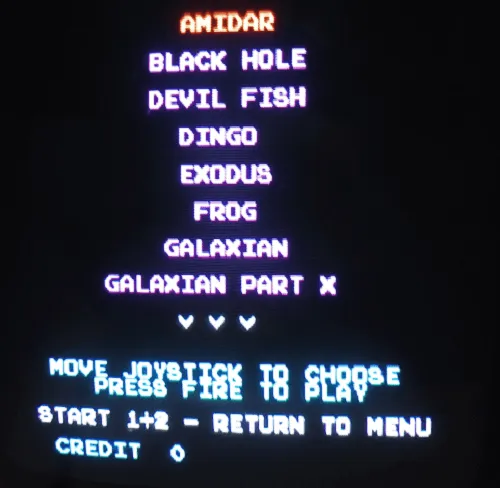

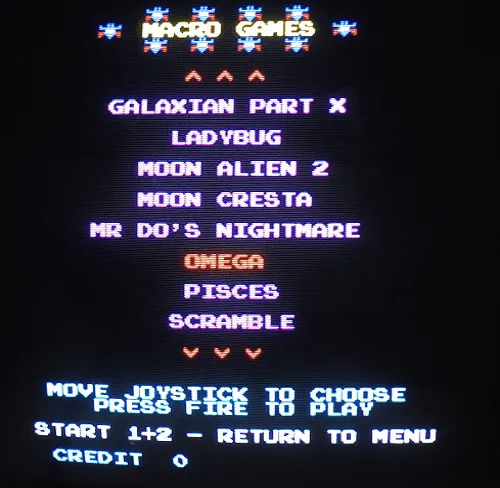

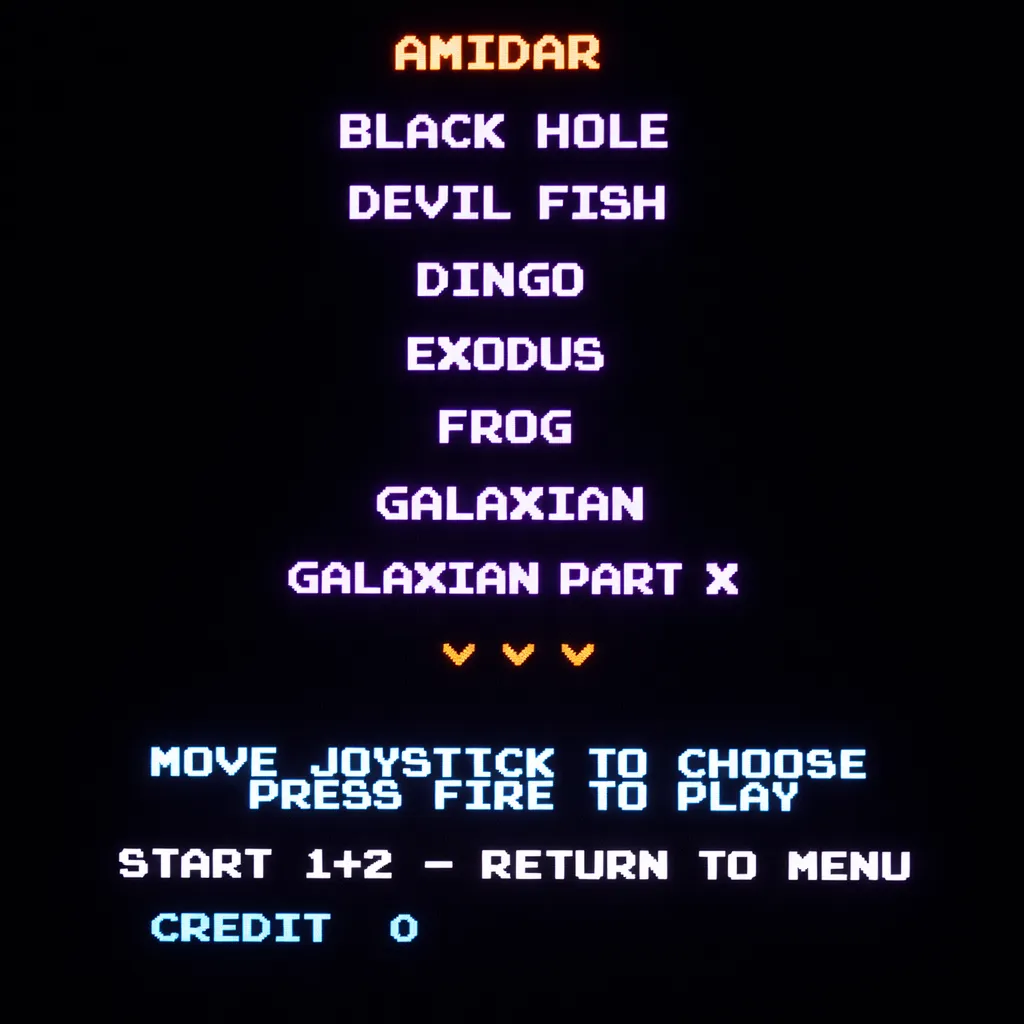

19 Games Included
- Amidar
- Black Hole
- Devil Fish
- Dingo
- Exodus
- Frog
- Galaxian
- Galaxian Part X
- Lady Bug
- Moon Alien 2
- Moon Cresta
- Mr. Do’s Nightmare
- Omega
- Pisces
- Scramble
- Super Invader Attack
- Uni Wars
- Video Pool
- War of the Bugs
Joystick and Button Requirements

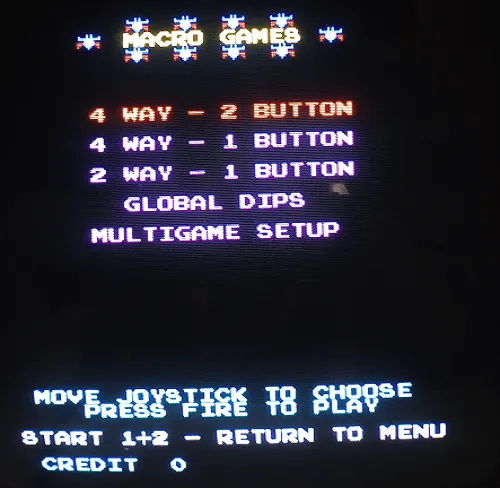

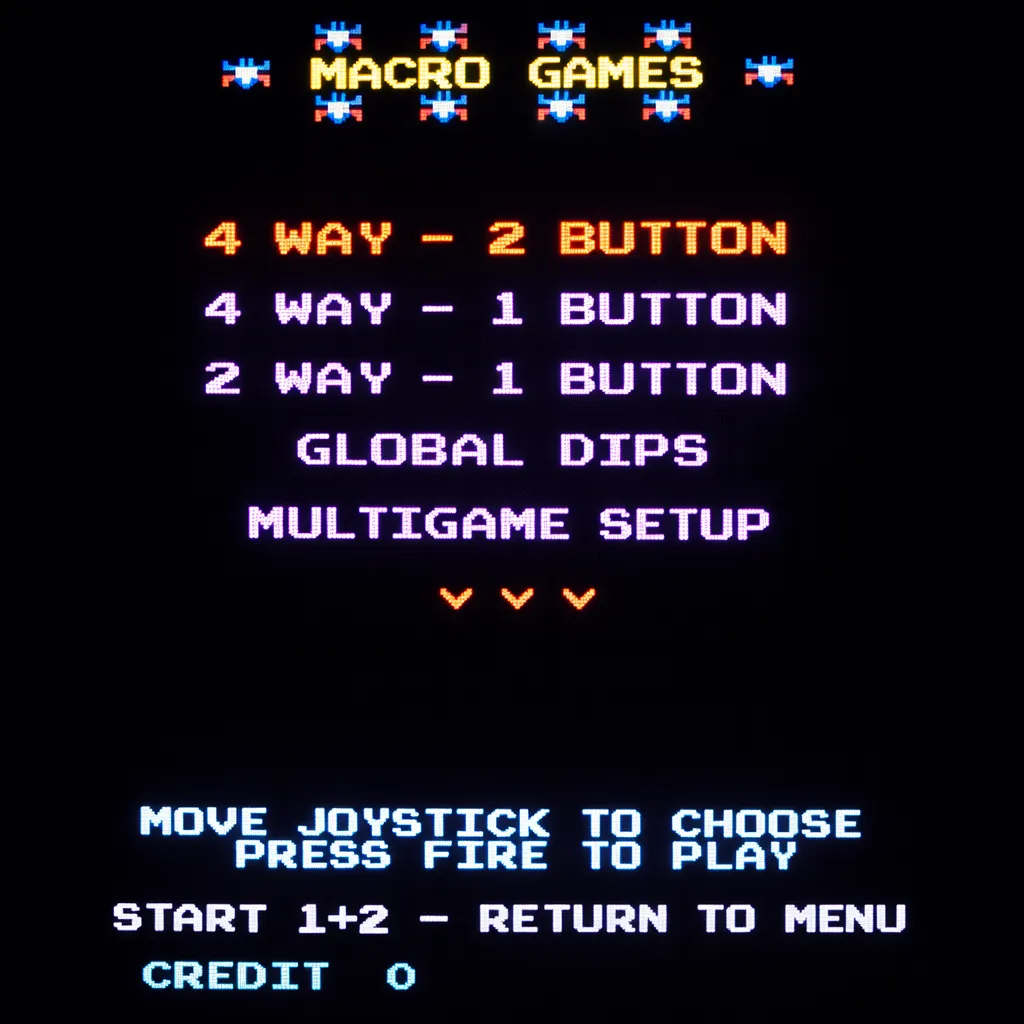

The menu can restrict the available game list based on the controls installed in your cabinet.
Galaxian Harness and Edge-Connector Changes
Some games require additional joystick directions or a second button. The Vector Labs guide repurposes several original Galaxian edge-connector positions for these controls.
| Edge Position | New Multigame Function |
|---|---|
| #9 | Player 1 Joystick UP |
| #K | Player 1 Joystick DOWN |
| #R | Player 1 Button 2 |
| #8 | Player 2 Joystick UP |
| #14 | Player 2 Joystick DOWN |
Required PCB DIP Settings
DIP3 = ON DIP4 = ON DIP5 = OFF
Important: DIP5 must remain OFF for normal score-saving operation. Setting DIP5 ON clears NVRAM at each reset and prevents saved high scores from being retained.
Galaxian 19-in-1 Installation Overview
This installation uses multiple daughterboards and several original Galaxian PCB locations. Review the complete guide before removing any chips.
Remove the documented large ROM board from IC locations 7F and 7L.
If location 6L already has a compatible socket, the replacement color PROM board can be installed there. If it is soldered, the original chip must be removed and a compatible 16-pin socket installed.
Remove the original Z80 processor from socket 8B.
Install the supplied CR1220 battery in the CPU daughterboard using the polarity shown in the Vector Labs installation guide.
Install the 19-in-1 CPU board into the original Z80 socket at location 8B, then reinstall the Z80 processor on the daughterboard.
Install the replacement color PROM board and connect the shorter supplied ribbon cable.
Remove the documented original ROMs from locations 1H and 1K.
Install the Vector Labs graphics board into sockets 1H and 1K, then connect the longer ribbon cable.
Connect the supplied grabber lead to the CPU daughterboard and attach the mini-grabber to Pin 1 of IC 3J.
Some Galaxian PCBs Require Socket Installation at 6L
The basic kit is plug-in only when the required PCB locations are already socketed. If the original color PROM at location 6L is soldered directly to the PCB, it must be properly removed and a compatible 16-pin socket installed before fitting the Vector Labs color PROM board.
CR1220 Battery and Saved Scores
The Vector Labs CPU daughterboard uses a CR1220 battery. The installation guide notes typical battery life of approximately one year.
If saved-score retention changes unexpectedly, check both the CR1220 battery and the required DIP settings before assuming the multigame hardware has failed.
Check the Galaxian +5V Power Supply
The Vector Labs installation guide specifically recommends checking the cabinet's +5V rail because aging classic arcade power supplies can drift out of specification.
The documented acceptable TTL operating range is 4.75VDC minimum to 5.25VDC maximum.
If the PCB voltage is below 4.75VDC and the supply cannot be properly adjusted, correct the power-supply problem before troubleshooting the multigame kit.
Additional Multigame Features
- Selectable game menu: Choose supported games from the on-screen selector.
- Direct boot: Configure the kit to boot directly into a selected game.
- Top 5 high-score saving: Maintains supported score tables for each included game.

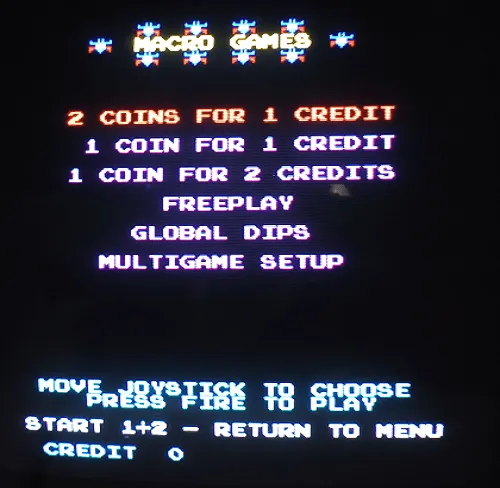

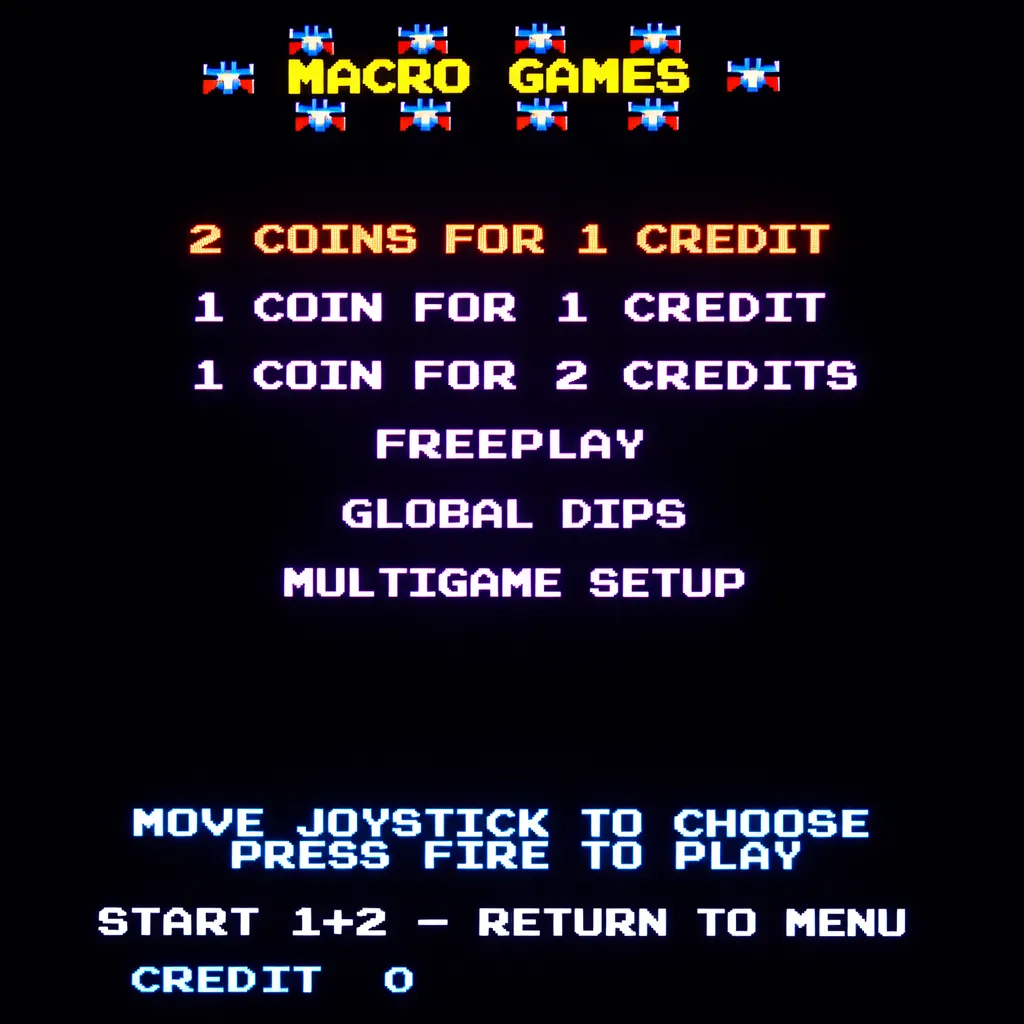

- Free Play: Start supported games without inserting coins.
- Coin operation: Traditional coin-up operation remains available.

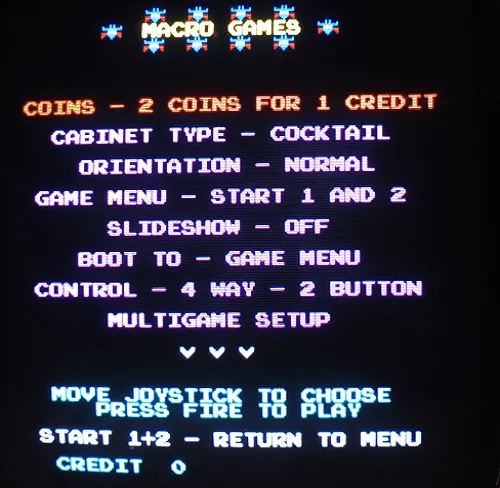

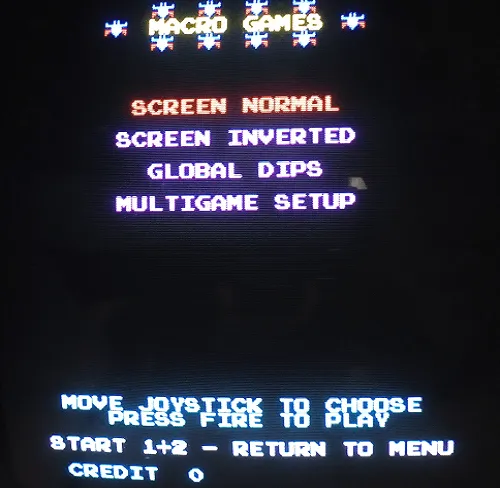

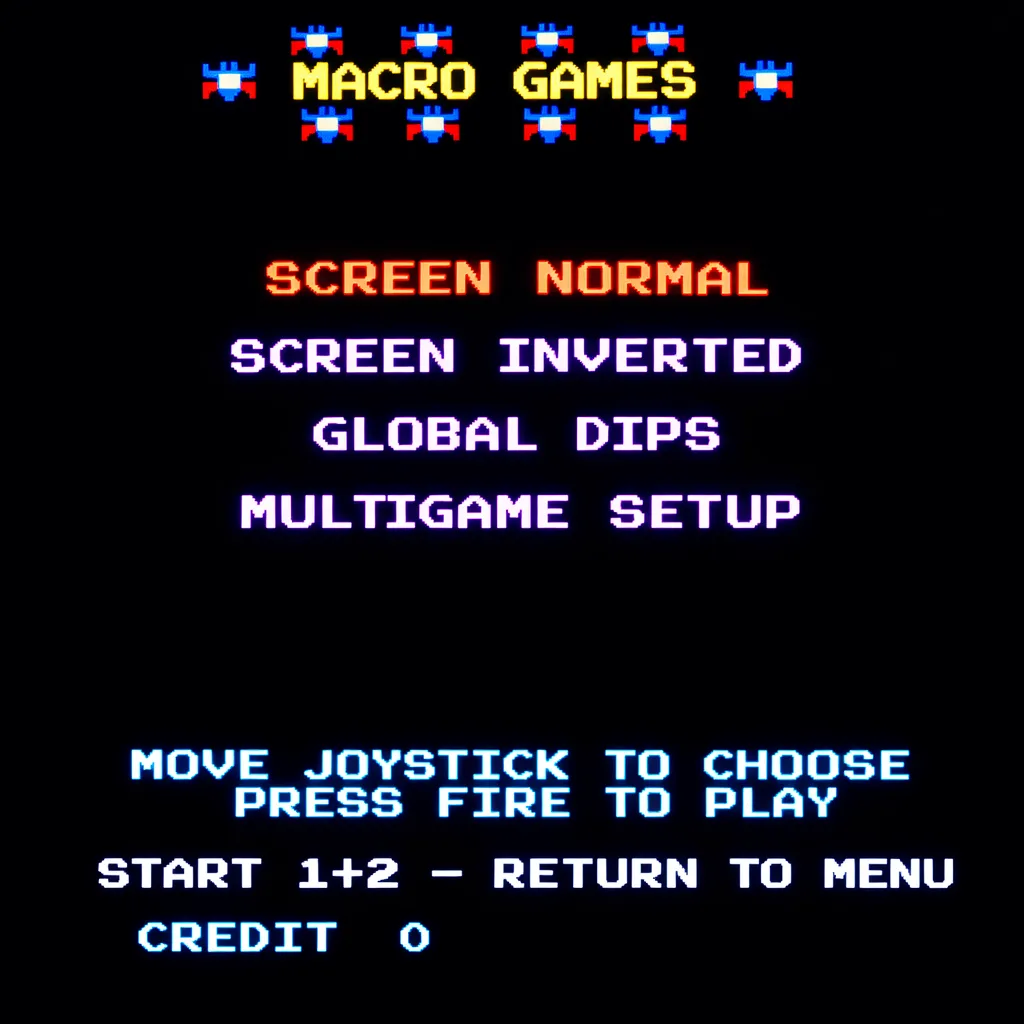

- Menu-driven DIP settings: Adjust supported game options through the multigame interface.
- ROM Saver: Removes dependence on documented original program ROM hardware when installed according to the Vector Labs guide.
Vector Labs Galaxian 19-in-1 FAQ
How many games are included?
The Vector Labs Galaxian Multigame includes 19 supported Galaxian-hardware games.
Which processor location is used?
The original Z80 is removed from socket 8B, the 19-in-1 CPU board installs at 8B, and the Z80 is then installed on the daughterboard.
Can installation require soldering?
Yes. Some Galaxian PCBs do not have a socket at color PROM location 6L. On those boards, the original chip must be removed and a compatible 16-pin socket installed.
Does the kit require a battery?
Yes. The CPU daughterboard uses a CR1220 battery. The Vector Labs installation guide notes typical battery life of approximately one year.
Which DIP settings are required?
Set DIP3 ON, DIP4 ON, and DIP5 OFF. DIP5 ON clears NVRAM on reset and prevents normal saved-score retention.
What controls give access to all 19 games?
A 4-way joystick with two buttons provides the broadest compatibility. Scramble specifically requires the second button.
Can extra wiring be required?
Yes. Some games require UP/DOWN joystick wiring, and Scramble requires a second button connection. Review the documented Galaxian edge-connector changes.
What voltage should the PCB receive?
The Vector Labs guide specifies a +5V TTL operating range of 4.75VDC to 5.25VDC at the game PCB.
Does the kit work in cocktail cabinets?

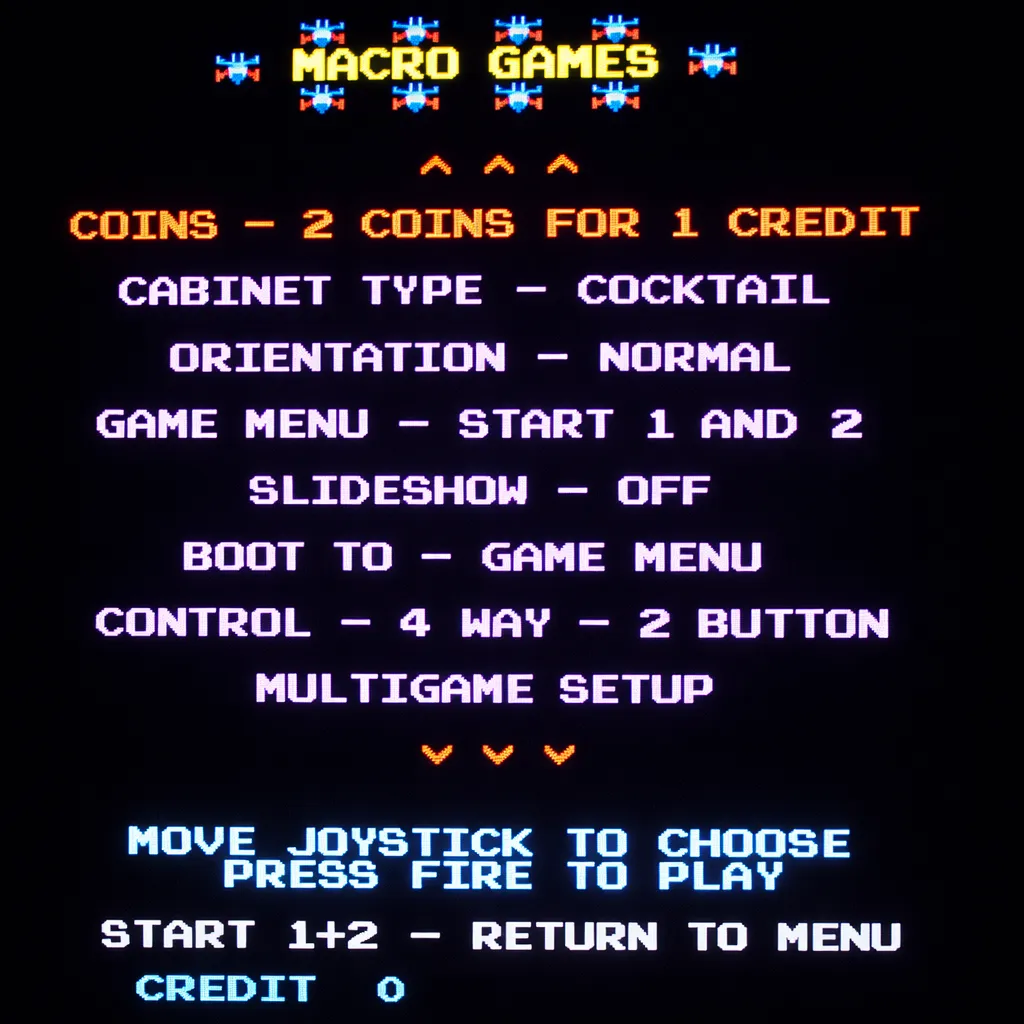

Yes. Current product documentation lists documented upright and cocktail cabinet configurations.
