Frogger Free Play and High Score Save Kit
Product information "Frogger Free Play and High Score Save Kit"
Frogger Free Play and High Score Save Kit for Konami and SEGA/Gremlin Arcade PCBs
Upgrade your original Frogger arcade PCB with reliable free play, high score saving, initials entry, and optional Wi-Fi leaderboard functionality while preserving authentic gameplay and original arcade hardware.
Designed specifically for original Konami and SEGA/Gremlin hardware, this plug and play upgrade improves long-term reliability without changing gameplay timing, controls, sound, or the classic arcade experience collectors expect.
Play without coins while still supporting optional Coin Up operation.
Permanently saves the Top 5 scores with initials entry support.
Access the menu by holding Player 1 during power-on.
Upload scores online to global arcade leaderboards.
Upgrade Your Frogger Arcade Experience
Restore and enhance your original Frogger arcade machine with a professionally designed Free Play and High Score Save Kit built specifically for authentic Konami and SEGA/Gremlin arcade hardware.
Original boards often lose high scores, rely on aging components, or suffer from unstable resets. This upgrade modernizes your PCB while preserving the original gameplay, controls, timing, and arcade feel that made Frogger one of the most recognizable and beloved arcade games ever created.
Unlike multigame systems or reproduction boards, this kit keeps your original arcade PCB intact while improving long-term reliability for collectors, operators, and restoration projects.
Available Kit Options
Build your kit exactly how you want it. Choose between a Wi-Fi Enabled Kit or a Standard Save Kit.
Optional processor and socket upgrades are also available to simplify installation on original hardware.
Important Installation Notes
- PCB Compatibility: Works on original Konami or SEGA/Gremlin PCBs with a 36-pin edge connector
- Socketed Z80 required: Install a 40-pin socket if your Z80 processor is soldered directly to the board
- Read the Frogger Installation Guide before starting installation
Included Features
- Easy Installation: No soldering, board modifications, or special wiring required
- Permanent Score Saving: Uses reliable serial EEPROM instead of batteries or failure-prone NVRAM

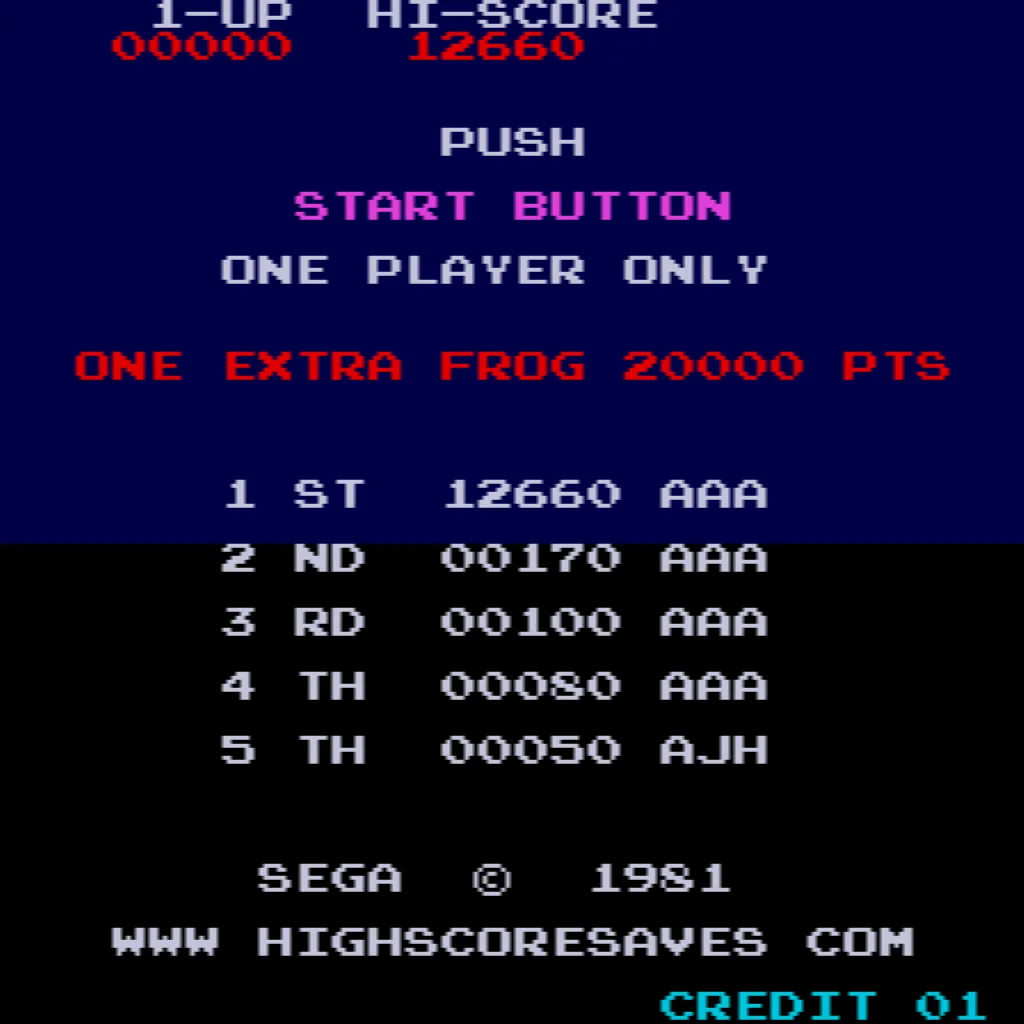

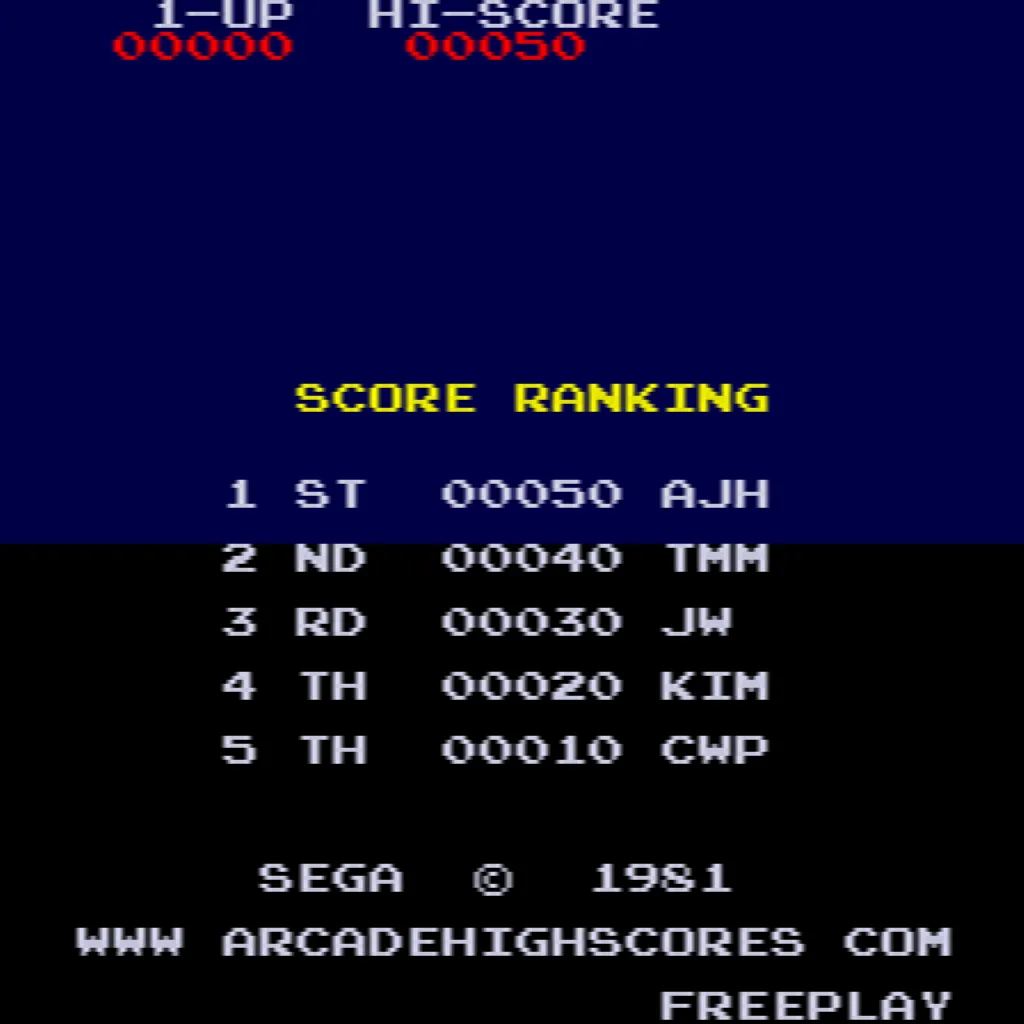

- High Score Save: Saves the Top 5 scores directly on-screen
- Initial Entry: Enter and permanently save player initials

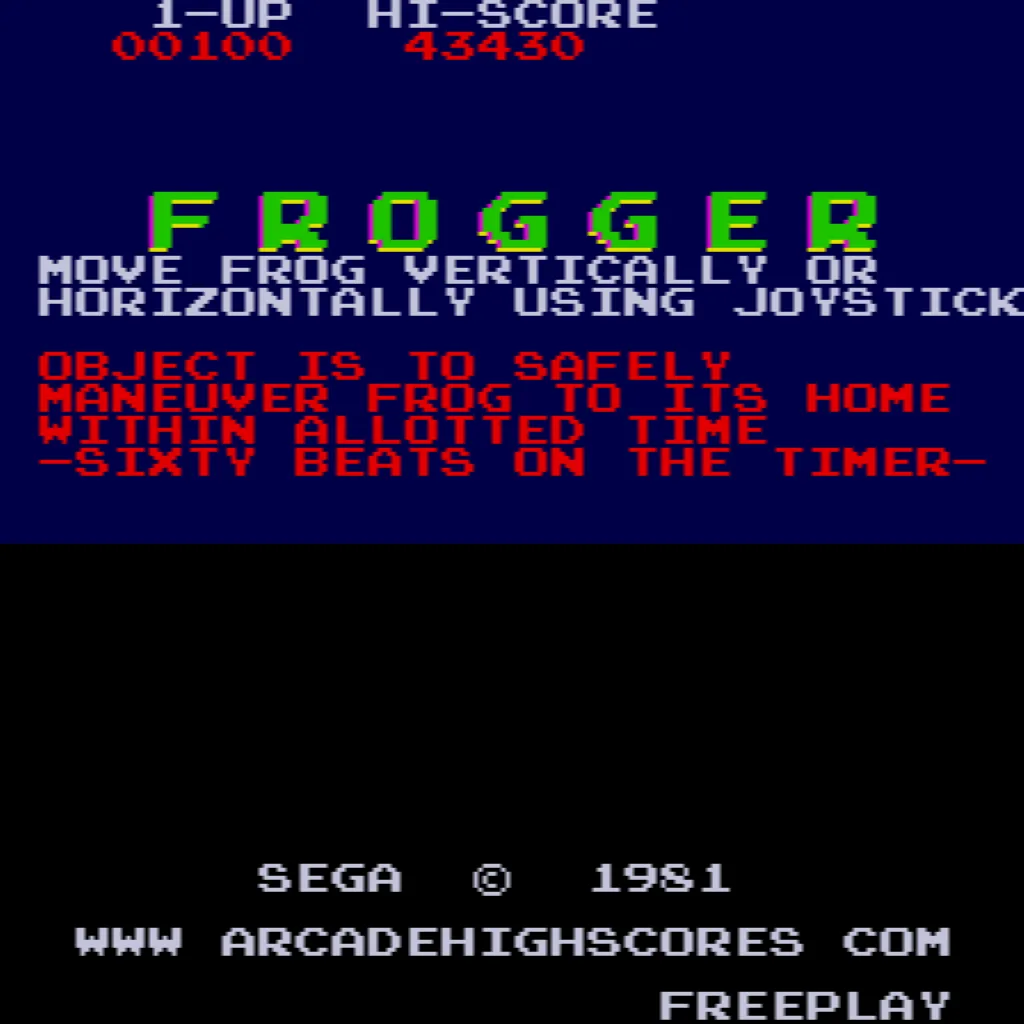

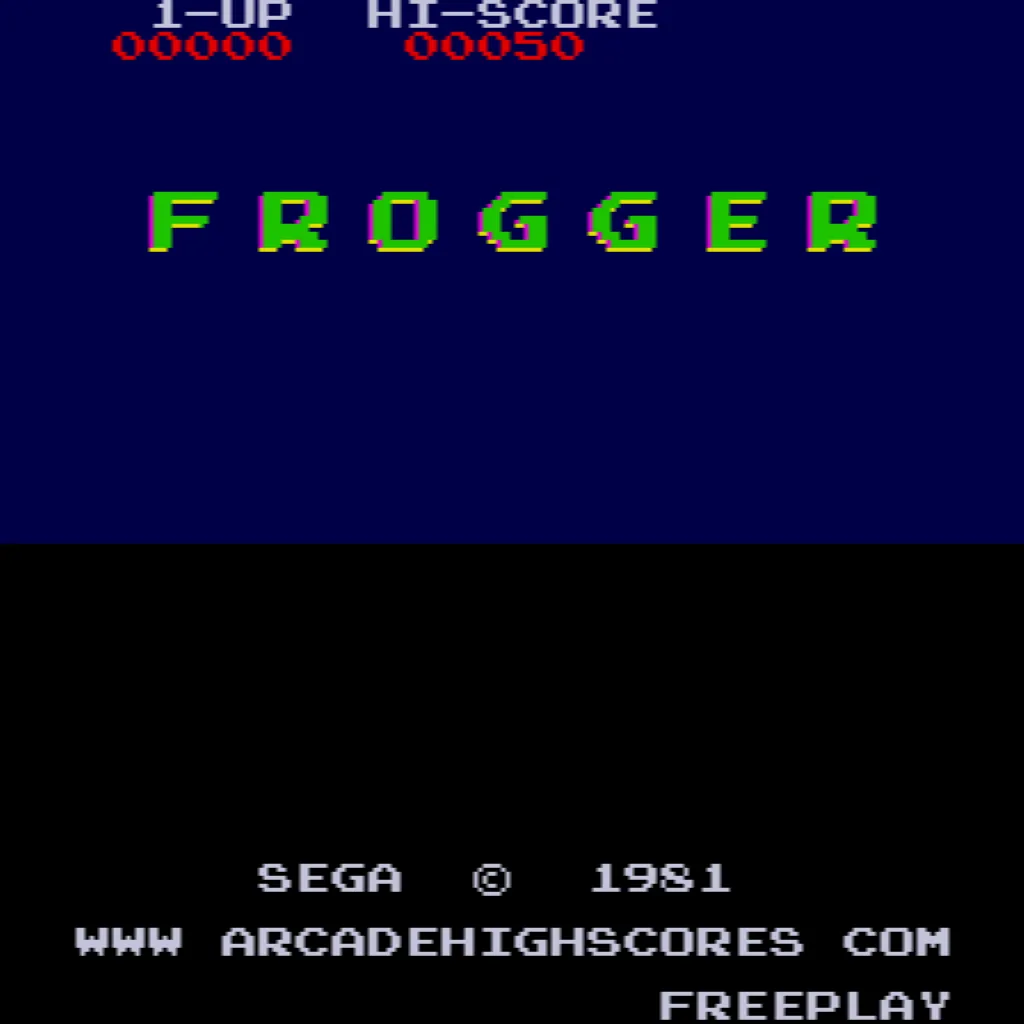

- Attract Logo Choice: Switch between manufacturer and HighScoreSaves logos
- Freeplay Mode: No coins needed while still supporting Coin Up

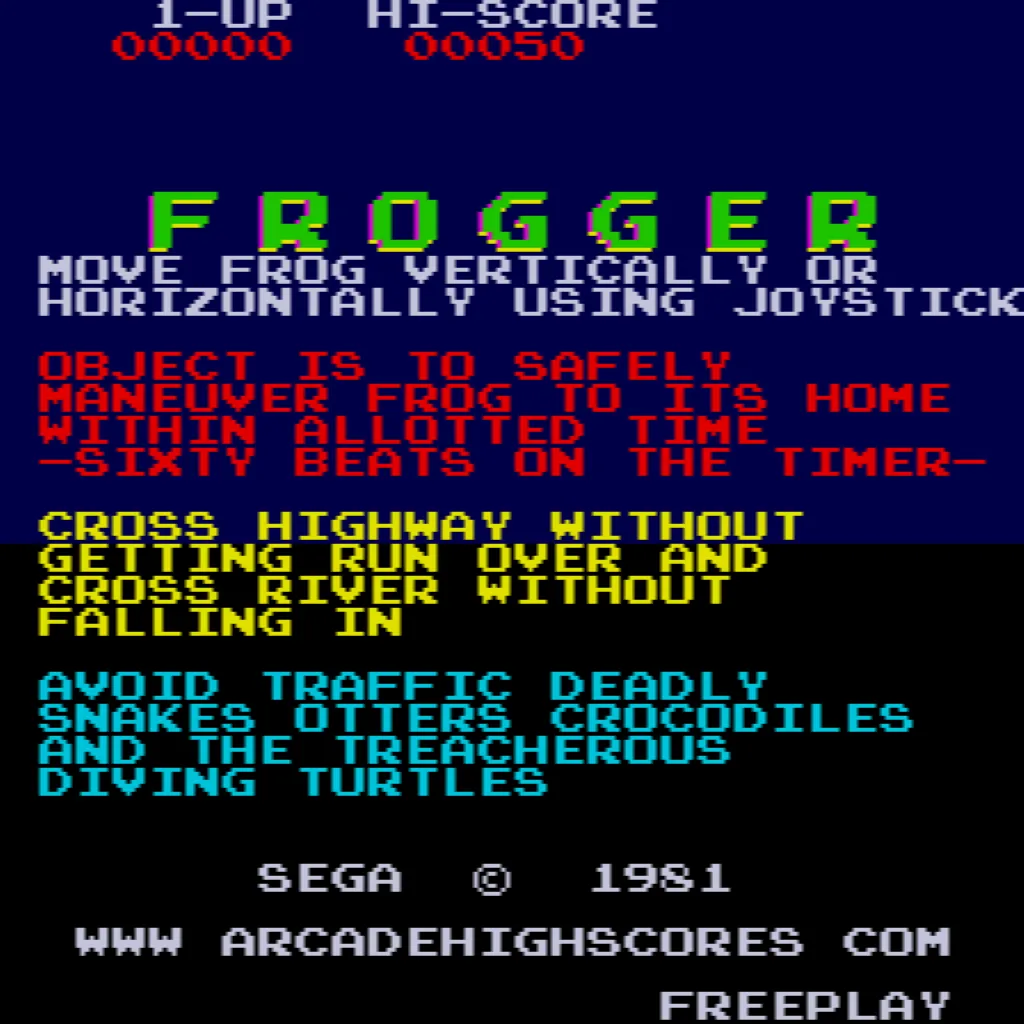

- Attract Mode Screen Saver: Helps reduce monitor burn-in

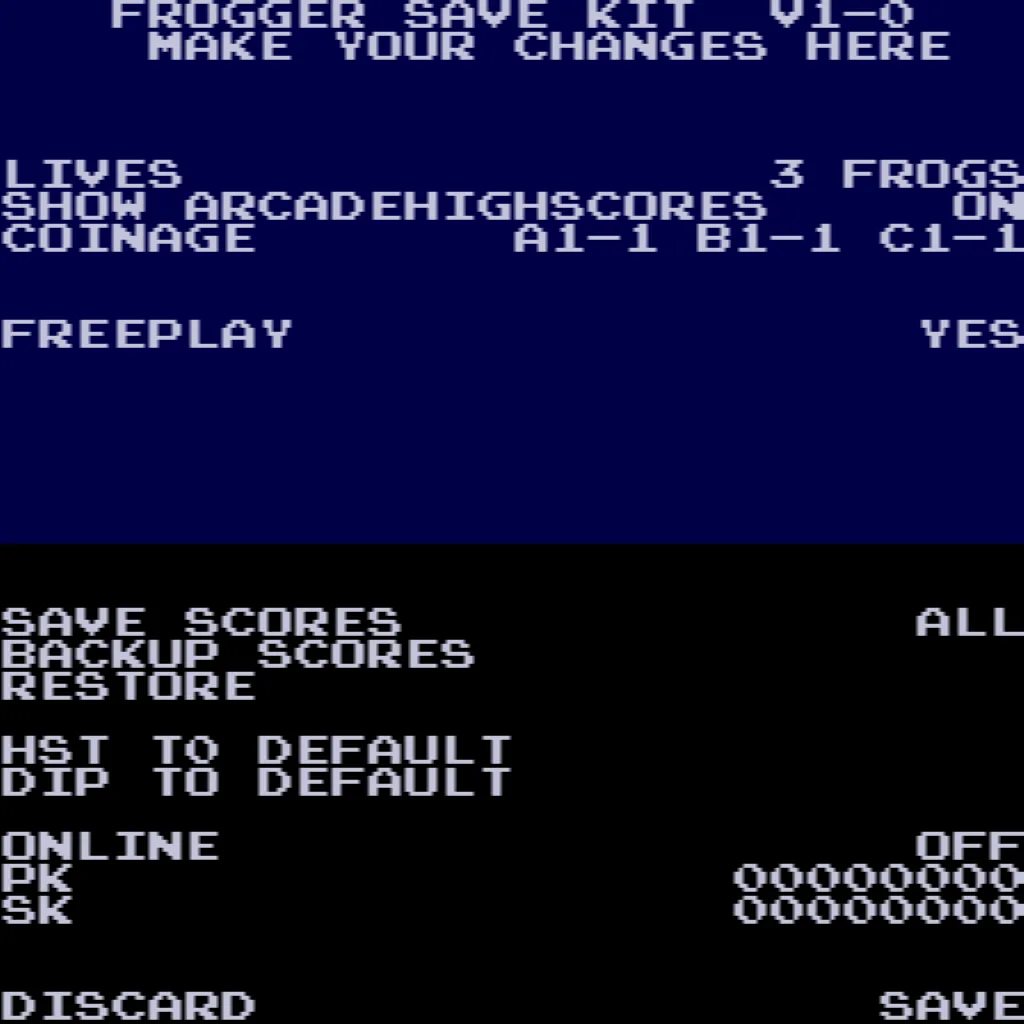

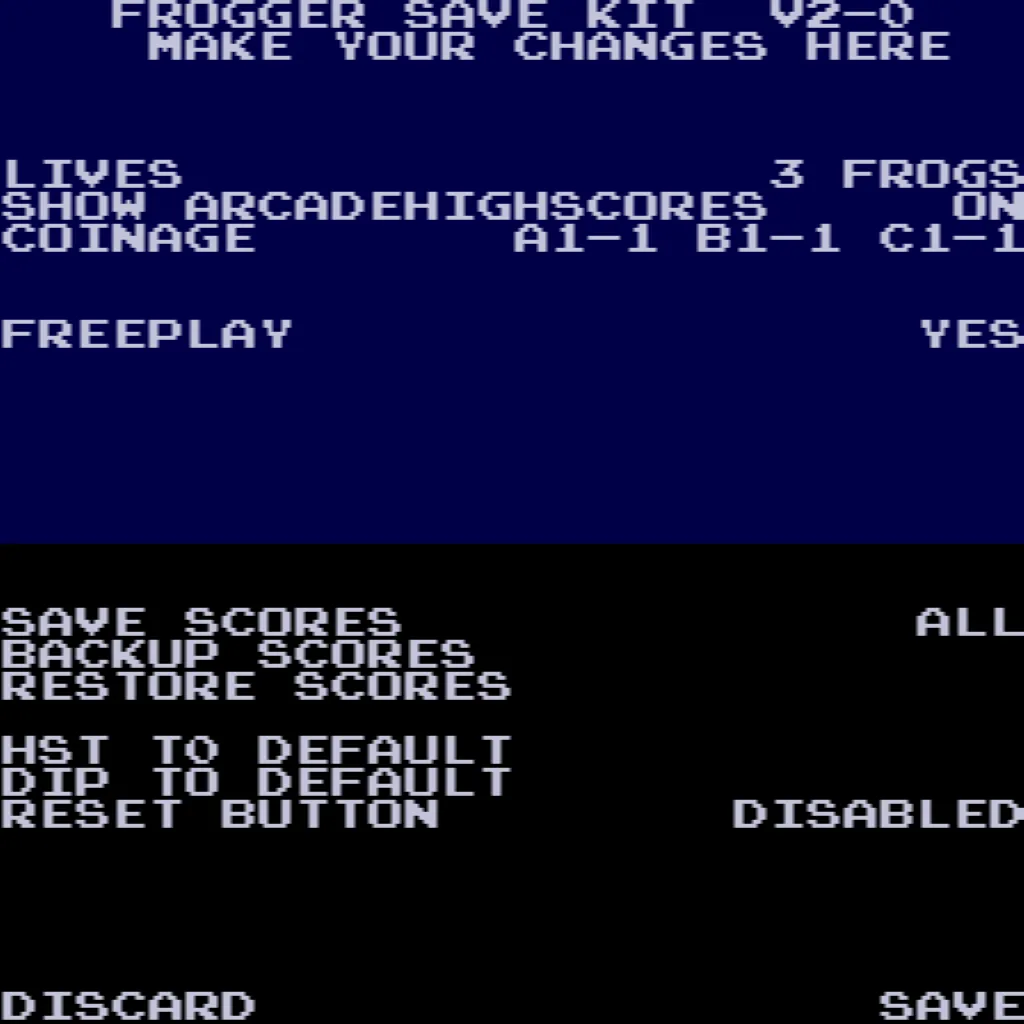

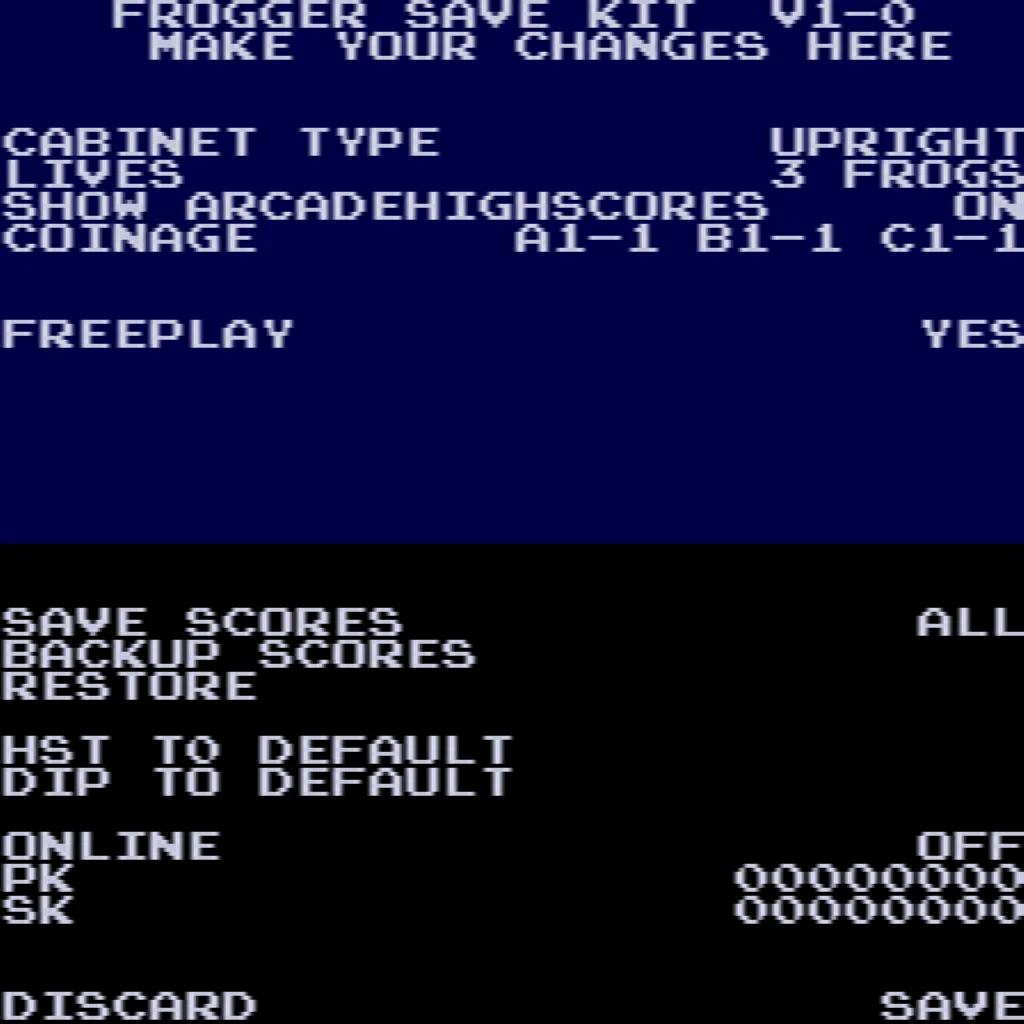

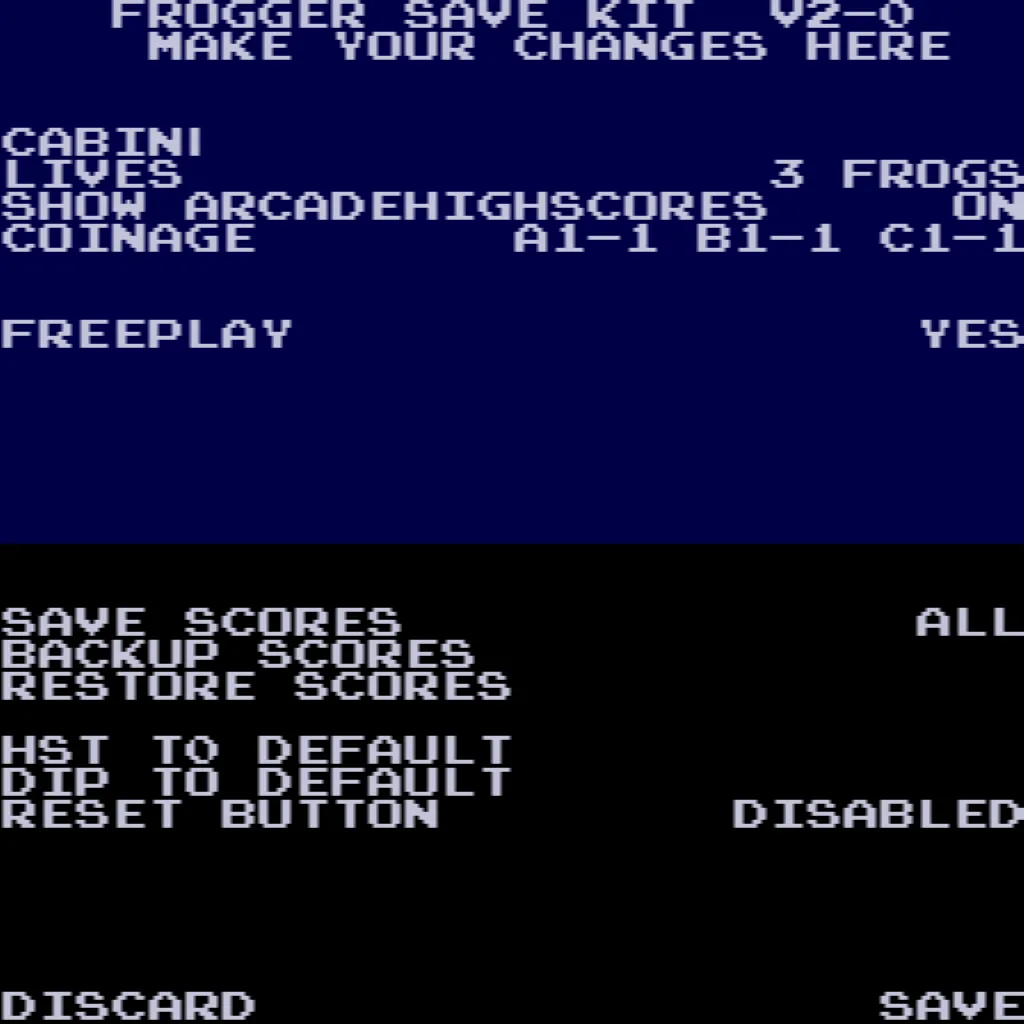

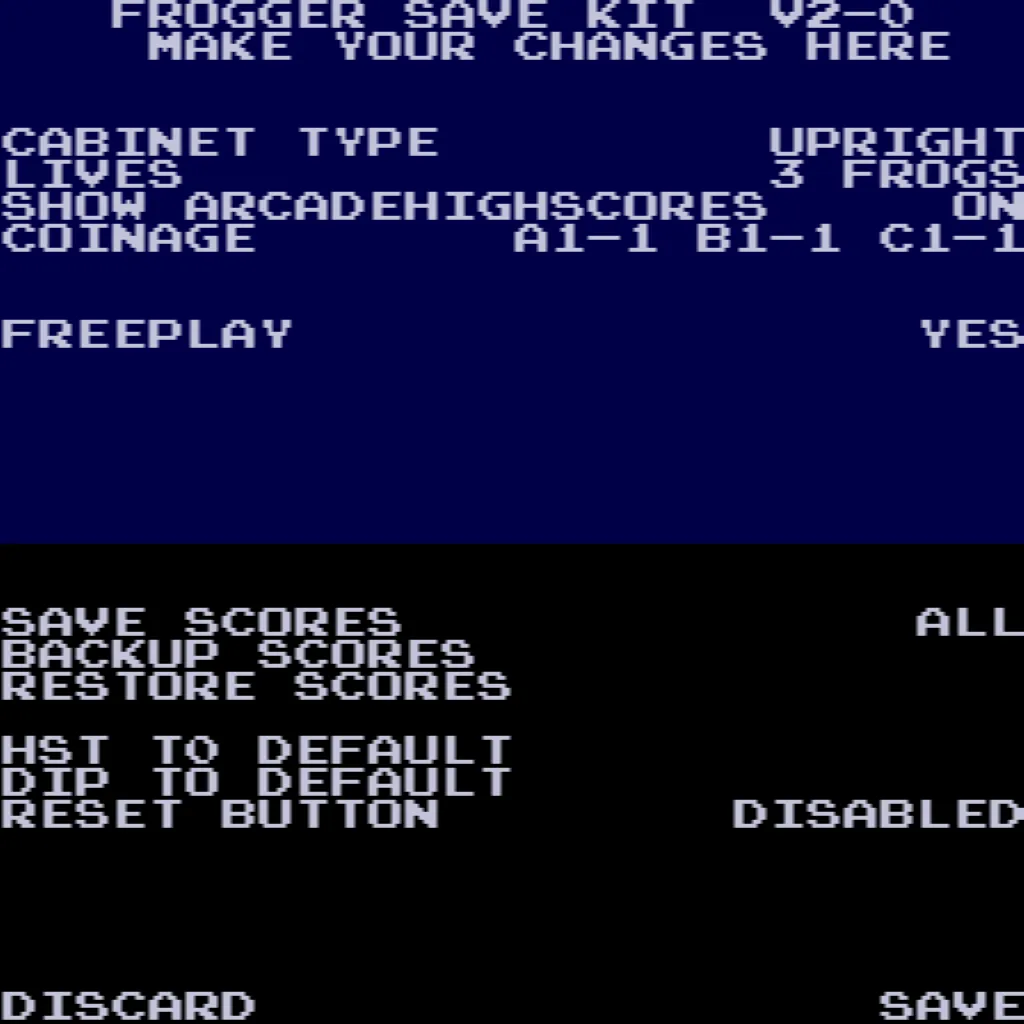

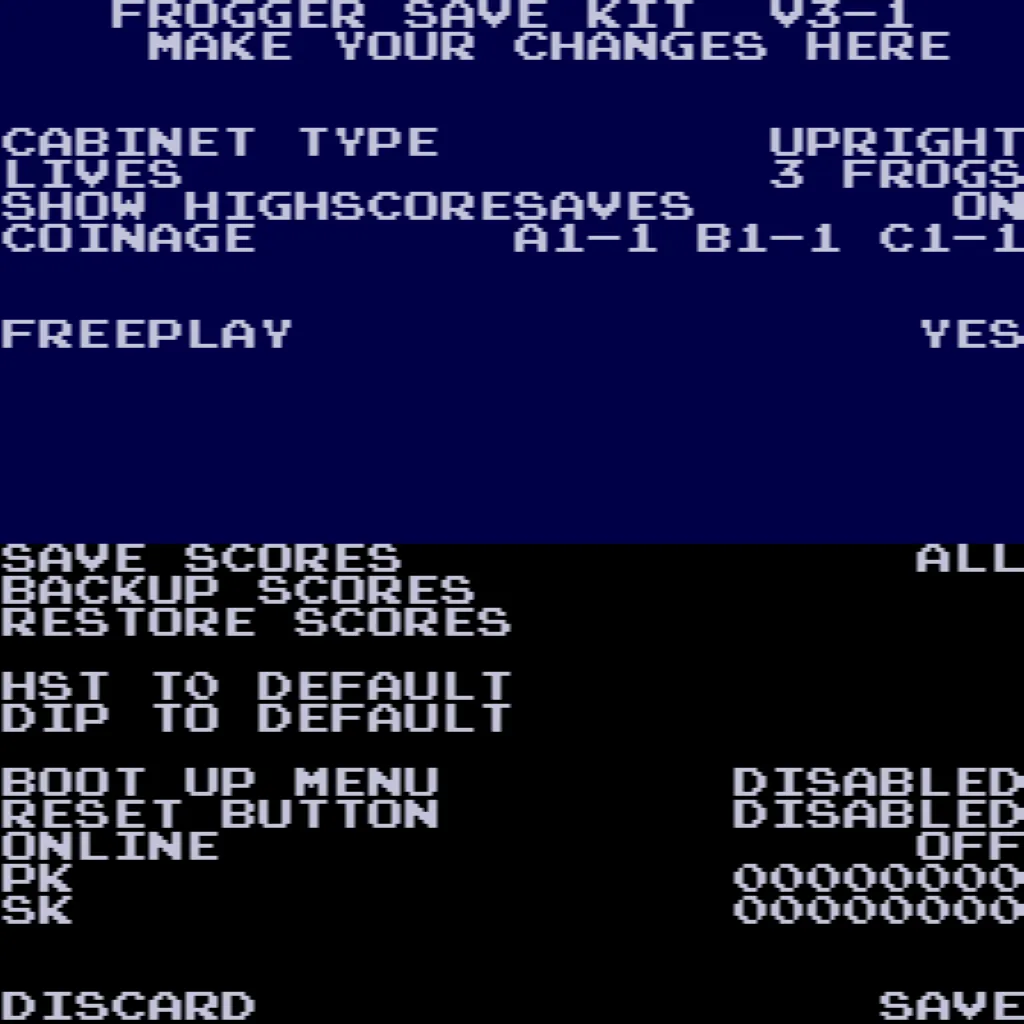

- Menu-Driven DIP Settings: Change options without pulling the cabinet
- ROM Saver: Remove original program ROMs to reduce board power usage
- Cabinet Support: Works in Upright and Cocktail cabinets
- Backup and Restore: Save and restore highscores anytime
- Separate Score Tables: Unique high-score tables for 2, 3, or 4 lives

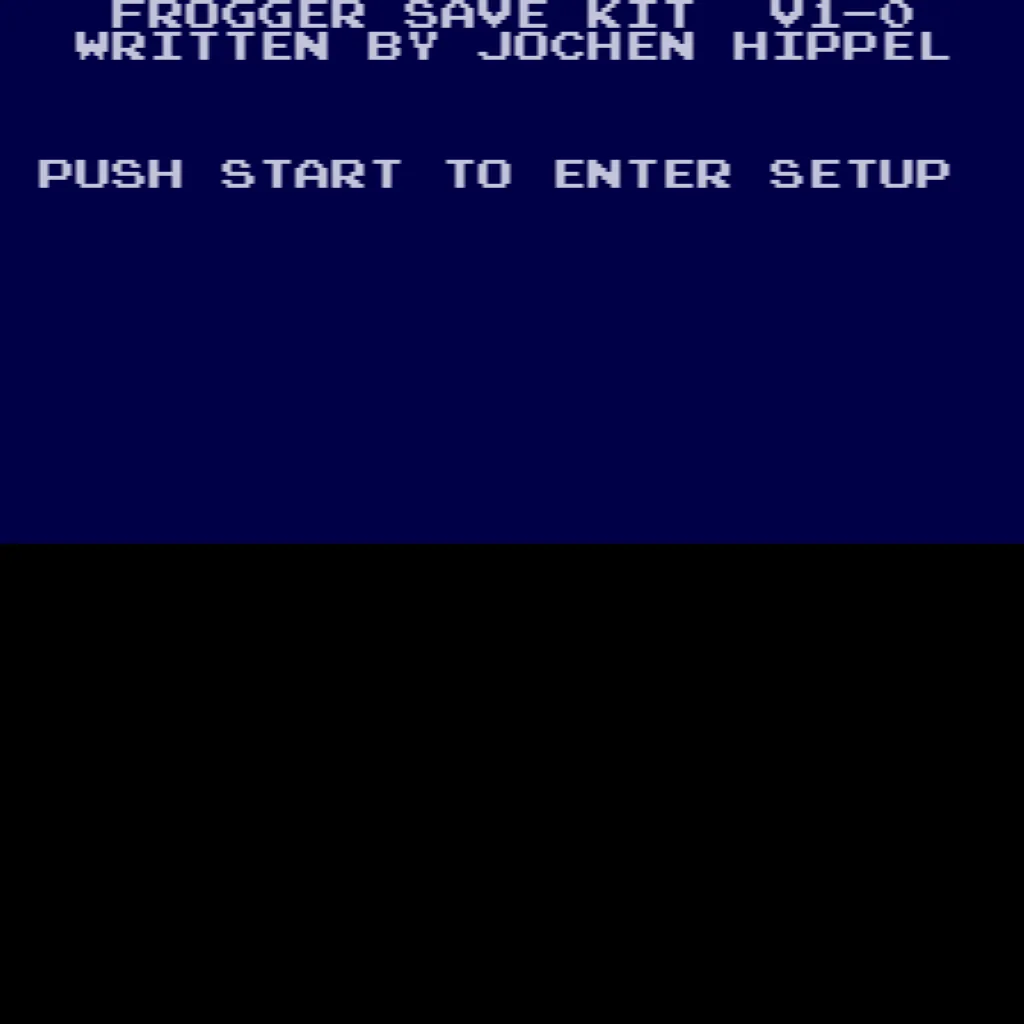

- Stealth Mode: Access the menu by holding Player 1 while powering on
Installation Information
- Installation Difficulty: Easy
- Soldering Required: No, if CPU is socketed
- Processor Requirement: Requires a Z80 processor
- Socketed CPU Required: Install a 40-pin socket if needed
- PCB Compatibility: Original Konami and SEGA/Gremlin Frogger PCBs
- Cabinet Compatibility: Upright and Cocktail supported
- Installation Guide: Download PDF Installation Guide
Optional Wi-Fi Features and Online Leaderboards
Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network.
Standard kits save scores locally to the PCB, while Wi-Fi kits add automatic online score syncing through the HighScoreSaves global leaderboard platform.
Frogger Free Play and High Score Save Kit FAQ
Which game does this kit support?
This kit is designed specifically for Frogger arcade PCBs.
How many high scores are saved?
The kit saves the Top 5 scores with initials support.
Does it support Freeplay and Coin Up?
Yes. You can enable Freeplay while still keeping Coin Up active.
Can I change DIP settings?
Yes. All DIP options are menu-driven through the on-screen menu system.
What additional features are included?
Backup and Restore, separate score tables, initials entry, and Stealth Mode are all included.
Does it support Cocktail cabinets?
Yes. Works in both Upright and Cocktail cabinets.
What is Stealth Mode?
Hold Player 1 during power-on to access the hidden menu system.
Where can I download the Installation Guide?
