Donkey Kong Junior Free Play and High Score Save Kit
Product information "Donkey Kong Junior Free Play and High Score Save Kit"
Customize Your Donkey Kong Junior Free Play and High Score Save Kit
Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit. You can also add a processor and/or a 40-pin socket—optional but recommended for easy installation.
Learn More About This Kit
Click a button to view details, tips, or the installation guide.
Main Features
- Easy install – No soldering, board modifications, or special wiring. Plug in and go!
- Save your scores forever – Uses a reliable serial EPROM, not failure-prone NVRAM or batteries.

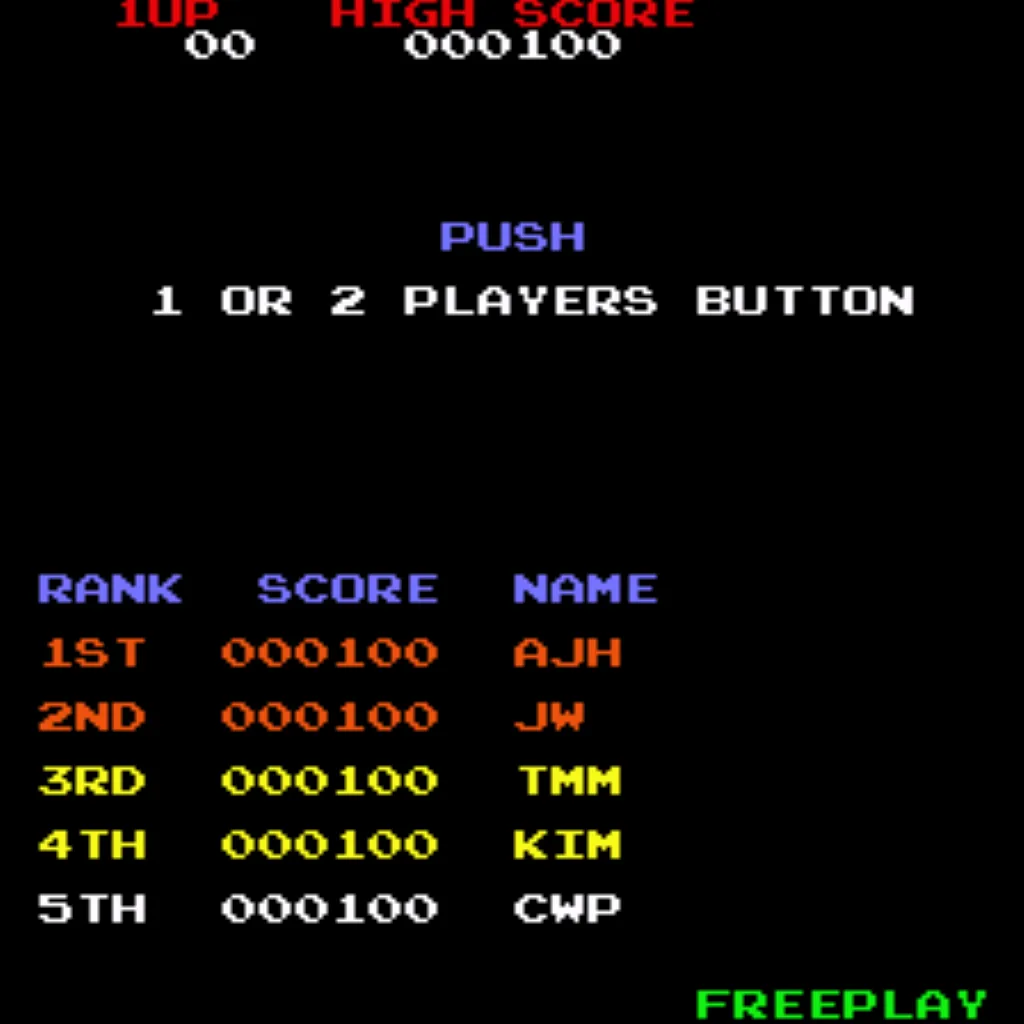

- High Score Save – Saves the Top 5 scores.

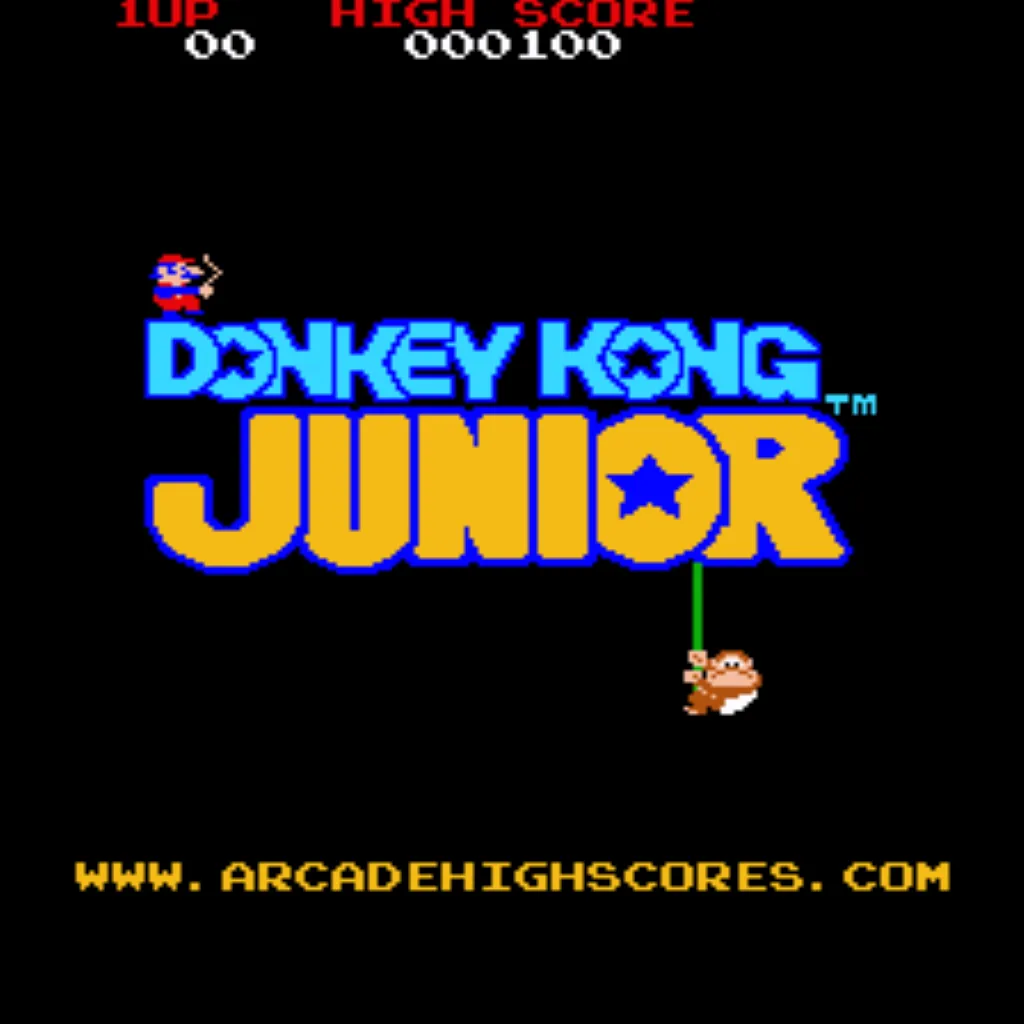

- Logo options – Switch between manufacturer logo or HighScoreSaves logo on the attract screen.
- Freeplay – No more coins or opening the coin door.
- Coin Up – Still supports coins if desired.
- Attract sounds – Hear what you’ve been missing! Set at 25%, 50%, or 100%.
- Attract mode – Minimizes screen burn.

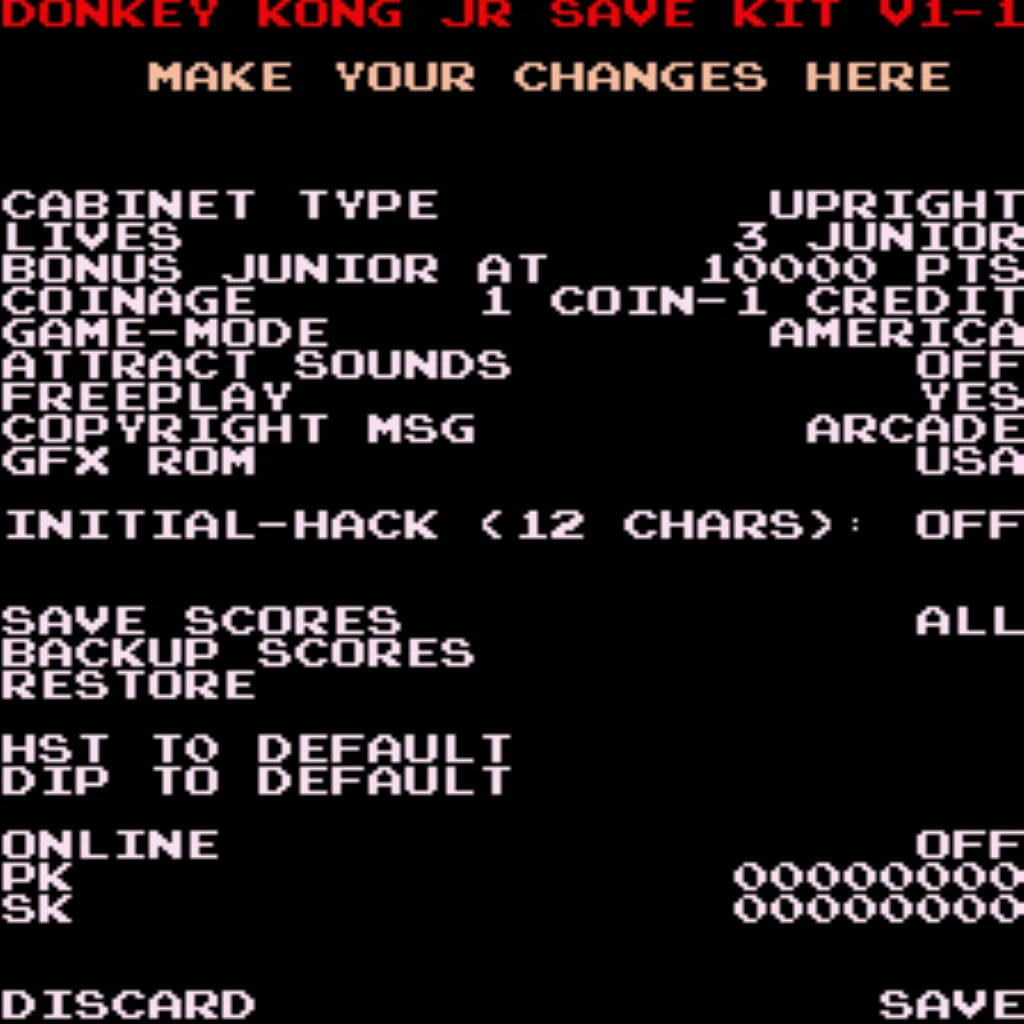

- Change DIP settings – Menu-driven; no switches to flip.
- ROM saver – Optionally remove original program ROMs.
- Cabinet support – Works in Upright or Cocktail cabinets.
Additional Features
- Backup & Restore: Save and restore high scores.
- Separate score tables: 2, 3, 4, or 5 lives.
- Choose your level: Start on Vines, Chains, Mario’s Hideout, or Jump Pad.
- Game menu: Easy in-game UI.
- ROM revision choice: US or Japan sets.
- Practice Mode: Start at selected levels (L=05 or L=09).
- Slow Down Mode: Press Start to slow to half-speed (Practice only).
- Switchable Initial Hack: Choose 12 initials or classic 3.
Important
- Socketed Z80 required: Install a 40-pin socket if your CPU is not socketed.
Just the FAQ's
Which games are included?
This kit supports Donkey Kong Jr with selectable US and Japan ROM sets.
How many scores are saved?
Top 5 scores are saved.
Does it support Freeplay and coin operation?
Yes — use Freeplay or keep Coin-Up active.
Can I practice specific levels?
Yes — Practice Mode lets you start on Vines, Chains, Mario’s Hideout, or Jump Pad.
Where can I download the Installation Guide?
Login
1 review
November 16, 2025 10:09 PM
Must have kit
Very happy that Highscoresaves makes kits for these classic arcade games. Ordered and received within a few days. Install guide is straight forward for an easy installation. The save kit works perfectly. Highly recommended!
