Donkey Kong | D2K | Pauline Edition Free Play and High Score Save Kit

Product information "Donkey Kong | D2K | Pauline Edition Free Play and High Score Save Kit"

The HighScoreSaves Donkey Kong | D2K | Pauline Edition Free Play and High Score Save Kit upgrades a documented compatible original Nintendo Donkey Kong arcade PCB with Donkey Kong, D2K: Jumpman Returns, and Pauline Edition Donkey Kong, plus Free Play, permanent Top 5 score and initials saving, extended scoring, practice tools, optional gameplay modes, ROM Saver, and optional Wi-Fi leaderboard support while retaining the original Nintendo arcade hardware.

Donkey Kong | D2K | Pauline Compatibility & Requirements

Compatible PCB: Documented compatible original Nintendo Donkey Kong arcade PCB
PCB Stack Support: Documented two-board and four-board Nintendo Donkey Kong PCB stacks
CPU: Z80
CPU Requirement: Compatible Z80 processor required; transfer the original socketed Z80 or select a compatible processor option
CPU Socket: Compatible 40-pin Z80 socket required

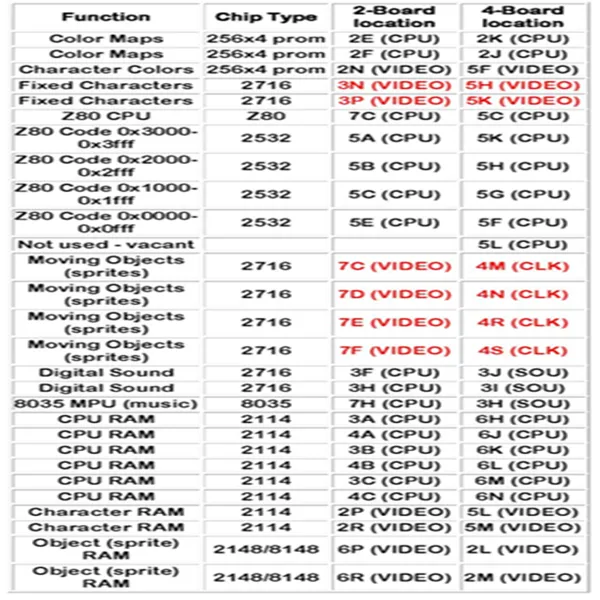

Pauline Graphics Requirement: Five matching graphics EPROMs are required on the original video PCB for the complete Pauline Edition presentation
Soldering: Not required when the Z80 and required graphics EPROM locations are already socketed
PCB Access: Both the CPU board and video board must be accessed for the complete Pauline Edition installation
Donkey Kong Remix: The separate Donkey Kong Remix kit cannot be stacked with this product
Cabinet Support: Documented upright and cocktail configurations

Installation: Remove the original Z80 from the Nintendo Donkey Kong CPU board, install it on the HighScoreSaves daughterboard, and install the daughterboard into the original 40-pin Z80 socket. For the complete Pauline Edition presentation, install five matching graphics EPROMs in the documented locations on the video PCB. If a required CPU or EPROM location is soldered directly to the PCB, a qualified arcade technician must install the appropriate socket before installation.

What This Kit Adds

Expanded Game Selection Select Donkey Kong, D2K: Jumpman Returns, or Pauline Edition Donkey Kong through the supported kit menu.
Free Play & Coin Operation Play supported games without coins while retaining traditional Coin-Up operation when desired.

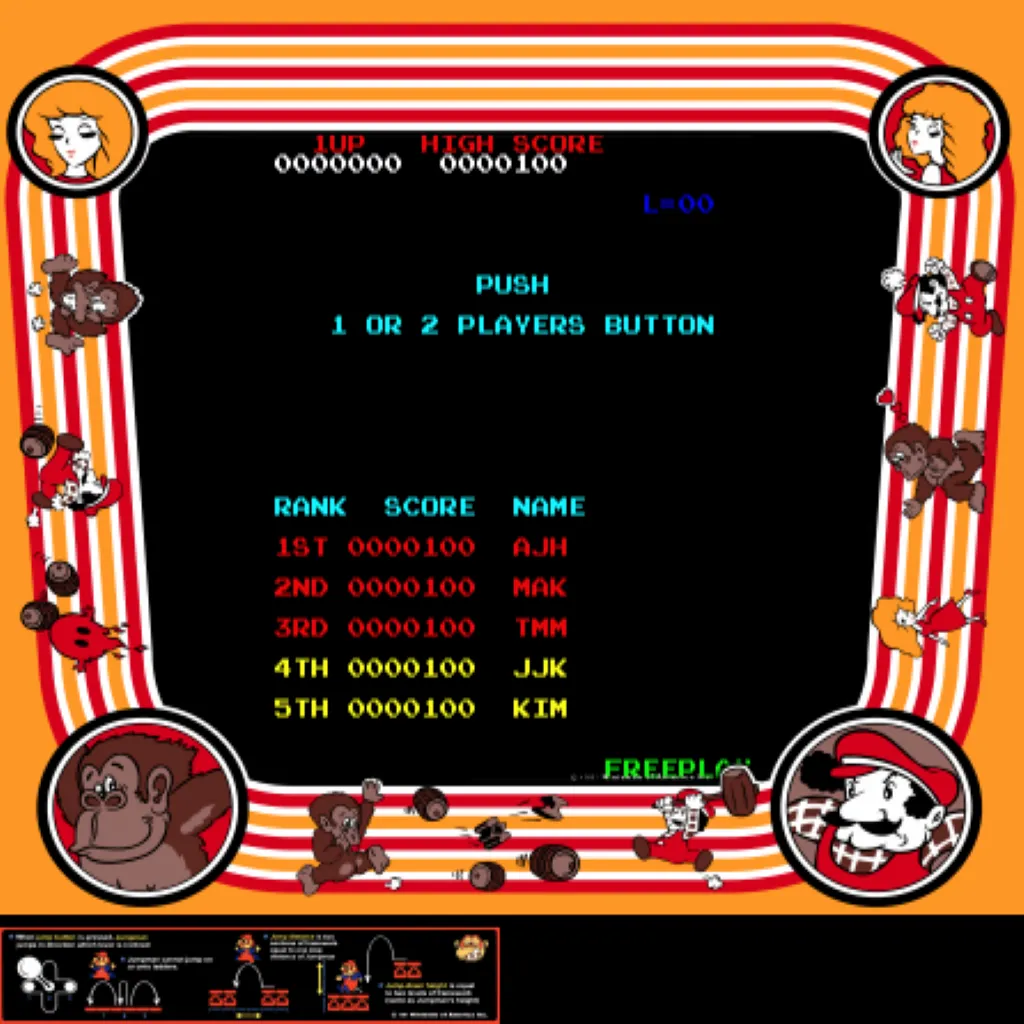

Top 5 Scores & Initials Permanently stores supported Top 5 high scores and qualifying player initials.
Extended Scoring & Initial Entry Supports scores above 1,000,000 points and selectable three-character or 12-character initials.
Separate Score Tables Maintains supported high score tables for different lives settings.
Adjustable Attract Sounds Configure supported attract audio for 25%, 50%, or 100% of the attract rotation.

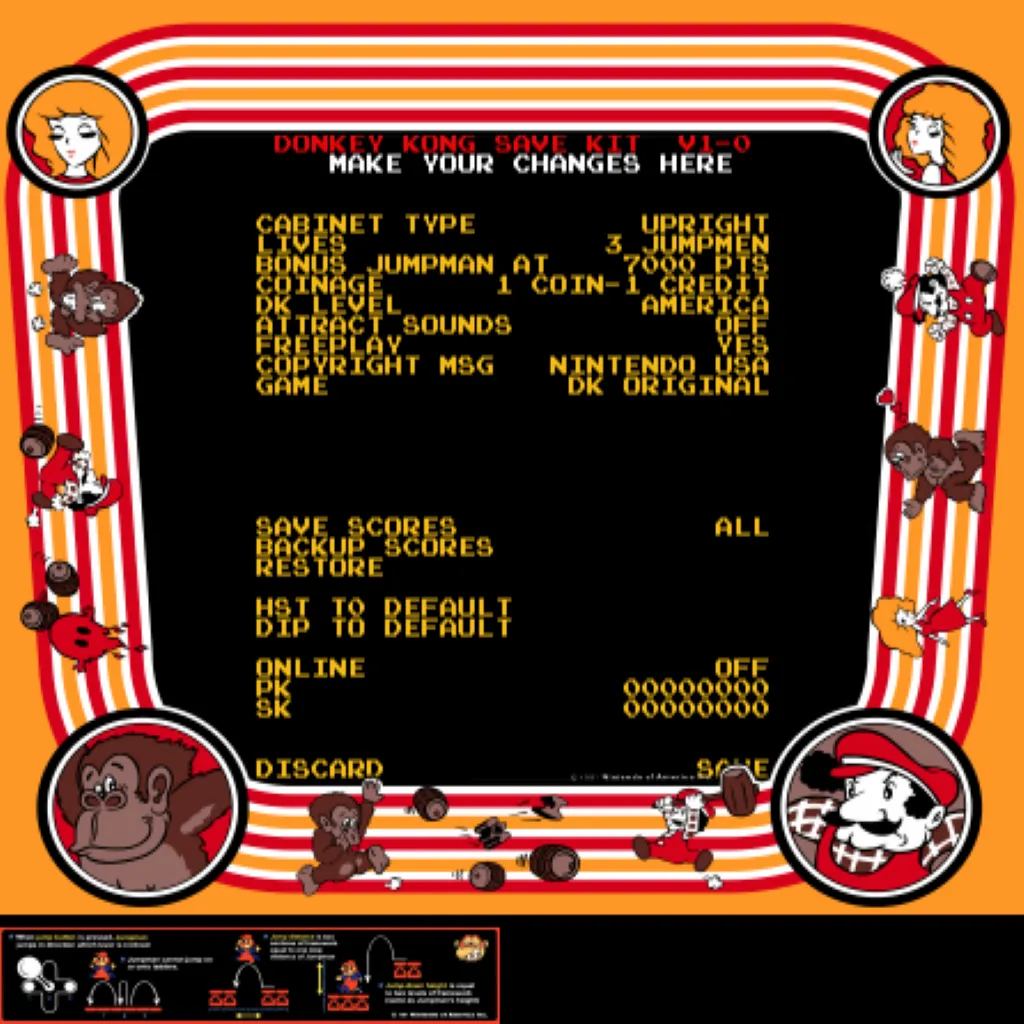

On-Screen Settings & ROM Selection Configure supported game options through the kit menu and select supported United States or Japanese Donkey Kong revisions.
Score Backup, Restore & Reset Manage supported saved score data through the kit menu, including backup, restore, and score-table reset.

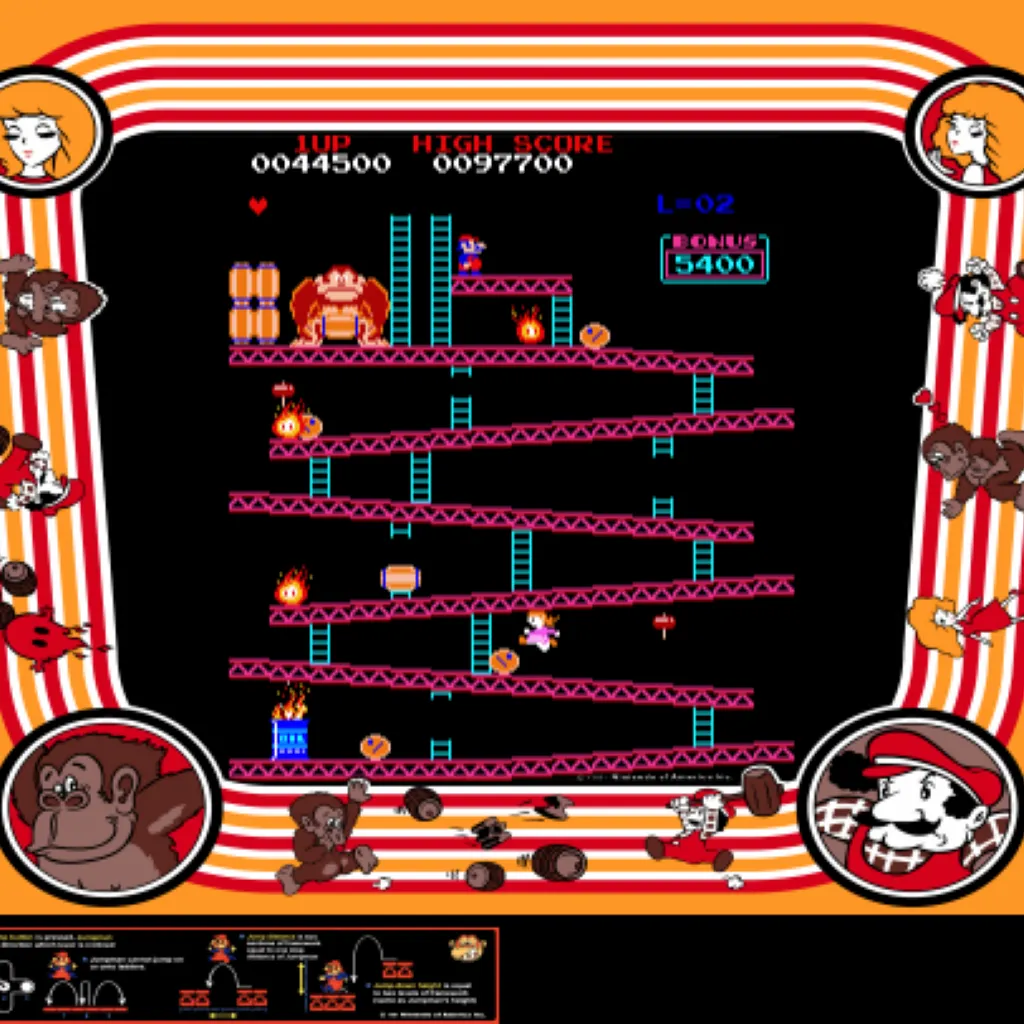

Practice Tools Begin on supported Level 4 Girder, Elevator, Rivet, or Pie Factory stages and use slowdown practice for focused training.
Optional Gameplay Modes Enable Wild Barrel Mode, Color Barrel Mode, or No-Kill-Screen Mode when desired. Standard Donkey Kong remains available when these modes are disabled.
Rotating Attract Displays & Logo Selection Changes supported attract screens and allows selection between supported manufacturer and HighScoreSaves logos.

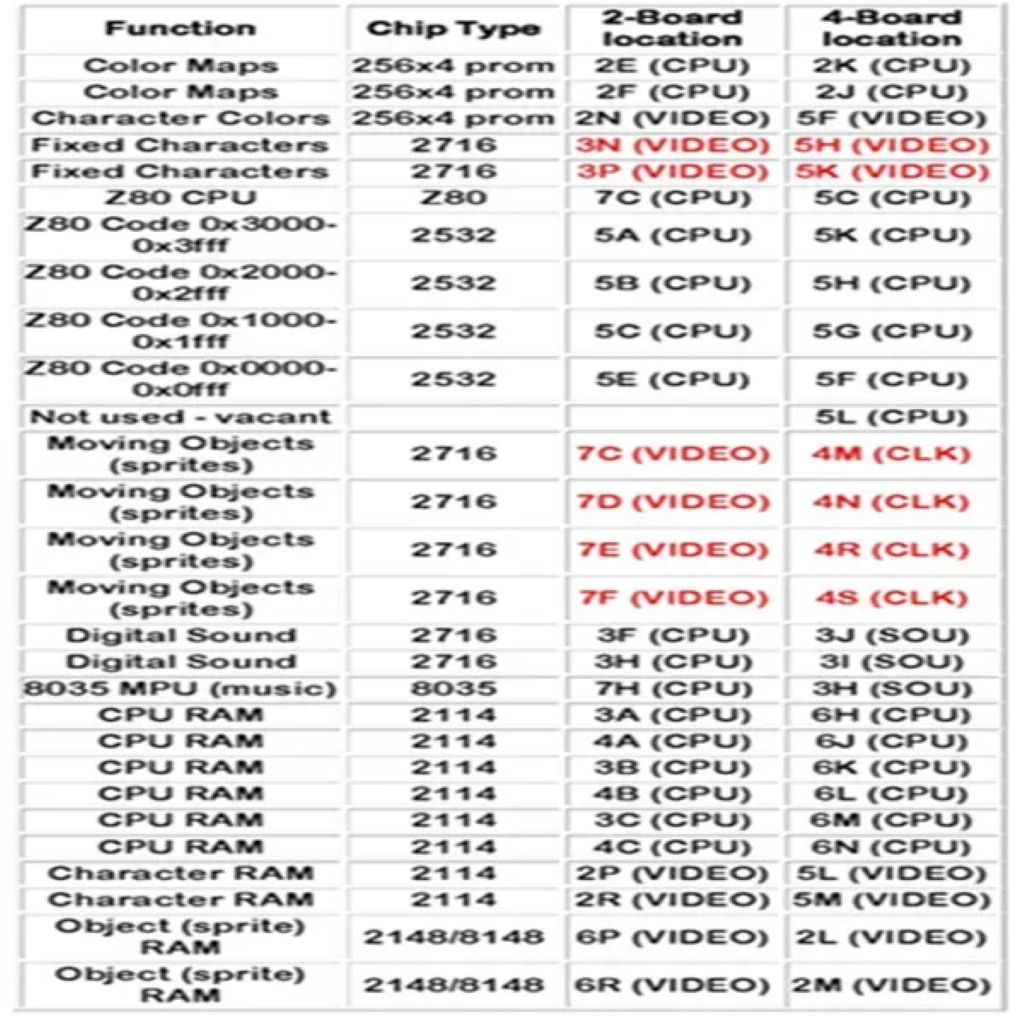

ROM Saver The kit supplies supported program code so designated original program ROMs can be removed where directed by the installation guide.

What's Included

  • 1 × HighScoreSaves Z80 daughter PCB

Z80 processor required: transfer your current compatible Z80 to the kit or select a compatible processor option when ordering.

Required for Pauline graphics: five matching graphics EPROMs are required for the complete Pauline Edition presentation and are separate from the base daughterboard kit.

Games Included

Donkey Kong The original Nintendo Donkey Kong arcade game remains available with its standard gameplay, controls, graphics, sound, and timing.

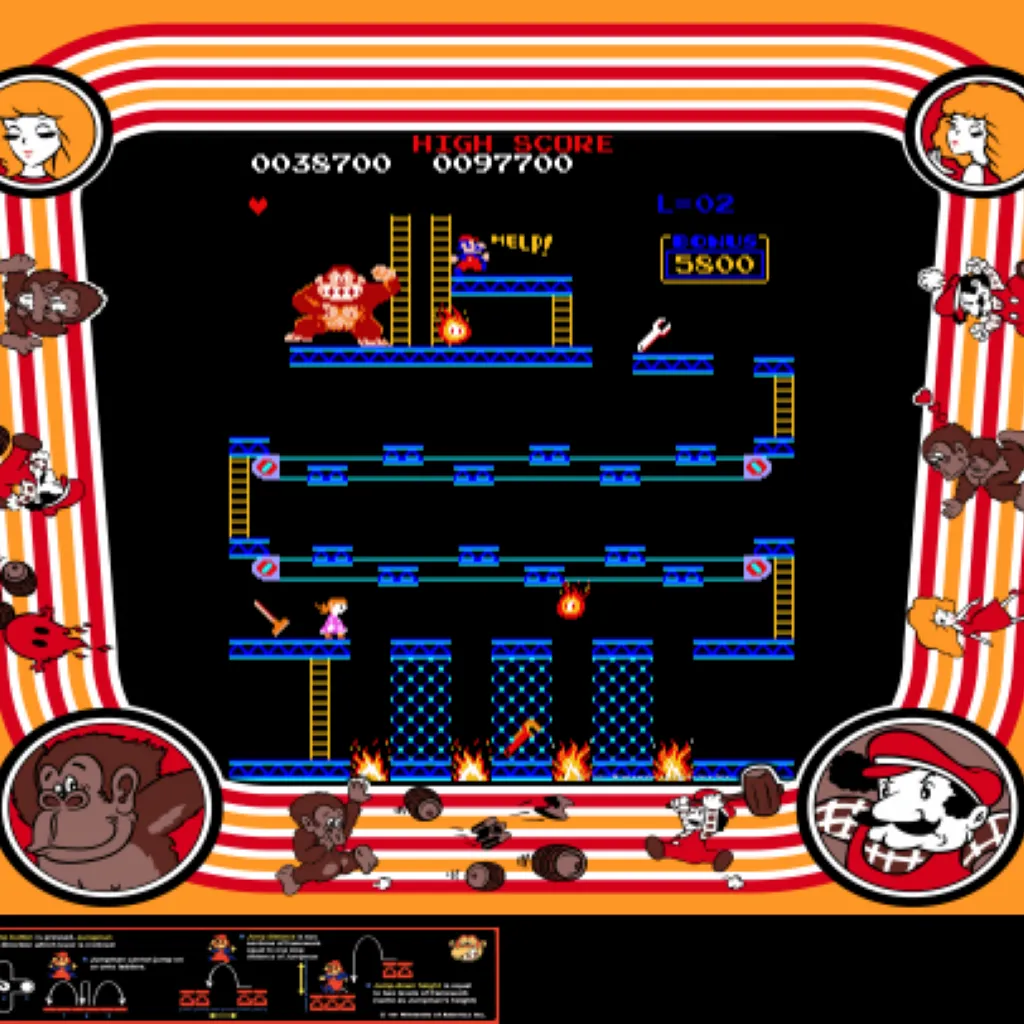

D2K: Jumpman Returns A separate Donkey Kong-based game with additional stages, layouts, patterns, and increased challenges.

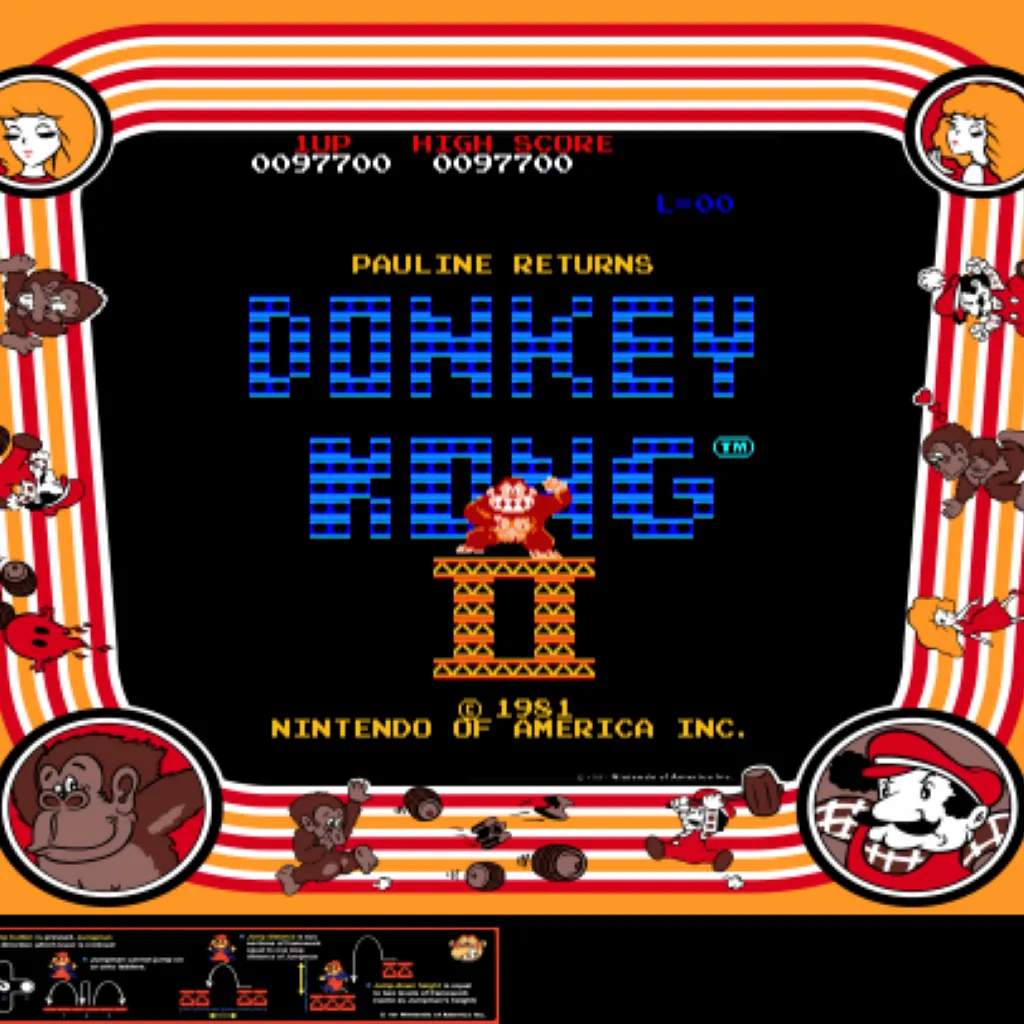

Pauline Edition Donkey Kong An alternate Donkey Kong presentation using Pauline-themed graphics. Five matching graphics EPROMs are required on the original video PCB for the complete presentation.

Standard vs. Wi-Fi Kit

Standard Kit

Saves supported scores, initials, settings, and configuration data locally. No internet connection is required for Donkey Kong, D2K, Pauline Edition, Free Play, game selection, or the practice features.

Wi-Fi Enabled Kit

Includes the same local features and can also submit qualifying completed scores to the HighScoreSaves online leaderboard after initials are entered.

Wi-Fi can be disabled without affecting local score saving, Free Play, Donkey Kong, D2K, Pauline Edition, game selection, settings, practice tools, or normal gameplay. Wi-Fi-enabled kits use compatible 2.4 GHz Wi-Fi networks.

Donkey Kong | D2K | Pauline Kit FAQ

How do I enter the Donkey Kong | D2K | Pauline kit menu?

Power the game off, hold Player 1 Start while turning the game on, then release Player 1 Start when the on-screen prompt tells you to continue.

Which main games are included?

The kit includes selectable Donkey Kong, D2K: Jumpman Returns, and Pauline Edition Donkey Kong.

What is required for the complete Pauline Edition graphics?

Five matching graphics EPROMs must be installed in the documented locations on the original Donkey Kong video PCB. The daughterboard provides the Pauline Edition game selection, while the graphics EPROMs provide the matching artwork.

How is this different from the Braze D2K kit?

This HighScoreSaves kit adds Pauline Edition support, practice tools, optional gameplay modes, extended configuration features, and optional Wi-Fi. The Braze D2K product is a separate Donkey Kong and D2K two-game kit with its own documented feature set and diagnostics.

Will the Wi-Fi kit still save scores if Wi-Fi is disabled?

Yes. Local score and initials saving, Free Play, game selection, D2K, Pauline Edition, settings, practice tools, and normal gameplay continue to work when Wi-Fi is disabled or unavailable.
