Darksoft Ultra CPS3 SIMM Multigame Kit

To use this kit you need a working Namco System 2 motherboard and either a cabinet or a supergun. Note: there are multiple System 2 revisions; only boards with the correct Video Board are compatible with this multi. Install Guide Requirements Namco System 2 motherboard with the compatible Video Board revision. Working JAMMA cabinet or a supergun setup. General arcade PCB handling practices (ESD safety, proper power, etc.). Shipping Information Please note: Ships with signature required and insurance. Typical dispatch: 48–96 hours. Contact us with any concerns. USA Ships via USPS or UPS at the discretion of Highscoresaves.com based on size/weight. International Expedited International Shipping (2–5 business days) via UPS for any order containing a Darksoft product. Customs/taxes/import fees may apply and are the customer’s responsibility. A phone number is required for all international shipments. We cannot under-declare values. Suggested tariff code: 95049080. Tech Support via Forum Tech questions can be searched and asked on the forum: ArcadeProjects.com — Namco Hardware Support If something isn’t working, please post on the forums or email us before assuming “it doesn’t work.” These kits are tested extensively. FAQs What hardware do I need? A Namco System 2 motherboard with the correct Video Board, plus a JAMMA cabinet or supergun. Do all System 2 boards work? No. Only revisions with the compatible Video Board are supported. Where can I find the install manual? Use the button above to download the PDF install guide. How is the item shipped? Signature and insurance included. Usually ships within 48–96 hours; USA via USPS/UPS; International via UPS. Where can I get technical help? Visit the Arcade Projects Namco forum.

Works on every Short Version CPS-1 mainboard and supports the full library of CPS-1 titles plus all CPS-1.5 QSound games. This multi is the result of years of engineering and won’t disappoint. Install Guide Key Features Full compatibility: Every CPS-1.5 QSound game works just like original hardware. Flexible for devs & modders: Ideal for trainers, hacks, new game development, or just having fun. Flash memory based: The loaded game persists until you write a new one—no reloading each boot. LCD selector included: Connects to the Multi PCB to browse microSD and load games. B-Board replacement: The Multi PCB replaces your existing B-Board. See the guide for installation details. Handle with care: Grip by the sides only—large PCB with many parts; avoid flexing or stressing components. microSD workflow: Store games on microSD; insert/remove anytime except during game loading or firmware update. Adjustments: Trim pot near microSD sets LCD contrast. Another trim pot near the RCA output sets QSound volume over JAMMA. Use the A-Board pot for CPS-1 title volume. Attention A microSD card (not included) is required to run games. Use Arcade Projects to locate legal game content. Discharge static by touching ground before handling this or any arcade PCB. Shipping Information Please note: Ships with signature required and insurance. Typical dispatch: 48–96 hours. USA Ships via USPS or UPS at our discretion. International Expedited UPS Worldwide (2–5 business days) for any Darksoft order. Customs fees may apply (customer responsibility). A phone number is required for all international shipments. We cannot under-declare. Suggested tariff code: 95049080 Tech Support via Forum Tech questions can be searched and asked on the forum: ArcadeProjects.com — Capcom CPS-1 If something isn’t working, please post on the forums or email us before assuming “it doesn’t work.” These kits are tested extensively. FAQ Which mainboards are supported? Every Short Version CPS-1 mainboard is supported. Does it run CPS-1.5 QSound games? Yes—full CPS-1.5 QSound support just like original hardware. How do I load/select games? Use the included LCD selector to browse the microSD and flash a game. Does the selected game persist? Yes, flash memory retains the game until you write a new one. Can I remove the microSD while powered? Yes — except during game loading or firmware updates. How do I adjust audio and LCD? LCD contrast: trim pot near microSD. QSound volume: trim pot near RCA. CPS-1 volume: adjust A-Board pot. Any handling tips? Handle by the PCB edges; avoid flexing. Ask if uncertain. How is it shipped? Signature and insurance included. Dispatch 48–96 hours. USA via USPS/UPS; International via UPS.

The Dark Knight Edition ST-V Multigame kit updates the classic design: the cart plugs into the four motherboard connectors (not the standard game cart slot) for extra stability and room for new features. Install Guide Key Features New form factor: Fits into the four ST-V motherboard connectors for improved rigidity and feature space. Selectors: Choose games via the included LCD, or the optional OLED selector that lets you browse by images. Both can operate in parallel. Integrated sound: Sound kit is built-in. You’ll hear audio prompts for start/end of flashing directly from the cab speakers. Flash memory: The selected game remains stored until you change it. Status feedback: Two LEDs illuminate during programming; one LED remains when finished. Optional WAV files (SoundsStart.wav, SoundsEnd.wav) can play at those moments. Sound PCB support: Plug in a compatible Sound PCB to enjoy enhanced audio on titles like Batman and others. Audio outputs: The cart can emit sounds and supports connection of a speaker to SP+/SP-. microSD workflow: Insert/remove the microSD card anytime—except during updates. Attention A microSD card (not included) is required to run games. Check the Arcade Projects forum for available games. If you are not legally entitled to play any game or sound, you must delete it. As with any arcade PCB handling, discharge static by touching ground before handling the cart or motherboard. Shipping Information Please note: This product ships with signature required and insurance. Typical dispatch is within 48–96 hours. USA Ships via USPS or UPS, at the sole discretion of Highscoresaves.com depending on size/weight. International Expedited International Shipping (2–5 business days) via UPS is used for any order containing a Darksoft product. Customs/taxes/import fees may apply and are the customer’s responsibility. A phone number is required for all international shipments. We cannot under-declare values. Suggested tariff code: 95049080. Tech Support via Forum Tech questions can be searched and asked on the forum: ArcadeProjects.com — SEGA ST-V (Titan) If there is any issue with the kit or something isn’t working, please post on the forums or email us before concluding “it doesn’t work.” This cartridge has been tested extensively. FAQs What’s included with the Dark Knight Edition kit? Game PCB (as pictured), LCD cable, and LCD screen. How do I select and flash games? Use the included LCD menu, or the optional OLED selector (browse by images). Both can be connected simultaneously. Does it include a separate sound kit? No—sound support is integrated. You’ll hear start/end programming sounds through the cab speakers (optional WAVs supported). Will the selected game persist after power off? Yes. Flash memory retains the game until you choose a new one. Can I hot-swap the microSD card? Yes, except during updates. Never remove the card while updating. Where can I learn about available games? See the Arcade Projects ST-V forum. Remove any content you’re not legally entitled to use. How is the item shipped? Signature and insurance are included. Typically ships within 48–96 hours via USPS/UPS (USA) or UPS (International). Are there any handling precautions? Yes. Discharge static before handling the cart or motherboard (as with any arcade PCB).

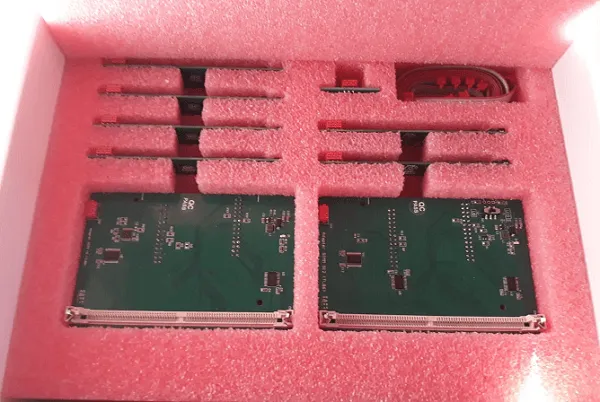

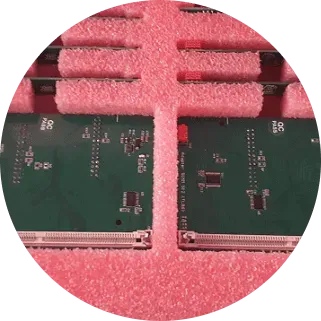

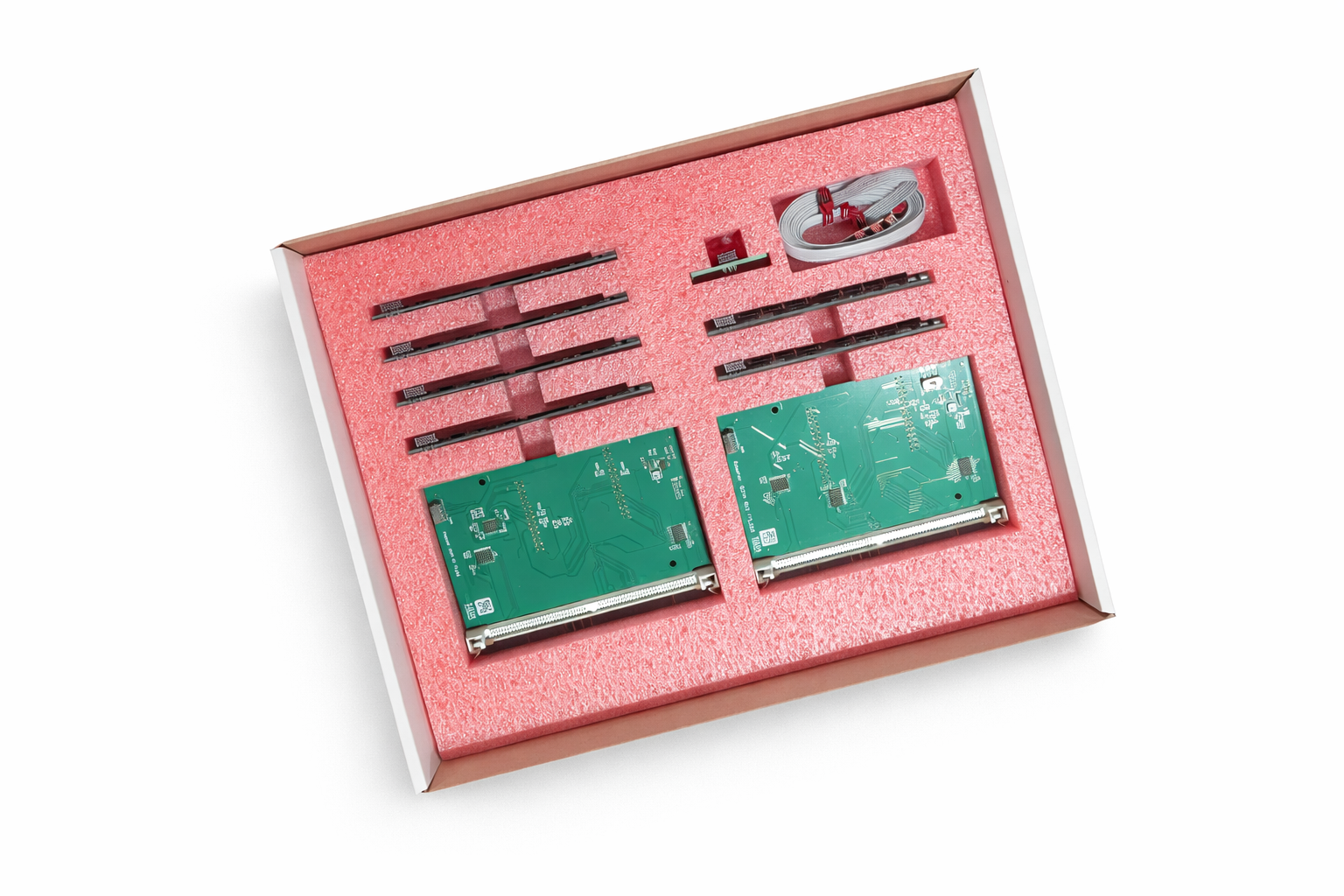

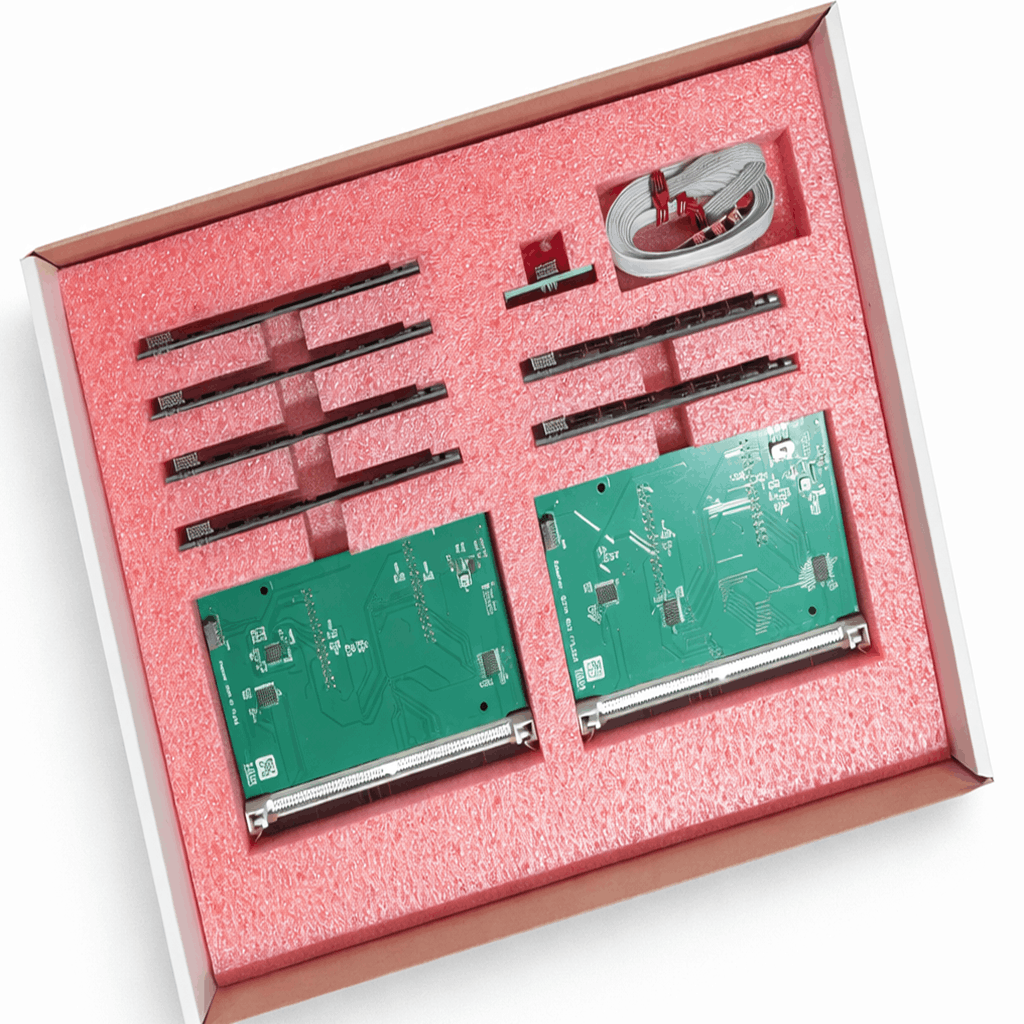

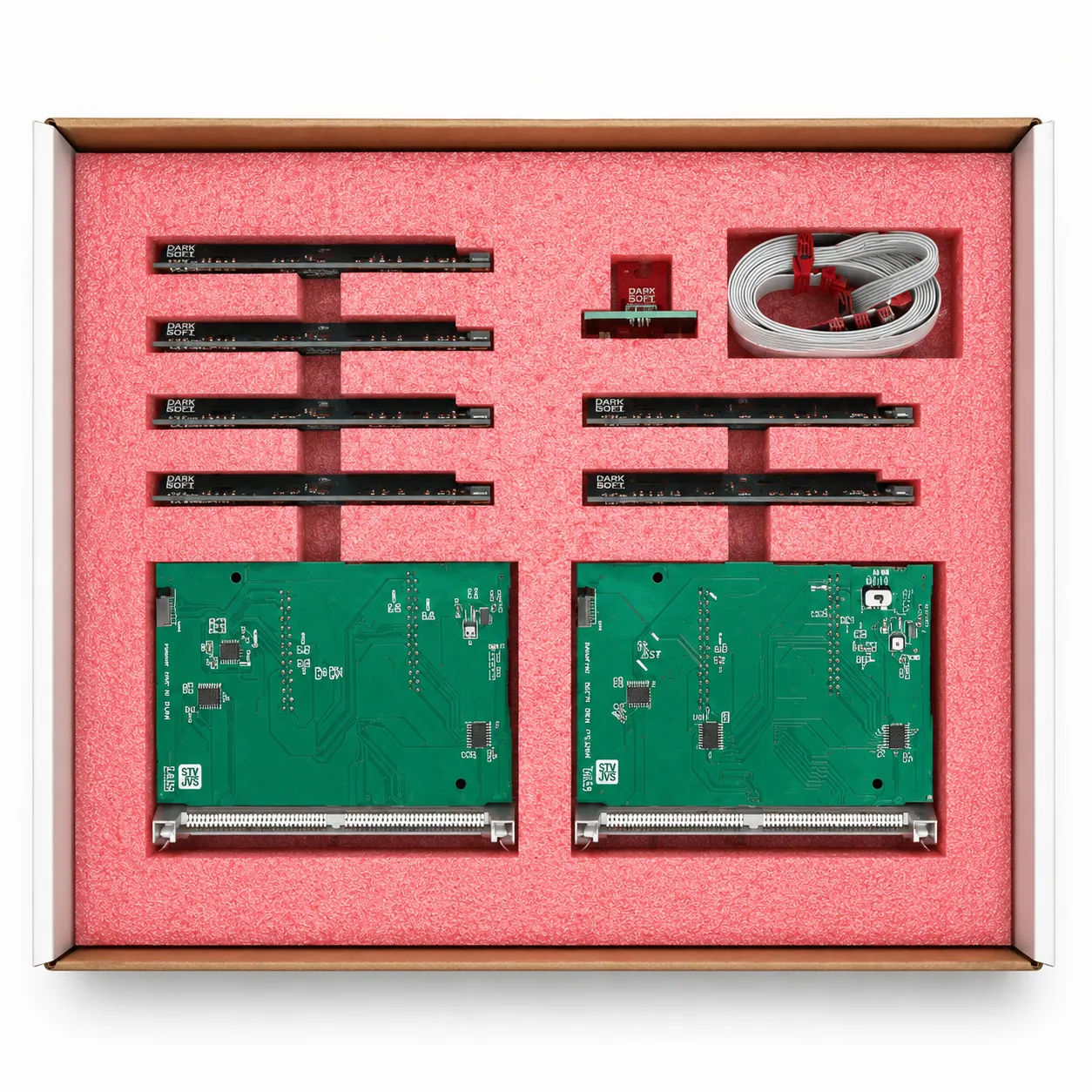

No more long loading times. The UltraSIMM has 8× the capacity of a regular SIMM so you can load up to eight CPS-III games and switch without painful waits. Install Guide Helpful Tips & Tricks Two adapter boards compatible with TL86_PLUS (PROMAN) are included. You’ll need a TL86_PLUS / PROMAN programmer (typically around $85; not included). Each SIMM has a different pinout—match the SIMM type to the correct adapter. Programming the SIMMs 64 Mb SIMMs (two flash chips): program using the adapter labeled “Adapter SIMM 512 (TL86)” with a switch. 128 Mb SIMMs (one flash chip): program using the adapter labeled “Adapter SIMM 1G (TL86)” (no switch). Programming is straightforward and takes ~3 minutes per SIMM. Note: The kit requires a new BIOS that will be published on the forum. Works only with carts that have standard SH-2 processors. After installation you can switch between games with a 3-position DIP switch (power cycle required). Dip-Switch Game Config Example 111 — Street Fighter III: New Generation (SF3NG) 110 — Warzard / Red Earth 101 — Street Fighter III: 2nd Impact 100 — JoJo 011 — JoJo’s Bizarre Adventure 010 — SFIII: 3rd Strike (slot 1) 001 — SFIII: 3rd Strike (slot 2) 000 — SFIII: 3rd/“4th Strike” variant Attention A microSD card (not included) is required to store games. See the Arcade Projects forum for information on available games. Remove any content you’re not legally entitled to use. As with any arcade PCB, discharge static by touching ground before handling the board or motherboard. Shipping Information Please note: Ships with signature required and insurance. Typical dispatch: 48–96 hours. Contact us with any concerns. USA Ships via USPS or UPS at the sole discretion of Highscoresaves.com based on size/weight. International Expedited International (2–5 business days) via UPS for any order containing a Darksoft product. Customs/taxes/import fees may apply and are the customer’s responsibility. A phone number is required for all international shipments. We cannot under-declare values. Suggested tariff code: 95049080. Tech Support via Forum Tech questions can be searched and asked on the forum: ArcadeProjects.com — Capcom CPS-III If there’s any issue with the kit, please post on the forums or email us before assuming “it doesn’t work.” These carts are tested extensively. FAQs How many games can UltraSIMM hold? Up to eight CPS-III games (8× the capacity of a standard SIMM). Do I need a programmer? Yes. Use a TL86_PLUS (PROMAN) programmer. Two compatible adapters are included; the programmer is not. Which adapter do I use? 64 Mb SIMMs use the “Adapter SIMM 512 (TL86)” with switch; 128 Mb SIMMs use the “Adapter SIMM 1G (TL86)” without switch. How long does programming take? About 3 minutes per SIMM. What BIOS/cart compatibility is required? A new BIOS (released on the forum) is required. Works only with carts that have standard SH-2 processors. How do I switch between games? Use the 3-position DIP switch; power cycle to apply the selection. Can I remove the microSD while powered? Yes—except during programming/game load or firmware updates. Where can I get support? Visit the Arcade Projects CPS-III forum.
