D2K Donkey Kong Multigame Free Play and High Score Save Kit
$76.00
Product information "D2K Donkey Kong Multigame Free Play and High Score Save Kit"
Braze D2K: Jumpman Returns Donkey Kong Multigame Kit
Upgrade a compatible original Nintendo Donkey Kong arcade PCB with two selectable games: the original Donkey Kong and D2K: Jumpman Returns. The kit permanently saves the Top 5 scores and player initials for both games.

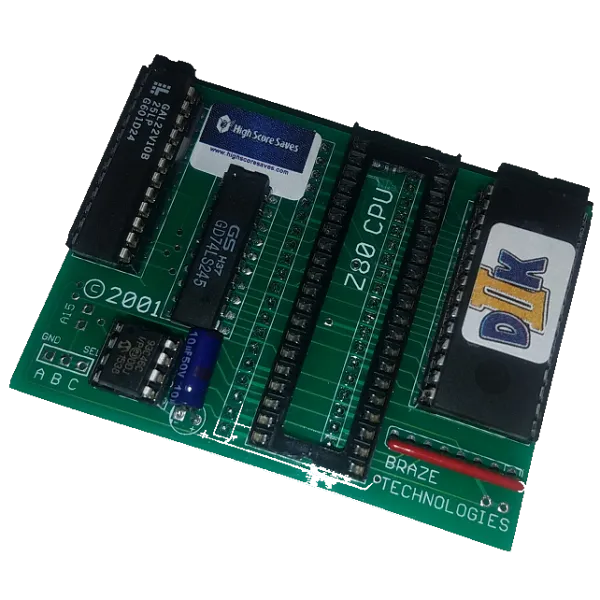

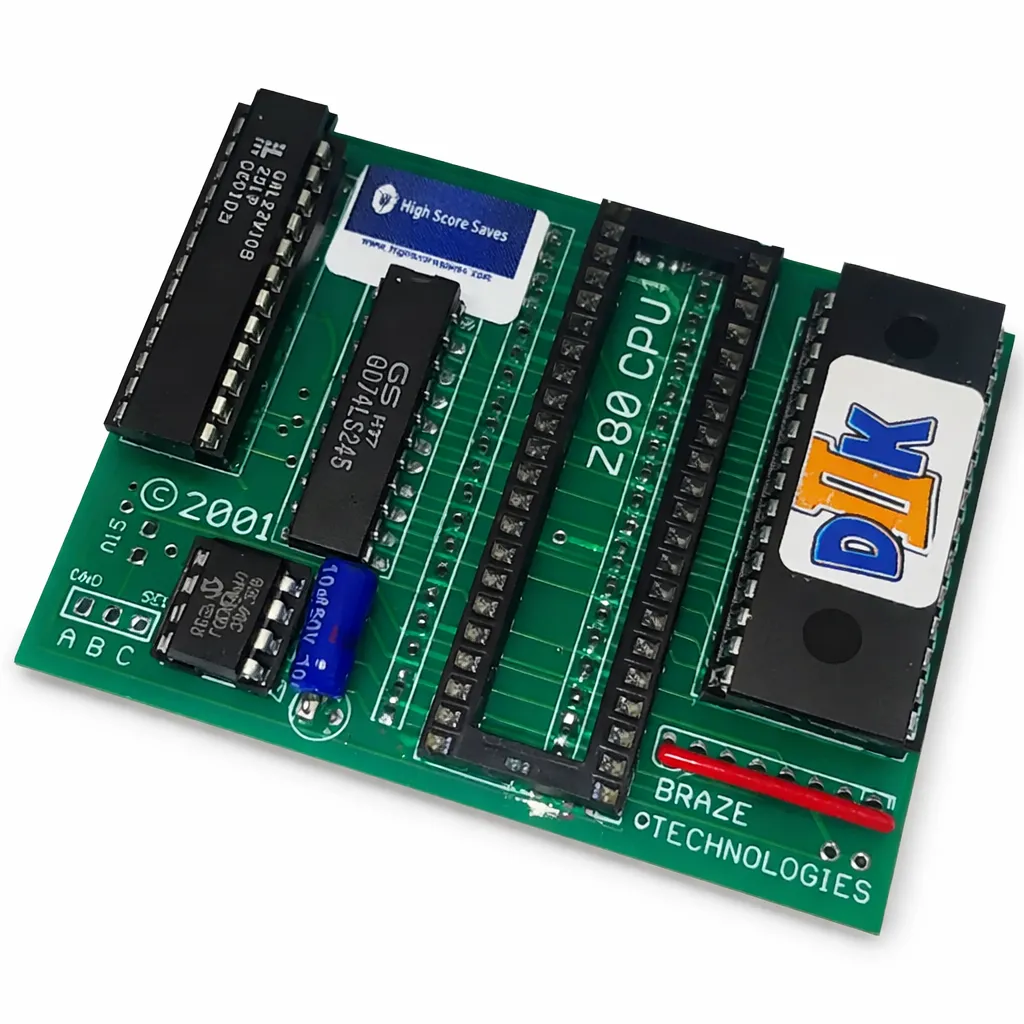

This Braze Technologies daughterboard also adds deluxe Free Play, selectable attract-mode sound, automatic power-on diagnostics, and an on-screen settings menu. It uses the original Z80 processor and supports documented two-board and four-board Donkey Kong PCB stacks.

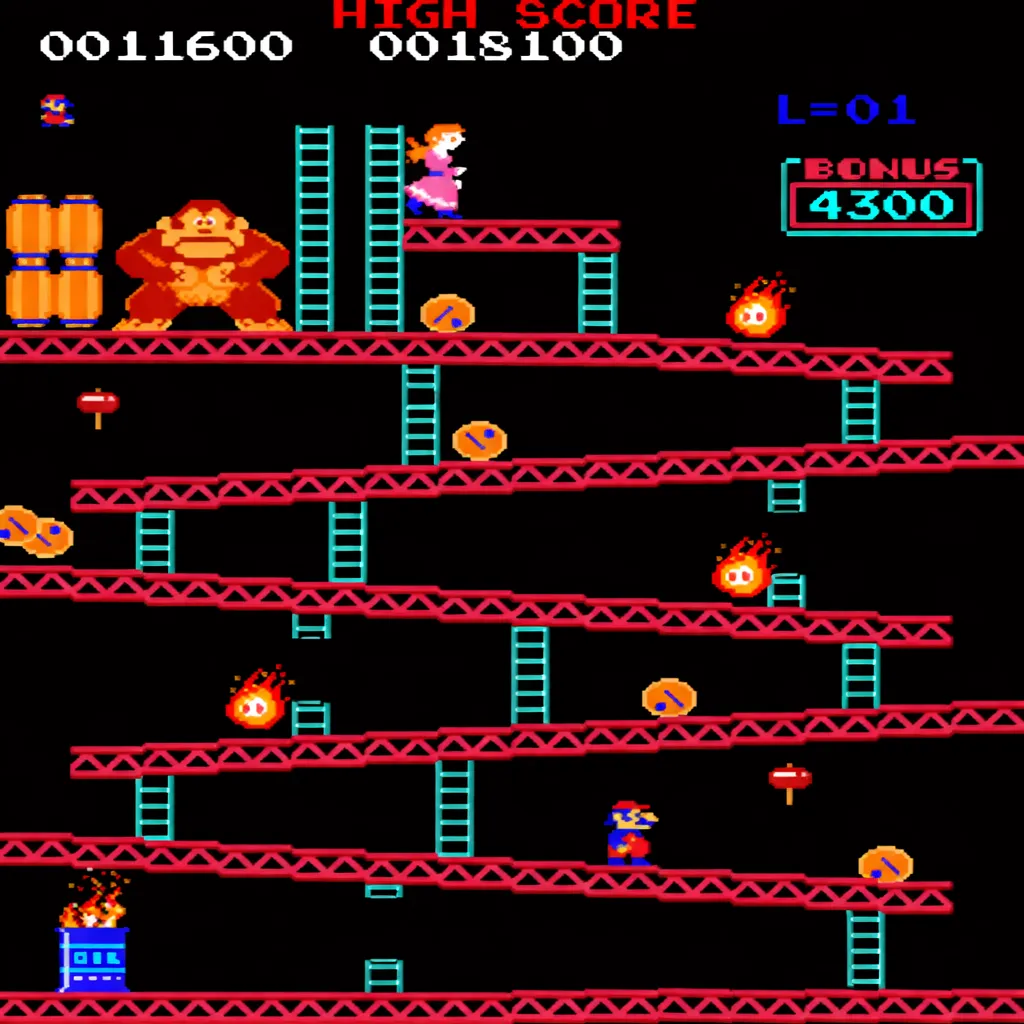

Play Donkey Kong or D2K: Jumpman Returns on compatible original hardware.
Permanently stores the Top 5 scores and initials for both games.
Supports coin-free play while retaining full attract-mode operation.
Runs an automatic supported hardware self-test during startup.

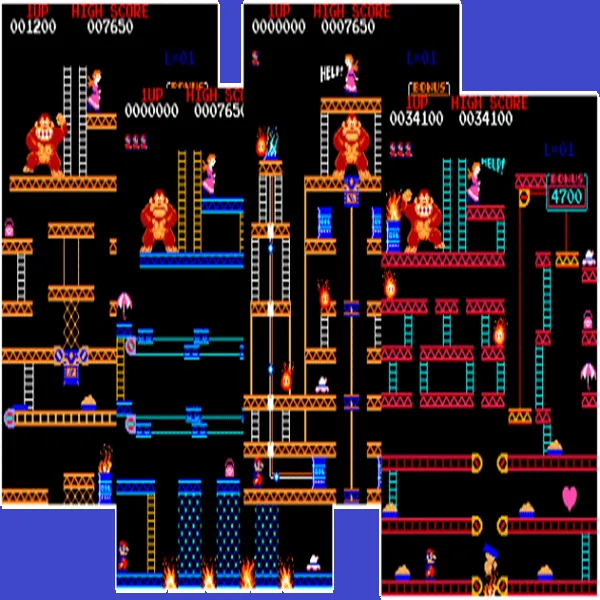

Donkey Kong and D2K: Jumpman Returns
This product is a two-game Braze multigame upgrade for compatible original Nintendo Donkey Kong hardware.
- Donkey Kong: The original Nintendo arcade game.

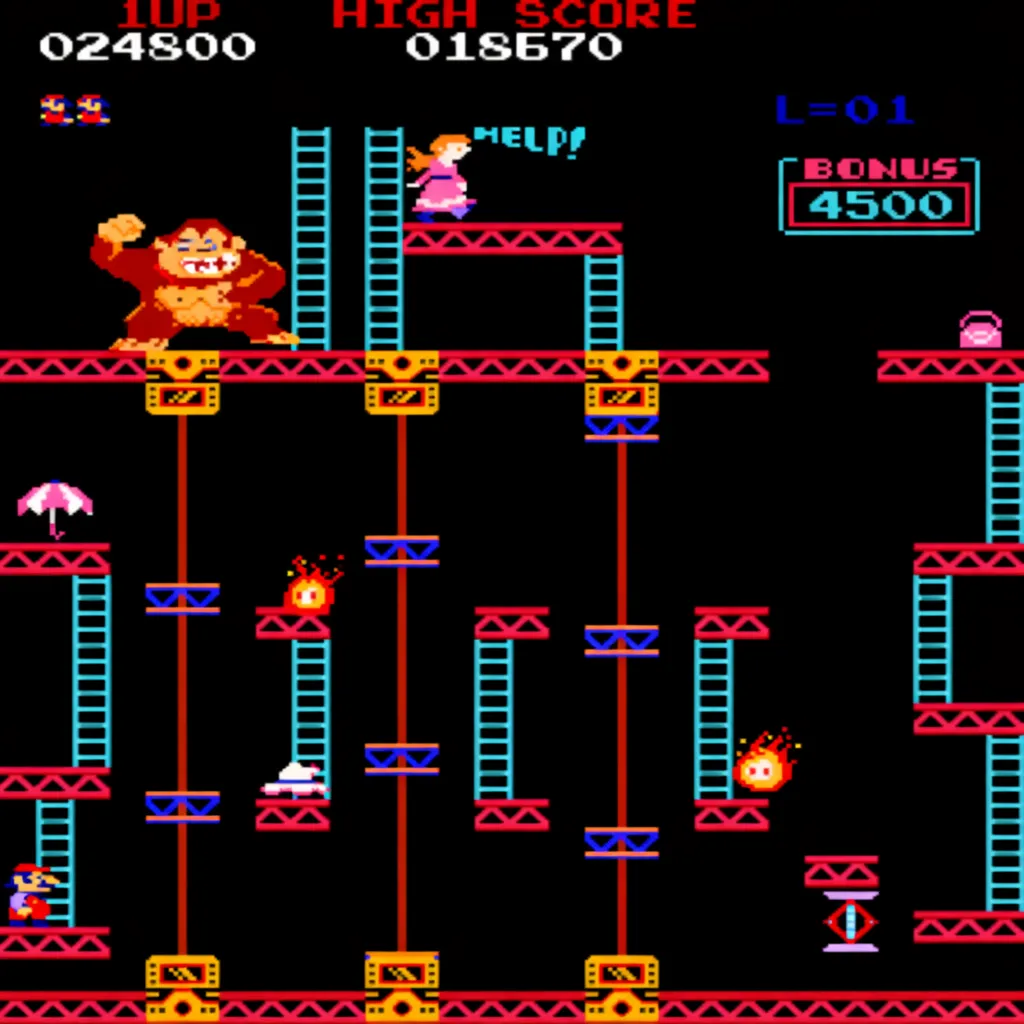

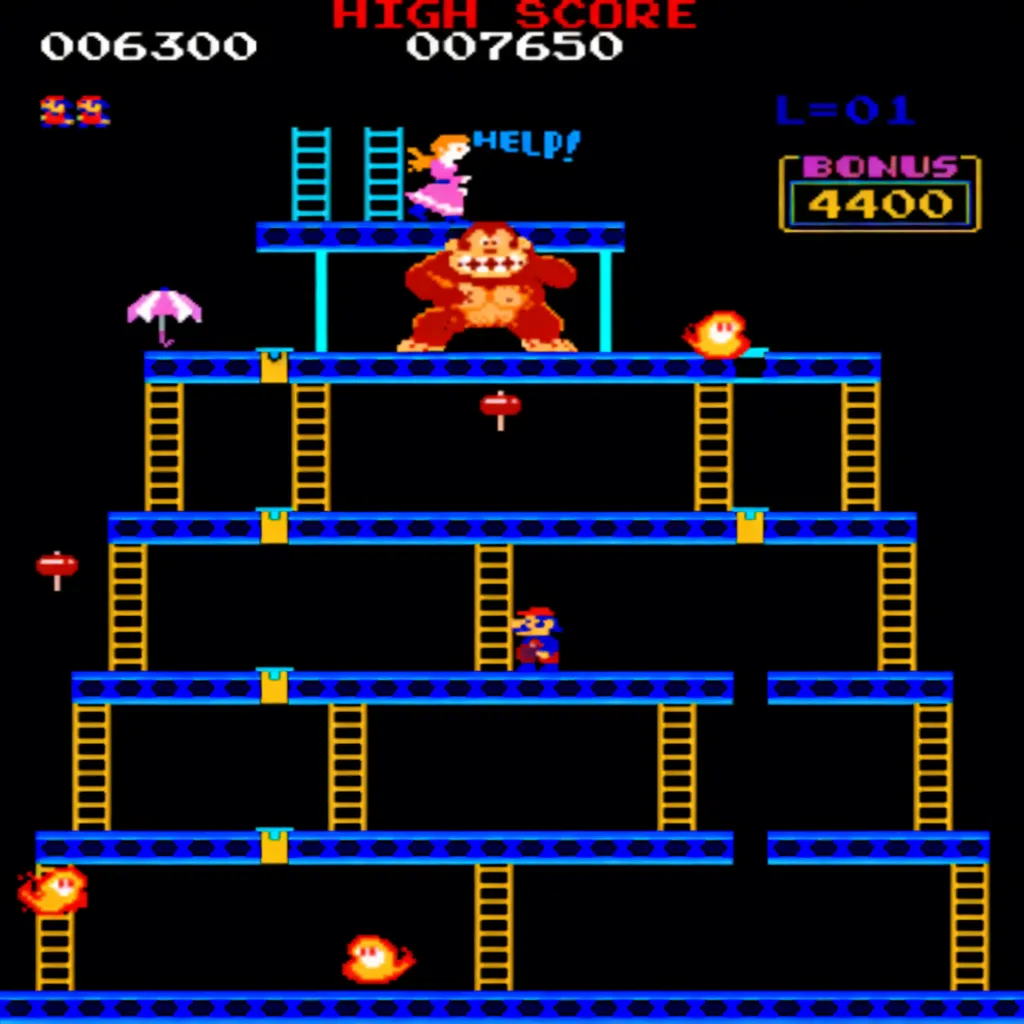

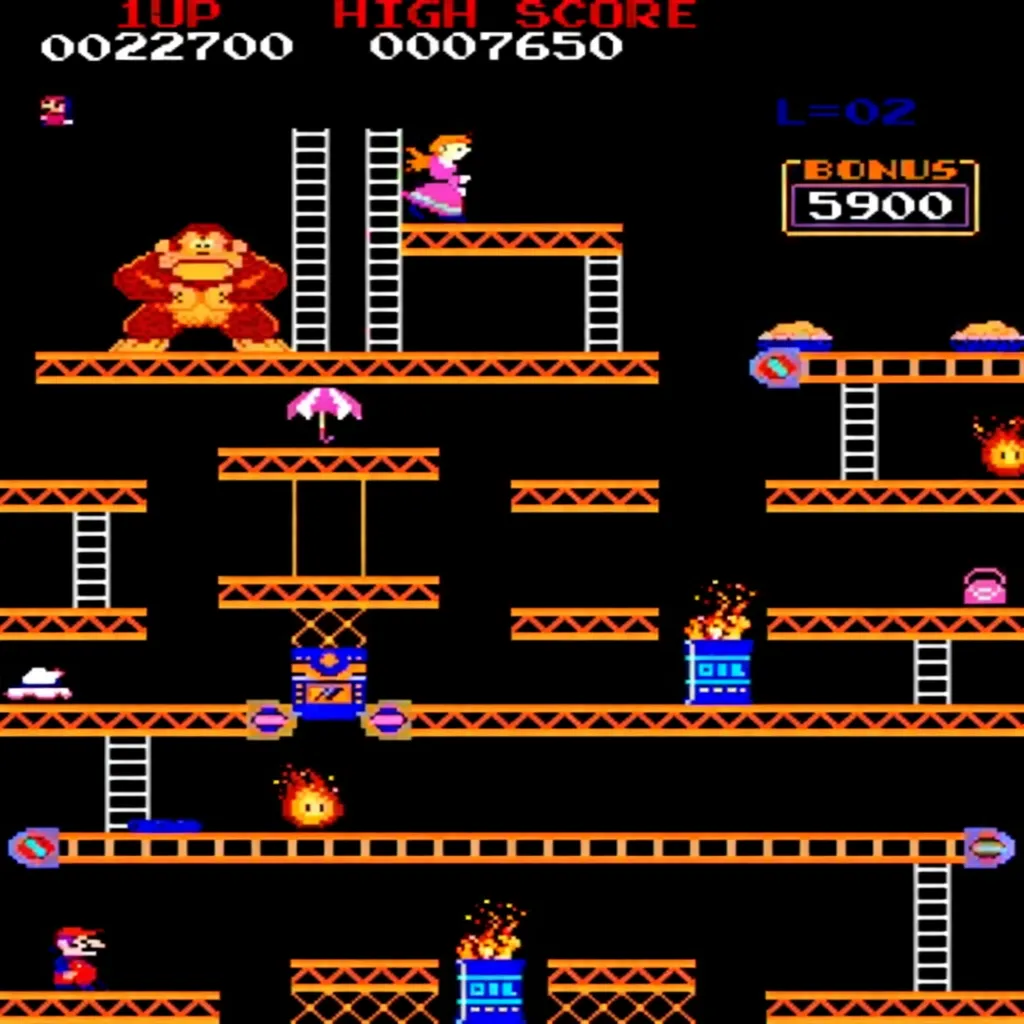

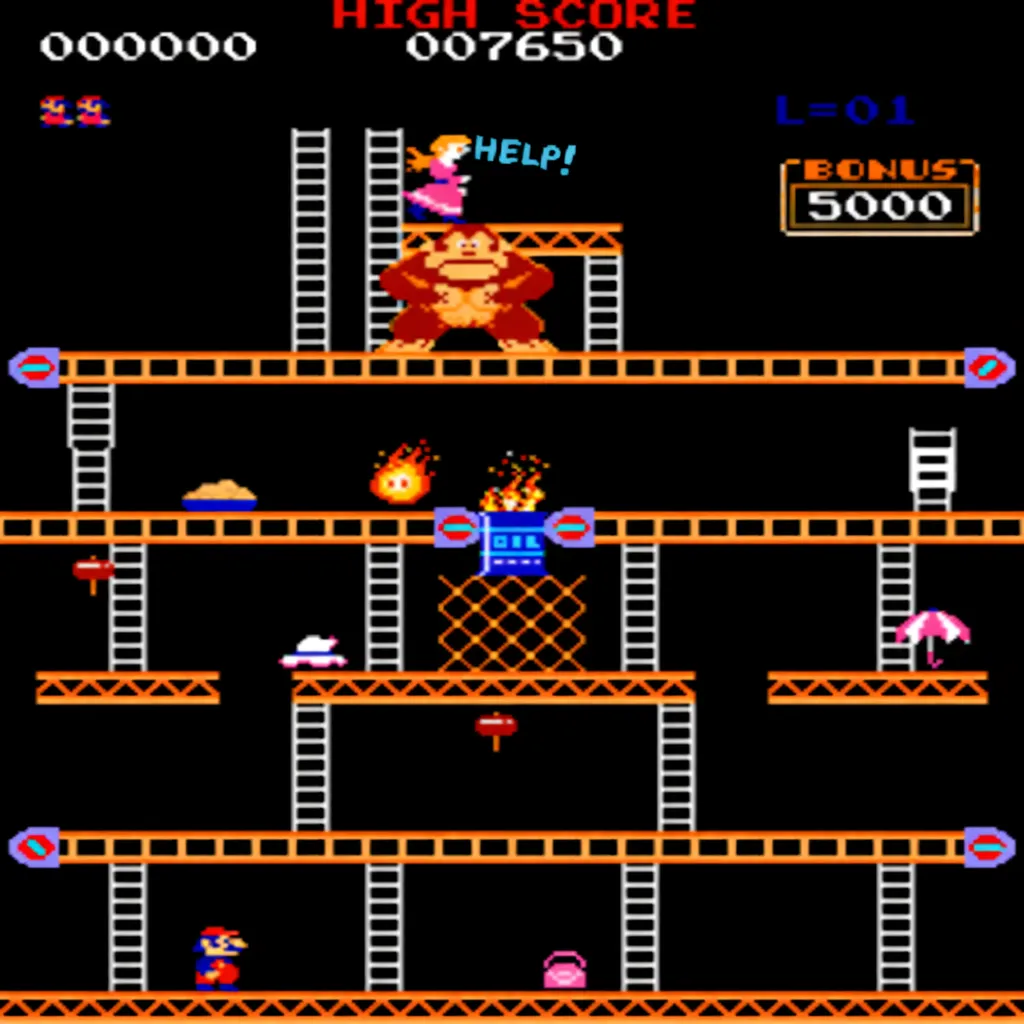

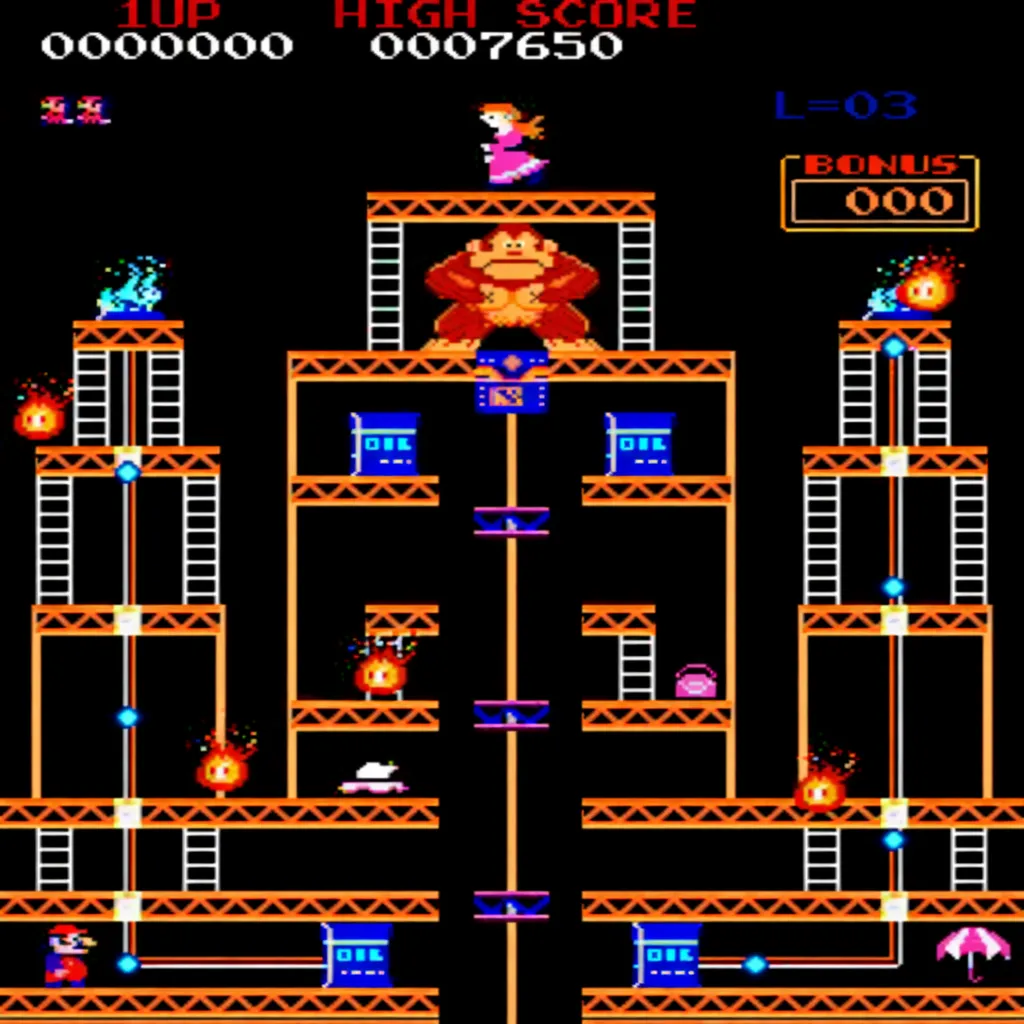

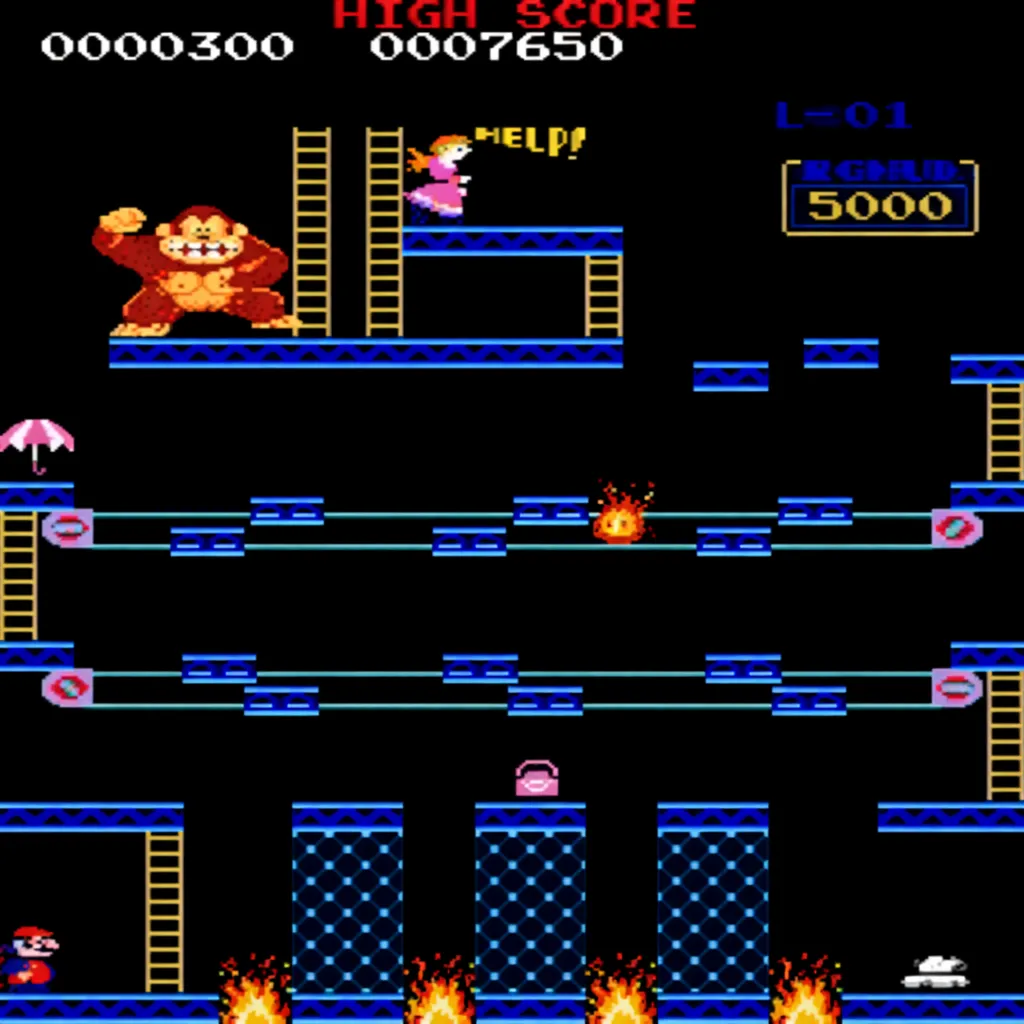

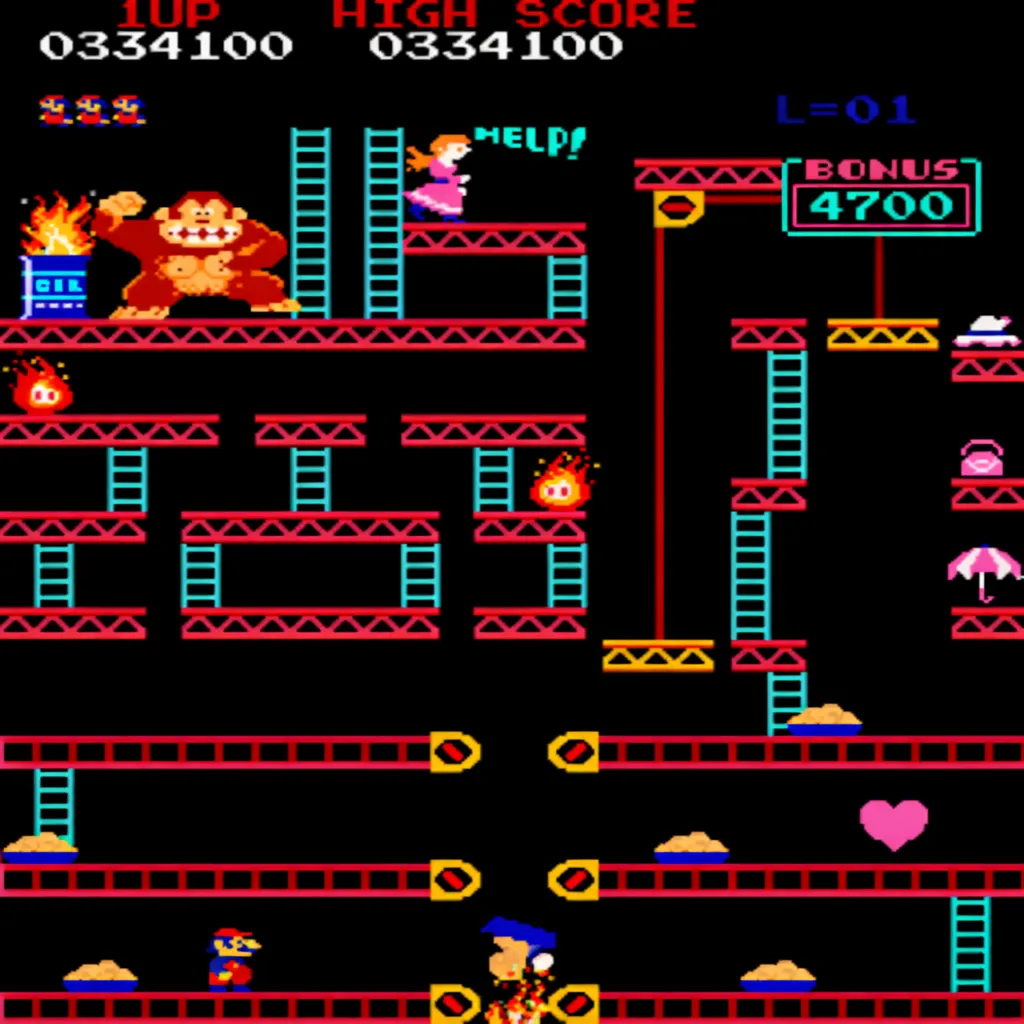

- D2K: Jumpman Returns: A separate Donkey Kong-based game with additional stages and challenges.
This is not the standard Braze Donkey Kong-only score-save kit. It is also separate from the HighScoreSaves Pauline, Donkey Kong Remix, and 3DK Rearranged products.
Included Features
- Two selectable games: Switch between Donkey Kong and D2K: Jumpman Returns.
- Permanent Top 5 saving: Retains the five highest scores for each game after power is removed.
- Player initials: Saves initials with each qualifying score.
- Separate score tables: Donkey Kong and D2K maintain their own saved high-score tables.
- Deluxe Free Play: Start games without coins while retaining full attract-mode operation.
- Selectable attract-mode sound: Enable or disable supported attract sounds through the settings menu.
- Power-on diagnostics: Automatically tests supported board and memory functions at startup.

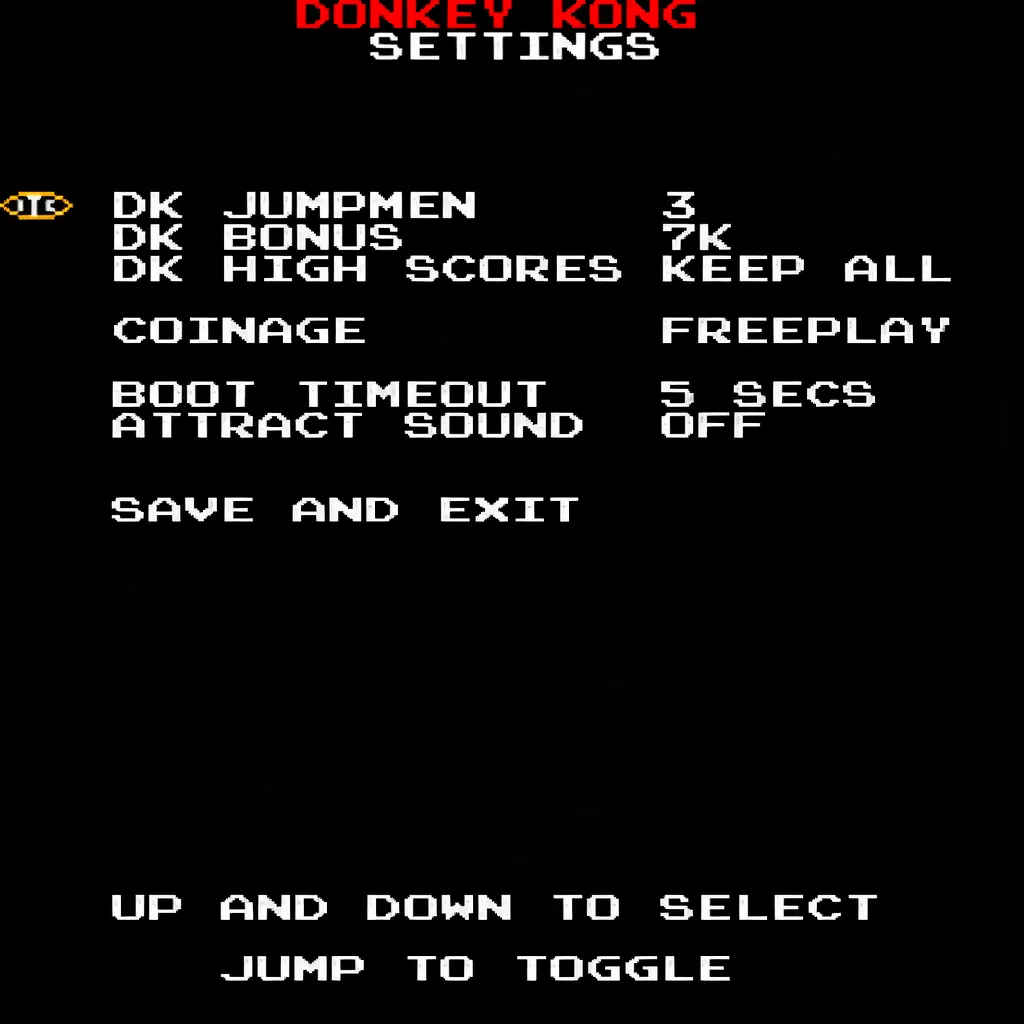

- On-screen settings: Configure supported options and erase saved scores through a menu.
- Original Z80 processor: Uses the processor removed from the original Donkey Kong CPU board.
- PCB stack support: Compatible with documented two-board and four-board Donkey Kong stacks.
- Software version: Supplied with Braze D2K version 1.2a.
Important D2K Feature Note
This kit does not include the ladder cheat. The installation guide covers several related Braze Donkey Kong and D2K products, but the features available depend on the specific kit purchased.
How to Switch Between Games
Game switching is available while the kit is configured for Free Play:
- Remain in attract mode.
- Hold Player 1 Start and Player 2 Start together for approximately five seconds.
- Press the Jump button when prompted to switch games.
The documented button combination applies to Free Play mode. Follow the installation guide for complete setup and operation instructions.
Compatibility and Socket Requirements
- Original arcade hardware required: Designed for compatible original Nintendo Donkey Kong arcade PCBs.
- Supported PCB stacks: Works with documented two-board and four-board Donkey Kong board stacks.
- PCB access required: The original Donkey Kong CPU board must be accessed during installation.
- Original Z80 required: The processor is removed from the CPU board and installed on the D2K daughterboard.
- Socketed processor required: The Z80 installation location must have a compatible 40-pin socket.
- No soldering when socketed: Installation does not require soldering when the original Z80 is already installed in a compatible socket.
- Soldered processor: If the Z80 is soldered directly to the CPU board, a qualified arcade technician must install the appropriate socket before the kit can be fitted.
Installation Summary
- Power off and unplug the arcade cabinet.
- Access the original Donkey Kong CPU board.
- Carefully remove the original Z80 processor from its socket.
- Install the Z80 in the matching socket on the D2K daughterboard, following the Pin 1 orientation in the installation guide.
- Install the assembled daughterboard into the original Z80 socket on the Donkey Kong CPU board.
- Verify pin alignment and orientation before restoring power.
- Power on the cabinet and review the diagnostic and settings screens.
This summary does not replace the complete installation guide.
Braze D2K Kit FAQ
Which games are included?
The kit includes the original Donkey Kong and D2K: Jumpman Returns.
How many scores are saved?
It permanently stores the Top 5 scores and initials separately for Donkey Kong and D2K.
How do I switch between Donkey Kong and D2K?
In Free Play attract mode, hold both player Start buttons for approximately five seconds and then press Jump.
Does this kit include the ladder cheat?
No. The ladder cheat is not included with this D2K kit.
Does installation require soldering?
Not when the original Z80 is already installed in a compatible 40-pin socket. A qualified technician must install a socket when the processor is soldered directly to the CPU board.
Which Donkey Kong PCB stacks are supported?
The kit supports documented two-board and four-board original Nintendo Donkey Kong PCB stacks.
Is Wi-Fi included?
No Wi-Fi feature is listed for this Braze D2K product. Scores are permanently stored locally on the kit.
