Crazy Climber Free Play and High Score Save Kit
Product information "Crazy Climber Free Play and High Score Save Kit"
Customize Your Crazy Climber Free Play and High Score Save Kit

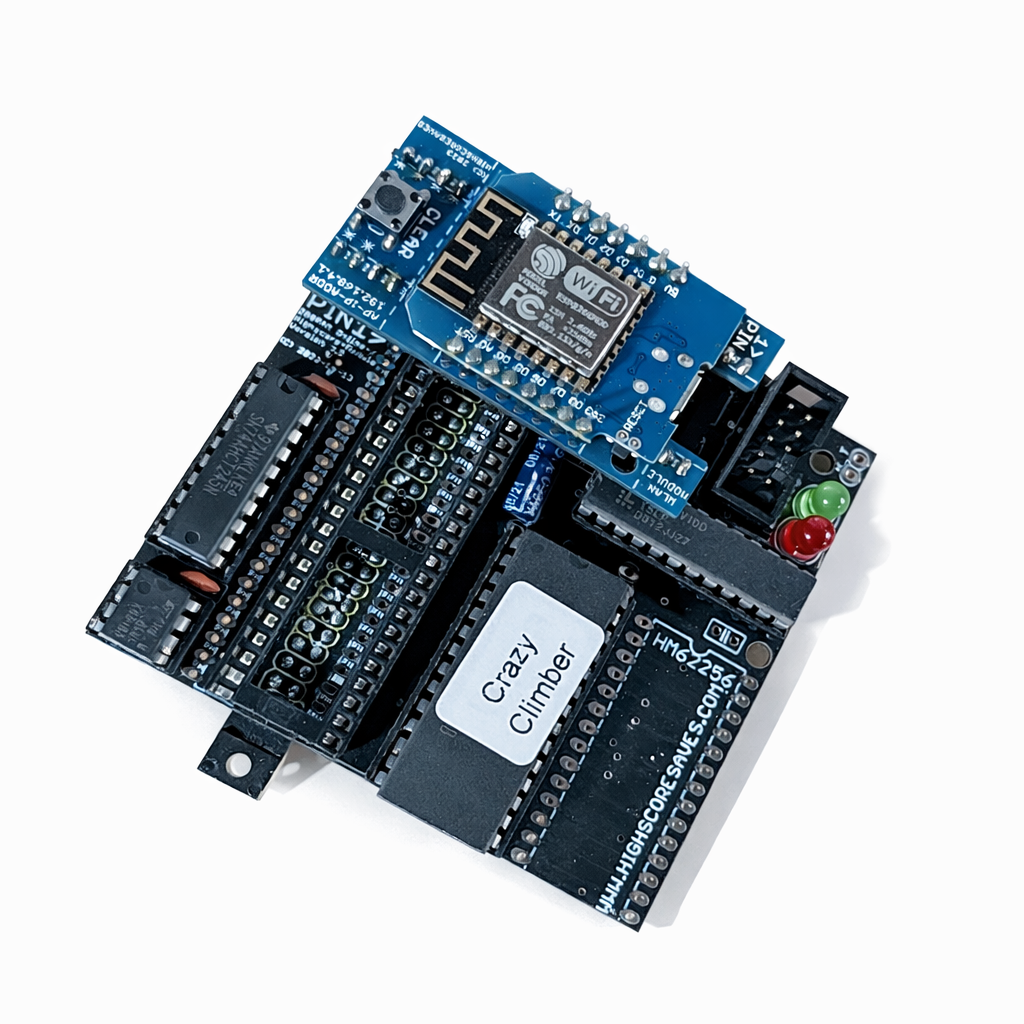

Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit. You can also add a processor and/or a 40-pin socket—optional but recommended for easy installation.
Learn More About This Kit
Click a button to view details, tips, or the installation guide.
Features

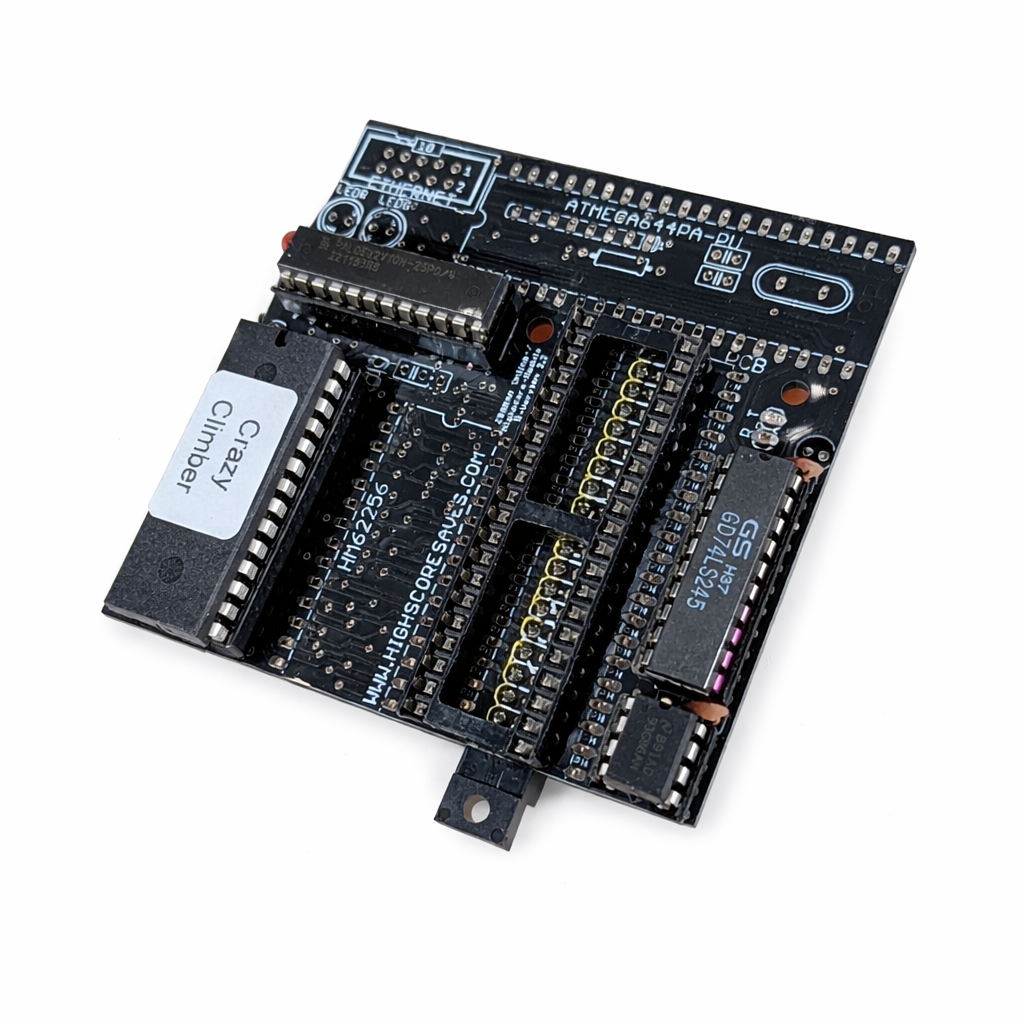

- Easy install: No soldering or board mods.
- Save your scores forever: Serial EEPROM (no batteries/NVRAM).

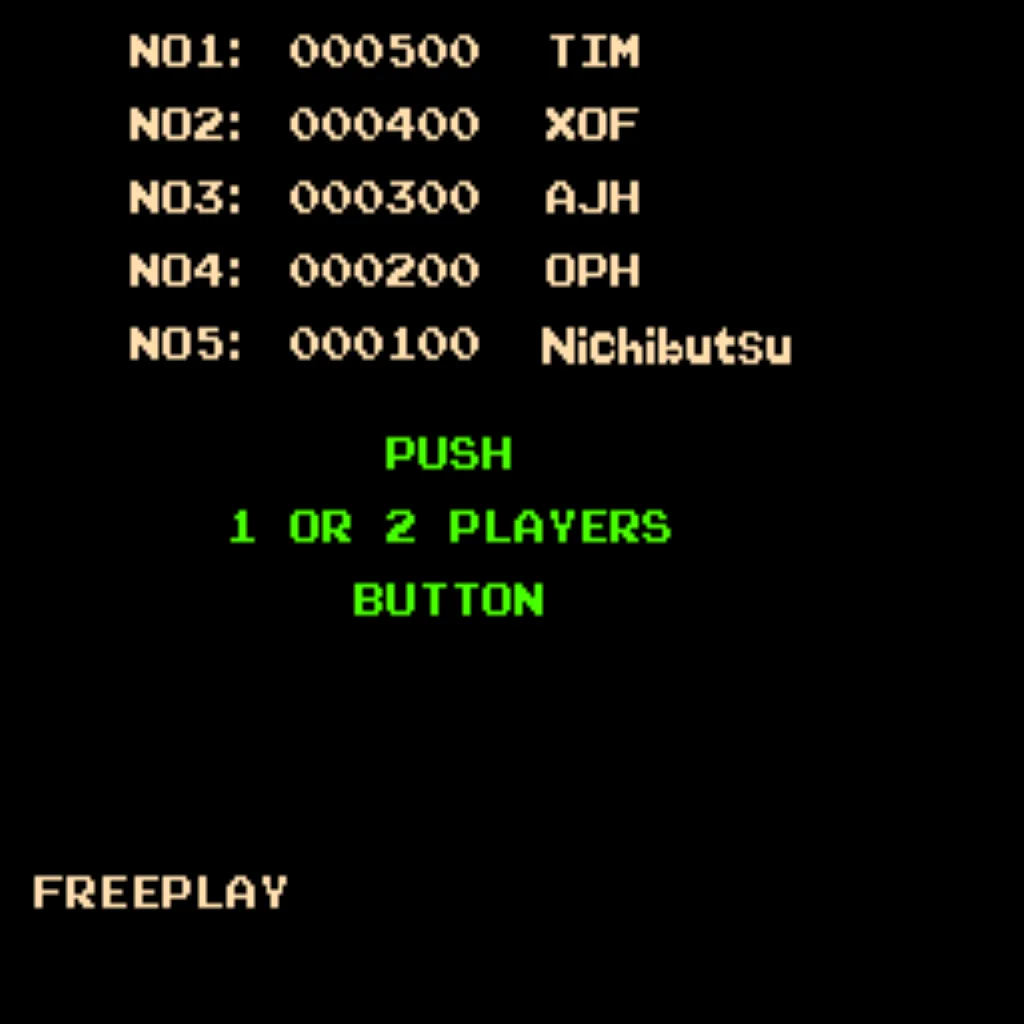

- High Score Save: Stores the Top 5 scores.

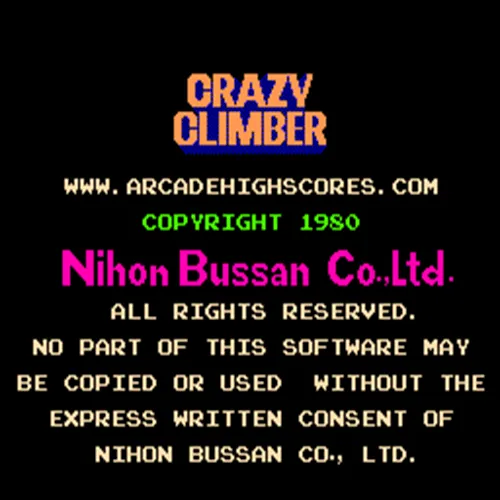

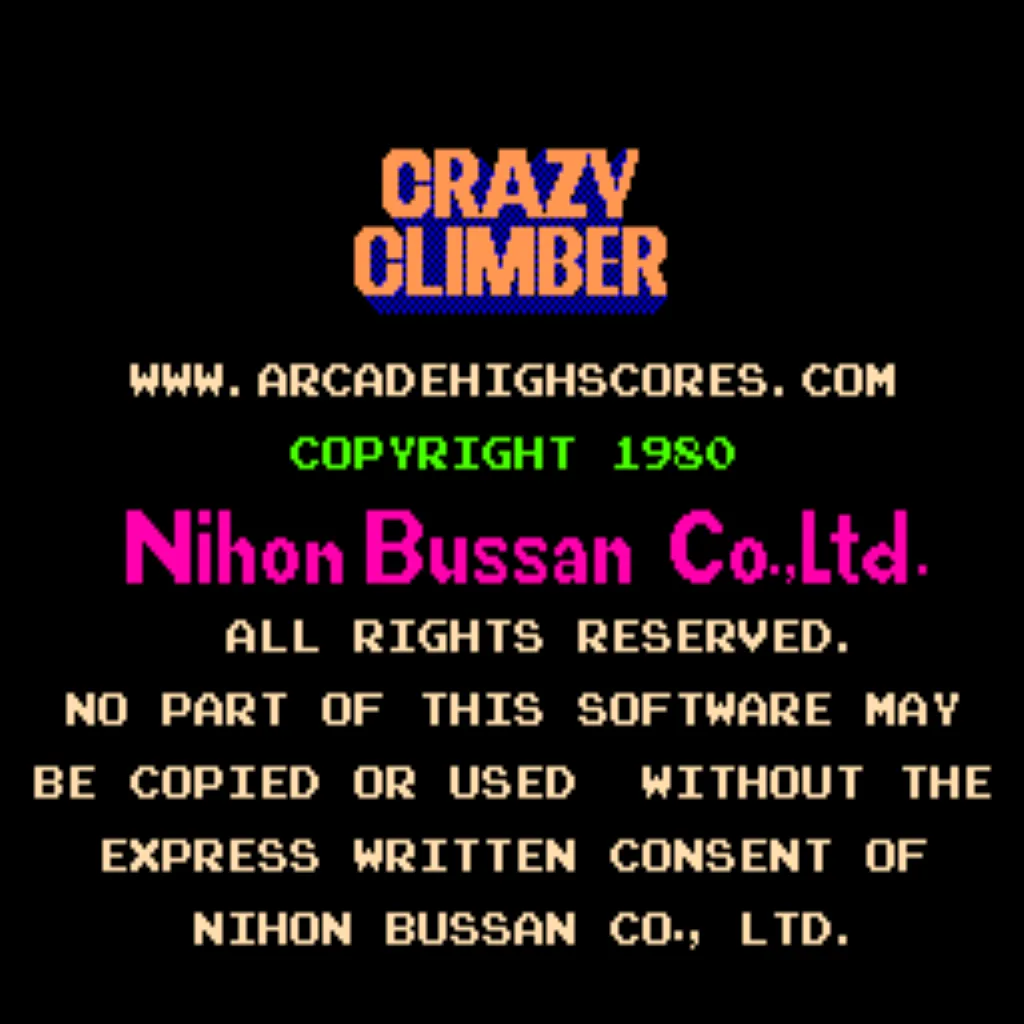

- Copyright options: Select manufacturer or HSS logo.
- Attract sounds: Enable at 25%, 50%, or 100% rotation.
- Freeplay: No coins required; Coin Up supported.
- Attract mode: Reduces screen burn.

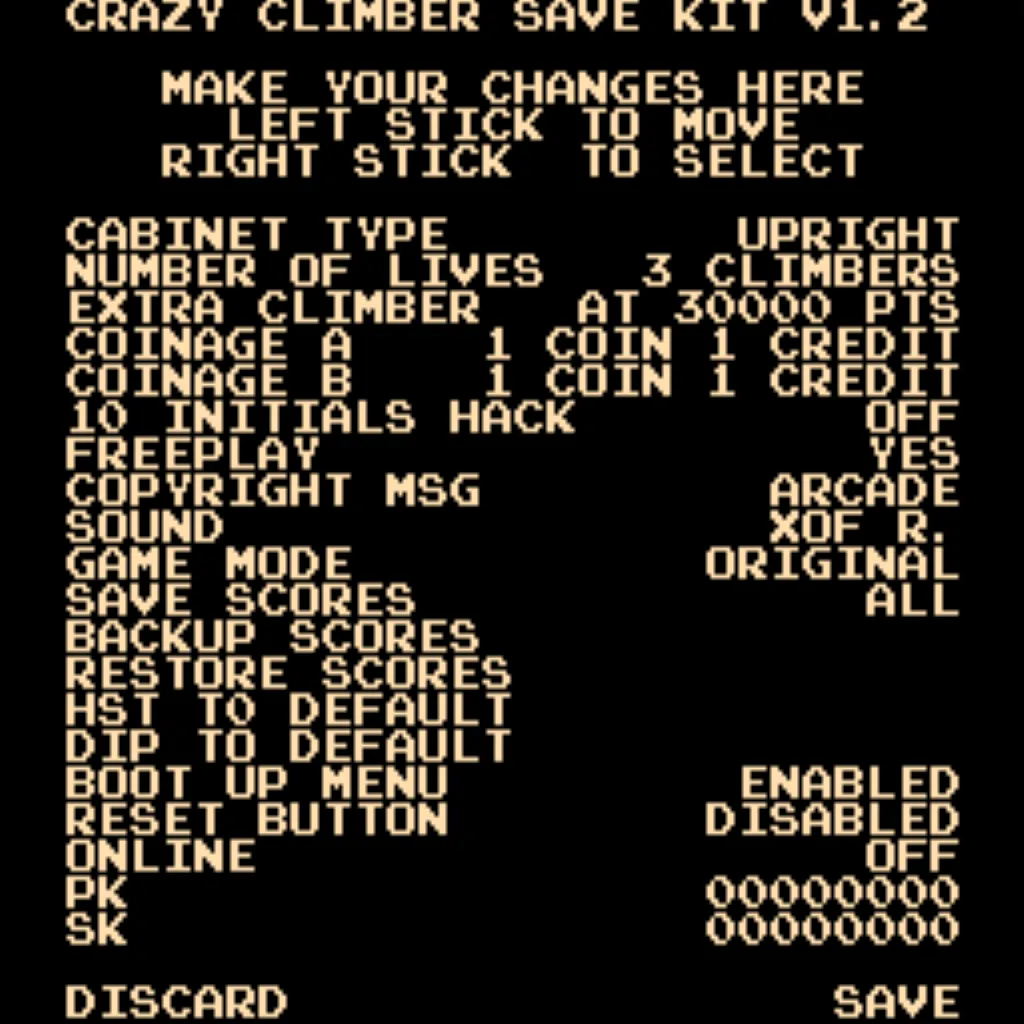

- DIP settings in menu: No more pulling the cabinet.
- ROM Saver: Optionally remove program ROMs.
- Cab support: Upright and Cocktail compatible.
Additional Features
- Backup & Restore: Great for parties or tournaments.
- Separate score tables: Different tables for 2, 3, 4, or 5 lives.
- Reset button: Restart via P1+P2 when enabled.
- Fast boot: Almost no initialization time.
Important
- Your Z80 must be socketed. Add a 40-pin socket if needed.
- This kit requires a standard Z80 — the onboard CPU cannot be used.
- Read the Crazy Climber Installation Guide (PDF) before setup.
Troubleshooting
“NO CC7 ROM FOUND OR UNKNOWN DATA”
This occurs when the cc7 sound ROM is missing, corrupt, or unknown.

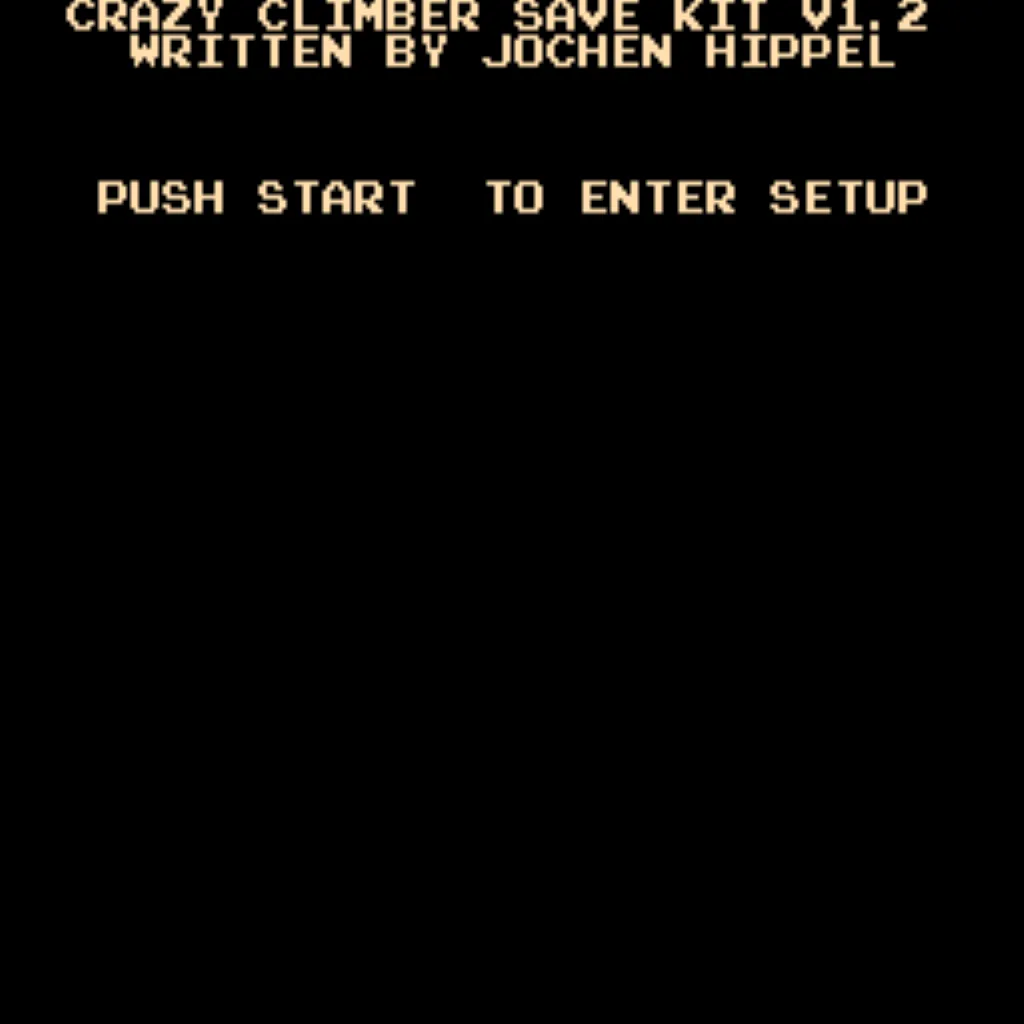

- Hold a start button at power-on to open the settings menu.
- Set Sound to Standard USA and save.
- Checksum will be skipped and the error will not appear.
FAQ
How many scores are saved?
Stores the Top 5 scores.
Does it support Freeplay and coins?
Yes — Freeplay or Coin Up are supported.
Are there separate score tables?
Yes — 2, 3, 4, and 5 lives each have unique tables.
What is the Reset Button?
Restart the game with P1+P2 (when enabled).
Which processor does this kit require?
A standard Z80, must be socketed.
Where can I download the Installation Guide?
Login
1 review
January 10, 2026 2:31 AM
Awesome kit!
Easy install kit and shipped fast! Will be back!
