Carnival Free Play and High Score Save Kit

$66.00

Choose Your Kit Version

Add a New Z80 CPU?

Add a 40-Pin CPU Socket?

Each

Product number: SW10008.2

Product information "Carnival Free Play and High Score Save Kit"

Carnival Free Play and High Score Save Kit for original Sega Gremlin arcade PCB

The HighScoreSaves Carnival Free Play and High Score Save Kit upgrades a documented compatible original Sega/Gremlin Carnival arcade PCB with Free Play, permanent high score saving, real attract sounds, menu-driven settings, Backup and Restore, and optional Wi-Fi leaderboard support while retaining the original arcade hardware and gameplay.

Carnival Compatibility & Requirements

Compatible PCB: Documented compatible original Sega/Gremlin Carnival arcade PCB

CPU: Z80

CPU Requirement: Compatible Z80 processor required; transfer the original socketed Z80 or select a compatible processor option

Socket: Compatible 40-pin CPU socket required

Soldering: Not required when the original Z80 is already socketed

Installation Location: Documented Z80 CPU position

Cabinet Support: Documented upright and cocktail configurations

Installation: Plug-in installation when the original Z80 is already socketed. If the Z80 is soldered directly to the PCB, a qualified arcade technician must install a compatible 40-pin socket before the kit can be used.

Carnival PCB Compatibility & Kit Details

View Carnival Installation Guide PDF

What This Kit Adds

Free Play & Coin Operation Play Carnival without coins while retaining traditional Coin-Up operation when desired.

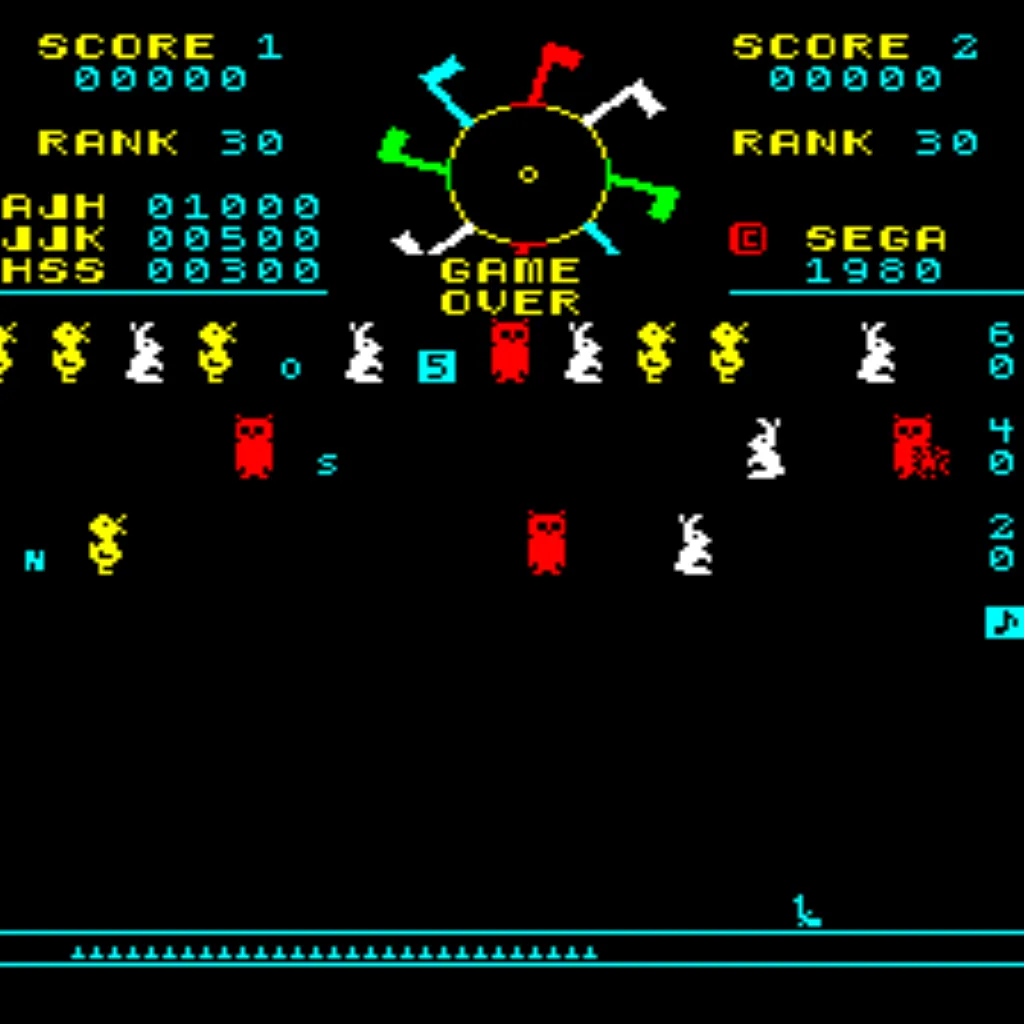

Top 3 On-Screen Scores Displays the three highest supported saved scores directly on-screen.

Up to 30 Stored Scores Stores up to 30 supported scores using reliable battery-free serial EEPROM storage.

Real Attract Sounds Adds authentic Carnival gameplay sound effects during attract mode.

Adjustable Attract Sound Frequency Select supported 25%, 50%, or 100% attract sound rotation settings.

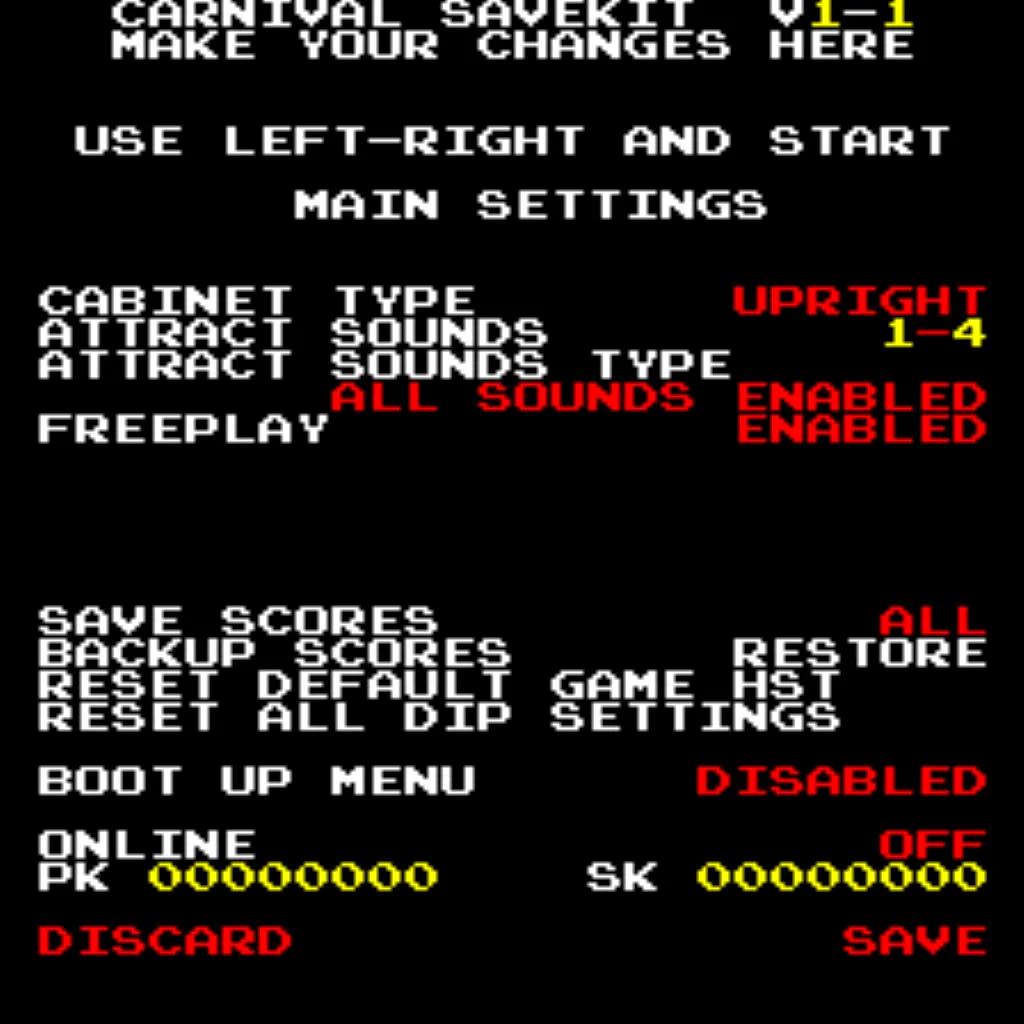

On-Screen Settings Configure supported DIP and game options directly through the kit menu.

Score Backup & Restore Back up stored high score data and restore it later when needed.

Attract-Mode Protection Supported attract-mode behavior helps reduce prolonged static-screen display time.

ROM Saver Supports removal of designated original program ROMs as described in the installation guide.

What's Included

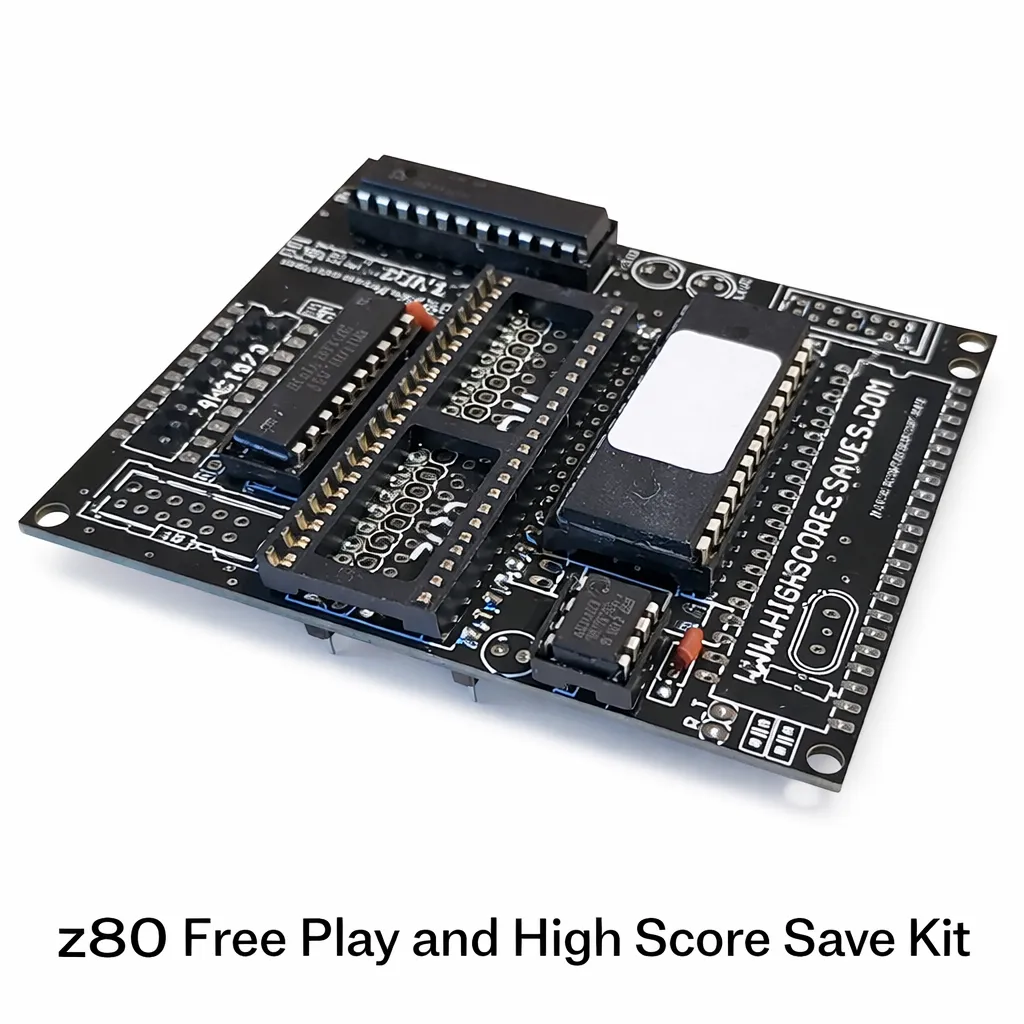

Base Carnival Kit: 1 × HighScoreSaves Z80 daughter PCB

Z80 processor required: transfer your current compatible Z80 to the kit or select a compatible processor option when ordering.

Standard vs. Wi-Fi Kit

Standard Kit

Saves supported scores, settings, and configuration data locally on the installed Carnival arcade PCB. No internet connection is required.

Wi-Fi Enabled Kit

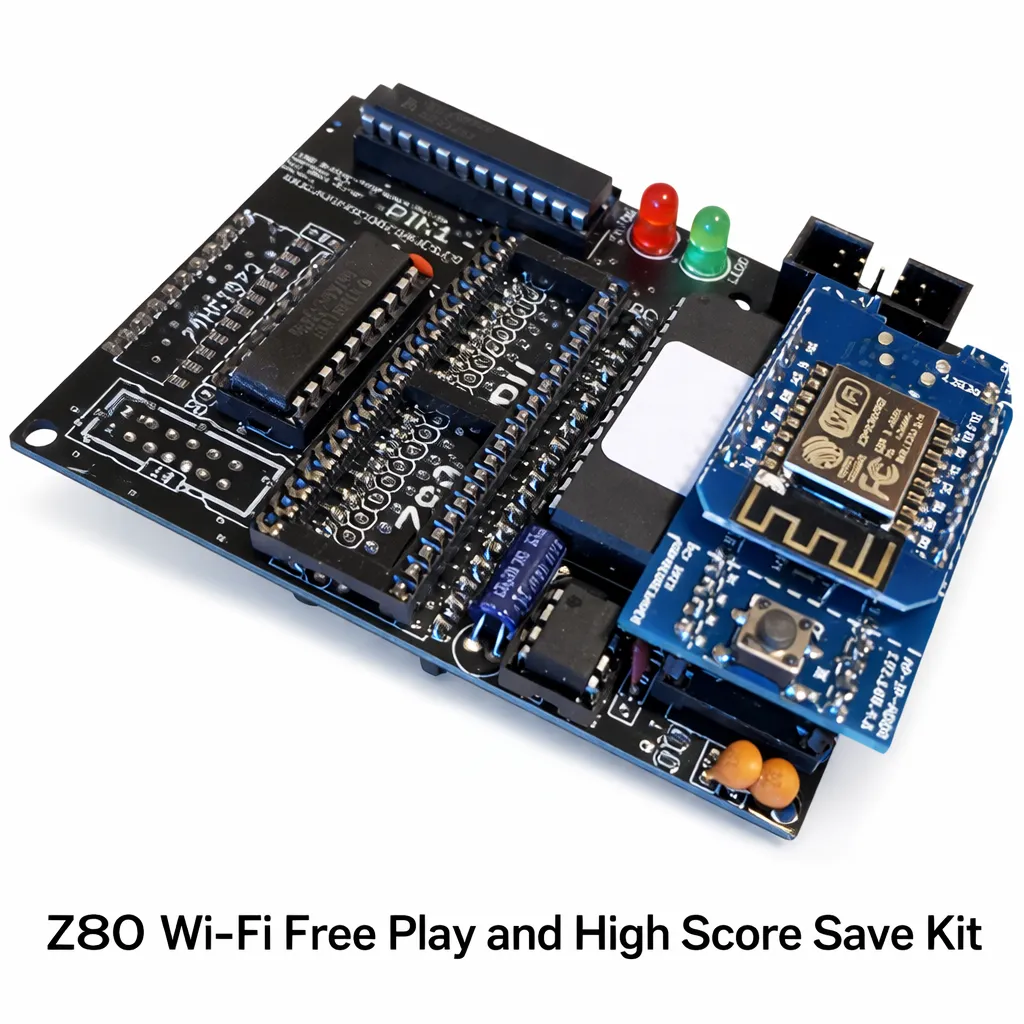

Includes the same local features and can also submit qualifying completed scores to the HighScoreSaves online leaderboard.

Wi-Fi can be disabled without affecting local score saving, Free Play, menu settings, Backup and Restore, ROM Saver operation, or normal gameplay. Wi-Fi-enabled kits use compatible 2.4 GHz Wi-Fi networks.

Carnival Kit FAQ

How do I enter the Carnival kit settings menu?

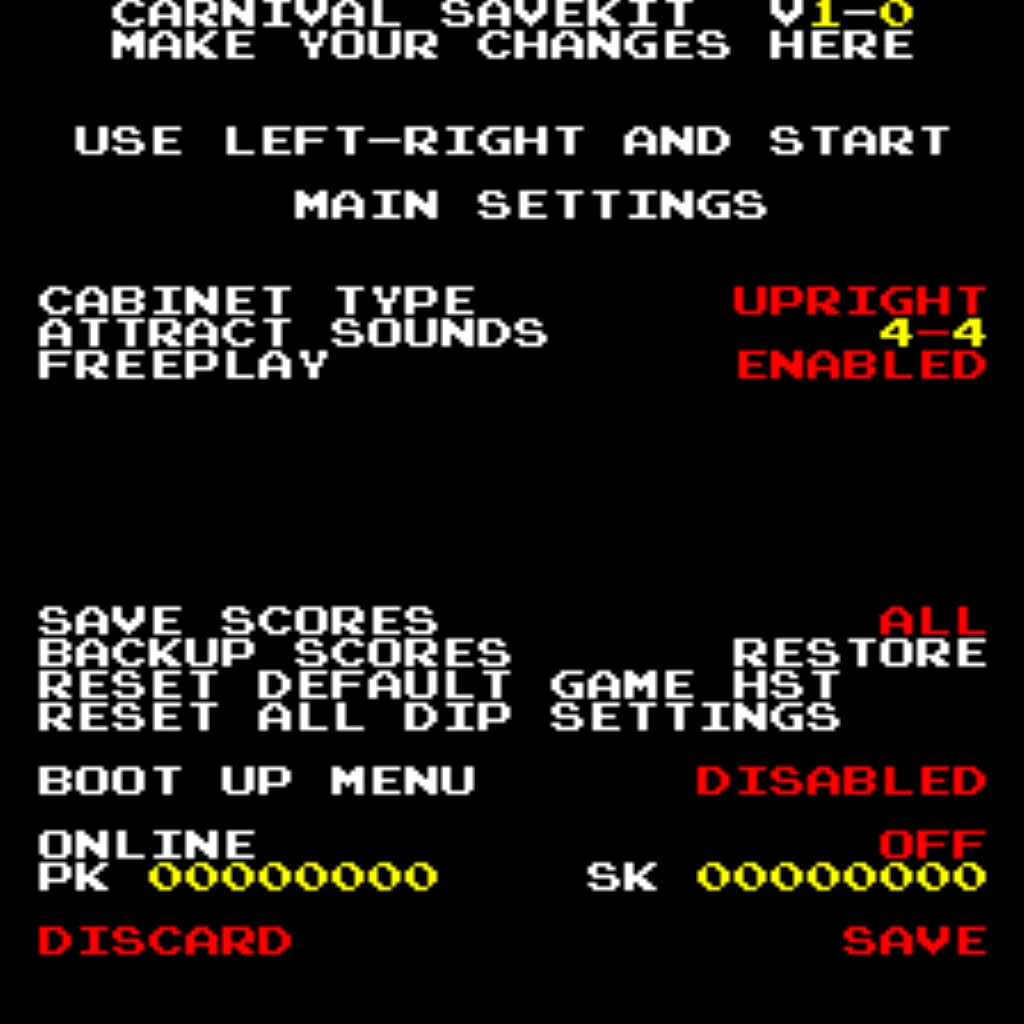

Hold Player 1 Start for approximately 4 seconds while turning on the cabinet. Release the button when the on-screen prompt tells you to continue.

How many Carnival high scores are saved?

The kit displays the Top 3 supported scores on-screen and stores up to 30 total scores using battery-free serial EEPROM.

Can Carnival attract sounds be adjusted?

Yes. The kit adds authentic gameplay sounds during attract mode and supports 25%, 50%, or 100% attract sound frequency settings.

Will the Wi-Fi kit still save scores if Wi-Fi is disabled?

Yes. Local score saving, Free Play, Coin-Up operation, menu settings, Backup and Restore, ROM Saver functionality, and normal gameplay continue to work when Wi-Fi is disabled or unavailable.
