Braze Zaxxon Free Play and High Score Save Kit
$70.00
Product information "Braze Zaxxon Free Play and High Score Save Kit"
Braze Zaxxon High Score Save Kit — Features & Install
Overview
A simple-to-install high score save kit for Zaxxon that permanently remembers the top 6 scores and initials—no batteries required. Extras include deluxe Free Play, power-on self-test, an on-screen settings menu, and a Flip Screen option for 180° rotation. Installs in minutes—no board mods or special wiring typically required.
Installation Summary
- Power down the cabinet and access the CPU board.
- Carefully remove the Z80 CPU from the Zaxxon CPU board.

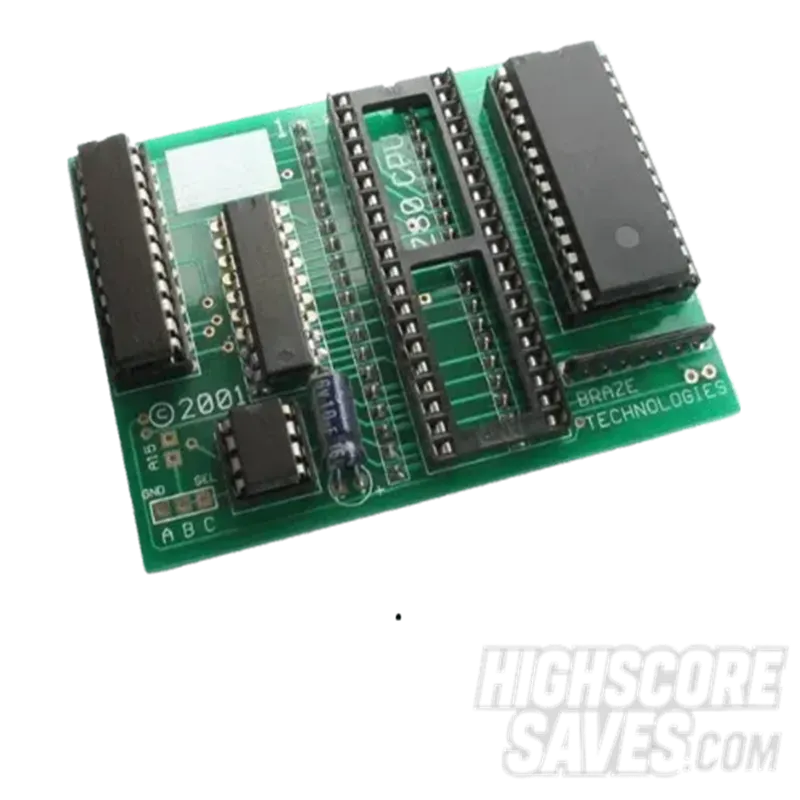

- Insert the Z80 into the included daughter card.
- Plug the daughter card into the vacated Z80 socket on the CPU board.
- Power on and follow the install guide to verify operation.
Key Features
- Installs in minutes: no board modifications or special wiring.

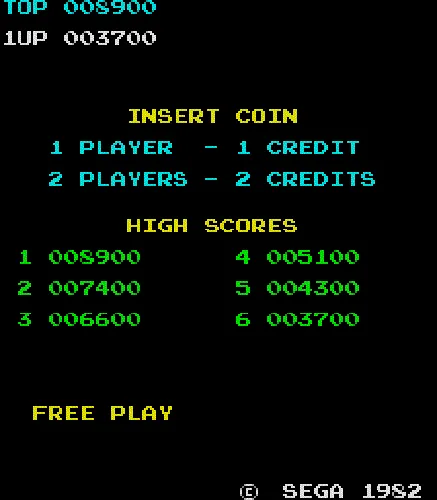

- Top 6 High Score Save: remembers scores and initials permanently (no batteries).
- True Free Play: no coins required; keep the coin door closed.

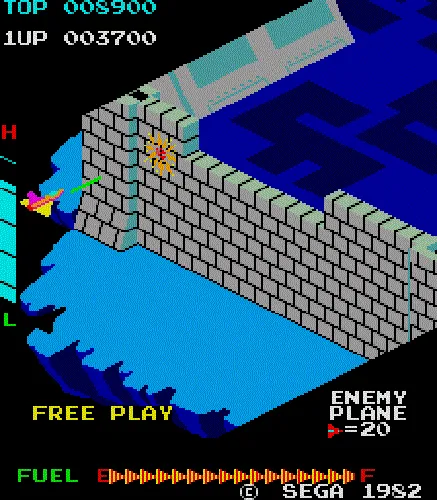

- Full attract mode: runs normally while in Free Play.

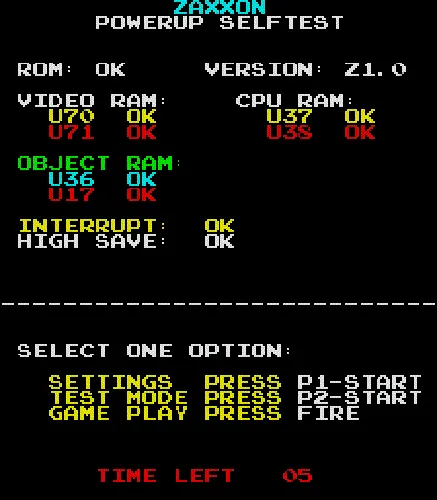

- Power-on diagnostics: automatic self-test at each boot.

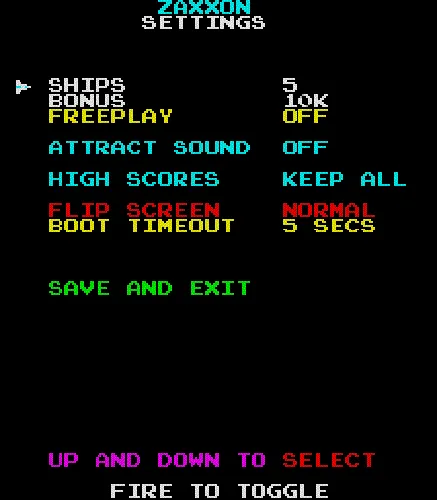

- On-screen settings: change options and erase high scores without DIP switch hassles.
- Flip Screen: 180° rotation without monitor tweaks or board hacks—great for JAMMA/multiswitcher setups.
Just the FAQ's
Where can I download the install guide?
Do I need to solder anything?
Typically no. Most installations require no soldering or special wiring.
How do I reset the high scores?
Use the on-screen settings menu to erase the table and restore defaults.
Can I rotate the display?
Yes. Use the built-in Flip Screen setting for a 180° rotation—no monitor adjustments needed.
Which CPU does this kit use?
The kit interfaces with the Z80 CPU—remove the Z80, place it in the daughter card, then insert the card into the Z80 socket.
