Braze Space Invaders Taito Version Multigame Free Play and High Score Save Kit
$90.00
Available, delivery time: 2-5 days
Product information "Braze Space Invaders Taito Version Multigame Free Play and High Score Save Kit"
Braze Space Invaders (Taito) 8-in-1 Multigame High Score Save Kit — Features & Install
Overview
Easy-to-install kit that expands your Space Invaders boardset to play 8 games. No soldering, special wiring, or external switches required. Switch games using P1 Start + P2 Start to access the on-screen selection menu. Includes on-screen configuration options and high score save for all titles.
Note: Your 8080 CPU may require a socket. Check your PCB before installation.
Installation Summary
- Power down the cabinet and access the Taito SI two-board L-shaped set or 3-PCB stack.
- Inspect the 8080 CPU — add a socket if necessary.
- Carefully remove the 8080 from the PCB.

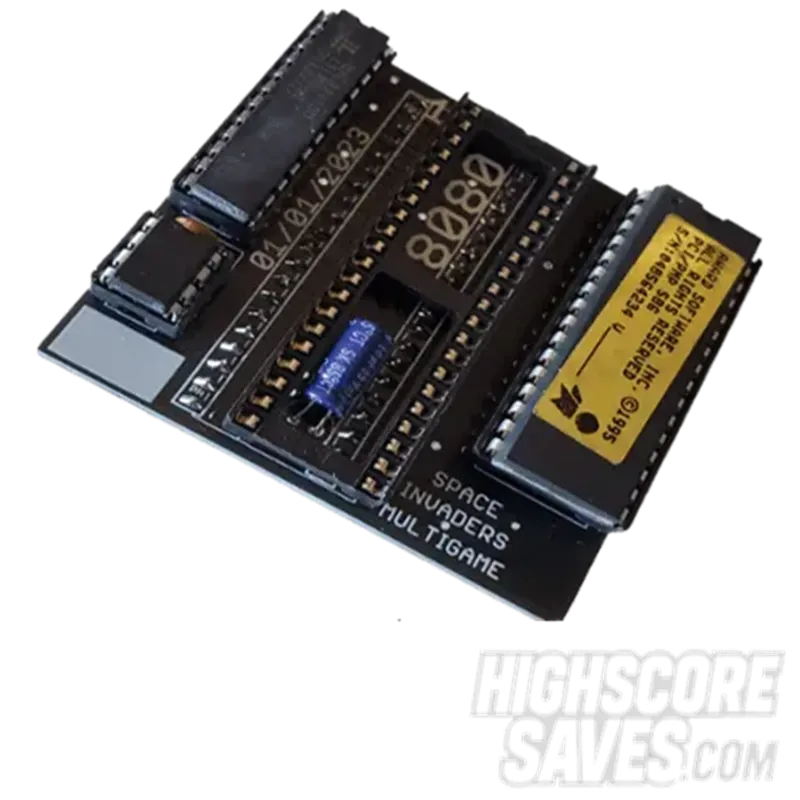

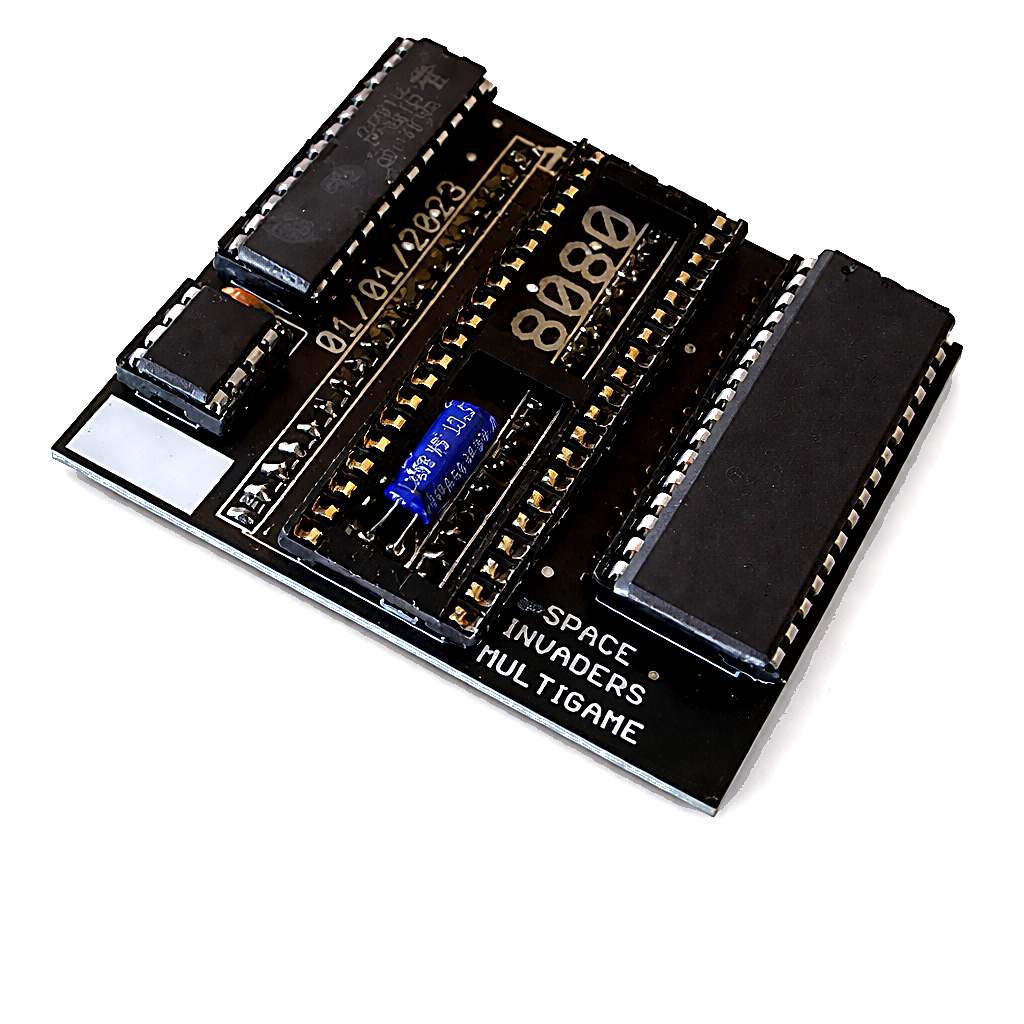

- Insert the 8080 into the included daughter card.
- Plug the daughter card into the vacated 8080 socket.
- Power on and press P1+P2 Start to select a game.
Key Features
- Installs on a Space Invaders PCB in minutes—no soldering or wiring.
- Free Play option (Galaxy Wars excluded).
- High Score Save for all eight titles.
- Power-on diagnostics at each startup.
- On-screen configuration menu with advanced options.
- Interactive test mode for detail-level PCB checks.

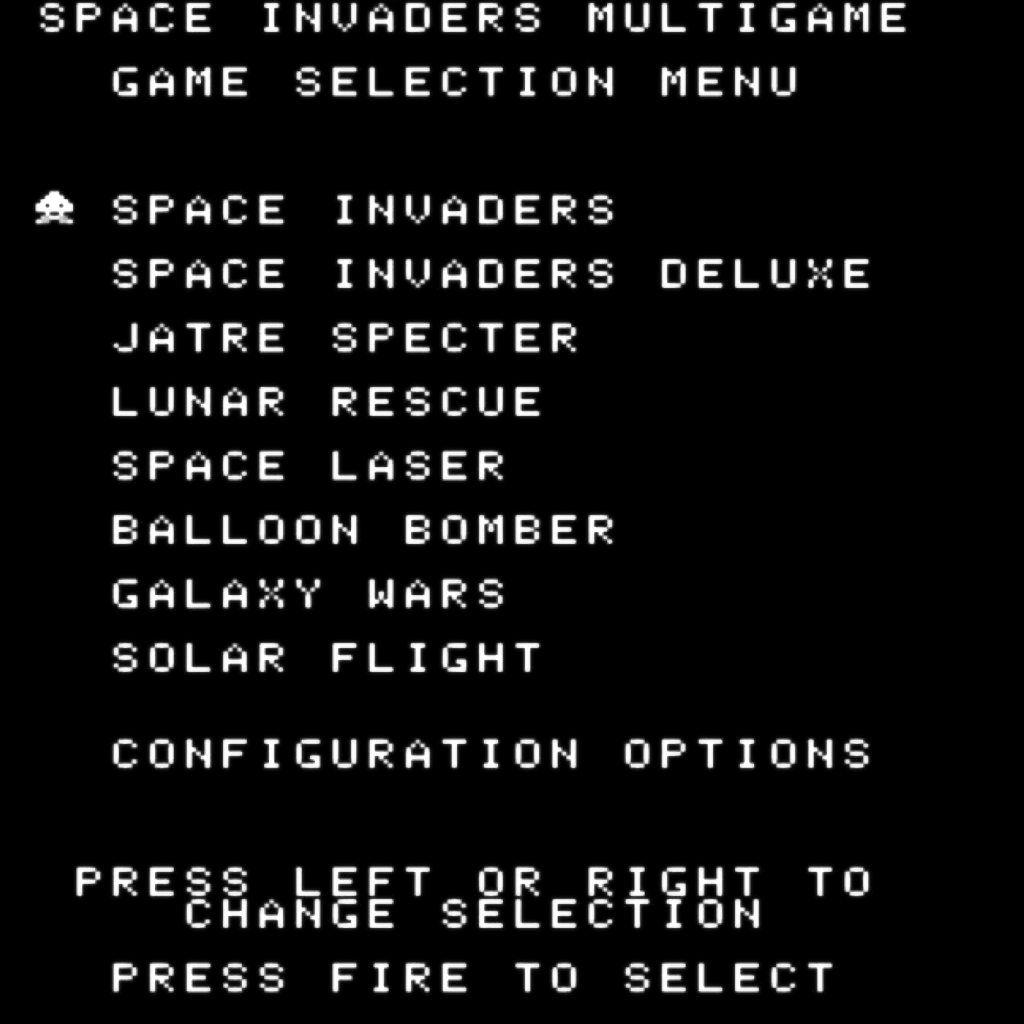

Game List
- Space Invaders
- Space Invaders Deluxe
- Jatre Specter
- Lunar Rescue
- Space Laser
- Balloon Bomber
- Galaxy Wars (Free Play not supported)
- Super Earth Invasion
FAQ
Where can I download the install guide?
What board types are supported?
Supports the Taito black-and-white style PCB in both two-board and 3-board configurations.
Will it work in a cocktail cab?
Yes — as long as it’s a B&W Taito style (not the color Taito variant). Cocktail/upright mode depends on input-board strapping, and screen flip is done via monitor relays.
How do I switch between games?
Press P1 Start + P2 Start simultaneously to open the menu.
How do these versions differ from originals?
Adds Free Play, onboard diagnostics, high score save, extended configuration, and options like laser-base count, bonus award levels, and other enhancements.
Do I need to solder anything?
Usually no — unless your 8080 CPU is soldered in. In that case, a socket must be added first.
