Braze Space Invaders Deluxe Multigame Free Play and High Score Save Kit
$90.00
Available, delivery time: 2-5 days
Product information "Braze Space Invaders Deluxe Multigame Free Play and High Score Save Kit"
Braze Space Invaders Deluxe 8-in-1 Multigame High Score Save Kit — Features & Install
Overview
Easy-to-install kit that expands your Space Invaders Deluxe boardset to play 8 games. No soldering, special wiring, or external switches required. Press Player 1 + Player 2 Start to open the on-screen game menu. Includes full configuration options and high score save for all titles.
Note: You may need to install a socket for your 8080 CPU. Check your PCB to confirm.
Installation Summary
- Power down the cabinet and access the SI/SID two-board L-shaped PCB set.
- Inspect the 8080 CPU. If it is not socketed, install a suitable socket.
- Carefully remove the 8080 CPU from the board.

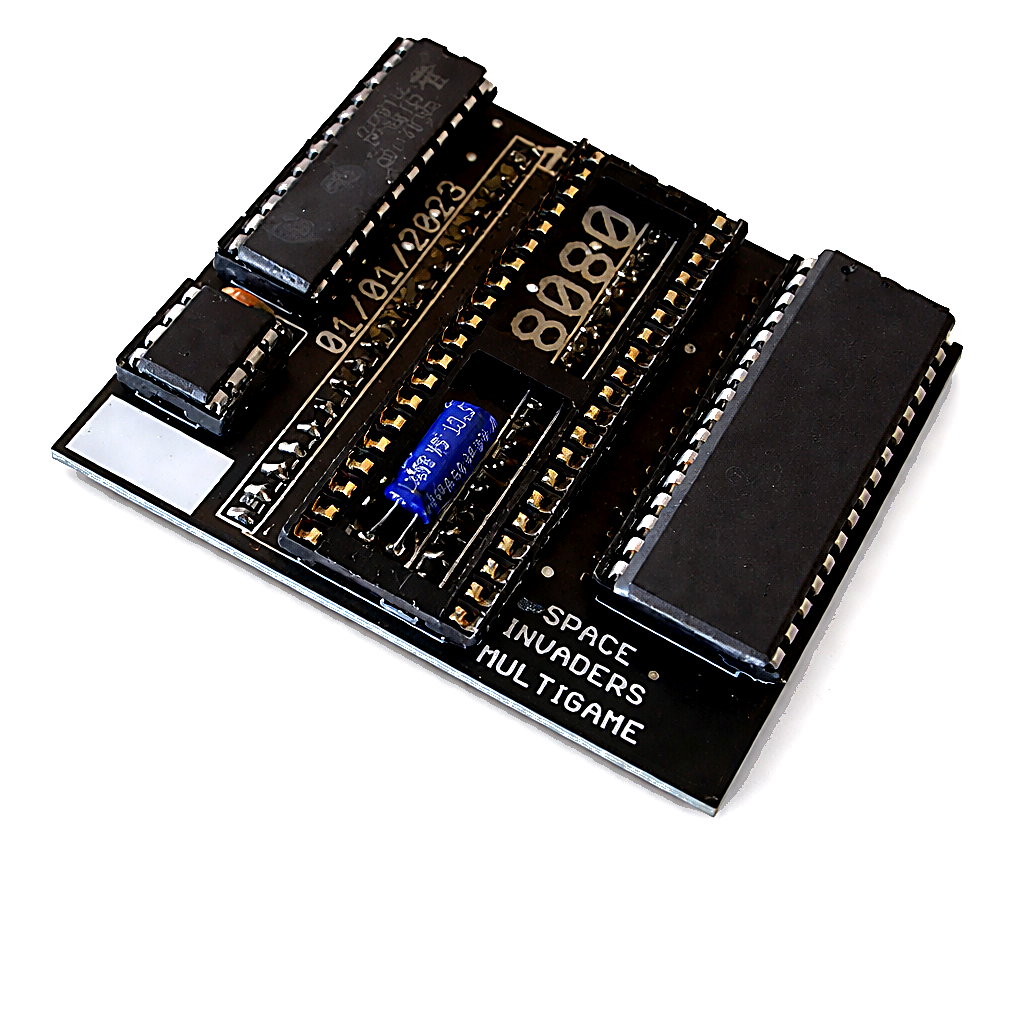

- Insert the 8080 into the included daughter card.
- Plug the daughter card into the vacated 8080 CPU socket.
- Power on, verify operation, then press P1+P2 Start to choose a game.
Key Features
- Installs on Space Invaders Deluxe PCBs in minutes—no soldering or special wiring.
- Free Play option (Galaxy Wars excluded).
- High Score Save for all included games.
- Power-on diagnostics every boot.
- On-screen configuration with advanced options.
- Interactive test mode for additional hardware checks.
Game List
- Space Invaders
- Space Invaders Deluxe
- Jatre Specter
- Lunar Rescue
- Space Laser
- Balloon Bomber
- Galaxy Wars (Free Play not supported)
- Super Earth Invasion
FAQ
Where can I download the install guide?
What board types are supported?
Supports the Midway black-and-white SI/SID monitor style boardset in its two-board L-shaped configuration.
Will it work in a cocktail cabinet?
Yes, if it’s a Midway black-and-white cocktail (not the Taito color version). Upright/cocktail behavior depends on sound/input PCB strapping. Screen flip is handled by monitor relays.
How do I switch between games?

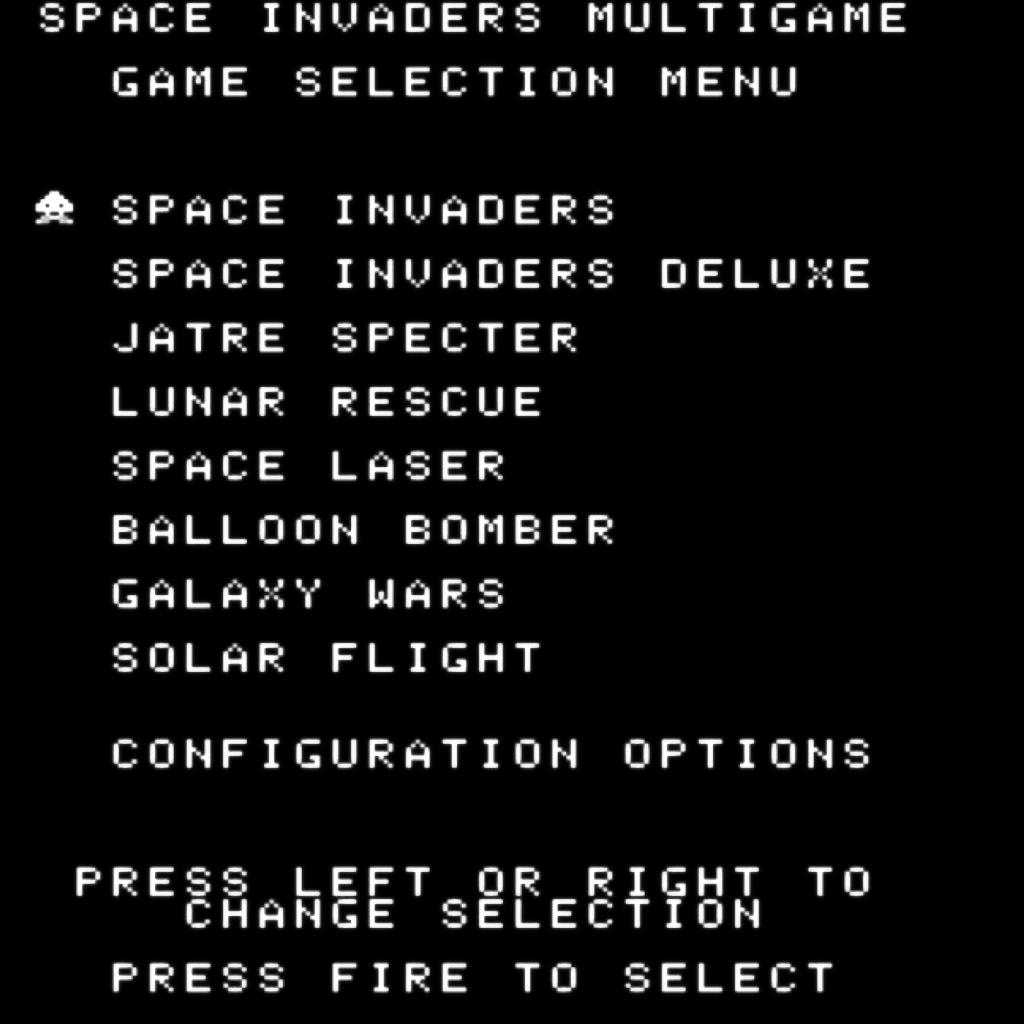

Press P1 Start + P2 Start together to open the game selection menu.
How do these versions differ from originals?
Includes added features such as Free Play, diagnostics, and full high score save. Sounds are mapped to the eight sound lines of the SI/SID boardset. Includes adjustable laser base counts, bonus levels, and extended scoring options.
Does Free Play work on every game?
Most titles support Free Play; Galaxy Wars does not.
Do I need to solder anything?
Usually no — except when your 8080 CPU is soldered in. In that case, a socket must be installed first.
