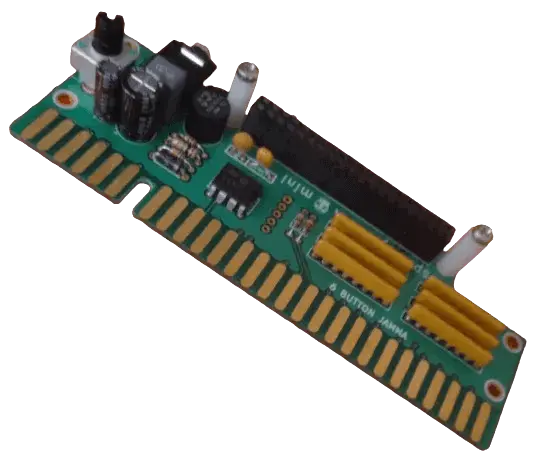

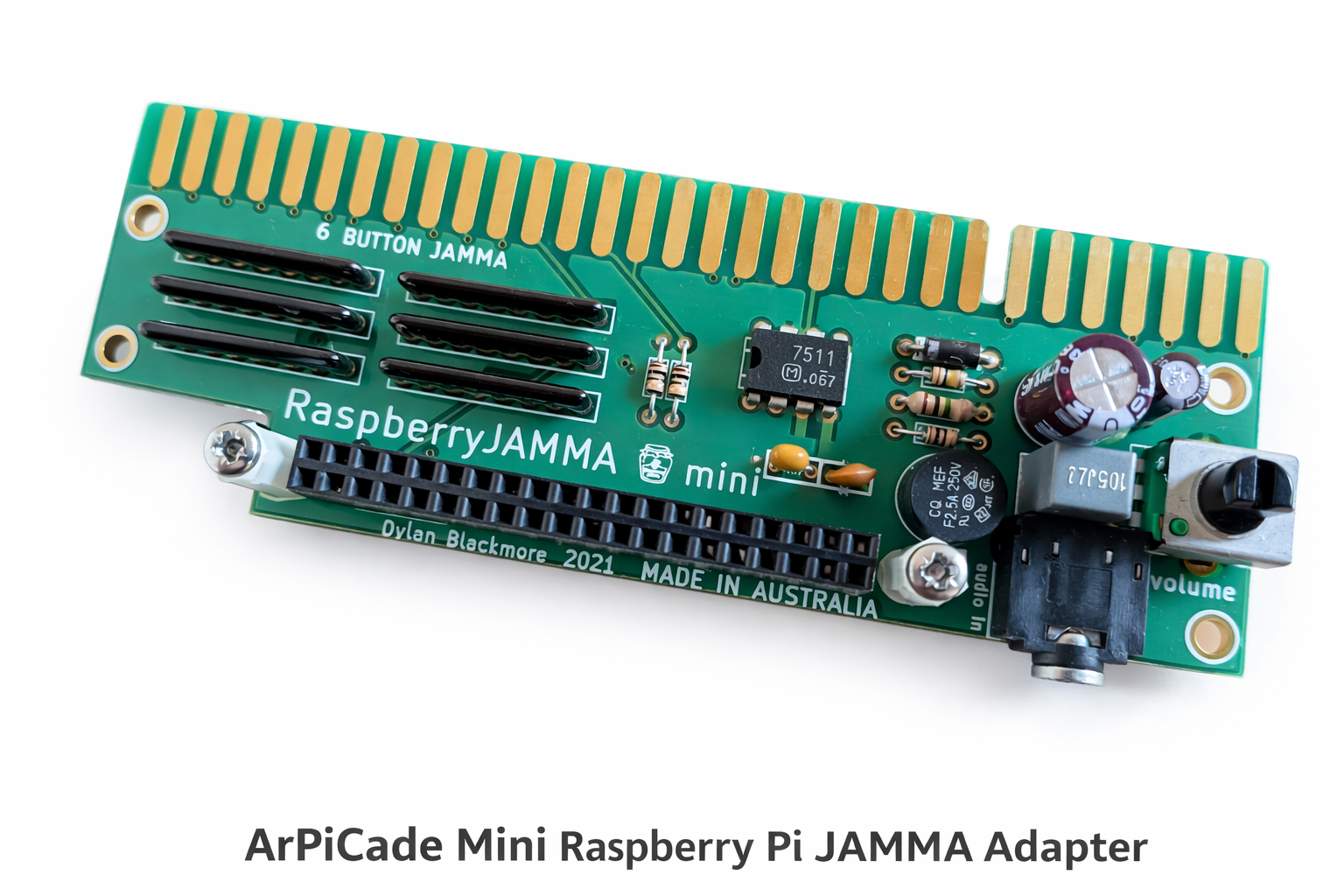

RaspberryJAMMA Mini — High-Res JAMMA Adapter for Raspberry Pi “…a smaller, sleeker, more streamlined RaspberryJAMMA — the RaspberryJAMMA Mini — perfect for today’s modern high-res JAMMA cab. No unused low-res sections, no ribbon cable or kick harness clutter, and no add-on four-player board.” The Mini RaspberryJAMMA is a Raspberry Pi JAMMA adapter that converts a Raspberry Pi into a true JAMMA board, allowing you to run tons of RPi software and emulators. ARpiCADE is the operating system that runs RaspberryJAMMA. Compatibility Overview & Video Output Key Points Limitations & Intended Audience Game List Downloads Support & Forums FAQ Compatibility Pi models: Adapter can be used with Pi 3B/3B+ and Pi 4. Our images are for Pi 3B/3B+ only. Cab wiring: Configured for 6 buttons on the JAMMA harness (fully populated/chamma style). No cab mods required: Works on a standard JAMMA cabinet without additional kick harnesses. Overview & Video Output Open source project. Customize front ends, game lists (if purchased), themes, and display resolutions. Video is provided by the Raspberry Pi HDMI output or via an optional DAC for VGA (LCD/LED monitors). Key Points Lower-cost solution for high-resolution LCD/LED JAMMA cabinets. “Bare-bone” adapter compared to the original ARpiCADE full board (fewer built-in options). Controls are always set to 6 buttons via JAMMA (no DIP options / no separate kick harness). Limitations & Intended Audience Not for CGA: Cannot use low-resolution CGA images. No 4-player adapter: Mini is not compatible with the 4-player add-on board. Images: Provided images target Pi 3B/3B+. Pi 4 works with the adapter (HDMI/VGA via DAC), but our images are not for Pi 4. Who it’s for: Great upgrade path from 60-in-1 / Pandora’s Box cabs or new custom builds. Note on Pi 4 performance (from the developer): Pi 4 can run some titles better and supports newer MAME cores. It can play some games the Pi 3 struggles with (e.g., parts of NAOMI), but demanding games like Killer Instinct may require overclocking and still aren’t perfect. These are not planned for inclusion in our images. Arpicade images are not returnable, but we’re happy to exchange if an issue occurs. Game List Image Downloads Laser Disc Trilogy 1679 Horizontal Arcade 397 Vertical Cocktail Arcade 708 Vertical Upright Arcade 5000ish Horizontal Arcade/Console Support & Forums Arpicade.net Forums RaspberryJAMMA Mini — FAQ Which Raspberry Pi models can I use?The adapter works with Pi 3B/3B+ and Pi 4. Our provided images target Pi 3B/3B+ only. Does it support CGA (low-res) images?No. The Mini is for high-res LCD/LED setups via HDMI or VGA (with DAC). Can I use the 4-player adapter?No. The Mini does not support the 4-player add-on board. How are buttons handled?Controls are always 6 buttons via the JAMMA harness (fully populated/chamma style); no DIP or kick harness options. Is a DAC required?Not if you use HDMI. A DAC is only needed for VGA output to LCD/LED monitors that require it. Are images returnable?No, images aren’t returnable—but we’ll exchange if an issue occurs. Where do I get technical help?Use the ARpiCADE Forums to search and post questions.

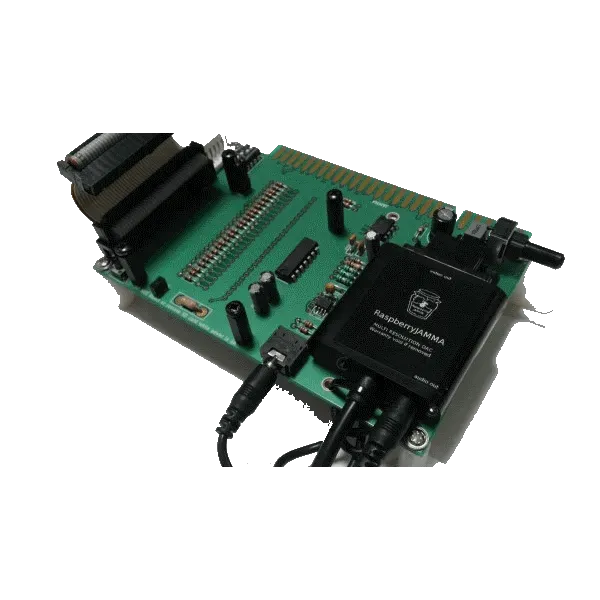

RaspberryJAMMA (with ARpiCADE) — JAMMA Adapter for Raspberry Pi RaspberryJAMMA is an adapter that lets a Raspberry Pi power your JAMMA-compliant arcade cabinet. It supports Raspberry Pi 2/3/4 hardware (we recommend Pi 3 / 3B+ for our images). Our images are compatible only with the Raspberry Pi 3B+. Compatibility Notes Overview & Customization Key Features Requirements Game List Downloads Support & Forums FAQ Compatibility Notes Images: Only compatible with Raspberry Pi 3B+. If you already have a Pi, please verify that it’s the 3B+. Pi 4: ARpiCADE can run on Raspberry Pi 4, but our images do not. See the forum for Pi 4 topics. Overview & Customization Open source project: You can tailor software to your setup—change game lists (if purchased), swap front-end themes, adjust display resolution, and more. Visit our forums to search prior answers or post questions. Key Features True JAMMA output: Converts Raspberry Pi into a JAMMA board; ARpiCADE is the OS that runs RaspberryJAMMA. No cab mods: Works with normal JAMMA (optional kick harness). Configure 6 buttons on JAMMA via DIP switches. Video & audio: RGBS over JAMMA, or higher resolutions via VGA. Amplified mono or line-level stereo. Any ROM list: You’re not limited to fixed “60/645/900-in-1.” Add or remove games freely. Multiple emulators: Play arcade and console titles—even vector games. Trackball & fighters: USB trackball for Centipede; add a kick harness or map all buttons on JAMMA for Mortal Kombat / Street Fighter II. Laserdisc support: Run Dragon’s Lair and Space Ace without the original hardware. Performance: Capable of running thousands of games at full speed; actively developed software with ongoing updates. Attention This listing is for the JAMMA interface only (as pictured). To operate, you’ll also need a Raspberry Pi, a microSD card, and a JAMMA arcade cabinet. Requirements Raspberry Pi 3 or 3B+ (Pi 4 supported by ARpiCADE, but our images support 3/3B+ only) RaspberryJAMMA adapter JAMMA-compliant arcade cabinet Arpicade images are not returnable, but we’re happy to exchange if an issue occurs. Game List Image Downloads Laser Disc Trilogy 1679 Horizontal Arcade 397 Vertical Cocktail Arcade 708 Vertical Upright Arcade 5000ish Horizontal Arcade/Console Support & Forums Arpicade.net Forums RaspberryJAMMA & ARpiCADE — FAQ Which Raspberry Pi models are compatible?RaspberryJAMMA supports Pi 2/3/4, but our images only work on Raspberry Pi 3B+. Do your images work on Raspberry Pi 4?ARpiCADE can run on Pi 4, but our images do not support it. See the forums for Pi 4 builds. What else do I need to get started?A Raspberry Pi (3/3B+), microSD card, RaspberryJAMMA adapter, and a JAMMA cabinet. Can I add or remove games and change the front end?Yes — the project is open source. Modify game lists, themes, and display settings as you like. Can I play console games, vector games, or use a USB trackball?Yes. Multiple emulators are supported; vector titles run; USB trackballs work (e.g., Centipede). How do I wire up extra buttons for fighting games?Add a kick harness or configure a full JAMMA harness to map all required buttons. Are Arpicade SD images returnable?No — images are not returnable, but we’ll exchange if an issue occurs. Where can I ask technical questions?Visit the ARpiCADE Forums.

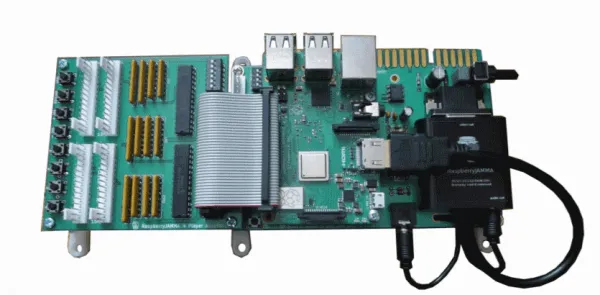

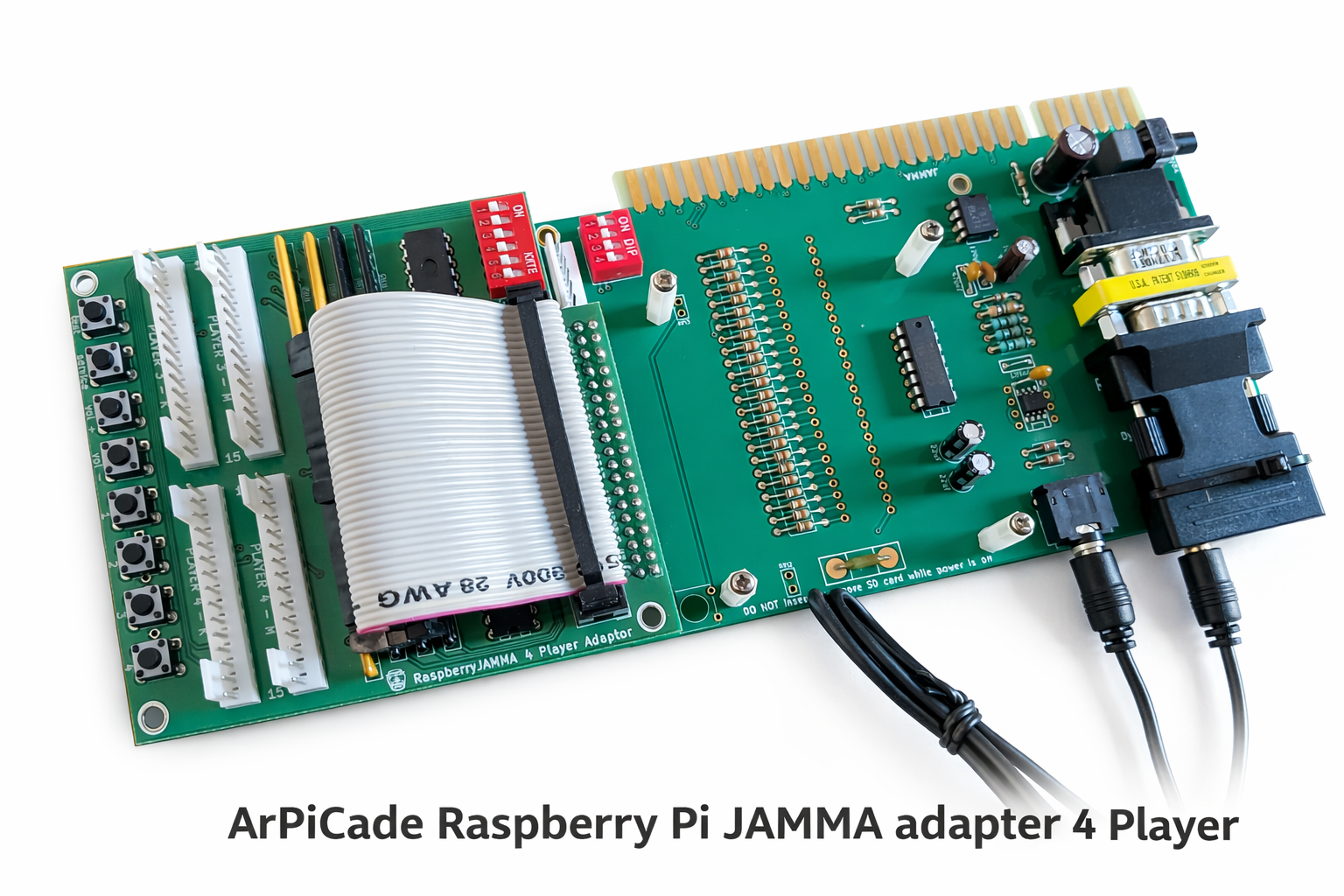

3 & 4 Player ARpiCADE — JAMMA Adapter for Raspberry Pi Welcome! This is the first 3 or 4 Player Multi for dedicated JAMMA cabinets. It allows you to play your favorite 3- and 4-player arcade games in a single CGA tube monitor cab. If your tube monitor is dead or too costly to repair, you can also run it with an LCD flat screen. Overview & Setup Key Features Controls & Harnesses Requirements Attention / Warnings Game List Downloads Support & Forums FAQ Overview & Setup The 3/4 Player ARpiCADE plugs directly into your JAMMA wiring harness. No wall-wart power adapters needed—power comes straight from your JAMMA switcher. It’s open source, so you can customize game lists, front ends, resolutions, and more. Key Features No modification required (optional kick harness available). Supports normal JAMMA or 6 buttons on JAMMA via DIP switches. RGBS video out or VGA for higher resolutions. Amplified mono or line-level stereo audio options. Controls & Harnesses Players 1 & 2 are on the JAMMA harness (limited to 2–3 buttons). For additional buttons or players: 6-pin harness: Adds buttons 4, 5, 6 for P1/P2 (e.g. Street Fighter). 9-pin harness: Adds P3 and P4 controls (Konami cabs/images use 2 harnesses). Some cabinets may require drilling new control panel holes if buttons aren’t physically present. Pre-made plug-and-play harnesses are available in our store. Requirements Raspberry Pi 3B or 3B+ (our images support only these models). ARpiCADE JAMMA adapter (3/4 Player edition). JAMMA-compliant arcade cabinet. Attention / Warnings Our images support RPi 3B/3B+ only. Pi 4 requires separate forum builds. RPi 3B+ not included. Must provide your own or purchase separately. Limited RPi 3B stock available. CAUTION: When installing the 4-Player adapter PCB, ensure pins are aligned properly or you may burn out your Pi. There should be a visible small gap showing pin alignment. Game List Image Downloads 17 Konami Games 80 3/4 Player Games 80 3/4 Player Games + 5000ish Arcade Support & Forums Arpicade.net Forums 3 & 4 Player ARpiCADE — FAQ Which Raspberry Pi models are supported?Our images work only on Raspberry Pi 3B/3B+. ARpiCADE itself can run on Pi 4, but our images do not support Pi 4. Is a Raspberry Pi included?No — the Pi 3B/3B+ must be provided or purchased separately. How are Player 3 and Player 4 controls connected?Via optional 9-pin harnesses (Konami images require two). How do I enable extra buttons for fighting games?Use the 6-pin harness to add buttons 4–6 for Player 1 & 2. Do I need to modify my cabinet?No cab mods are required, unless you need to add extra control panel buttons. What precautions should I take during install?Ensure adapter pins are aligned properly before powering on. Misalignment can damage your Pi. Are ARpiCADE images returnable?No, images are not returnable, but exchanges are available if issues occur. Where can I ask technical questions?Visit the ARpiCADE Forums.

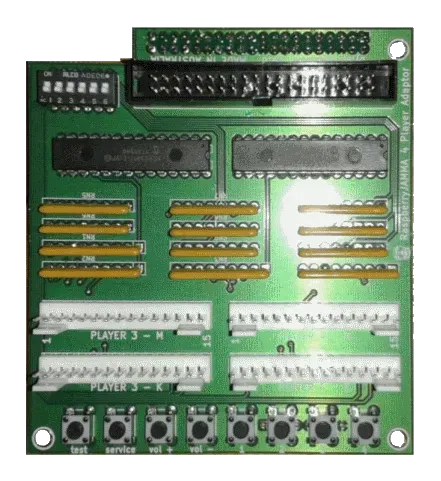

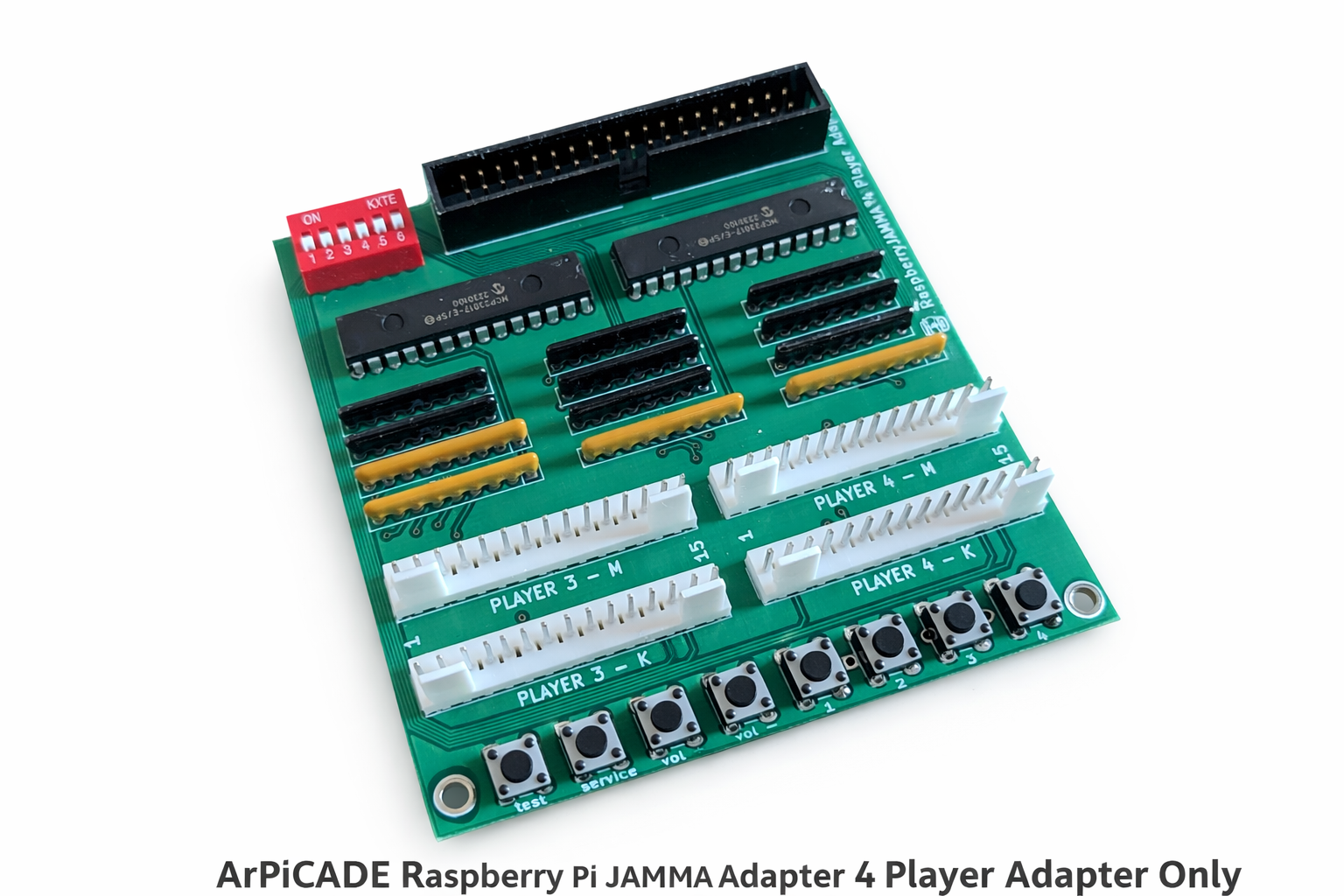

ArPiCADE 4 Player Add-On Adapter Package Includes: • 4 Player Add-On Adapter only Note: This adapter requires the ArPiCADE main JAMMA PCB to function. You can find it here: ArPiCADE JAMMA Adapter Or purchase as a bundle (main JAMMA PCB + 4 Player Add-On) here: 4 Player ArPiCADE JAMMA Adapter Bundle 4 Player Add-On Adapter — FAQ What is included in this package?Only the 4 Player Add-On Adapter. The ArPiCADE main JAMMA PCB is required and sold separately. Do I need the main ArPiCADE JAMMA PCB?Yes. This add-on cannot function without the ArPiCADE JAMMA Adapter. Is there a bundle option?Yes. You can buy the 4 Player Add-On together with the ArPiCADE JAMMA Adapter as a bundle. Where can I buy the main JAMMA adapter?Here: ArPiCADE JAMMA Adapter. Where can I buy the bundle?Here: 4 Player ArPiCADE JAMMA Adapter Bundle.

Sound module broken? Fuse blown? Unfortunately, things happen. I'll always say be careful when installing. However, what is done is done. I will fix your ArPiCade and return to you quickly. Please send your Save Kit to (include your full name, mailing address, order number and what the issue is inside package) - High Score SavesAttn - Joe / [your order number] 1720 N 3rd St Clinton, Iowa 52732  (602) 888-6715Please do not send any SD cards in with your ArPiCadeThis does not fix a damaged Raspberry PiIf you do not know what to send in, please ask before mailing

Check out PDF for all Konami 4 player game kick harness pinouts - Pinout PDF DownloadThese are approximately 3 foot long to give you the length needed Each wire has a .187 female quick disconnect on all player controls for attaching to the terminal on the microswitch AND enough ground connectors for your controls15 pin header connects to your pcbHeader is numbered for you to match what wire goes where on your control panel Wires will vary in color but numbers stay the same!This kick harness allows you to connect player 3 or player 4 buttons and joystickPLEASE NOTE - You will need 2 harnesses if you want to connect both P3 and P4 to your control panel

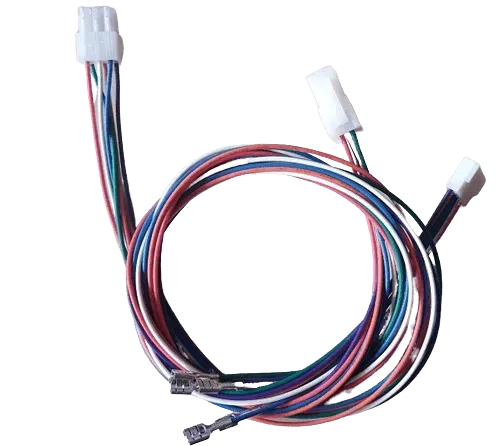

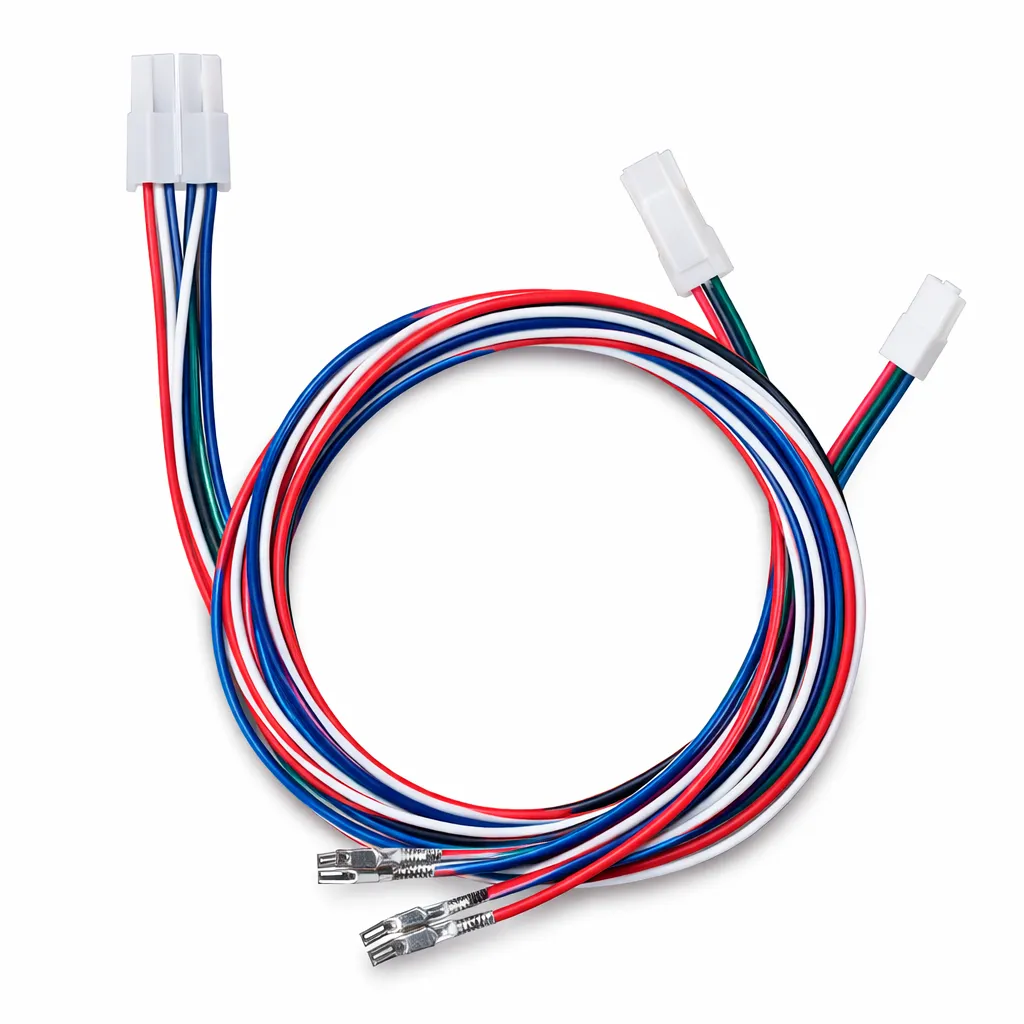

Able to be used with -  The ArpicadeOther uses too! These are approximately 4 foot long to give you the length needed  Each wire has a .187 female quick disconnect on all for attaching to the terminal on the microswitch (Not a cheap connector)  6 pin header connects to your pcb or Arpicade 1 and 2 player for buttons 4, 5 and 6

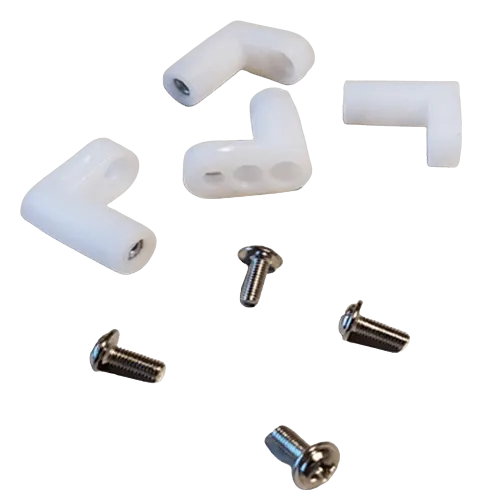

4 White PCB Feet 4 ScrewsWe recommend using these feet to make sure the PCB is secure.
