Swimmer Free Play and High Score Save Kit
$73.00
Available, delivery time: 2-5 days
Product information "Swimmer Free Play and High Score Save Kit"
Customize Your Swimmer Free Play and High Score Save Kit
Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit. You can also add a processor and/or a 40-pin socket—optional but recommended for easy installation.
Learn More About This Kit
Click a button to view details, tips, or the installation guide.
Main Features
- Easy install: No soldering, board modifications, or special wiring. Plug in and go!
- Save your scores forever: Uses a serial EPROM (not failure-prone NVRAM or batteries).
- High Score Save: Saves the Top 5 scores with initials.
- Attract Music: Enable music at 25%, 50%, or 100% intervals.
- Freeplay: No need to open the coin door.
- Coin Up: Still supports coins/tokens.

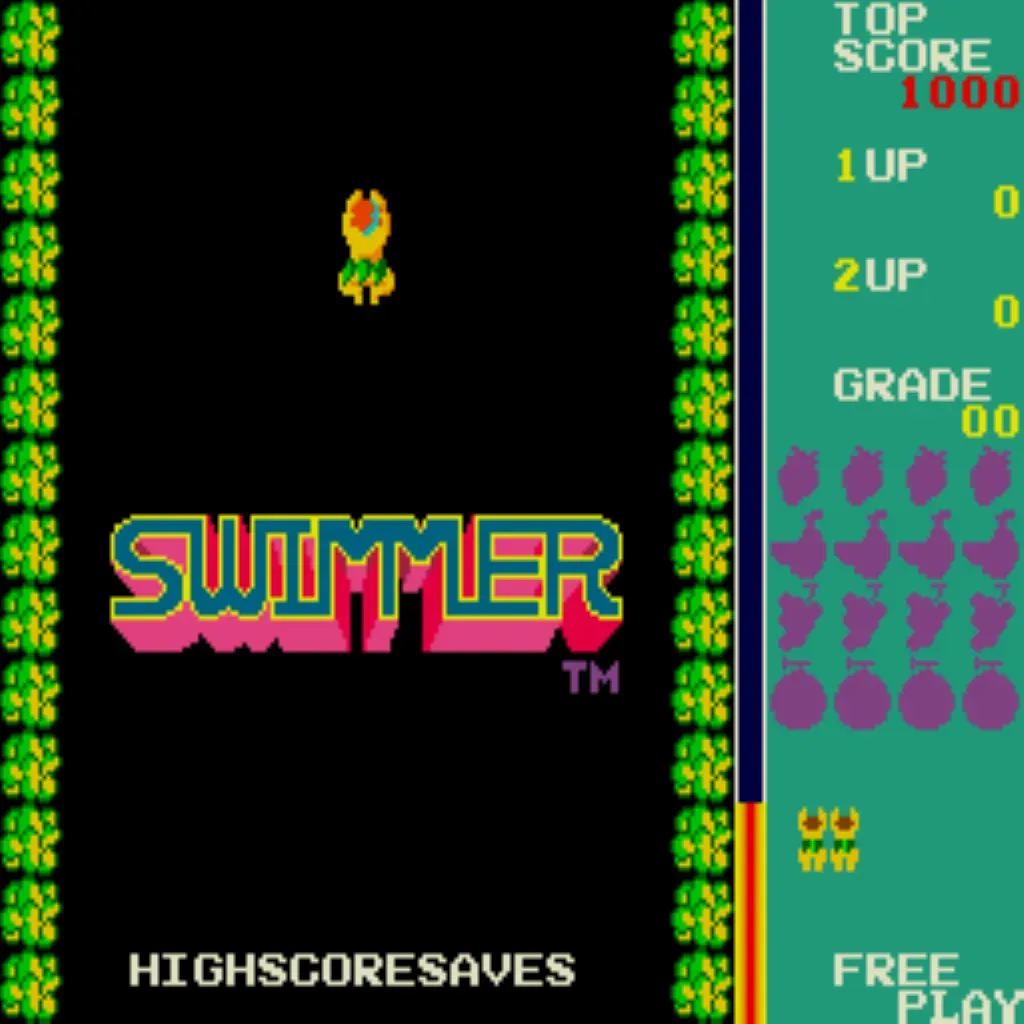

- Attract Mode: Reduces screen burn by avoiding static screens.

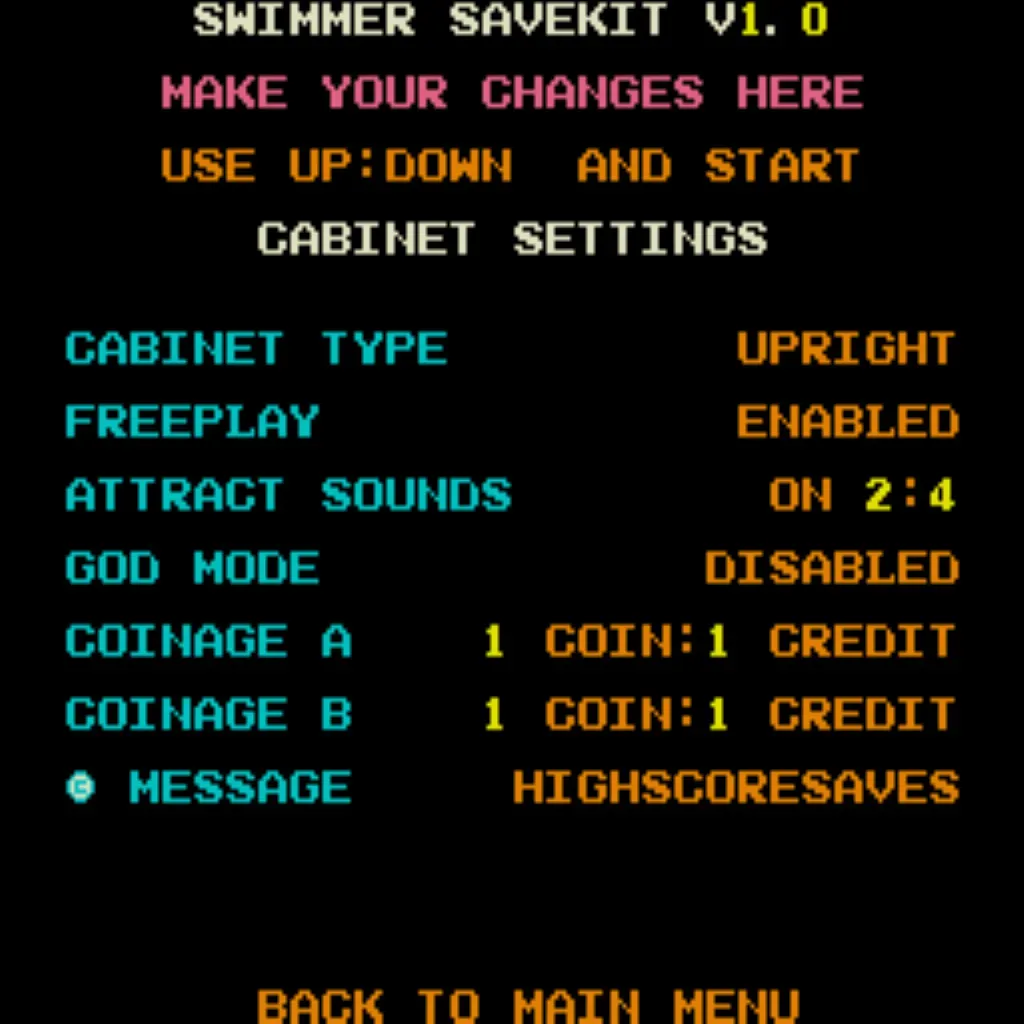

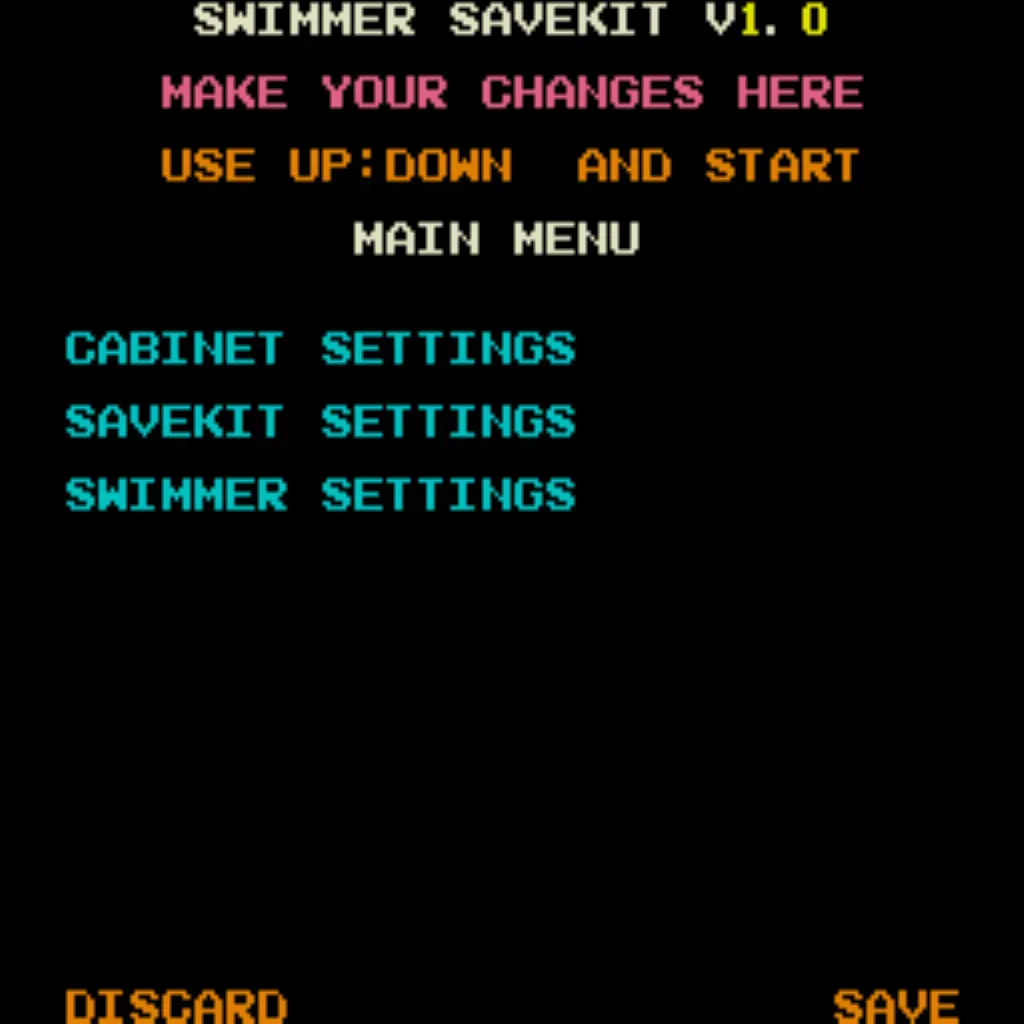

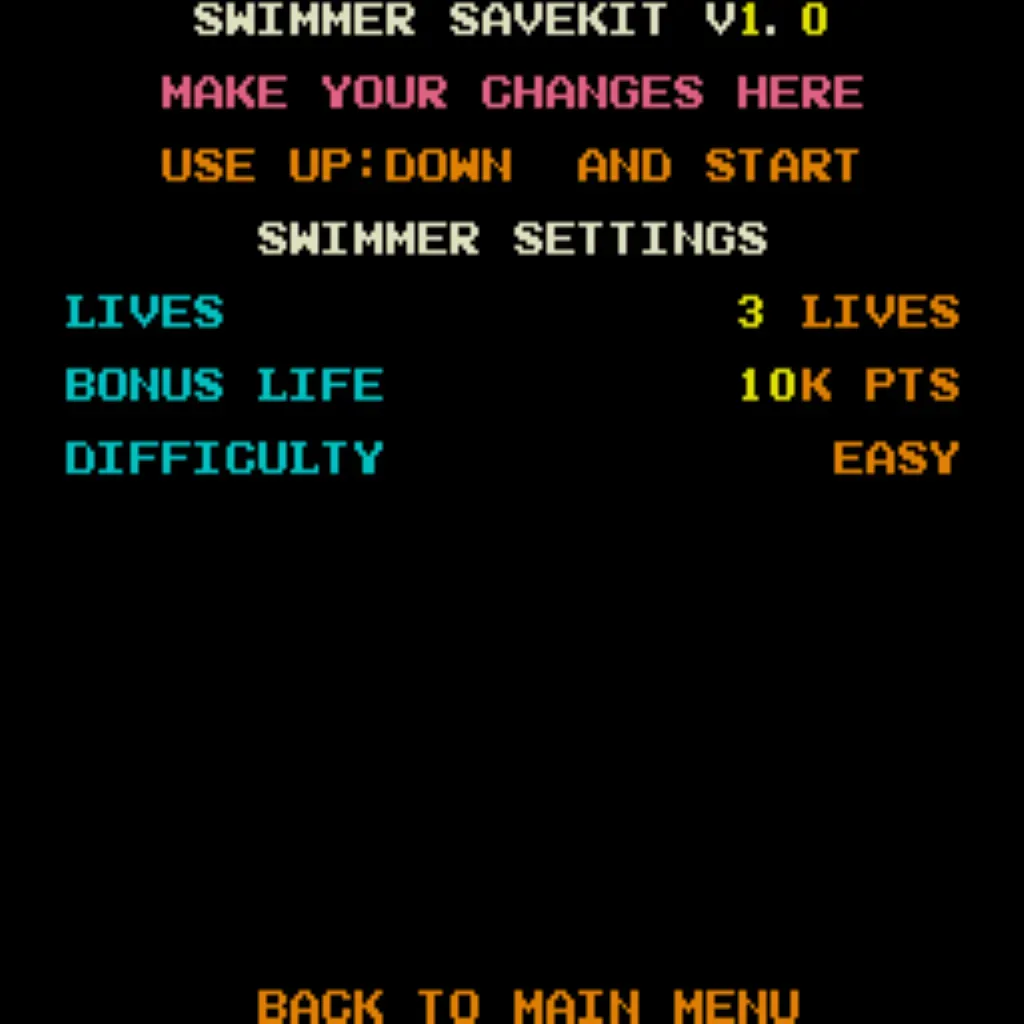

- Menu-driven DIP switches: Change DIP settings on-screen.
- ROM Saver: Remove the original program ROMs to save power.
- Cabinet compatibility: Works in Upright and Cocktail cabinets.
Additional Features

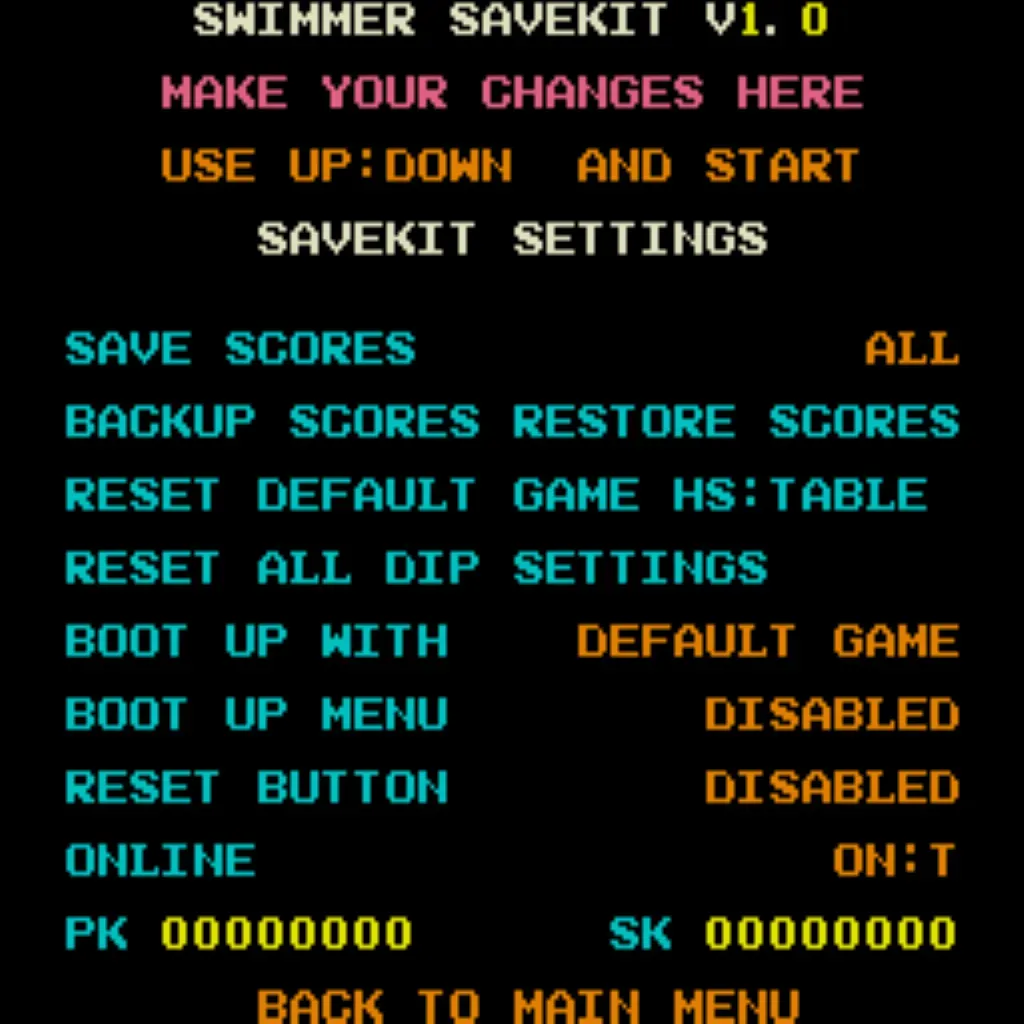

- Backup & Restore: Back up high scores and restore later—perfect for party mode.
Important Installation Notes
- Ensure your Z80 is socketed. If not, install a 40-pin socket.
- Read the Installation Guide (PDF) before installing.
FAQ
Do I need to solder anything?
No, this kit is fully plug-and-play.
Does it save scores permanently?
Yes—stored in serial EPROM without batteries.
How many scores are saved?
Top 5 scores with initials.
Does it support attract music?
Yes—25%, 50%, or 100% intervals.
Can I still use coins?
Yes—works with Freeplay and Coin Up.
Will it work in my cabinet?
Yes—supports Upright and Cocktail.
Backup and restore?
Yes—save and restore high scores anytime.
What is the ROM Saver feature?
You can remove original program ROMs because the kit runs the code.
CPU requirement?
No special CPU required—just a socketed Z80.
Where is the install guide?
Login
Level up with these!

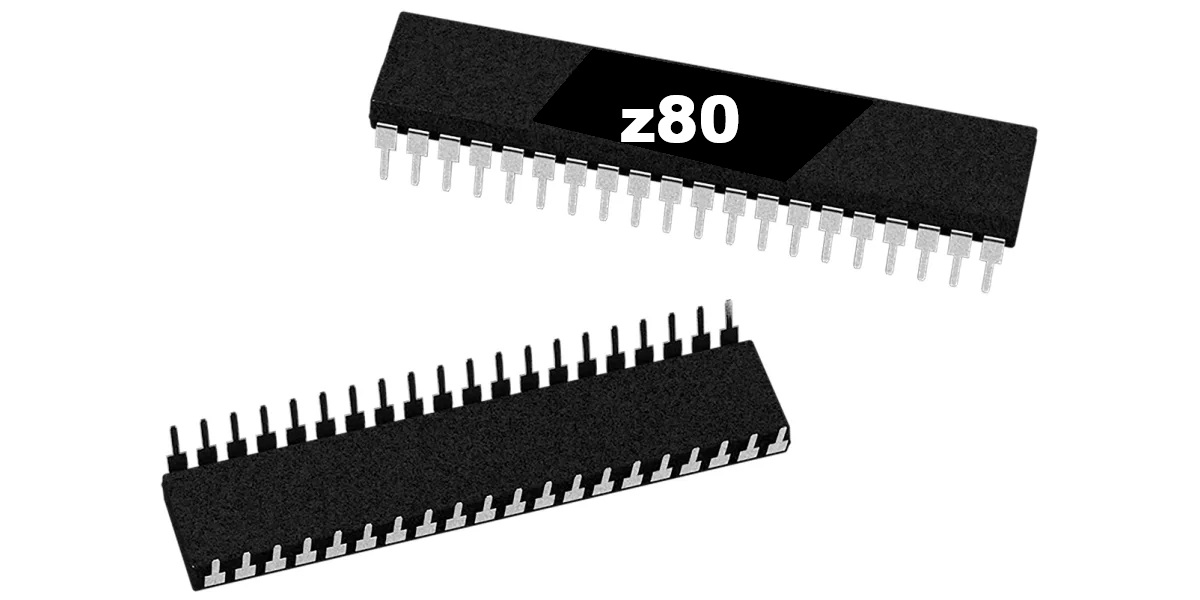

Z80 8-Bit Microprocessor (40-Pin CPU) The Z80 is a classic 8-bit microprocessor widely used in arcade machines from the late 1970s through the 1980s. This processor served as the main CPU in many arcade PCBs, executing game code, processing player inputs, and coordinating communication with memory, sound hardware, and video circuitry. The Z80 became one of the most popular processors in arcade hardware due to its reliability and expanded instruction set compared to earlier CPUs. Because of its widespread use, the Z80 is commonly found in a variety of classic arcade games and remains an essential component when repairing or restoring vintage arcade boards. This processor uses a standard 40-pin DIP (Dual In-line Package) and installs directly into a compatible socket on the arcade PCB. Replacing a faulty CPU can often resolve boot failures, lockups, or other operational issues in aging arcade hardware. Key Features Z80 8-bit microprocessor Standard 40-pin DIP package Common CPU used in many classic arcade PCBs Handles core game logic, timing, and system control Ideal for arcade PCB troubleshooting, repair, and restoration Used In Arcade Games Such As Donkey Kong Galaga Donkey Kong Jr. Frogger Galaxian Dig Dug Xevious …and many other classic arcade titles Installation Notes Installs into a standard 40-pin DIP socket on compatible arcade PCBs Ensure correct notch orientation when installing the CPU Recommended for technicians performing arcade board repair or restoration *Manufacturer brands or markings may vary.
