Star Wars: Empire Strikes Back Free Play and High Score Save Kits
Download Star Wars: Empire Strikes Back Install Guide (PDF)
Upgrade Your Star Wars: Empire Strikes Back Arcade Experience
Bring modern convenience to your original Star Wars: Empire Strikes Back arcade hardware with our collection of Star Wars: Empire Strikes Back Free Play and High Score Save Kits. These plug-and-play upgrades add reliable high score saving, Free Play convenience, and an on-screen settings menu while preserving the classic Star Wars multigame arcade experience.
Related Arcade Kits You May Also Like:
Star Wars |
Space Invaders Deluxe |
Millipede Multigame |
Q*bert Multigame |
Galaga
6100 Monitor Low Voltage Section Regulator Upgrade
6100 Deflection Board LV Section Replacement Module The 6100 Deflection Board LV Section Replacement Module is designed to replace the unreliable low-voltage (LV) section found on the Atari 6100 vector monitor deflection board. This upgrade eliminates several common failure points that can cause instability, monitor shutdown, or inconsistent operation. Over time, the original low-voltage circuitry on the 6100 deflection board can become unreliable due to aging components, heat stress, and repeated power cycling. This replacement module modernizes that section of the circuit and provides improved reliability while maintaining proper monitor operation. Once installed, the module restores stable low-voltage regulation for the deflection board, helping ensure your vector monitor operates correctly in classic arcade machines such as Tempest, Star Wars, Major Havoc, Quantum, and other Atari vector cabinets that use the 6100 monitor. Key Features Replaces the original low-voltage section of the Atari 6100 deflection board Eliminates common LV circuit failure points Improves long-term reliability of the vector monitor Helps stabilize monitor operation and voltage regulation Designed for arcade restoration and repair work Compatibility Designed for use with the Atari 6100 vector monitor commonly found in classic arcade machines such as Tempest, Star Wars, Major Havoc, Quantum, and other Atari vector titles. Installation Notes Soldering and de-soldering are required for installation. The module installs directly onto the 6100 deflection board as shown in the gallery images. Installation should be performed by someone experienced with arcade PCB repair. This upgrade is an excellent solution for arcade collectors and technicians restoring original Atari vector monitors who want improved reliability without replacing the entire deflection board.
Amplifone Color XY 19-Inch Arcade Monitor Mounting Bracket Set
19-Inch Amplifone Arcade Monitor Bracket Set – Reproduction The 19-Inch Amplifone Monitor Bracket Set is a precision reproduction designed for arcade cabinet restorations. These brackets provide strong support and accurate alignment for Amplifone vector monitor assemblies, helping ensure reliable performance in your classic arcade machine. Ideal for collectors, restorers, and arcade enthusiasts seeking authentic fit and function. Key Features Reproduction of the original 19-inch Amplifone monitor brackets Precision-cut construction for proper fit and long-term stability Durable materials for dependable, long-lasting use Compatible with titles such as Star Wars, Major Havoc, and other vector cabinets using Amplifone monitors Includes complete left and right bracket set for straightforward installation Why This Bracket Set? Using the correct bracket system secures your Amplifone monitor safely while protecting cabinet integrity and delivering authentic arcade performance. Whether restoring a classic machine or replacing worn hardware, this bracket set provides the strength and accuracy required for reliable installation. Compatibility Designed specifically for 19-inch Amplifone vector monitor assemblies commonly found in arcade machines such as Star Wars (Atari), Major Havoc, and other cabinets originally shipped with Amplifone vector monitors. Included in the Set One pair of monitor brackets (left and right) Factory-spec mounting holes for accurate installation
AVG - Atari Analog Vector Generator
Atari AVG Custom Chip Replacement The Atari AVG Custom Chip Replacement is designed as a direct substitute for the original Atari AVG chip (Part Number: 137179-001). This custom component functions as the Gate Array / Address Controller used in Atari vector arcade hardware, handling critical addressing and control tasks required for proper system operation. Because the original Atari AVG chip is long discontinued and increasingly difficult to source, this replacement solution provides a reliable option for repairing and restoring classic Atari arcade boards. It is engineered to replicate the functionality of the original DIP package chip while allowing collectors and technicians to keep their vector-based arcade systems running. This chip is commonly used in Atari vector arcade machines where the AVG (Analog Vector Generator) system manages the generation and control of vector graphics displayed on the monitor. Proper operation of this chip is essential for stable gameplay and correct vector drawing. Key Features Replacement for Atari AVG custom chip Compatible with original part number 137179-001 Implements the Gate Array / Address Controller function Designed for repair and restoration of Atari vector arcade boards Helps maintain long-term operation of classic Atari vector systems
Star Wars | Empire Strikes Back 12K VRAM Upgrade

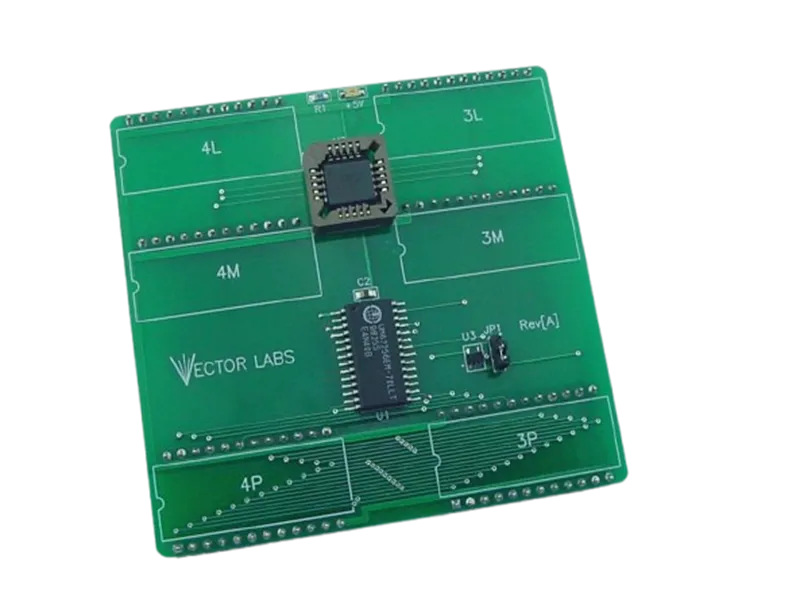

Star Wars / Empire Strikes Back 12K VRAM Upgrade The Star Wars / Empire Strikes Back 12K VRAM Upgrade is a reliable, plug-and-play solution that replaces the six 2K × 8 VRAM SRAM chips on your Atari Star Wars vector PCB. This modern upgrade reduces failure points, improves long-term reliability, and keeps your classic game running smoothly for years to come. Features · Compatibility · Installation Notes · FAQ Key Features Drop-in module replaces six 2K×8 VRAM SRAMs (12K total). Plug-and-play on socketed boards—no ROM or wiring changes. Modern components improve stability and longevity. Reduces heat and common failure points in the VRAM section. Compatibility Atari Star Wars (1983) and The Empire Strikes Back (1985) vector arcade PCBs/cabinets using the standard 12K VRAM section. Installation Notes Power off and discharge the cabinet before service; observe ESD precautions. Align the module with the VRAM positions and press firmly into the sockets. No soldering required if your original VRAM chips are socketed; if not, sockets must be installed by a qualified technician. FAQ Do I need to modify the board? No. On socketed boards the module drops in—no wiring or ROM changes. Will this change gameplay or graphics? No. It’s a reliability upgrade only; gameplay and timing remain original. What issues does this address? Replaces six aging VRAM chips that commonly cause intermittent video faults, instability, or no-boot conditions.
Star Wars | Empire Strikes Back Multigame Free Play and High Score Save Kit
Star Wars | Empire Strikes Back Multigame Free Play and High Score Save Kit Features Easy install — No soldering, board modifications, or special wiring. Plug in and go! Star Wars PCB — Installs on an original Atari Star Wars PCB to play both games. Save your scores forever — Saves scores without batteries. High Score Save — Saves the Top 8 scores. Freeplay — No more coins or opening the coin door. Coin Up — Still supports coins if wanted. Attract Sounds — Hear the infamous music! Support — Can be used in Upright or Cockpit cabinets. Changing games: Hold the LEFT THUMB button for 2 seconds and release. Then hold the RIGHT THUMB button for 2 seconds and release. Game List Star Wars Empire Strikes Back Important Requires an original Atari Star Wars PCB for installation. Read the Star Wars | Empire Strikes Back Installation Guide (PDF) before installing. FAQ Which PCB is required? This kit installs on an original Atari Star Wars PCB. Which games are included? This multigame kit supports Star Wars and Empire Strikes Back. How do I switch between games? Hold the LEFT THUMB button for 2 seconds and release, then hold the RIGHT THUMB button for 2 seconds and release. Does it save high scores? Yes, it saves the Top 8 high scores permanently (no batteries required). Does it support Freeplay? Yes, Freeplay is supported. You can also still use coin-up if desired. Where can I download the Installation Guide? Download it here: Star Wars | Empire Strikes Back Multigame Installation Guide (PDF)
Details and Benefits
The Star Wars: Empire Strikes Back Free Play and High Score Save Kit is designed for original arcade hardware to overcome issues like lost high scores, unreliable resets, and limited adjustment options. This upgrade brings modern reliability and convenience while preserving the iconic westward space combat featured in this multigame classic.
What This Kit Adds
- Free Play support — Enable coin-free operation while still maintaining traditional coin play
- Reliable high score saving — Permanent high score retention with non-volatile memory
- On-screen settings menu — Adjust game and kit settings without opening the cabinet
- Monitor-friendly attract behavior — Helps reduce static attract screen burn-in
- Cabinet compatibility — Works with Upright arcade cabinets
Advanced Features
- High score backup and restore — Save and reload score data as needed
- Separate score tables — Independent high score tables based on game or configuration
Important Installation Notes
This kit requires a compatible socketed CPU. Always review the installation guide before beginning to ensure correct setup and reliable operation.
Note: This kit does **not currently include a Wi-Fi version** for online high score syncing.
