Vector Labs designs hardware for classic arcade collectors—focused on games from the mid-1970s through the late-1980s— including multi-PCB switchers and reliability upgrades for vector monitors. These solutions let you run multiple boards in a single cabinet while preserving original gameplay and improving long-term stability.

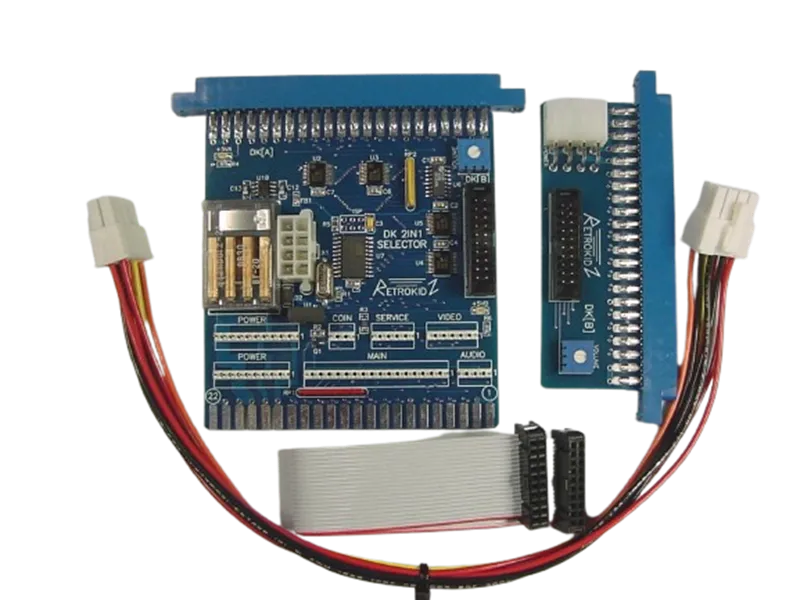

No Need to buy additional adapters, comes with everything you need to switch between TWO Nintendo Classic Pinout PCB's in your cabinet. (Game PCBs are not included) Features - Simple to install Comes with both adapters! Easy to switch between boards Powers 1 PCB at a time No need to go inside cabinet to change the harness from one PCB to the other Switches 5V power to each gameboard (one PCB at a time) Coin Up option (press P2, then move joystick up or down to add credits) Change game boards by holding P2 Start and then tapping P1 Note the orientation of your monitor. For example, you will not be able to put a Popeye (horizontal orientation) PCB in with a Donkey Kong (vertical orientation) PCB. Also Note - If you are using the edge connector (or the pin connectors on the switcher) you will need a Rainbow Power Cable installed on your PCB from the CPU board to the Video Board for power. Just the FAQ's What’s included? Do I need extra adapters? Everything you need to switch between two Nintendo Classic pinout PCBs is included— it comes with both adapters. Game PCBs are not included. How do I switch between game boards? Hold P2 Start, then tap P1. No need to open the cabinet or move harnesses. Does it power both boards at the same time? No. It powers one PCB at a time and switches the 5V supply accordingly. Is installation difficult? It’s simple to install and easy to switch between boards once installed. How do I add credits without opening the door? Use the Coin Up option: press P2, then move the joystick up or down to add credits. Any monitor orientation limitations? Yes. Match game orientation. For example, you can’t pair a horizontal game like Popeye with a vertical game like Donkey Kong in the same setup. Do I need the Rainbow Power Cable? If you’re using the edge connector (or the pin connectors on the switcher), you’ll need a Rainbow Power Cable installed on your PCB from the CPU board to the Video Board for power. Build to Order Because of the special nature of products that Vector Labs produces most are available on a build-to-order basis. Meaning that once an order is placed and payment has been received, we will build, test and ship that order. Warranty All Vector Labs products have a limited lifetime warranty from defects in workmanship. We cannot warranty our products from improper installation, power surges, lightning strikes, etc. All of our products have install guides in PDF format that you can download in advance of ordering so that you can determine if you have the technical skills to perform the install. We can, on a case-by-case basis, perform the install for you.

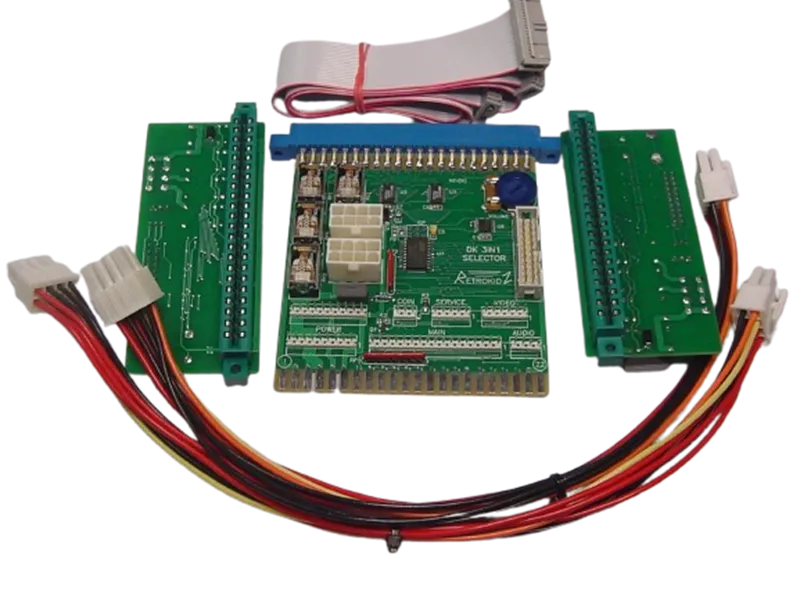

No need to buy additional adapters—this set comes with everything you need to switch between THREE Nintendo Classic pinout PCBs in your cabinet. (Game PCBs are not included.) Features - Simple to install Comes with both adapters! Easy to switch between boards Powers 1 PCB at a time No need to go inside cabinet to change the harness from one PCB to the other Switches 5V power to each gameboard (one PCB at a time) Coin Up option (press P2, then move joystick up or down to add credits) Change game boards by holding P2 Start and then tap P1 Note the orientation of your monitor. For example, you will not be able to put a Popeye (horizontal orientation) PCB in with a Donkey Kong (vertical orientation) PCB. Also Note — If you are using the edge connector (or the pin connectors on the switcher) you will need a Rainbow Power Cable installed on your PCB from the CPU board to the Video Board for power. Just the FAQ's How many PCBs can I connect? The switcher is designed to handle three Nintendo Classic pinout PCBs, with one powered at a time. What’s included? Do I need extra adapters? Everything needed to switch between three PCBs is included— it comes with both adapters. Game PCBs are not included. How do I switch between game boards? Hold P2 Start, then tap P1. No need to open the cabinet or move harnesses. Does it power all boards at once? No. The switcher powers one PCB at a time and switches the 5V line to the selected board. Is installation difficult? Installation is simple, and switching between boards is straightforward once installed. How do I add credits without opening the cabinet? Use the built-in Coin Up option: press P2, then move the joystick up or down to add credits. Any monitor orientation limitations? Yes. Match game orientation. You can’t pair a horizontal game like Popeye with a vertical game like Donkey Kong in the same setup. Do I need the Rainbow Power Cable? If you’re using the edge connector (or the pin connectors on the switcher), you’ll need a Rainbow Power Cable from the CPU board to the Video board. Build to Order Because of the special nature of products that Vector Labs produces most are available on a build-to-order basis. Meaning that once an order is placed and payment has been received, we will build, test and ship that order. Warranty All Vector Labs products have a limited lifetime warranty from defects in workmanship. We cannot warranty our products from improper installation, power surges, lightning strikes, etc. All of our products have install guides in PDF format that you can download in advance of ordering so that you can determine if you have the technical skills to perform the install. We can, on a case-by-case basis, perform the install for you.

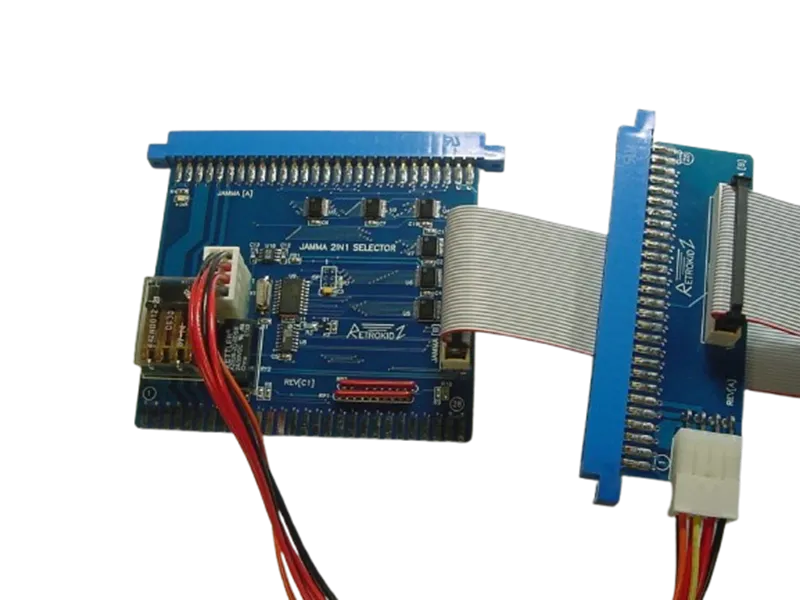

No need to buy additional adapters—this set comes with everything you need to switch between two JAMMA PCBs in your cabinet. (Game PCBs are not included.) Features - Simple to install Comes with both adapters! Easy to switch between boards Powers 1 PCB at a time No need to go inside cabinet to change the harness from one PCB to the other Switches 5V power to each gameboard (again, one PCB at a time) Coin Up option — press P2, then move the joystick up or down to add credits Change game boards — hold P2 Start and then press P1 Start Just the FAQ's What’s included? Do I need extra adapters? Everything needed to switch between two JAMMA PCBs is included— it comes with both adapters. Game PCBs are not included. How do I switch between game boards? Hold P2 Start, then press P1 Start. No need to open the cabinet or move harnesses. Does it power both boards at the same time? No. The switcher powers one PCB at a time and switches the 5V supply between them. Is installation difficult? Installation is simple, and switching between boards is straightforward once installed. How do I add credits without opening the cabinet? Use the built-in Coin Up option: press P2, then move the joystick up or down to add credits. Do I need to open the cabinet to change harnesses? No. The switcher handles input/power routing so you don’t need to change the harness from one PCB to the other. Build to Order Because of the special nature of products that Vector Labs produces most are available on a build-to-order basis. Meaning that once an order is placed and payment has been received, we will build, test and ship that order. Warranty All Vector Labs products have a limited lifetime warranty from defects in workmanship. We cannot warranty our products from improper installation, power surges, lightning strikes, etc. All of our products have install guides in PDF format that you can download in advance of ordering so that you can determine if you have the technical skills to perform the install. We can, on a case-by-case basis, perform the install for you.

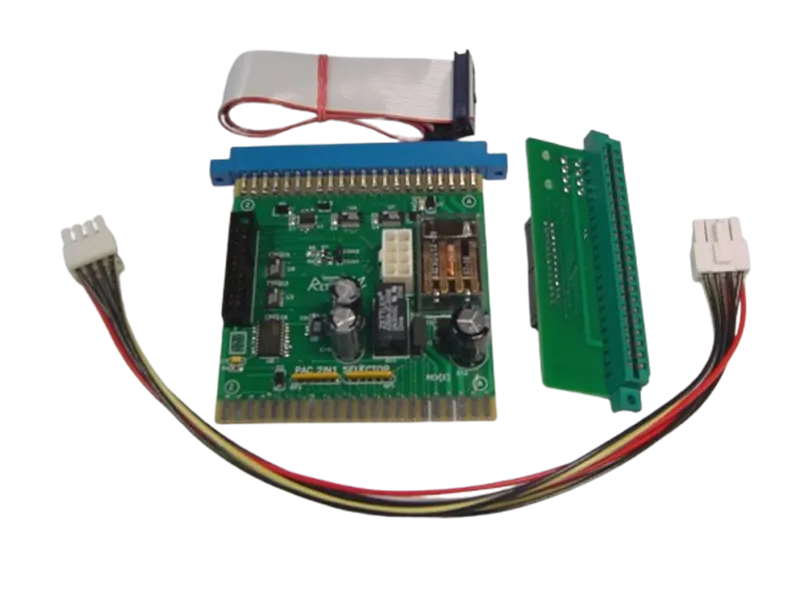

No need to buy additional adapters—this set comes with everything you need to switch between two Pacman PCBs in your cabinet. (Game PCBs are not included.)You need to select which second PCB you will be using with this switcher. Use the drop down selection above. You can now have an easy way to install a Jr Pacman Field PCB or Super Pacman PCB inside your Pacman or Ms Pacman arcade cabinet! Features - Simple to install Comes with both adapters! Easy to switch between boards Powers 1 PCB at a time No need to go inside cabinet to change the harness from one PCB to the other Switches 5V power to each gameboard (one PCB at a time) Coin Up option — press P2 and tap the joystick up to add credits Change game boards — hold P2 and tap joystick left for PCB 1 or right for PCB 2 Just the FAQ's What’s included? Do I need extra adapters? Everything needed to switch between two Pacman PCBs is included— it comes with both adapters. Game PCBs are not included. How do I switch between the two boards? Hold P2, then tap the joystick left to select PCB 1 or right to select PCB 2. How do I add credits without opening the cabinet? Use the Coin Up option: press P2 and tap the joystick up to add credits. Does it power both boards at the same time? No. The switcher powers one PCB at a time and switches the 5V line to the selected board. Do I need to open the cabinet to change harnesses? No. The switcher handles input and power routing so you don’t need to move harnesses. Is installation difficult? Installation is simple, and switching between boards is straightforward once installed. Build to Order Because of the special nature of products that Vector Labs produces most are available on a build-to-order basis. Meaning that once an order is placed and payment has been received, we will build, test and ship that order. Warranty All Vector Labs products have a limited lifetime warranty from defects in workmanship. We cannot warranty our products from improper installation, power surges, lightning strikes, etc. All of our products have install guides in PDF format that you can download in advance of ordering so that you can determine if you have the technical skills to perform the install. We can, on a case-by-case basis, perform the install for you.

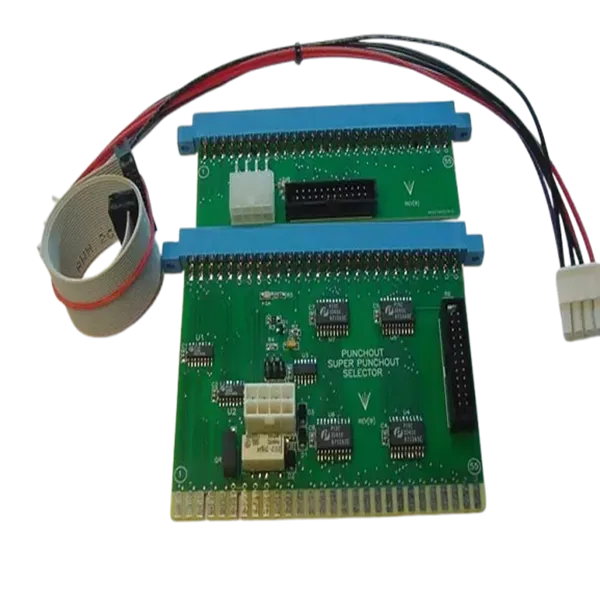

No need to buy additional adapters—this set comes with everything you need to switch between two Nintendo Punch-Out!! & Super Punch-Out!! PCBs in your cabinet. (Game PCBs are not included.) Features - Simple to install Comes with both adapters! Easy to switch between boards Powers 1 PCB at a time No need to go inside cabinet to change the harness from one PCB to the other Switches 5V power to each gameboard (one PCB at a time) Coin Up option — press RBLOW and then tap KO BLOW to add credits Change game boards — hold LBLOW and then tap KO BLOW Just the FAQ's What’s included? Do I need extra adapters? Everything needed to switch between two Nintendo Punch-Out!!/Super Punch-Out!! PCBs is included— it comes with both adapters. Game PCBs are not included. How do I switch between the two boards? Hold LBLOW, then tap KO BLOW to change the active PCB. How do I add credits without opening the cabinet? Use the Coin Up shortcut: press RBLOW and then tap KO BLOW to add credits. Does it power both boards at once? No. The switcher powers one PCB at a time and switches the 5V line to the selected board. Do I need to open the cabinet to change harnesses? No. The switcher handles input and power routing so you don’t need to move harnesses. Is installation difficult? Installation is simple, and switching between boards is straightforward once installed. Build to Order Because of the special nature of products that Vector Labs produces most are available on a build-to-order basis. Meaning that once an order is placed and payment has been received, we will build, test and ship that order. Warranty All Vector Labs products have a limited lifetime warranty from defects in workmanship. We cannot warranty our products from improper installation, power surges, lightning strikes, etc. All of our products have install guides in PDF format that you can download in advance of ordering so that you can determine if you have the technical skills to perform the install. We can, on a case-by-case basis, perform the install for you.
Star Wars / Empire Strikes Back 12K VRAM Upgrade The Star Wars / Empire Strikes Back 12K VRAM Upgrade is a reliable, plug-and-play solution that replaces the six 2K × 8 VRAM SRAM chips on your Atari Star Wars vector PCB. This modern upgrade reduces failure points, improves long-term reliability, and keeps your classic game running smoothly for years to come. Features · Compatibility · Installation Notes · FAQ Key Features Drop-in module replaces six 2K×8 VRAM SRAMs (12K total). Plug-and-play on socketed boards—no ROM or wiring changes. Modern components improve stability and longevity. Reduces heat and common failure points in the VRAM section. Compatibility Atari Star Wars (1983) and The Empire Strikes Back (1985) vector arcade PCBs/cabinets using the standard 12K VRAM section. Installation Notes Power off and discharge the cabinet before service; observe ESD precautions. Align the module with the VRAM positions and press firmly into the sockets. No soldering required if your original VRAM chips are socketed; if not, sockets must be installed by a qualified technician. FAQ Do I need to modify the board? No. On socketed boards the module drops in—no wiring or ROM changes. Will this change gameplay or graphics? No. It’s a reliability upgrade only; gameplay and timing remain original. What issues does this address? Replaces six aging VRAM chips that commonly cause intermittent video faults, instability, or no-boot conditions.

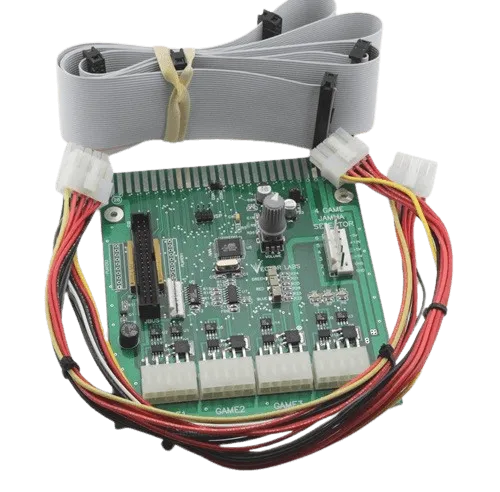

JAMMA Multi-PCB Switcher (Up to 4 Boards) Lets you play up to four JAMMA or other PCBs in your vertical or horizontal monitor JAMMA cabinet. Solid-state switching provides quiet, reliable operation. Features · Compatible Adapters · Install Guide · Build to Order · Warranty · FAQs Features Lets you play up to four JAMMA or other PCBs in a vertical or horizontal JAMMA cabinet. Solid-state switching for quiet and reliable operation. Compatible Adapters Can use a mix of up to four of the adapter boards: JAMMA adapter Nintendo adapter Vs. Unisystem adapter PC10 adapter …and more! Install Guide Build to Order Because of the special nature of products that Vector Labs produces, most are available on a build-to-order basis. Once an order is placed and payment has been received, we will build, test, and ship that order. Warranty All Vector Labs products have a limited lifetime warranty against defects in workmanship. We cannot warranty products against improper installation, power surges, lightning strikes, etc. All products have install guides in PDF format that you can download in advance of ordering to determine if you have the technical skills to perform the install. We can, on a case-by-case basis, perform the install for you. FAQs How many PCBs can this switcher handle? Up to four PCBs at once in a JAMMA cabinet. Can I mix non-JAMMA boards? Yes. Use the appropriate adapters (e.g., Nintendo, Vs. Unisystem, PC10). You can mix any combination of up to four adapters. Does it work in vertical and horizontal cabinets? Yes. It supports both vertical and horizontal monitor JAMMA cabinets. Do I need a separate power supply? No separate supply is usually required. Use your cabinet’s standard JAMMA PSU, ensuring it’s in spec for the total load of all connected boards. Will switching affect video or audio quality? The solid-state design is intended to maintain signal integrity for reliable video and audio performance. How do I switch between games? Follow the method described in the install guide (selector wiring/harness as documented). Always power down before changing wiring. Where can I find the install guide? Use the red Install Guide button above to open the PDF in a new tab. What’s the warranty? See the Warranty section for details on coverage and exclusions.

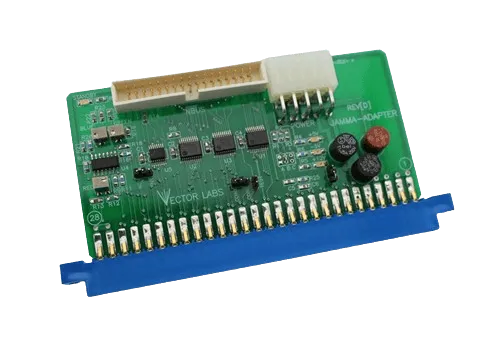

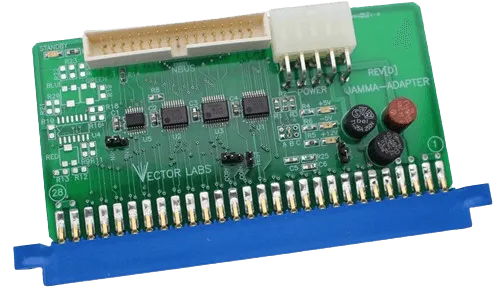

Vector Labs JAMMA Adapter This adapter plugs into any standard JAMMA board set and interfaces with the JAMMA 4-in-1 Selector for multi-PCB switching. Key Features Isolation ICs: Control-panel and video bus isolation prevents crosstalk between powered and unpowered board sets. Status at a glance: Power-status LEDs for quick diagnostics. Protection built in: Replaceable fuse protection included on every Vector Labs adapter. Compatibility Designed for use with standard JAMMA PCBs and the Vector Labs JAMMA 4-in-1 Selector.
Vector Labs JAMMA Adapter — Interface for VS / PC10 / DK 4-in-1 Selectors This adapter plugs into any standard JAMMA board set and interfaces with the VS 4-in-1, PC10 4-in-1, or DK 4-in-1 selectors for multi-PCB switching. Typical Use (Nintendo Classics) Commonly used with: Donkey Kong, Donkey Kong Jr., Donkey Kong 3, Popeye, and Mario Bros. Key Features Video inversion circuitry to render the image correctly on Nintendo monitors. Isolation ICs on control-panel and video bus to help prevent crosstalk between powered and unpowered board sets. Power-status LEDs for quick visual diagnostics. Replaceable fuse protection built into every Vector Labs adapter. Compatible Selectors VS 4-in-1 Selector PC10 4-in-1 Selector DK 4-in-1 Selector Notes Verify your cabinet/monitor type and selector model before ordering to ensure proper video orientation and wiring.

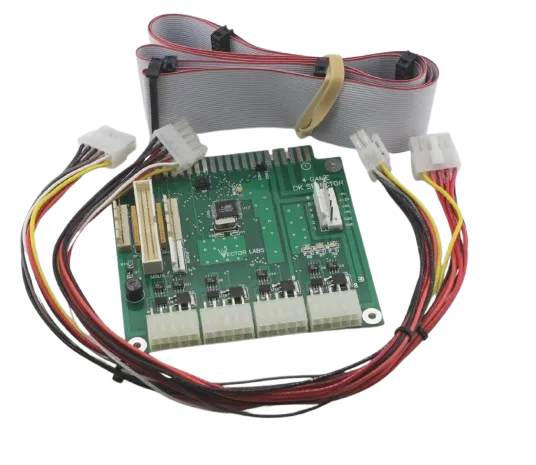

Let's you play up to four Nintendo pcb's in your Donkey Kong, DKJr or DK3 cabinetSolid state switching for quiet and reliable operationDownload Install GuideCan use a mix of up to four of the adapter boards -JAMMA adapterNintendo adapterBuild to OrderBecause of the special nature of products that Vector Labs produces most are available on a build-to-order basis. Meaning that once an order is placed and payment has been received, we will build, test and ship that order.WarrantyAll Vector Labs products have a limited lifetime warranty from defects in workmanship. We cannot warranty out products from improper installation, power surges, lightning strikes, etc. All of our products have install guides in PDF format that you can download in advance of ordering so that you can determine if you have the technical skills to perform the install. We can on a case-by-case basis perform the install for you.

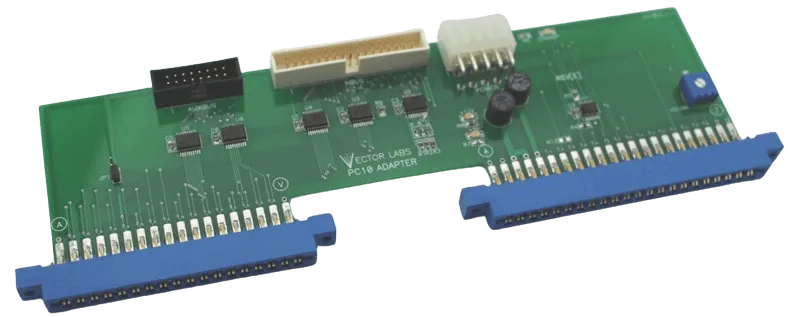

Vector Labs PlayChoice Adapter — Interface for 4-in-1 Selectors This adapter plugs into any PlayChoice (single-monitor) board set and interfaces with the VS Unisystem 4-in-1, PlayChoice 4-in-1, or JAMMA 4-in-1 selectors for multi-PCB switching. Key Features Isolation ICs: Control-panel and video bus isolation helps prevent crosstalk between powered and unpowered board sets. Status at a glance: Power-status LEDs for quick diagnostics. Built-in protection: Replaceable fuse protection included on every Vector Labs adapter. Compatible Selectors VS Unisystem 4-in-1 Selector PlayChoice 4-in-1 Selector JAMMA 4-in-1 Selector Compatibility Designed for Nintendo PlayChoice single-monitor PCBs used with Vector Labs selector systems. Verify your board and selector model for exact fit before ordering.

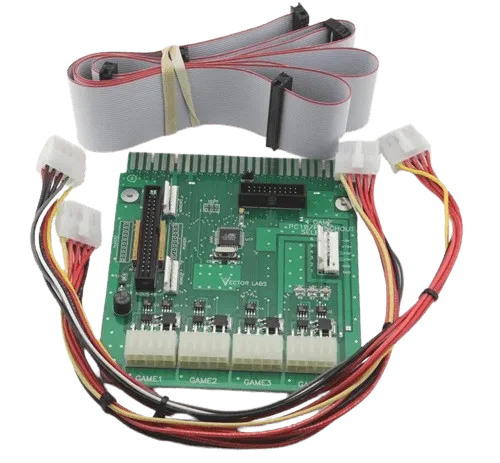

Let's you play up to four Playchoice or other pcb's in your single monitor PC10 cabinetSolid state switching for quiet and reliable operationDownload Install GuideCan use a mix of up to four of the adapter boards -JAMMA adapterNintendo adapter (Popeye/MB)vs Unisystem adapter PC10 adapterBuild to OrderBecause of the special nature of products that Vector Labs produces most are available on a build-to-order basis. Meaning that once an order is placed and payment has been received, we will build, test and ship that order.WarrantyAll Vector Labs products have a limited lifetime warranty from defects in workmanship. We cannot warranty out products from improper installation, power surges, lightning strikes, etc. All of our products have install guides in PDF format that you can download in advance of ordering so that you can determine if you have the technical skills to perform the install. We can on a case-by-case basis perform the install for you.

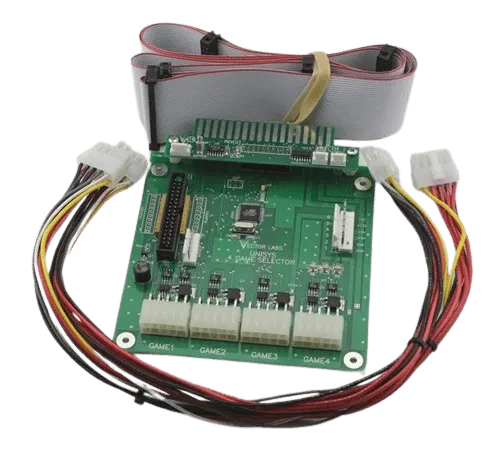

Let's you play up to four vs UniSystem or other Nintendo pcb's in your single monitor vs upright single monitor cabinetSolid state switching for quiet and reliable operationDownload Install Guide Can use a mix of up to four of the adapter boards -vs Unisystem adapterNintendo adapter (Popeye/MB)Build to OrderBecause of the special nature of products that Vector Labs produces most are available on a build-to-order basis. Meaning that once an order is placed and payment has been received, we will build, test and ship that order.WarrantyAll Vector Labs products have a limited lifetime warranty from defects in workmanship. We cannot warranty out products from improper installation, power surges, lightning strikes, etc. All of our products have install guides in PDF format that you can download in advance of ordering so that you can determine if you have the technical skills to perform the install. We can on a case-by-case basis perform the install for you.

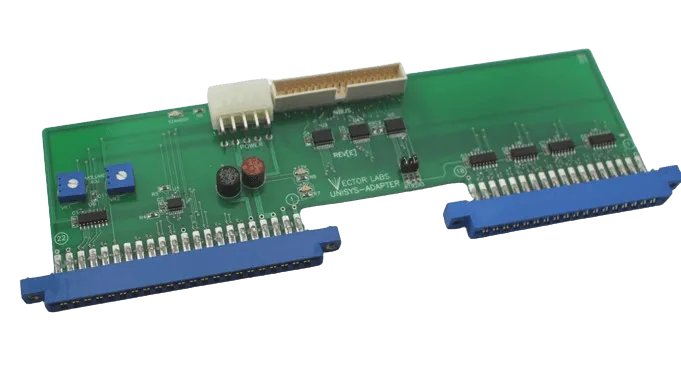

Vector Labs VS Adapter — Interface for 4-in-1 Selectors Plugs into any Nintendo VS (single-monitor) PCB and interfaces with the VS Unisystem 4-in-1, PlayChoice 4-in-1, or JAMMA 4-in-1 selectors for multi-PCB switching. Key Features Independent volume controls for both left and right audio channels. Isolation ICs on control-panel and video bus to prevent crosstalk between powered and unpowered boards. Power-status LEDs for quick diagnostics. Replaceable fuse protection included on every Vector Labs adapter. Compatible Selectors VS Unisystem 4-in-1 Selector PlayChoice 4-in-1 Selector JAMMA 4-in-1 Selector Compatibility Designed for VS single-monitor PCBs used with Vector Labs selector systems. Verify your board and selector model before ordering.
