Moon Patrol Free Play and High Score Save Kit
Product information "Moon Patrol Free Play and High Score Save Kit"
Moon Patrol Free Play and High Score Save Kit for Irem Arcade PCBs
Upgrade your original Moon Patrol arcade PCB with reliable free play, high score saving, attract sounds, practice mode support, and optional Wi-Fi leaderboard functionality while preserving authentic gameplay and original arcade hardware.
Designed specifically for original Irem hardware, this plug and play upgrade improves long-term reliability without changing gameplay timing, controls, sound, or the side-scrolling arcade gameplay collectors expect.
Start games without coins while still supporting Coin Up operation.
Permanently stores the Top 5 scores.
Start at selectable checkpoints to practice difficult sections.
Upload scores online to global arcade leaderboards.
Upgrade Your Moon Patrol Arcade Experience
Restore and enhance your original Moon Patrol arcade machine with a professionally designed Free Play and High Score Save Kit built specifically for authentic Irem arcade hardware.
Original boards often lose high scores, rely on aging components, or suffer from unstable resets. This upgrade modernizes your PCB while preserving the original gameplay, controls, timing, and side-scrolling lunar patrol gameplay that made Moon Patrol one of the most recognizable arcade classics.
Unlike multigame systems or reproduction boards, this kit keeps your original arcade PCB intact while improving long-term reliability for collectors, operators, and restoration projects.
Available Kit Options
Build your kit exactly how you want it. Choose between a Wi-Fi Enabled Kit or a Standard Save Kit.
Optional processor and socket upgrades are also available to simplify installation on original hardware.
Important Installation Notes
- Ensure your Z80 is socketed: Install a 40-pin socket if your CPU is soldered directly to the PCB
- Read the Moon Patrol Installation Guide before installation
Main Features
- Easy Install: No soldering, board modifications, or special wiring required
- Save Your Scores Forever: Uses reliable EEPROM instead of batteries or NVRAM

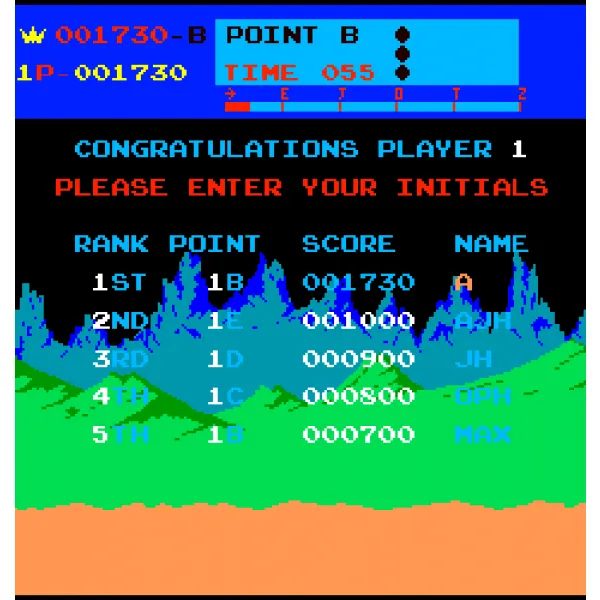

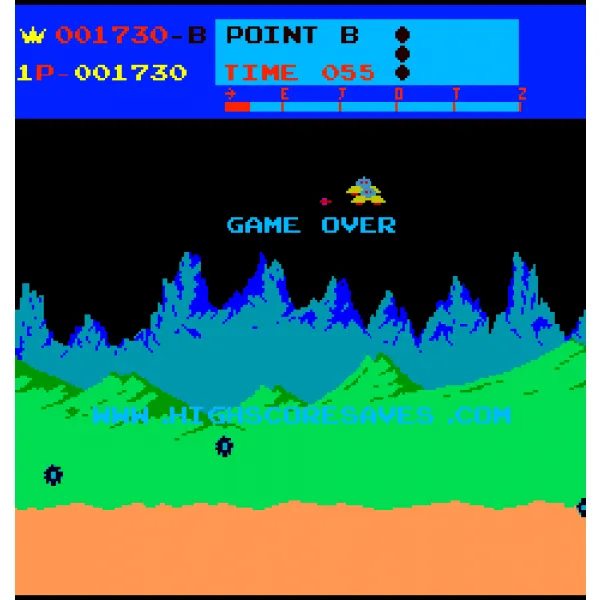

- High Score Save: Stores the Top 5 scores permanently
- Attract Sounds: Adjustable at 25%, 50%, or 100% attract-screen rotations
- Free Play: Start games without coins or opening the coin door
- Coin Up: Coins still supported if desired
- Attract Mode Protection: Helps reduce monitor burn-in from static screens

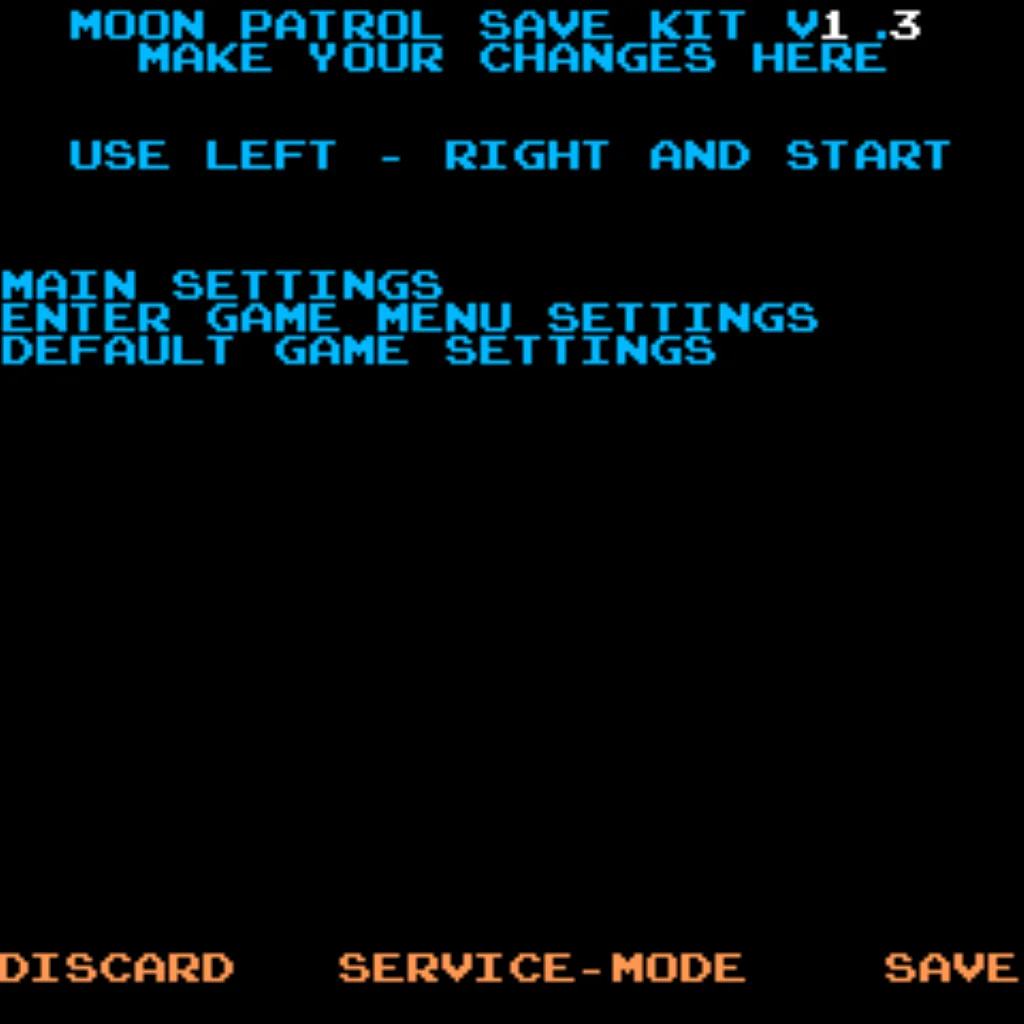

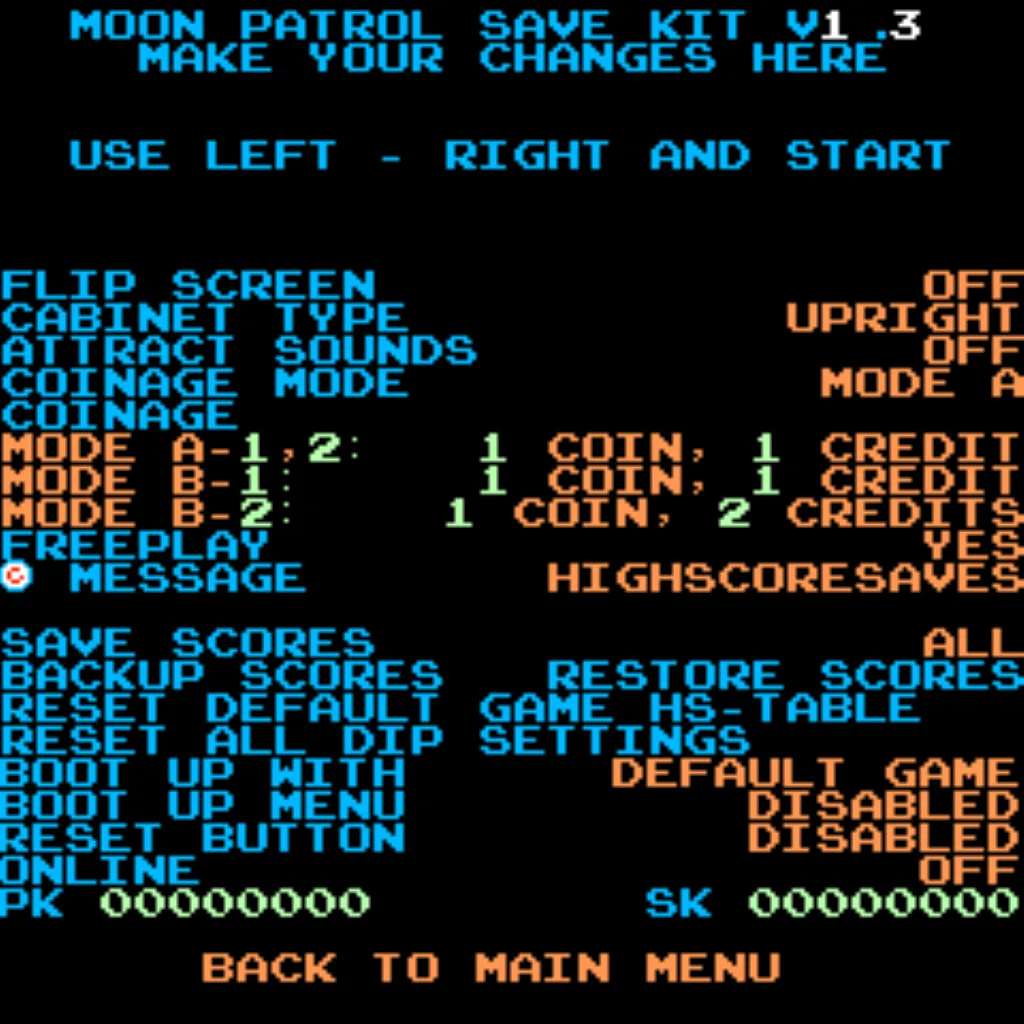

- Menu-Driven DIP Settings: Change settings on-screen without cabinet removal
- ROM Saver: Optionally remove original program ROMs to save power
- Cabinet Support: Works in Upright and Cocktail cabinets
Additional Features
- Backup and Restore: Back up high scores and restore later for parties or tournaments
- Separate Score Tables: Different high score saves for 2, 3, or 4 lives settings
- Reset Button: Restart a game without powering off the cabinet

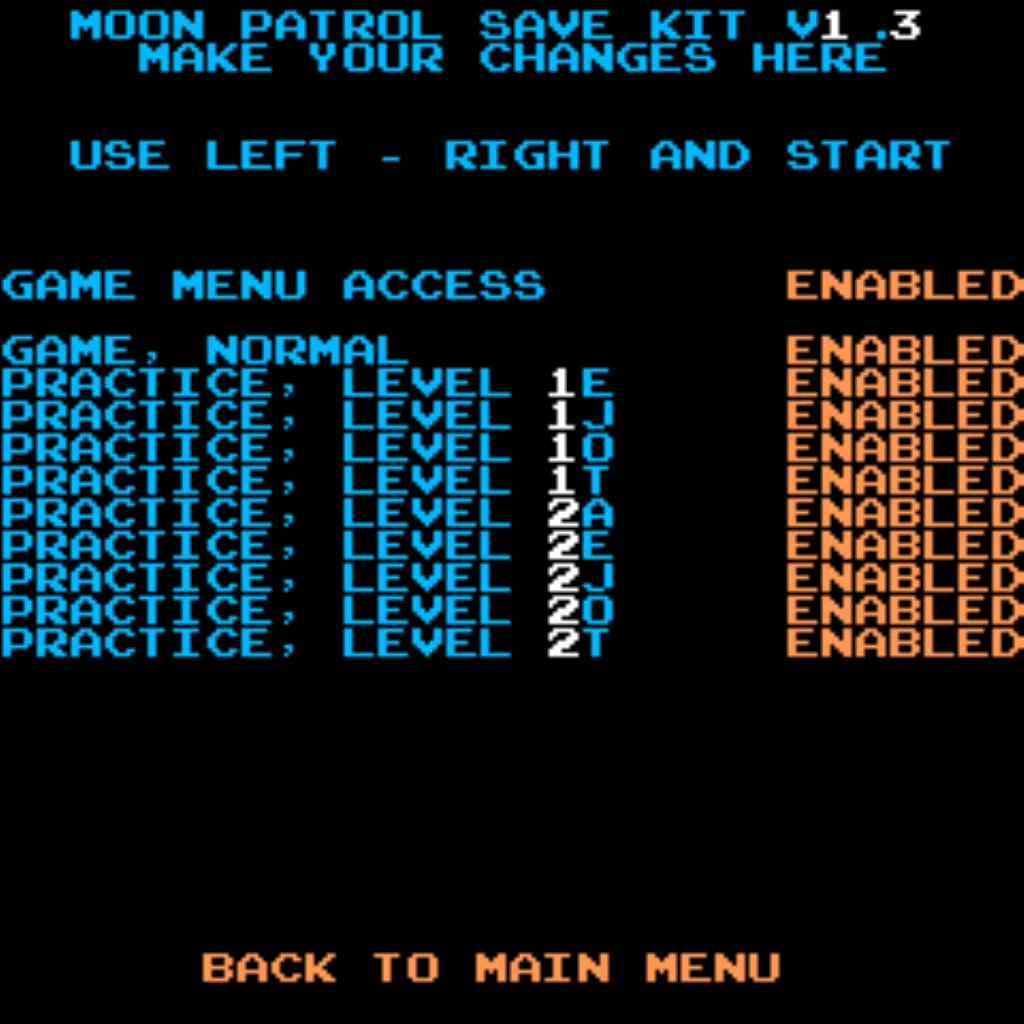

- Practice Mode: Start at selectable checkpoints for targeted practice

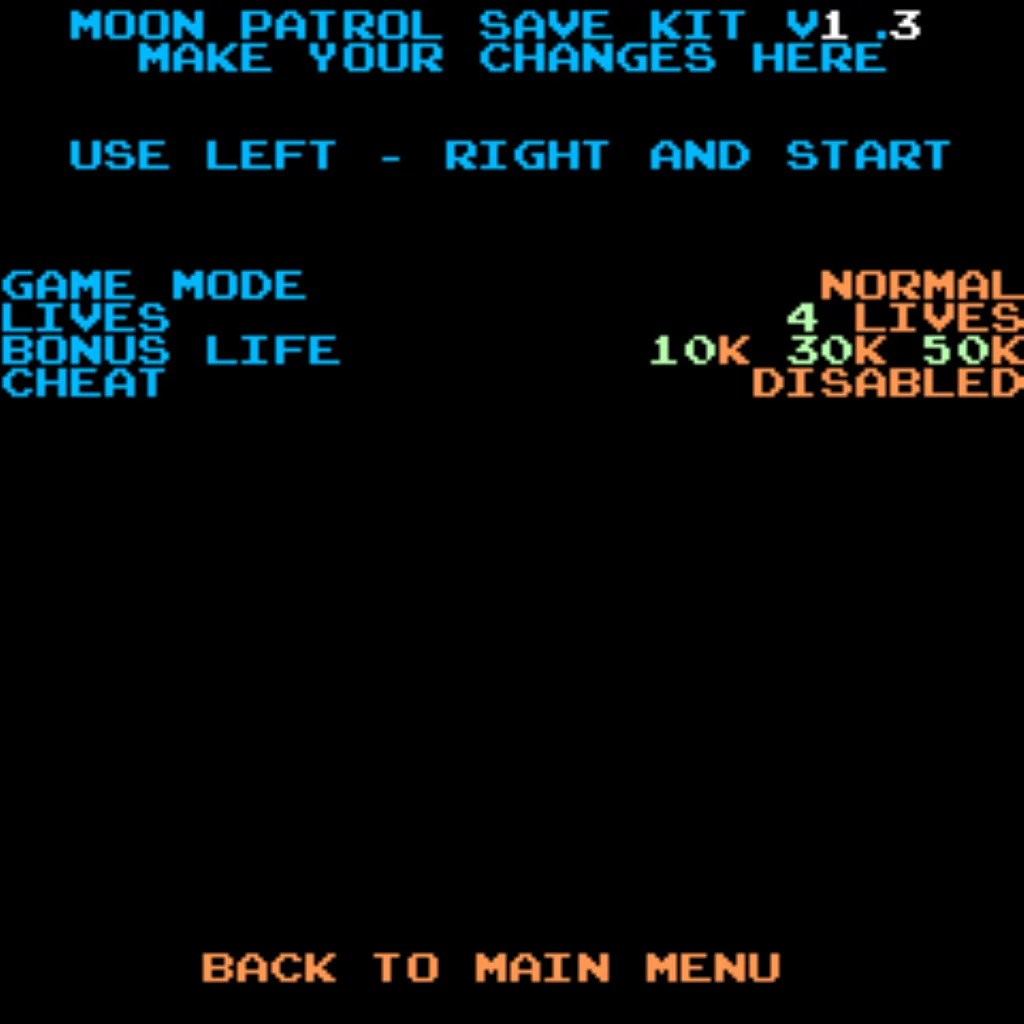

- Game Menu: Quickly select lives or practice levels
- Flip Screen: Full flip-screen support included
- RAM and ROM Tests: Built-in hardware diagnostic tests
- Free Play Behavior: Continue mode automatically disabled while Free Play is enabled
Installation Information
- Installation Difficulty: Easy
- Soldering Required: No, if CPU is socketed
- Processor Requirement: Requires a Z80 processor
- Socketed CPU Required: Install a 40-pin socket if needed
- Cabinet Compatibility: Upright and Cocktail supported
- Installation Guide: Download PDF Installation Guide
Optional Wi-Fi Features and Online Leaderboards
Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network.
Standard kits save scores locally to the PCB, while Wi-Fi kits add automatic online score syncing through the HighScoreSaves global leaderboard platform.
Moon Patrol Free Play and High Score Save Kit FAQ
Which CPU/socket do I need?
A socketed Z80 CPU is required. Install a 40-pin socket if your CPU is soldered directly to the PCB.
How many scores does the kit save?
Moon Patrol saves the Top 5 scores.
Does it support Free Play and coin operation?
Yes. Both Free Play and Coin Up are supported. Continue mode is disabled while Free Play is active.
Can I change DIP options without opening the cabinet?
Yes. The kit includes a menu-driven DIP settings interface directly on screen.
Is there a Practice Mode?
Yes. Practice Mode allows you to start at selectable checkpoints and practice difficult sections.
What is ROM Saver?
ROM Saver allows the kit to run the program directly so original program ROMs can optionally be removed.
Will it work in Cocktail cabinets and support flip screen?
Yes. The kit supports both Upright and Cocktail cabinets and includes a flip-screen option.
How do I reset the game without powering off the cabinet?
Enable the Reset Button option from the menu to instantly restart the game.
Where can I download the Moon Patrol installation guide?
Login
2 reviews
September 23, 2025 2:07 AM
Installed just fine & lots of options.
Moon Patrol seems to be the black sheep in the Williams lineup with a 3-board sandwich that the others don't have. This kit fits right next to the long sound board, maybe even a little too close on mine. I had to adjust the four mounting screws on the sound board to angle it a bit to make room but it's sturdy. The kit also extends past the bottom of the boards and can bump the coin box when the sandwich is positioned in its usual mount spot inside the cabinet. I fixed this by adjusting the position of the wood block on the near side of the boards (when looking in from the back) so the boards can't slide and bump the kit. Not a big deal and should be stable for life.
September 23, 2025 12:27 AM
Easy to install, makes it fun to play my game again
As my title says this is totally easy to install and it does make it fun to play my game again looking at the high scores and not having to coin up all the time. These are super high quality as well.
Level up with these!
Z80 8-Bit Microprocessor (40-Pin CPU) The Z80 is a classic 8-bit microprocessor widely used in arcade machines from the late 1970s through the 1980s. This processor served as the main CPU in many arcade PCBs, executing game code, processing player inputs, and coordinating communication with memory, sound hardware, and video circuitry. The Z80 became one of the most popular processors in arcade hardware due to its reliability and expanded instruction set compared to earlier CPUs. Because of its widespread use, the Z80 is commonly found in a variety of classic arcade games and remains an essential component when repairing or restoring vintage arcade boards. This processor uses a standard 40-pin DIP (Dual In-line Package) and installs directly into a compatible socket on the arcade PCB. Replacing a faulty CPU can often resolve boot failures, lockups, or other operational issues in aging arcade hardware. Key Features Z80 8-bit microprocessor Standard 40-pin DIP package Common CPU used in many classic arcade PCBs Handles core game logic, timing, and system control Ideal for arcade PCB troubleshooting, repair, and restoration Used In Arcade Games Such As Donkey Kong Galaga Donkey Kong Jr. Frogger Galaxian Dig Dug Xevious …and many other classic arcade titles Installation Notes Installs into a standard 40-pin DIP socket on compatible arcade PCBs Ensure correct notch orientation when installing the CPU Recommended for technicians performing arcade board repair or restoration *Manufacturer brands or markings may vary.
40-Pin Socket Specifications This 40-pin DIP socket is designed for reliable installation of integrated circuits and arcade daughter boards that use a standard 40-pin layout. Using a socket allows the chip or module to be easily removed or replaced without soldering directly to the PCB, helping protect the board during upgrades, repairs, or troubleshooting. Pin Pitch: 2.54 mm (0.100″) standard DIP spacing Total Pins: 40 pins arranged in two rows (2×20) Mounting Type: Through-hole (THT) for secure soldered installation Compatibility: Designed for standard 40-pin DIP integrated circuits and modules Installation Benefit: Allows ICs to be inserted or removed without repeated soldering Use Case: Ideal for arcade PCB upgrades, ROM installations, and repair work The standard 2.54 mm (0.100″) pin spacing matches the layout used on most classic arcade PCBs and DIP integrated circuits. Once soldered to the board, the socket provides a stable connection while allowing the chip to be safely inserted and removed when needed.
