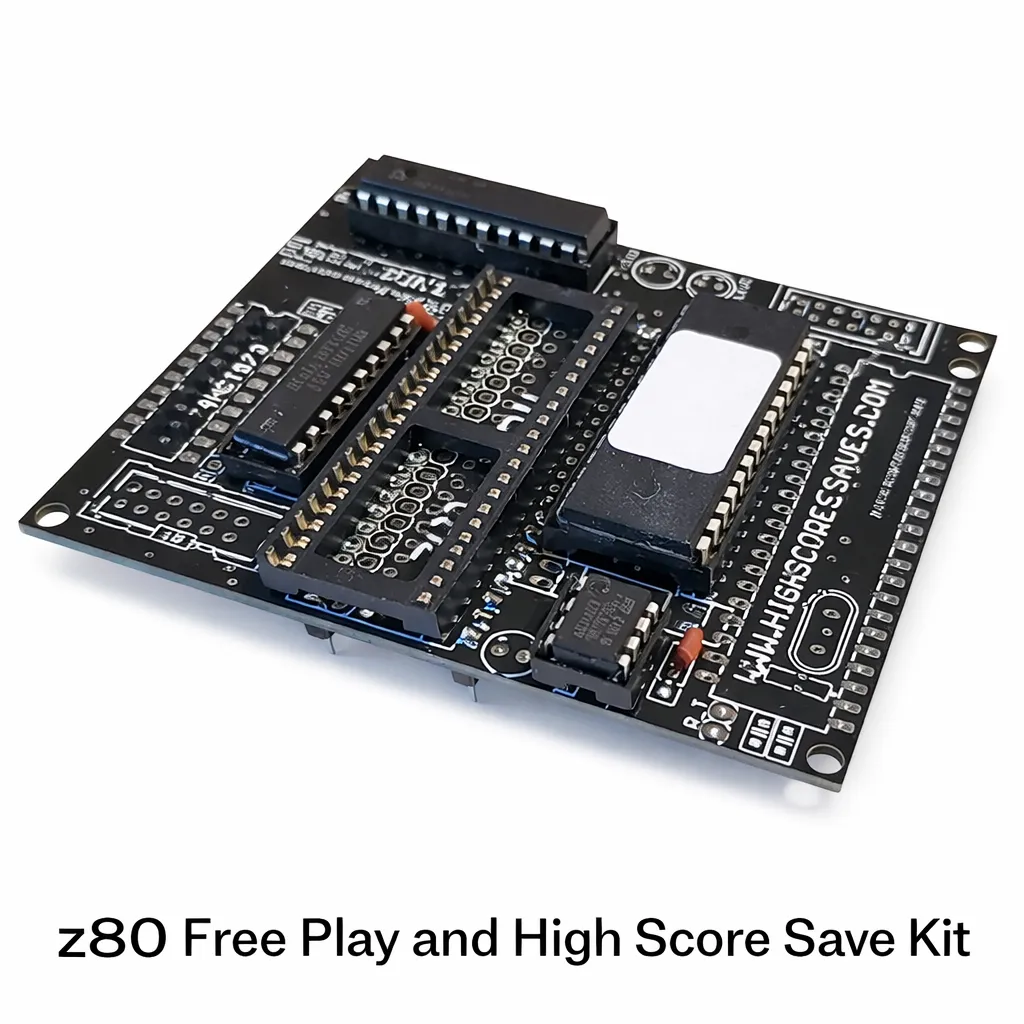

1942 Free Play and High Score Save Kit
$77.00
Product information "1942 Free Play and High Score Save Kit"
Customize Your 1942 Free Play and High Score Save Kit

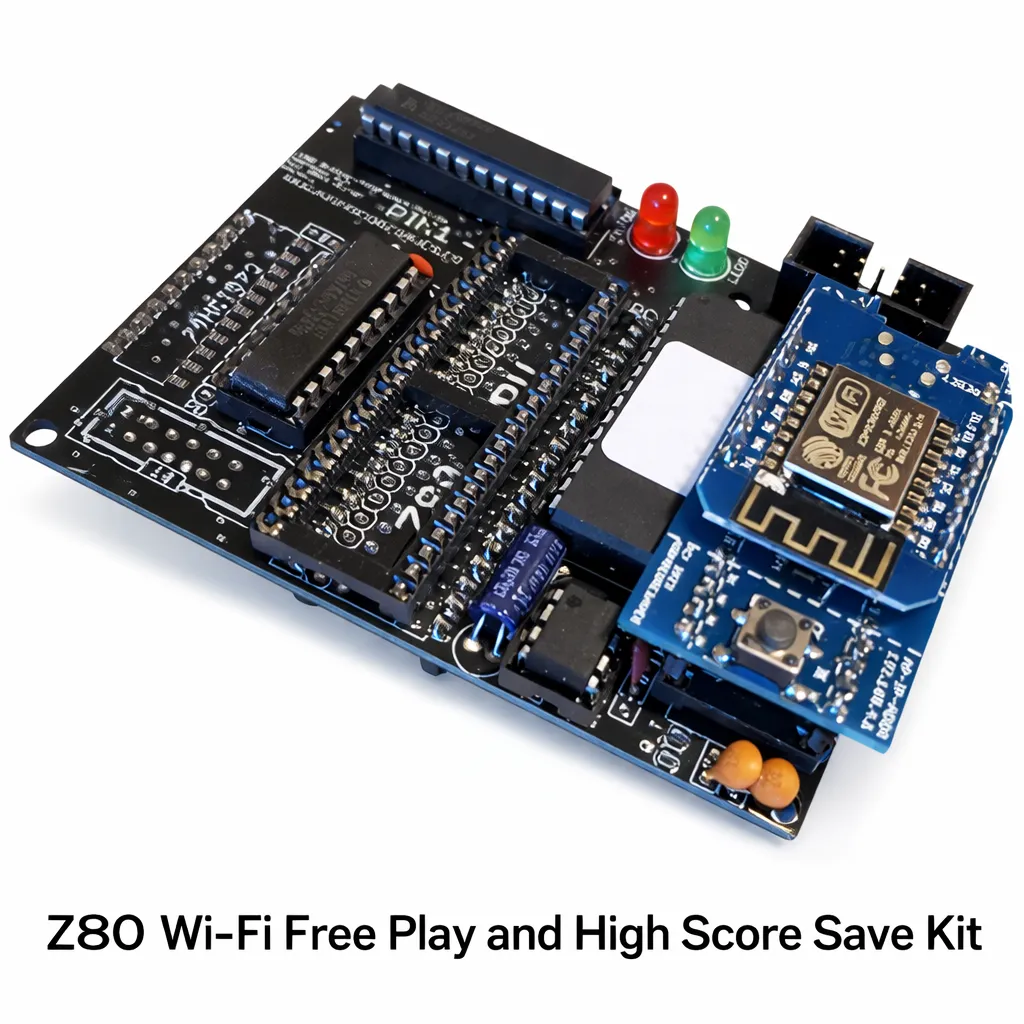

Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit. You can also add a processor and/or a 40-pin socket—optional but recommended for easy installation.
Learn More About This Kit
Click a button to view details, tips, or the installation guide.
Main Features
- Easy installation: No soldering, board modifications, or special wiring—just plug and play.
- Permanent score saving: Reliable serial EEPROM storage (no batteries or failure-prone NVRAM).

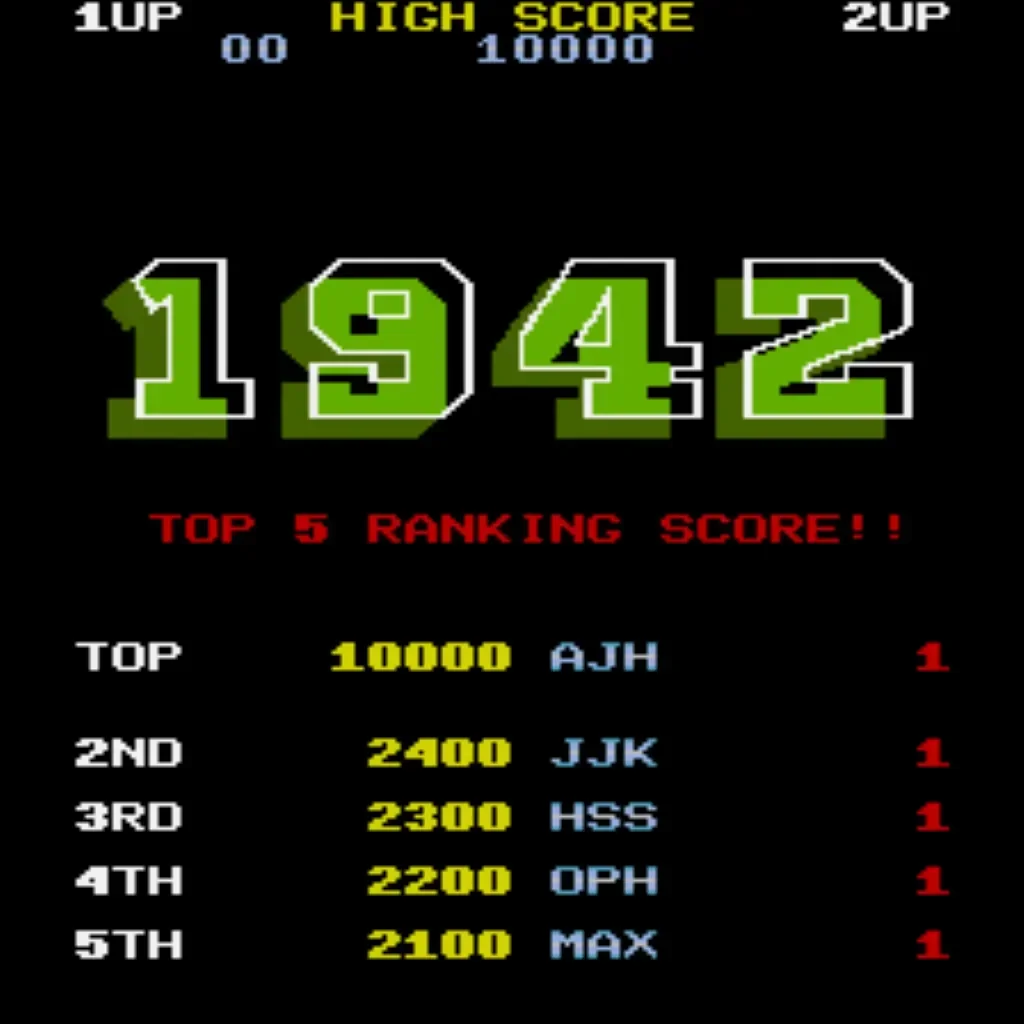

- High score tracking: Saves the Top 5 scores on screen and Top 25 total scores.
- Attract sounds: Play sounds at 25%, 50%, or 100% of attract-screen rotations.
- Freeplay mode: Coin-free play with optional coin operation.

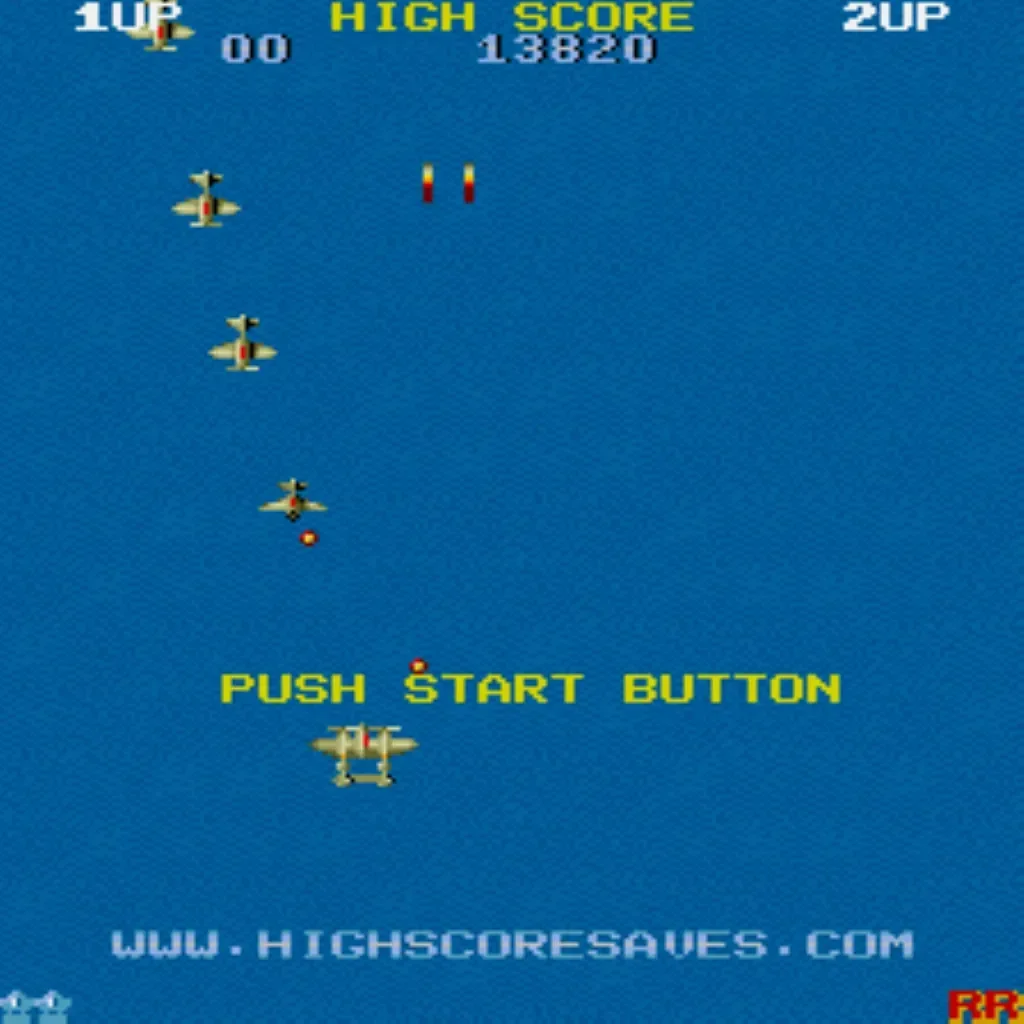

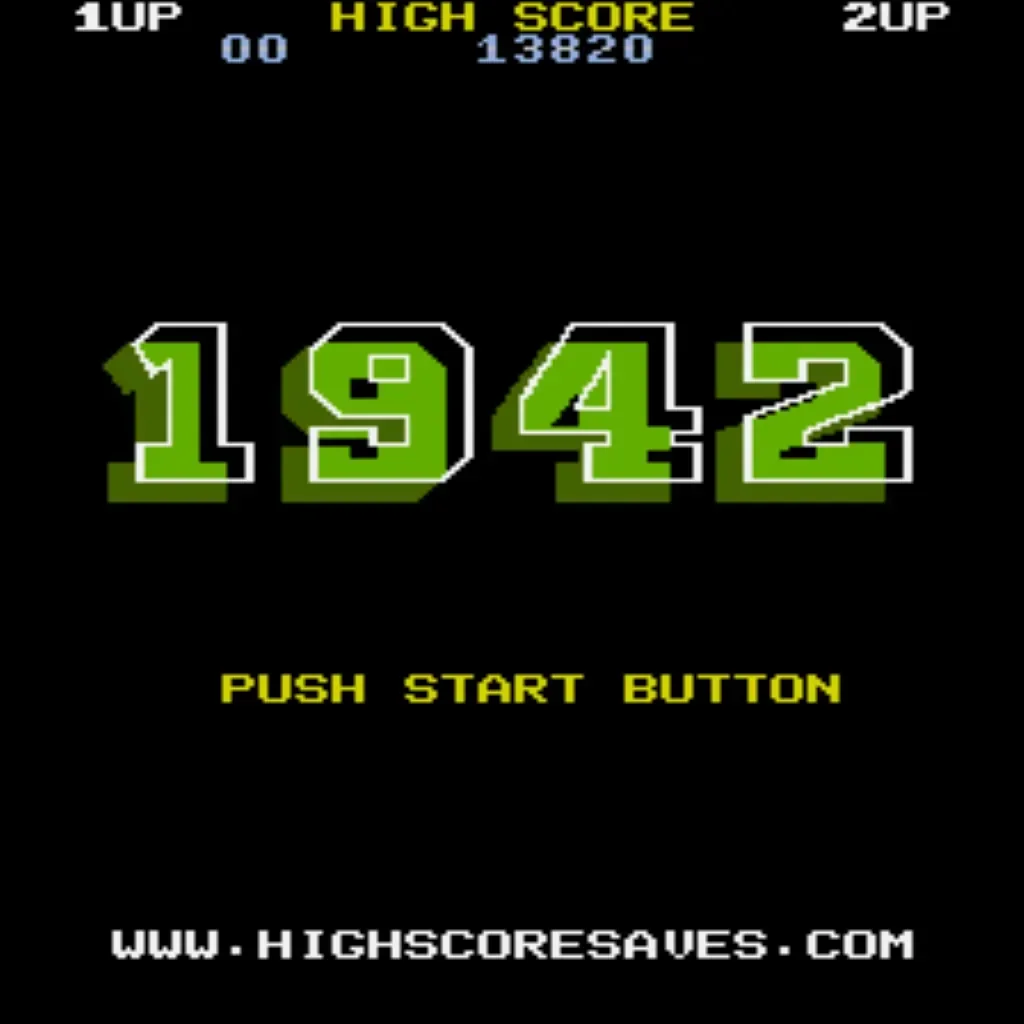

- Attract mode protection: Reduces screen burn by eliminating static screens.

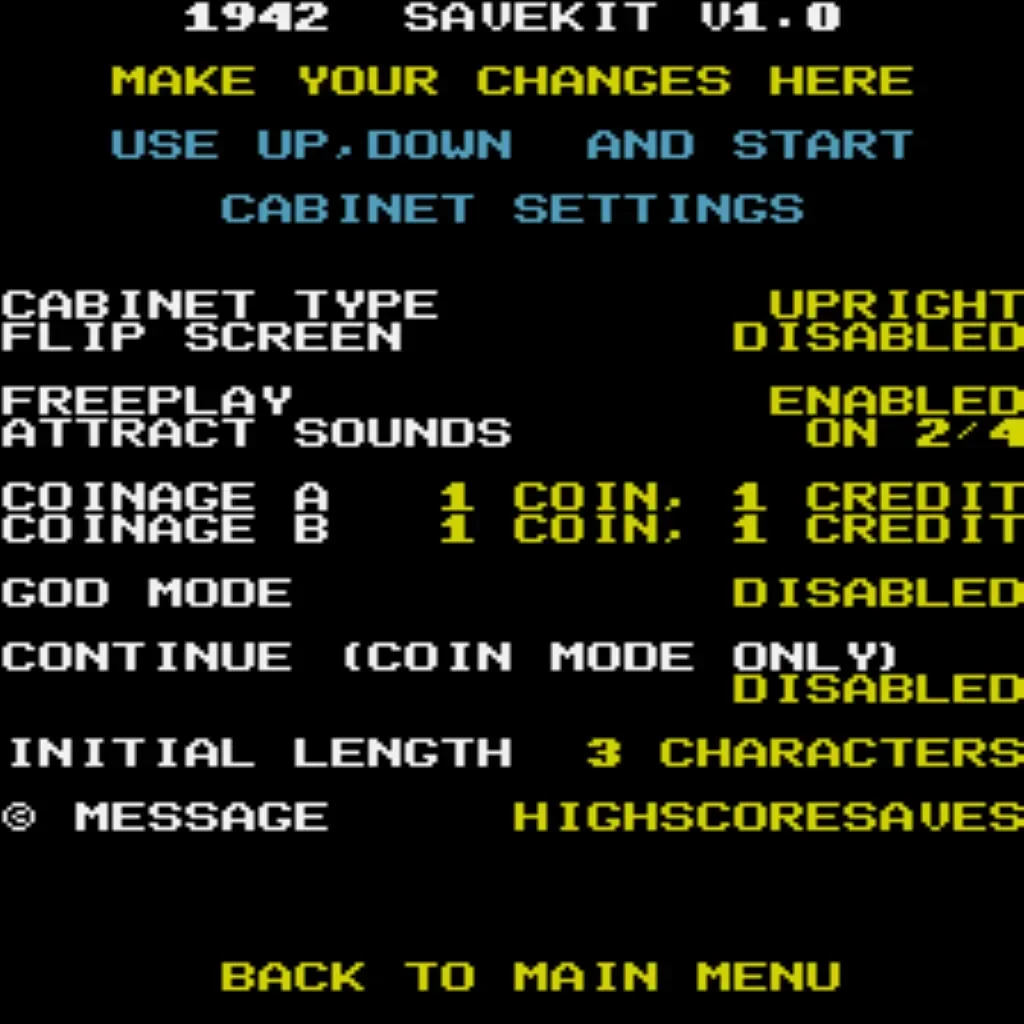

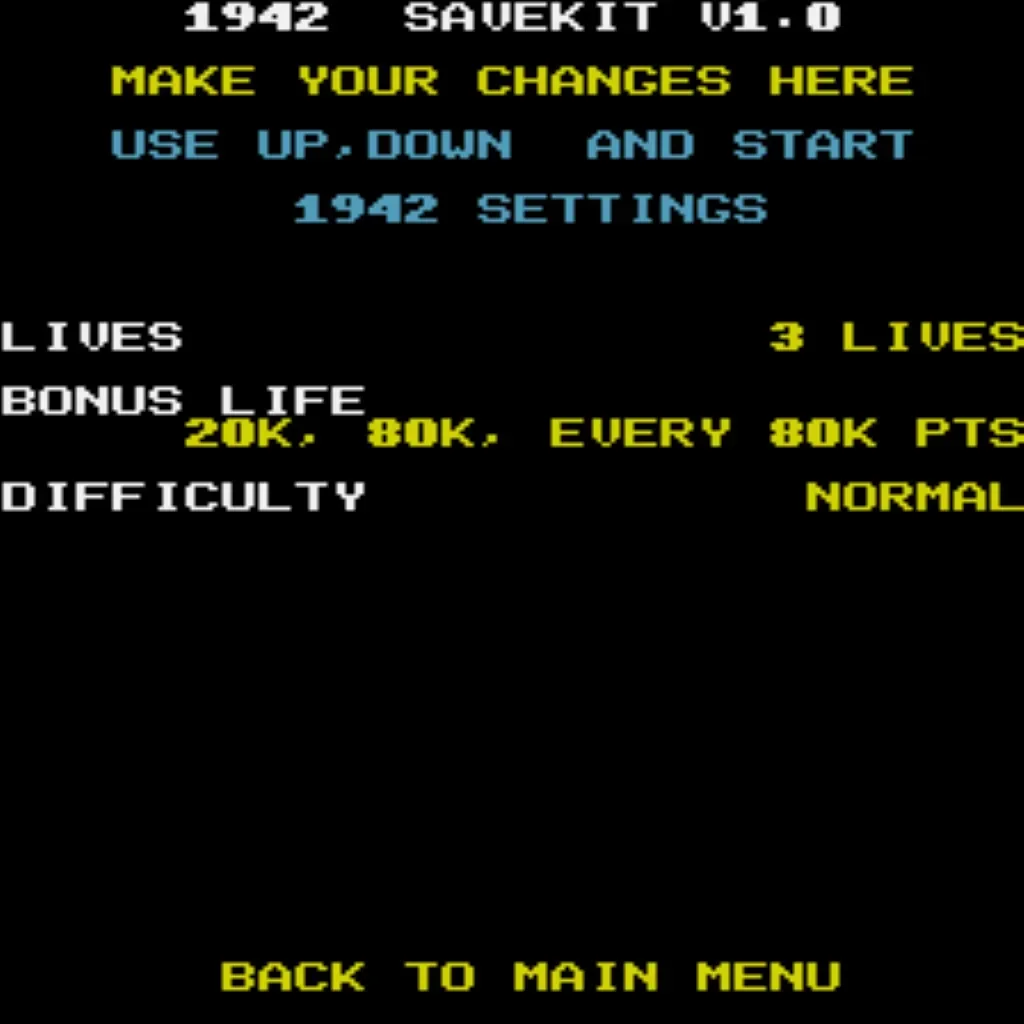

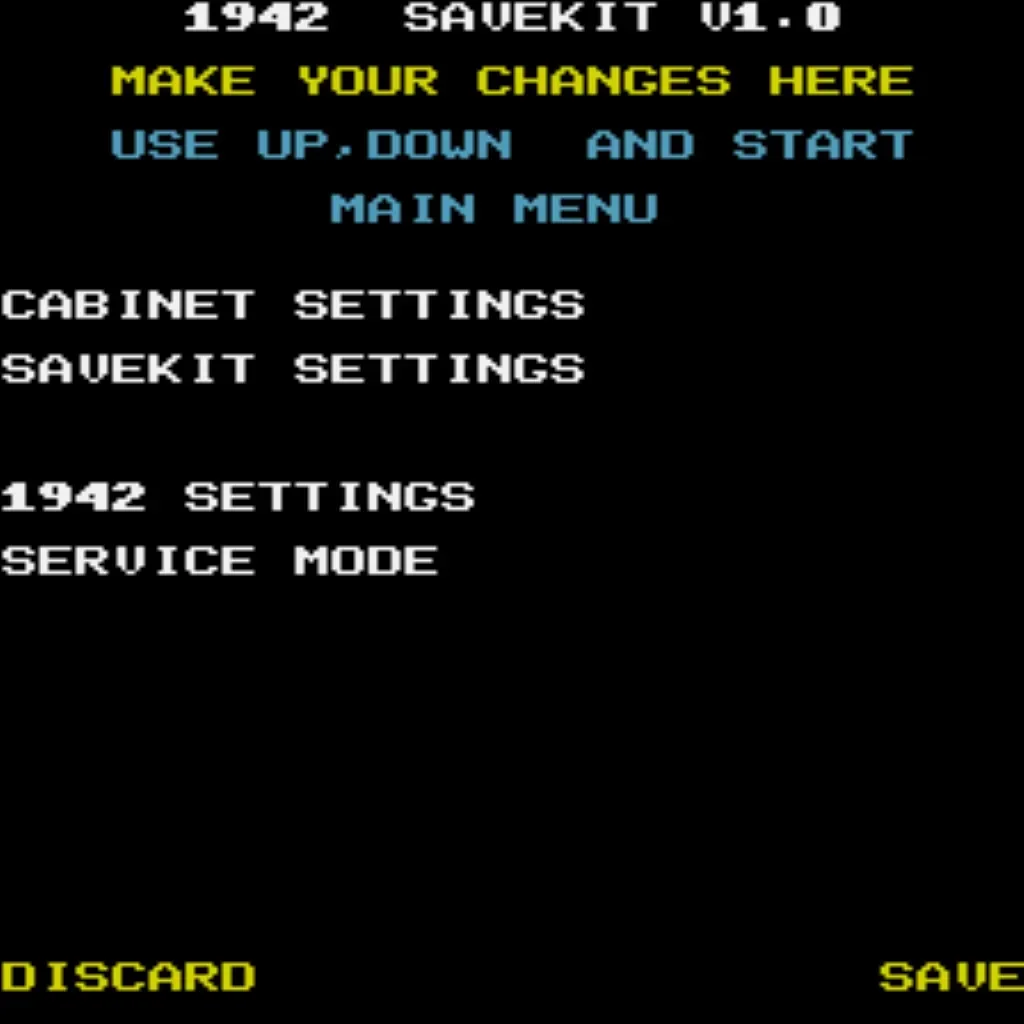

- Menu-driven DIP settings: Change game options without opening the cabinet.
- ROM saver: Optionally remove original program ROMs to reduce power use.
- Cabinet compatibility: Works in Upright and Cocktail arcade cabinets.
Additional Features

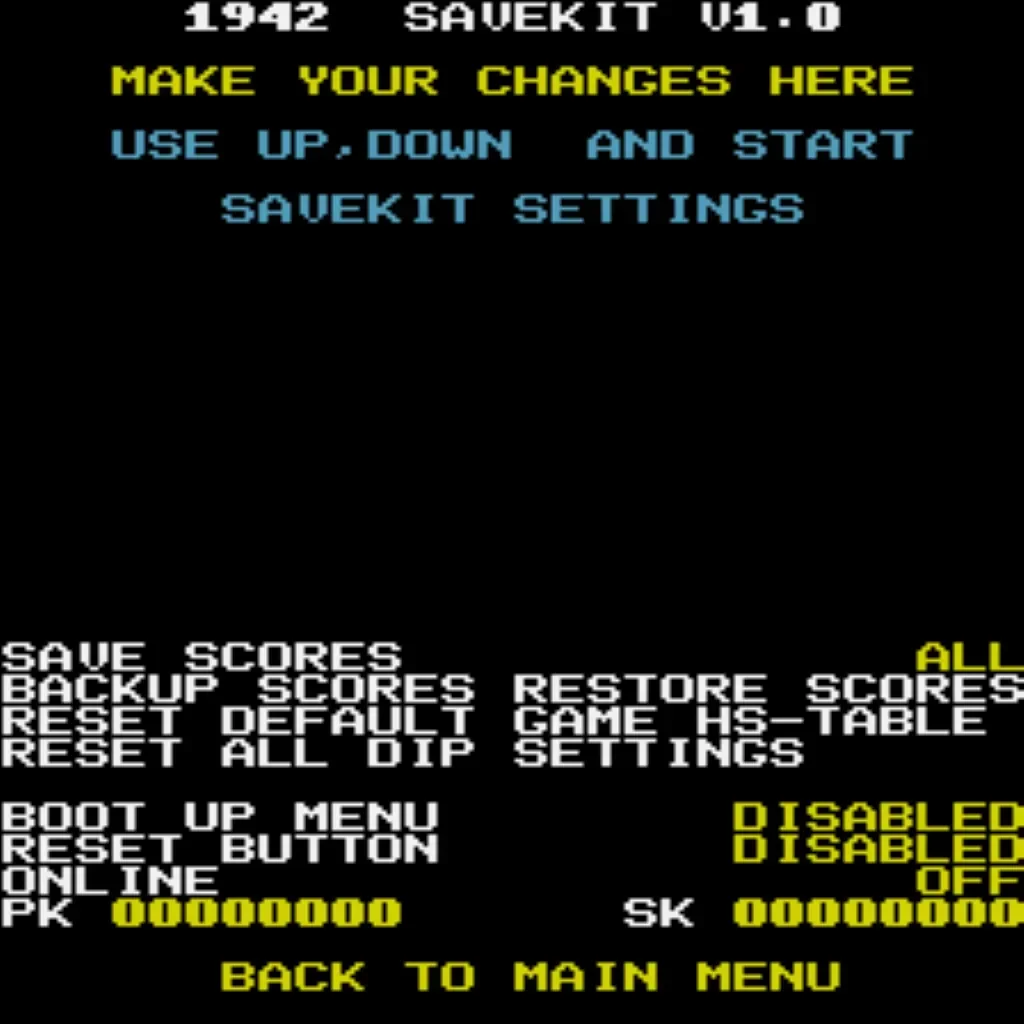

- Backup & restore: Save and reload high scores—great for game-room parties.
- Separate score tables: Unique high-score tables based on lives selected (1&3 or 2&5 lives).
- God Mode: Practice endlessly (scores are not saved in this mode).
Important Installation Notes
- Socketed Z80 required: If your Z80 isn’t socketed, install a 40-pin socket for this kit to work.
- Read the 1942 Free Play and High Score Save Kit Installation Guide / Manual (PDF) before setup.
Just the FAQ's
Is installation truly plug-and-play?
Yes. No soldering or board mods are required. Ensure your Z80 is socketed (or add a 40-pin socket).
How many scores are saved?
The kit saves the Top 5 scores on-screen and up to 25 total scores.
What’s the difference between Wi-Fi and Standard kits?
The Wi-Fi kit uploads scores online and syncs to your personal page; the Standard kit saves locally only.
What is God Mode?
God Mode allows endless practice without losing lives. Note: scores are not saved in this mode.
Where can I download the Installation Guide?
Download the 1942 Free Play and High Score Save Kit Setup Instructions / Installation Manual (PDF)
